Hemoglobin Concentration Determination Hemoglobin Hb l Hemoglobin Hb

Hemoglobin Concentration Determination

Hemoglobin (Hb) l Hemoglobin (Hb) is the standard abbreviation for hemoglobin, the oxygencarrying pigment and predominant protein in the red blood cells. l Hemoglobin is the protein that carries oxygen from the lungs to the tissues and carries carbon dioxide from the tissues back to the lungs.

Structure of hemoglobin l A hemoglobin molecule consists of four polypeptide chains: two alpha chains, each with 141 amino acids and two beta chains, each with 146 amino acids. The protein portion of each of these chains is called "globin". l The α and β globin chains are very similar in structure and each one of them is liked with a heme molecule.

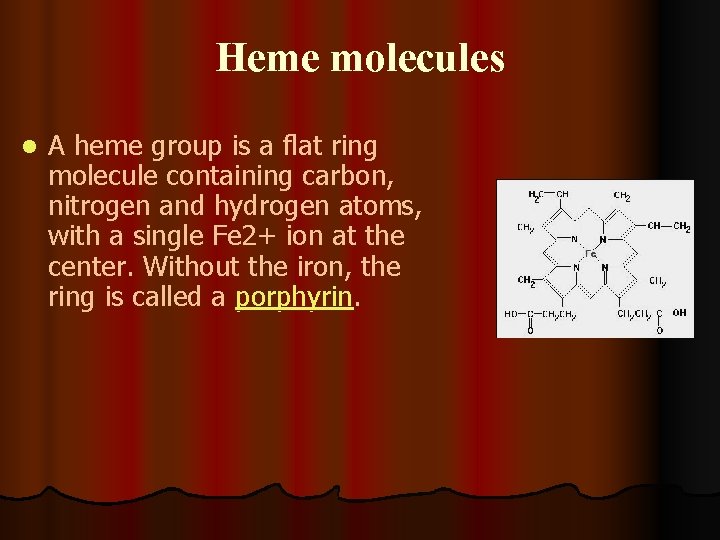

Heme molecules l A heme group is a flat ring molecule containing carbon, nitrogen and hydrogen atoms, with a single Fe 2+ ion at the center. Without the iron, the ring is called a porphyrin.

Normal Ranges l In the very common laboratory test for hemoglobin (Hb), it is measured as total hemoglobin and the result is expressed as the amount of hemoglobin in grams (gm) per deciliter (dl) of whole blood, a deciliter being 100 milliliters. l The normal ranges for hemoglobin depend on: l The age. l Altitude l The sex of the person.

The normal ranges Newborns One (1) week of age One (1) month of age 17 -22 gmdl 17 -22 gmdl 15 -20 gmdl 11 -15 gmdl Children Adult men Adult women Men after middle age Women after middle age 11 -13 gmdl 14 -18 gmdl 12 -16 gmdl 12. 4 -14. 9 gmdl 11. 7 -13. 8 gmdl • Normal values in an adult are 12 to 18 grams per deciliter (100 milliliters) of blood.

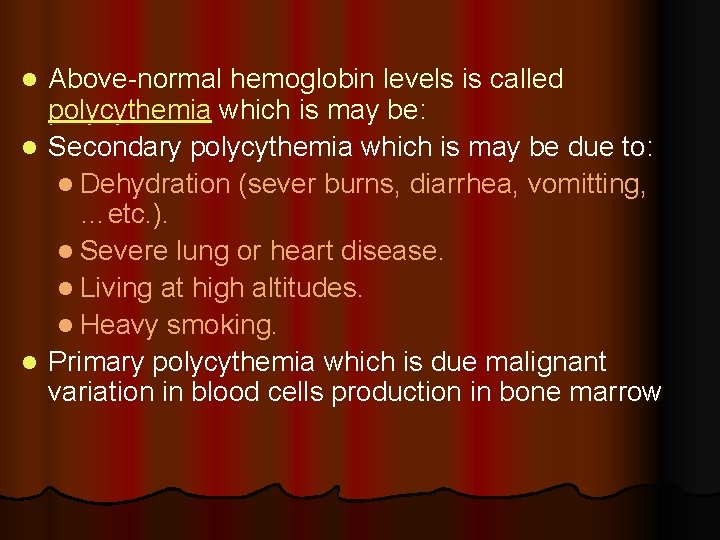

Above-normal hemoglobin levels is called polycythemia which is may be: l Secondary polycythemia which is may be due to: l Dehydration (sever burns, diarrhea, vomitting, …etc. ). l Severe lung or heart disease. l Living at high altitudes. l Heavy smoking. l Primary polycythemia which is due malignant variation in blood cells production in bone marrow l

l Below-normal hemoglobin levels may lead to anemia that can be the result of: l Iron deficiency or deficiencies in essential vitamins of other elements, such as B 12, folate, B 6. l Inherited hemoglobin defects, such as sickle cell anemia or Thalassaemia. l Other inherited defects affecting the red blood cells. l Excessive bleeding. l Excessive destruction of red blood cells. l Kidney disease. l Bone marrow failure or aplastic anemia. l Cancers that affect the bone marrow.

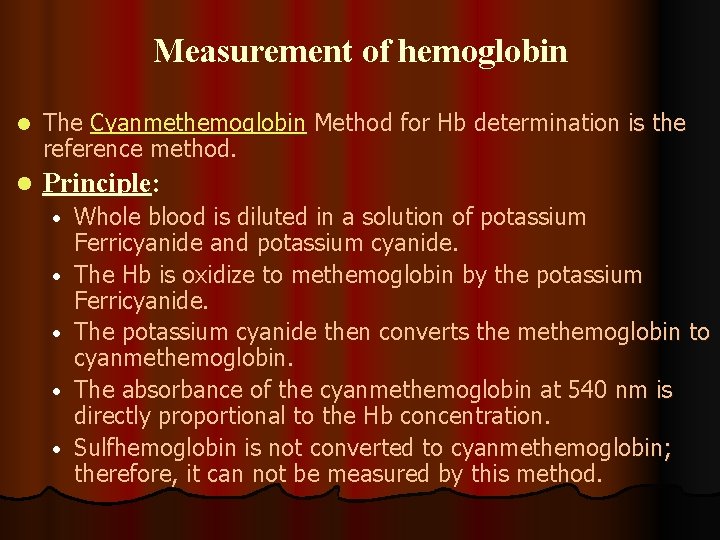

Measurement of hemoglobin l The Cyanmethemoglobin Method for Hb determination is the reference method. l Principle: • • • Whole blood is diluted in a solution of potassium Ferricyanide and potassium cyanide. The Hb is oxidize to methemoglobin by the potassium Ferricyanide. The potassium cyanide then converts the methemoglobin to cyanmethemoglobin. The absorbance of the cyanmethemoglobin at 540 nm is directly proportional to the Hb concentration. Sulfhemoglobin is not converted to cyanmethemoglobin; therefore, it can not be measured by this method.

l Hb (Fe++) K 3 Fe (CN)6 methemoglobin (Fe+++ ) KCN Cyanmethemoglobin

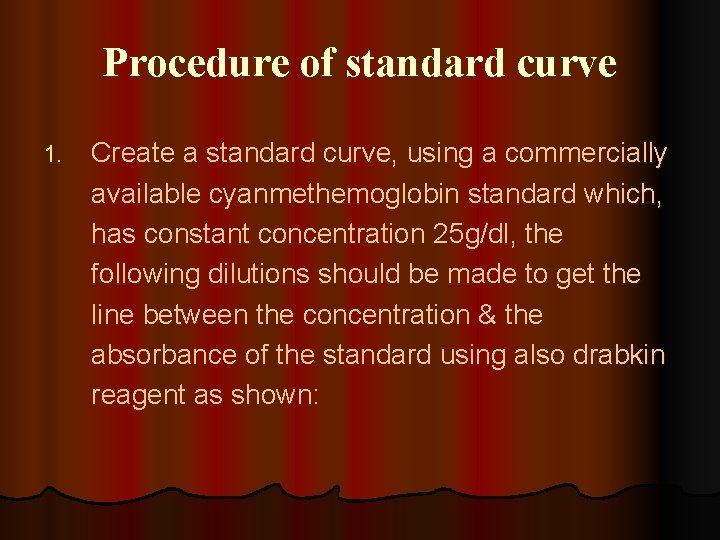

Procedure of standard curve 1. Create a standard curve, using a commercially available cyanmethemoglobin standard which, has constant concentration 25 g/dl, the following dilutions should be made to get the line between the concentration & the absorbance of the standard using also drabkin reagent as shown:

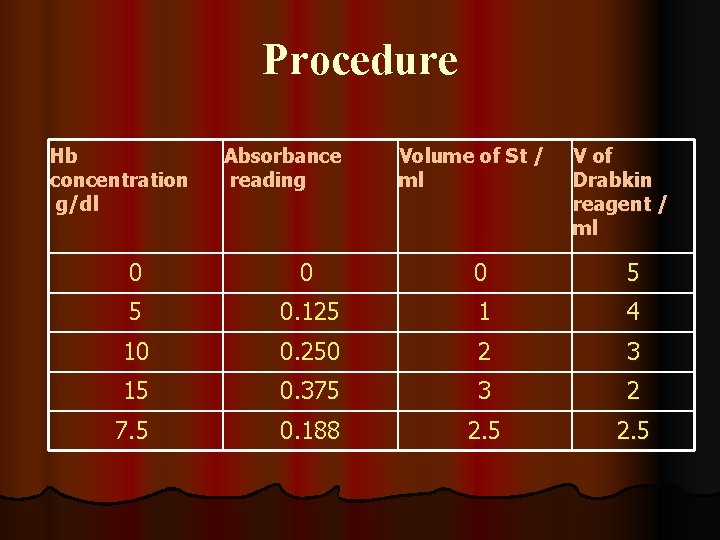

Procedure Hb concentration g/dl Absorbance reading Volume of St / ml V of Drabkin reagent / ml 0 0 0 5 5 0. 125 1 4 10 0. 250 2 3 15 0. 375 3 2 7. 5 0. 188 2. 5

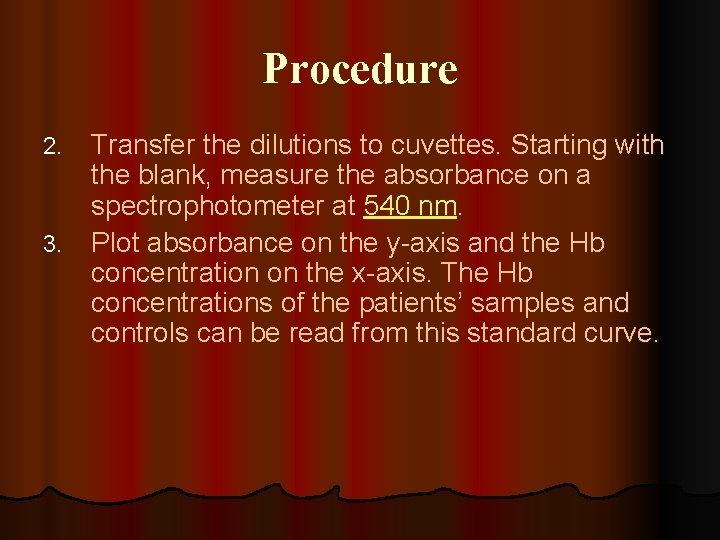

Procedure Transfer the dilutions to cuvettes. Starting with the blank, measure the absorbance on a spectrophotometer at 540 nm. 3. Plot absorbance on the y-axis and the Hb concentration on the x-axis. The Hb concentrations of the patients’ samples and controls can be read from this standard curve. 2.

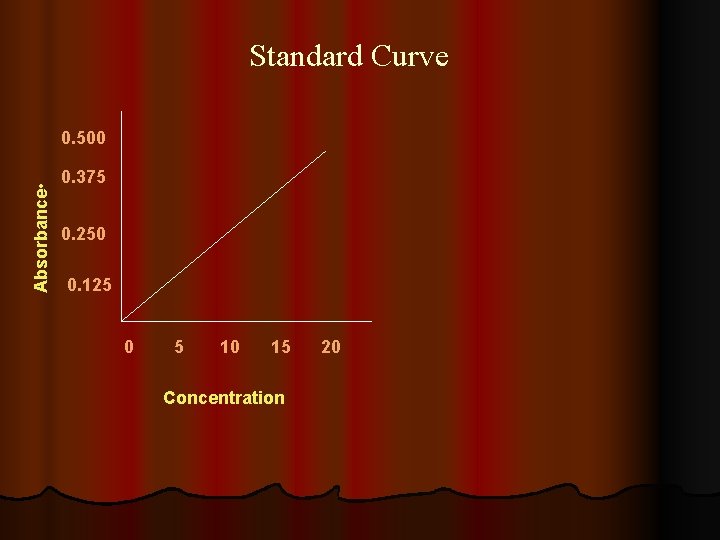

Standard Curve Absorbance • 0. 500 0. 375 0. 250 0. 125 0 5 10 15 Concentration 20

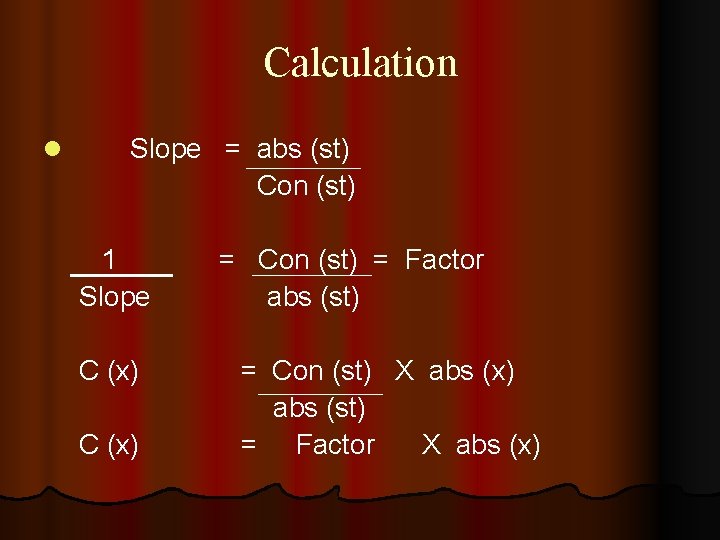

Calculation l Slope = abs (st) Con (st) 1 Slope C (x) = Con (st) = Factor abs (st) = Con (st) X abs (x) abs (st) = Factor X abs (x)

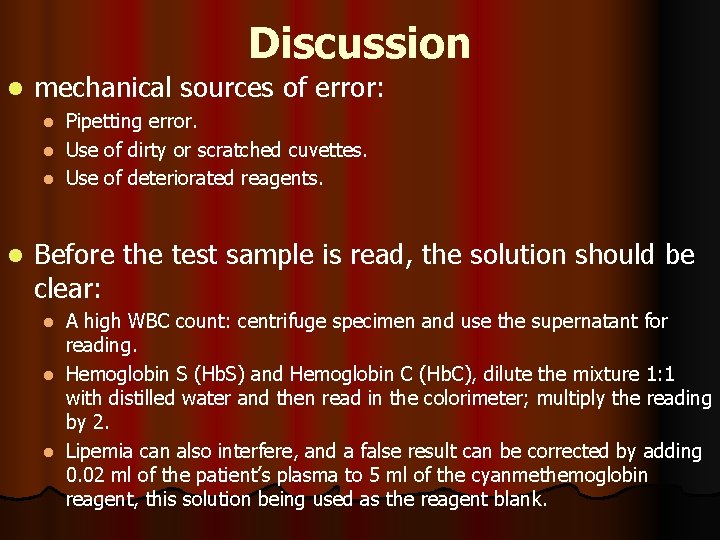

Discussion l mechanical sources of error: Pipetting error. l Use of dirty or scratched cuvettes. l Use of deteriorated reagents. l l Before the test sample is read, the solution should be clear: A high WBC count: centrifuge specimen and use the supernatant for reading. l Hemoglobin S (Hb. S) and Hemoglobin C (Hb. C), dilute the mixture 1: 1 with distilled water and then read in the colorimeter; multiply the reading by 2. l Lipemia can also interfere, and a false result can be corrected by adding 0. 02 ml of the patient’s plasma to 5 ml of the cyanmethemoglobin reagent, this solution being used as the reagent blank. l

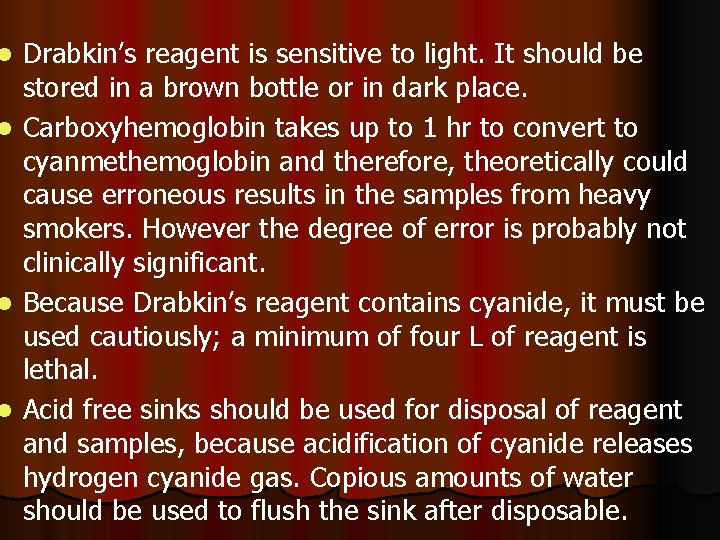

Drabkin’s reagent is sensitive to light. It should be stored in a brown bottle or in dark place. l Carboxyhemoglobin takes up to 1 hr to convert to cyanmethemoglobin and therefore, theoretically could cause erroneous results in the samples from heavy smokers. However the degree of error is probably not clinically significant. l Because Drabkin’s reagent contains cyanide, it must be used cautiously; a minimum of four L of reagent is lethal. l Acid free sinks should be used for disposal of reagent and samples, because acidification of cyanide releases hydrogen cyanide gas. Copious amounts of water should be used to flush the sink after disposable. l
