Helsinki University of Technology Systems Analysis Laboratory RICHER – A Method for Exploiting Incomplete Ordinal Information in Value Trees Antti Punkka and Ahti Salo Systems Analysis Laboratory Helsinki University of Technology P. O. Box 1100, 02015 HUT, Finland forename. surname@hut. fi http: //www. sal. hut. fi/

Helsinki University of Technology Systems Analysis Laboratory Value tree analysis n n m alternatives: X={x 1, …, xm} , n attributes: A={a 1, …, an} Additive value function non-normalized form or normalized form 2

Helsinki University of Technology Systems Analysis Laboratory Preference elicitation n Complete information – Point estimates, e. g. w 1=0. 5 – E. g. , SMART (Edwards 1977) n Incomplete information: preference programming methods – Weight ratio and weight intervals » – Intervals for normalized scores » – PAIRS (Salo and Hämäläinen 1992), PRIME (Salo and Hämäläinen 2001), Arbel’s approach (1989) n Ordinal information – Rank attributes in terms of relative importance » point estimates through, e. g. , rank sum weights (Stillwell et al. 1981) » incomplete ordinal information (RICH; Salo and Punkka 2004) 3

Helsinki University of Technology Systems Analysis Laboratory Incomplete preference information n Complete information hard to acquire – Relative importance of attributes – Alternatives’ properties – Incomplete information » n Overall value intervals for alternatives – Smallest and largest possible value from LP where Sw is the feasible region for the attribute weights 4

Helsinki University of Technology Systems Analysis Laboratory Pairwise dominance relation n Alternative xk dominates xj in the sense of pairwise dominance – Two attributes, and positive with some feasible scores and weights V n Several alternatives may remain nondominated – Additional preference statements to make the feasible region smaller – Decision rules assist the DM in selection of the most preferred one x 1 dominates x 2 w 1 w 2 0. 4 0. 6 0. 7 0. 3 5

Helsinki University of Technology Systems Analysis Laboratory Incomplete ordinal preference information n Complete ordinal information is a complete rank-ordering of attributes or alternatives – Rankings are exactly known for each alternative – Leads to a convex set of feasible scores and weights, when interpreted as incomplete preference information n The RICH (Rank Inclusion in Criteria Hierarchies) method – – Incomplete ordinal statements about relative importance of attributes ”Cost is the most important attribute” ”Environmental factors is among the three most important attributes” Several rank-orderings can be compatible with the preference statements » e. g. : either attribute a 1 or a 2 is the most important of the three attributes n a 3 is either the second or the least important one » may lead to non-convex feasible region of the attribute weights 6

Helsinki University of Technology Systems Analysis Laboratory Non-convex feasible region in RICH n n ”Either a 1 or a 2 is the most important of the three attributes” Calculation by dividing into compatible rank-orderings – Extreme points readily computed – Lower bounds for weights wi b 0 n Full support provided by RICH Decisions ©, http: //www. decisionarium. hut. fi/ – Applications » evalution of risk management tools (Ojanen et al. 2004) » support for setting priorities for a research programme in wood material science (Salo and Liesiö 2004) 7

Helsinki University of Technology Systems Analysis Laboratory The RICHER (RICH with Extended Rankings) method n Extends incomplete ordinal information to alternatives – ”Alternatives x 1, x 2 and x 3 are three most preferred with regard to environmental factors” – ”Alternative x 1 is not among the three most preferred ones” – ”Considering alternatives x 1, x 2 and x 3, the least preferred with regard to cost is x 1” n Statements about attribute weights incorporated as well n Comparison to the RICH method – – – Suitable also for statements about alternatives Computationally much more efficient Includes all features of RICH Allows evaluation within subsets Applicable in conjunction with other preference programming methods 8

Helsinki University of Technology Systems Analysis Laboratory Modeling of incomplete ordinal information (1/4) n Rank-ordering –function r – Bijection from (sub)set of alternatives X’ X (or (sub)set of attributes) to set of rankings – E. g. , r=(r(x 1), r(x 2), r(x 3))=(1, 3, 2) – The smaller the ranking, the better the alternative » e. g. , ”r(x 4)=1 the ranking of x 4 is 1, i. e. it is the most preferred” – Several rank-orderings may be compatible with the preference information – Incomplete ordinal statements about alternatives can be expressed with regard to different sets of attributes A’ » single attribute, (sub)set of attributes or holistic statements considering all attributes » e. g. , one can subject statements to cost and environmental factors together 9

Helsinki University of Technology Systems Analysis Laboratory Modeling of incomplete ordinal information (2/4) n Non-normalized form of value function n Set of feasible values V includes score vectors v=(v(x 1), . . . , v(xm)) – v(xk) denotes the value of xk with regard to some set of attributes » e. g. , if A’={a 2}, then v(xk)=v 2(x 2 k) » e. g. , if A’=A, then v(xk)=V(xk) – Restricted by preference statements n Feasible region associated with a rank-ordering is convex 10

Helsinki University of Technology Systems Analysis Laboratory Modeling of incomplete ordinal information (3/4) n Elicitation of the preference statements is carried out through an alternative set I X’ X and a ranking set J {1, . . . , m’}, where m’=|X’| – If |I| |J|, the rankings in J are attained by alternatives in I – If |I|<|J|, the alternatives in I have their rankings in J – Sets subjected to X’ and A’ denoted by I(A’, X’) and J(A’, X’) n Examples – x 1 and x 2 are among the three most preferred ones with regard to cost attribute a 1. Now A’={a 1} and X’=X, I({a 1}; X)={x 1, x 2}, J({a 1}; X)={1, 2, 3} – Holistically (A’=A) the two least preferred are among x 4, x 5, x 8, x 9: I(A; X)= {x 4, x 5, x 8, x 9}, J(A; X)={m-1, m} – Holistically the most preferred of the set X’={x 1, x 2, x 7} is x 1: I(A; X’)={x 1}, J(A; X’)={1} 11

Helsinki University of Technology Systems Analysis Laboratory Modeling of incomplete ordinal information (4/4) n Sets I and J lead to compatible rank-orderings R(I, J) n The feasible region associated with many compatible rankorderings is usually non-convex n Statements can be given with regard to different attribute sets – Several rank-orderings may be compatible with each of these sets 12

Helsinki University of Technology Systems Analysis Laboratory Mixed integer linear programming model (1/5) n Overcoming the non-convexity – Continuous ”milestone variable” zk distinguishes between the values of alternatives with rankings k and k+1 – If xj’s ranking is at most k, its value is at least zk and we let yk(xj)=1, else 0 – There are exactly k alternatives whose ranking is at most k » e. g. , the three rankings 1, 2 and 3 are at most 3 13

Helsinki University of Technology Systems Analysis Laboratory Mixed integer linear programming model (2/5) n Formally n For the sake of interpretational and computational matters, we set 14

Helsinki University of Technology Systems Analysis Laboratory Mixed integer linear programming model (3/5) n Adding preference statements into the model n Assumption |J|≤|I| – For all rankings j J, the respective alternative belongs to I n Because of the uniqueness of the rankings, there is exactly one alternative in I, for which yj-1(xi)=0, and yj(xi)=1. For other alternatives, yj-1(xi) and yj(xi) get same values n E. g. , I=(x 1, x 2, x 5), J={2, 4}, exactly one of the alternatives has the ranking 2 it is the only one with different values for y 2(xi) and y 1(xi) 15

Helsinki University of Technology Systems Analysis Laboratory Mixed integer linear programming model (4/5) n Some milestone and binary variables and the respective constraints are redundant – Given a statement that alternatives x 1 and x 2 are the two most preferred, for example variables z 1, z 3 and y 1(xj), y 3(xj) are not needed » actually only z 2 and y 2(xj) are needed n If set J is ”sequential”, i. e. , it constitutes of consecutive positive integers, the number of variables and constraints can be substantially decreased – For example sets {3, 4, 5} and {1} are sequential, set {1, 3} not n For the compatible rank-orderings associated with sets I and J, |I| |J|, it holds 16

Helsinki University of Technology Systems Analysis Laboratory Mixed integer linear programming model (5/5) n Partitioning of J into a minimal number of sequential sets Ji – For example, J={1, 2, 6, 7} is partitioned into J 1={1, 2} and J 2={6, 7} – At most 2 milestone and 2 m’ binary variables needed to represent the statement associated to a sequential set Ji n Representation of the feasible region S(I, J) as the intersection of the feasible regions S(I, Ji) – Constraints for all pairs I, Ji are set in the same model n If contradictionary to the assumption it holds |J|>|I|, the feasible region is constructed with the help of complement sets IC=X’I and JC={1, . . . , m’}J – Now |JC|≤|IC| – S(I, J)=S(IC, JC) n All linear inequalities can be included in the model 17

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (1/6) n A company is about to choose the facility for a new office – Eight attributes relevant: a 1: size of the office, a 2: rental costs, a 3: renovation need, a 4: car park opportunities, a 5: means of communication, a 6: distance to city center, a 7: other facilities in the neighborhood, a 8: habitability – 12 alternatives 18

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (2/6) n Attributes size, rental costs, car park opportunities and distance to city center are assessed through [0, 1]-normalized scores or score intervals 19

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (3/6) n Other information is turned into incomplete ordinal statements – E. g. , alternative x 2 is the only one with no renovation need (a 3), hence the ranking 1 – E. g. , alternative x 2 is the least preferred w. r. t. habitability (a 8) 20

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (4/6) n Information on attributes’ relative importance – Complete rank-ordering of the attributes is r(a 1, a 2, . . . , a 8)=(1, 2, . . . , 8) – A weight of 0. 50 is assigned to the most important attribute, size of the office – Weights are lower bounded by wi 1/3 n n A holistic preference for x 4 over x 1 over x 3 21

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (5/6) n Pairwise bounds (minima of overall value differences) indicate that there are 5 non-dominated alternatives x 5, x 7, x 8, x 9 and x 10 22

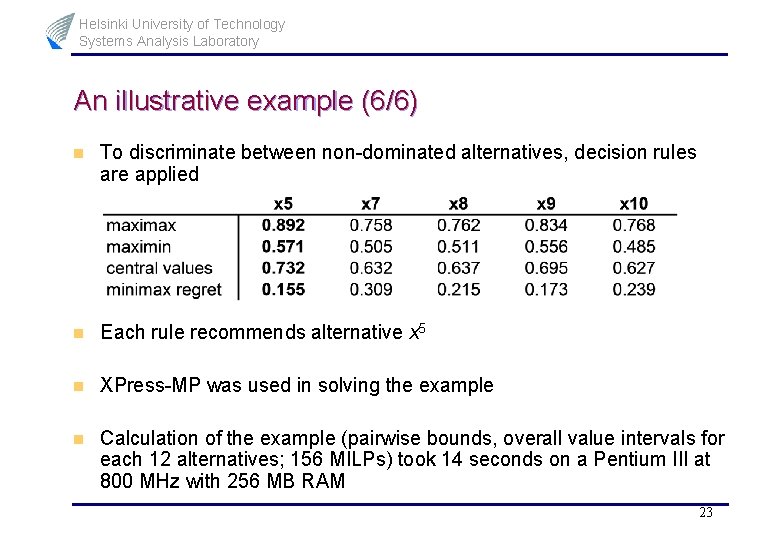

Helsinki University of Technology Systems Analysis Laboratory An illustrative example (6/6) n To discriminate between non-dominated alternatives, decision rules are applied n Each rule recommends alternative x 5 n XPress-MP was used in solving the example n Calculation of the example (pairwise bounds, overall value intervals for each 12 alternatives; 156 MILPs) took 14 seconds on a Pentium III at 800 MHz with 256 MB RAM 23

Helsinki University of Technology Systems Analysis Laboratory Conclusion n The DM can give incomplete ordinal information about the alternatives with regard to a single attribute, a set of attributes or holistically n Statements about relative importance of attributes are allowed, as well n Based on a linear model and hence it can be used in conjunction with other preference programming methods n Computationally far more efficient than RICH, and more flexible as it contains all features of RICH n Software implementation of RICHER Decisions © ongoing n Future research directions – Modeling of classification procedures with RICHER methodology (cf. the example in this presentation) – Application of RICHER methodology to voting or other group decision processes – Application of incompelete ordinal information in Robust Portfolio Modeling (RPM) 24
