Helsinki University of Technology Department of Electrical and Communication Engineering ‘’Using Powerline Communications in Control and Data Networking’’ by Samdani M. Golam Supervisor & Instructor: Prof. Timo O. Korhonen Master’s Thesis Presentation 16 th February, 2006, Espoo.

Acknowledgements n n Prof. Timo O. Korhonen Liu Er Omar Mukhter Other Colleagues and Friends. This thesis work has been done in the project ’LED-PLC General Lighting System’ at Communication Laboratory, HUT, sponsored by TEKES and Several Companies.

Agenda n n n n Introduction PLC Technology PLC Applications Technical Issues for PLC System Regulation & Standards Test Setup 1: PLC-LED General Lighting System Test Setup 2: Comparison of PLC & Ethernet Channel Test Setup 3: Bluetooth Extension to PLC

Introduction n Powerline Communication (PLC), also known as Broadband Over Powerline (BPL) is a technique for sending high speed data through existing powerline as transmission medium. n PLC creates a high speed data communications network using the medium and low voltage electric distribution grids which connects consumers to the Internet through any electric socket in the consumers home. n Powerline is the worlds largest existing wired infrastructure.

Introduction… n The idea of sending data through the power distribution network is not new - First technique to make use of PLC for control message by the methods ‘Ripple Control’ in the early 1950 s. - Earlier technology used low frequency and data rate was very low. - Recent development has been achieved bit rate of several Mbps.

PLC Technology PLC System In-House Access • Uses the Building's electrical wiring to network computers and devices within a building. • This technology employs the outside distribution powerlines (i. e. medium-voltage or low-voltage) overhead or underground. One system uses Orthogonal Frequency Division Multiplexing (OFDM) to distribute the PLC/BPL signal over a width bandwidth using many narrow-band sub-carriers. At the injector side, data from the backbone network is converted into the OFDM signal format and then coupled onto one phase of the MV powerline.

PLC Applications Broadband Services n n n n High Speed Internet Access Voice Over IP Video Streaming Home Networking Home Automation Home Security Systems Telemedicine Applications Utility Applications n n n Automatic Meter Reading Internal Communications Demand Side Management Load monitoring Security Monitoring

Technical issues for PLC system n n Impedance mismatch in receiver side Channel attenuation Noise ( Background noise, Impulsive noise) Electromagnetic compatibility (EMC) issues - Potential radio interference - Outdoor powerlines are excellent radiators of frequencies used in BPL systems, so they behave as transmitting ( and receiving) antennas. - Complex work to be done in order to establish accepted rules by which BPL can be operated In a safety way and without interference. Zt General powerline communication system Coupling Circuit PLC Channel Coupling Circuit Zl Transmitter Receiver

Regulation & Standards USA n FCC part 15: Primary forum for resolving radio interference claims. Throughout 2004, FCC adopted rules to facilitate the deployment of BPL. Europe: n ECC: Report 24(May 2003) n MPT 1570: UK standard n NB 30: German standard Standards n Home. Plug 1. 0: from Home. Plug power alliances. n IEEE P 1901: Standards for BPL network (still working)

Test setup 1: PLC-LED General Lighting System Ethernet i/f P L C Embedded Application C h a n n e l Ethernet i/f Serial i/f

Test setup 1: Equipments and working principle. n PLC modem ¨ ¨ n Microcontroller Board ¨ ¨ n ITRAN PLNET 13 Development Kit/ Phonex Neverwire 14 Data rate up to 2. 5/ 14 Mbps Wiznet EVB 8051 Embedded TCP/IP Ethernet Interface( WI 3100) Embedded Application Receiving Control Information in Client Mode, Connected to Server Through Ethernet Interface. ¨ Controlling the LED matrix Through Serial Interface ¨ n GUI Application ¨ ¨ n Running in Server Mode Sending LED Control Information as per Operator Input. LED Matrix

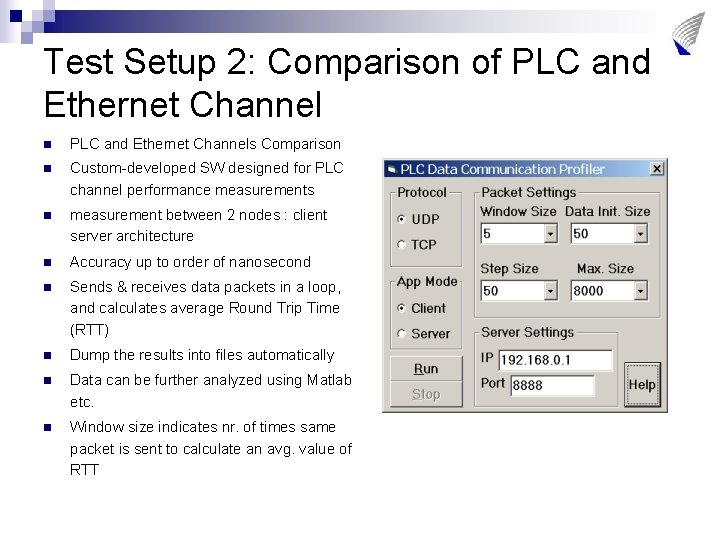

Test Setup 2: Comparison of PLC and Ethernet Channel n PLC and Ethernet Channels Comparison n Custom-developed SW designed for PLC channel performance measurements n measurement between 2 nodes : client server architecture n Accuracy up to order of nanosecond n Sends & receives data packets in a loop, and calculates average Round Trip Time (RTT) n Dump the results into files automatically n Data can be further analyzed using Matlab etc. n Window size indicates nr. of times same packet is sent to calculate an avg. value of RTT

Test Setup 2: Results Ethernet channel

Test Setup 2: Results PLC Channel

Test Setup 3: Bluetooth Extension to PLC network. n n PLC modems 2 Laptop ¨ n n n Symbian-based GUI to control the matrix LED-control Application ¨ n running on Laptop Internetworking BT device and PLC modem Serial Interface Ethernet Interface Nokia mobile ¨ n TCP/IP Com Embedded Application ¨ ¨ BT Interface Running on Laptop to control LED matrix via serial interface Blueottoth serial module LED Matrix Parallel Interface PL C Int erfac e

Publications n Recent Development of EMC Regulation in Power-Line Communications. WPMC'04, Abano Therme, Italy 13. -15. Sept. , 2004. pp. 202 -206. n Development of High-rate Control System for LED-based General Lighting Application. ISPLC'05, Vancouver Canada, April 6 -8, 2005.
