Introduction to the IECC 2012 Energy Code

Agenda What & Why? Changes Future

The wonderful world of Acronyms ASHRAE American Society of Heating, Refrigeration and Air-Conditioning Engineers ICC International Codes Council IECC International Energy Conservation Code IRC International Residential Code DOER Department of Energy Resources HERS Home Energy Rating DOE Department of Energy

IECC and ASHRAE Codes § ICC & ASHRAE develop model building codes and standards for the US. § ICC: publishes IECC energy code § § 3 year cycle IECC 2009, IECC 2012, IECC 2015 ASHRAE: publishes 90. 1 standard § 3 year cycle 90. 1 -2007, 90. 1 -2010

The World of Codes n n n 1980’s through 2006 n Minimum codes were truly minimal n DOE pushed for marginal improvements (1% to 3% per cycle) n DOE proposed (successfully) a major rewrite of the IECC in 2004 (became the 2006 IECC)—emphasis was format, not stringency 2009 to present n The world has changed ICC/DOE working from two goals n 30% improvement in 2012 IECC (relative to 2006) n 50% improvement in 2015 IECC (relative to 2006)

What in the world has changed? n n What is driving the changes to the code: n Public interest n Political will n Pull at ICC What in the world has changed? n More efficiency making it into codes n More detail/complexity being pushed onto code officials n More need for expertise and analysis tools in code process n Less distinction between code, beyond-code

Massachusetts Energy Code History n 6 th edition of the building code had a MA specific energy code n 7 th edition adopted IECC 2006 n n Commercial bldgs. ASHRAE 90. 1 -2004 8 th edition adopted IECC 2009 on July 1, 2010 n Roughly 10 -15% more efficient than IECC 2006 n Commercial bldgs. ASHRAE 90. 1 -2004 remains n Also in 2010 the edition of the “Stretch Code” appendix IEC C 2012 was adopted on 7/1/2013 n Designed to be 30% better than IECC 2009 n Stretch Code IECC 2015 coming soon….

IECC 2012

What was added with IECC 2009 Lighting added to IECC scope (at least 50% of lamps must be ―high efficacy) n Mandatory duct system pressure test n Insulation R-Values increases n No equipment-envelope trade-offs n 12% to 15% better than 2006 IECC n

2012 IECC –Overview Approximately 30% more efficient than the 2006 IECC n Now constitutes (by reference) the energy chapter of the International Residential Code (IRC) n Retains 2009 IECC’s prohibition on envelope-equipment tradeoffs n Contains a few major and many minor changes n

Structure of the 2012 IECC Ch. 1 Scope and Application / Administrative and Enforcement n Ch. 2 Definitions n Ch. 3 General Requirements n n Ch. 4 Residential Energy Efficiency Ch. 5 Referenced Standards n Index n

Scope of Section R 101 n n Defines Residential Buildings as: n One- and two-family dwellings, townhouses of any size and R-2, R-3, R-4 ≤ 3 stories n All buildings that are not “residential” by definition are “commercial” n Includes additions, alterations, renovations and repairs Existing buildings Buildings designated as historic Very low energy use buildings [<3. 4 Btu/h-ft 2 or 1 watt/ft 2]

Scope Section R 101 Additions Treat as a stand-alone building n Additions must meet the prescriptive requirements in Table 402. 1. 1 (or U-factor or total UA alternatives) n

Scope Section - Additions, Alterations, Renovations, Repairs Code applies to any new construction n Unaltered portion(s) do not need to comply n Additions can comply alone or in combination with existing building n Replacement fenestration that includes both glazing and sash must meet n n U-factors in all Climate Zones 2 -8

Climate Zones for the 2012 IECC

Scope Section R 101 - Additions, Alterations, Renovations, Repairs. Exceptions n n n n n Storm windows over existing fenestration Glass-only replacements Exposed, existing ceiling, wall or floor cavities if already filled with insulation Where existing roof, wall or floor cavity isn’t exposed Reroofing for roofs where neither sheathing nor insulation exposed Insulate above or below the sheathing Roofs without insulation in the cavity Sheathing or insulation is exposed Lighting alterations if: n <50% of luminaries in a space are replaced n Only bulbs and ballasts within existing luminaries are replaced (provided installed interior lighting power isn’t increased)

Scope Section R 101 - Space Conditioning Any non-conditioned space that is altered to become conditioned space shall be required to be brought into full compliance with this code n Examples: n Converting a garage to a family room n Heating an unfinished n

Scope Section R 101 - Mixed Use Buildings Treat the residential occupancy under the applicable residential code n Treat the commercial occupancy under the commercial code n

Overview of Code Structure Mandatory Climate-Specific Requirements: n Roofs n Above grade walls n Foundations n Basements n Slabs n Crawlspaces n Skylights, windows, and doors Requirements (apply everywhere): n n n n Infiltration control Duct insulation, sealing, and testing HVAC controls Piping Insulation Equipment sizing Dampers Lighting

Overview of IECC 2012 Residential Code Requirements Focus is on: n. Building envelope ceilings, walls, windows, floors, foundations n. Sets insulation and fenestration levels, and solar heat gain coefficients n. Infiltration control - caulk and seal to prevent air leaks, and test n. Ducts, air handlers, filter boxes – seal, insulate, and test n. Limited space heating, air conditioning, and water heating requirements n. Federal law sets most equipment efficiency requirements, not the I-codes n. No appliance requirements n. Lighting equipment – 75% of lamps to be high-efficacy lamps or 75% of lighting fixtures to have only high-efficacy lamps

Compliance IECC Terminology n. Prescriptive, UA/U-Factor and Performance n. Mandatory requirements n Required and cannot be traded down, even in the simulated performance path n. Some elements have “hard limits”aka, “trade-off limits” n a prescriptive requirement that can only be traded so far n performance requirements can only be traded so far

IECC Compliance - Three Options

Code Compliance Tools

Overview of the 2012 Energy Code The 2012 code requires a better envelope, insulation, ducts, windows, mechanical and more efficient lighting than the 2009 code.

2012 IECC Major Changes n n Duct leakage rates lowered Domestic hot water piping must be either n Insulated to R 3, or n Short and skinny (i. e. , exempted lengths depend on diameter) Eliminated ―leakage to outdoors option for ducts n From 12 to 4 CFM/100 sf CFA (after construction) n From 6 to 4 CFM/100 sf CFA (at rough-in) Various R-value/U-factor/SHGC improvements

2012 IECC Major Changes n New mandatory whole-house pressure test (blower door) with stringent required leakage rates Zones 3 -8: ≤ 3 ACH @50 Pa n Address fireplaces and recessed lighting fixtures n

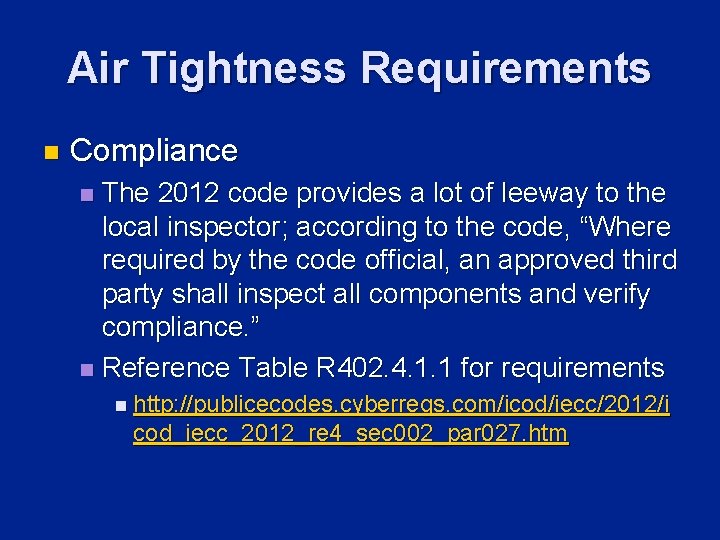

Air Tightness Requirements n Compliance The 2012 code provides a lot of leeway to the local inspector; according to the code, “Where required by the code official, an approved third party shall inspect all components and verify compliance. ” n Reference Table R 402. 4. 1. 1 for requirements n n http: //publicecodes. cyberregs. com/icod/iecc/2012/i cod_iecc_2012_re 4_sec 002_par 027. htm

Building Envelope Specific Requirements Building Envelope consists of: n. Fenestration n. Ceilings n. Walls n. Above grade n. Below grade n. Mass walls n. Floors n. Slabs n. Crawlspaces

2012 IECC –Major Prescriptive Envelope Changes

Insulation Verification n n R-values are to be printed on the batt insulation or rigid foam board. Blown-in insulation must have an insulation certificate at or near the opening of the attic. The certificate should include: n R-value of installed thickness n Initial installed thickness n Installed density n Settled thickness/settled R-value n Coverage area n Number of bags installed Insulation markers must be installed every 300 square feet and be marked with the minimum installed thickness and affixed to the trusses or joists.

2012 IECC-Fenestration Changes

Mandatory Requirements Mechanical Systems n n n Controls-At least one programmable thermostat/dwelling unit Heat pump supplementary heat Ducts n n n n n Sealing (Mandatory) Insulation (Prescriptive) HVAC piping insulation Circulating hot water systems Ventilation Dampers Equipment sizing-Heating and cooling equipment shall be sized according to Manual S based on loads calculated according to Manual J Pools and in ground permanently installed spas Snow melt controls

Duct Sealing and Insulation Duct Sealing n Mandatory test 3 cfm ACH@50 n n Rough in and post construction tests Adopts testing widely used by Stretch Code / Energy Star Homes Not required if located within conditioned space Framing cavities cannot be used as ducts or plenums Duct Insulation n Supply ducts in attics: R-8 (Attic) n All other ducts: R-6 (Basement, Crawlspace, Exterior Wall, )

Lighting Equipment A minimum of 75% of the lamps in permanently installed lighting fixtures shall be high-efficacy lamps or 75% of permanently installed lighting fixtures to contain only high efficacy lamps. n “Lamps in fixtures” n Exception: n n Low-voltage lighting n Use specified lighting

High Efficacy Lighting and Compliance n The residential lighting provisions in the 2012 IECC are relatively simple. n At least 75% of the lamps in permanent light fixtures must be high-efficacy, defined as: n T 8 or smaller-diameter linear fluorescent lamps, n Or lamps such as CFLs, LEDs or Pin Based Lamps with a minimum efficacy of: n 40 lumens/W for <15 W n 50 lumens/W for 16 -40 W n 60 lumens/W for >40 W lamps

Ventilation The building shall be provided with ventilation that meets the requirements of the IRC, IMC, or other approved ventilation. n Minimum efficacy: n Range hoods 2. 8 cfm/watt n In-line fans 2. 8 cfm/watt n Bathroom fan (10 -89 cfm) 1. 4 cfm/watt n Bathroom fan (90+ cfm) 2. 8 cfm/watt n

What about mechanical ventilation? n Although the 2012 IECC includes provisions to improve a home’s air tightness, it provides little on whole house ventilation, however the 2012 IRC does include requirements for mechanical ventilation. n n n A typical home will require about 15 cfm person of fresh outdoor air to be distributed by continuous mechanical ventilation to meet the requirements of the code. The new code requires homes in zone 5 achieve 3 ach 50, the code effectively mandates a whole-house mechanical ventilation system. This can be accomplished with a centrally located quiet exhaust fan, an interconnected system to the air

Eave Baffles n n n For air permeable insulations in vented attics, baffle Installed adjacent to soffit and eave vents To maintain an opening ≥ size of vent To extend over top of attic insulation May be of any solid material

Stretch Code vs. IECC Comparison Typical Existing Home Std New Home IECC 2006 IECC 2012 ~ HERS 70 IECC 2009 ~ HERS 90 Stretch Code < 3000 sq ft - HERS 70 > 3000 sq ft - HERS 65

RESIDENTIAL INCENTIVES n Almost the same as the Stretch Code/IECC 2012 n n Builder incentives/rebates n n n $750 - $7000 for SFD $350 - $4, 000 for MF HERS raters n n n Approx 30% of new homes in MA $700 - $900 SFD $250 - $550 MF Additional Equipment Rebates n n n Appliances – up to $50 (low income) Massachusetts Residential New Heating – up to $1, 500 Construction Program Water Heating – up to $800 Cooling – up to $500 Lighting – free CFLs

IECC 2012 Bottom Line Code Compliance Every new home built will need to be tested with a blower door, have a strategy to stop thermal bridging, need more insulation, a tighter envelope, better windows, tighter ducts, right sized mechanical systems, more efficient lighting and mechanical ventilation.

Stretch Code Appendix 120. aa

What is the Stretch Code? Affects the energy code only n Amendment to the MA base energy code n n Residential Construction: n n Commercial: n n 15 -20% more energy efficient The Stretch Code is similar to the 2012 IECC

Misconceptions n n n The Stretch Code is new and experimental The Stretch Code requires tight unhealthy homes The Stretch Code requires foam insulation The Stretch Code requires mechanical ventilation Homes with oil heat cannot meet the Stretch Code Town residents will be required to update their existing homes

What does the Stretch Code Apply to? n Same application as the MA base energy code n Insulation n Doors, Windows, Skylights n Mechanical Equipment n Lighting n Appliances n Building tightness n Duct tightness n Renewables

What does the Stretch Code Apply to? n Residential Additions n Home Renovations n New Construction n n Commercial (5, 000+sq/ft) New Construction n Additions n Renovations Exempt n

Additions and Renovations Prescriptive or Performance Path n Prescriptive Path n n ENERGY STAR Windows, Doors and Skylights Tight Ducts – completely new duct systems only Contractor Verified Thermal Bypass Checklist Performance Path n Whole house HERS Rating n Renovations: n n HERS 85 < 2, 000 sq ft. HERS 80 ≥ 2, 000 sq ft. n Additions: n n HERS 70 < 3, 000 sq ft. HERS 65 ≥ 3, 000 sq ft.

New Homes Performance Path n Performance is the only option n HERS 70 < 3, 000 sq ft. HERS 65 ≥ 3, 000 sq ft. HERS Rating Company n n n Review building plans Thermal bypass Checklist Blower-door and duct testing

New Homes Performance Path n Home Energy Rating System (HERS) Index n n n Internal Revenue Service U. S. Department of Energy U. S. Environmental Protection Agency Mortgage Industry Massachusetts Base Code - Alternative Path Mass Save Residential New Construction Program

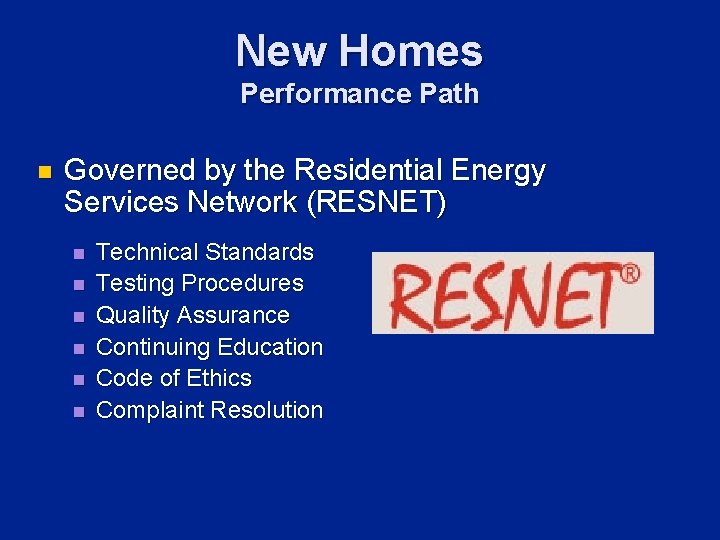

New Homes Performance Path n Governed by the Residential Energy Services Network (RESNET) n n n Technical Standards Testing Procedures Quality Assurance Continuing Education Code of Ethics Complaint Resolution

Cost of the Stretch Code Housetype Size Upgrade Costs Add’l Annual Mortgage Annual Savings Single Family 2, 672 $2, 949 $214 $507 w/ incentives 2, 672 $1, 755 $127 $516 Single Family 4, 462 $6, 476 $471 $1, 455 w/ incentives 4. 462 $5, 176 $376 $1, 455 Single Family 1, 708 $4, 162 $302 $583 w/ incentives 1, 708 $3, 243 $236 $595

COMMERCIAL STRETCH CODE

Commercial ‘Stretch’ Appendix New buildings and additions over 5, 000 ft 2, renovations fall to the base code n Two Options (depending on size) n n Performance option - 20% below ASHRAE Code n Prescriptive option for most building types n 5, 000 - 100, 000 ft 2 n Special Code Exemptions (comply with base code) for laboratories, manufacturing, etc. 54

Stretch Code Compliance & Inspections n Same as base code n Code Official has the same authority n Same building inspections n Approves building documents

Future of the Stretch Code n The MA base energy code will update in 2014 n The Stretch Code will update too n More energy efficient n No details yet n Automatic Adoption

Training on new energy codes n Covering both the IECC 2012 & Stretch code n Provided free to all Code Officials n Provided at cost to building professionals n Register online: www. cetonline. org n Energy star homes training available for free: www. Mass. Save. com n Utilities offer commercial ‘Core Performance’ energy training
