Helmet Light User Instructions Battery Compartment and Installation
Helmet Light User Instructions Battery Compartment and Installation Rotate Tail cap counter clock wise to open battery compartment Mounting the Helmet Bracket can be mounted in any location along the rim of the helmet for operator comfort and ease of use. Step 1 – loosen Screw until flush with J Bracket. Insert AA Battery Tip end first Step 2 –Install bracket on the rim of your helmet at your desired location Two functional buttons, One functional lever Step 3 – When J hook bracket and bottom of mount are flush with the rim of your Helmet, Then tighten screw. IR / IFF lever (only functional light In this mode) Primary – Secondary – White Light Red or Blue Light (one or the other, not both available in each light)

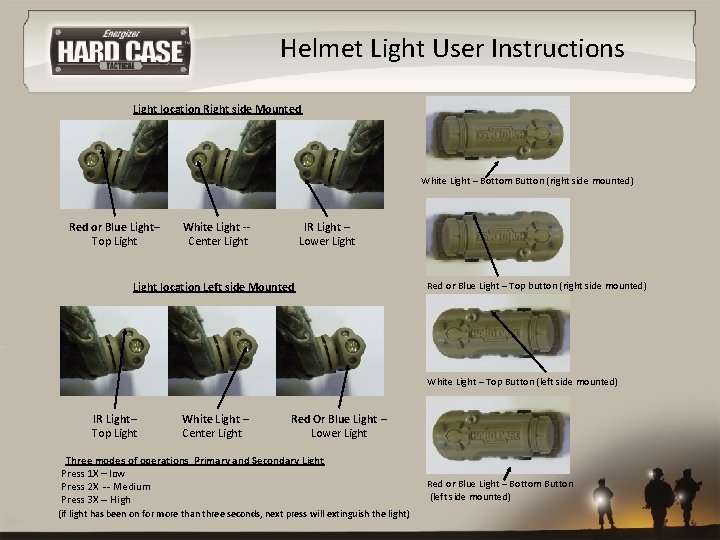

Helmet Light User Instructions Light location Right side Mounted White Light – Bottom Button (right side mounted) Red or Blue Light– Top Light White Light -Center Light IR Light – Lower Light location Left side Mounted Red or Blue Light – Top button (right side mounted) White Light – Top Button (left side mounted) IR Light– Top Light White Light -Center Light Red Or Blue Light – Lower Light Three modes of operations Primary and Secondary Light Press 1 X – low Press 2 X -- Medium Press 3 X -- High (if light has been on for more than three seconds, next press will extinguish the light) Red or Blue Light – Bottom Button (left side mounted)
Helmet Light User Instructions To Engage IR/IFF Right side mounted IR Light— Move lever down to engage IR light (all other lights are disabled in this mode) IR Light— Move lever up to engage IR light (all other lights are disabled in this mode) IFF Mode— Move lever up to engage IFF Mode (all other lights are disabled in this mode) IR Light To Engage IR/IFF Left side mounted IFF Mode— Move lever down to engage the IFF mode (all other lights are disabled in this mode) IFF Light Constant On One level of brightness Need Flash input To Engage the lock out feature Turn the tail cap ¼ turn (light is still water proof) Tab should be aligned centered with Hard Case Logo IFF Light

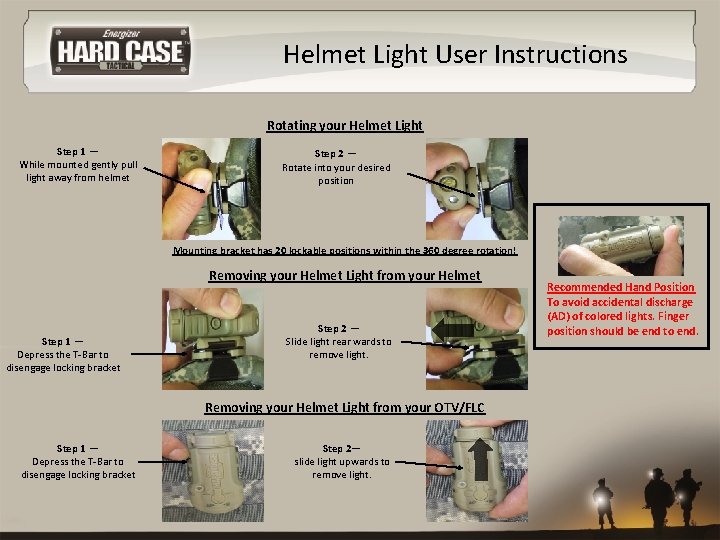

Helmet Light User Instructions Rotating your Helmet Light Step 1 — While mounted gently pull light away from helmet Step 2 — Rotate into your desired position Mounting bracket has 20 lockable positions within the 360 degree rotation! Removing your Helmet Light from your Helmet Step 1 — Depress the T-Bar to disengage locking bracket Step 2 — Slide light rear wards to remove light. Removing your Helmet Light from your OTV/FLC Step 1 — Depress the T-Bar to disengage locking bracket Step 2— slide light upwards to remove light. Recommended Hand Position To avoid accidental discharge (AD) of colored lights. Finger position should be end to end.
