HEISLER PARK ASBS PROTECTION AND PRESERVATION PROJECT City

HEISLER PARK ASBS PROTECTION AND PRESERVATION PROJECT City of Laguna Beach Water Quality Department

Heisler Park Project Goal: Measurably improve water quality in the nearby ASBS by incorporating low impact site design and source control principles during the reconstruction of the public park.

Project Location Heisler Park Area of Special Biological Significance Protection and Preservation Project -Phase 1

The innovative site design includes tilted pathways, contoured swales and terraces built with retaining walls and curbs to contain sediments (reduce bluff top erosion)and push surface flows into the treatment control BMPs. Swales, tilted pathway Tilted Pathway

Controlled access to the beach. Berms, railings, and safe access points.

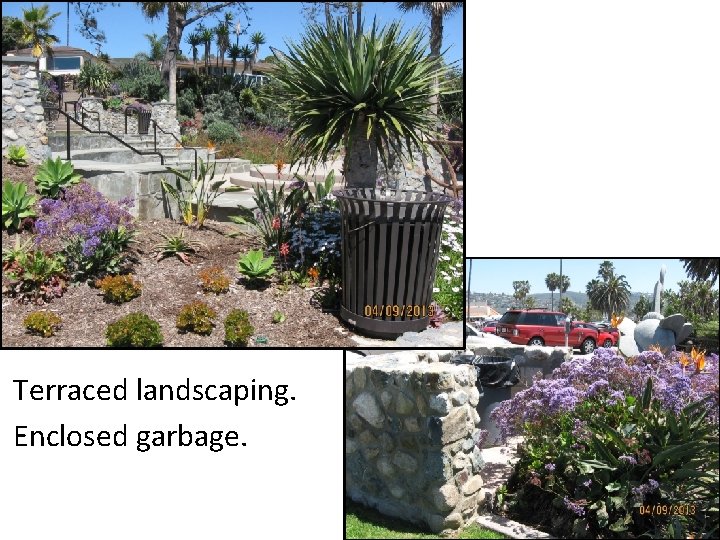

Terraced landscaping. Enclosed garbage.

The treatment control best management practices (BMPs) are vegetated areas where flows will infiltrate for plant use and be filtered through vegetation to remove nutrients, trash and bacteria.

Water must travel over the grass prior to entering storm drain.

Smart timers, water efficient sprinkler heads, updated irrigation equipment and drought tolerant vegetation reduce nuisance flows by reducing onsite water waste.

Drought tolerant plantings. Public education.

Diversion unit automation (control flows via computer not in field) – Divert dry weather flows to the sanitary sewer

Project Details • • Reduced bluff erosion. Reduced water usage. Increased Infiltration. Continue to compile monitoring data for bacteria. Data to be included in a final project report due to the State Water Resources Control Board, Fall of 2013.

Heisler Park Irrigation Average Water Use in Gallons Per Day 5000 4500 Gallons Per Day 4000 3500 3000 10066 4636 Total 2500 2000 1500 1000 500 0 2005 2006 2007 2008 2009 Year 2010 2011 2012

Heisler Park ASBS Protection and Preservation Project – Project Costs Thank you to all of the City’s project partners! City Match Phase I - Heisler Park ASBS Protection and Preservation Project $ 800, 000 Grant Amount $ 800, 000 Funding Program IRWM Prop. 50

Questions? Tracy Ingebrigtsen Senior Water Quality Analyst, 949 -497 -0781 David Shissler Director of Water Quality, 949 -497 -0328
