Height Time T Madas Height Time Liquid is
- Slides: 21
Height Time © T Madas

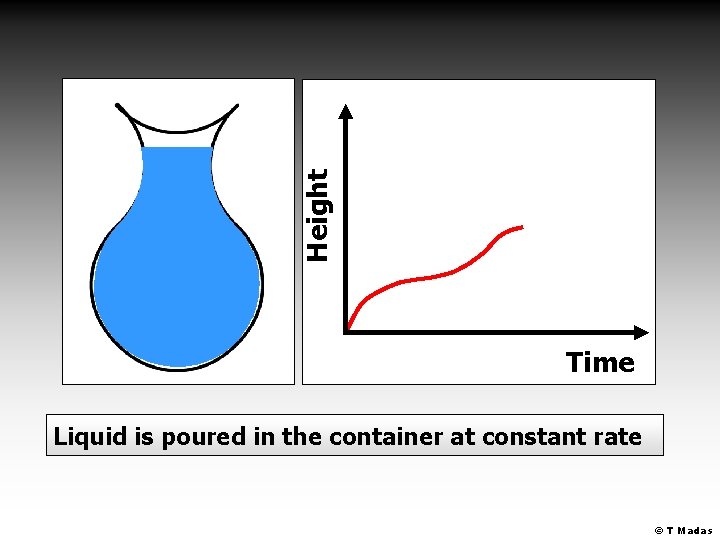

Height Time Liquid is poured in the container at constant rate © T Madas

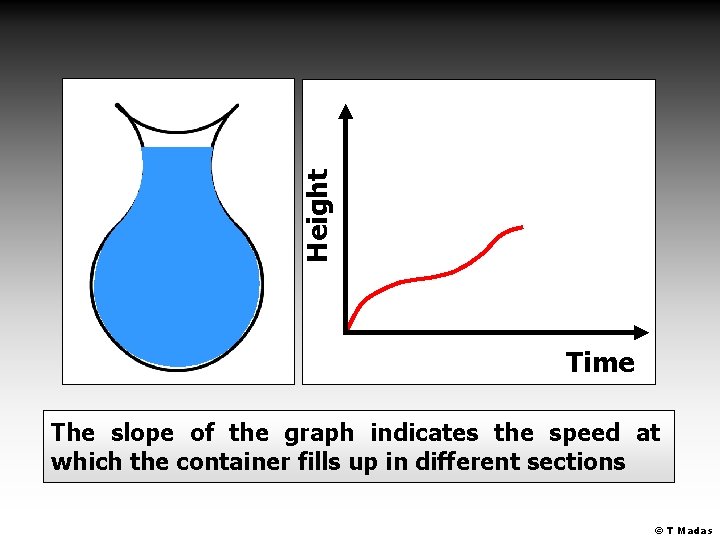

Height Time The slope of the graph indicates the speed at which the container fills up in different sections © T Madas

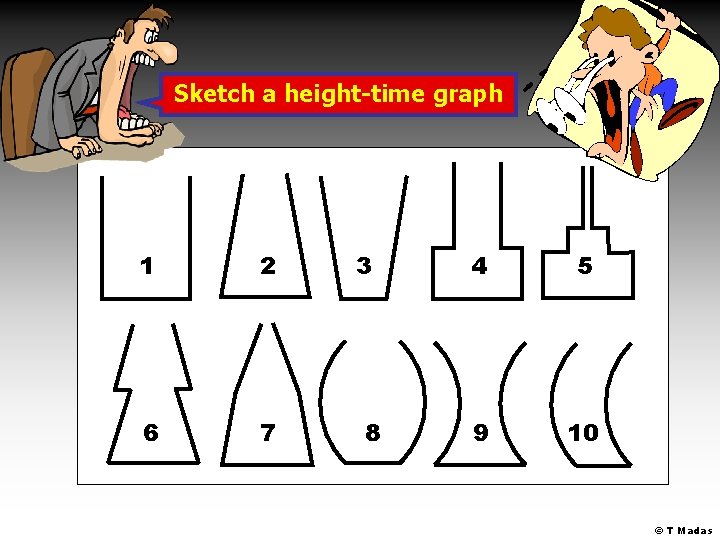

Sketch a height-time graph 1 2 6 7 3 8 4 5 9 10 © T Madas

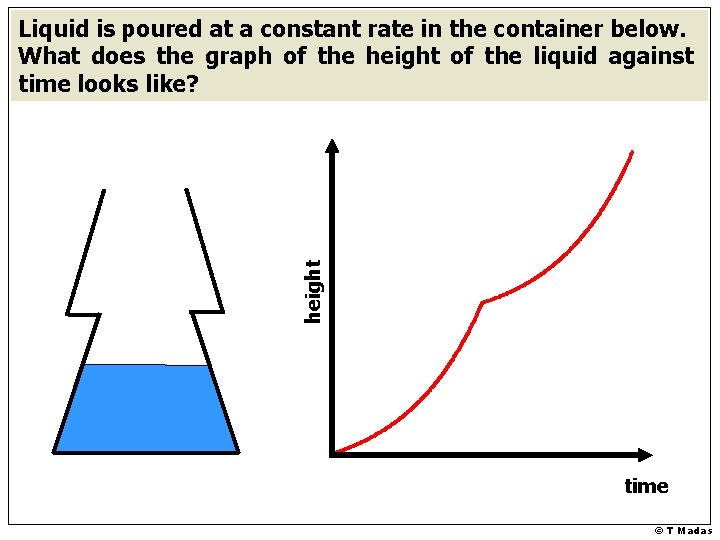

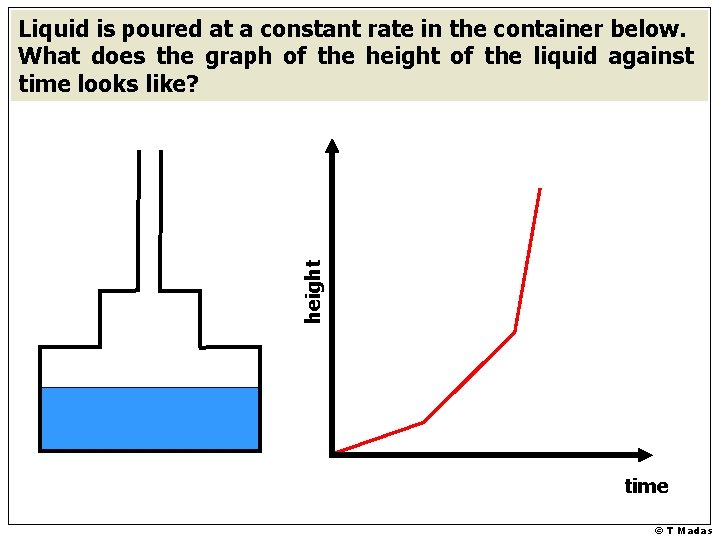

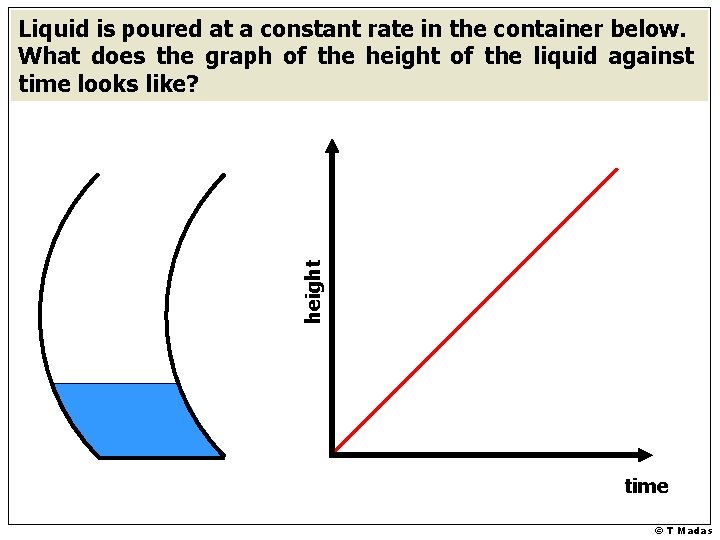

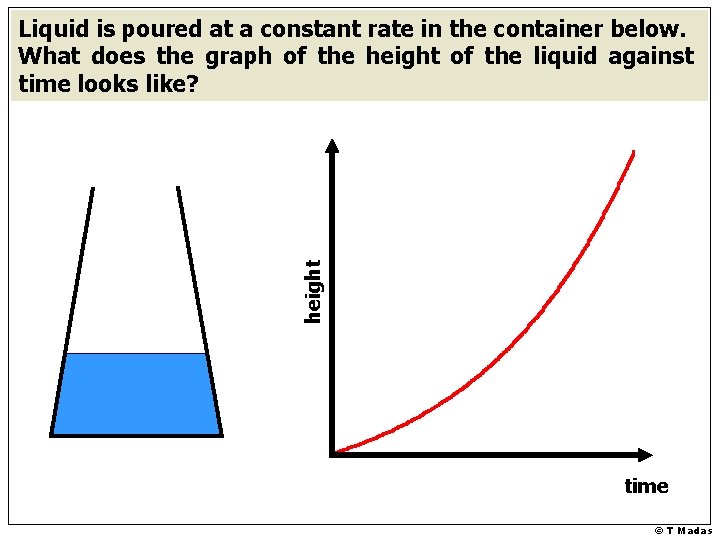

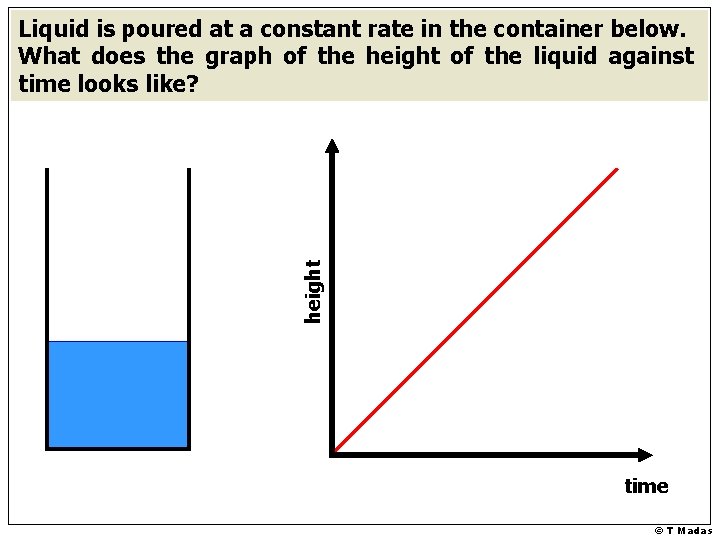

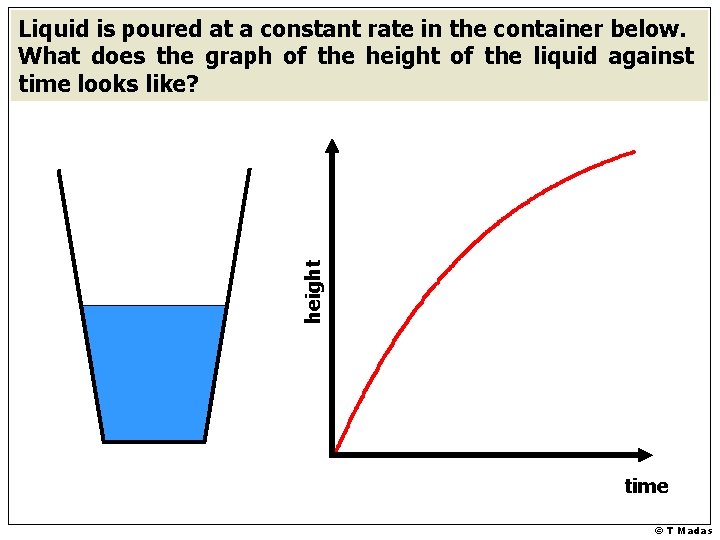

height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas

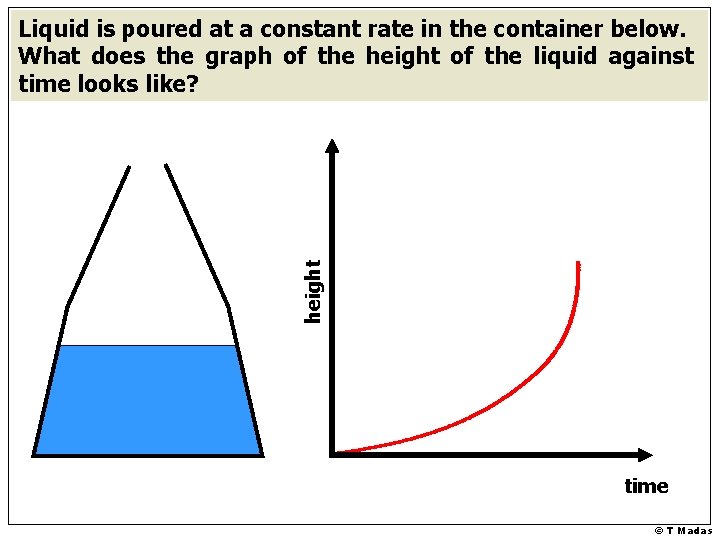

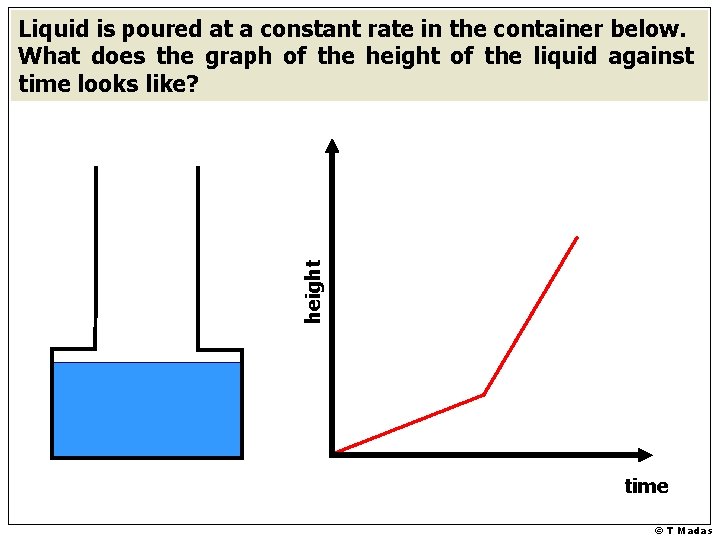

height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas

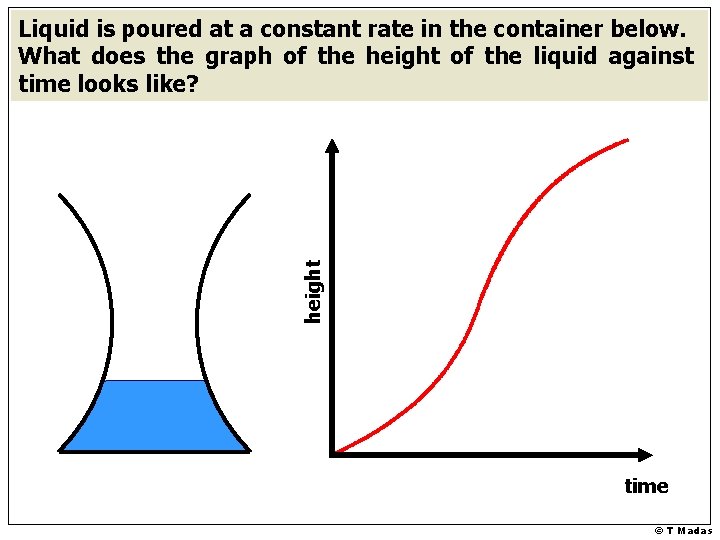

height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas

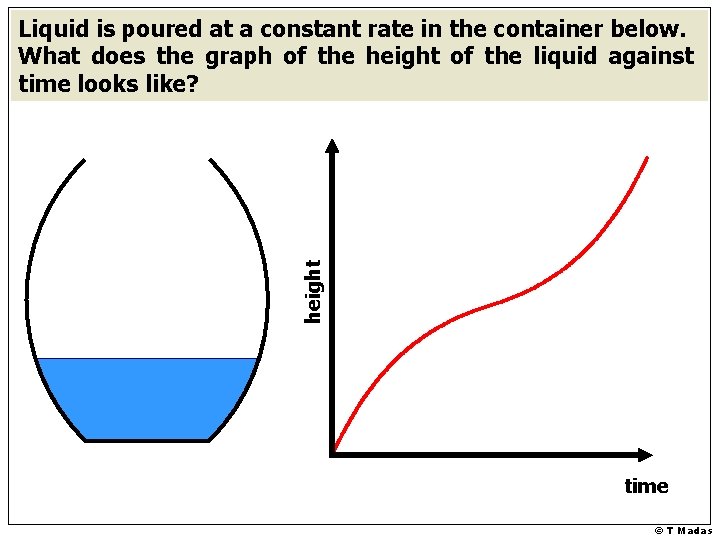

height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
height Liquid is poured at a constant rate in the container below. What does the graph of the height of the liquid against time looks like? time © T Madas
© T Madas

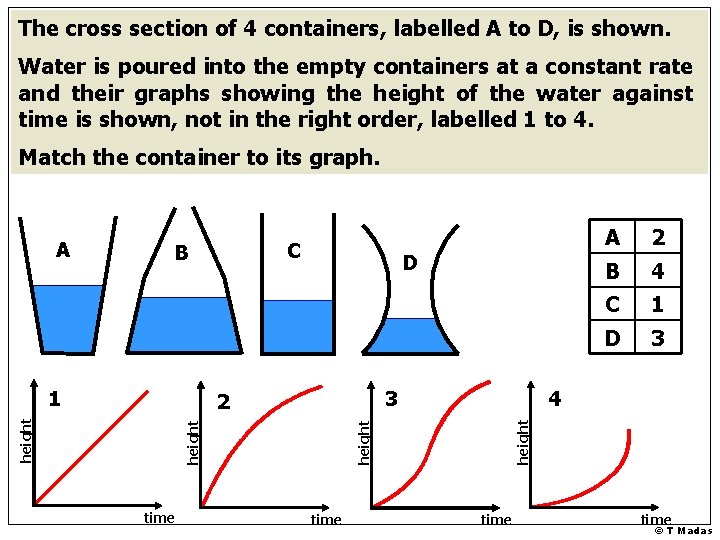

The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. C 1 D height time 2 B 4 C 1 D 3 4 3 2 A height B height A time © T Madas
© T Madas

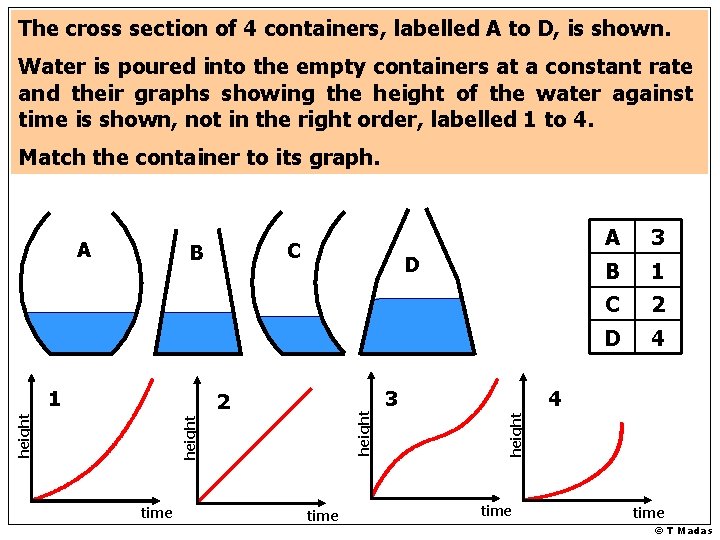

The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. C B 1 D height 2 time A 3 B 1 C 2 D 4 4 3 height A time © T Madas
© T Madas

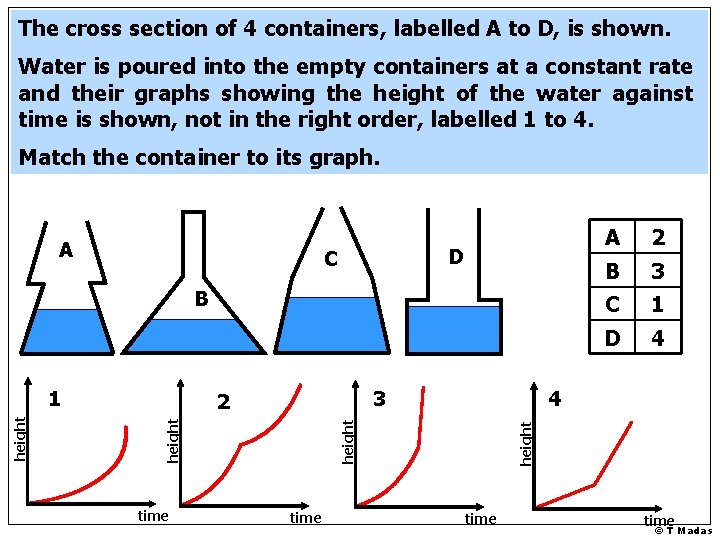

The cross section of 4 containers, labelled A to D, is shown. Water is poured into the empty containers at a constant rate and their graphs showing the height of the water against time is shown, not in the right order, labelled 1 to 4. Match the container to its graph. A D C B time B 3 C 1 D 4 height time 2 4 3 2 height 1 A time © T Madas
