HEICO lighting Contactless LED Technology 032012 Current source

HEICO lighting™ Contactless LED Technology 03/2012

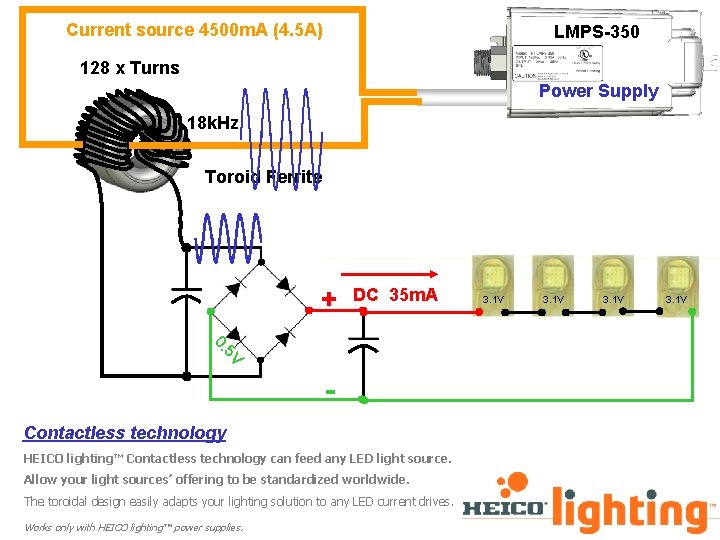

Current source 4500 m. A (4. 5 A) LMPS-350 128 x Turns Power Supply 18 k. Hz Toroid Ferrite + DC 35 m. A V 5 0. Contactless technology HEICO lighting™ Contactless technology can feed any LED light source. Allow your light sources’ offering to be standardized worldwide. The toroidal design easily adapts your lighting solution to any LED current drives. Works only with HEICO lighting™ power supplies. 3. 1 V

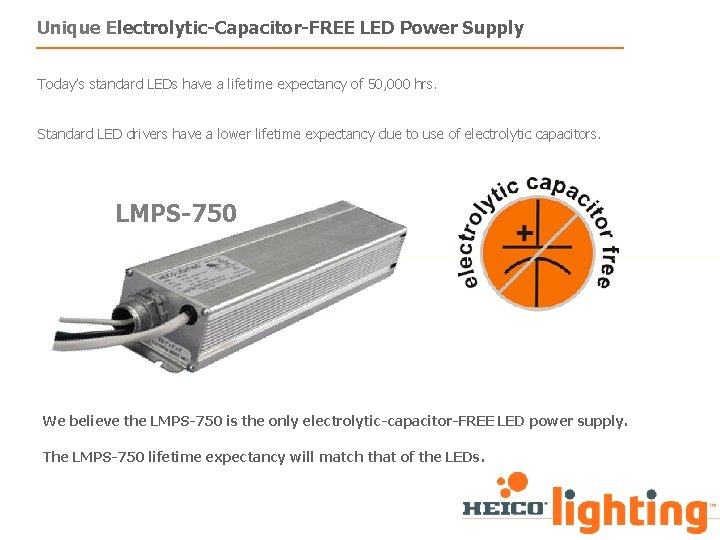

Unique Electrolytic-Capacitor-FREE LED Power Supply Today’s standard LEDs have a lifetime expectancy of 50, 000 hrs. Standard LED drivers have a lower lifetime expectancy due to use of electrolytic capacitors. LMPS-750 We believe the LMPS-750 is the only electrolytic-capacitor-FREE LED power supply. The LMPS-750 lifetime expectancy will match that of the LEDs.

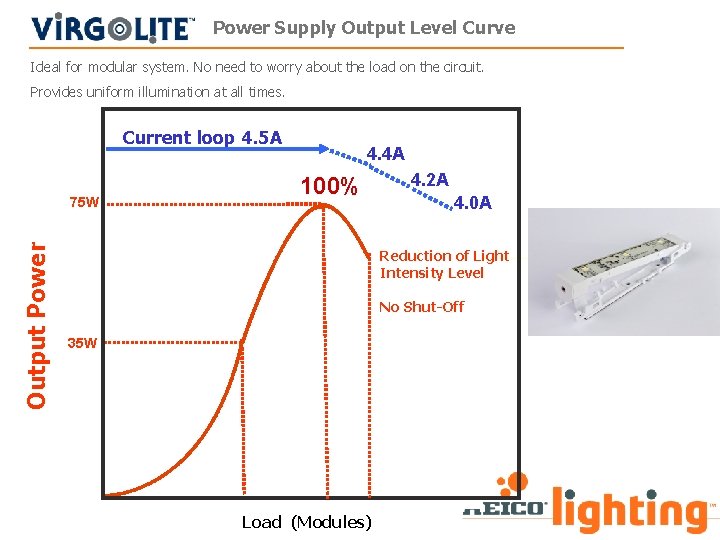

Power Supply Output Level Curve Ideal for modular system. No need to worry about the load on the circuit. Provides uniform illumination at all times. Current loop 4. 5 A 100% 75 W Output Power 4. 4 A 4. 2 A 4. 0 A Reduction of Light Intensity Level No Shut-Off 35 W 50 Load (Modules)

Virgolite™ modules for architectural lighting Bright Virgo+™ LS 2 white 288 lumens / foot Virgo+™ LS 3 white 240 lumens / foot Efficient Virgo+™ LS 2 white Luminous efficacy: 85 lumens / watt Virgo+™ LS 3 white Luminous efficacy: 96 lumens / watt 5 -year warranty

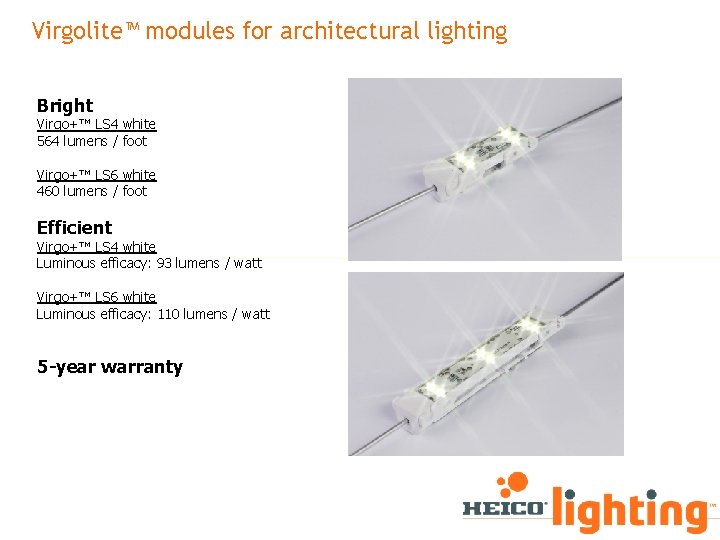

Virgolite™ modules for architectural lighting Bright Virgo+™ LS 4 white 564 lumens / foot Virgo+™ LS 6 white 460 lumens / foot Efficient Virgo+™ LS 4 white Luminous efficacy: 93 lumens / watt Virgo+™ LS 6 white Luminous efficacy: 110 lumens / watt 5 -year warranty

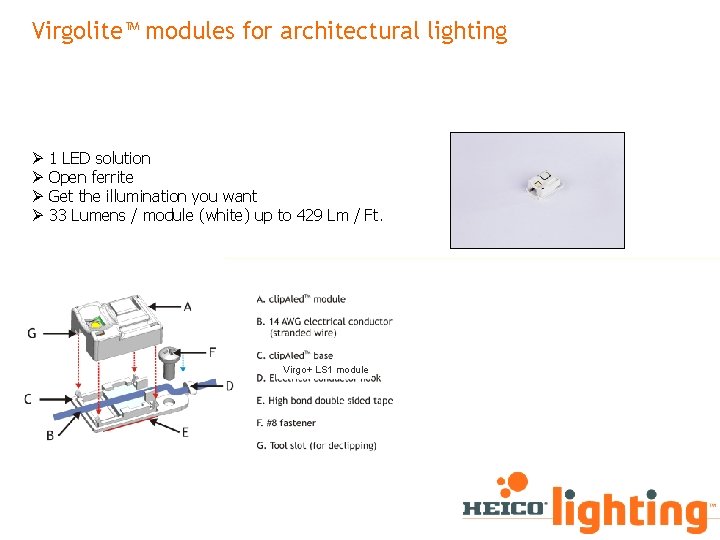

Virgolite™ modules for architectural lighting Ø Ø 1 LED solution Open ferrite Get the illumination you want 33 Lumens / module (white) up to 429 Lm / Ft. Virgo+ LS 1 module

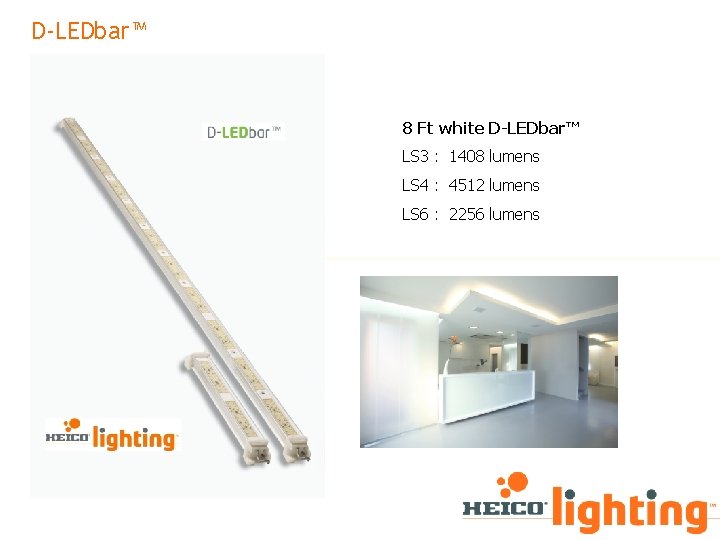

D-LEDbar™ 8 Ft white D-LEDbar™ LS 3 : 1408 lumens LS 4 : 4512 lumens LS 6 : 2256 lumens

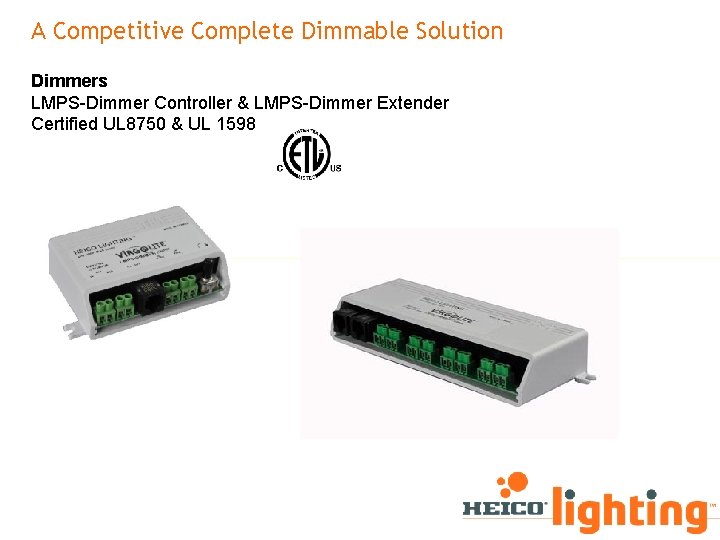

A Competitive Complete Dimmable Solution Dimmers LMPS-Dimmer Controller & LMPS-Dimmer Extender Certified UL 8750 & UL 1598

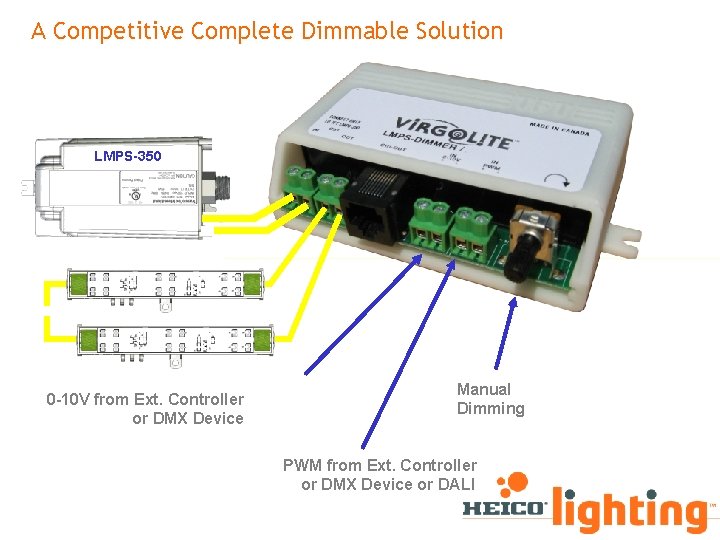

A Competitive Complete Dimmable Solution LMPS-350 0 -10 V from Ext. Controller or DMX Device Manual Dimming PWM from Ext. Controller or DMX Device or DALI

For more information info@heicolighting. com 1 -800 -665 -1166 www. heicolighting. com
