Hedging Interest Rate Risk TreasuryEurodollar Futures Derivative Securities

Hedging Interest Rate Risk Treasury/Eurodollar Futures

Derivative Securities l l Stocks and Bonds represent claims to specific future cash flows Derivative securities on the other hand represent contracts that designate future transactions Currently, there approximately 300 million derivative contracts outstanding with a market value of around $50 Trillion While equity trading is centered in New York (NYSE, NASDAQ), derivative markets are centered in Chicago (CME, CBOT, CBOE)

Futures Contracts A futures contract describes a transaction (Commodity, Price, and Quantity) that will be made in the future. In “Trading Places” (1983), Eddie Murphy and Dan Ackroyd were trading Orange Juice Futures

Futures Contracts Orange Juice futures (FCOJ) are traded on the NYBOT (New York Board of Trade) Contract = 15, 000 Lbs. ; Price = cents/lb Exp Open High Low Settle Change Interest MAR 85. 75 86. 00 84. 20 85. 20 -1. 25 18, 849 MAY 88. 20 88. 40 86. 60 87. 70 -1. 20 14, 354 JUL 88. 50 87. 60 88. 45 -1. 15 1, 889 NOV 91. 50 90. 00 89. 95 -1. 65 905 Every contract must have two participants (Long = Buy, Short = Sell)

Exp Open High Low Settle Change Interest MAR 85. 75 86. 00 84. 20 85. 20 -1. 25 18, 849 MAY 88. 20 88. 40 86. 60 87. 70 -1. 20 14, 354 JUL 88. 50 87. 60 88. 45 -1. 15 1, 889 NOV 91. 50 90. 00 89. 95 -1. 65 905 A long position in MAR FCOJ would require you to purchase FCOJ in March Now Mar A short position in JUL FCOJ would require you to deliver FCOJ in March Apr May June July Aug

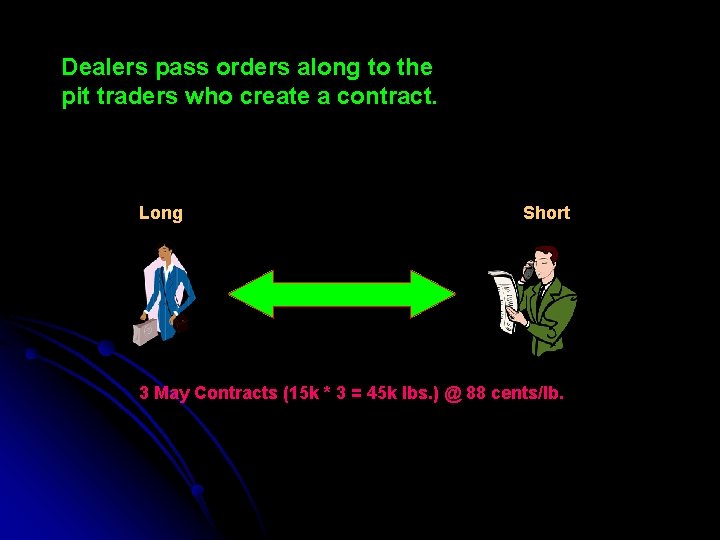

Dealers pass orders along to the pit traders who create a contract. Long Short 3 May Contracts (15 k * 3 = 45 k lbs. ) @ 88 cents/lb.

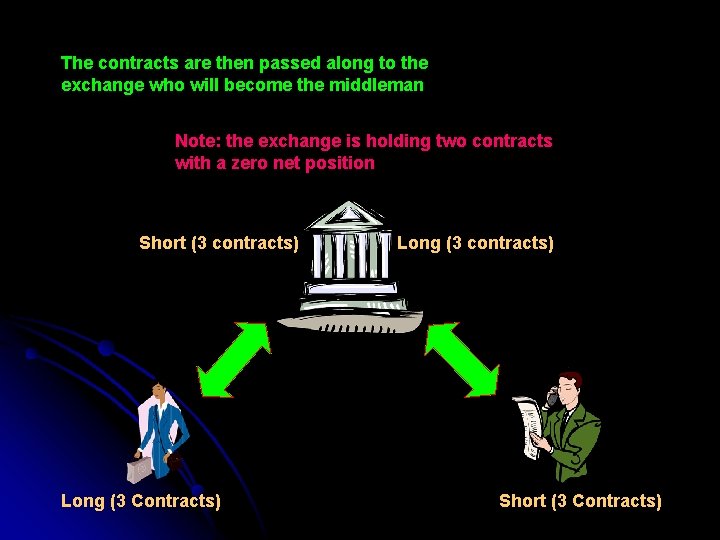

The contracts are then passed along to the exchange who will become the middleman Note: the exchange is holding two contracts with a zero net position Short (3 contracts) Long (3 Contracts) Long (3 contracts) Short (3 Contracts)

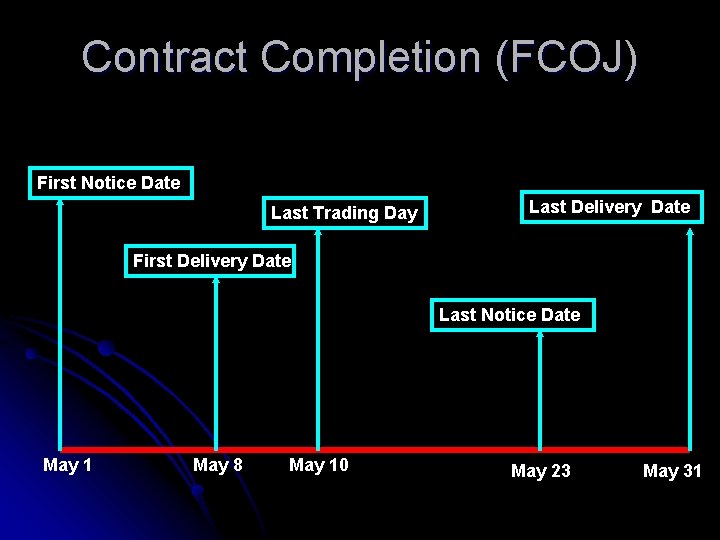

Contract Completion (FCOJ) First Notice Date Last Trading Day Last Delivery Date First Delivery Date Last Notice Date May 1 May 8 May 10 May 23 May 31

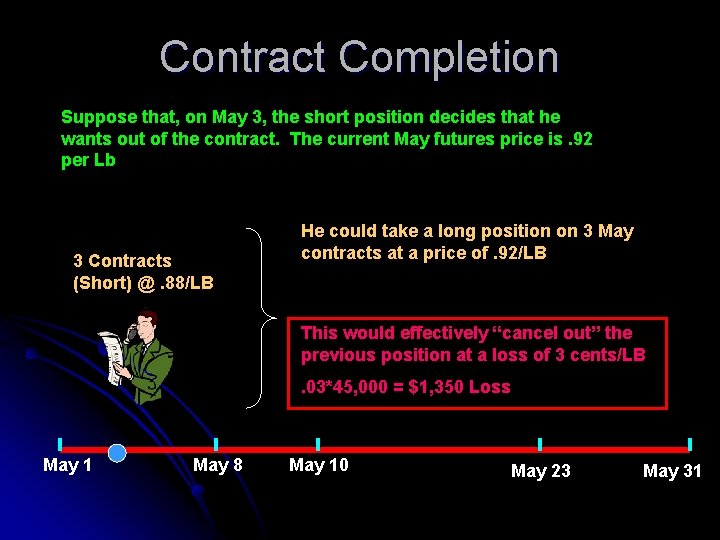

Contract Completion Suppose that, on May 3, the short position decides that he wants out of the contract. The current May futures price is. 92 per Lb 3 Contracts (Short) @. 88/LB He could take a long position on 3 May contracts at a price of. 92/LB This would effectively “cancel out” the previous position at a loss of 3 cents/LB. 03*45, 000 = $1, 350 Loss May 1 May 8 May 10 May 23 May 31

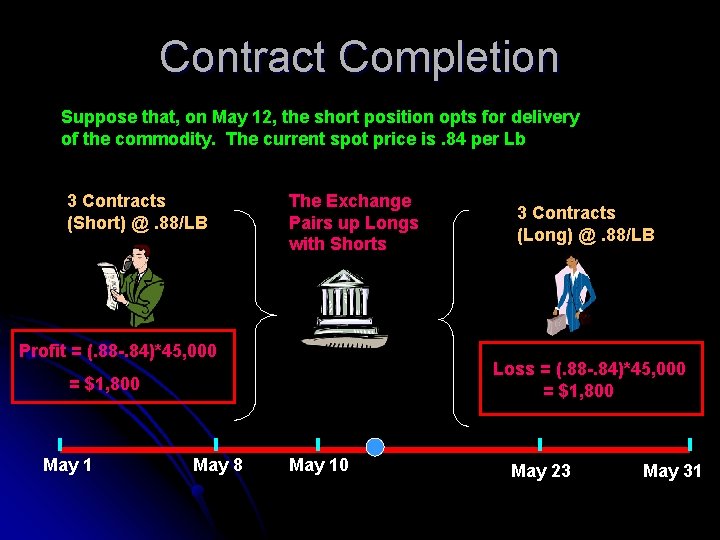

Contract Completion Suppose that, on May 12, the short position opts for delivery of the commodity. The current spot price is. 84 per Lb 3 Contracts (Short) @. 88/LB The Exchange Pairs up Longs with Shorts Profit = (. 88 -. 84)*45, 000 Loss = (. 88 -. 84)*45, 000 = $1, 800 May 1 May 8 3 Contracts (Long) @. 88/LB May 10 May 23 May 31

Types of Futures Currencies Agriculture Metals & Energy Financial British Pound Lumber Copper Treasuries Euro Milk Gold LIBOR Japanese Yen Cocoa Silver Municipal Index Canadian Dollar Coffee Platinum S&P 500 Mexican Peso Sugar Oil DJIA Cotton Natural Gas Nikkei Wheat Cattle Soybeans Eurodollar

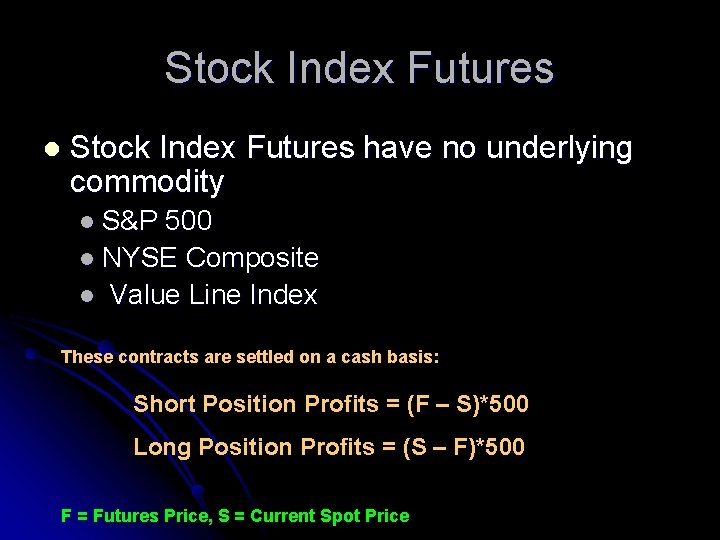

Stock Index Futures l Stock Index Futures have no underlying commodity l S&P 500 l NYSE Composite l Value Line Index These contracts are settled on a cash basis: Short Position Profits = (F – S)*500 Long Position Profits = (S – F)*500 F = Futures Price, S = Current Spot Price

l Regardless, futures positions are making “bets” on the price of the underlying commodity. Long Position Profits from price increases Short Position Profits from price decreases

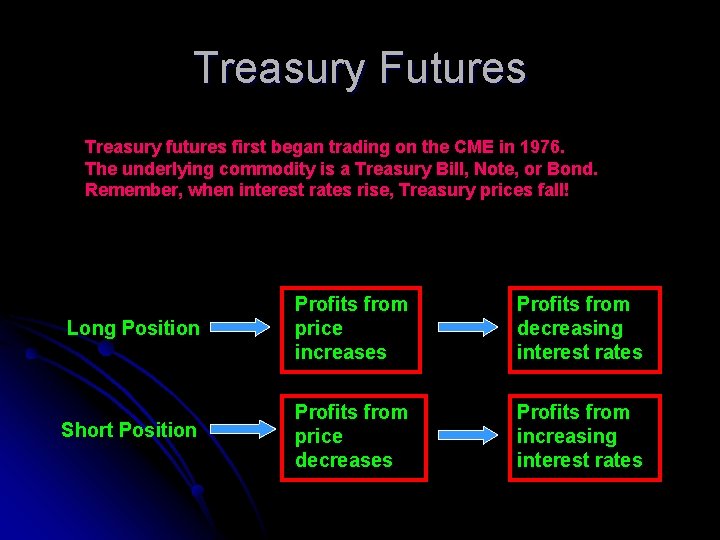

Treasury Futures Treasury futures first began trading on the CME in 1976. The underlying commodity is a Treasury Bill, Note, or Bond. Remember, when interest rates rise, Treasury prices fall! Long Position Profits from price increases Profits from decreasing interest rates Short Position Profits from price decreases Profits from increasing interest rates

T-Bill Futures With T-Bill Futures, the commodity is a $1 M Treasury Bill with 3 months left until maturity Contracts exist for February, March, April, June, September, and December delivery First Trading Day Nov 16, 2004 Last Trading Day (T-Bill Auction) Delivery Day Feb 14 Feb 18

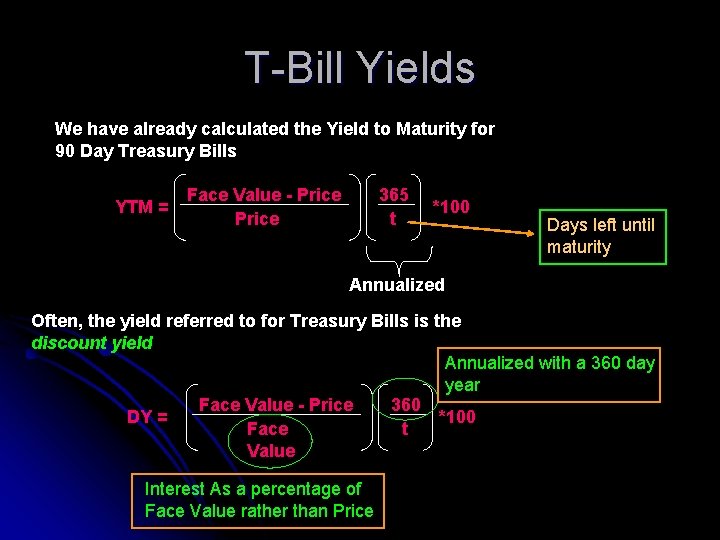

T-Bill Yields We have already calculated the Yield to Maturity for 90 Day Treasury Bills YTM = Face Value - Price 365 t *100 Days left until maturity Annualized Often, the yield referred to for Treasury Bills is the discount yield Annualized with a 360 day year Face Value - Price 360 DY = *100 Face t Value Interest As a percentage of Face Value rather than Price

Pricing T-Bill Futures T-Bill futures are listed using the IMM (International Monetary Market) Index IMM = 100 – Discount Yield For example, if the Price of a $100, 90 Day Treasury were $98. DY = $100 - $98 $100 360 *100 = 8% 90 IMM = 100 – 8 = 92 Every. 005 increase in the IMM raises the value of a long T-Bill position by $12. 50 ($25 per basis point).

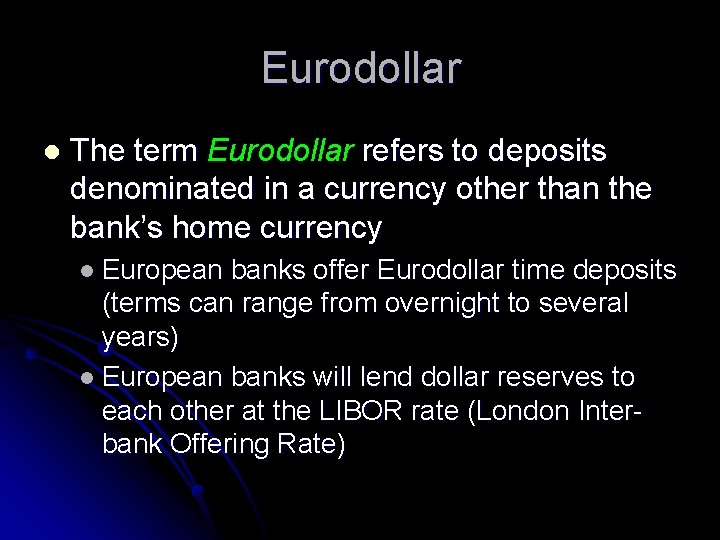

Eurodollar l The term Eurodollar refers to deposits denominated in a currency other than the bank’s home currency l European banks offer Eurodollar time deposits (terms can range from overnight to several years) l European banks will lend dollar reserves to each other at the LIBOR rate (London Interbank Offering Rate)

Eurodollar Futures (1981) l l The underlying commodity is a $1 M 3 month Eurodollar time deposit. However, these deposits are not marketable. Therefore, Eurodollar futures are settled on a cash basis Eurodollar futures can be treated like a T-Bill Future IMM = 100 – LIBOR Every. 005 increase in the IMM raises the value of the long position by $12. 50. ($25 per basis point)

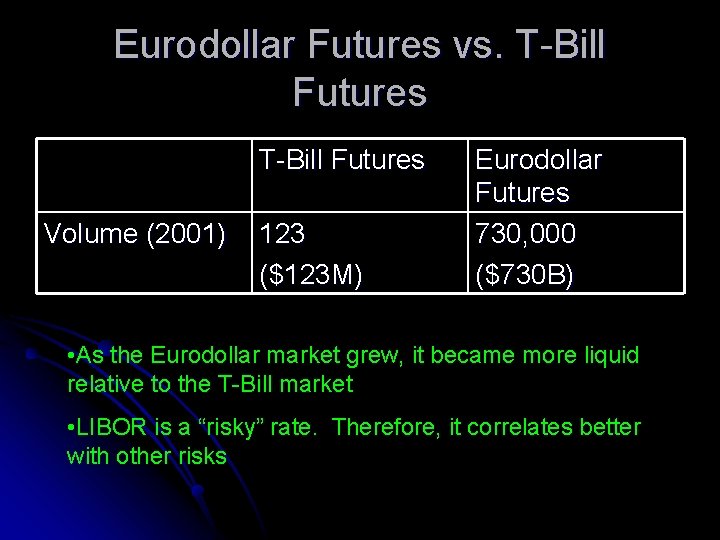

Eurodollar Futures vs. T-Bill Futures Volume (2001) 123 ($123 M) Eurodollar Futures 730, 000 ($730 B) • As the Eurodollar market grew, it became more liquid relative to the T-Bill market • LIBOR is a “risky” rate. Therefore, it correlates better with other risks

Pricing T-Bill/Eurodollar Futures Suppose that a march Eurodollar future (expires in 47 days) was currently selling for 94. 555 We also have the current money rates (LIBOR) Term 1 Month 3 Months 6 Months 1 Year Yield 5. 18% 5. 3125 5. 6438 5. 8163 IMM = 100 - LIBOR This contract is paying an annualized (yield) of 100 – 94. 555 = 5. 445%

Term 1 Month 3 Months 6 Months 1 Year Purchase/Sale of Eurodollar Future Now Yield 5. 18% 5. 3125 5. 6438 5. 8163 The Eurodollar Future currently has an annual yield of 5. 445% 5. 445 = 1. 3613% 4 $1 M (1. 013613) = $1, 013, 613 Delivery of a $1 M 90 Day Eurodollar account Receipt of $1, 013, 613 Day 47 Day 137 90 Days

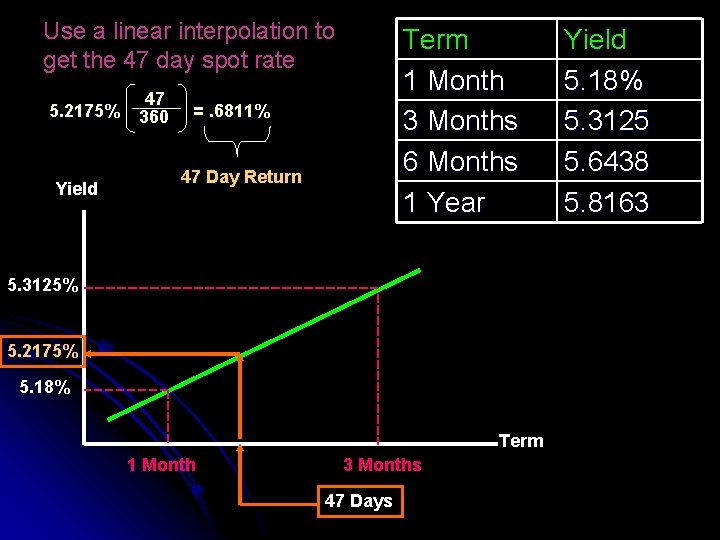

Use a linear interpolation to get the 47 day spot rate 5. 2175% Yield 47 360 Term 1 Month 3 Months 6 Months 1 Year =. 6811% 47 Day Return 5. 3125% 5. 2175% 5. 18% Term 1 Month 3 Months 47 Days Yield 5. 18% 5. 3125 5. 6438 5. 8163

Use a linear interpolation to get the 137 day spot rate 5. 4855% Yield 137 360 = 2. 0875% 137 Day Return Term 1 Month 3 Months 6 Months 1 Year 5. 6438% 5. 4855% 5. 3125% Term 3 Months 6 Months 137 Days Yield 5. 18% 5. 3125 5. 6438 5. 8163

Term S(47) S(137) Yield. 6811% 2. 0875% The Eurodollar Future currently has an annual yield of 5. 445% 5. 445 = 1. 3613% 4 S(47) =. 6811% S(137) = 2. 0875% Now Day 47 1. 020875 1. 006811 =1. 01397 = 1. 3970% = F(47, 90) Day 137

The Eurodollar Future currently has an annual yield of 5. 445% (1. 3613%) The implied no-arbitrage interest rate between 47 and 137 days is 5. 588% (1. 3970%) IMM = 100 – 5. 445 = 94. 555 IMM = 100 – 5. 588 = 94. 412 The interest rate on the futures contract is to low!! or, alternatively The price of the futures contract is too high!!! Borrow at Futures Rate (Sell a Futures contract) Now Day 47 Profit = 1. 013970 – 1. 013613 $1 M = $357 Day 137 Lend at the implied forward rate

How do you lend at the implied forward rate? By lending for the entire 137 day period and borrowing for the first 47 days, your net position is as a lender for the last 90 day period! Borrow Lend Now Day 47 Day 137

Go Short on a the futures contract at a price of 94. 555 Lend $992, 885 for 137 days at the spot rate of 5. 4855% (You will be paid $1, 013, 613 in 137 days) Borrow $992, 885 for 47 days at the spot rate of 5. 2175% Receive $1, 013, 613 from the original 137 day loan Pay $1, 013, 613 on the 90 day loan Borrow $1, 000 at the rate established by the futures contract (5. 445%) Pay back the $992, 885 Loan + interest ($999, 643) Now Day 47 Day 137

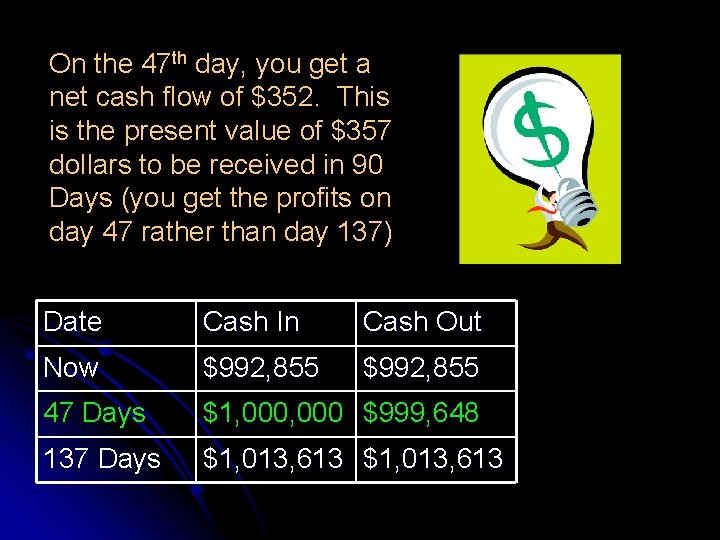

On the 47 th day, you get a net cash flow of $352. This is the present value of $357 dollars to be received in 90 Days (you get the profits on day 47 rather than day 137) Date Cash In Cash Out Now $992, 855 47 Days $1, 000 $999, 648 137 Days $1, 013, 613

The no arbitrage price of a futures contract will reflect the forward rate implied by the yield curve. But remember, the forward rate is the expected future spot rate Futures Rate = Expected Future Spot Rate

Treasury Note/Bond Futures Contract Underlying Asset 20 Year T-Bond (FV = $100, 000) 10 Year T-Note (FV = $100, 000) 5 Year T-Note (FV = $100, 000) 2 Year T-Note (FV = $200, 000) 15 -20 Year T-Bond with a 6% coupon 6. 5 – 10 Year T-Note with a 6% coupon 4. 25 – 5 Year T-Note with 6% coupon 1. 75 – 2 Year T-Note with 6% coupon

The commodity for T-Note/Bond futures is a Treasury with a 6% annual coupon. What if there are no 6% bonds available? Treasury Note/Bond futures are based on cheapest to deliver (CTD) basis. Requirements for Delivery 1. The Face value of the delivered notes must sum to $100, 000 (per contract) 2. All the notes must have the same characteristics (term, coupon) It’s the short position’s option to deliver whatever has the lowest cost

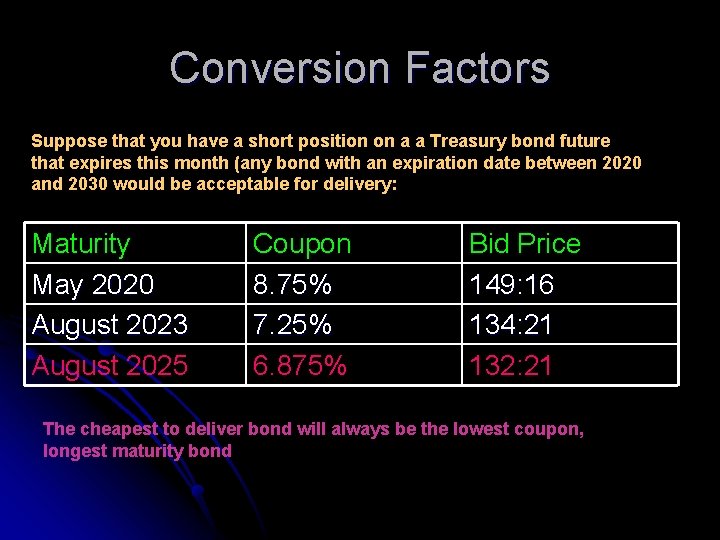

Conversion Factors Suppose that you have a short position on a a Treasury bond future that expires this month (any bond with an expiration date between 2020 and 2030 would be acceptable for delivery: Maturity May 2020 August 2023 August 2025 Coupon 8. 75% 7. 25% 6. 875% Bid Price 149: 16 134: 21 132: 21 The cheapest to deliver bond will always be the lowest coupon, longest maturity bond

Conversion Factors Maturity Coupon May 2020 August 2023 August 2025 8. 75% 7. 25% 6. 875% Conversion Factor 1. 2695 1. 1331 1. 1017 The conversion factors are meant to make all deliverable bonds “equally attractive” Invoice Amount = Contract Size Futures Price Conversion Factor Accrued Interest

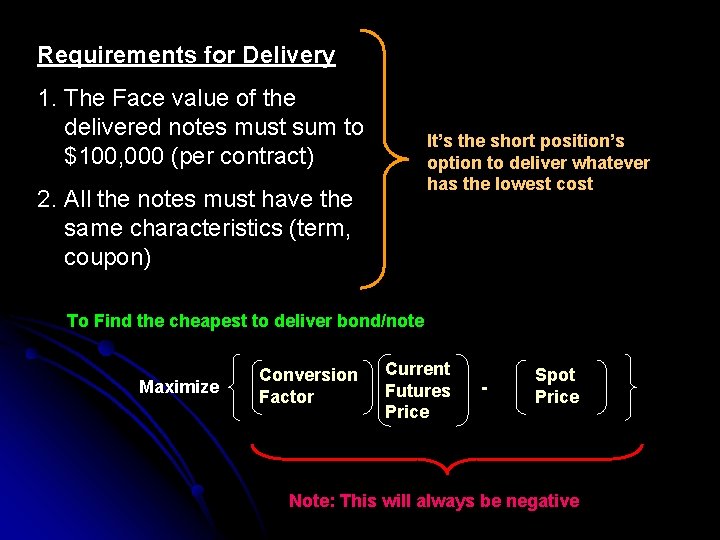

Requirements for Delivery 1. The Face value of the delivered notes must sum to $100, 000 (per contract) It’s the short position’s option to deliver whatever has the lowest cost 2. All the notes must have the same characteristics (term, coupon) To Find the cheapest to deliver bond/note Maximize Conversion Factor Current Futures Price - Spot Price Note: This will always be negative

Pricing T-Note/Bond Futures 20 Year Treasury Delivered Now 20 Year Treasury Expires March 2025 The Logic behind pricing treasury note/bond futures is the same as with T-Bill futures. The price should reflect expectation of future spot rates. However, note that expectations of future spot rates are already incorporated in bond prices! Futures Price = Expected Future + (Carry Costs – Carry Return) Treasury Price Arbitrage Costs

Hedging Lets return to the 5 year Treasury Note example. Interest rates are currently 5% and are expected to stay at 5% (the yield curve is flat). A 5 year treasury note with $500, 000 of face value and a 5% annual coupon. P $25, 000 $525, 000 + + = = $500, 000 2 3 4 (1. 05) 5 We already calculated the Modified Duration for this bond MD = 4. 3 That is, a 100 basis point increase in the interest rate lowers this bond’s price by (. 043)($500, 000) = $21, 500

Hedging with T-Bill Futures Short Position (Futures) Profits from price decreases Profits from increasing interest rates If you are long in bonds, you are worried about rising interest rates (rising interest rates lower the value of your bond). Therefore, you could hedge this risk by holding short positions in T-Bill futures (Short positions make money when interest rates drop)

Hedging with T-Bill Futures Short Position (Futures) Profits from price decreases Profits from increasing interest rates A perfect hedge eliminates all your interest rate risk Change in value of Value of Futures = position Change in # of Futures value of Contracts each contract $2, 500 = Change in value of bond position $21, 500/$2, 500 = 8. 6 Contracts

Hedging with T-Bill Futures Change in value of Value of Futures = position Change in # of Futures value of Contracts each contract = Change in value of bond position $2, 500 $21, 500/$2, 500 = 8. 6 Contracts Dollar Duration of Bonds Hedge Ratio = Dollar Duration of Futures = MD(B) MD(F) FV(B) FV(F) = 4. 3. 25 $500 K $1 M

One Problem…. . X 100 Here we have the 5 year Treasury key durations. Note that this bond’s price is most sensitive to the 5 Year spot rate. The future’s value is based on the 90 day treasury rate

Change in value of Value of Futures = position Change in # of Futures value of Contracts each contract $2, 500 = Change in value of bond position $21, 500/$2, 500 = 8. 6 Contracts We assumed that the 90 Day T-Bill rate and the 5 Year Rate were perfectly correlated. Suppose, instead, that we have Change in 90 Change in = (. 5) Day 5 Year Rate Treasury Rate The hedge ratio drops to 4. 3!

Hedging with T-Note/Bond Futures l The strategy would be the same. If you are worried about increasing interest rates, take a short position in futures contracts. The hedge ratio for T-Note/Bond futures depends on l l Size of bond position relative to the size of a futures contract Duration of your bond position relative to the duration of the underlying asset in the futures contract Correlation between the interest rate affecting your bond portfolio and the interest rate influencing the futures price Impact of interest rate on CTD bond
