HEAVY-DUTY FASTENER SYSTEMS Welcome to Flexco® Bolt Solid Plate
![• Engineered to meet the demands of the toughest materialhandling applications. • Commonly • Engineered to meet the demands of the toughest materialhandling applications. • Commonly](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-2.jpg)
• Engineered to meet the demands of the toughest materialhandling applications. • Commonly used for highly abrasive materials. • Can be applied to belts mechanically rated up to 105 k. N/m (620 P. I. W. ). HEAVY-DUTY FASTENER SYSTEMS Applications
![• • Coal Hard-Rock Mining Foundries Grain Elevators Aggregate Plants Steel Mills Recycling • • Coal Hard-Rock Mining Foundries Grain Elevators Aggregate Plants Steel Mills Recycling](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-3.jpg)

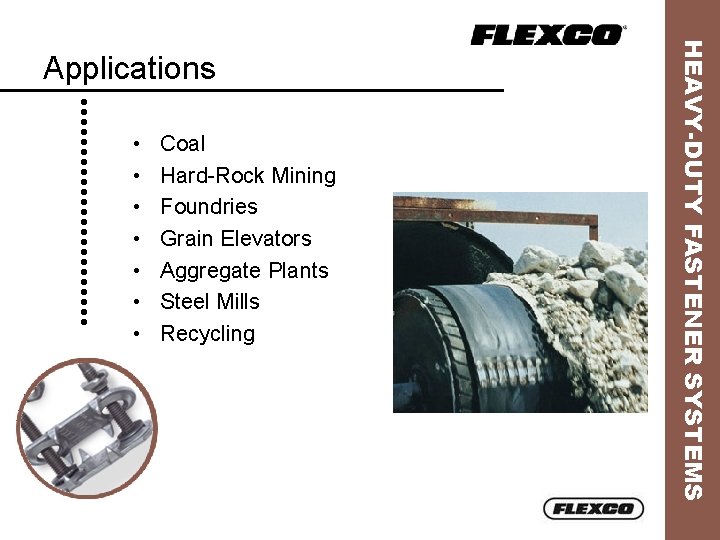

• • Coal Hard-Rock Mining Foundries Grain Elevators Aggregate Plants Steel Mills Recycling HEAVY-DUTY FASTENER SYSTEMS Applications
![Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-4.jpg)
Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings up to k. N/m (P. I. W. ) Recommended Minimum Pulley Diameter* mm (in. ) 1 5 -11 (3/16 -7/16) 30 (150) 300 (12) 140 5 -11 (3/16 -7/16) 40 (225) 350 (14) 190 8 -14 (5/16 -9/16) 60 (330) 450 (18) 1 -1/2 11 -17 (7/16 -11/16) 50 (300) 450 (18) 2 14 -21 (9/16 -13/16) 75 (440) 750 (30) 2 -1/4 14 -30 (9/16 -1 -3/16) 105 (620) 900 (36) 2 -1/2 19 -25 (3/4 -1) 75 (450) 1050 (42) 3 24 (15/16) & over 100 (560) 1200 (48) * Operating tension 75%-100% of Belt Rating HEAVY-DUTY FASTENER SYSTEMS Selection Guide
![• Strong, sift-free splice with superior holding ability. • Compression fastener – plates • Strong, sift-free splice with superior holding ability. • Compression fastener – plates](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-5.jpg)
• Strong, sift-free splice with superior holding ability. • Compression fastener – plates are mounted above and below the belt with high tensile strength bolts. HEAVY-DUTY FASTENER SYSTEMS Superior Strength
![• Specially formed teeth penetrate deep into the belt carcass – without damaging • Specially formed teeth penetrate deep into the belt carcass – without damaging](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-6.jpg)
• Specially formed teeth penetrate deep into the belt carcass – without damaging the carcass fibers. • Teeth add strength and pull-out resistance. HEAVY-DUTY FASTENER SYSTEMS Superior Strength
![• Specially designed templets, punches and boring tools make it easy to quickly • Specially designed templets, punches and boring tools make it easy to quickly](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-7.jpg)
• Specially designed templets, punches and boring tools make it easy to quickly and accurately punch holes into belts. • Fasteners can be installed on site using portable hand or power tools. HEAVY-DUTY FASTENER SYSTEMS Easy Installation
![• Exclusive Flexco piloted bolt speeds installation. • Piloted bolt tips cradle nuts • Exclusive Flexco piloted bolt speeds installation. • Piloted bolt tips cradle nuts](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-8.jpg)

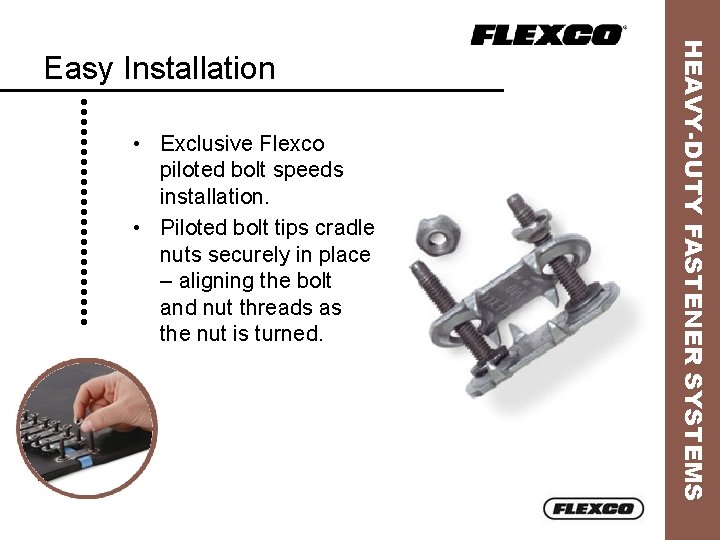

• Exclusive Flexco piloted bolt speeds installation. • Piloted bolt tips cradle nuts securely in place – aligning the bolt and nut threads as the nut is turned. HEAVY-DUTY FASTENER SYSTEMS Easy Installation
![• 90° splice is the most commonly used splice pattern for standard troughing • 90° splice is the most commonly used splice pattern for standard troughing](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-9.jpg)
• 90° splice is the most commonly used splice pattern for standard troughing and non-troughing bulk conveyors. • Requires the fewest fasteners. • Easiest and quickest to install. HEAVY-DUTY FASTENER SYSTEMS Splice Pattern – 90°
![• Can be installed in situations where pulley diameters are as much as • Can be installed in situations where pulley diameters are as much as](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-10.jpg)

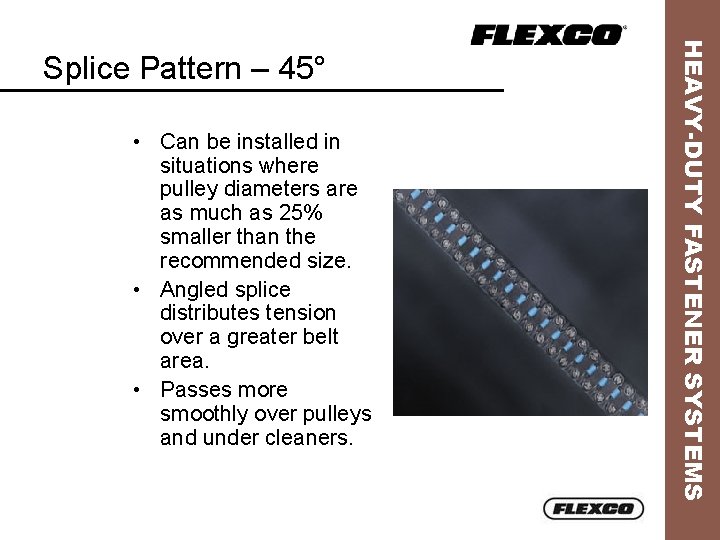

• Can be installed in situations where pulley diameters are as much as 25% smaller than the recommended size. • Angled splice distributes tension over a greater belt area. • Passes more smoothly over pulleys and under cleaners. HEAVY-DUTY FASTENER SYSTEMS Splice Pattern – 45°
![• Costs substantially less than a vulcanized splice. • Quicker to install than • Costs substantially less than a vulcanized splice. • Quicker to install than](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-11.jpg)
• Costs substantially less than a vulcanized splice. • Quicker to install than a vulcanized splice and can be installed by your own maintenance crew. • Can be installed on belts with a mechanical fastener rating up to 123 k. N/m (700 P. I. W. ). HEAVY-DUTY FASTENER SYSTEMS Wedlok® High Tension Splice
![• Use standard Flexco Bolt Solid Plate fasteners to repair belt edge tears • Use standard Flexco Bolt Solid Plate fasteners to repair belt edge tears](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-12.jpg)
• Use standard Flexco Bolt Solid Plate fasteners to repair belt edge tears and holes. • Three-bolt Rip Plate fasteners can be used to bridge ‘soft’ spots. • For jagged lengthwise tears, standard fasteners can be combined with threebolt Rip Plate fasteners. HEAVY-DUTY FASTENER SYSTEMS Rip Repair
![• When belt top covers are 4. 8 mm (3/16”) or more, we • When belt top covers are 4. 8 mm (3/16”) or more, we](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-13.jpg)
• When belt top covers are 4. 8 mm (3/16”) or more, we recommend countersinking (recessing) fasteners. • Provides deeper penetration of fastener teeth into the carcass. • Reduces fastener exposure and extends splice life. • Reduces noise on return idlers. • Smaller fasteners may be used in applications with smaller pulley diameters. HEAVY-DUTY FASTENER SYSTEMS Recessed Bolt Solid Plate
![• The only tools needed are a templet and portable hand power tools. • The only tools needed are a templet and portable hand power tools.](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-14.jpg)
• The only tools needed are a templet and portable hand power tools. • Impact wrench driven power tools are recommended since they can speed installation time by at least 50% HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• 90° and 45° Templets simplify installation by providing an accurate guide for • 90° and 45° Templets simplify installation by providing an accurate guide for](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-15.jpg)
• 90° and 45° Templets simplify installation by providing an accurate guide for precise placement of bolt holes. • Lengths for all standard belt widths are available. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• With a hammer and the Flexco® Cracking Chisel, worn top plates can • With a hammer and the Flexco® Cracking Chisel, worn top plates can](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-16.jpg)

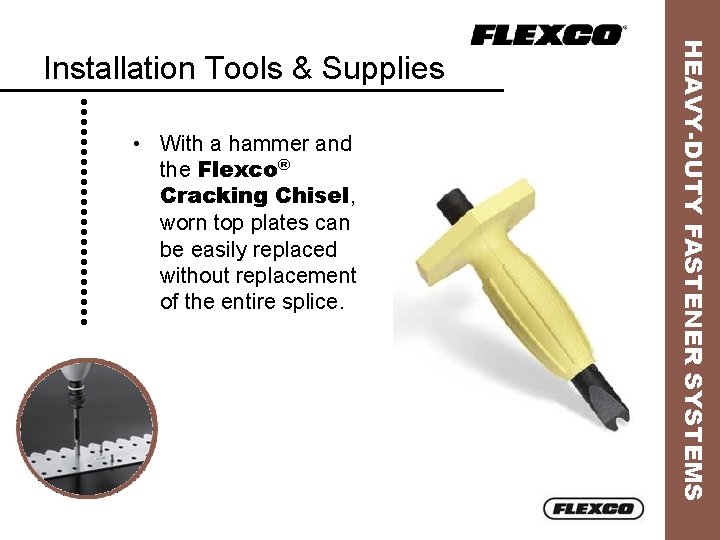

• With a hammer and the Flexco® Cracking Chisel, worn top plates can be easily replaced without replacement of the entire splice. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• Flexco-Lok® Tape is a rigid tape that helps eliminate belt ripple on • Flexco-Lok® Tape is a rigid tape that helps eliminate belt ripple on](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-17.jpg)
• Flexco-Lok® Tape is a rigid tape that helps eliminate belt ripple on plied or solid -woven belting, so belts run smoothly over pulleys and under cleaners. • Also helps seal the splice against seepage of fines and moisture. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• Make straighter cuts – time after time – with the lightweight, easy-to-use • Make straighter cuts – time after time – with the lightweight, easy-to-use](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-18.jpg)
• Make straighter cuts – time after time – with the lightweight, easy-to-use 840 Series Belt Cutter. • Cuts in both directions. • Designed to enhance operator safety. • Grips belts securely. • Safety blade is shielded from operator contact. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• Portable, lightweight FSK™ Belt Skiver adjusts easily and precisely to various cutting • Portable, lightweight FSK™ Belt Skiver adjusts easily and precisely to various cutting](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-19.jpg)
• Portable, lightweight FSK™ Belt Skiver adjusts easily and precisely to various cutting depths. • Use on rubbercovered belts with top covers of 4. 5 mm (3/16”) or more. • Provides skives from 1. 5 -10 mm (1/16”-3/8”) deep in a single pass. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![• Far-Pul® HD® Belt Clamps are easy-touse, lightweight and specially engineered for heavy-duty • Far-Pul® HD® Belt Clamps are easy-touse, lightweight and specially engineered for heavy-duty](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-20.jpg)

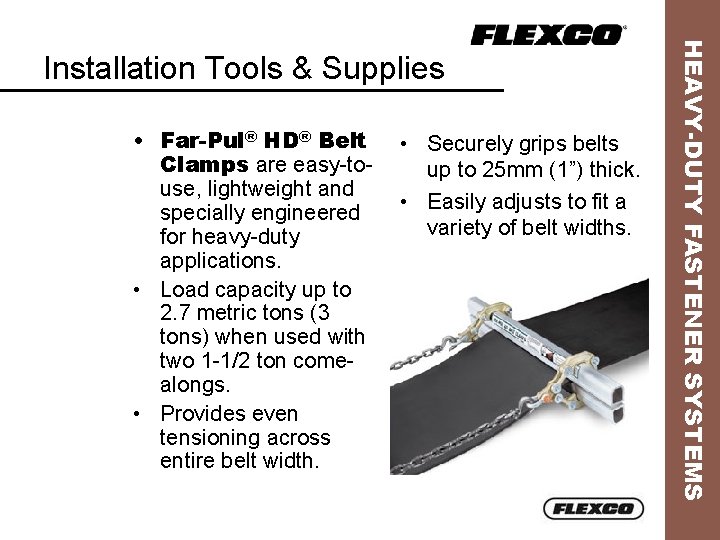

• Far-Pul® HD® Belt Clamps are easy-touse, lightweight and specially engineered for heavy-duty applications. • Load capacity up to 2. 7 metric tons (3 tons) when used with two 1 -1/2 ton comealongs. • Provides even tensioning across entire belt width. • Securely grips belts up to 25 mm (1”) thick. • Easily adjusts to fit a variety of belt widths. HEAVY-DUTY FASTENER SYSTEMS Installation Tools & Supplies
![All the advantages of Bolt Solid Plate plus: • Increased splice life – less All the advantages of Bolt Solid Plate plus: • Increased splice life – less](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-21.jpg)
All the advantages of Bolt Solid Plate plus: • Increased splice life – less exposure to wear • Increased impact protection of fasteners • Improved cleaner/fastener interface • Reduced cleaner blade bounce and chatter • Reduced conveyor noise HEAVY-DUTY FASTENER SYSTEMS Flexco® VP™- Advantages
![• Ideal for highly abrasive materials. • Sand • Crushed Stone • Salt • Ideal for highly abrasive materials. • Sand • Crushed Stone • Salt](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-22.jpg)

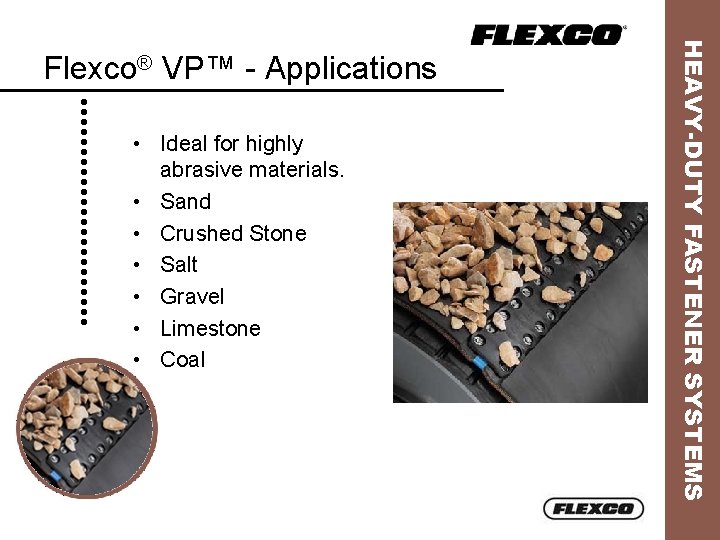

• Ideal for highly abrasive materials. • Sand • Crushed Stone • Salt • Gravel • Limestone • Coal HEAVY-DUTY FASTENER SYSTEMS Flexco® VP™ - Applications
![Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-23.jpg)
Fastener Size Belt Thickness Range mm (in. ) For Belts with Mechanical Fastener Ratings up to k. N/m (P. I. W. ) Recommended Minimum Pulley Diameter mm (in. ) 140 VP 5 -11 (3/16 - 7/16) 40 (225) 350 (14) 190 VP 8 -14 (5/16 – 9/16) 60 (330) 450 (18) 2 VP 14 -21 (9/16 – 13/16) 75 (440) 750 (30) HEAVY-DUTY FASTENER SYSTEMS Flexco® VP™ - Selection Guide
![• Available with steel or abrasion resistant Meg. Alloy® bottom plates. • 140 • Available with steel or abrasion resistant Meg. Alloy® bottom plates. • 140](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-24.jpg)

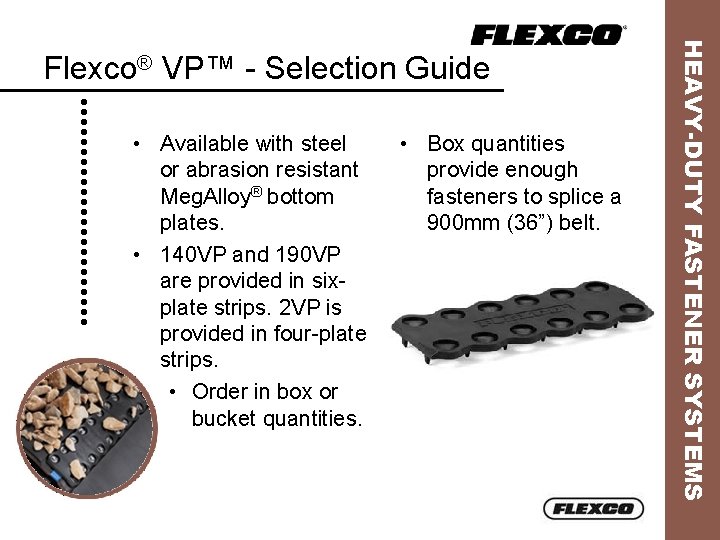

• Available with steel or abrasion resistant Meg. Alloy® bottom plates. • 140 VP and 190 VP are provided in sixplate strips. 2 VP is provided in four-plate strips. • Order in box or bucket quantities. • Box quantities provide enough fasteners to splice a 900 mm (36”) belt. HEAVY-DUTY FASTENER SYSTEMS Flexco® VP™ - Selection Guide
![• VP Templets simplify installation by providing a guide for accurate bolt-hole placement. • VP Templets simplify installation by providing a guide for accurate bolt-hole placement.](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-25.jpg)
• VP Templets simplify installation by providing a guide for accurate bolt-hole placement. • VP Templets are yellow dichromate plated for easy identification. HEAVY-DUTY FASTENER SYSTEMS 90° Templet for VP™
![HEAVY-DUTY FASTENER SYSTEMS HEAVY-DUTY FASTENER SYSTEMS](http://slidetodoc.com/presentation_image/2308709204fcaac27327a508a8916b24/image-26.jpg)
HEAVY-DUTY FASTENER SYSTEMS
