Heavy Wash Drive through industrial wash Underchassis wash

Heavy. Wash Drive through industrial wash

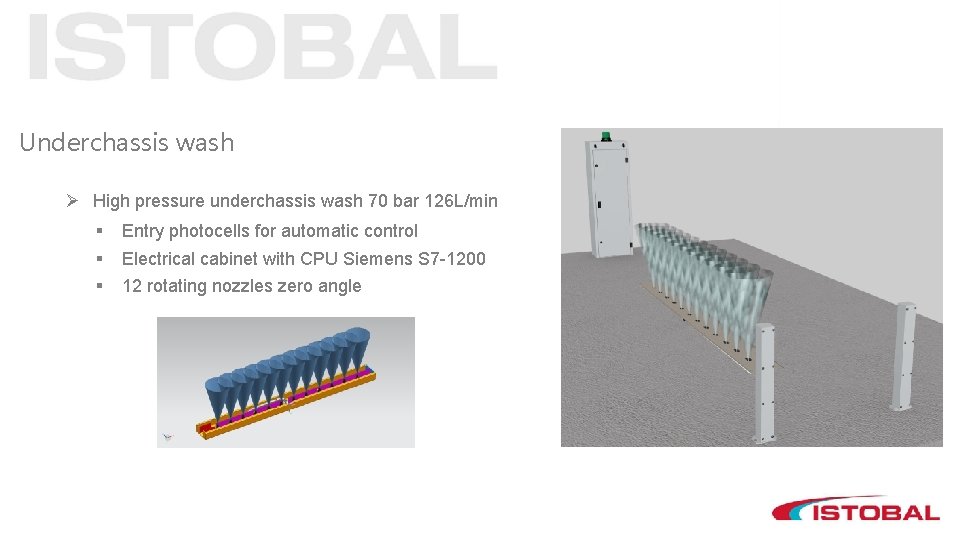

Underchassis wash Ø High pressure underchassis wash 70 bar 126 L/min § § § Entry photocells for automatic control Electrical cabinet with CPU Siemens S 7 -1200 12 rotating nozzles zero angle

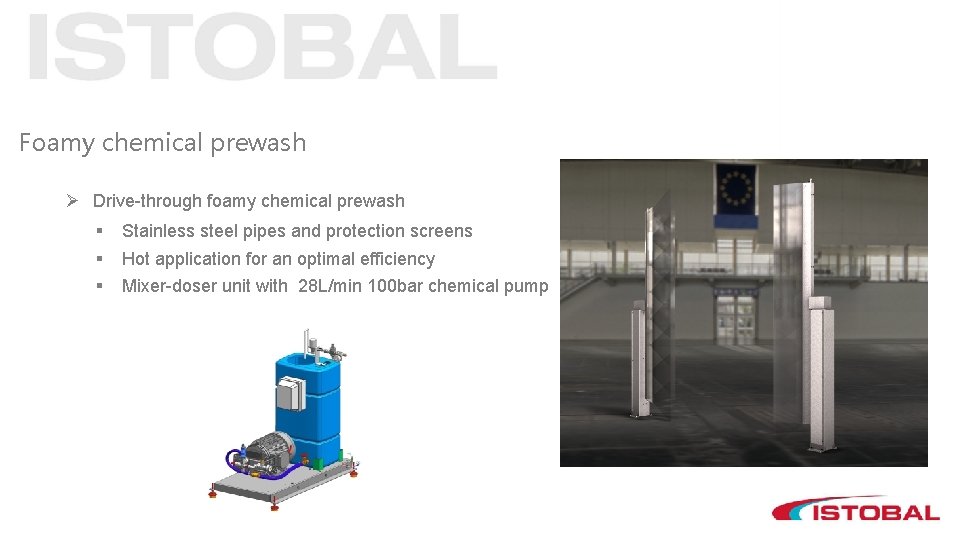

Foamy chemical prewash Ø Drive-through foamy chemical prewash § § § Stainless steel pipes and protection screens Hot application for an optimal efficiency Mixer-doser unit with 28 L/min 100 bar chemical pump

Full arch with motorized rotators Ø Full arch with rotators with 70 bar 336 -504 L/min § 8 motorized rotators to keep a constant spinning speed § § Nozzles with stabilizer to avoid the lost of pressure § Automatic control by photocells Upper and top rotators adjustable to wash up to 4200 mm

Full arch with motorized rotators Ø Full arch with rotators with 70 bar 504 L/min § 8 motorized rotators to keep a constant spinning speed § § Nozzles with stabilizer to avoid the lost of pressure § Automatic control by photocells Upper and top rotators adjustable to wash up to 4200 mm

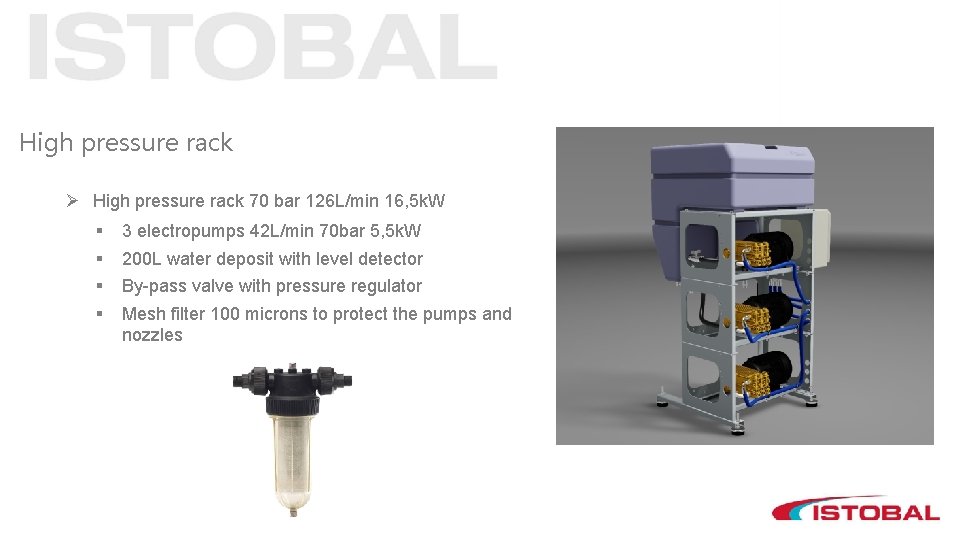

High pressure rack Ø High pressure rack 70 bar 126 L/min 16, 5 k. W § § 3 electropumps 42 L/min 70 bar 5, 5 k. W 200 L water deposit with level detector By-pass valve with pressure regulator Mesh filter 100 microns to protect the pumps and nozzles

Final rinse Ø Drive-through rinsing/waxing arch § Side+top application with demineralized water § Centrifugal pump 1, 5 k. W § Electronic dosing pump for wax application § Arch in aluminum with PVDF nozzles § Automatic start by photocells

Washing tunnel distribution
