HEAT TREATMENTS OF FERROUS ALLOYS HEAT TREATMENT Heat

HEAT TREATMENTS OF FERROUS ALLOYS

HEAT TREATMENT Heat treatment – controlled heating and cooling of metals for the purpose of altering their properties at least 90% of all heat-treating operations are carried out on steel. Heat treatment uses: Increase strength Improving machining characteristics Reducing forming forces and energy consumption Restoring ductility

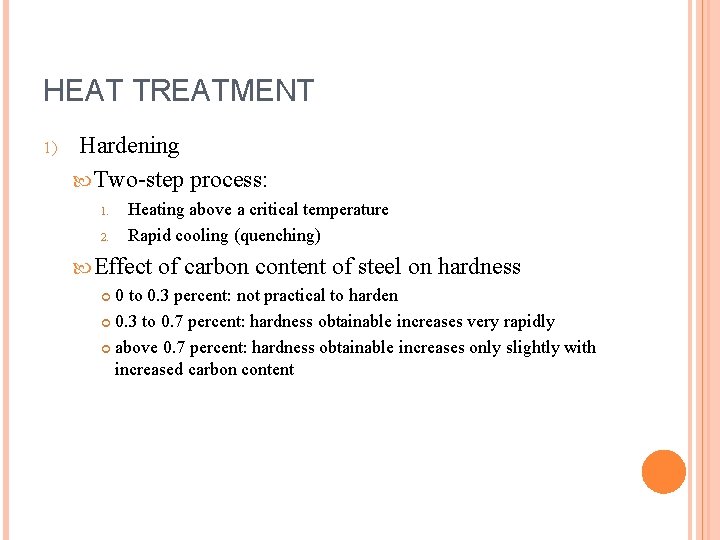

HEAT TREATMENT 1) Hardening Two-step process: 1. 2. Heating above a critical temperature Rapid cooling (quenching) Effect of carbon content of steel on hardness 0 to 0. 3 percent: not practical to harden 0. 3 to 0. 7 percent: hardness obtainable increases very rapidly above 0. 7 percent: hardness obtainable increases only slightly with increased carbon content

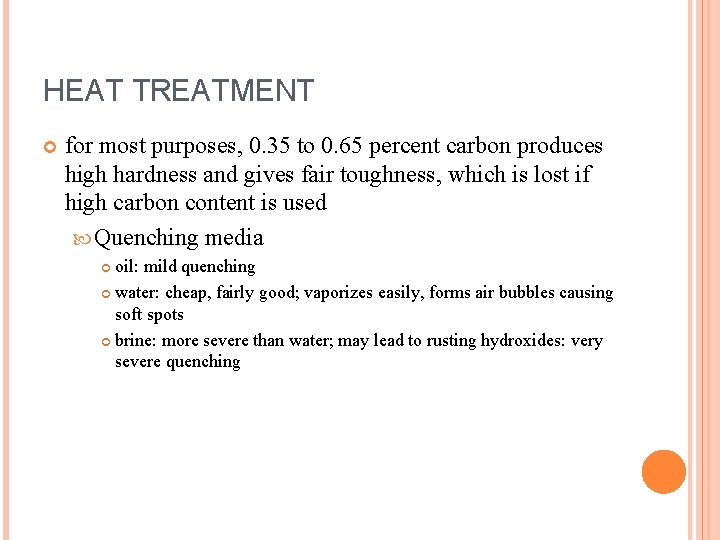

HEAT TREATMENT for most purposes, 0. 35 to 0. 65 percent carbon produces high hardness and gives fair toughness, which is lost if high carbon content is used Quenching media oil: mild quenching water: cheap, fairly good; vaporizes easily, forms air bubbles causing soft spots brine: more severe than water; may lead to rusting hydroxides: very severe quenching

HEAT TREATMENT Hardenability - the ability of a steel to develop its maximum hardness when subjected to the normal hardening heating and quenching cycle. A steel is said to have good hardenability when it can be fully hardened with relatively slow cooling.

HEAT TREATMENT 2) Annealing - used to reduce hardness, alter toughness, ductility, or other mechanical or electrical properties Full annealing: results in a soft and ductile material Full Annealing Process involves: 1. Heating for a period of time 2. Slow cooling

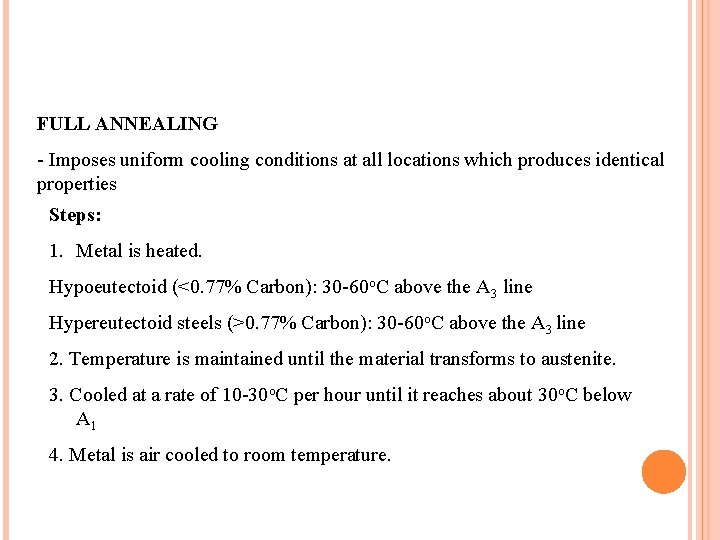

FULL ANNEALING - Imposes uniform cooling conditions at all locations which produces identical properties Steps: 1. Metal is heated. Hypoeutectoid (<0. 77% Carbon): 30 -60 o. C above the A 3 line Hypereutectoid steels (>0. 77% Carbon): 30 -60 o. C above the A 3 line 2. Temperature is maintained until the material transforms to austenite. 3. Cooled at a rate of 10 -30 o. C per hour until it reaches about 30 o. C below A 1 4. Metal is air cooled to room temperature.

HEAT TREATMENT Normalizing involves: 1. Heating 2. Cooling in still air

NORMALIZING - Cooling is non-uniform, resulting to non-uniform properties Steps: 1. Metal is heated 60 o. C above line A 1. 2. Held at this temperature until material transforms to austenite. 3. Metal is cooled to room temperature using natural convection.

PROCESS ANNEAL -Used to treat low-Carbon Steels (<0. 25% Carbon) -Metal produced is soft enough to enable further cold working without fracturing Steps: 1. Temperature is raised slightly below A 1. 2. Held in this temperature to allow recrystallization of the ferrite phase. 3. Cooled in still air at any rate.

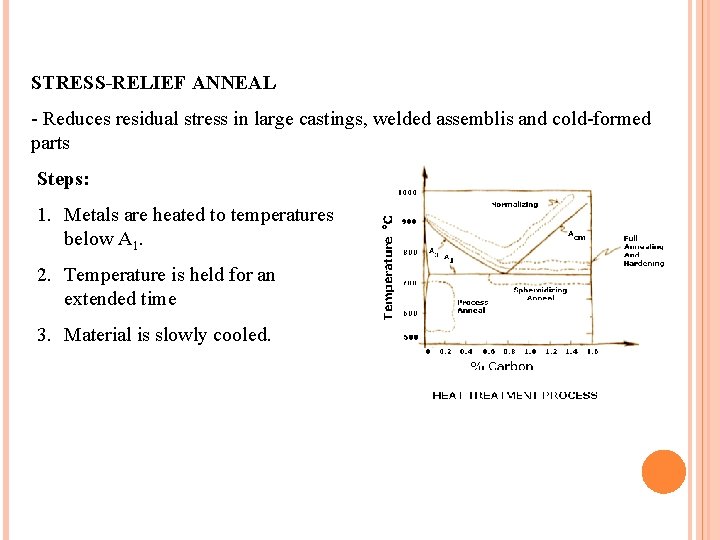

STRESS-RELIEF ANNEAL - Reduces residual stress in large castings, welded assemblis and cold-formed parts Steps: 1. Metals are heated to temperatures below A 1. 2. Temperature is held for an extended time 3. Material is slowly cooled.

SPHEROIDIZATION - Produces a structure where the cementite is in form of small spheroids dispersed throughout the ferrite matrix Three ways: 1. prolonged heating at a temperature below the A 1 then slowly cooling the material 2. cycling between temperatures slightly above and below the A 1 3. for high-alloy steels, heating to 750 -800 o. C or higher and holding it for several hours

-no significant phase transformations like that of steel -Three purposes: 1. produce a uniform, homogenous structure 2. provide stress relief 3. bring about recrystallization - process is usually slowly heating the material to moderate temperatures, holding it for a certain time to allow change in desired properties to take place then is slowly cooled

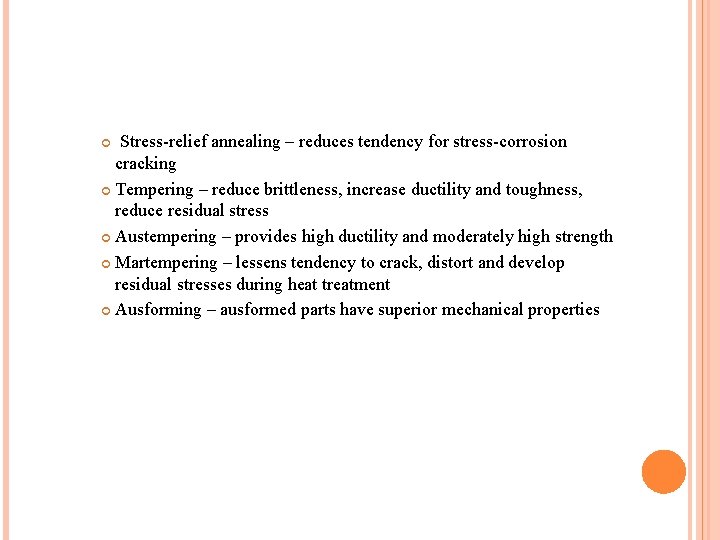

Stress-relief annealing – reduces tendency for stress-corrosion cracking Tempering – reduce brittleness, increase ductility and toughness, reduce residual stress Austempering – provides high ductility and moderately high strength Martempering – lessens tendency to crack, distort and develop residual stresses during heat treatment Ausforming – ausformed parts have superior mechanical properties

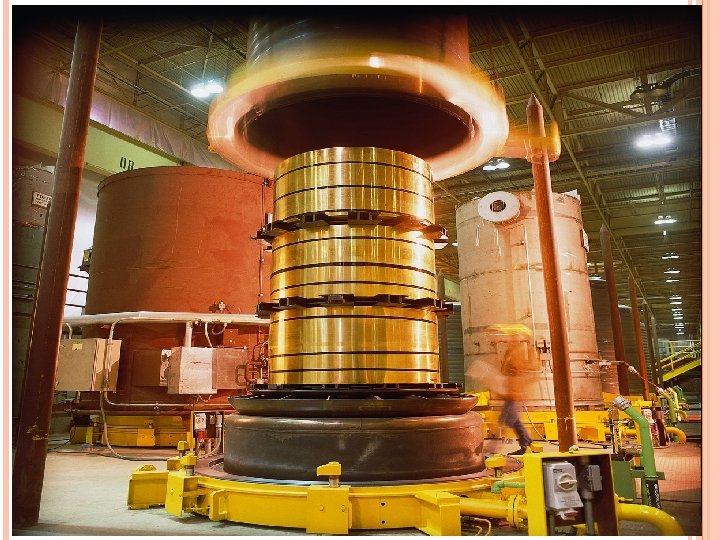

HEAT TREATMENT FURNACES batch furnace insulated chamber heating system access door

HEAT TREATMENT FURNACES continuous parts furnace are heat treated continuously through the furnace on conveyors or various designs that use trays, belts, chains and other mechanisms

DESIGN CONSIDERATIONS Heat treating Part design Sharp internal or external corners Quenching method nonuniform cooling Thickness, holes, grooves, keyways, splines, asymmetrical shapes, Cracking and warping
