Heat Transfer 5 th Semester Mechanical Engineering CBS

Heat Transfer 5 th Semester Mechanical Engineering (CBS) Subject Code: COME 504 T-HT Unit 1: Basic Modes of Heat Transfer Faculty Prof Sajid Siddiqui Anjuman College of Engineering & Technology Sadar, Nagpur

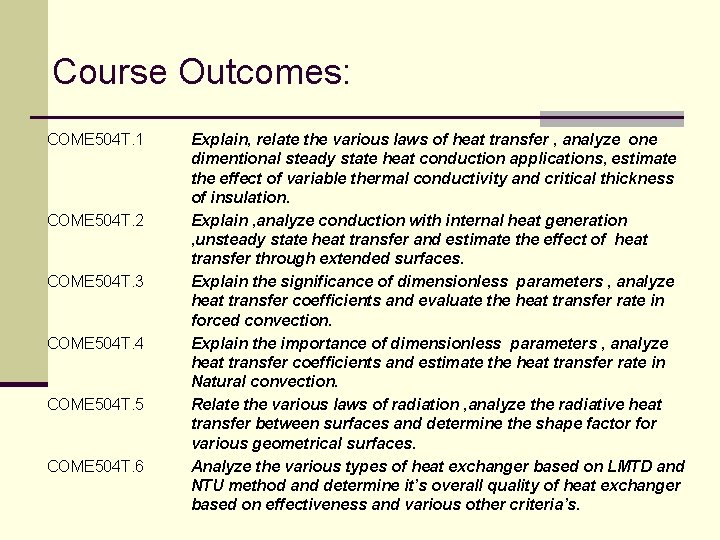

Course Outcomes: COME 504 T. 1 COME 504 T. 2 COME 504 T. 3 COME 504 T. 4 COME 504 T. 5 COME 504 T. 6 Explain, relate the various laws of heat transfer , analyze one dimentional steady state heat conduction applications, estimate the effect of variable thermal conductivity and critical thickness of insulation. Explain , analyze conduction with internal heat generation , unsteady state heat transfer and estimate the effect of heat transfer through extended surfaces. Explain the significance of dimensionless parameters , analyze heat transfer coefficients and evaluate the heat transfer rate in forced convection. Explain the importance of dimensionless parameters , analyze heat transfer coefficients and estimate the heat transfer rate in Natural convection. Relate the various laws of radiation , analyze the radiative heat transfer between surfaces and determine the shape factor for various geometrical surfaces. Analyze the various types of heat exchanger based on LMTD and NTU method and determine it’s overall quality of heat exchanger based on effectiveness and various other criteria’s.

Introduction Heat Transfer can be defined as the transfer of heat energy between the system and the surrounding due to temperature difference. Heat on its own will always flow from a body at a higher temperature to a body at a lower temperature

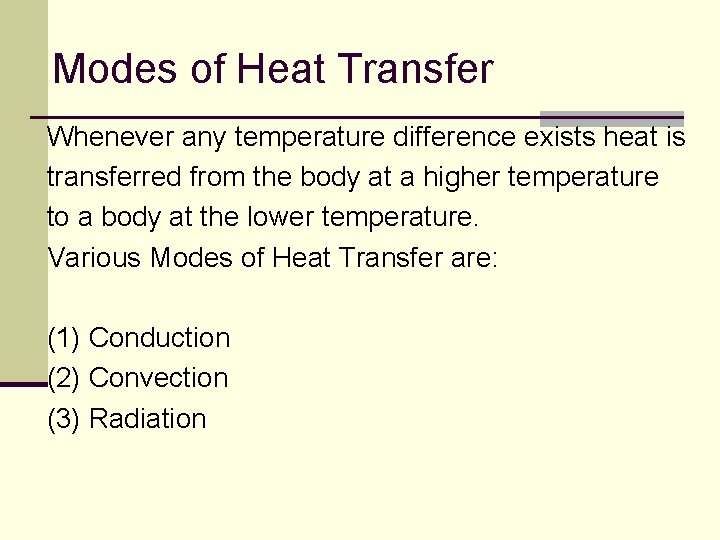

Modes of Heat Transfer Whenever any temperature difference exists heat is transferred from the body at a higher temperature to a body at the lower temperature. Various Modes of Heat Transfer are: (1) Conduction (2) Convection (3) Radiation
