Heat Engines Heat Engines First Law and Heat

  • Slides: 18
Download presentation

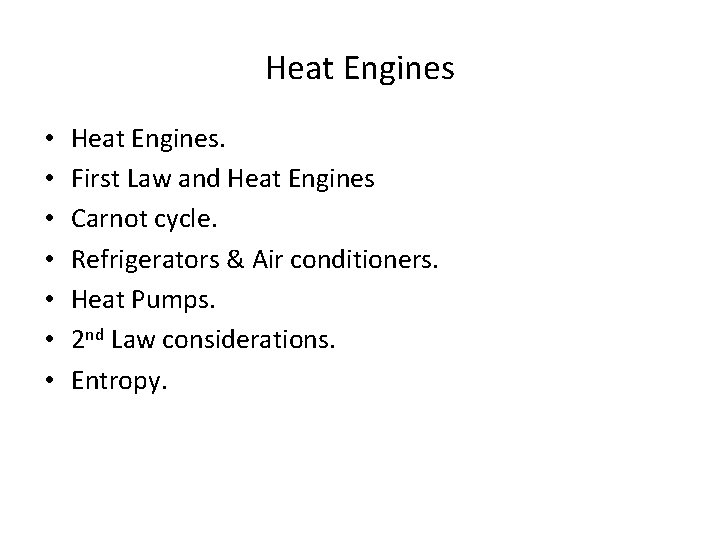

Heat Engines • • Heat Engines. First Law and Heat Engines Carnot cycle. Refrigerators

Heat Engines • • Heat Engines. First Law and Heat Engines Carnot cycle. Refrigerators & Air conditioners. Heat Pumps. 2 nd Law considerations. Entropy.

Heat engines • Examples of Heat Engines – – – Steam engine Coal plant

Heat engines • Examples of Heat Engines – – – Steam engine Coal plant Nuclear plant Automobile Jet engine • Each of these has – Hot source – Cold source – Path from hot to cold which can be diverted to work • Expanding piston steam engine, car engine • Pressure difference across turbine blade

Steam engine • Path from hot to cold which can be diverted to work

Steam engine • Path from hot to cold which can be diverted to work – Expanding piston steam engine. – Pressure difference across turbine blade.

Internal combustion engine • Path from hot to cold which can be diverted to

Internal combustion engine • Path from hot to cold which can be diverted to work – Expanding piston car engine. – Hot reservoir inside engine, cold reservoir tailpipe – “Internal combustion” engine.

Heat Engine Animations • Otto Cycle (automobile) http: //www. animatedengines. com/otto. html • Otto

Heat Engine Animations • Otto Cycle (automobile) http: //www. animatedengines. com/otto. html • Otto Cycle (automobile) https: //sites. google. com/site/physicsflash/home/otto

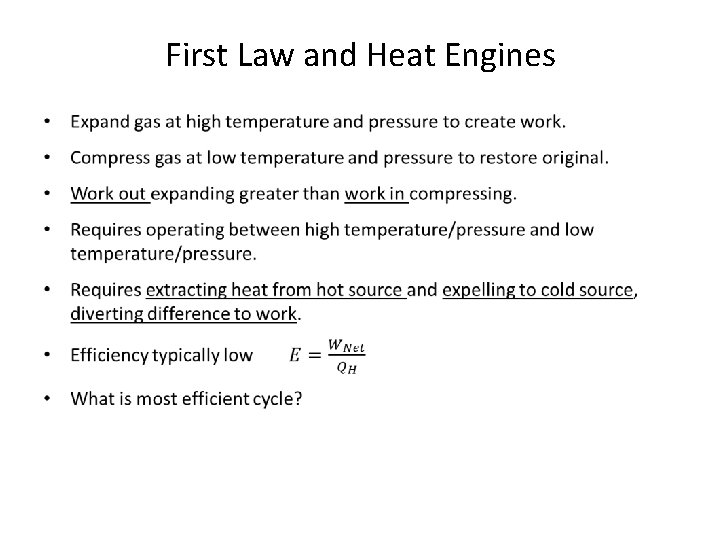

First Law and Heat Engines •

First Law and Heat Engines •

Heat Engine efficiency •

Heat Engine efficiency •

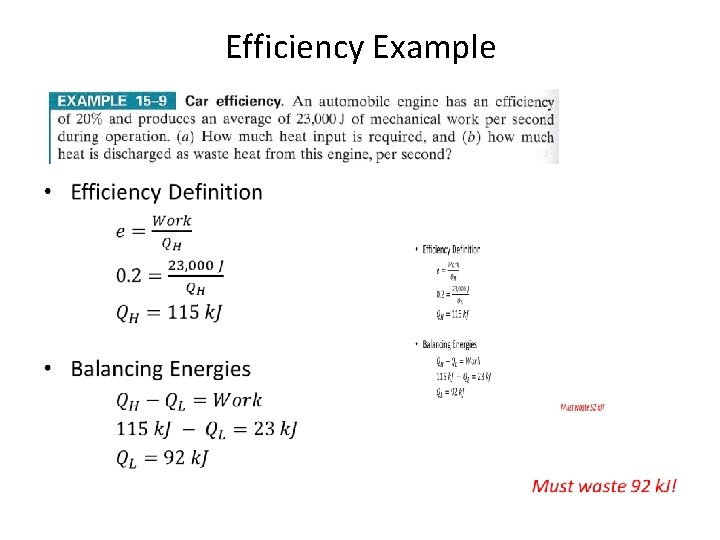

Efficiency Example •

Efficiency Example •

“Everything” problem – getting efficiency • ΔU Work Q a -> b +6000 J

“Everything” problem – getting efficiency • ΔU Work Q a -> b +6000 J +4000 J 10000 J b -> c -4500 J c -> d -3000 J -2000 J -5000 J d -> a +1500 J entire cycle 0 J 2000 J

Carnot cycle – most efficient cycle •

Carnot cycle – most efficient cycle •

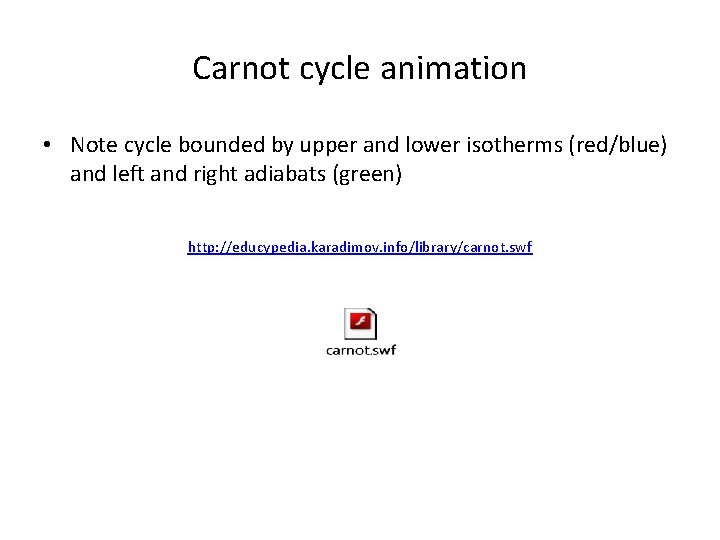

Carnot cycle animation • Note cycle bounded by upper and lower isotherms (red/blue) and

Carnot cycle animation • Note cycle bounded by upper and lower isotherms (red/blue) and left and right adiabats (green) http: //educypedia. karadimov. info/library/carnot. swf

Carnot cycle examples •

Carnot cycle examples •

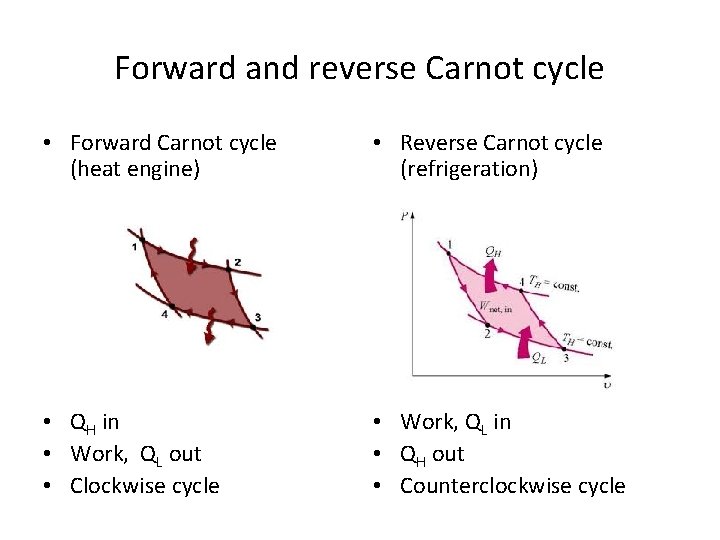

Forward and reverse Carnot cycle • Forward Carnot cycle (heat engine) • Reverse Carnot

Forward and reverse Carnot cycle • Forward Carnot cycle (heat engine) • Reverse Carnot cycle (refrigeration) • QH in • Work, QL out • Clockwise cycle • Work, QL in • QH out • Counterclockwise cycle

Refrigeration – Heat Engine in Reverse Basic Operation 1. Compress gas and liquefy to

Refrigeration – Heat Engine in Reverse Basic Operation 1. Compress gas and liquefy to high temperature/pressure 2. Cool liquefied gas at high pressure (Q out) 3. Expand gas and evaporate to low temperature/pressure 4. Warm evaporated gas at low pressure (Q in) Thermodynamic cycle running backwards.

Forward and reverse Carnot animation • Forward animation (heat engine) • Reverse animation (refrigeration)

Forward and reverse Carnot animation • Forward animation (heat engine) • Reverse animation (refrigeration) educypedia. karadimov. info/library/AF_2202. swf educypedia. karadimov. info/library/AF_2205. swf

Efficiency, Coefficient of Performance • •

Efficiency, Coefficient of Performance • •

Example 15 -13 •

Example 15 -13 •

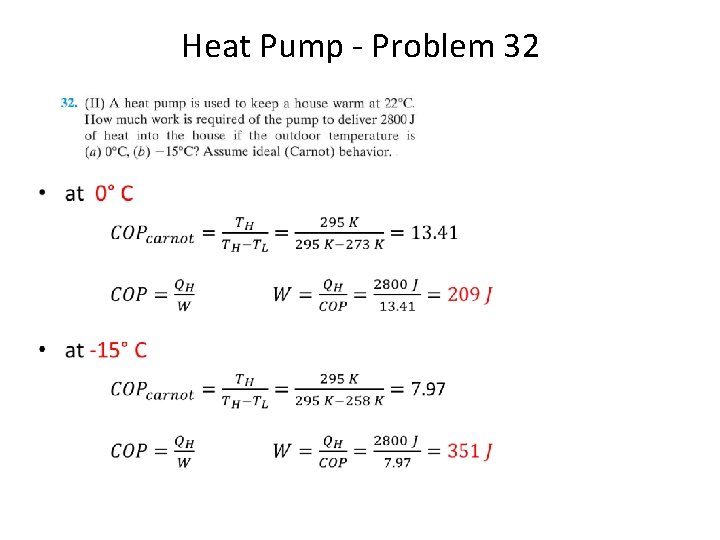

Heat Pump - Problem 32 •

Heat Pump - Problem 32 •
