HEART SOUNDS Prof Sultan Ayoub Meo MBBS M

HEART SOUNDS Prof. Sultan Ayoub Meo MBBS, M. Phil, Ph. D (Pak), PG Dip Med Ed, M Med Ed (Scotland) FRCP (London), FRCP (Dublin), FRCP (Glasgow), FRCP (Edinburgh) Professor and Consultant, Department of Physiology, College of Medicine, King Saud University, Riyadh, Saudi Arabia

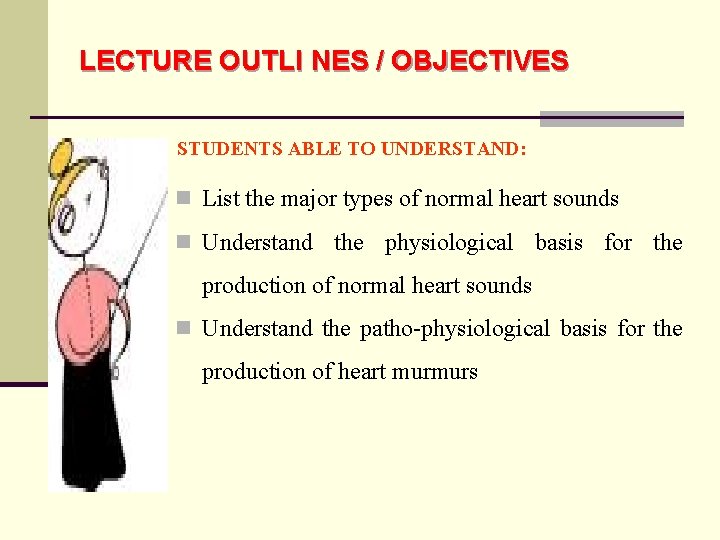

LECTURE OUTLI NES / OBJECTIVES STUDENTS ABLE TO UNDERSTAND: n List the major types of normal heart sounds n Understand the physiological basis for the production of normal heart sounds n Understand the patho-physiological basis for the production of heart murmurs

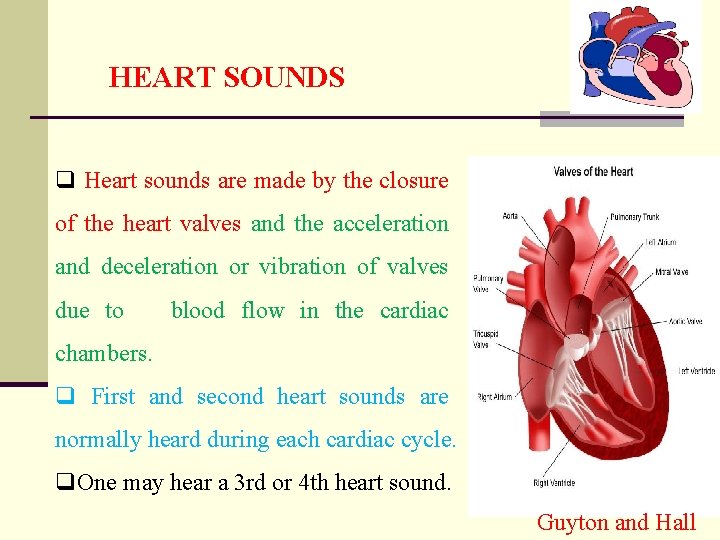

HEART SOUNDS q Heart sounds are made by the closure of the heart valves and the acceleration and deceleration or vibration of valves due to blood flow in the cardiac chambers. q First and second heart sounds are normally heard during each cardiac cycle. q. One may hear a 3 rd or 4 th heart sound. Guyton and Hall

WHERE WE CAN HEAR THE HEART SOUNDS Guyton and Hall

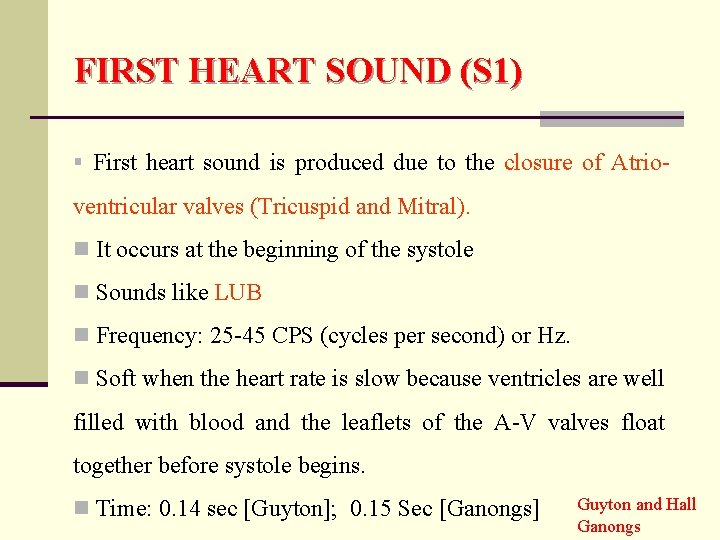

FIRST HEART SOUND (S 1) § First heart sound is produced due to the closure of Atrio- ventricular valves (Tricuspid and Mitral). n It occurs at the beginning of the systole n Sounds like LUB n Frequency: 25 -45 CPS (cycles per second) or Hz. n Soft when the heart rate is slow because ventricles are well filled with blood and the leaflets of the A-V valves float together before systole begins. n Time: 0. 14 sec [Guyton]; 0. 15 Sec [Ganongs] Guyton and Hall Ganongs

FIRST HEART SOUND (S 1) n First component due to turbulent rushing of blood towards A-V valves n 2 nd component occurs due to the closure of the A-V valves n 3 rd component is produced when semi-lunar valves open n 4 th component produced due to turbulent blood flow into large arteries n The mitral component heard at the apex beat area [left 5 th intercostal space at midclavicular line] n The tricuspid component is best heard in the 4 th intercostal space at the left sternal border

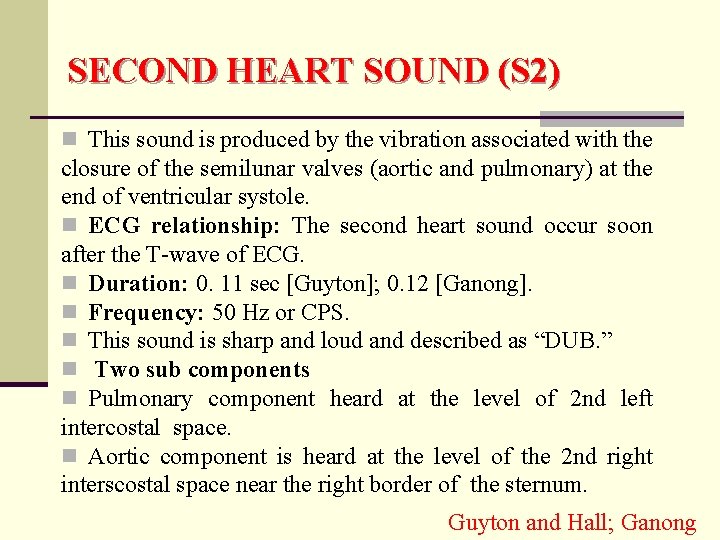

SECOND HEART SOUND (S 2) n This sound is produced by the vibration associated with the closure of the semilunar valves (aortic and pulmonary) at the end of ventricular systole. n ECG relationship: The second heart sound occur soon after the T-wave of ECG. n Duration: 0. 11 sec [Guyton]; 0. 12 [Ganong]. n Frequency: 50 Hz or CPS. n This sound is sharp and loud and described as “DUB. ” n Two sub components n Pulmonary component heard at the level of 2 nd left intercostal space. n Aortic component is heard at the level of the 2 nd right interscostal space near the right border of the sternum. Guyton and Hall; Ganong

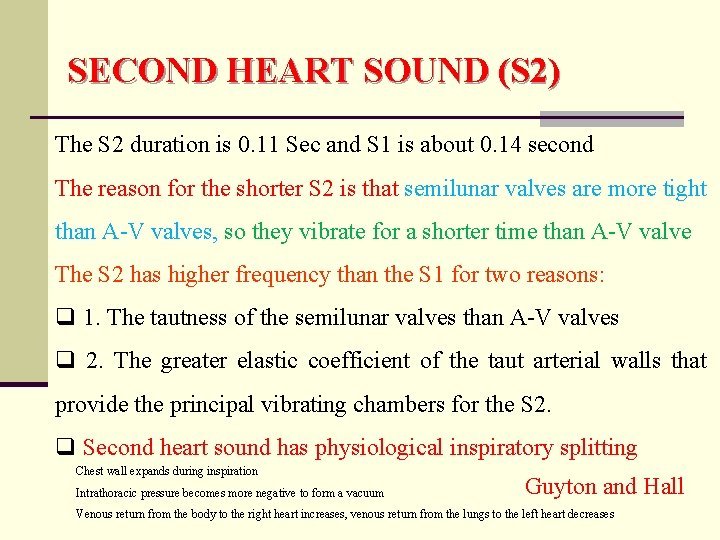

SECOND HEART SOUND (S 2) The S 2 duration is 0. 11 Sec and S 1 is about 0. 14 second The reason for the shorter S 2 is that semilunar valves are more tight than A-V valves, so they vibrate for a shorter time than A-V valve The S 2 has higher frequency than the S 1 for two reasons: q 1. The tautness of the semilunar valves than A-V valves q 2. The greater elastic coefficient of the taut arterial walls that provide the principal vibrating chambers for the S 2. q Second heart sound has physiological inspiratory splitting Chest wall expands during inspiration Intrathoracic pressure becomes more negative to form a vacuum Guyton and Hall Venous return from the body to the right heart increases, venous return from the lungs to the left heart decreases

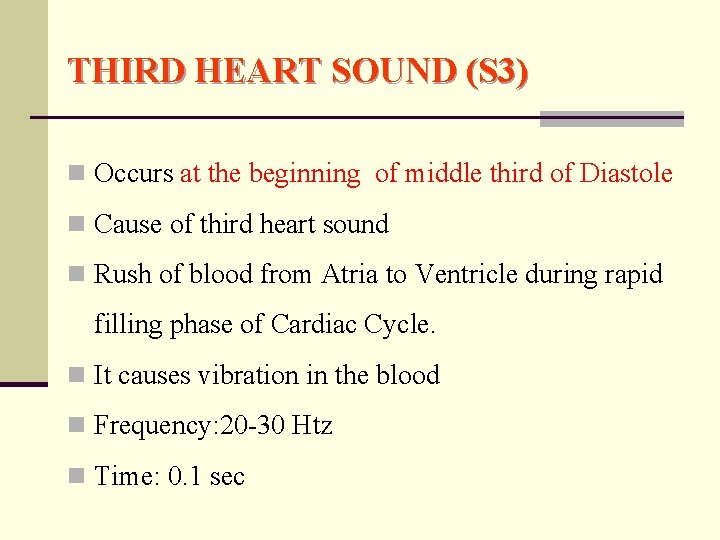

THIRD HEART SOUND (S 3) n Occurs at the beginning of middle third of Diastole n Cause of third heart sound n Rush of blood from Atria to Ventricle during rapid filling phase of Cardiac Cycle. n It causes vibration in the blood n Frequency: 20 -30 Htz n Time: 0. 1 sec

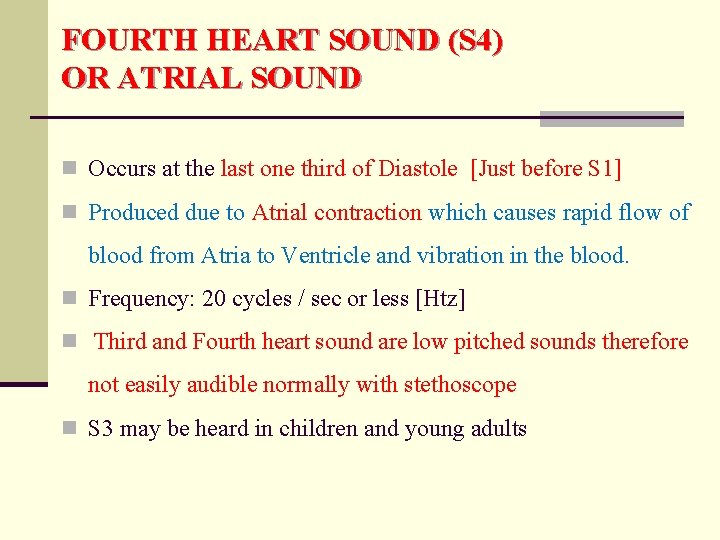

FOURTH HEART SOUND (S 4) OR ATRIAL SOUND n Occurs at the last one third of Diastole [Just before S 1] n Produced due to Atrial contraction which causes rapid flow of blood from Atria to Ventricle and vibration in the blood. n Frequency: 20 cycles / sec or less [Htz] n Third and Fourth heart sound are low pitched sounds therefore not easily audible normally with stethoscope n S 3 may be heard in children and young adults

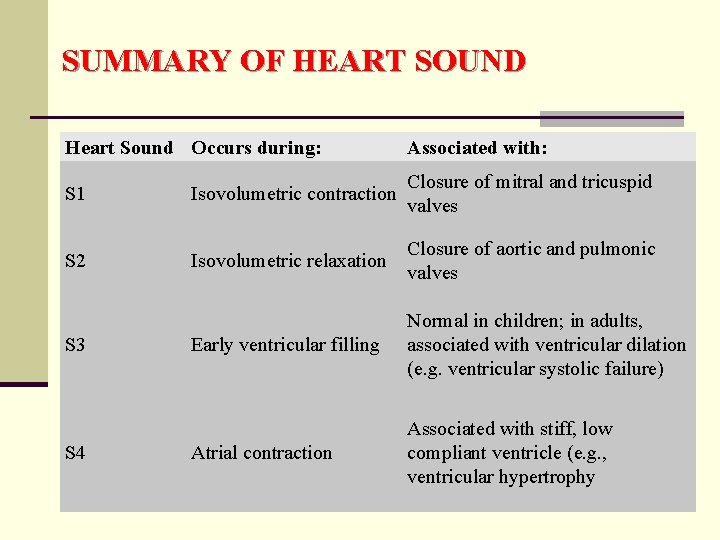

SUMMARY OF HEART SOUND Heart Sound Occurs during: Associated with: S 1 Isovolumetric contraction Closure of mitral and tricuspid valves S 2 Isovolumetric relaxation Closure of aortic and pulmonic valves Early ventricular filling Normal in children; in adults, associated with ventricular dilation (e. g. ventricular systolic failure) Atrial contraction Associated with stiff, low compliant ventricle (e. g. , ventricular hypertrophy S 3 S 4

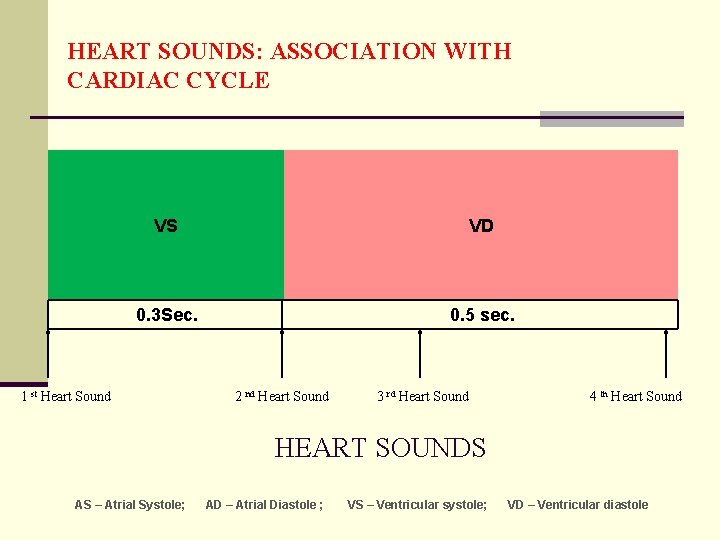

HEART SOUNDS: ASSOCIATION WITH CARDIAC CYCLE VS VD 0. 3 Sec. 0. 5 sec. 1 st Heart Sound 2 nd Heart Sound 3 rd Heart Sound 4 th Heart Sound HEART SOUNDS AS – Atrial Systole; AD – Atrial Diastole ; VS – Ventricular systole; VD – Ventricular diastole

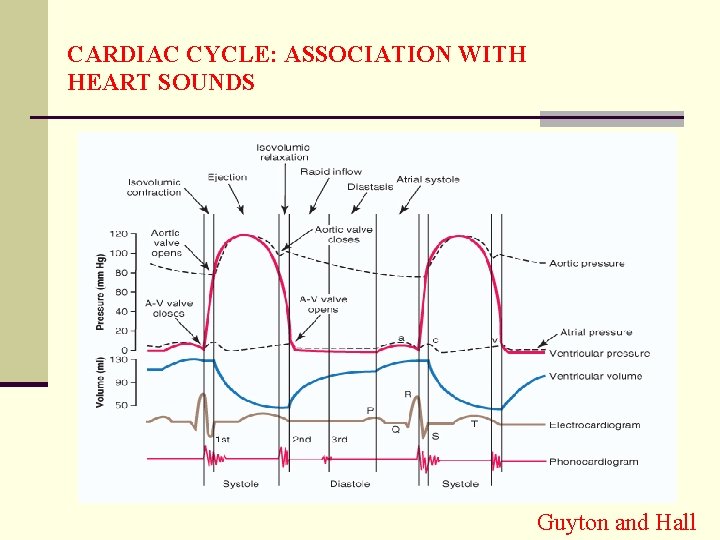

CARDIAC CYCLE: ASSOCIATION WITH HEART SOUNDS Guyton and Hall

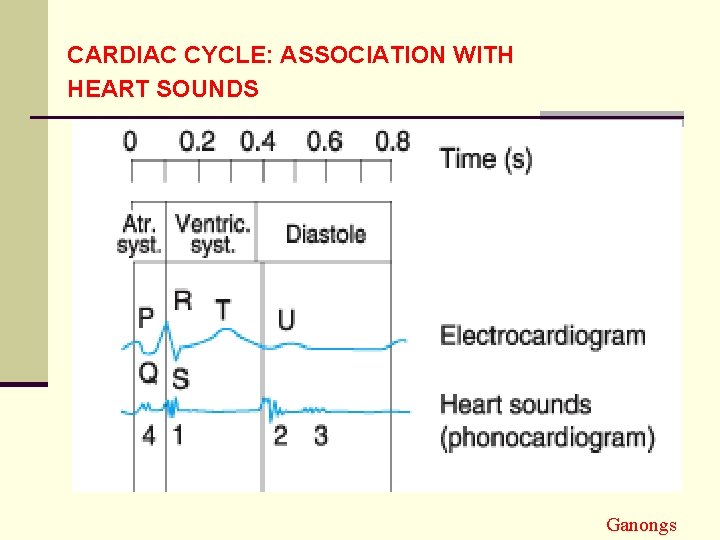

CARDIAC CYCLE: ASSOCIATION WITH HEART SOUNDS Ganongs

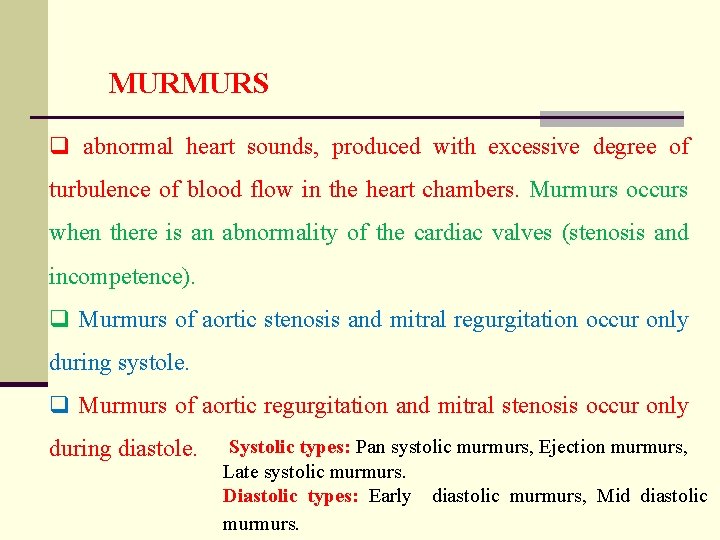

MURMURS q abnormal heart sounds, produced with excessive degree of turbulence of blood flow in the heart chambers. Murmurs occurs when there is an abnormality of the cardiac valves (stenosis and incompetence). q Murmurs of aortic stenosis and mitral regurgitation occur only during systole. q Murmurs of aortic regurgitation and mitral stenosis occur only during diastole. Systolic types: Pan systolic murmurs, Ejection murmurs, Late systolic murmurs. Diastolic types: Early diastolic murmurs, Mid diastolic murmurs.

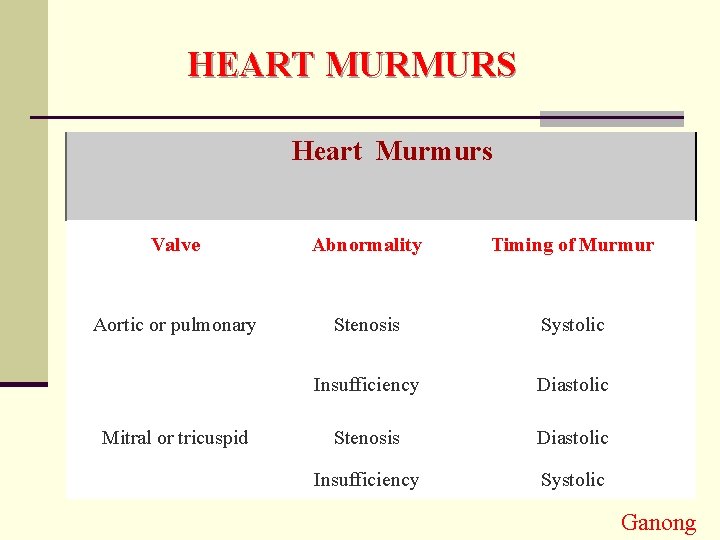

HEART MURMURS Heart Murmurs Valve Abnormality Timing of Murmur Aortic or pulmonary Stenosis Systolic Insufficiency Diastolic Mitral or tricuspid Stenosis Diastolic Insufficiency Systolic Ganong

MURMURS

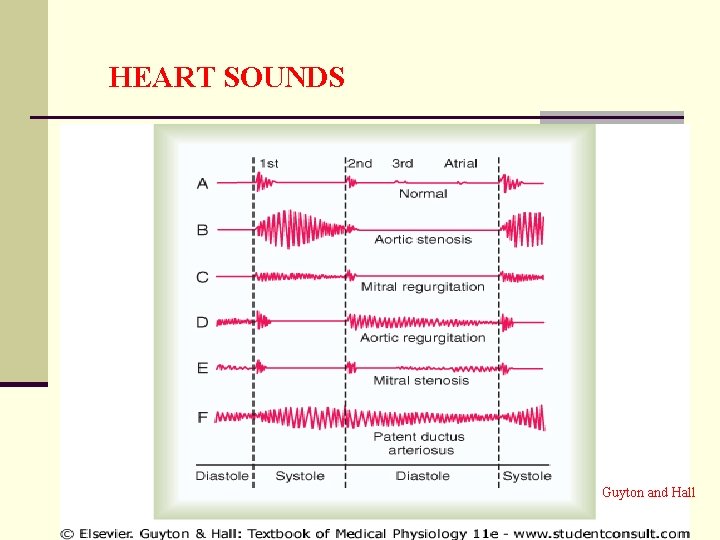

HEART SOUNDS Guyton and Hall

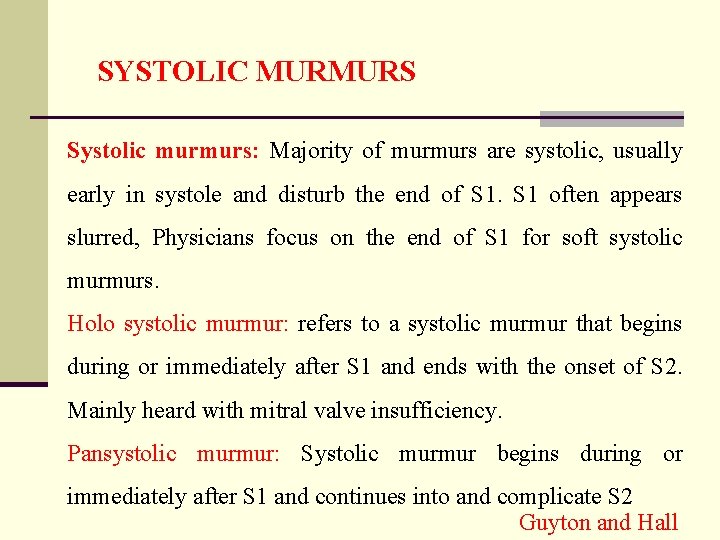

SYSTOLIC MURMURS Systolic murmurs: Majority of murmurs are systolic, usually early in systole and disturb the end of S 1 often appears slurred, Physicians focus on the end of S 1 for soft systolic murmurs. Holo systolic murmur: refers to a systolic murmur that begins during or immediately after S 1 and ends with the onset of S 2. Mainly heard with mitral valve insufficiency. Pansystolic murmur: Systolic murmur begins during or immediately after S 1 and continues into and complicate S 2 Guyton and Hall

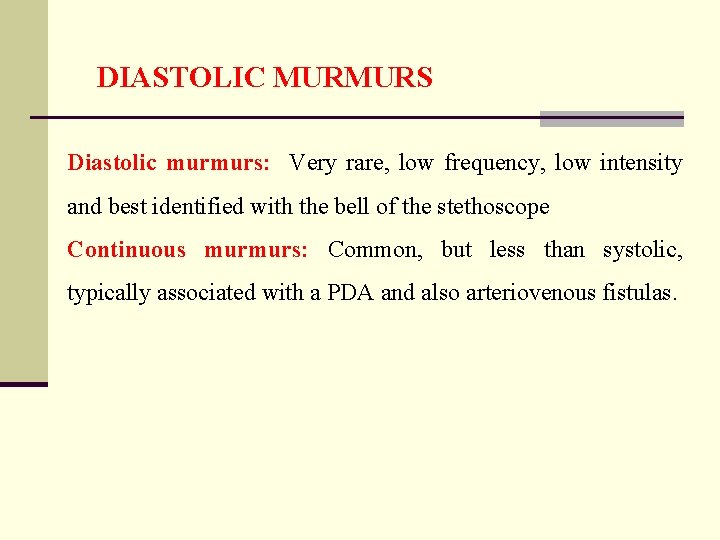

DIASTOLIC MURMURS Diastolic murmurs: Very rare, low frequency, low intensity and best identified with the bell of the stethoscope Continuous murmurs: Common, but less than systolic, typically associated with a PDA and also arteriovenous fistulas.

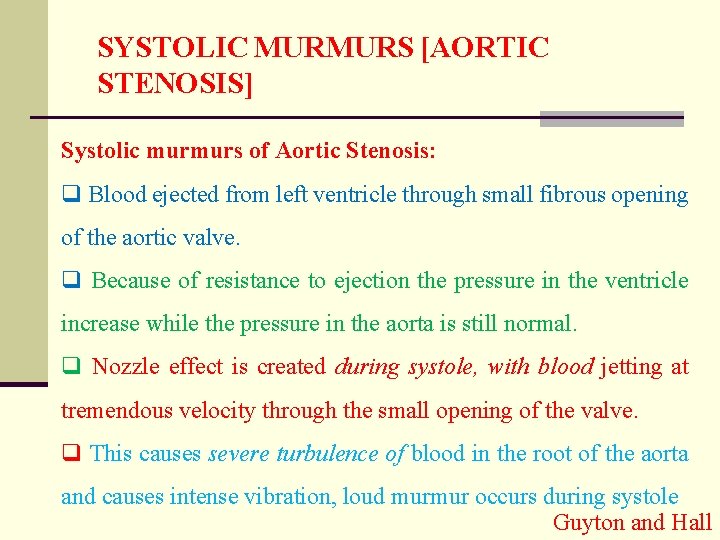

SYSTOLIC MURMURS [AORTIC STENOSIS] Systolic murmurs of Aortic Stenosis: q Blood ejected from left ventricle through small fibrous opening of the aortic valve. q Because of resistance to ejection the pressure in the ventricle increase while the pressure in the aorta is still normal. q Nozzle effect is created during systole, with blood jetting at tremendous velocity through the small opening of the valve. q This causes severe turbulence of blood in the root of the aorta and causes intense vibration, loud murmur occurs during systole Guyton and Hall

SYSTOLIC MURMURS [AORTIC STENOSIS] Systolic murmurs of Aortic Stenosis [Continued]: q Transmitted throughout the superior thoracic aorta and even into the large arteries of the neck q This sound is harsh q In severe stenosis sound may be so loud that it can be heard several feet away from the patient. q Sound vibrations often felt with the hand on the upper chest and lower neck, a phenomenon known as a “thrill. ” Guyton and Hall

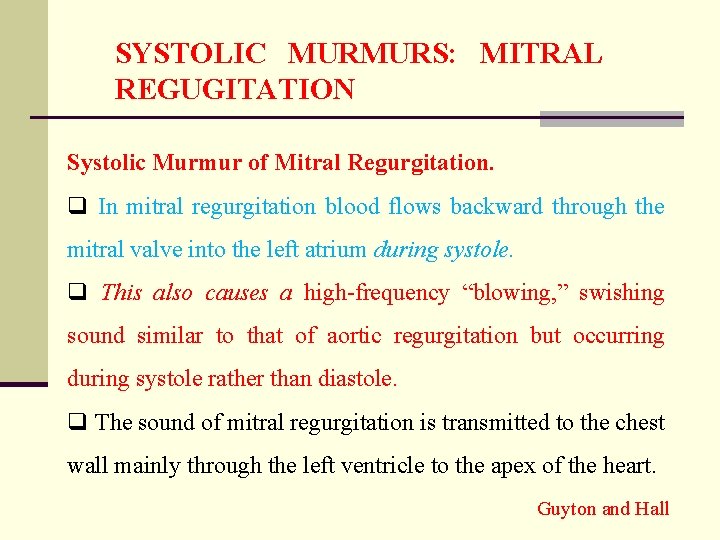

SYSTOLIC MURMURS: MITRAL REGUGITATION Systolic Murmur of Mitral Regurgitation. q In mitral regurgitation blood flows backward through the mitral valve into the left atrium during systole. q This also causes a high-frequency “blowing, ” swishing sound similar to that of aortic regurgitation but occurring during systole rather than diastole. q The sound of mitral regurgitation is transmitted to the chest wall mainly through the left ventricle to the apex of the heart. Guyton and Hall

DIASTOLIC STENOSIS] MURMURS [MITRAL Diastolic Murmur of Mitral Stenosis: Stenosis q In mitral stenosis, blood passes with difficulty through the stenosed mitral valve from the left atrium into the left ventricle. q Because pressure in the left atrium rises above 30 mm Hg, large pressure differential forcing blood from left atrium into the left ventricle does not develop. Consequently, the abnormal sounds heard in mitral stenosis usually weak and very low Guyton and Hall

DIASTOLIC MURMURS REGUGITATION] [AORTIC Diastolic Murmur of Aortic Regurgitation. q In aortic regurgitation no abnormal sound is heard during systole, but during diastole q Blood flows backward from the high-pressure aorta into the left ventricle causing a “blowing” murmur of high pitch with a swishing quality heard maximally over the left ventricle. q This murmur results from turbulence of blood jetting backward into the blood already in the low-pressure diastolic left ventricle. Guyton and Hall

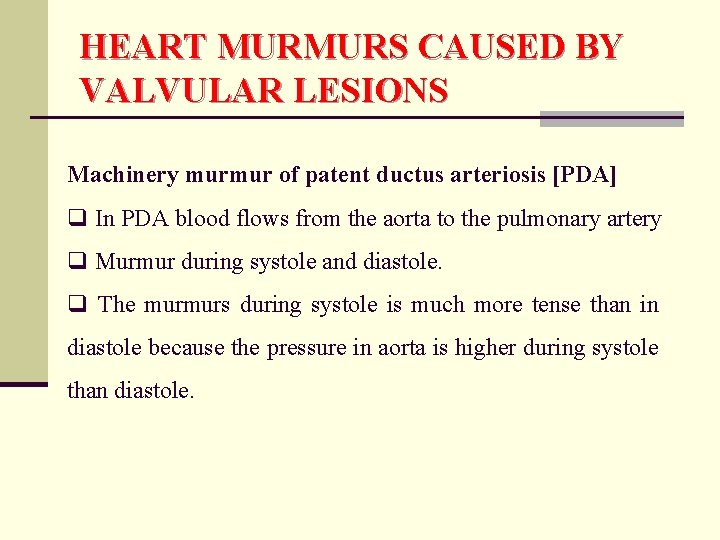

HEART MURMURS CAUSED BY VALVULAR LESIONS Machinery murmur of patent ductus arteriosis [PDA] q In PDA blood flows from the aorta to the pulmonary artery q Murmur during systole and diastole. q The murmurs during systole is much more tense than in diastole because the pressure in aorta is higher during systole than diastole.

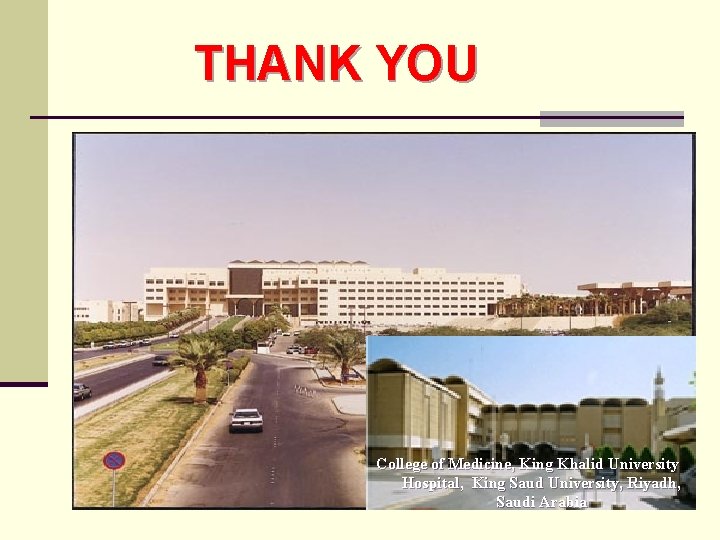

THANK YOU College of Medicine, King Khalid University Hospital, King Saud University, Riyadh, Saudi Arabia
