Heart Rate Variability to Assess Autonomic Function Phyllis K. Stein, Ph. D. Research Assistant Professor of Medicine and Director, HRV Lab Washington University School of Medicine, St. Louis, MO

PART I Understanding ECGs and How the Heart Works

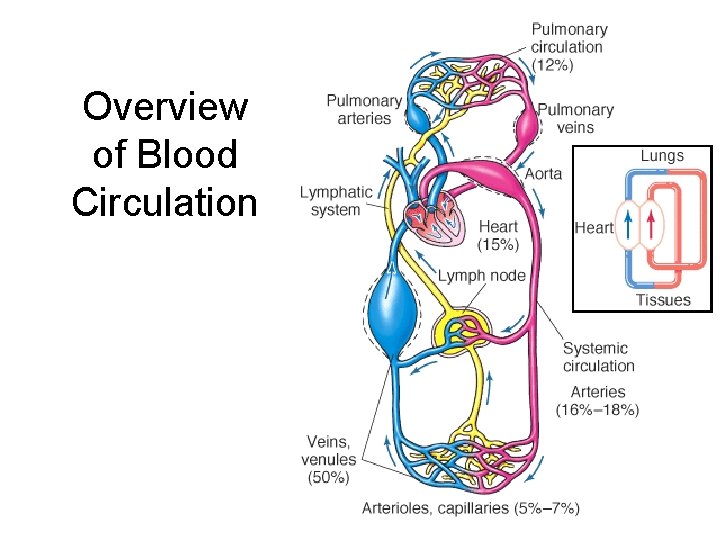

Overview of Blood Circulation

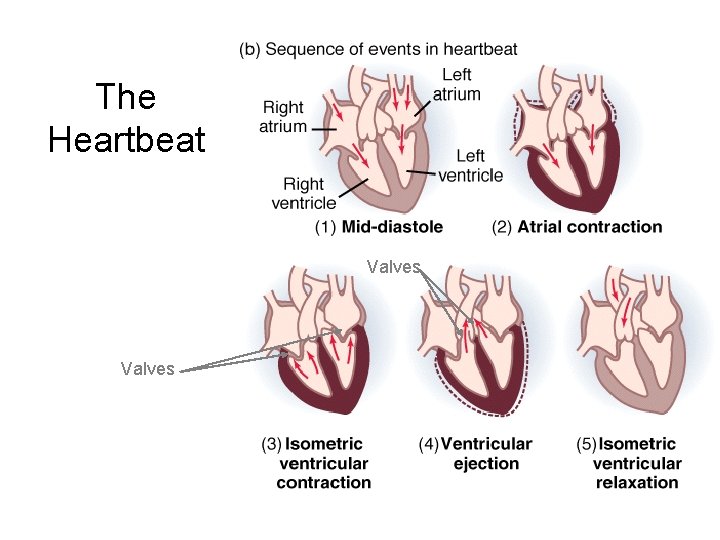

The Heartbeat Valves

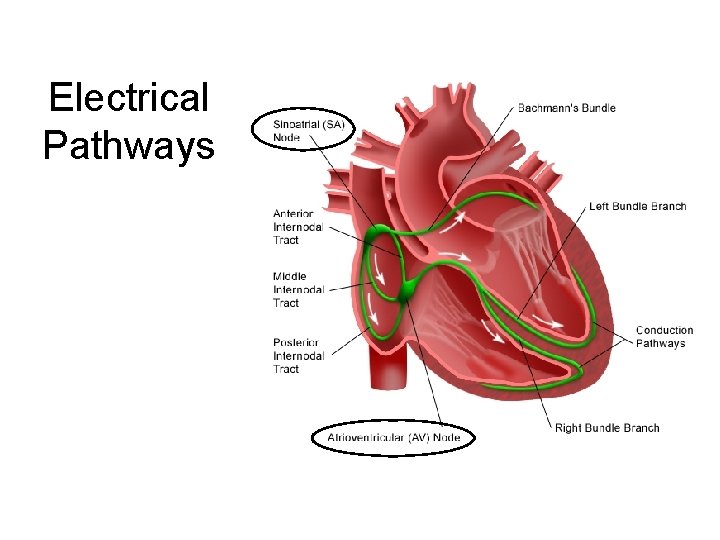

Electrical Pathways

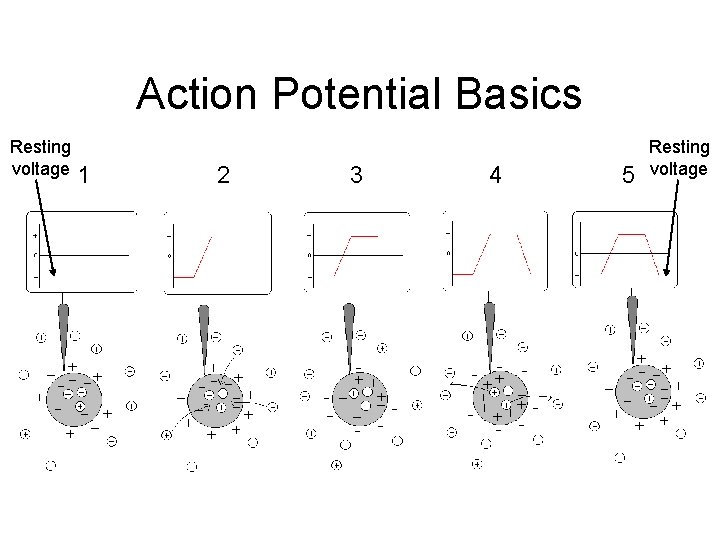

Action Potential Basics Resting voltage 1 2 3 4 5 Resting voltage

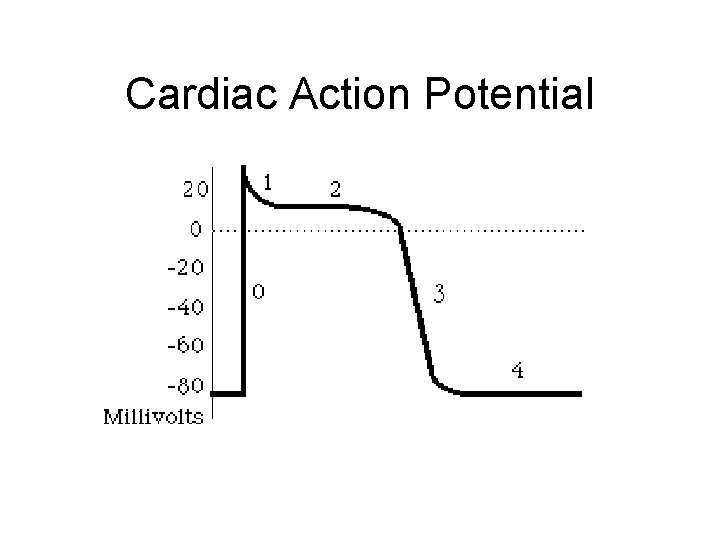

Cardiac Action Potential

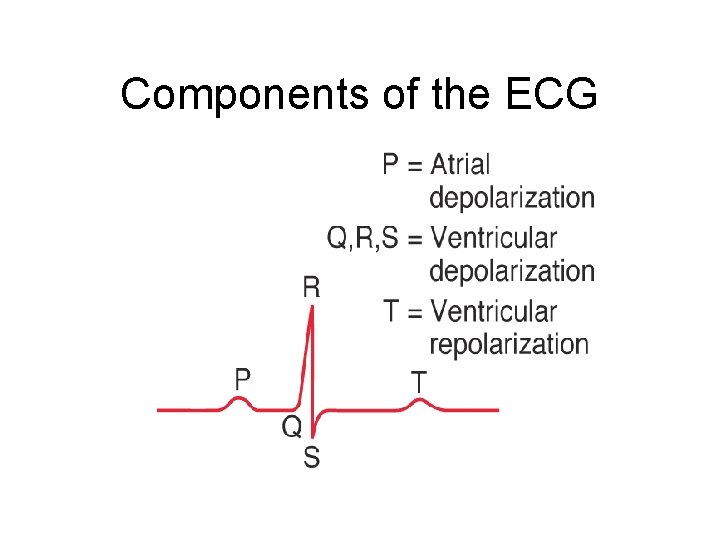

Components of the ECG

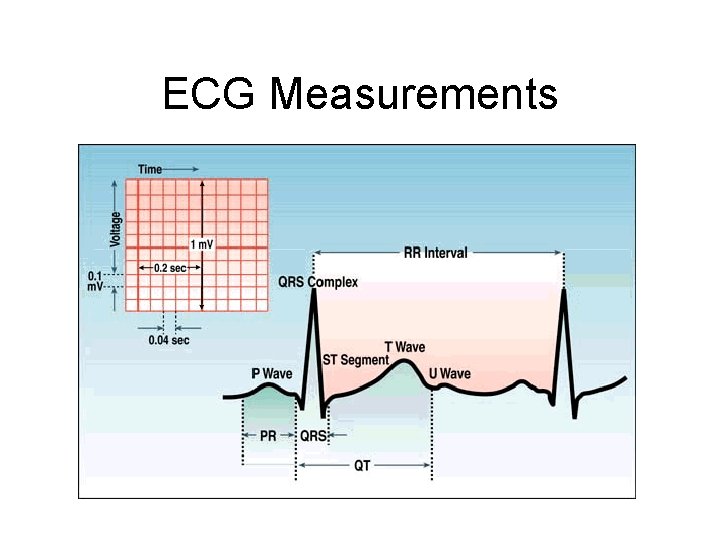

ECG Measurements

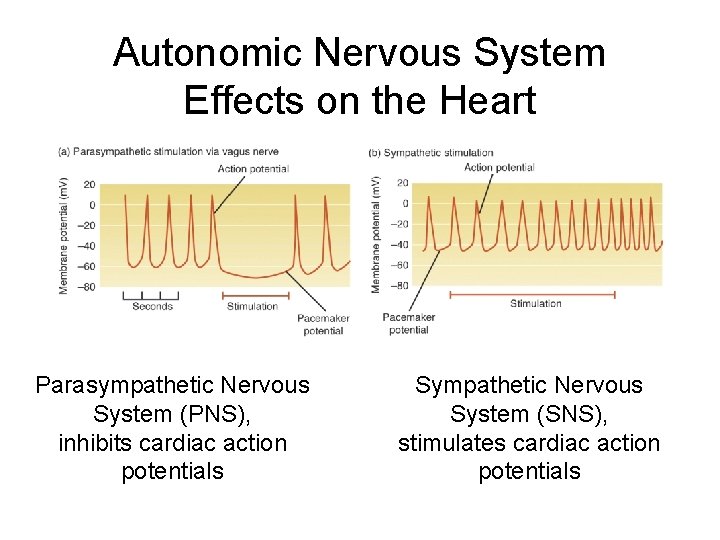

Autonomic Nervous System Effects on the Heart Parasympathetic Nervous System (PNS), inhibits cardiac action potentials Sympathetic Nervous System (SNS), stimulates cardiac action potentials

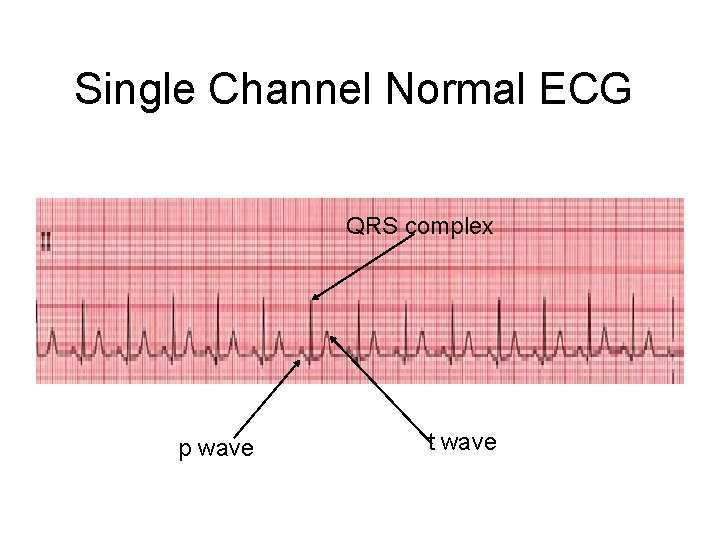

Single Channel Normal ECG QRS complex p wave t wave

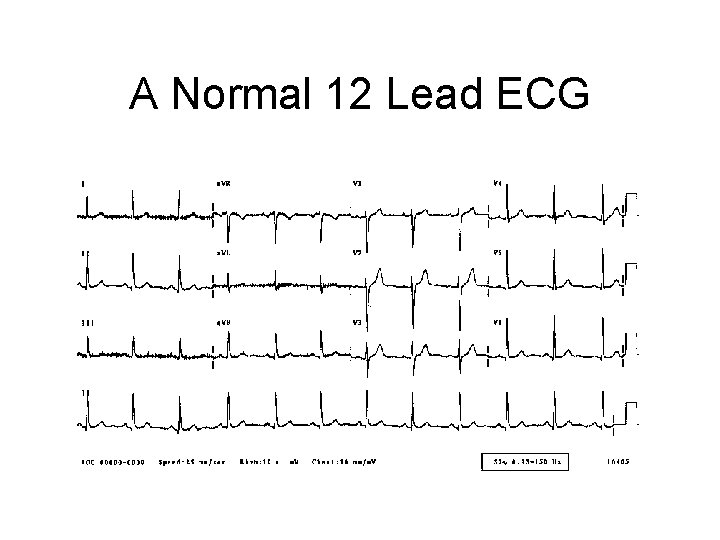

A Normal 12 Lead ECG

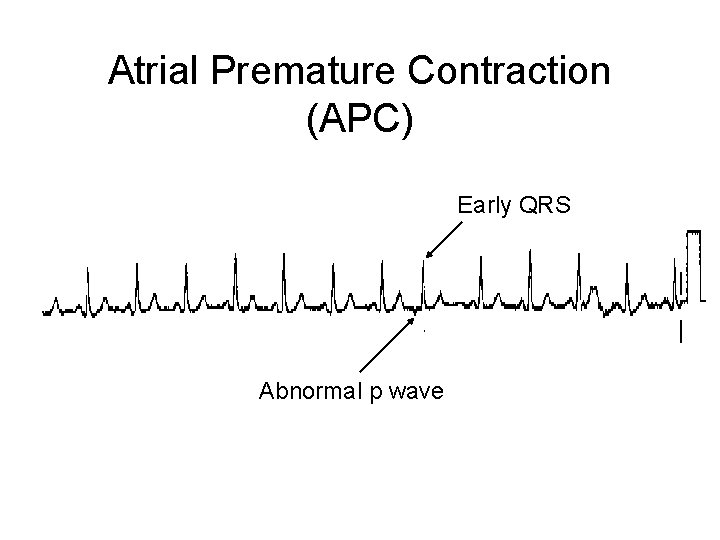

Atrial Premature Contraction (APC) Early QRS Abnormal p wave

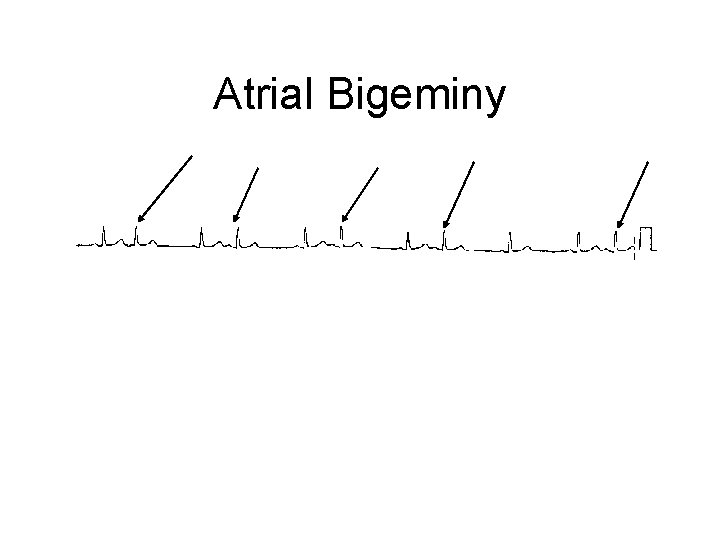

Atrial Bigeminy

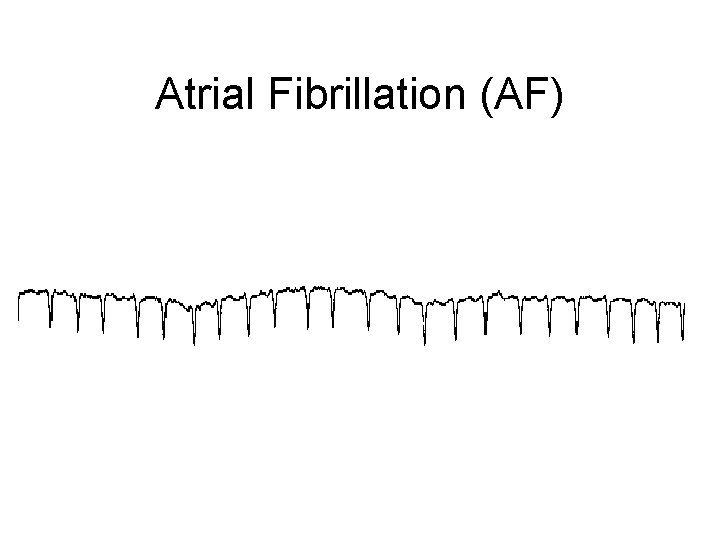

Atrial Fibrillation (AF)

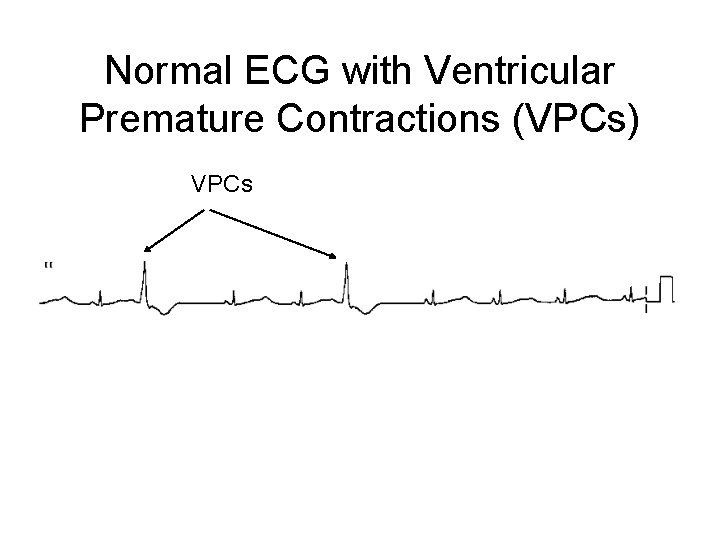

Normal ECG with Ventricular Premature Contractions (VPCs) VPCs

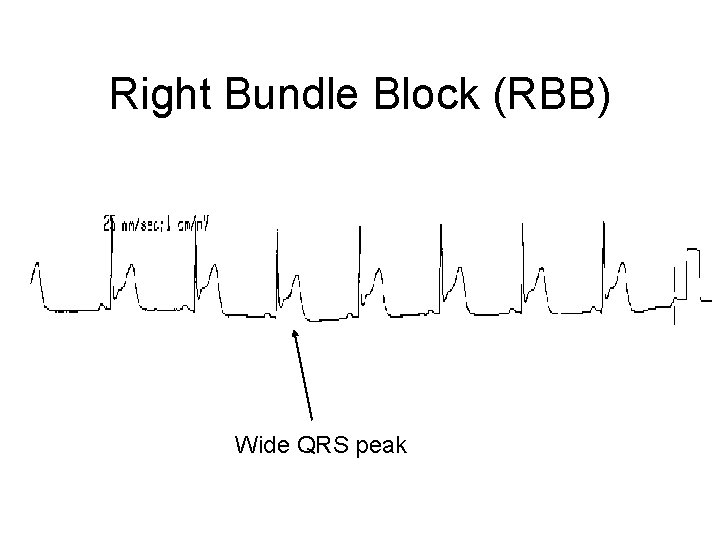

Right Bundle Block (RBB) Wide QRS peak

Dangerously Abnormal ECGS

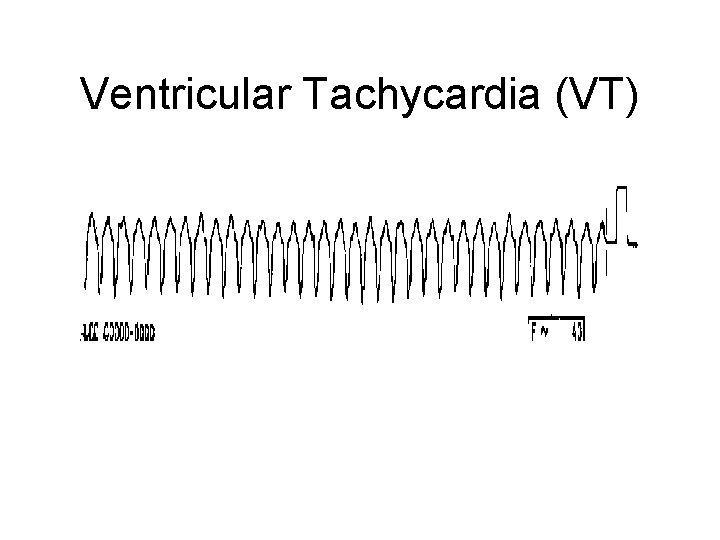

Ventricular Tachycardia (VT)

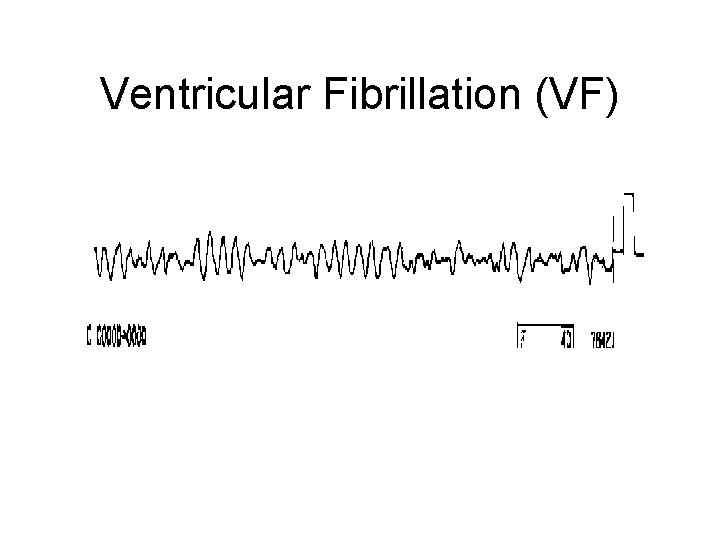

Ventricular Fibrillation (VF)

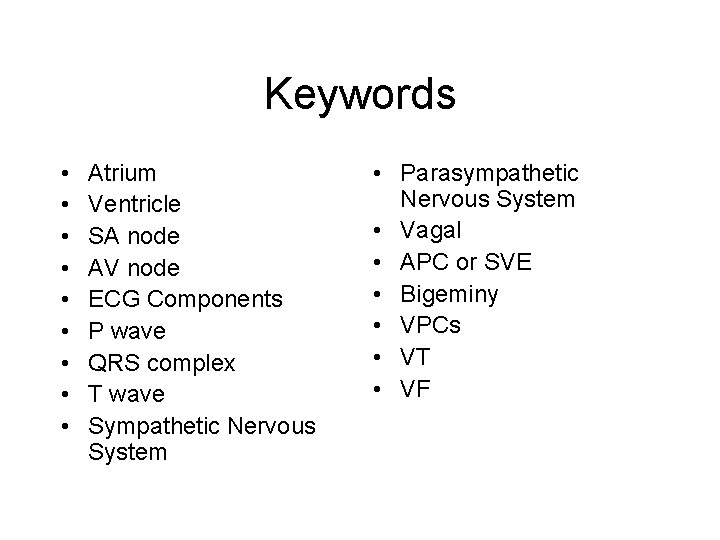

Keywords • • • Atrium Ventricle SA node AV node ECG Components P wave QRS complex T wave Sympathetic Nervous System • Parasympathetic Nervous System • Vagal • APC or SVE • Bigeminy • VPCs • VT • VF

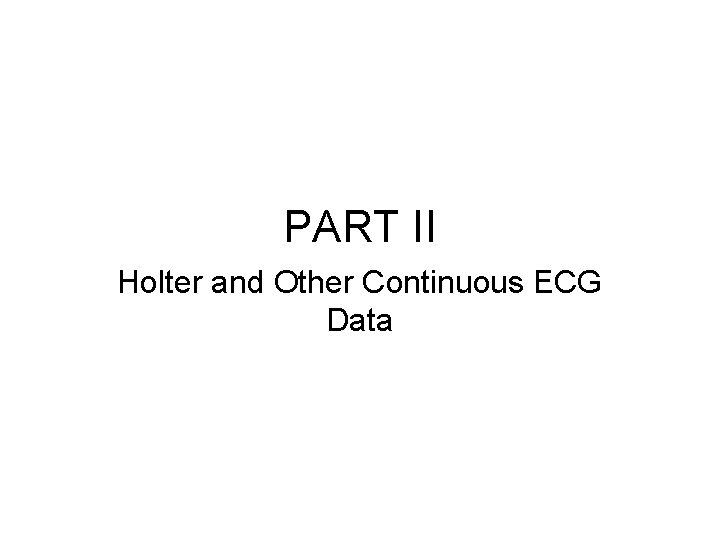

PART II Holter and Other Continuous ECG Data

Heart Rate Variability (HRV) Lab Analyzes Data from Continuous Electronically-Stored ECGs Cassette Tape Holter Monitor 2 or 3 channels of Simultaneous ECG signals Flash Card Patient wearing a Holter device.

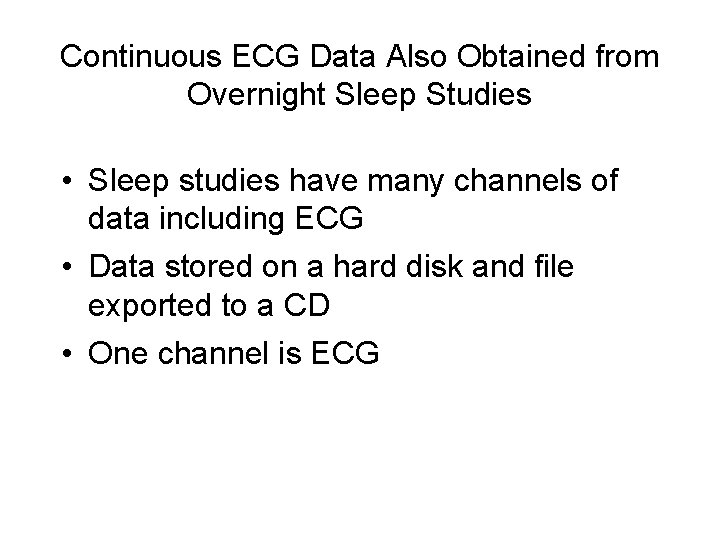

Continuous ECG Data Also Obtained from Overnight Sleep Studies • Sleep studies have many channels of data including ECG • Data stored on a hard disk and file exported to a CD • One channel is ECG

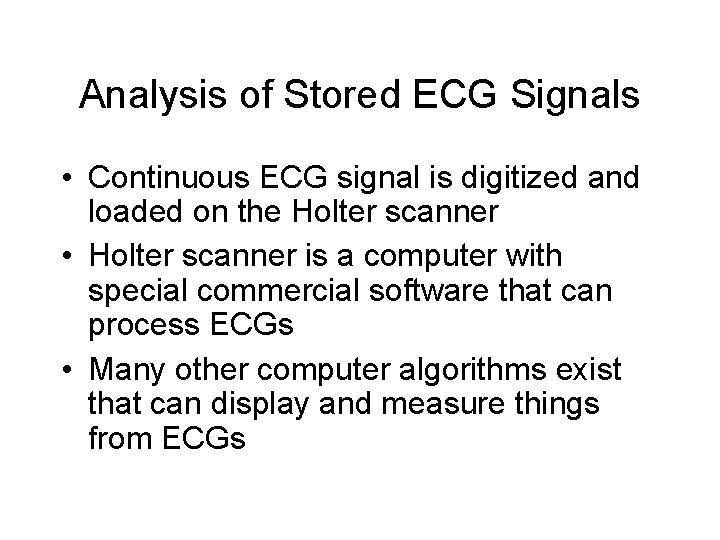

Analysis of Stored ECG Signals • Continuous ECG signal is digitized and loaded on the Holter scanner • Holter scanner is a computer with special commercial software that can process ECGs • Many other computer algorithms exist that can display and measure things from ECGs

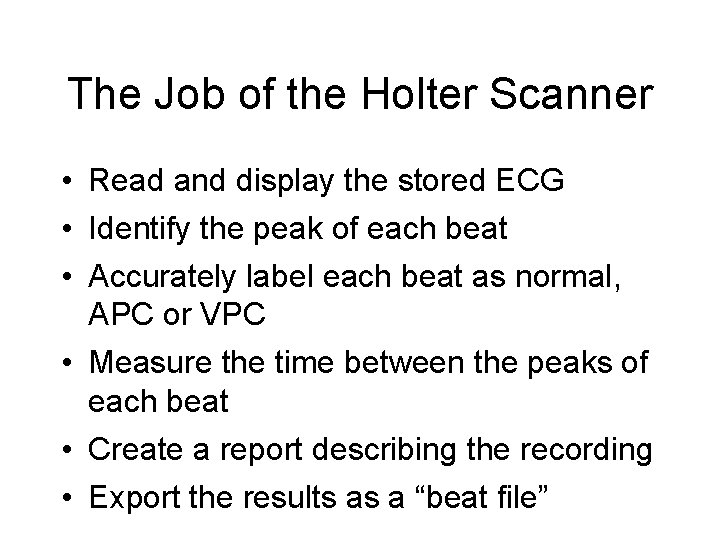

The Job of the Holter Scanner • Read and display the stored ECG • Identify the peak of each beat • Accurately label each beat as normal, APC or VPC • Measure the time between the peaks of each beat • Create a report describing the recording • Export the results as a “beat file”

The QRS File • MARS scanner exports “QRS” files. • QRS file is a list of every detected event on the tape, with the time after the next event. • Events can be normal beats, APCs, VPCs or just noise. • QRS file is in binary format, so we need to convert it to something we can read.

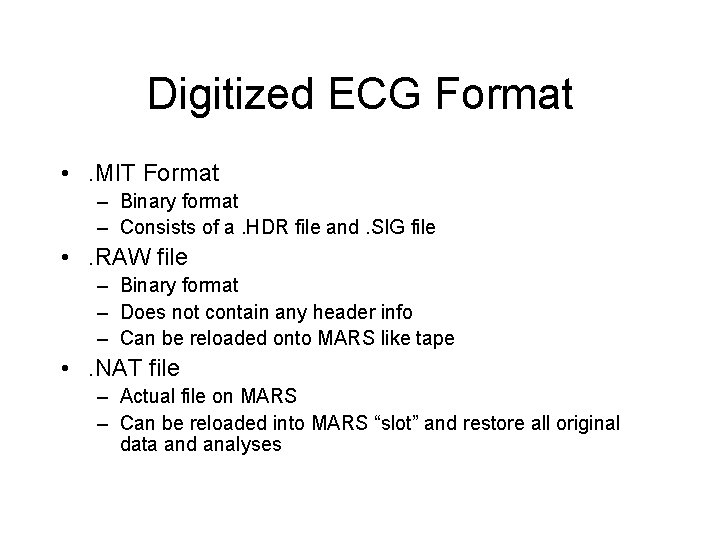

Digitized ECG Format • . MIT Format – Binary format – Consists of a. HDR file and. SIG file • . RAW file – Binary format – Does not contain any header info – Can be reloaded onto MARS like tape • . NAT file – Actual file on MARS – Can be reloaded into MARS “slot” and restore all original data and analyses

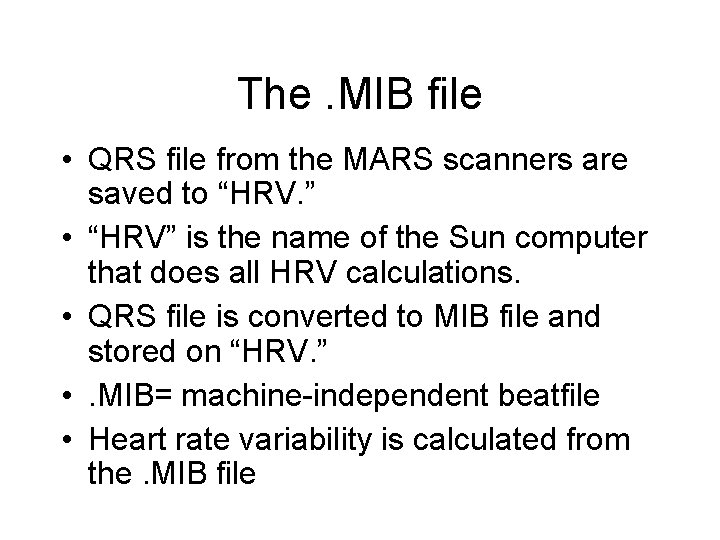

The. MIB file • QRS file from the MARS scanners are saved to “HRV. ” • “HRV” is the name of the Sun computer that does all HRV calculations. • QRS file is converted to MIB file and stored on “HRV. ” • . MIB= machine-independent beatfile • Heart rate variability is calculated from the. MIB file

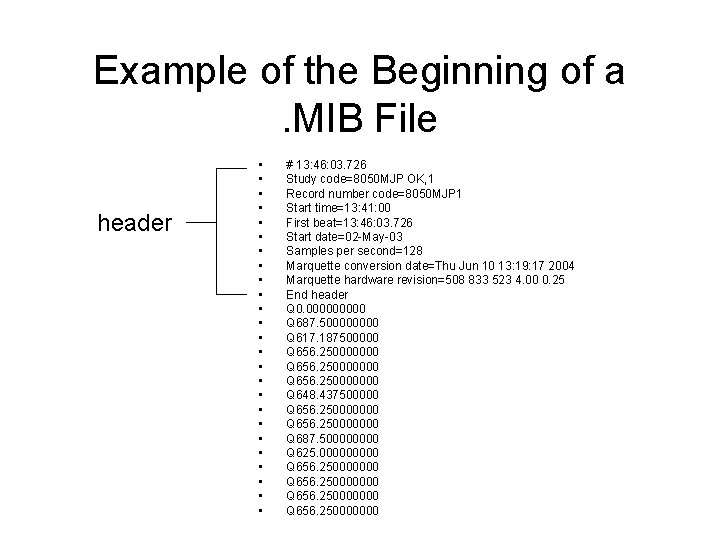

Example of the Beginning of a. MIB File header • • • • • • • # 13: 46: 03. 726 Study code=8050 MJP OK, 1 Record number code=8050 MJP 1 Start time=13: 41: 00 First beat=13: 46: 03. 726 Start date=02 -May-03 Samples per second=128 Marquette conversion date=Thu Jun 10 13: 19: 17 2004 Marquette hardware revision=508 833 523 4. 00 0. 25 End header Q 0. 00000 Q 687. 50000 Q 617. 187500000 Q 656. 250000000 Q 648. 437500000 Q 656. 250000000 Q 687. 50000 Q 625. 00000 Q 656. 250000000

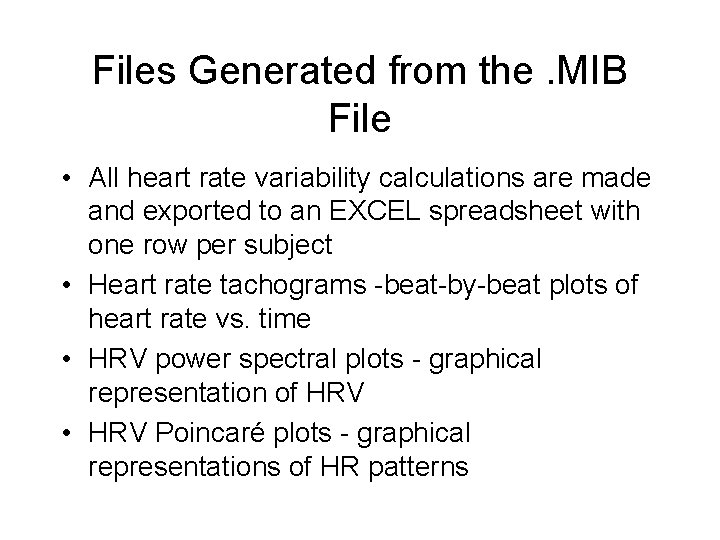

Files Generated from the. MIB File • All heart rate variability calculations are made and exported to an EXCEL spreadsheet with one row per subject • Heart rate tachograms -beat-by-beat plots of heart rate vs. time • HRV power spectral plots - graphical representation of HRV • HRV Poincaré plots - graphical representations of HR patterns

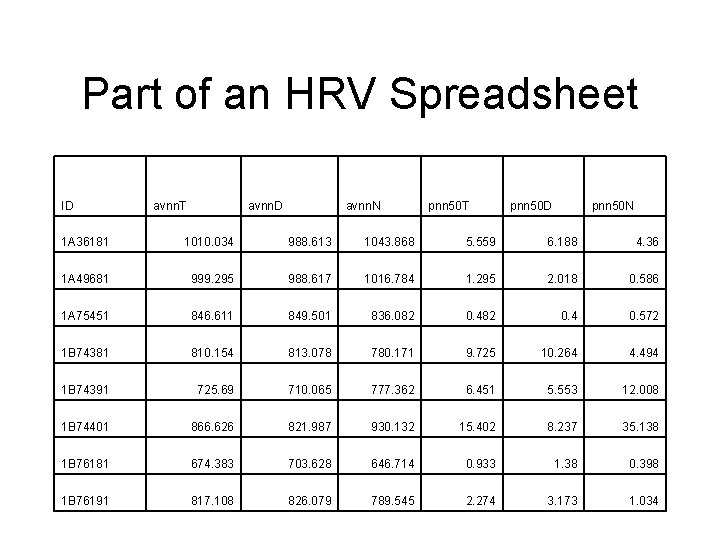

Part of an HRV Spreadsheet ID avnn. T avnn. D avnn. N pnn 50 T pnn 50 D pnn 50 N 1 A 36181 1010. 034 988. 613 1043. 868 5. 559 6. 188 4. 36 1 A 49681 999. 295 988. 617 1016. 784 1. 295 2. 018 0. 586 1 A 75451 846. 611 849. 501 836. 082 0. 4 0. 572 1 B 74381 810. 154 813. 078 780. 171 9. 725 10. 264 4. 494 1 B 74391 725. 69 710. 065 777. 362 6. 451 5. 553 12. 008 1 B 74401 866. 626 821. 987 930. 132 15. 402 8. 237 35. 138 1 B 76181 674. 383 703. 628 646. 714 0. 933 1. 38 0. 398 1 B 76191 817. 108 826. 079 789. 545 2. 274 3. 173 1. 034

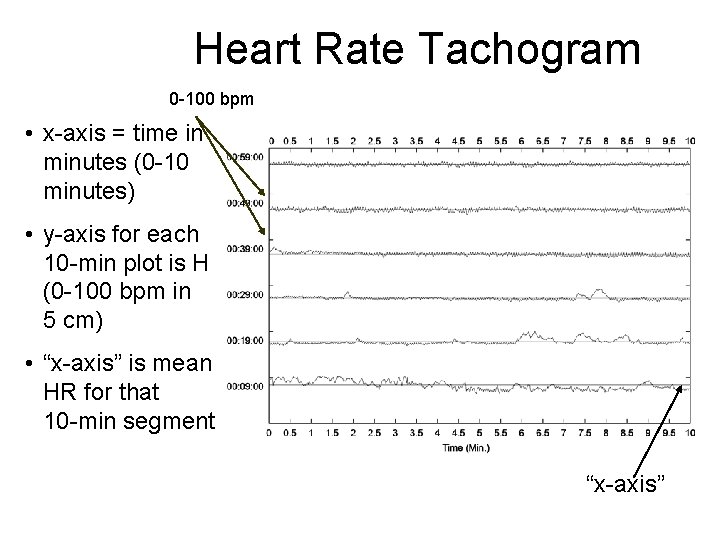

Heart Rate Tachogram 0 -100 bpm • x-axis = time in minutes (0 -10 minutes) • y-axis for each 10 -min plot is H (0 -100 bpm in 5 cm) • “x-axis” is mean HR for that 10 -min segment “x-axis”

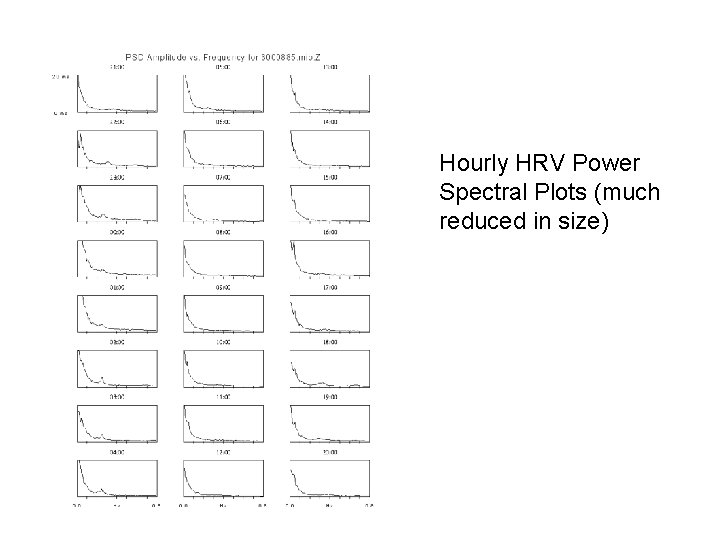

Hourly HRV Power Spectral Plots (much reduced in size)

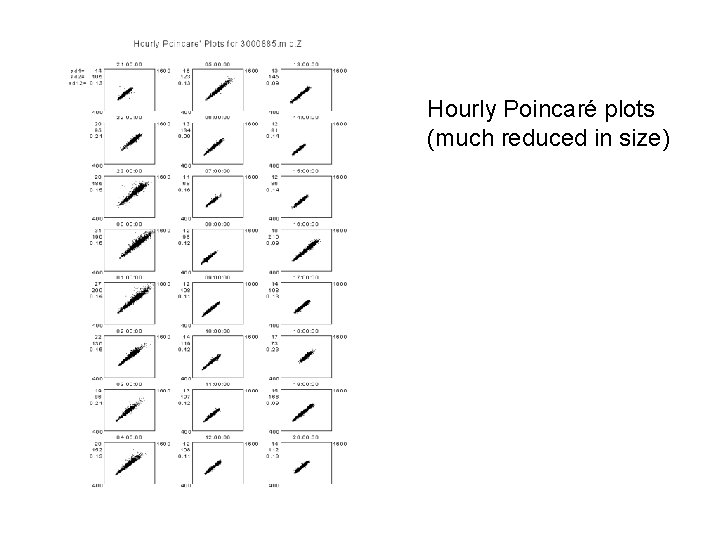

Hourly Poincaré plots (much reduced in size)

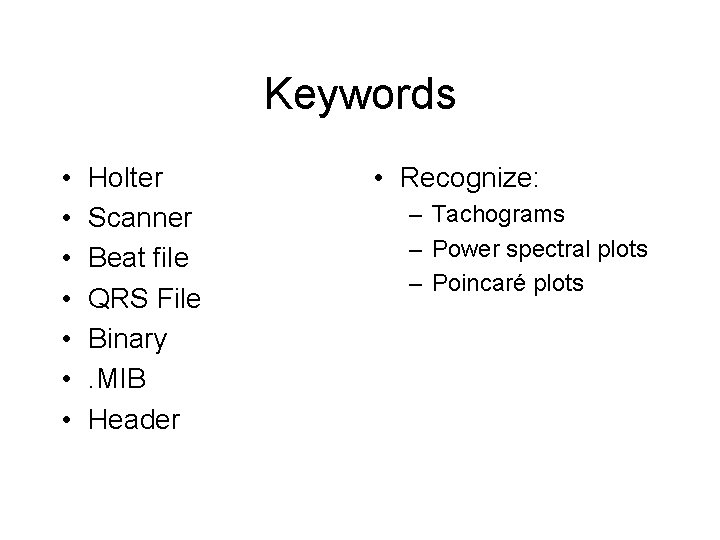

Keywords • • Holter Scanner Beat file QRS File Binary. MIB Header • Recognize: – Tachograms – Power spectral plots – Poincaré plots

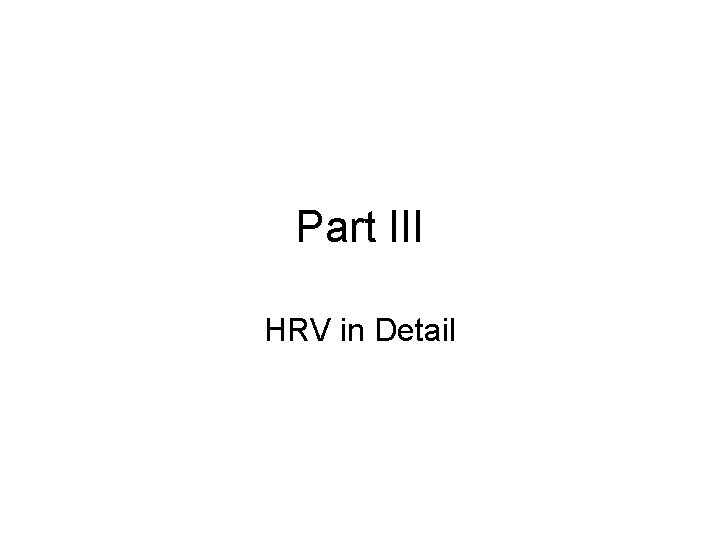

Part III HRV in Detail

Background (HRV) • Decreased heart rate variability • Abnormal heart rate variability • Identify patients with autonomic abnormalities who are at increased risk of arrhythmic events.

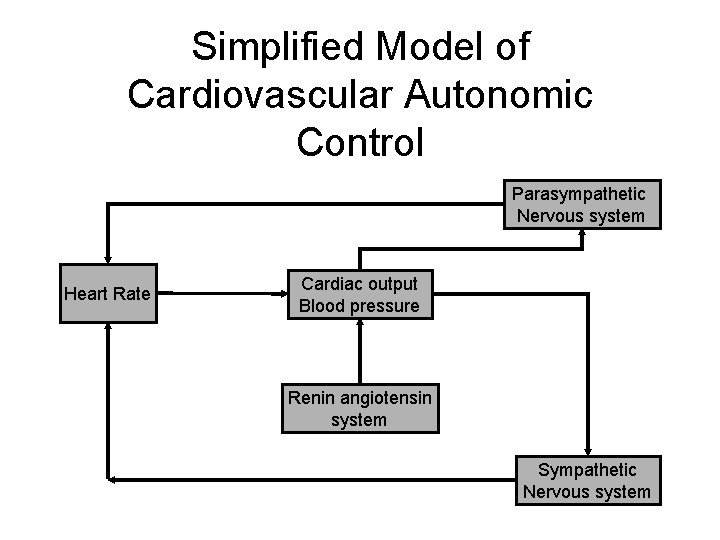

Simplified Model of Cardiovascular Autonomic Control Parasympathetic Nervous system Heart Rate Cardiac output Blood pressure Renin angiotensin system Sympathetic Nervous system

How HRV Reflects the Effect of the Autonomic Nervous System of the Heart

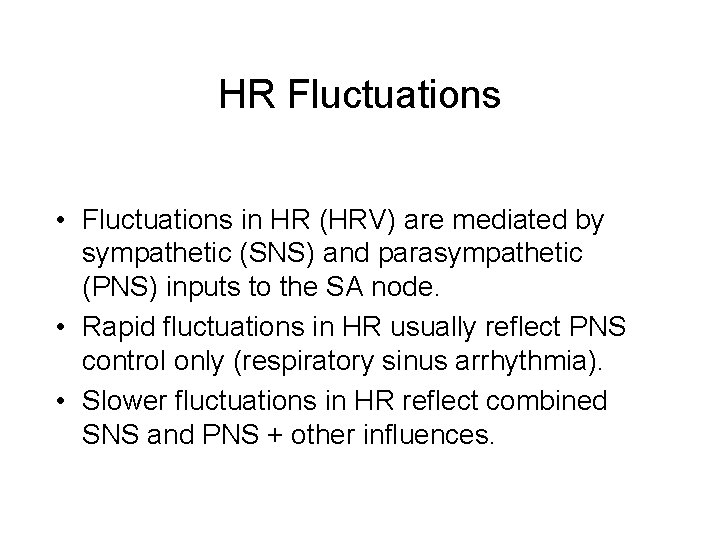

HR Fluctuations • Fluctuations in HR (HRV) are mediated by sympathetic (SNS) and parasympathetic (PNS) inputs to the SA node. • Rapid fluctuations in HR usually reflect PNS control only (respiratory sinus arrhythmia). • Slower fluctuations in HR reflect combined SNS and PNS + other influences.

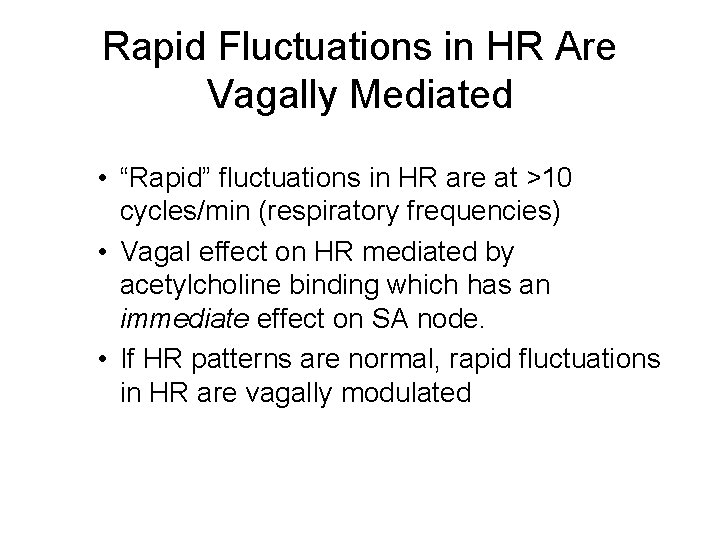

Rapid Fluctuations in HR Are Vagally Mediated • “Rapid” fluctuations in HR are at >10 cycles/min (respiratory frequencies) • Vagal effect on HR mediated by acetylcholine binding which has an immediate effect on SA node. • If HR patterns are normal, rapid fluctuations in HR are vagally modulated

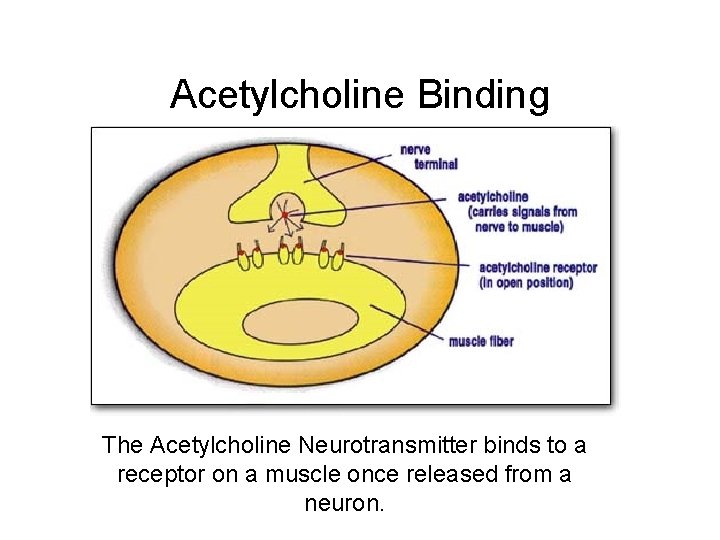

Acetylcholine Binding The Acetylcholine Neurotransmitter binds to a receptor on a muscle once released from a neuron.

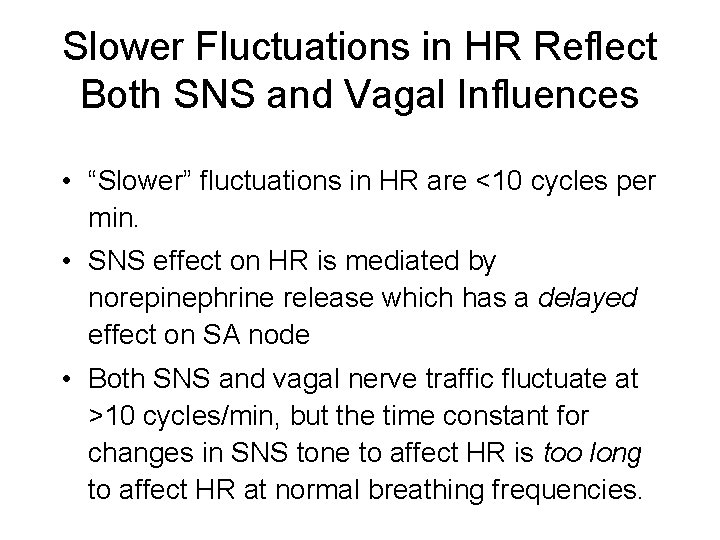

Slower Fluctuations in HR Reflect Both SNS and Vagal Influences • “Slower” fluctuations in HR are <10 cycles per min. • SNS effect on HR is mediated by norepinephrine release which has a delayed effect on SA node • Both SNS and vagal nerve traffic fluctuate at >10 cycles/min, but the time constant for changes in SNS tone to affect HR is too long to affect HR at normal breathing frequencies.

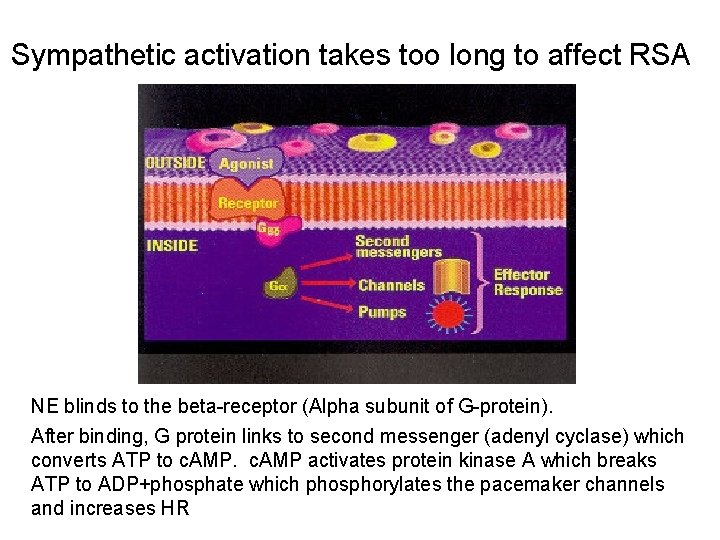

Sympathetic activation takes too long to affect RSA NE blinds to the beta-receptor (Alpha subunit of G-protein). After binding, G protein links to second messenger (adenyl cyclase) which converts ATP to c. AMP activates protein kinase A which breaks ATP to ADP+phosphate which phosphorylates the pacemaker channels and increases HR

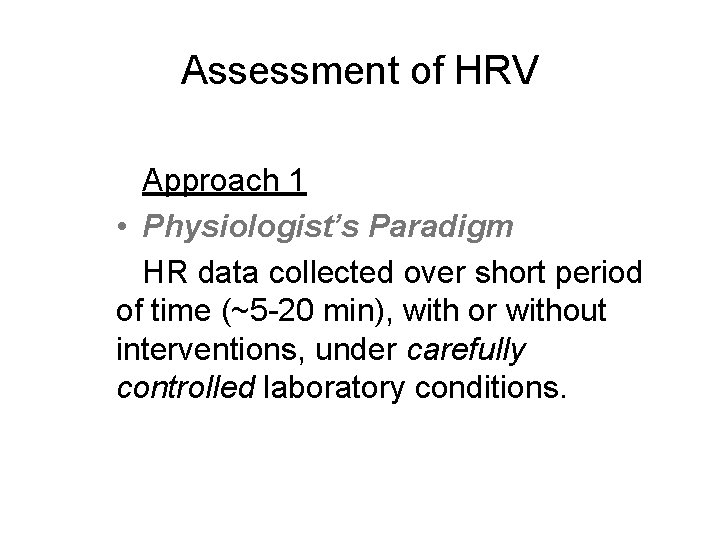

Assessment of HRV Approach 1 • Physiologist’s Paradigm HR data collected over short period of time (~5 -20 min), with or without interventions, under carefully controlled laboratory conditions.

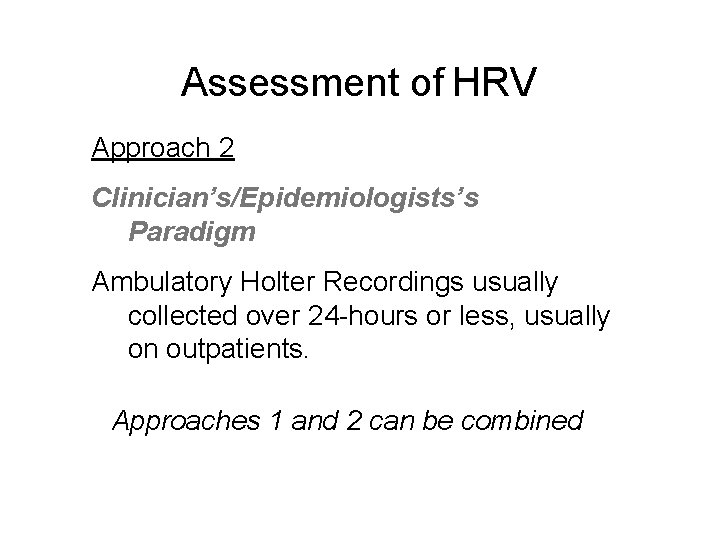

Assessment of HRV Approach 2 Clinician’s/Epidemiologists’s Paradigm Ambulatory Holter Recordings usually collected over 24 -hours or less, usually on outpatients. Approaches 1 and 2 can be combined

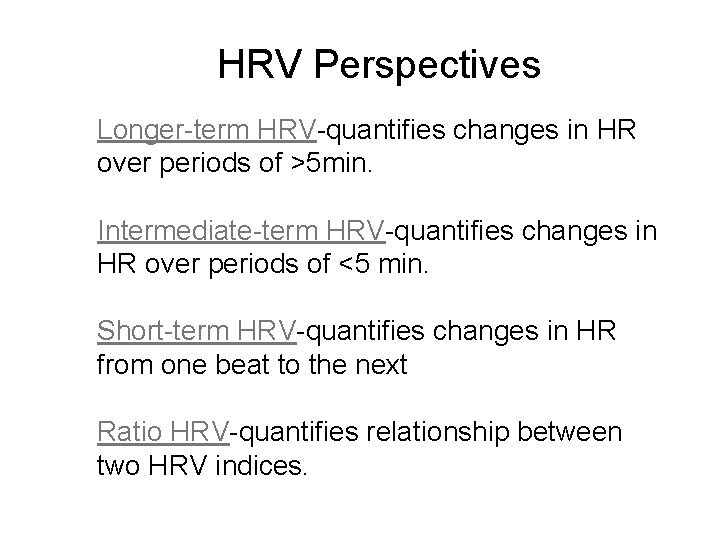

HRV Perspectives Longer-term HRV-quantifies changes in HR over periods of >5 min. Intermediate-term HRV-quantifies changes in HR over periods of <5 min. Short-term HRV-quantifies changes in HR from one beat to the next Ratio HRV-quantifies relationship between two HRV indices.

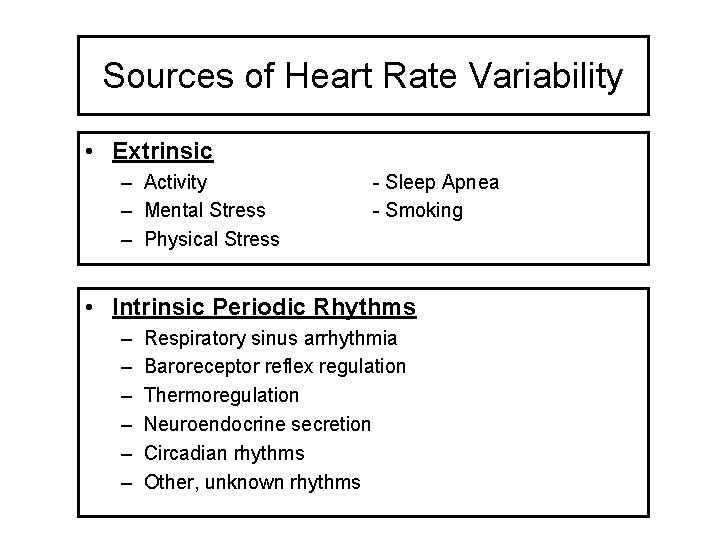

Sources of Heart Rate Variability • Extrinsic – Activity – Mental Stress – Physical Stress - Sleep Apnea - Smoking • Intrinsic Periodic Rhythms – – – Respiratory sinus arrhythmia Baroreceptor reflex regulation Thermoregulation Neuroendocrine secretion Circadian rhythms Other, unknown rhythms

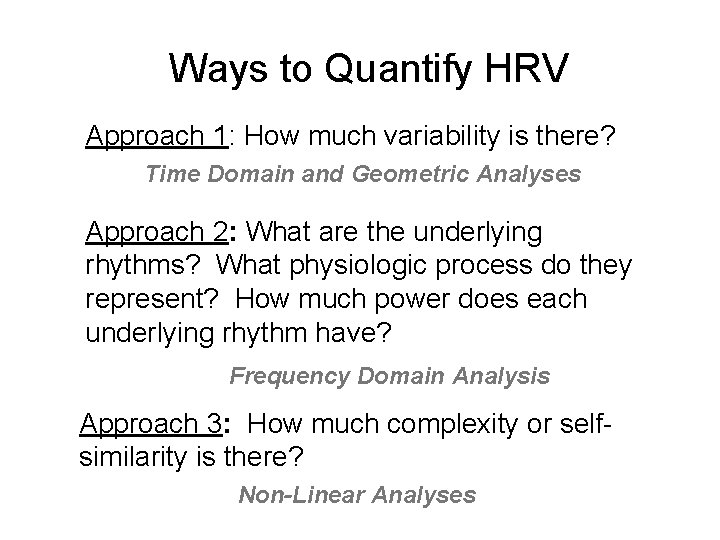

Ways to Quantify HRV Approach 1: How much variability is there? Time Domain and Geometric Analyses Approach 2: What are the underlying rhythms? What physiologic process do they represent? How much power does each underlying rhythm have? Frequency Domain Analysis Approach 3: How much complexity or selfsimilarity is there? Non-Linear Analyses

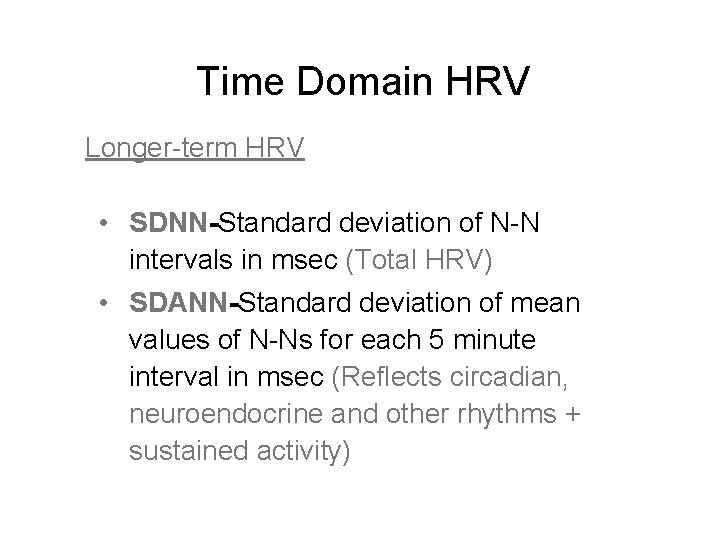

Time Domain HRV Longer-term HRV • SDNN-Standard deviation of N-N intervals in msec (Total HRV) • SDANN-Standard deviation of mean values of N-Ns for each 5 minute interval in msec (Reflects circadian, neuroendocrine and other rhythms + sustained activity)

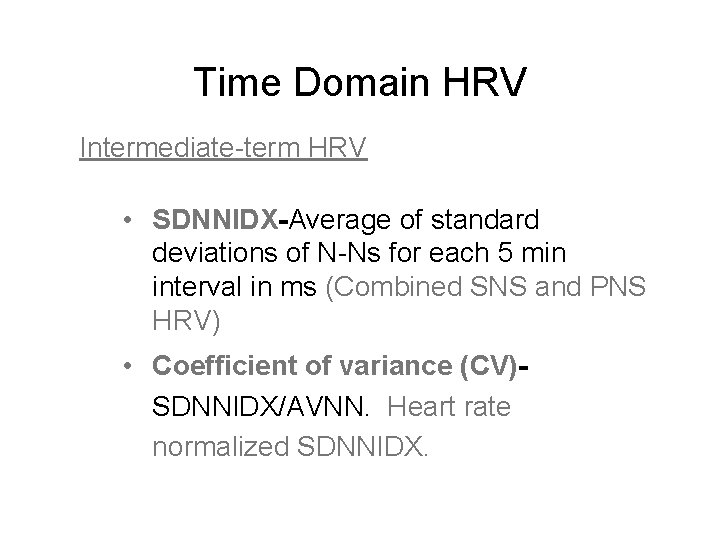

Time Domain HRV Intermediate-term HRV • SDNNIDX-Average of standard deviations of N-Ns for each 5 min interval in ms (Combined SNS and PNS HRV) • Coefficient of variance (CV)SDNNIDX/AVNN. Heart rate normalized SDNNIDX.

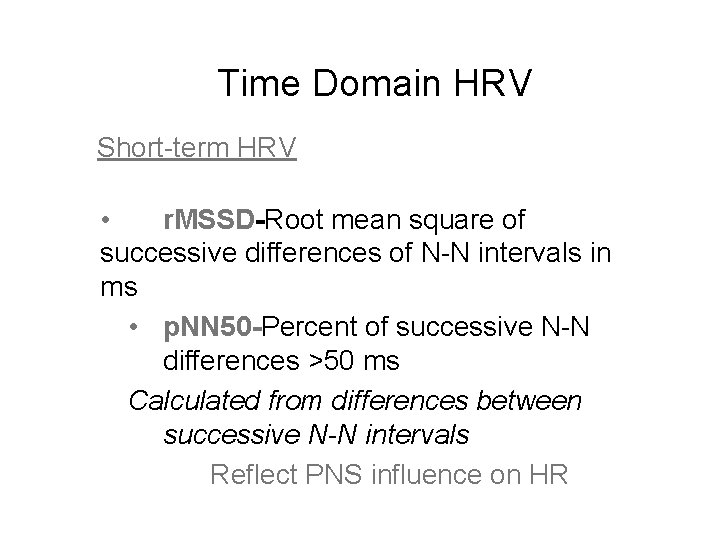

Time Domain HRV Short-term HRV • r. MSSD-Root mean square of successive differences of N-N intervals in ms • p. NN 50 -Percent of successive N-N differences >50 ms Calculated from differences between successive N-N intervals Reflect PNS influence on HR

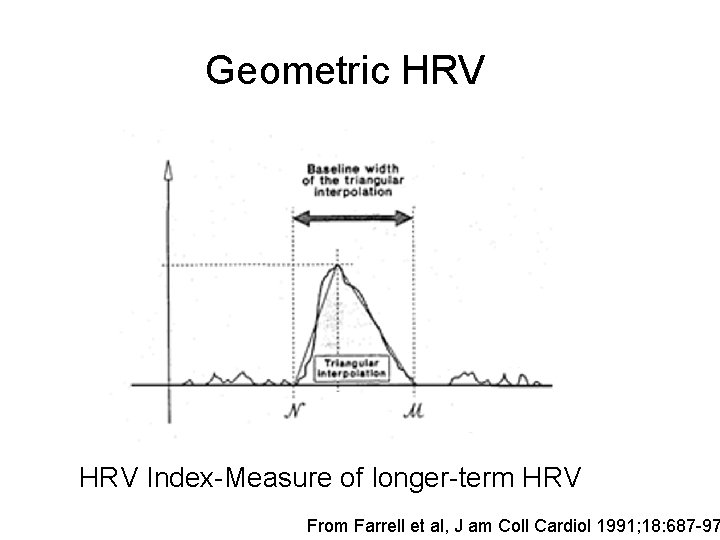

Geometric HRV Index-Measure of longer-term HRV From Farrell et al, J am Coll Cardiol 1991; 18: 687 -97

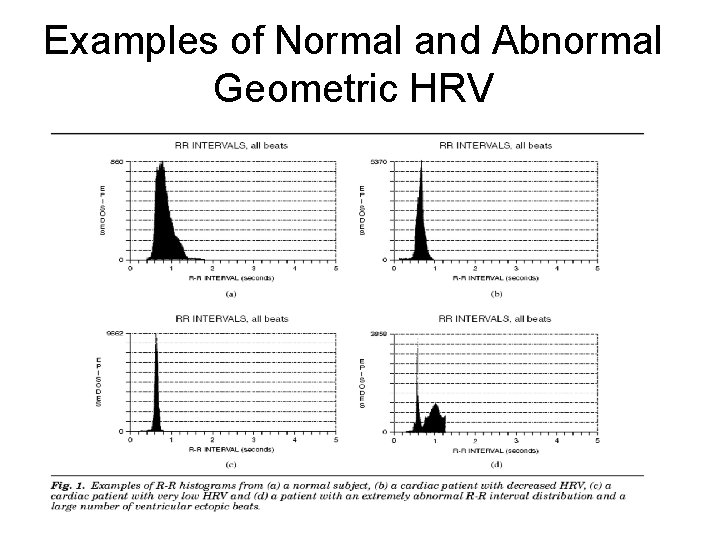

Examples of Normal and Abnormal Geometric HRV

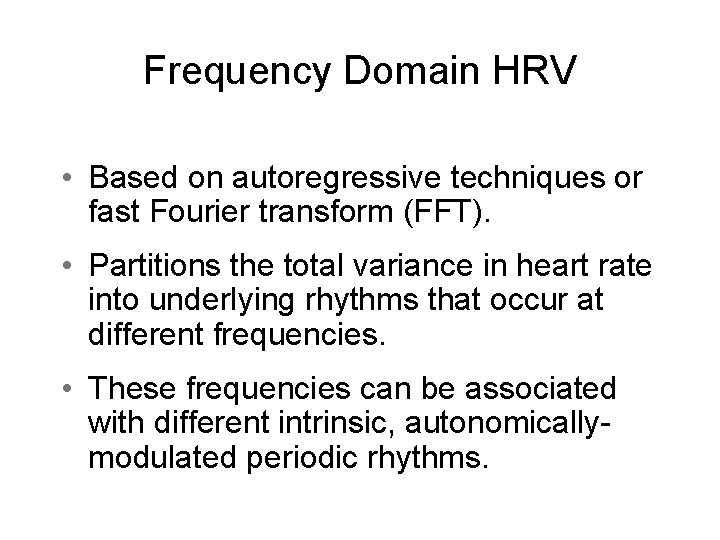

Frequency Domain HRV • Based on autoregressive techniques or fast Fourier transform (FFT). • Partitions the total variance in heart rate into underlying rhythms that occur at different frequencies. • These frequencies can be associated with different intrinsic, autonomicallymodulated periodic rhythms.

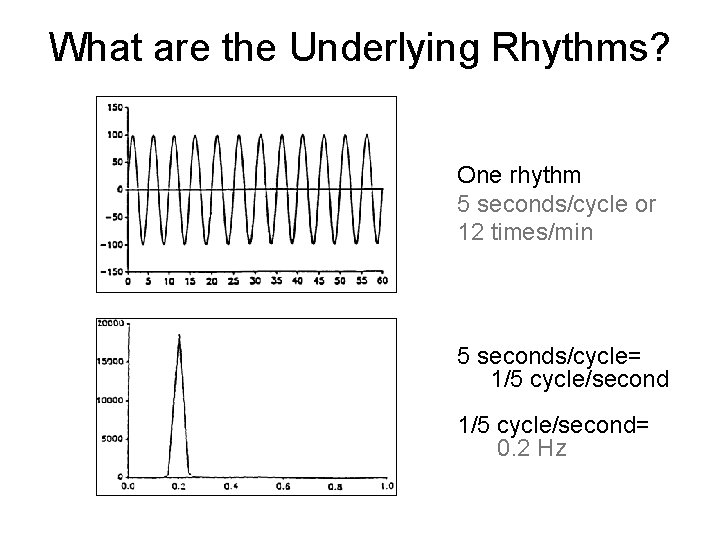

What are the Underlying Rhythms? One rhythm 5 seconds/cycle or 12 times/min 5 seconds/cycle= 1/5 cycle/second= 0. 2 Hz

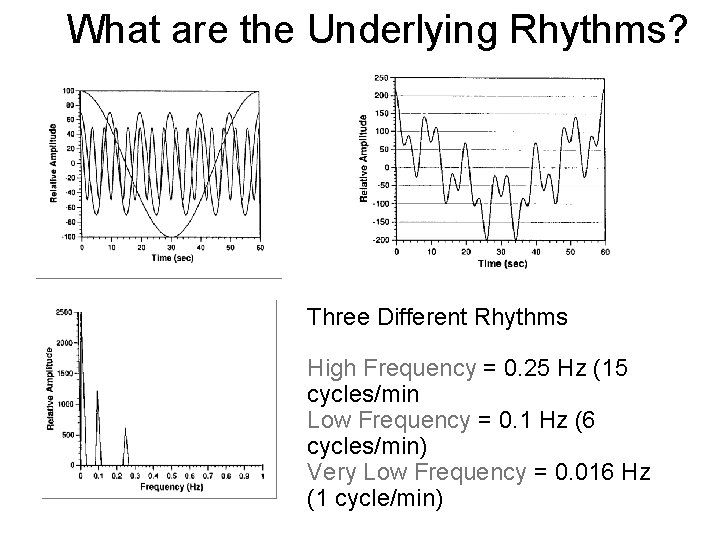

What are the Underlying Rhythms? Three Different Rhythms High Frequency = 0. 25 Hz (15 cycles/min Low Frequency = 0. 1 Hz (6 cycles/min) Very Low Frequency = 0. 016 Hz (1 cycle/min)

Ground Rules for Measuring Frequency Domain HRV • Only normal-to-normal (NN) intervals included • At least one normal beat before and one normal beat after each ectopic beat is excluded • Cannot reliably compute HRV with >20% ectopic beats • With the exception of ULF, HRV in a 24 -hour recording is calculated on shorter segments (5 min) and averaged.

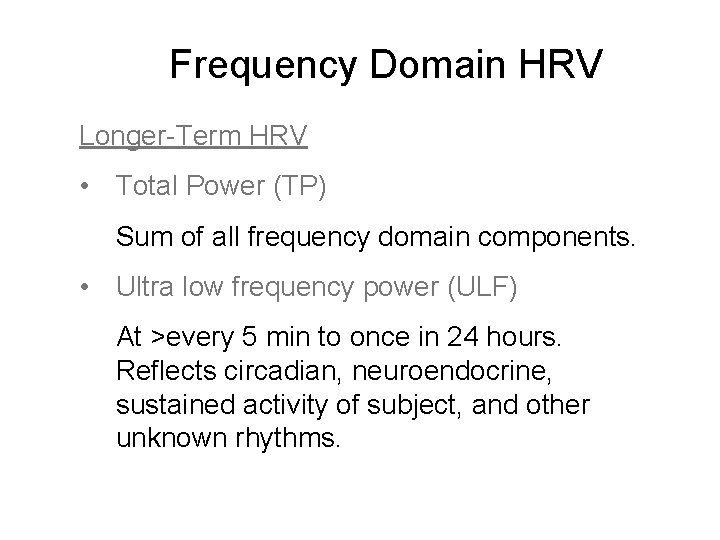

Frequency Domain HRV Longer-Term HRV • Total Power (TP) Sum of all frequency domain components. • Ultra low frequency power (ULF) At >every 5 min to once in 24 hours. Reflects circadian, neuroendocrine, sustained activity of subject, and other unknown rhythms.

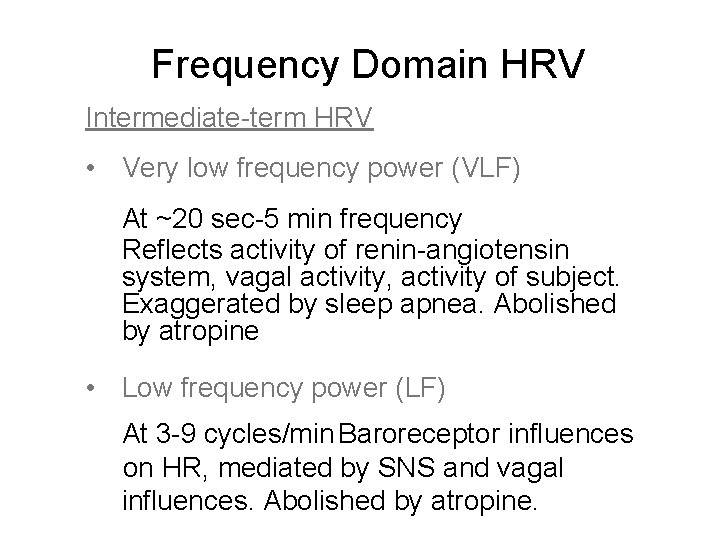

Frequency Domain HRV Intermediate-term HRV • Very low frequency power (VLF) At ~20 sec-5 min frequency Reflects activity of renin-angiotensin system, vagal activity, activity of subject. Exaggerated by sleep apnea. Abolished by atropine • Low frequency power (LF) At 3 -9 cycles/min Baroreceptor influences on HR, mediated by SNS and vagal influences. Abolished by atropine.

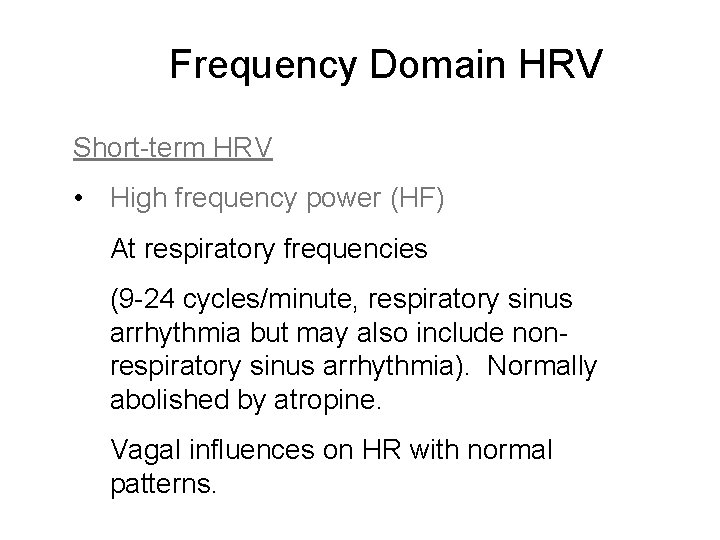

Frequency Domain HRV Short-term HRV • High frequency power (HF) At respiratory frequencies (9 -24 cycles/minute, respiratory sinus arrhythmia but may also include nonrespiratory sinus arrhythmia). Normally abolished by atropine. Vagal influences on HR with normal patterns.

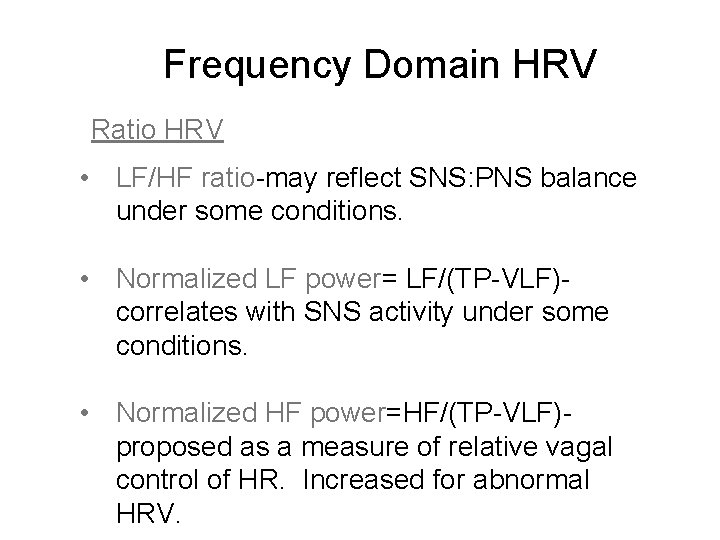

Frequency Domain HRV Ratio HRV • LF/HF ratio-may reflect SNS: PNS balance under some conditions. • Normalized LF power= LF/(TP-VLF)correlates with SNS activity under some conditions. • Normalized HF power=HF/(TP-VLF)proposed as a measure of relative vagal control of HR. Increased for abnormal HRV.

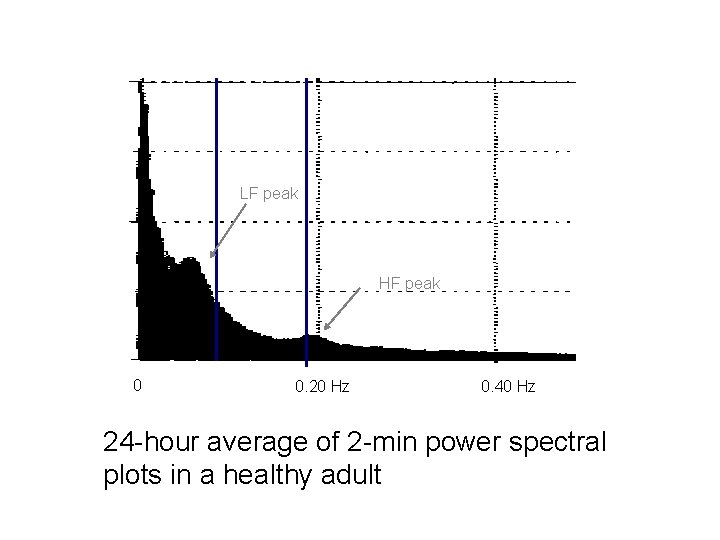

LF peak HF peak 0 0. 20 Hz 0. 40 Hz 24 -hour average of 2 -min power spectral plots in a healthy adult

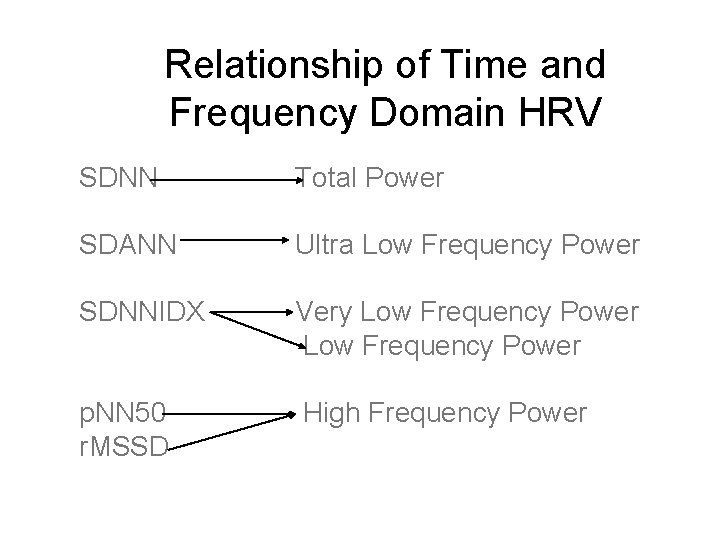

Relationship of Time and Frequency Domain HRV SDNN Total Power SDANN Ultra Low Frequency Power SDNNIDX Very Low Frequency Power p. NN 50 r. MSSD High Frequency Power

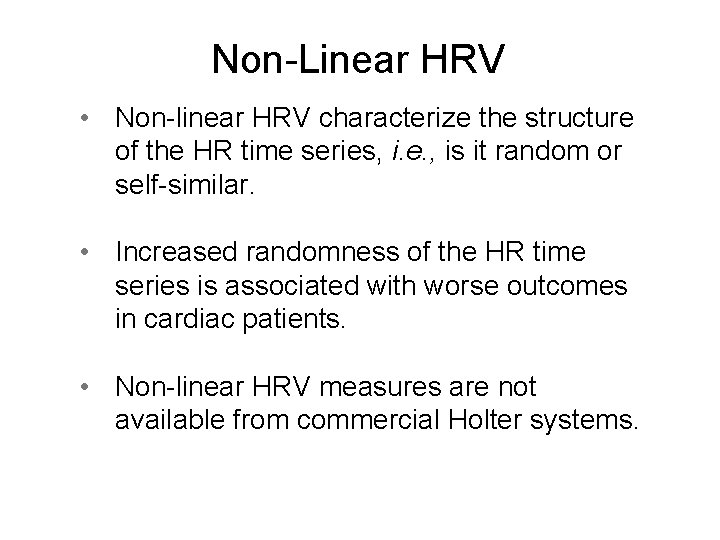

Non-Linear HRV • Non-linear HRV characterize the structure of the HR time series, i. e. , is it random or self-similar. • Increased randomness of the HR time series is associated with worse outcomes in cardiac patients. • Non-linear HRV measures are not available from commercial Holter systems.

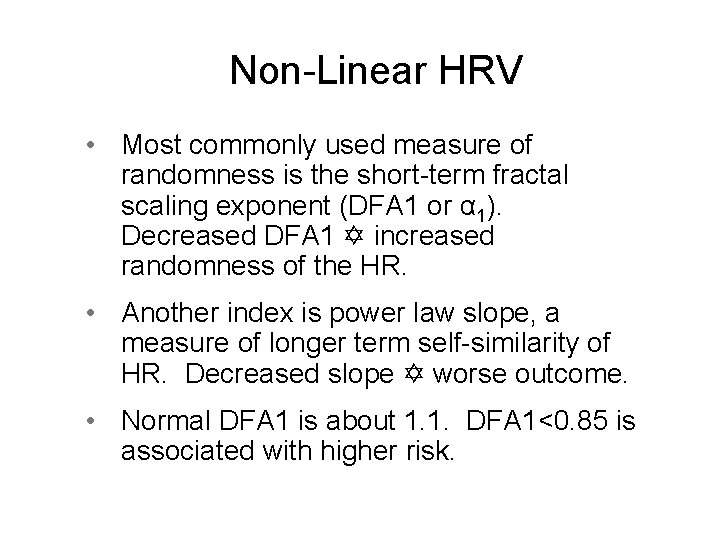

Non-Linear HRV • Most commonly used measure of randomness is the short-term fractal scaling exponent (DFA 1 or α 1). Decreased DFA 1 increased randomness of the HR. • Another index is power law slope, a measure of longer term self-similarity of HR. Decreased slope worse outcome. • Normal DFA 1 is about 1. 1. DFA 1<0. 85 is associated with higher risk.

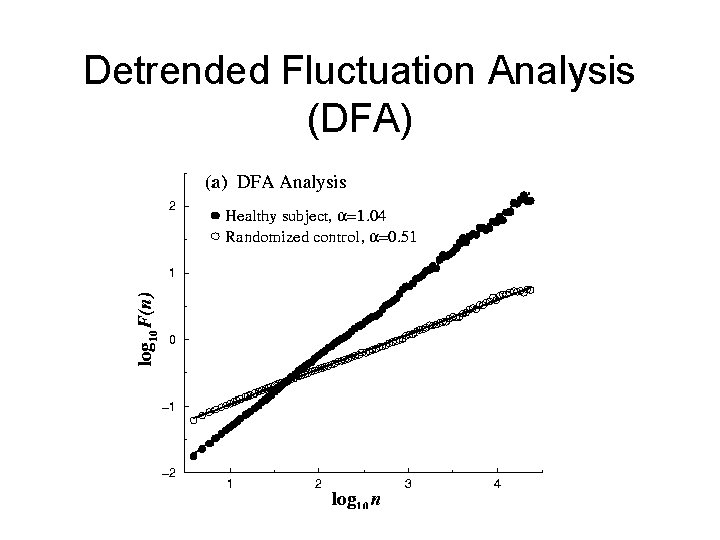

Detrended Fluctuation Analysis (DFA)

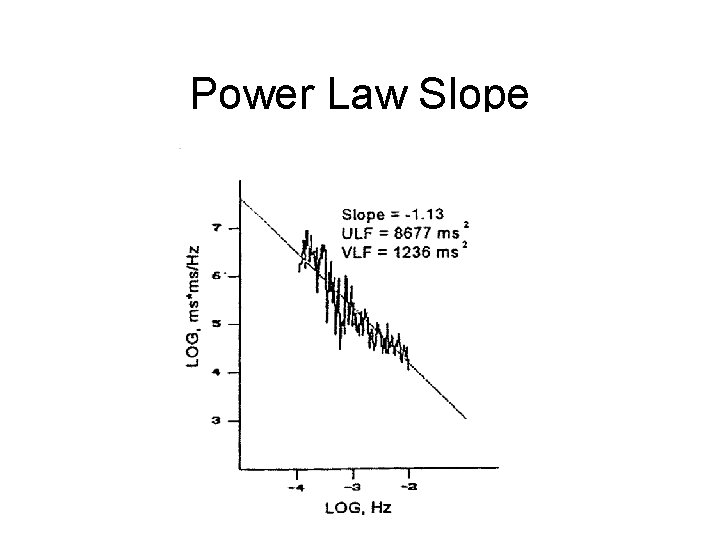

Power Law Slope

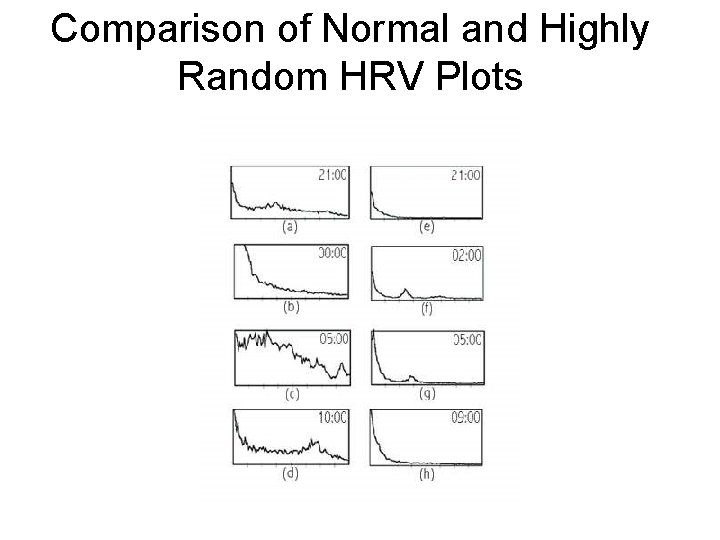

Comparison of Normal and Highly Random HRV Plots
