HEART RATE LAB Heart Beat Measuring heart rate
![HEART RATE LAB • Heart Beat • Measuring heart rate under different conditions. • HEART RATE LAB • Heart Beat • Measuring heart rate under different conditions. •](https://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-1.jpg)
HEART RATE LAB • Heart Beat • Measuring heart rate under different conditions. • Do Investigating claims on your own.
![CIRCULATORY SYSTEM CIRCULATORY SYSTEM](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-2.jpg)
CIRCULATORY SYSTEM
![THE CIRCULATORY SYSTEM • Takes 60 seconds for a blood cell to make a THE CIRCULATORY SYSTEM • Takes 60 seconds for a blood cell to make a](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-3.jpg)
THE CIRCULATORY SYSTEM • Takes 60 seconds for a blood cell to make a complete circuit of the body • 5. 6 liters of blood being pumped at a time • Your heart will beat 100, 000 times today = 2 liters • 35 million beats a year • Aorta- diameter of garden house, capillaries as thin as a hair = 1 liter
![FUNCTIONS OF CIRCULATORY SYSTEM • Transportation • Oxygen • Nutrients • Removal • Wastes FUNCTIONS OF CIRCULATORY SYSTEM • Transportation • Oxygen • Nutrients • Removal • Wastes](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-4.jpg)

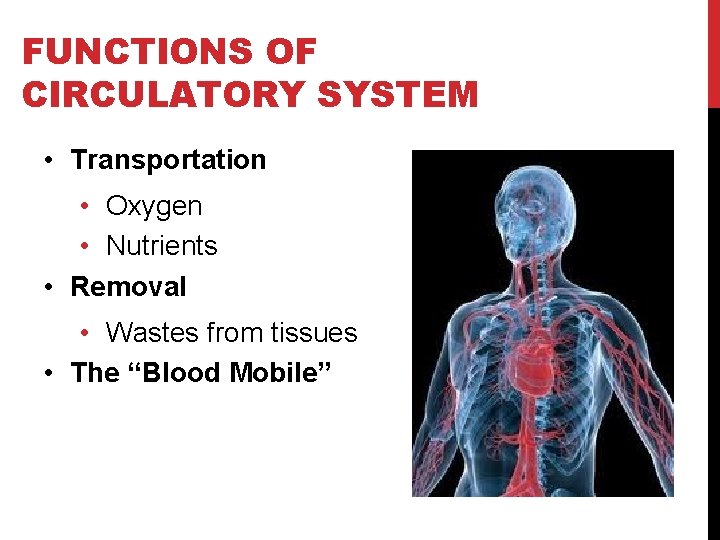

FUNCTIONS OF CIRCULATORY SYSTEM • Transportation • Oxygen • Nutrients • Removal • Wastes from tissues • The “Blood Mobile”
![WHAT’S IN YOUR BLOOD? • Plasma • • Liquid part of the blood 90% WHAT’S IN YOUR BLOOD? • Plasma • • Liquid part of the blood 90%](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-5.jpg)

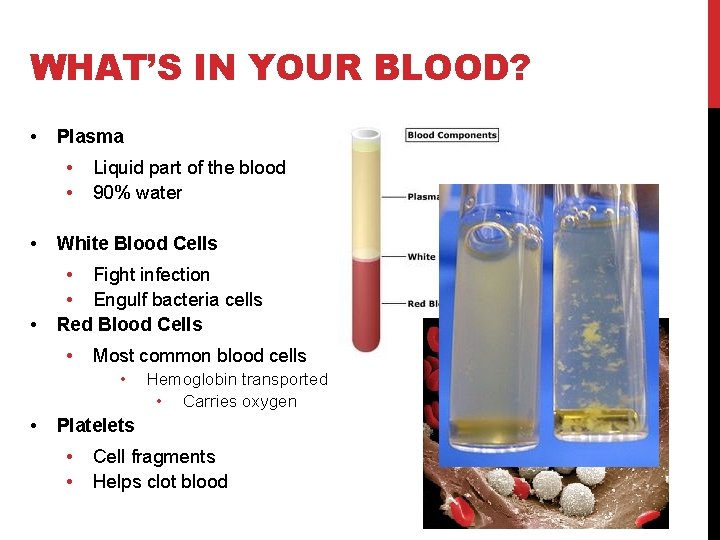

WHAT’S IN YOUR BLOOD? • Plasma • • Liquid part of the blood 90% water • White Blood Cells • • Fight infection • Engulf bacteria cells Red Blood Cells • Most common blood cells • • Hemoglobin transported • Carries oxygen Platelets • • Cell fragments Helps clot blood
![BLOOD VESSELS • Artery “away” • Blood pushed away from heart • Blood vessel BLOOD VESSELS • Artery “away” • Blood pushed away from heart • Blood vessel](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-6.jpg)
BLOOD VESSELS • Artery “away” • Blood pushed away from heart • Blood vessel where a pulse can be felt • Delivers oxygen-rich blood to capillaries • High pressure • Capillaries • Smallest blood vessel • Exchange materials, from blood to tissues and tissues to blood O 2, CO 2, waster, nutrients • Veins • Contains valves • • Brings wastes to the heart and lungs Low pressure • Varicose Veins valves no longer work
![THE HUMAN HEART All Muscle THE HUMAN HEART All Muscle](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-7.jpg)
THE HUMAN HEART All Muscle
![YOU’VE GOTTA HAVE HEART • Heart failure is the leading cause of death in YOU’VE GOTTA HAVE HEART • Heart failure is the leading cause of death in](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-8.jpg)
YOU’VE GOTTA HAVE HEART • Heart failure is the leading cause of death in men and women • ~ 800, 000 Americans a year of a heart attack • ~ 500, 000 Americans who have already had a heart attack have another one every year • Heart disease costs in America ~ $108. 9 billion
![YOU’VE GOTTA HAVE HEART • Risk Factors • Inactivity-53% • Obesity- 34% • High YOU’VE GOTTA HAVE HEART • Risk Factors • Inactivity-53% • Obesity- 34% • High](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-9.jpg)

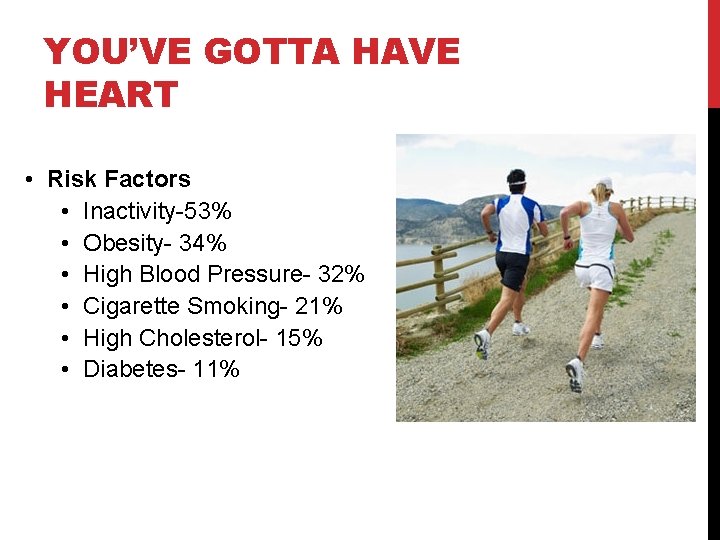

YOU’VE GOTTA HAVE HEART • Risk Factors • Inactivity-53% • Obesity- 34% • High Blood Pressure- 32% • Cigarette Smoking- 21% • High Cholesterol- 15% • Diabetes- 11%
![EXTERNAL VIEW superior vena cava pulmonary artery aorta pulmonary vein coronary artery right atrium EXTERNAL VIEW superior vena cava pulmonary artery aorta pulmonary vein coronary artery right atrium](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-10.jpg)

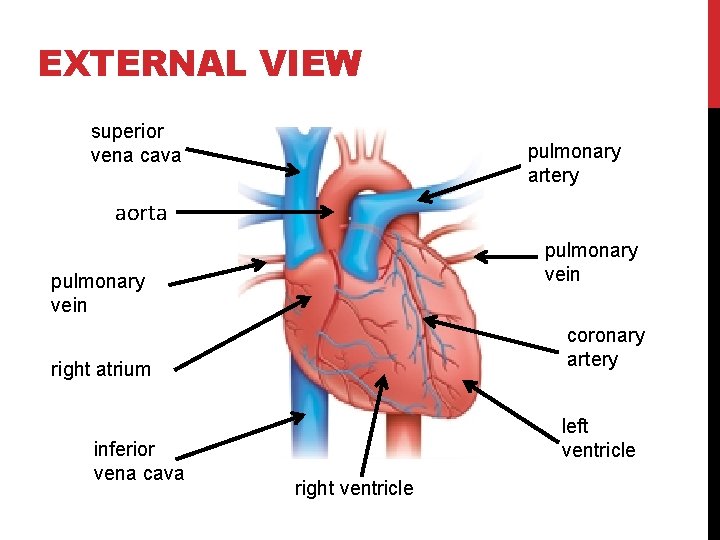

EXTERNAL VIEW superior vena cava pulmonary artery aorta pulmonary vein coronary artery right atrium inferior vena cava left ventricle right ventricle
![INTERNAL VIEW Superior Vena Cava Inferior Vena Cava INTERNAL VIEW Superior Vena Cava Inferior Vena Cava](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-11.jpg)

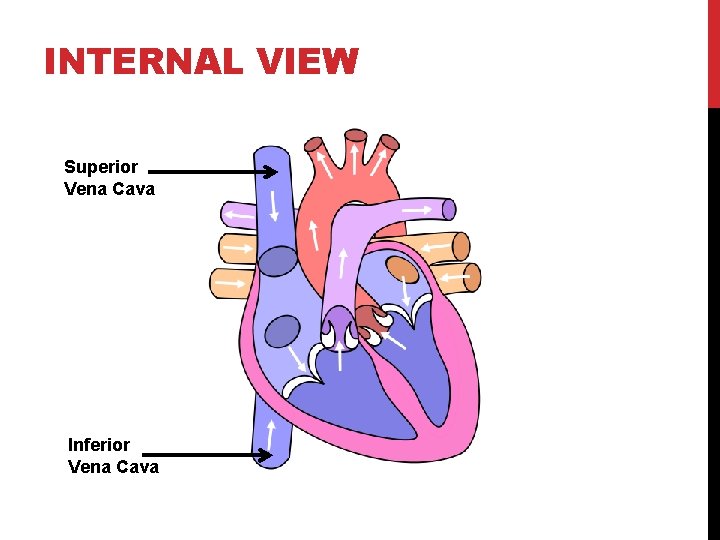

INTERNAL VIEW Superior Vena Cava Inferior Vena Cava
![INTERNAL VEIW Right Atrium INTERNAL VEIW Right Atrium](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-12.jpg)
INTERNAL VEIW Right Atrium
![INTERNAL VIEW Right Ventricle INTERNAL VIEW Right Ventricle](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-13.jpg)
INTERNAL VIEW Right Ventricle
![INTERNAL VIEW Pulmonary Arteries INTERNAL VIEW Pulmonary Arteries](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-14.jpg)
INTERNAL VIEW Pulmonary Arteries
![INTERNAL VIEW Left Pulmonary Veins INTERNAL VIEW Left Pulmonary Veins](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-15.jpg)

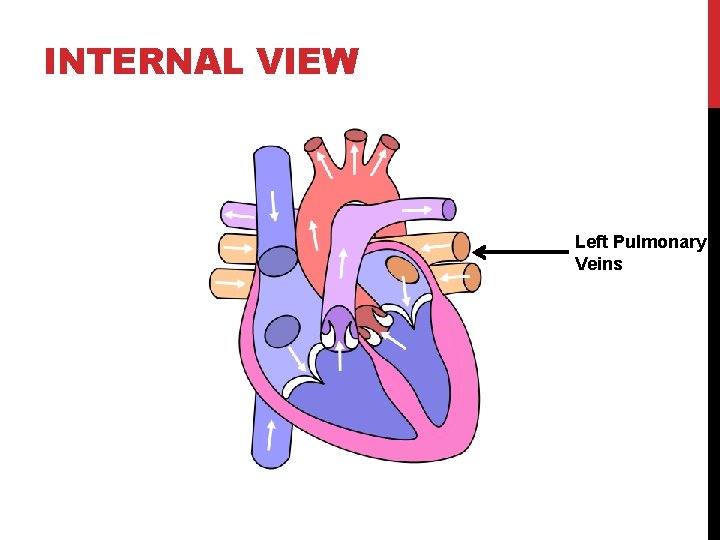

INTERNAL VIEW Left Pulmonary Veins
![INTERNAL VIEW Left Atrium INTERNAL VIEW Left Atrium](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-16.jpg)
INTERNAL VIEW Left Atrium
![INTERNAL VIEW Left ventricle INTERNAL VIEW Left ventricle](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-17.jpg)
INTERNAL VIEW Left ventricle
![INTERNAL VIEW Aortic arch Aorta INTERNAL VIEW Aortic arch Aorta](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-18.jpg)

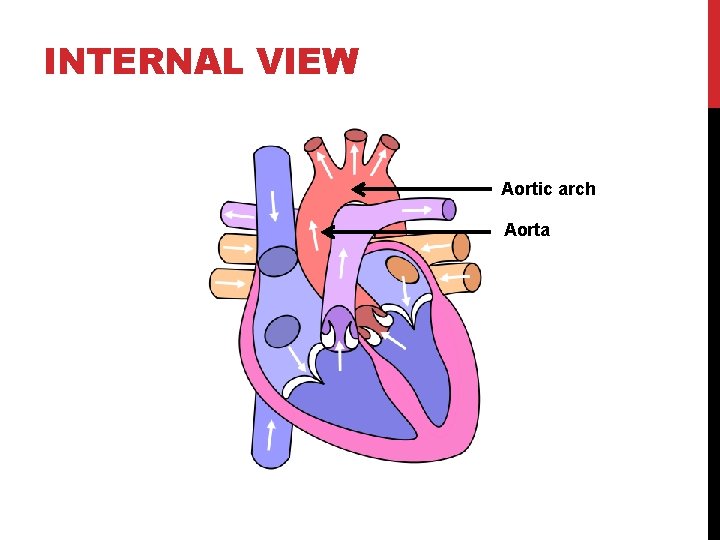

INTERNAL VIEW Aortic arch Aorta
![INTERNAL VIEW Semilunar Valves Bicuspid Valve Tricuspid Valve Septum INTERNAL VIEW Semilunar Valves Bicuspid Valve Tricuspid Valve Septum](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-19.jpg)
INTERNAL VIEW Semilunar Valves Bicuspid Valve Tricuspid Valve Septum
![NODES • Natural pacemakers • Sinoatrial Node (SV node or SA node) • Cardiac NODES • Natural pacemakers • Sinoatrial Node (SV node or SA node) • Cardiac](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-20.jpg)
NODES • Natural pacemakers • Sinoatrial Node (SV node or SA node) • Cardiac muscle mass on top of right atrium • Primary generator regular electrical impulses of the heart • Controls pulse, sends it to AV node • Atrioventricular Node (AV node) • Secondary response, controls contraction • Delays signal, prevents simultaneous contraction • Artificial Pacemakers • Atrial Fibrillation • Electrical signals and impulses occurring in places other than the nodes • Prevents the right atrium from filling up with blood, body is deprived of blood.
![TYPES OF CIRCULATION • Two types • Systemic (greater) Circulation • Pulmonary (lesser) Circulation TYPES OF CIRCULATION • Two types • Systemic (greater) Circulation • Pulmonary (lesser) Circulation](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-21.jpg)

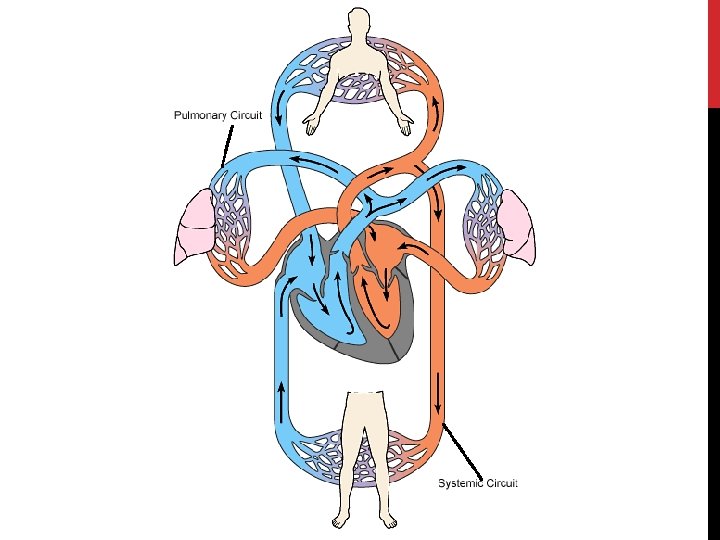

TYPES OF CIRCULATION • Two types • Systemic (greater) Circulation • Pulmonary (lesser) Circulation • Systemic • Part of circulation that carries oxygenated blood away from heart to the rest of the body. • Which side of the heart pushes the blood out? • Which vessel carries oxygenated blood away?
![TYPES OF CIRCULATION • Pulmonary circulation • Blood flow between heart and lungs. • TYPES OF CIRCULATION • Pulmonary circulation • Blood flow between heart and lungs. •](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-22.jpg)
TYPES OF CIRCULATION • Pulmonary circulation • Blood flow between heart and lungs. • Primary job is to exchange O 2 and CO 2 • In this way, it keeps systemic circulation on track
![](http://slidetodoc.com/presentation_image_h/eeb9d553a66986483ae2075050264092/image-23.jpg)
- Slides: 23
