Heapsort

Heapsort: Algorithm void heapify(Elem[] a, 1, n ) { for( i = n/2; i > 0; i--) { buildheap(a, i, n ) } } void buildheap(Elem[] a, i, n ) { int j = 2*i int b = a[i] while( j <= n) { if( j+1 <=n && a[ j] < a[ j+1] ) j = j+1; if( b < a[ j] ) a[i] = a[ j ] i=j j = 2*i } a[ j/2 ] = b } void Heapsort( Elem[] a, 1, n) { heapify( a, 1, n ) for( i = n; i>=2; i--) { swap( a[1], a[ i ] ) buildheap( a, 1, i-1) } }

Heapsort: Illustration (heapify) 73 1 6 57 2 3 88 60 42 83 4 5 6 7 72 48 85 8 9 10 Sequence: heapify… 73 6 1 2 57 88 60 42 83 72 48 85 3 4 5 6 7 8 9 10

Heapsort: Illustration (heapify) 73 1 6 57 2 3 88 60 42 83 4 5 6 7 72 48 85 8 9 10 Sequence: 73 6 1 2 57 88 60 42 83 72 48 85 3 4 5 6 7 8 9 10

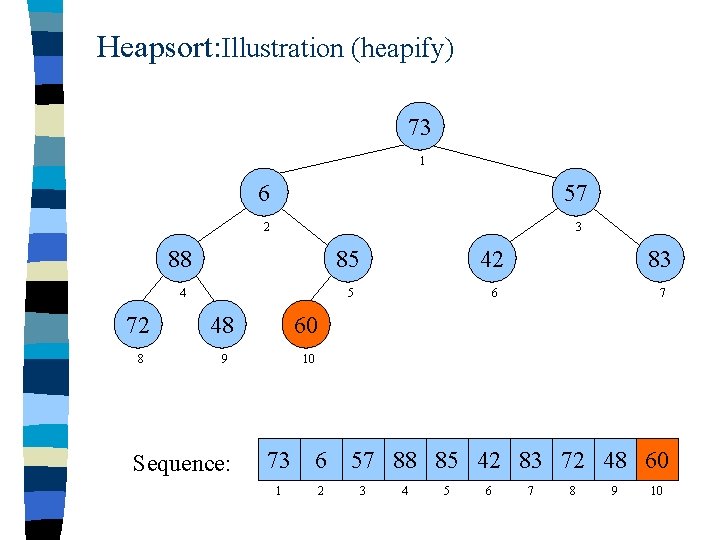

Heapsort: Illustration (heapify) 73 1 6 57 2 3 88 85 42 83 4 5 6 7 72 48 60 8 9 10 Sequence: 73 6 1 2 57 88 85 42 83 72 48 60 3 4 5 6 7 8 9 10

Heapsort: Illustration (heapify) 73 1 6 83 2 3 88 85 42 57 4 5 6 7 72 48 60 8 9 10 Sequence: 73 6 1 2 83 88 85 42 57 72 48 60 3 4 5 6 7 8 9 10

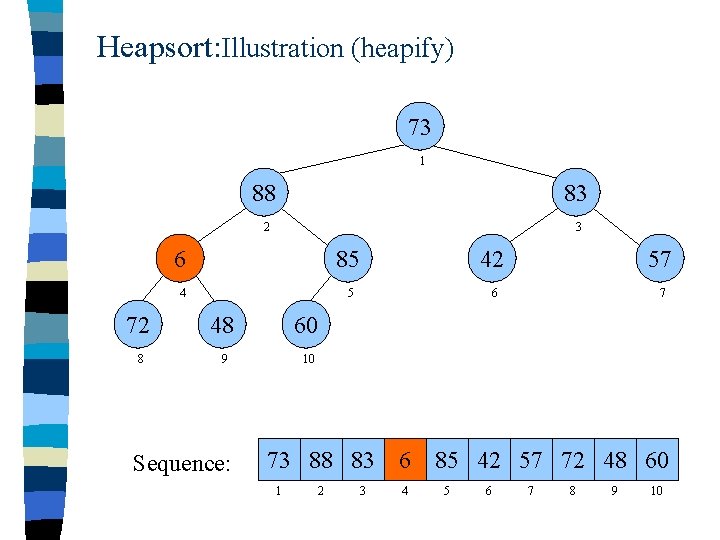

Heapsort: Illustration (heapify) 73 1 88 83 2 3 6 85 42 57 4 5 6 7 72 48 60 8 9 10 Sequence: 73 88 83 6 1 2 3 4 85 42 57 72 48 60 5 6 7 8 9 10

Heapsort: Illustration (heapify) 73 1 88 83 2 3 72 85 42 57 4 5 6 7 6 48 60 8 9 10 Sequence: 73 88 83 72 85 42 57 6 1 2 3 4 5 6 7 8 48 60 9 10

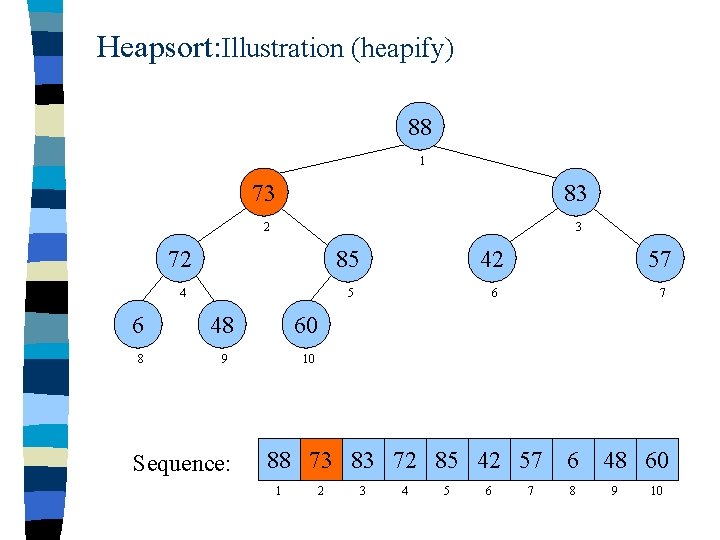

Heapsort: Illustration (heapify) 88 1 73 83 2 3 72 85 42 57 4 5 6 7 6 48 60 8 9 10 Sequence: 88 73 83 72 85 42 57 6 1 2 3 4 5 6 7 8 48 60 9 10

Heapsort: Illustration (heapify) 88 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 60 8 9 10 Sequence: 88 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 60 9 10

Heapsort: Illustration (heapify) 88 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 60 8 9 10 Sequence: Heapified ! 88 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 60 9 10

Heapsort: Illustration (swap) 88 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 60 8 9 10 Sequence: swap. 88 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 60 9 10

Heapsort: Illustration (swap) 60 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: 60 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (buildheap) 60 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: buildheap. . . 60 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (buildheap) 60 1 85 83 2 3 72 73 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: 60 85 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (buildheap) 85 1 60 83 2 3 72 73 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: 85 60 83 72 73 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (buildheap) 85 1 73 83 2 3 72 60 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: 85 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

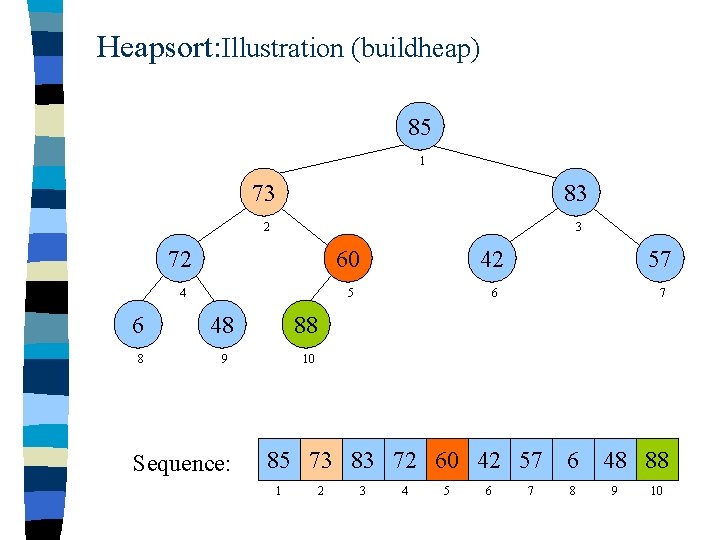

Heapsort: Illustration (buildheap) 85 1 73 83 2 3 72 60 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: heap built. 85 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (swap) 85 1 73 83 2 3 72 60 42 57 4 5 6 7 6 48 88 8 9 10 Sequence: swap. 85 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 48 88 9 10

Heapsort: Illustration (swap) 48 1 73 83 2 3 72 60 42 57 4 5 6 7 6 85 88 8 9 10 Sequence: 48 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 85 88 9 10

Heapsort: Illustration (buildheap) 48 1 73 83 2 3 72 60 42 57 4 5 6 7 6 85 88 8 9 10 Sequence: buildheap… 48 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 85 88 9 10

Heapsort: Illustration (buildheap) 48 1 73 83 2 3 72 60 42 57 4 5 6 7 6 85 88 8 9 10 Sequence: 48 73 83 72 60 42 57 6 1 2 3 4 5 6 7 8 85 88 9 10

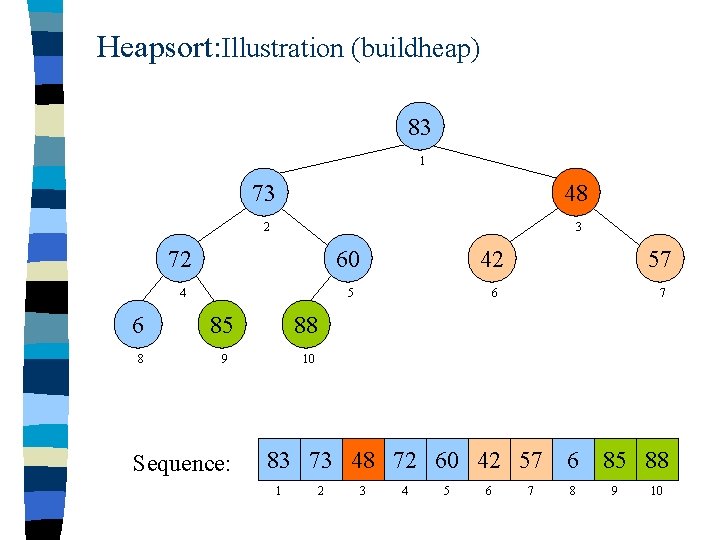

Heapsort: Illustration (buildheap) 83 1 73 48 2 3 72 60 42 57 4 5 6 7 6 85 88 8 9 10 Sequence: 83 73 48 72 60 42 57 6 1 2 3 4 5 6 7 8 85 88 9 10

Heapsort: Illustration (buildheap) 83 1 73 57 2 3 72 60 42 48 4 5 6 7 6 85 88 8 9 10 Sequence: 83 73 57 72 60 42 48 6 1 2 3 4 5 6 7 8 85 88 9 10

Heapsort: Illustration (buildheap) 83 1 73 57 2 3 72 60 42 48 4 5 6 7 6 85 88 8 9 10 Sequence: heap built. 83 73 57 72 60 42 48 6 1 2 3 4 5 6 7 8 85 88 9 10

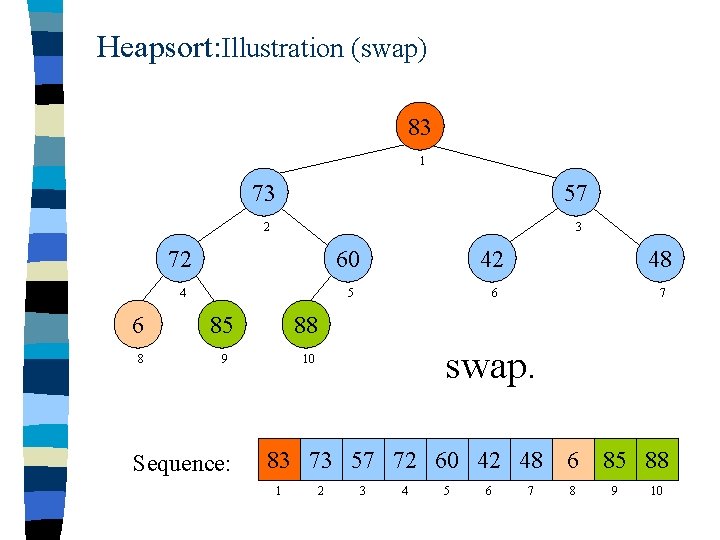

Heapsort: Illustration (swap) 83 1 73 57 2 3 72 60 42 48 4 5 6 7 6 85 88 8 9 10 Sequence: swap. 83 73 57 72 60 42 48 6 1 2 3 4 5 6 7 8 85 88 9 10

Heapsort: Illustration (swap) 6 1 73 57 2 3 72 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 73 57 72 60 42 48 83 85 88 2 3 4 5 6 7 8 9 10

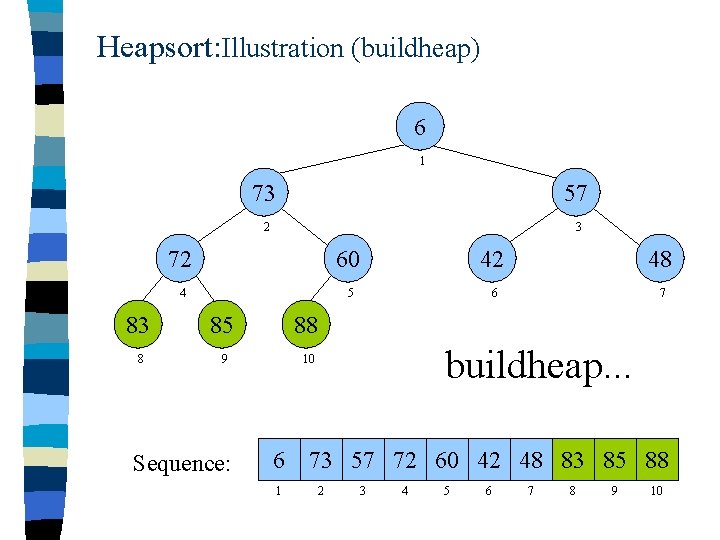

Heapsort: Illustration (buildheap) 6 1 73 57 2 3 72 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 buildheap. . . 73 57 72 60 42 48 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 6 1 73 57 2 3 72 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 73 57 72 60 42 48 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 73 1 6 57 2 3 72 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: 73 6 1 2 57 72 60 42 48 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 73 1 72 57 2 3 6 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: 73 72 57 6 1 2 3 4 60 42 48 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 73 1 72 57 2 3 6 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. 73 72 57 6 1 2 3 4 60 42 48 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 73 1 72 57 2 3 6 60 42 48 4 5 6 7 83 85 88 8 9 10 Sequence: swap. 73 72 57 6 1 2 3 4 60 42 48 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 48 1 72 57 2 3 6 60 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: 48 72 57 6 1 2 3 4 60 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 48 1 72 57 2 3 6 60 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: build heap. . . 48 72 57 6 1 2 3 4 60 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 48 1 72 57 2 3 6 60 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: 48 72 57 6 1 2 3 4 60 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 72 1 48 57 2 3 6 60 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: 72 48 57 6 1 2 3 4 60 42 73 83 85 88 5 6 7 8 9 10

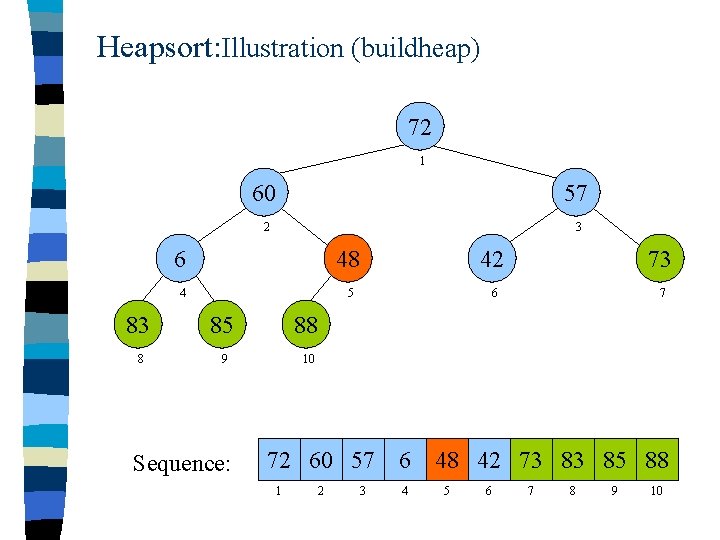

Heapsort: Illustration (buildheap) 72 1 60 57 2 3 6 48 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: 72 60 57 6 1 2 3 4 48 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 72 1 60 57 2 3 6 48 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. 72 60 57 6 1 2 3 4 48 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 72 1 60 57 2 3 6 48 42 73 4 5 6 7 83 85 88 8 9 10 Sequence: swap. 72 60 57 6 1 2 3 4 48 42 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 42 1 60 57 2 3 6 48 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 60 57 6 1 2 3 4 48 72 73 83 85 88 5 6 7 8 9 10

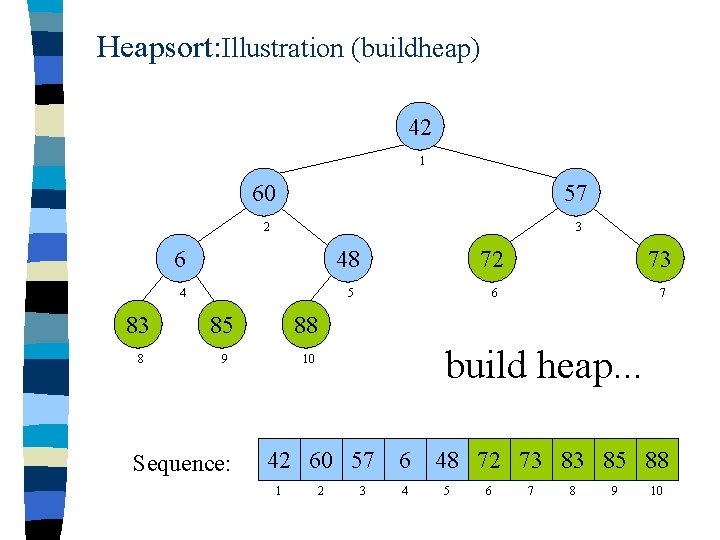

Heapsort: Illustration (buildheap) 42 1 60 57 2 3 6 48 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: build heap. . . 42 60 57 6 1 2 3 4 48 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 42 1 60 57 2 3 6 48 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 60 57 6 1 2 3 4 48 72 73 83 85 88 5 6 7 8 9 10

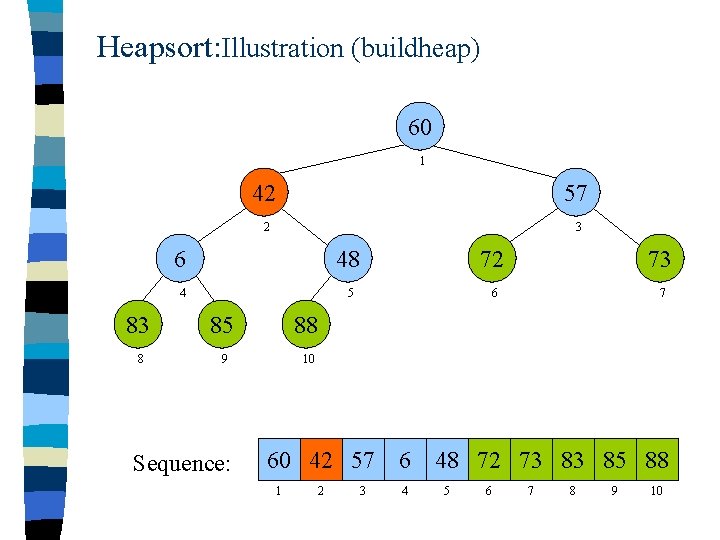

Heapsort: Illustration (buildheap) 60 1 42 57 2 3 6 48 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 60 42 57 6 1 2 3 4 48 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 60 1 48 57 2 3 6 42 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 60 48 57 6 1 2 3 4 42 72 73 83 85 88 5 6 7 8 9 10

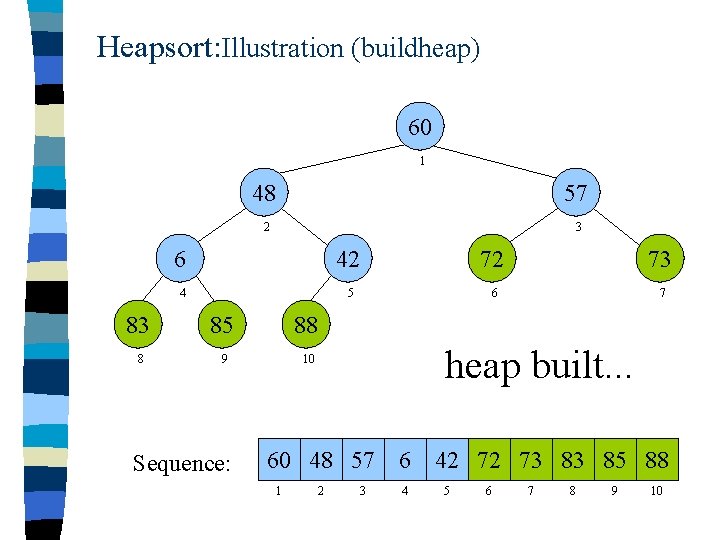

Heapsort: Illustration (buildheap) 60 1 48 57 2 3 6 42 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. . . 60 48 57 6 1 2 3 4 42 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 60 1 48 57 2 3 6 42 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: swap. . . 60 48 57 6 1 2 3 4 42 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 42 1 48 57 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 48 57 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 42 1 48 57 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: build heap. . . 42 48 57 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

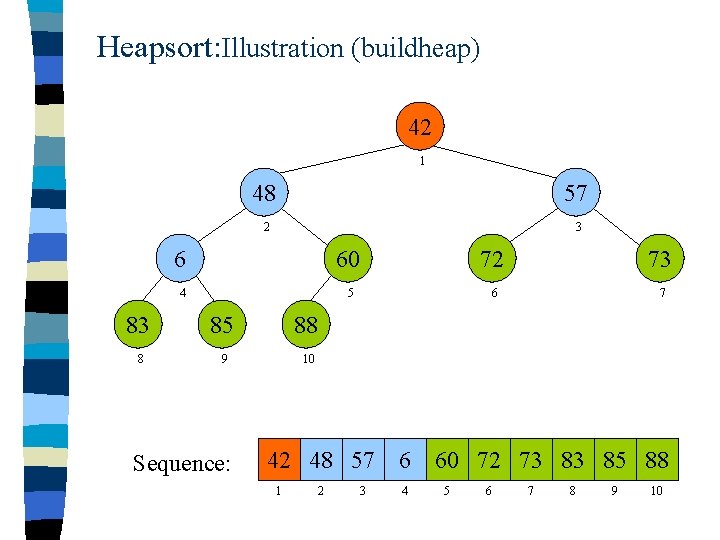

Heapsort: Illustration (buildheap) 42 1 48 57 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 48 57 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 57 1 48 42 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 57 48 42 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 57 1 48 42 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. 57 48 42 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 57 1 48 42 2 3 6 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: swap. 57 48 42 6 1 2 3 4 60 72 73 83 85 88 5 6 7 8 9 10

Heapsort: Illustration (swap) 6 1 48 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 48 42 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 6 1 48 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 build heap. . . 48 42 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 6 1 48 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 48 42 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

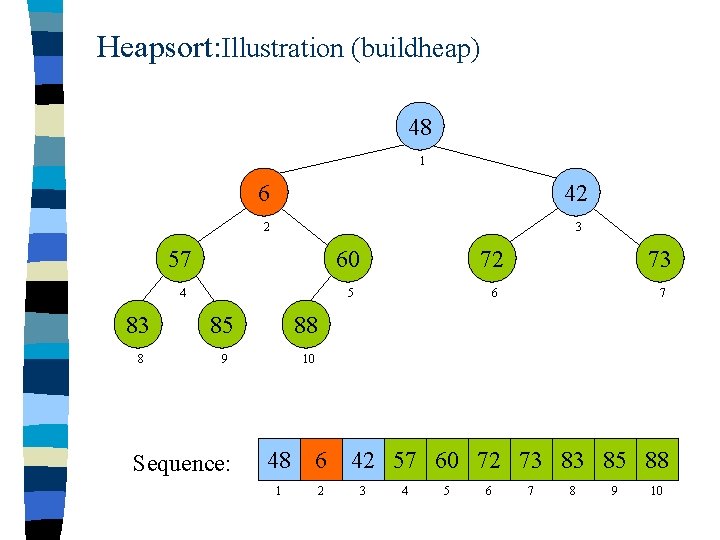

Heapsort: Illustration (buildheap) 48 1 6 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 48 6 1 2 42 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 48 1 6 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. 48 6 1 2 42 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (swap) 48 1 6 42 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: swap. 48 6 1 2 42 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (swap) 42 1 6 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 6 1 2 48 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 42 1 6 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: build heap. . . 42 6 1 2 48 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 42 1 6 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 42 6 1 2 48 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (buildheap) 42 1 6 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: heap built. 42 6 1 2 48 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (swap) 42 1 6 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: swap. 42 6 1 2 48 57 60 72 73 83 85 88 3 4 5 6 7 8 9 10

Heapsort: Illustration (swap) 6 1 42 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 42 48 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration 6 1 42 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 almost there… 42 48 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Illustration (swap) 6 1 42 48 2 3 57 60 72 73 4 5 6 7 83 85 88 8 9 10 Sequence: 6 1 SORTED ! 42 48 57 60 72 73 83 85 88 2 3 4 5 6 7 8 9 10

Heapsort: Time complexity heapify() takes O(n) time n n buildheap()s each take O( log 2 n ) time n Best, worst, average-case n – O(nlog 2 n)

Binsort: Algorithm void binsort( Elem[] a, int n ) { List[] B = new List[ MAX_KEY_VALUE ] for( i=0; I<n; I++ ) B[ a[i]. key ]. append( a[i] ) int index = 0 for( i=0; i< MAX_KEY_VALUE; i++) { for( B[i]. first(); B[i]. is. In. List(); B[i]. next() ) { a[i] = B[i]. current. Value() } } }

Bucketsort: Algorithm Put a range of values in bins and then sort the contents of each bin and then output the values of each bin in order.

Radixsort: Algorithm void radixsort( Elem[] a, Elem[] B, int n, int k, int r, Elem[] count) { // count[i] stores the number of records in bin[i] for( int i=0, rtok=1; i<k; i++, rtok*=r) //for k digits { for( int j=0; j<r; j++) count[j]=0; //initialize count //Count the no. of records for each bin on this pass for( j=0; j<n; j++ ) count[ (a[j]. key / rtok) % r ] ++ // Index B: count [j] will be index for last slot of bin j for( j=1; j<r; j++ ) count[j] = count[j-1] + count[j] // put records into bins working from bottom of each bin // since bins fill from the bottom, j counts downwards for( j=n-1; j>=0; j--) B[--count[ (a[j]. key / rtok) % r ] ] = a[j] for( j=0; j<n; j++ ) a[j] = B[j] //copy B back into a } }
