1. Multiscale flow interactions • When/how are the flow structures in the valley impacted by local thermal circulation for a given incident flow? How do the slope and valley flows interact? Multiscale flow interactions. – characterize mesoscale (including ocean/SST as site is 100 km from the coast) required for mesoscale/microscale coupling – characterize inflow – pressure measurements for waves and characterizing unsteady flows – differential heating

2. Influence of terrain heterogeneity • What is the impact of “The Gap” on the flow field? – flow channeling – variations with stability • The 3 D nature of the ridges may also influence channeling and recirculation – how?

3. Transitions & Diurnal Cycle • What determines the location and character of features such as fronts during transitions? • What are the impacts of various forcing mechanisms on TKE and the TKE balance through the diurnal cycle? – continuous high-rate measurements of winds, pressure – profiles and transects to estimate advection and turbulence transport terms – UAVs and tethered lifting systems could help – mixed layer depth

4. Heterogeneity • What is the impact of microscale heterogeneity? – roughness, moisture, soil moisture, sap flow, vegetative canopy, differential heating – remember sonic footprint issues – need lidar measurements, aerial photographs, right before campaign to characterize elevation and vegetative canopy • What data do we need to collect to reassess/surpass MOST? • Assess spatial coherence; need to crosscalibrate instruments

5. Turbine interactions • How does the turbine wake generate and interact with coherent structures induced by terrain flow? – Wake meander in the horizontal and vertical – TKE budgets in wake – Does the wake affect flow in the valley?

6. Budgets • What is the complete hydrological balance of the valley? • Perhaps CO 2 as well, but be careful and consult with a CO 2 person

7. Instrumentation science questions (Broader Impacts!) • How to define optimal lidar scanning strategies? – will build on results from Windscanner (3 Windcube 200 S operated synchronously) deployment in 2015 • How to use sonics, radiometers in complex and heterogeneous terrain?

Possible strategies for science proposals (to help ensure that everyone gets funded) • • • Map each important question from SPO to an investigator to ensure everyone gets funded? Collaborative proposals between investigators can link complementary investigations – many of us bring both modeling and obs expertise: be careful with areas of overlap to ensure they are complementary Do we all submit to NSF AGS/PDM? Should we also look into NSF Fluid Dynamics? (Energy for Sustainability not currently funding wind-related work) European focus is on improving wind resource assessment models (wind application). US participation can focus on advancing state of science to improve the model chain and process studies. Interaction between SPO and MRI – be sure to define a plan with/out Cent. Net. Specify the science that can be done with/out Cent. Net. Make the clear case that we are leveraging significant European resources to justify the additional expense of transporting US participants to Europe

CU-Boulder goals for Perdigão: observations and simulations • documenting and understanding the diurnal cycles of wind, turbulence dissipation rate, and atmospheric stability at the Perdigão double-hill site • assessing how this daily cycle affects the evolution of wind speed and turbulence at turbine altitudes and the resulting evolution of wind turbine loads and wind turbine wakes in complex terrain

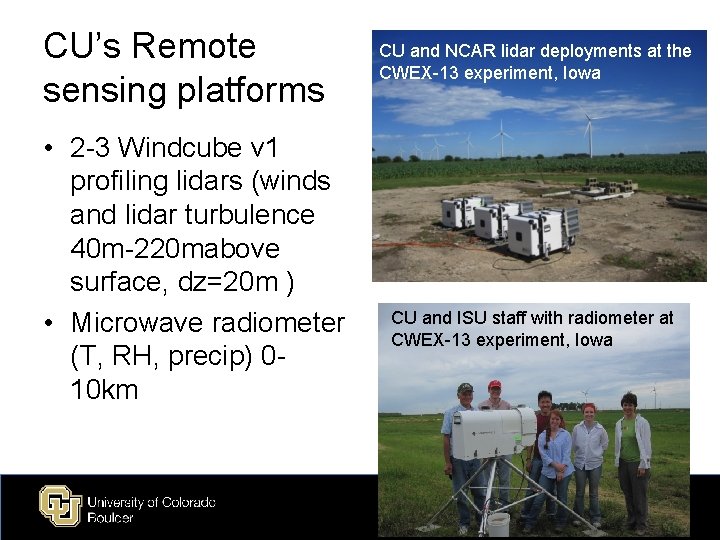

CU’s Remote sensing platforms • 2 -3 Windcube v 1 profiling lidars (winds and lidar turbulence 40 m-220 mabove surface, dz=20 m ) • Microwave radiometer (T, RH, precip) 010 km CU and NCAR lidar deployments at the CWEX-13 experiment, Iowa CU and ISU staff with radiometer at CWEX-13 experiment, Iowa

In situ observations (require coordination with Portugese Air Force) Tethered lifting system UAV (1 -m wingspan Datahawk) Turbulence Payload 21’ Test Blimp Turbulence Payload Wind Vane Winch Used to quantify winds, temp, and TKE dissipation rate in wind turbine wakes (Lundquist & Bariteau 2014, BLM, to appear) Lawrence and Balsley 2013, J Tech

In flat terrain, lidars are suitable to provide “inflow” conditions, but “corrections” (based on CFD) are usually applied to complex terrain • Corrections are product-specific • Usually based on neutral BL flow Vogstad et al. 2013

Inhomogeneous flow challenges the assumptions of the lidar, introducing error that can be quantified with stability-aware modeling (wake example) Using CFD, we simulate stable BL flow past a wind turbine (actuator line mode). We introduce hypothetical lidars into the flow and calculate the difference between what the lidar actually saw and what it should have seen. Lundquist, Churchfield, Lee, and Clifton, 2014, AMTD

Largest errors are within 1 D, but even at 3 D downstream, cross-stream velocities are unreliable 3 D Downstream – 10 minute average 200 y/D=-0. 8 y/D=0 y/D=+0. 8 150 100 height (m) 100 50 50 -1 -0. 5 0 0. 5 U error (m/s) 1 y/D=-0. 8 y/D=0 y/D=+0. 8 -1 -0. 5 0 0. 5 V error (m/s) 1 Lundquist, Churchfield, Lee, and Clifton, 2014, AMTD

Assessing stability with radiometer (CWEX-13)

TKE dissipation from TLS compares well to towers outside turbine wake Lundquist and Bariteau, 2014, BLM to appear

TLS shows enhanced dissipation in wake – in neutral conditions Lundquist and Bariteau, 2014, BLM to appear

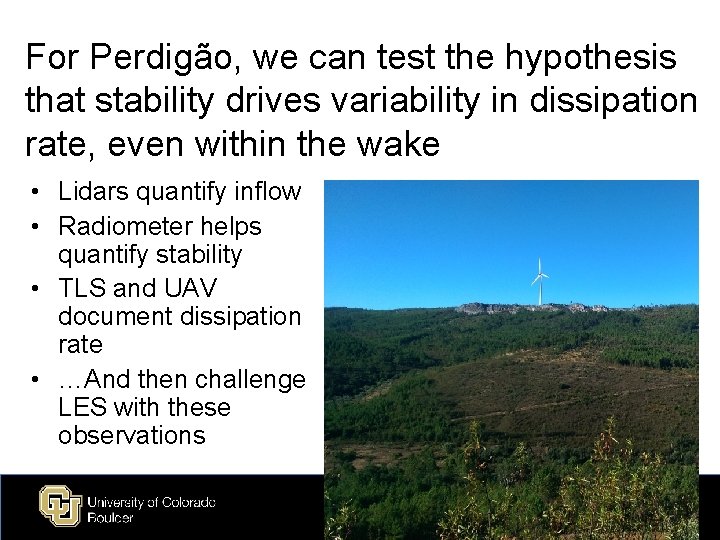

For Perdigão, we can test the hypothesis that stability drives variability in dissipation rate, even within the wake • Lidars quantify inflow • Radiometer helps quantify stability • TLS and UAV document dissipation rate • …And then challenge LES with these observations

How skillful are models at capturing this cycle of stability and its interaction with wind turbine wakes? WRF-LES for CBL WRF-LES for SBL Flow Mirocha, Lundquist et al. 2014 JRSE Aitken, Kosovic, Mirocha, and Lundquist 2014 JRSE
