HDS HUS & HCB 日立統合儲存與刀鋒伺服器 Phoenix LIANG Oct. 2014 1 © Hitachi Data Systems Corporation 2014. All rights reserved.
CR 2 x 0 CB 2000 UCP CB 500 HCP AW Content Platforms HNAS F HNAS 4040 HDI HCP HNAS 4060/4080 HNAS 4200 HCS File Only Platforms Unified Platform Block Only Platforms 2 HUS 110 HUS 130 HUS VM HUS 110 HUS 130 HUS 150 VSP HUS VM VSP G 1000 Hitachi Command Suite Compute Platforms © Hitachi Data Systems Corporation 2014. All rights reserved.
Hitachi Unified Storage (HUS) 產品系列 § 支援所有資料型態的統合管理平台 § 支援從部門到企業的應用 § 全產品線均可支援快閃儲存 部門/區域辦公室 中型企業 中大型企業 入門企業級 HUS 110 HUS 130 HUS 150 HUS VM Lowest Cost per Capacity File, Block, and Object Data Highest Performance Solid State Storage 3 Internal Virtualization External Virtualization © Hitachi Data Systems Corporation 2014. All rights reserved.
Hitachi Unified Storage (HUS) 型號 HUS 110 HUS 130 HUS 150 HUS VM 480 TB 1, 440 TB 3, 840 TB 4, 608 TB MAX. DRIVES 120 360 960 1152 MAX. CACHE * 8+64 GB 32+92 GB 32+184 GB 256+432 GB MAX. CAPACITY DRIVE TYPES SSD, SAS, and NL-SAS FLASH Solid State Storage CONNECTIVITY FC, i. SCSI, Gb. E FILE SYSTEM 256 TB, 16 M file system objects per directory PROTOCOLS NFS, SMB, FTP, HTTP, SSL, SNMP MANAGEMENT 4 *Max. Cache = Dual Block Controllers + Clustered File Nodes Hitachi Command Suite © Hitachi Data Systems Corporation 2014. All rights reserved.
競爭對應比較 EMC VNX 5600 48+24 GB cache, 500 HDDs, 2, 048 LUNs DELL SC 8000 64 -128 GB cache, 960 HDDs EMC VNX 5800 64+36 GB cache, 750 HDDs, 4, 096 LUNs HP Store. Serv 7200 (2 -node) 32 GB cache, 240 HDDs IBM V 500 (2 -node) 16 GB cache, 240 HDDs HUS 130 Net. App E 5500 24 GB cache, 384 HDDs MAX. CAPACITY MAX. DRIVES 360 Net. App FAS 8020 8+48 Gb cache, 480 HDDs MAX. CACHE * 16/32+92 GB DRIVE TYPES SSD, SAS, NL-SAS MAX. FLASH DRIVES CONNECTIVITY DISK INTERFACE 5 1, 440 TB HP 3 Par Store. Serv 7400 (4 -node) 64 GB cache, 480 HDDs, 4, 095 LUNs IBM V 7000 (2 -node) 64 GB cache, 504 HDDs Net. App FAS 8040 16+64 GB cache, 720 HDDs 360 SSD 8 or 16 FC 8 FC + 4 i. SCSI 6 Gb SAS *16 MAX. LUNS 4, 096 UNIFIED YES © Hitachi Data Systems Corporation 2014. All rights reserved.
全系列均可支援快閃儲存 HUS 110 HUS 130 HUS 150 HUS VM Solid State Drives (SSD) Hitachi Accelerated Flash SUB-MILLISECOND RESPONSE TIMES 6 © Hitachi Data Systems Corporation 2014. All rights reserved.
Hitachi Flash Module Drive (FMD) § Complements SSD and HDD § New flash enclosure contains up to 12 flash modules § Flash module drives ‒ 1. 6/3. 2 TB per flash module ‒ All flash enclosure will scale to 19. 2/38. 4 TB ‒ Up to 8 flash enclosures – more than 150 TB of flash! 7 © Hitachi Data Systems Corporation 2014. All rights reserved.
專為企業儲存設計的快閃儲存模組 § 8 lanes of PCIe § PCIe root complex § Multicore processor X 8 PCIe PHYs PCIe Root Complex § Integrated DDR-3 interface Core DDR 3 To/From DDR § Integrated flash controller logic supports 32 paths to the flash array Core Misc. . Interfaces UART, UI 2 C, Ethernet § 128 flash memory chips 8 PCIe X 16 Flash Controllers X 32 Flash PHYs Flash Memory interface © Hitachi Data Systems Corporation 2014. All rights reserved.

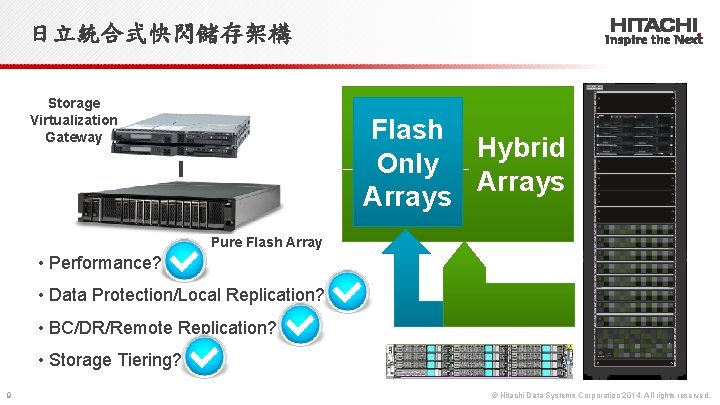

日立統合式快閃儲存架構 Storage Virtualization Gateway Flash Hybrid Only Arrays Pure Flash Array • Performance? • Data Protection/Local Replication? • BC/DR/Remote Replication? • Storage Tiering? 9 © Hitachi Data Systems Corporation 2014. All rights reserved.
日立運算平台 • High Capacity Blade Chassis CB 2000 - Features • High availability, performance & scalability for the enterprise Selling Optimized for virtualization, maximizing utilization in the datacenter • High Density Blade Chassis CB 500 - Highly dense chassis design optimized for virtualization and consolidation Competitive Selling • Compact and flexible with a variety of blade and connectivity options • Rack Optimized 10 CR 2 x 0 - Bundle Compact and flexible application server platforms Selling • Available exclusively in Hitachi file and content solutions © Hitachi Data Systems Corporation 2014. All rights reserved.

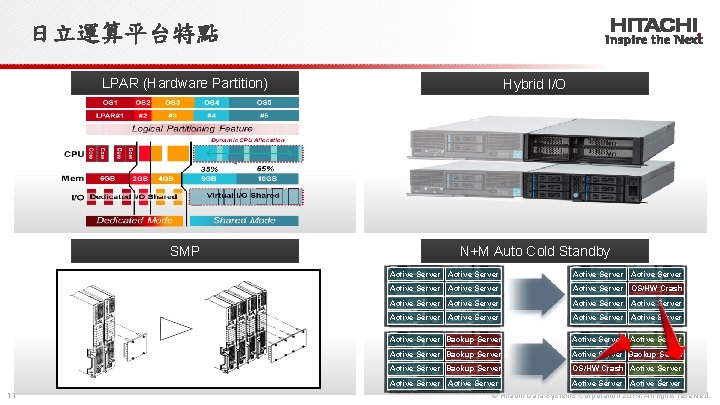

日立運算平台特點 11 LPAR (Hardware Partition) Hybrid I/O SMP N+M Auto Cold Standby Active Server Active Server OS/HW Crash Active Server Active Server Active Server Backup Server Active Server Backup Server OS/HW Crash Active Server Active Server © Hitachi Data Systems Corporation 2014. All rights reserved.
硬體虛擬主機-LPAR § Default LPARs: ‒ CB 500 : 4 ‒ CB 2000 : 2 § Max. 30 LPARs per blade § Max. 60 LPARs per SMP § Benefits: ‒ Isolated partitions for sensitive multi-tenant environments ‒ Optimized efficient use of compute resources ‒ Dynamic response to changing workloads (in shared mode) 12 © Hitachi Data Systems Corporation 2014. All rights reserved.

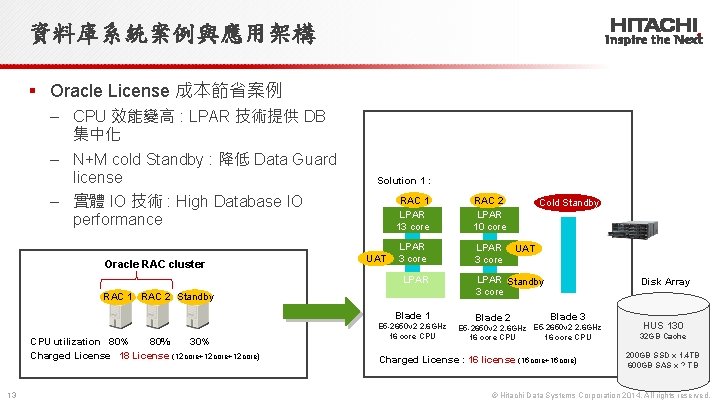

資料庫系統案例與應用架構 § Oracle License 成本節省案例 ‒ CPU 效能變高 : LPAR 技術提供 DB 集中化 ‒ N+M cold Standby : 降低 Data Guard license ‒ 實體 IO 技術 : High Database IO performance Oracle RAC cluster Solution 1 : UAT RAC 1 LPAR 13 core RAC 2 LPAR 10 core LPAR 3 core LPAR RAC 1 RAC 2 Standby Blade 1 CPU utilization 80% 30% Charged License 18 License (12 core+12 core) 13 E 5 -2650 v 2 2. 6 GHz 16 core CPU Cold Standby UAT LPAR Standby 3 core Blade 2 Disk Array Blade 3 E 5 -2650 v 2 2. 6 GHz 16 core CPU Charged License : 16 license (16 core+16 core) HUS 130 32 GB Cache 200 GB SSD x 1. 4 TB 600 GB SAS x ? TB © Hitachi Data Systems Corporation 2014. All rights reserved.
SMP 多刀鋒架構 1 Blade 2 Blades Sockets 2 4 Cores 30 60 Memory Slots 48 96 Memory Size 1. 5 TB 3 TB 2 4 Mezzanine Slots 14 1 Blade 2 Blades 4 Blades Sockets 2 4 8 Cores 20 40 80 Memory Slots 32 64 128 Memory Size 512 GB 1 TB 2 TB Mezzanine Slots 2 4 8 PCIe Slots 2 4 8 © Hitachi Data Systems Corporation 2014. All rights reserved.
Thank You 15 © Hitachi Data Systems Corporation 2014. All rights reserved.
