HDMI SPEC HDMI Cable HMDI HDMIHigh Definition Multimedia

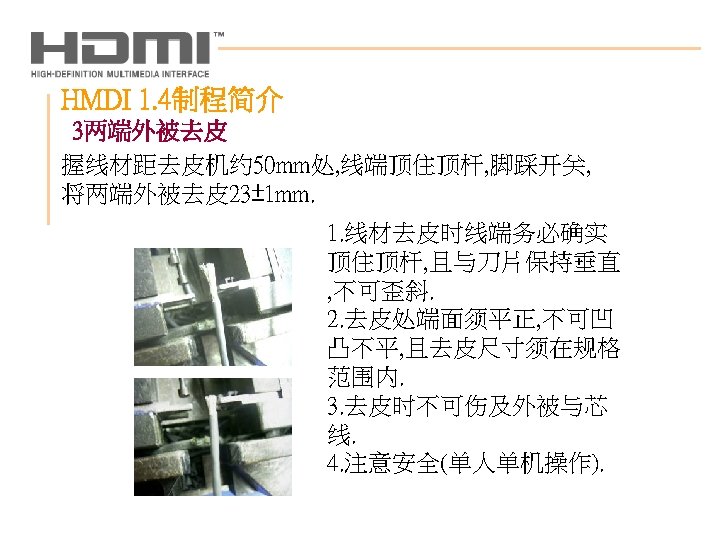

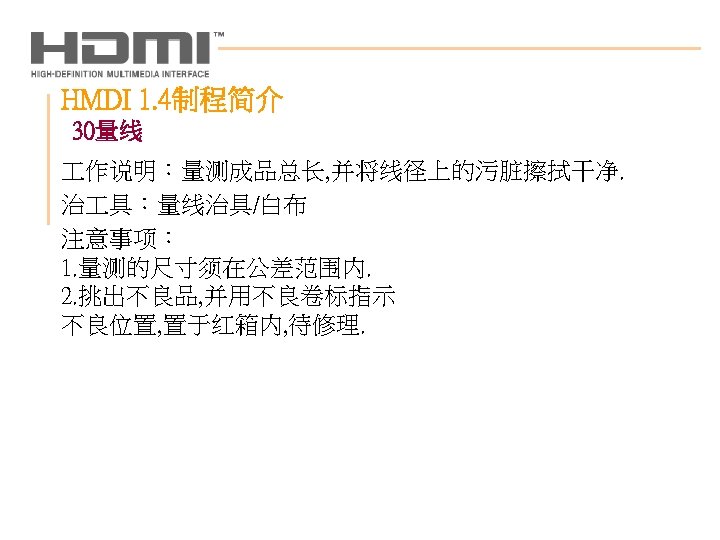

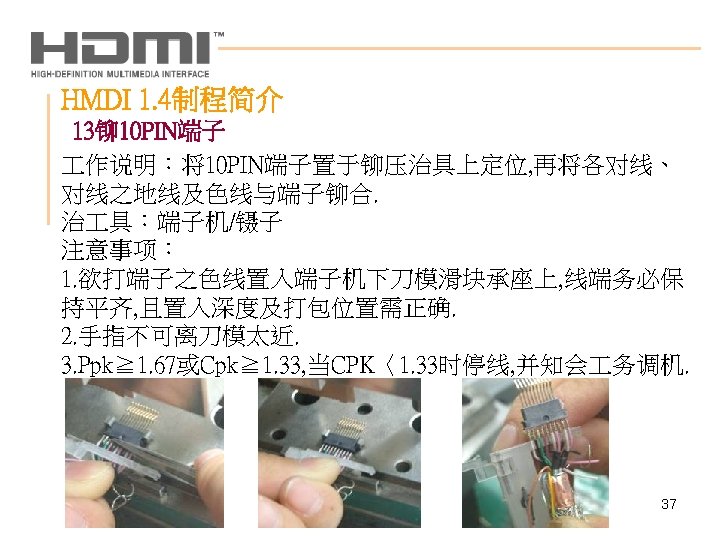

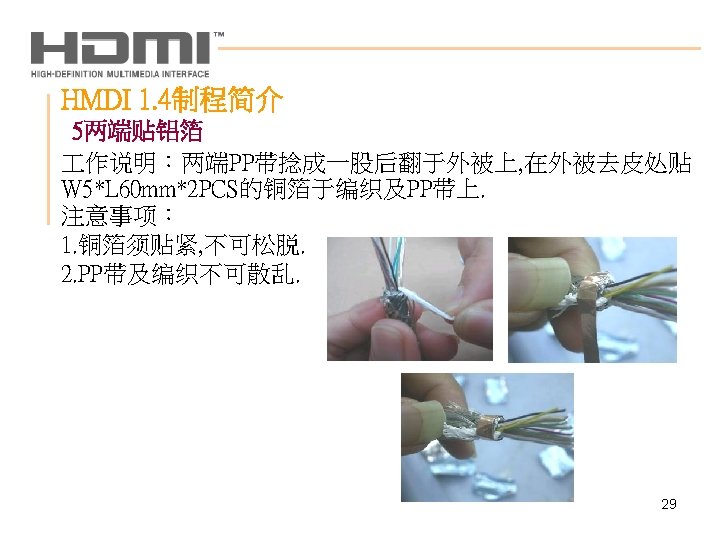

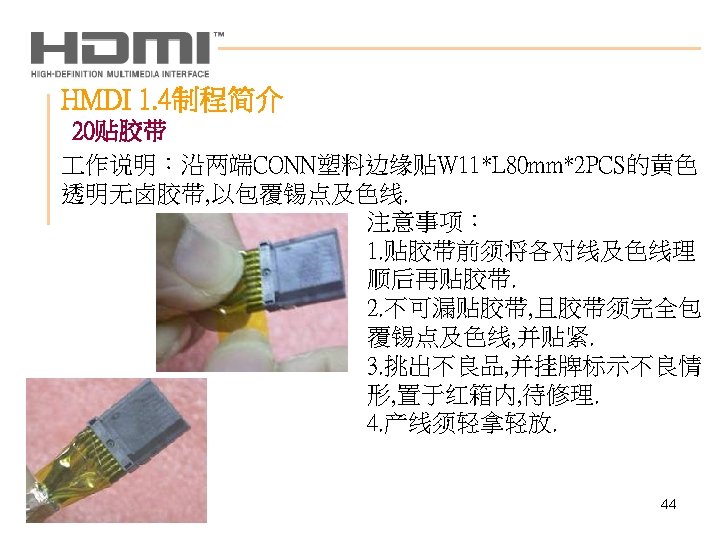

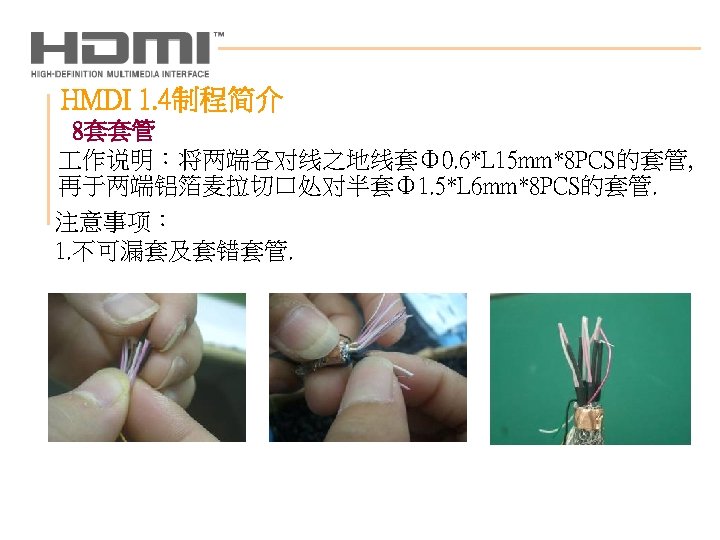

HDMI SPEC & HDMI Cable制程

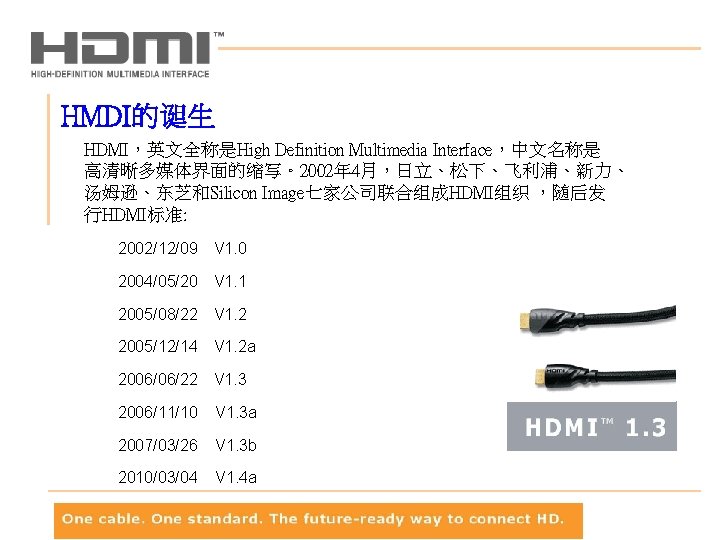

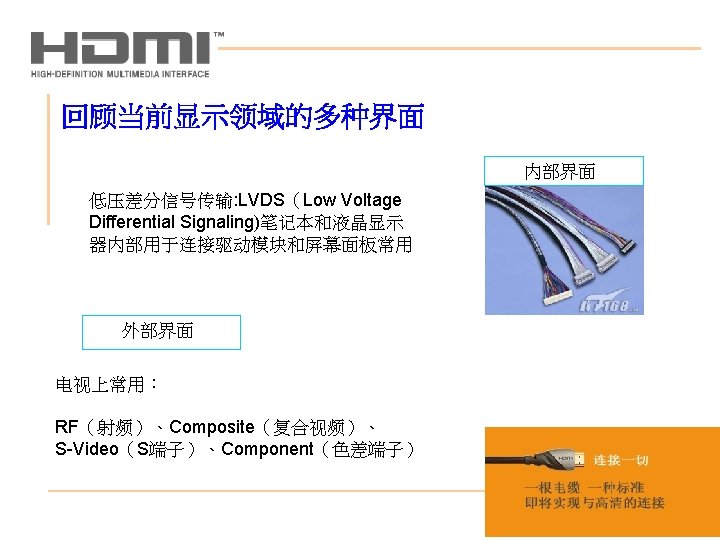

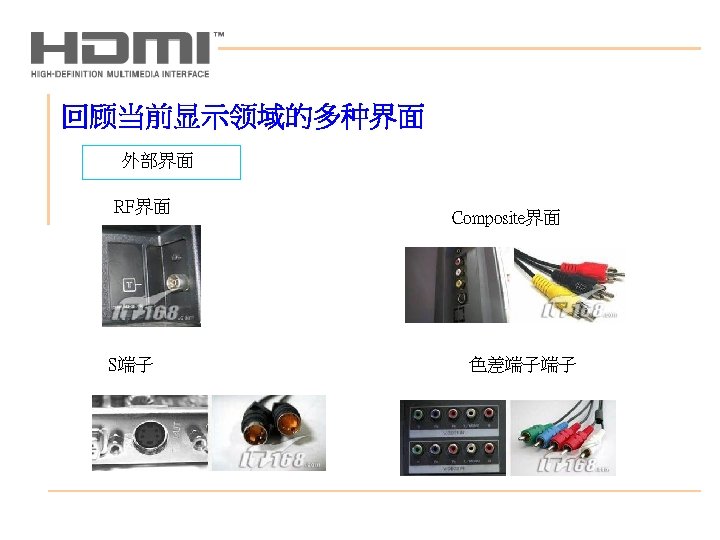

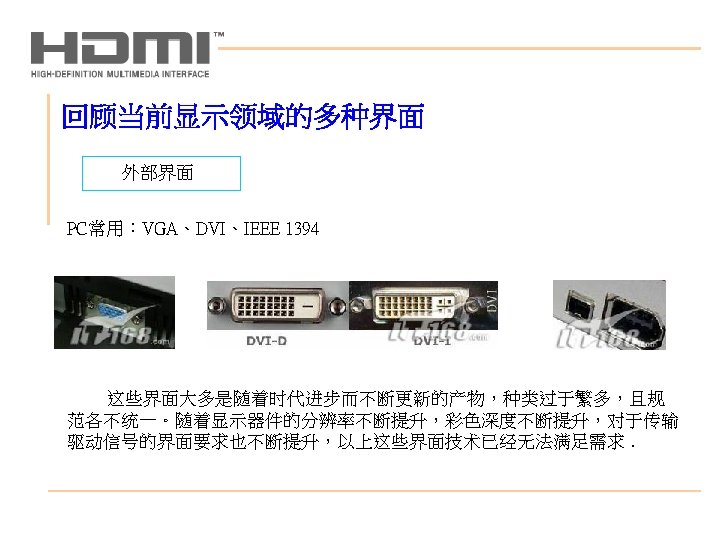

HMDI的诞生 HDMI，英文全称是High Definition Multimedia Interface，中文名称是 高清晰多媒体界面的缩写。2002年 4月，日立、松下、飞利浦、新力、 汤姆逊、东芝和Silicon Image七家公司联合组成HDMI组织 ，随后发 行HDMI标准: 2002/12/09 V 1. 0 2004/05/20 V 1. 1 2005/08/22 V 1. 2 2005/12/14 V 1. 2 a 2006/06/22 V 1. 3 2006/11/10 V 1. 3 a 2007/03/26 V 1. 3 b 2010/03/04 V 1. 4 a

HMDI Version History HDMI 1. 0 HDMI 1. 1 Added support Initial Specificatio for DVD n Audio HDMI 1. 2 Added support HDMI 1. 3 a 修改Cable and Sink的 Increases bandwidth HDMI C Type 接头 for SACD to 10. 2 Gbps Audio (340 Mhz) Permitted Offers support for 16 PC application bit color, increased Source termination refresh rates (ex. s to use recommendation only RGB 120 Hz), support for 1440 p/WQXGA color space resolutions Supported low移除上升时间(rise time)和 voltage 下降时间(fall time)的最高 (AC最低限制 coupled Supports xv. YCC sources) in PCs color space standard HDMI 1. 3 b HDMI 1. 4/1. 4 a HDMI Ethernet Channel – Adds high主要是修改HDMI 测试规格(HDMI Testing specification), speed networking to an HDMI link, 而 HDMI Specification依然是HDMI 1. 3 a。所以第一次出 allowing users to take full advantage of 现当时的主要的HDMI Specification 跟测试规格(HDMI their IP-enabled devices without a Testing specification)是不同版本的情况发生。 separate Ethernet cable. (more) HDMI Testing specification 1. 3 b 修改部分： Audio Return Channel – Allows an HDMI -connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable. (more) 1. 3 b 2007/03/26 Modifications to TE overview and policy description (4. 1), Addition of Agilent TDR to 3 D – Defines input/output protocols for Recommended TE (4. 2. 1. 11), Clarification of tentative major 3 D video formats, paving the way cable emulators (4. 2. 1. 17) for true 3 D gaming and 3 D home theater applications. (more) 4 K Support – Enables video resolutions far beyond 1080 p, supporting next. Jitter tolerance test changes (8 -7), Added cable tests for 改变CEC电容限制 generation displays that will rival the TMDS_CLOCK channel (5 -3), New VL triggering (7 -2) Digital Cinema systems used in many commercial movie theatres. (more) Adds mini connector Content Type – Real-time signaling of Editorial and clarifications on CEC Line Degradation (7 content types between display and Adds support for 15, 8 -14), Added testing of additional source-supported Dolby True. HD and 澄清RGB 影像量化范围 source devices, enabling a TV to Deep Color formats (7 -34, )Additional HDMI VSDB EDID DTS-HD Master optimize picture settings based on checks (8 -3) Audio standards content type (more) Additional TTC usage (5 -3, 8 -5, 8 -6, 8 -7), Incorporated Additional Color Spaces – Adds support 增加CEC指令关于时间及 Tek-recommended setup and calibration for TDR (8 for additional color models used in digital 声音控制 8), Clarification on Sink Deep Color Recommended Test photography and computer graphics. Method (8 -25) (more) Added long cable or cable emulator use for Repeater HDMI Micro Connector – A new, smaller test (9 -3), Added color-depths for each format in 同时Released认证的测试 connector for phones and other portable Source_Video_Formats (App. 3), Removed test for filler 规格文件 devices, supporting video resolutions up bytes (8 -3), Removed Tektronix part number of cable to 1080 p. (more) emulator EFF-HDMI-CE-01 Automotive Connection System – New cables and connectors for automotive video systems, designed to meet the unique demands of the motoring environment while delivering true HD quality. (more)

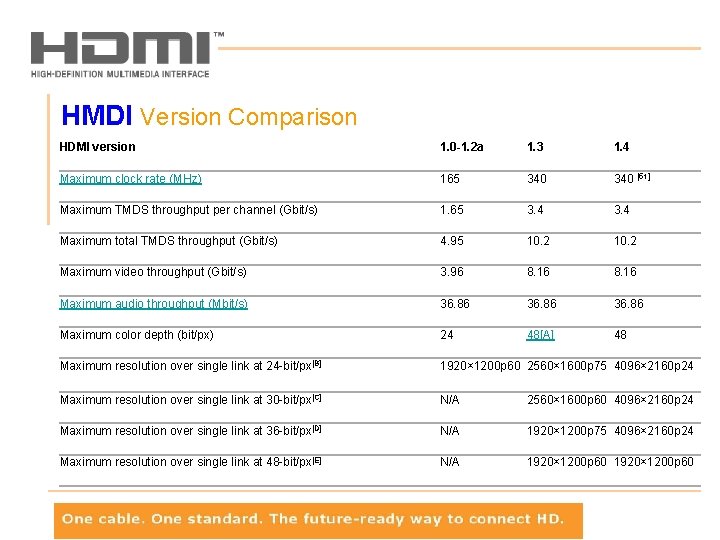

HMDI Version Comparison HDMI version 1. 0 -1. 2 a 1. 3 1. 4 Maximum clock rate (MHz) 165 340 [51] Maximum TMDS throughput per channel (Gbit/s) 1. 65 3. 4 Maximum total TMDS throughput (Gbit/s) 4. 95 10. 2 Maximum video throughput (Gbit/s) 3. 96 8. 16 Maximum audio throughput (Mbit/s) 36. 86 Maximum color depth (bit/px) 24 48[A] 48 Maximum resolution over single link at 24 -bit/px[B] 1920× 1200 p 60 2560× 1600 p 75 4096× 2160 p 24 Maximum resolution over single link at 30 -bit/px[C] N/A 2560× 1600 p 60 4096× 2160 p 24 Maximum resolution over single link at 36 -bit/px[D] N/A 1920× 1200 p 75 4096× 2160 p 24 Maximum resolution over single link at 48 -bit/px[E] N/A 1920× 1200 p 60

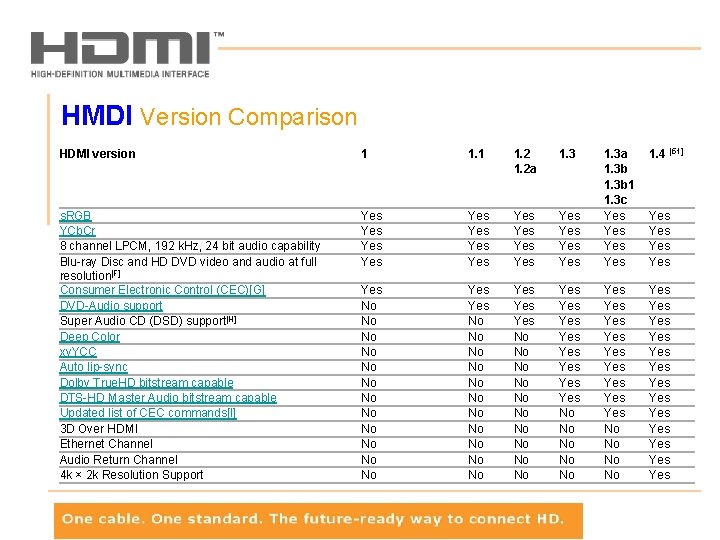

HMDI Version Comparison HDMI version 1 1. 2 a 1. 3 1. 4 [51] Yes Yes 1. 3 a 1. 3 b 1 1. 3 c Yes Yes s. RGB YCb. Cr 8 channel LPCM, 192 k. Hz, 24 bit audio capability Blu-ray Disc and HD DVD video and audio at full resolution[F] Consumer Electronic Control (CEC)[G] DVD-Audio support Super Audio CD (DSD) support[H] Deep Color xv. YCC Auto lip-sync Dolby True. HD bitstream capable DTS-HD Master Audio bitstream capable Updated list of CEC commands[I] 3 D Over HDMI Ethernet Channel Audio Return Channel 4 k × 2 k Resolution Support Yes Yes Yes Yes No No No No No No Yes Yes No No No Yes Yes No No No Yes Yes Yes Yes Yes Yes Yes

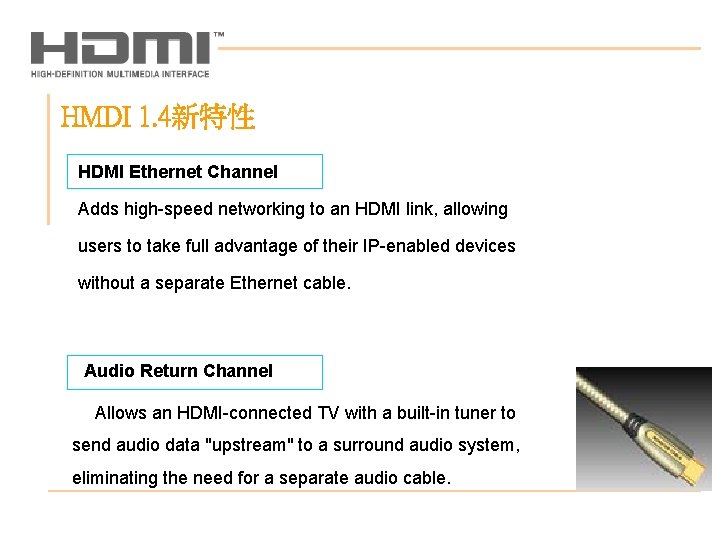

HMDI 1. 4新特性 HDMI Ethernet Channel Adds high-speed networking to an HDMI link, allowing users to take full advantage of their IP-enabled devices without a separate Ethernet cable. Audio Return Channel Allows an HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable.

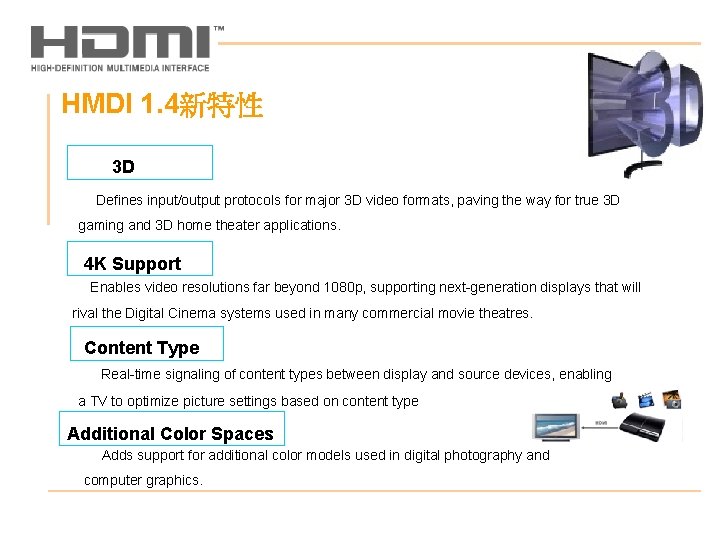

HMDI 1. 4新特性 3 D Defines input/output protocols for major 3 D video formats, paving the way for true 3 D gaming and 3 D home theater applications. 4 K Support Enables video resolutions far beyond 1080 p, supporting next-generation displays that will rival the Digital Cinema systems used in many commercial movie theatres. Content Type Real-time signaling of content types between display and source devices, enabling a TV to optimize picture settings based on content type Additional Color Spaces Adds support for additional color models used in digital photography and computer graphics.

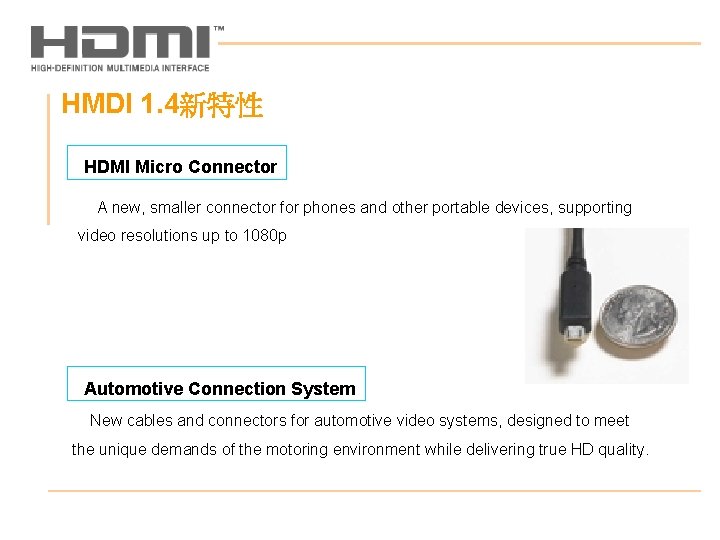

HMDI 1. 4新特性 HDMI Micro Connector A new, smaller connector for phones and other portable devices, supporting video resolutions up to 1080 p Automotive Connection System New cables and connectors for automotive video systems, designed to meet the unique demands of the motoring environment while delivering true HD quality.

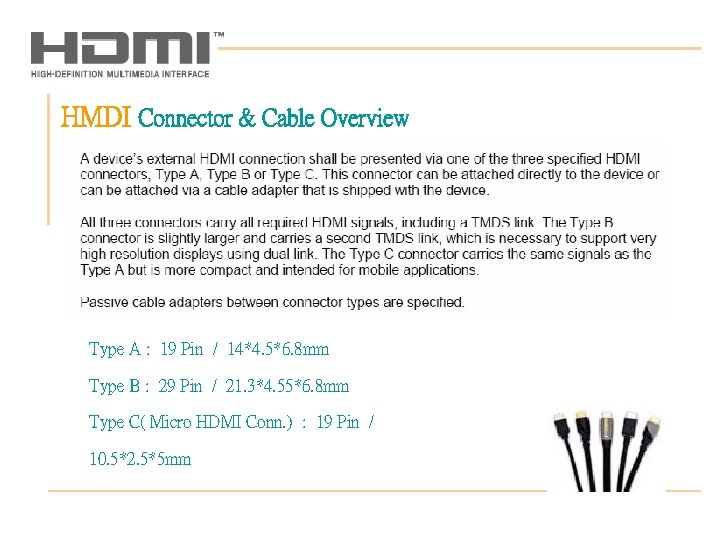

HMDI Connector & Cable Overview Type A : 19 Pin / 14*4. 5*6. 8 mm Type B : 29 Pin / 21. 3*4. 55*6. 8 mm Type C( Micro HDMI Conn. ) : 19 Pin / 10. 5*2. 5*5 mm

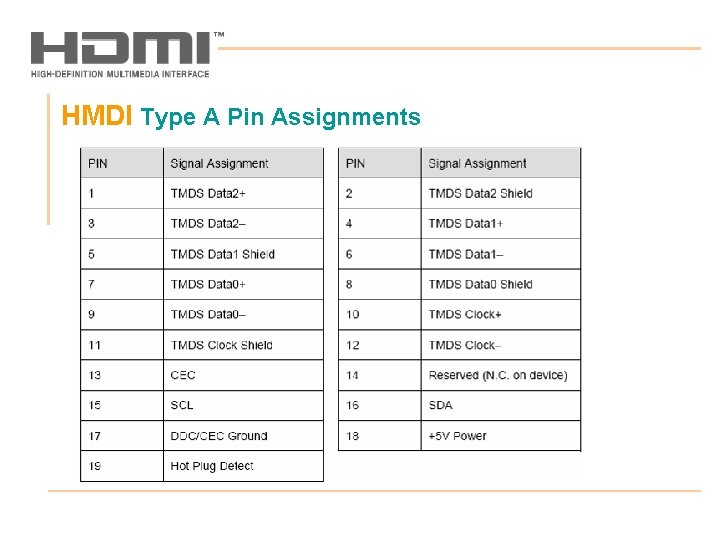

HMDI Type A Pin Assignments

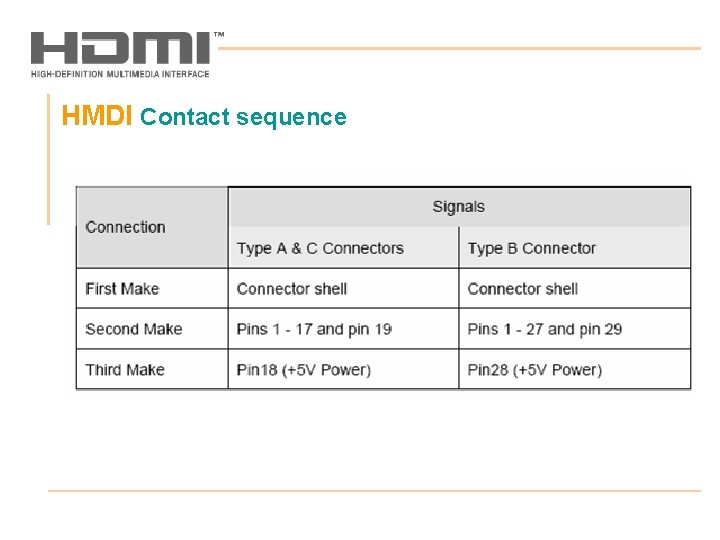

HMDI Contact sequence

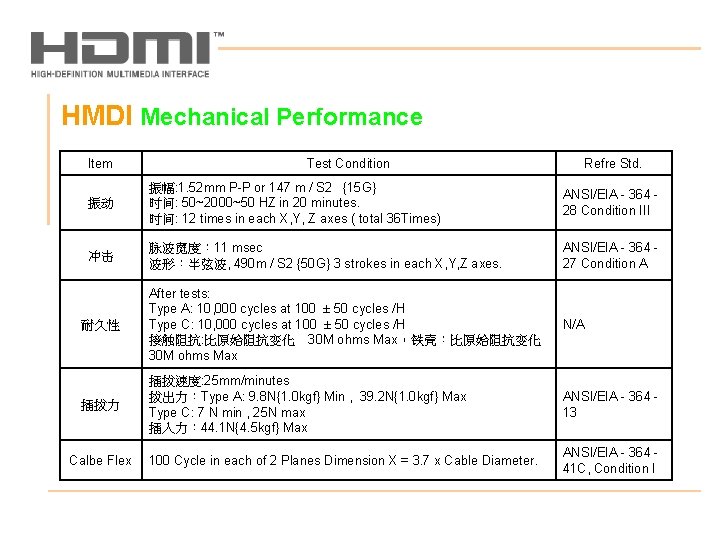

HMDI Mechanical Performance Item Test Condition Refre Std. 振动 振幅: 1. 52 mm P-P or 147 m / S 2 {15 G} 时间: 50~2000~50 HZ in 20 minutes. 时间: 12 times in each X, Y, Z axes ( total 36 Times) ANSI/EIA - 364 28 Condition III 冲击 脉波宽度︰ 11 msec 波形︰半弦波, 490 m / S 2 {50 G} 3 strokes in each X, Y, Z axes. ANSI/EIA - 364 27 Condition A 耐久性 After tests: Type A: 10, 000 cycles at 100 ± 50 cycles /H Type C: 10, 000 cycles at 100 ± 50 cycles /H 接触阻抗: 比原始阻抗变化 30 M ohms Max，铁壳︰比原始阻抗变化 30 M ohms Max N/A 插拔力 插拔速度: 25 mm/minutes 拔出力︰Type A: 9. 8 N{1. 0 kgf} Min , 39. 2 N{1. 0 kgf} Max Type C: 7 N min , 25 N max 插入力︰ 44. 1 N{4. 5 kgf} Max ANSI/EIA - 364 13 100 Cycle in each of 2 Planes Dimension X = 3. 7 x Cable Diameter. ANSI/EIA - 364 41 C, Condition I Calbe Flex

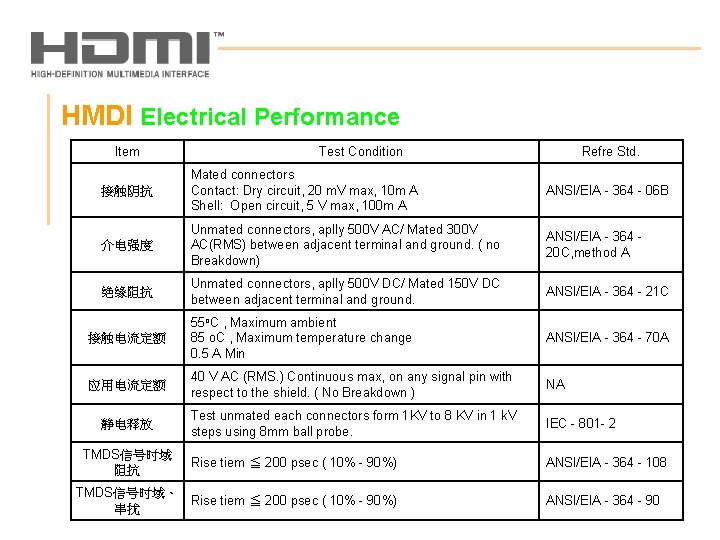

HMDI Electrical Performance Item Test Condition Refre Std. 接触阴抗 Mated connectors Contact: Dry circuit, 20 m. V max, 10 m A Shell: Open circuit, 5 V max, 100 m A ANSI/EIA - 364 - 06 B 介电强度 Unmated connectors, aplly 500 V AC/ Mated 300 V AC(RMS) between adjacent terminal and ground. ( no Breakdown) ANSI/EIA - 364 20 C, method A 绝缘阻抗 Unmated connectors, aplly 500 V DC/ Mated 150 V DC between adjacent terminal and ground. ANSI/EIA - 364 - 21 C 接触电流定额 55 o. C , Maximum ambient 85 o. C , Maximum temperature change 0. 5 A Min ANSI/EIA - 364 - 70 A 应用电流定额 40 V AC (RMS. ) Continuous max, on any signal pin with respect to the shield. ( No Breakdown ) NA 静电释放 Test unmated each connectors form 1 KV to 8 KV in 1 k. V steps using 8 mm ball probe. IEC - 801 - 2 Rise tiem ≦ 200 psec ( 10% - 90%) ANSI/EIA - 364 - 108 TMDS信号时域 阻抗 TMDS信号时域、 Rise tiem ≦ 200 psec ( 10% - 90%) 串扰 ANSI/EIA - 364 - 90

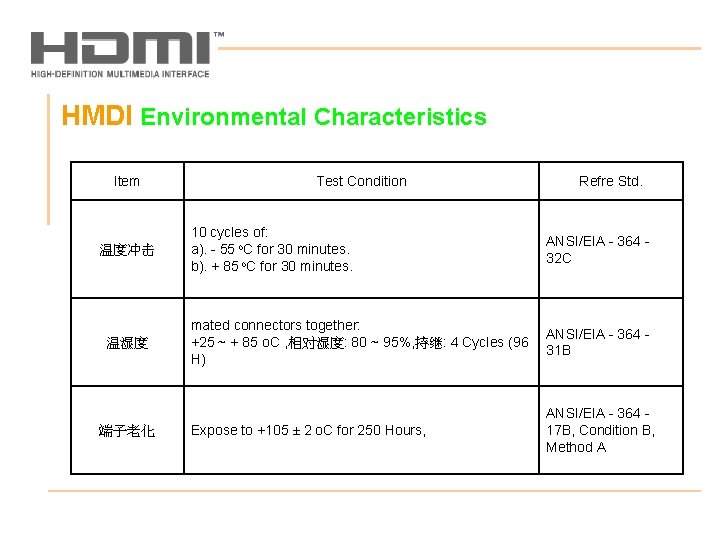

HMDI Environmental Characteristics Item 温度冲击 温湿度 端子老化 Test Condition Refre Std. 10 cycles of: a). - 55 o. C for 30 minutes. b). + 85 o. C for 30 minutes. ANSI/EIA - 364 32 C mated connectors together: +25 ~ + 85 o. C , 相对湿度: 80 ~ 95%, 持继: 4 Cycles (96 H) ANSI/EIA - 364 31 B Expose to +105 ± 2 o. C for 250 Hours, ANSI/EIA - 364 17 B, Condition B, Method A

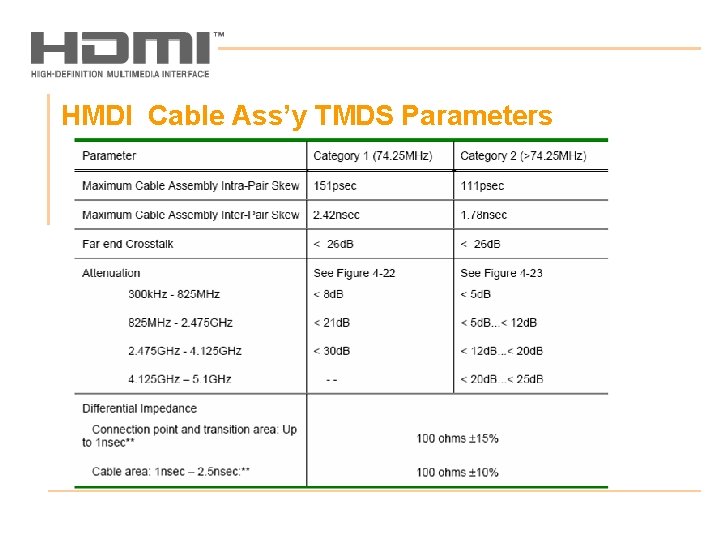

HMDI Cable Ass’y TMDS Parameters

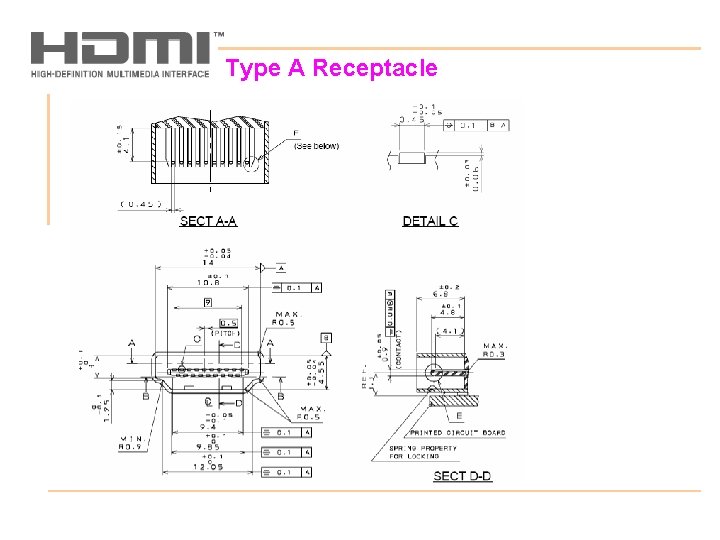

Type A Receptacle

Type A Receptacle The shell shall have springs for locking. Additional springs may be used for EMI reduction. The spring property for locking shall be activated by the locking hole of the plug shell.

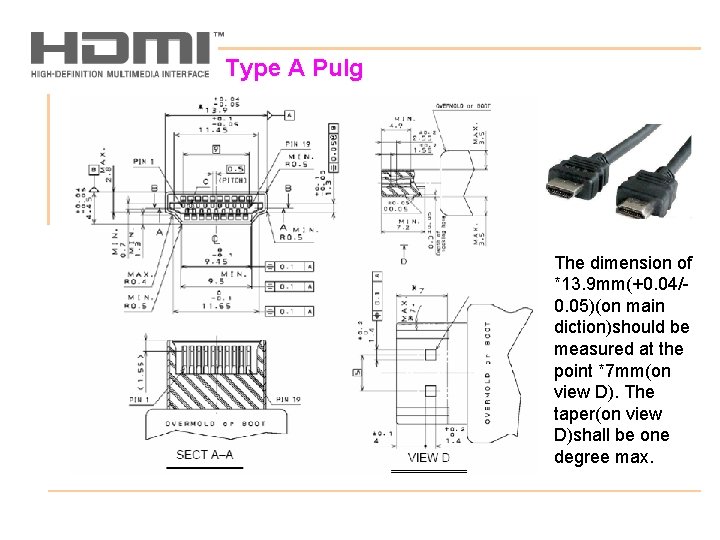

Type A Pulg The dimension of *13. 9 mm(+0. 04/0. 05)(on main diction)should be measured at the point *7 mm(on view D). The taper(on view D)shall be one degree max.

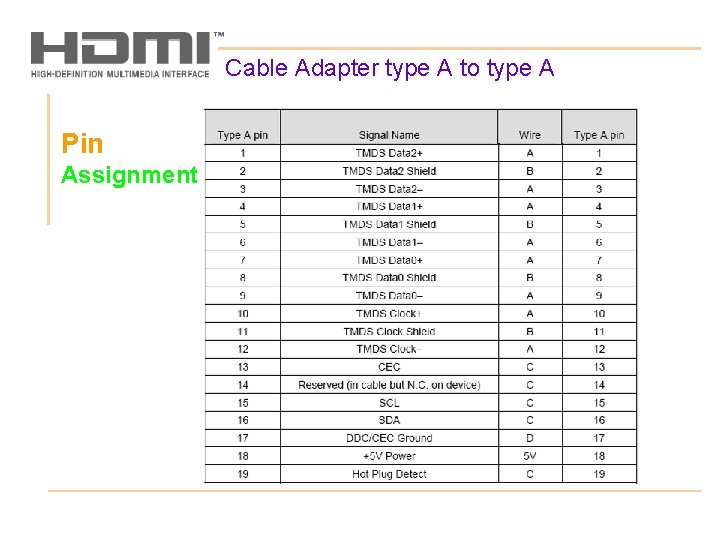

Cable Adapter type A to type A Pin Assignment

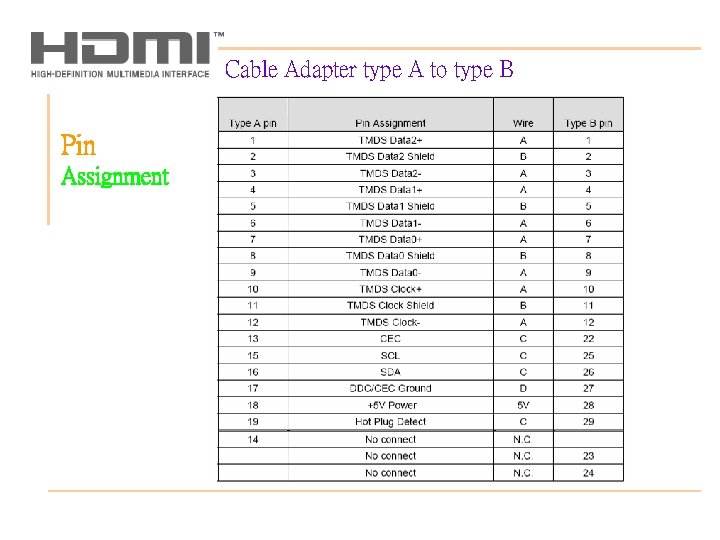

Cable Adapter type A to type B Pin Assignment

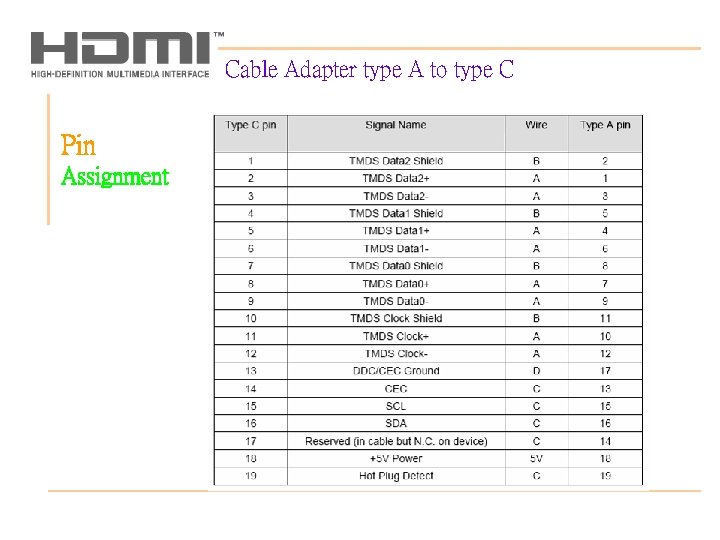

Cable Adapter type A to type C Pin Assignment

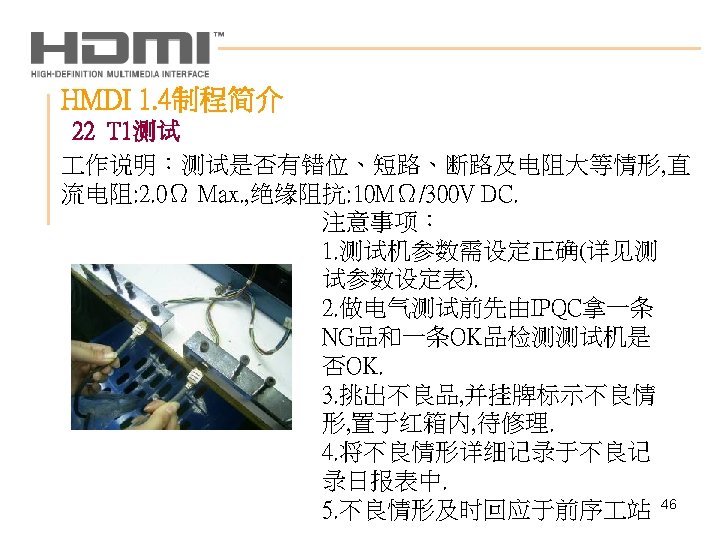

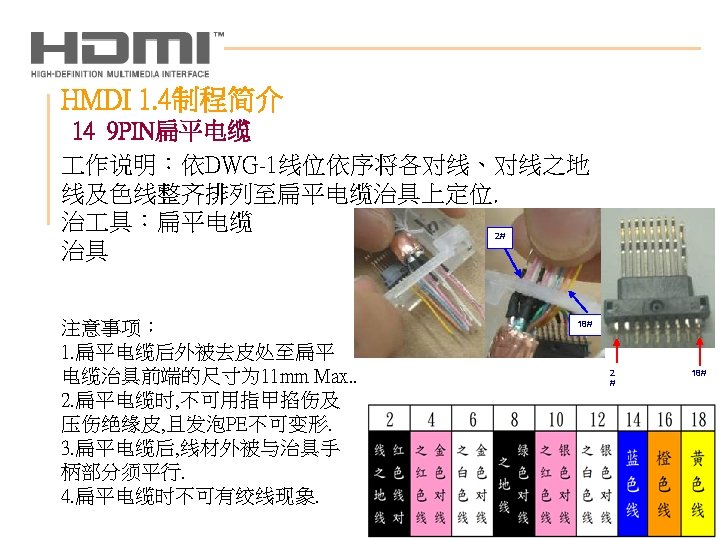

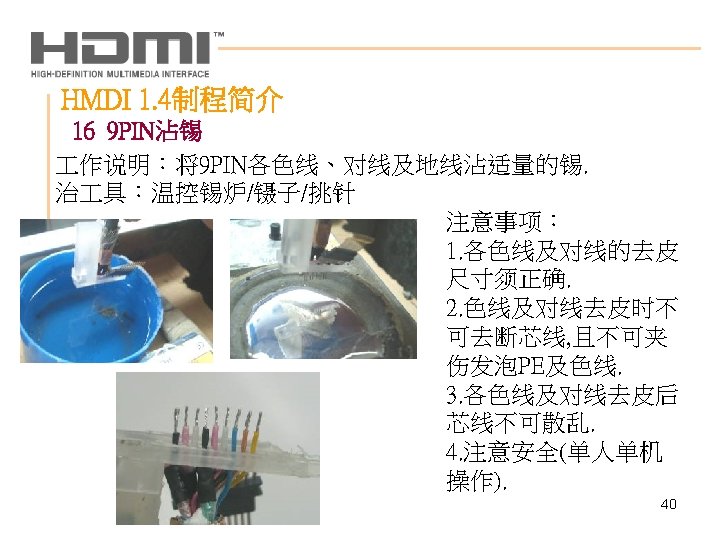

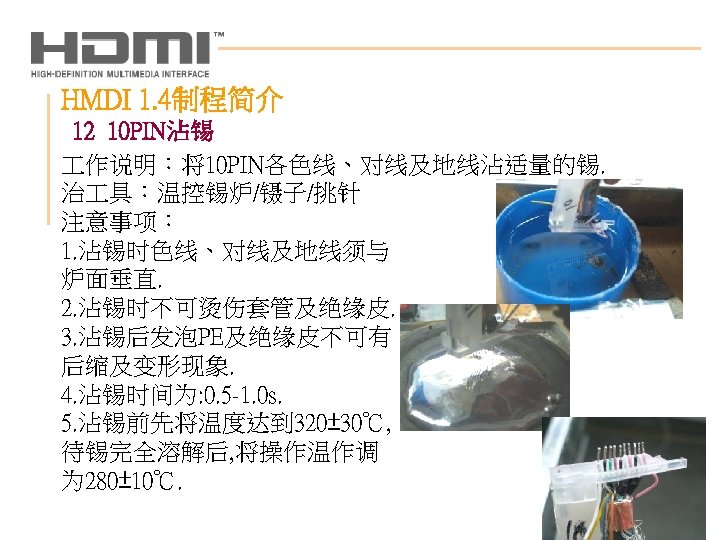

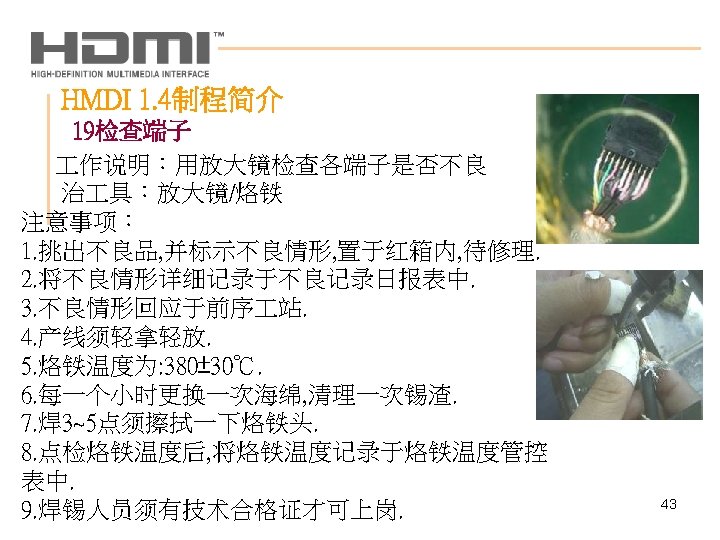

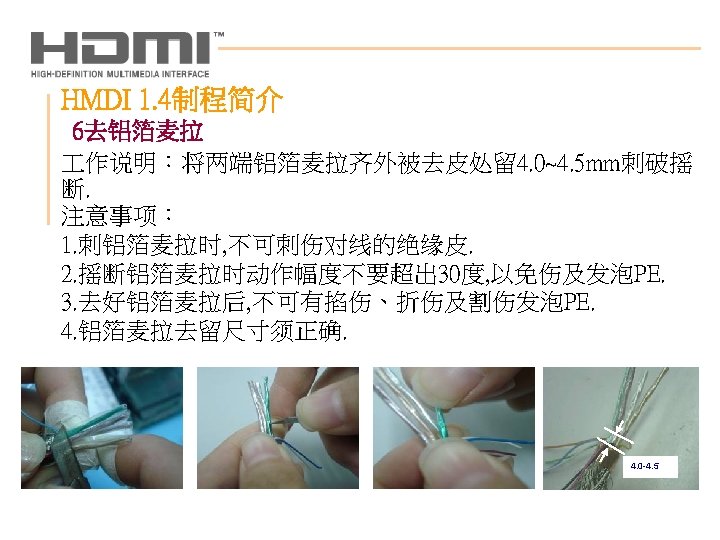

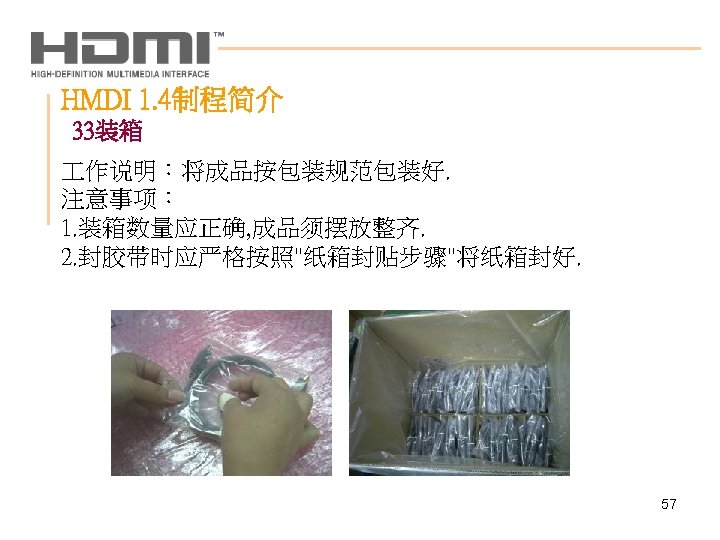

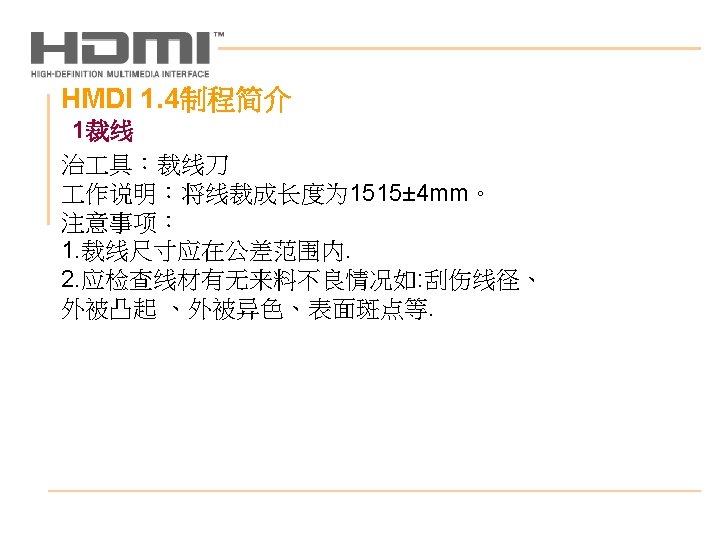

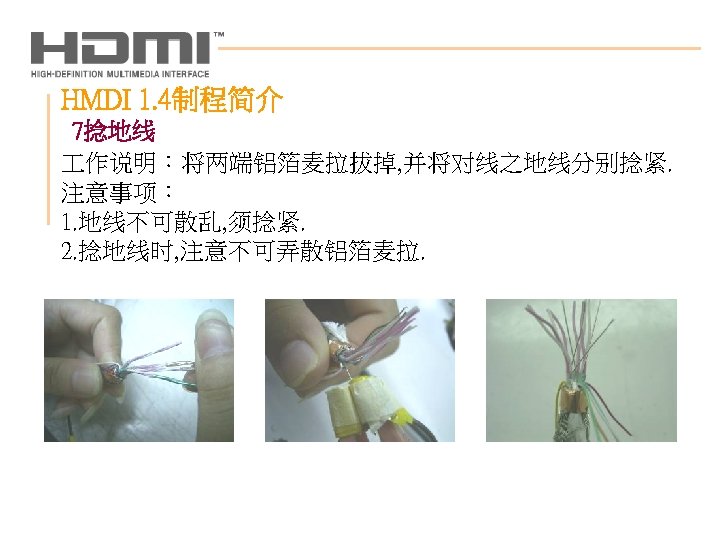

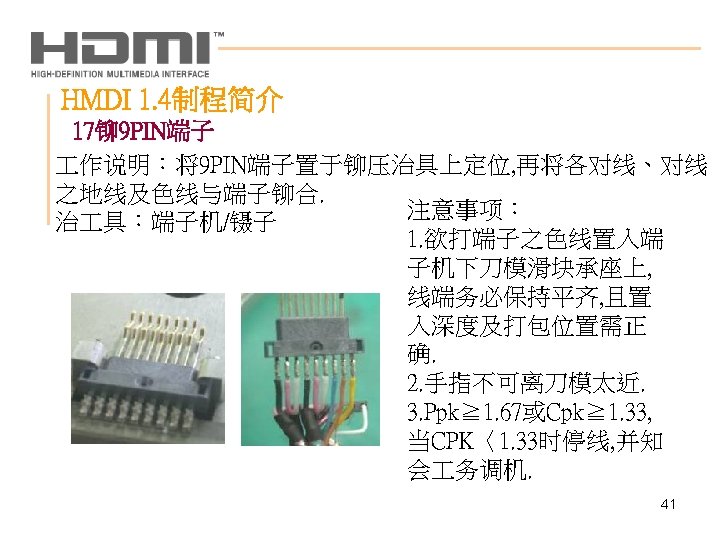

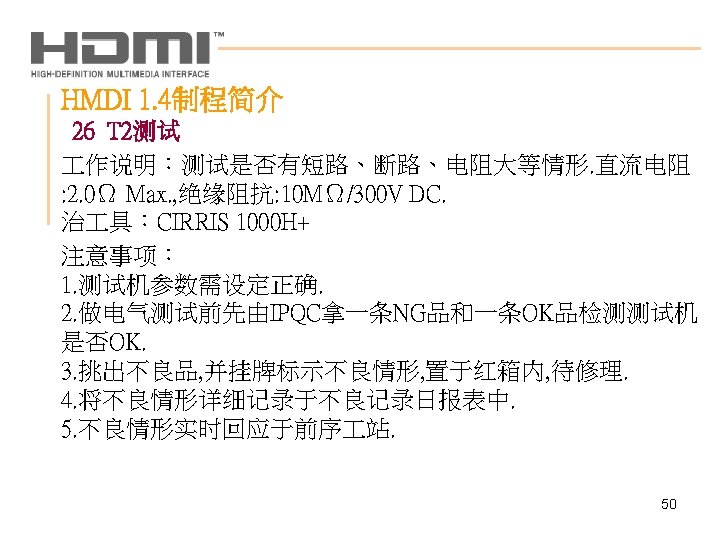

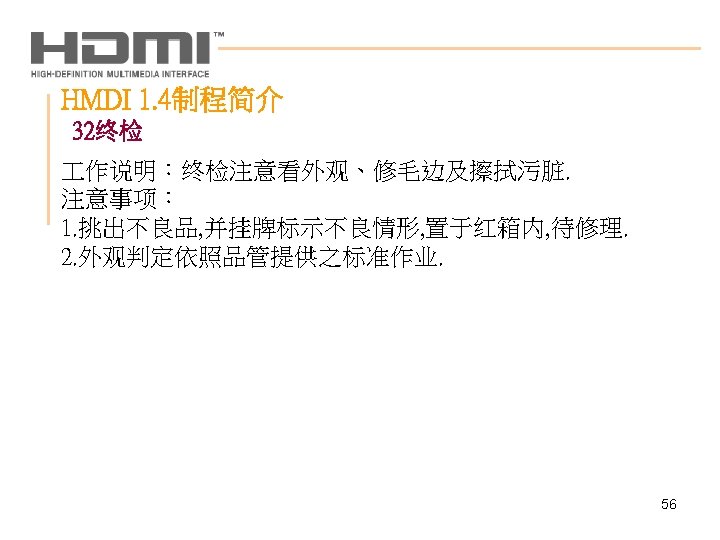

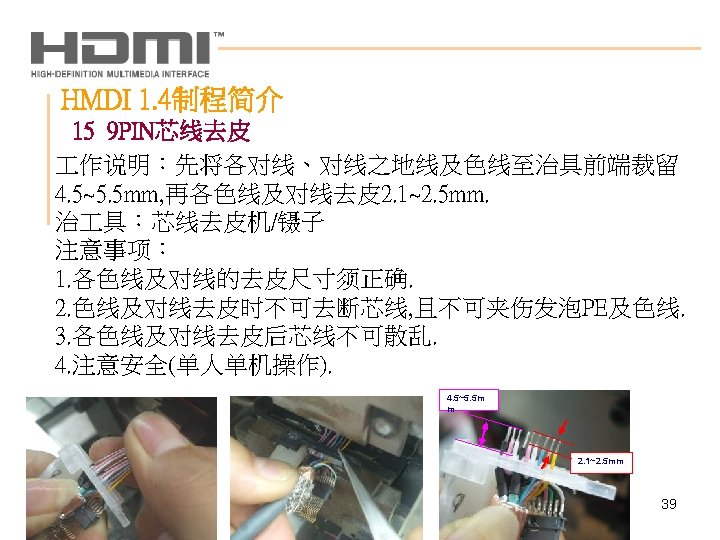

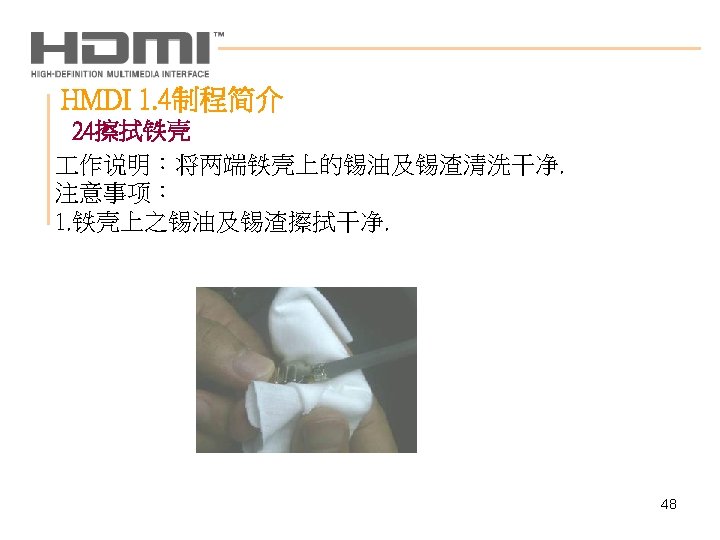

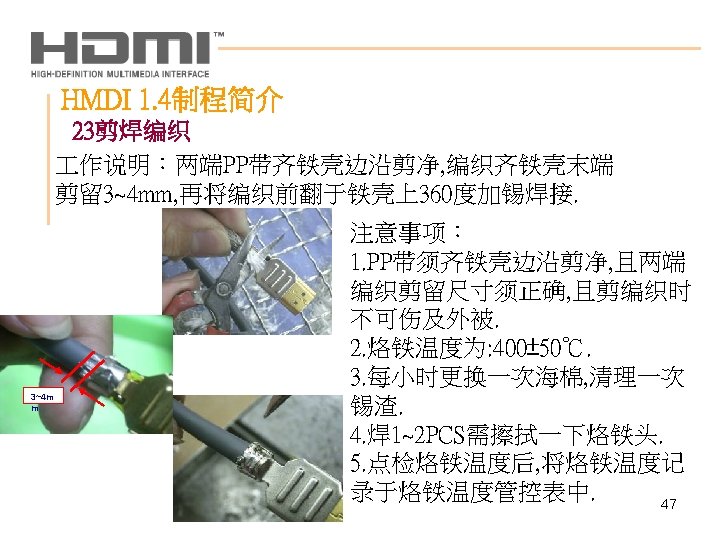

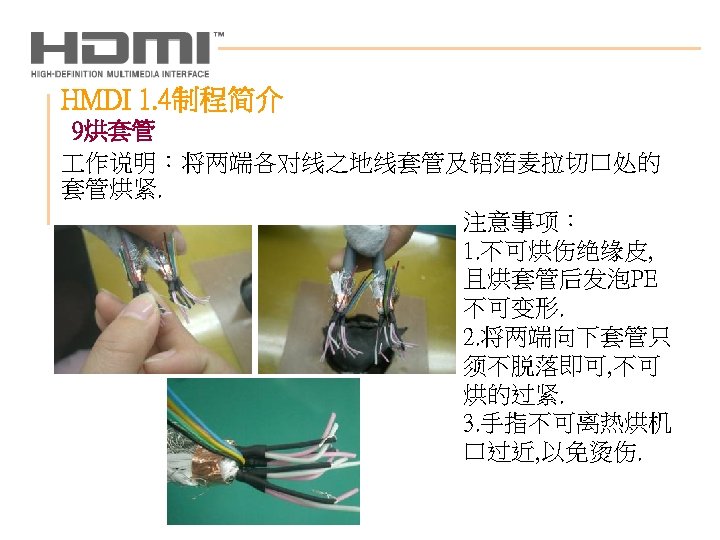

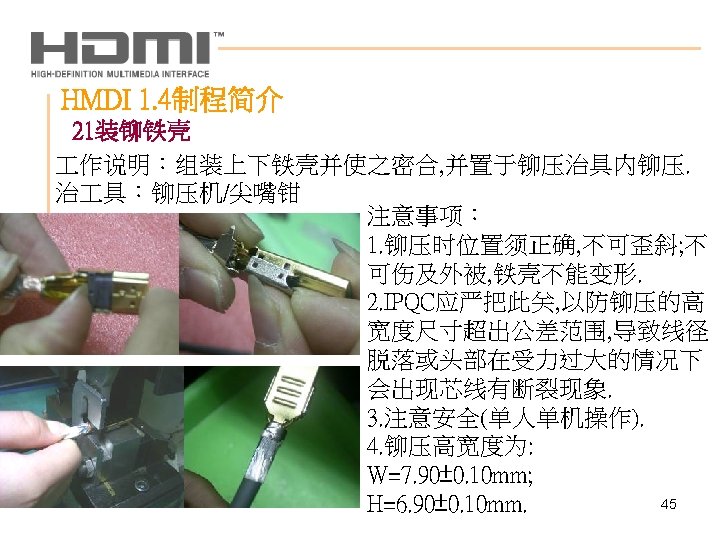

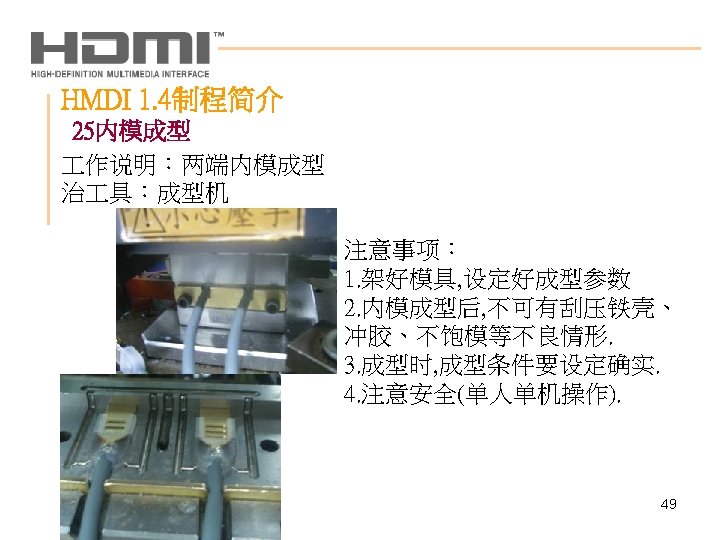

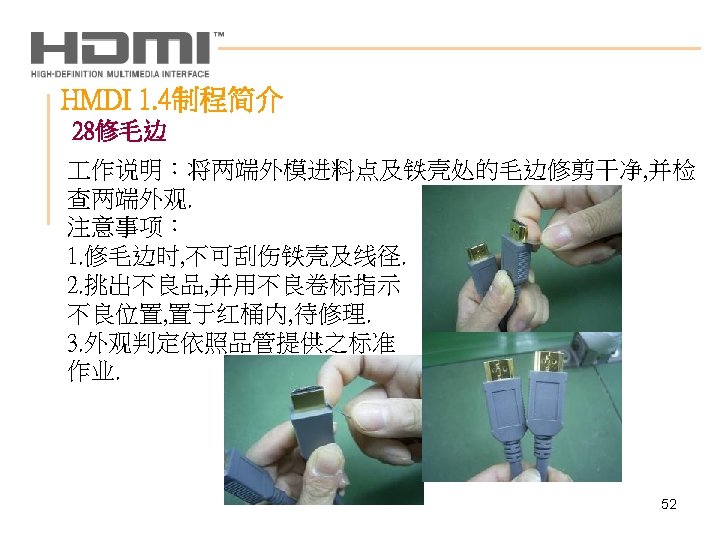

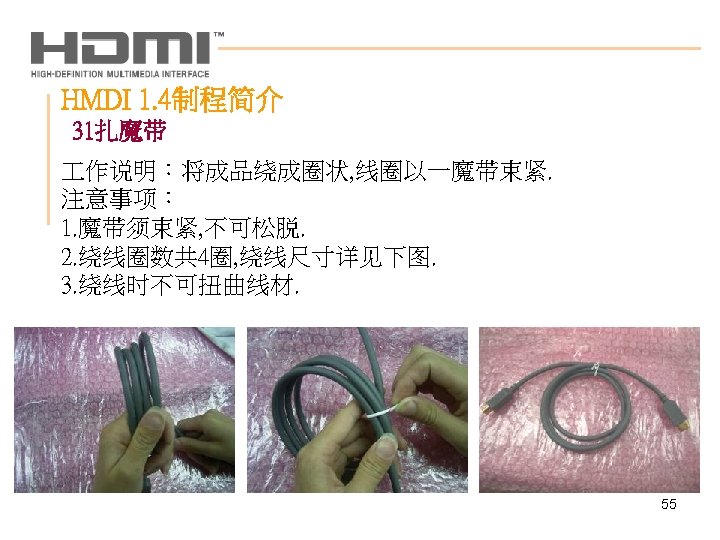

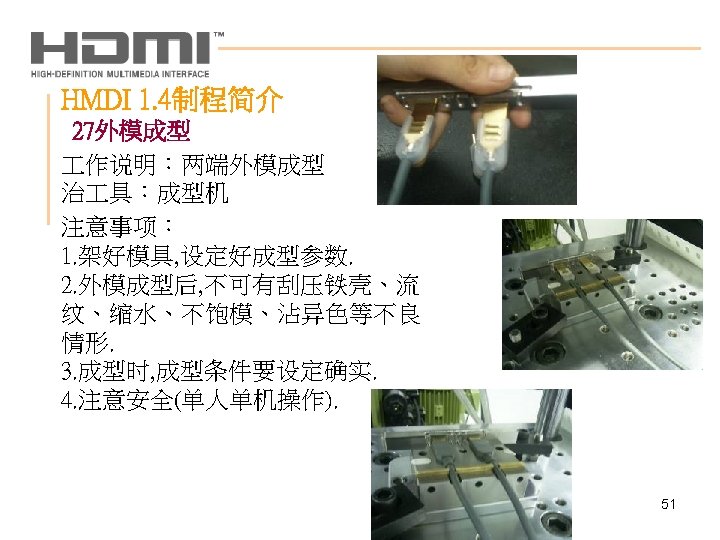

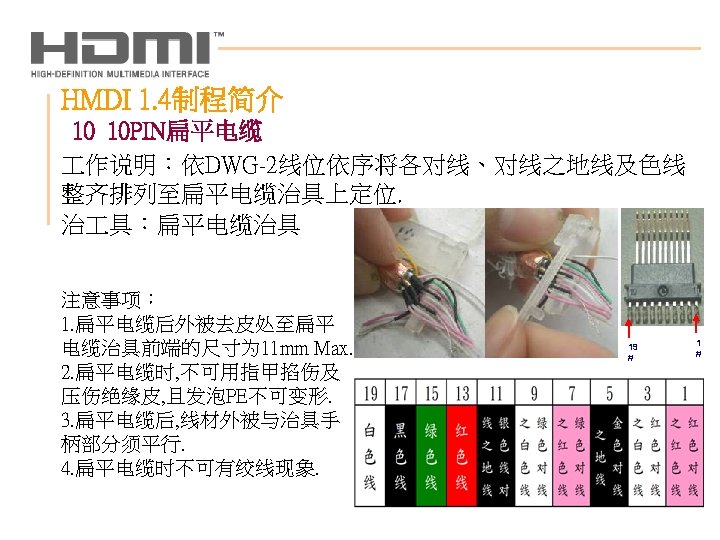

Thanks for your attention 58
