HD SIGNAL CONDITIONER SERIES LOW FREQUENCY TRANSMITTER MODEL

HD SIGNAL CONDITIONER SERIES LOW FREQUENCY TRANSMITTER MODEL HD-LFC MODEL & SUFFIX CODE SELECTION MODEL HD-LFC ■ Input signal ■ Output 1 signal ■ Output 2 signal INPUT & OUTPUT Availability as Output 1 N: None ■ INPUT Excitation : 12 V DC 2 V @30 m. A ; shortcircuit protection ■ Display A: Percent B: Input signal C: Output signal O: Others N: None • Open Collector Frequency range : 0 - 0. 01 Hz through 50 Hz Pulse width (time) requirement : 10 millisec. Min. at 20 Hz; duty ratio 20 - 80% at 20 Hz Sensing : approx. 12 V DC @3 m. A ON/OFF level : 800 for ON, 1. 2 k for OFF ■ Power X: 110 V AC Z: 24 V DC Y: 220 V AC O: Others • Voltage Pulse : square or sine waveforms ORDERING INFORMATION Frequency range : 0 - 0. 01 Hz through 50 Hz Pulse width (time) requirement : 10 millisec. Min. at 20 Hz; duty ratio 20 - 80% at 20 Hz Input amplitude : 2 - 50 V p-p Input impedance : 10 k minimum Specify code number and variables. • Code number : ex)HD-LFC-1 ANNY • Frequency range (e. g. 0 - 50 Hz) • Special input and output ranges : code: 0 A : -10 ~ 20 m. A V : 0 ~ 15 V • Mechanical Contact Frequency range : 0 - 0. 01 Hz through 5 Hz Pulse width time requirement : 10 millisec. Min. for ON and OFF Sensing : approx. 12 V DC @3 m. A ON/OFF level : 800 for ON, 1. 2 k for OFF GENERAL SPECIFICATIONS Construction : plug-in Connection : M 3. 5 screw terminals Housing material : flame-resistant resin (black) Isolation : input to output to power Overrange output : 0 - 120% at 1 - 5 V Front adjustments : zero and span : 5% 1

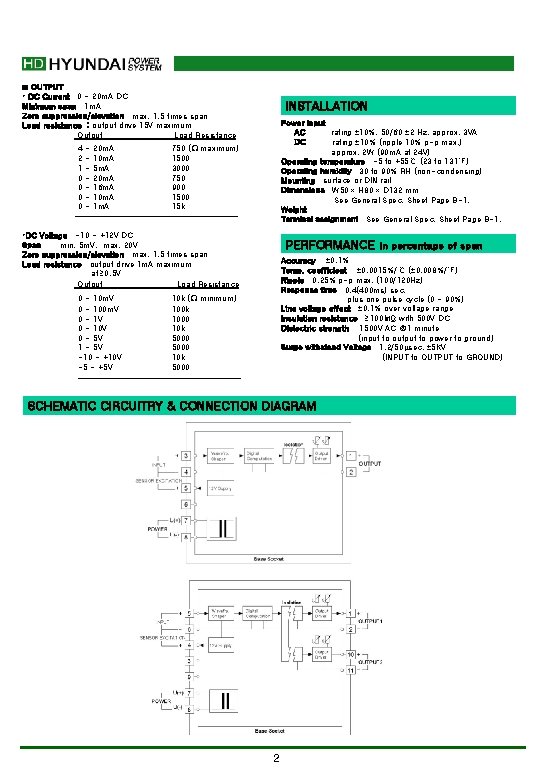

■ OUTPUT • DC Current : 0 - 20 m. A DC INSTALLATION Minimum span : 1 m. A Zero suppression/elevation : max. 1. 5 times span Load resistance : output drive 15 V maximum Output Load Resistance 4 2 1 0 0 - 20 m. A 10 m. A 5 m. A 20 m. A 16 m. A 10 m. A 1 m. A : : : : Power input AC : rating 10%, 50/60 2 Hz, approx. 3 VA DC : rating 10% (ripple 10% p-p max. ) approx. 2 W (90 m. A at 24 V) Operating temperature : -5 to +55℃ (23 to 131℉) Operating humidity : 30 to 90% RH (non-condensing) Mounting : surface or DIN rail Dimensions : W 50 H 80 D 132 mm See General Spec. Sheet Page B-1. Weight : Terminal assignment : See General Spec. Sheet Page B-1. 750 ( maximum) 1500 3000 750 900 15 k • DC Voltage : -10 - +12 V DC PERFORMANCE in percentage of span Span : min. 5 m. V, max. 20 V Zero suppression/elevation : max. 1. 5 times span Load resistance : output drive 1 m. A maximum; at 0. 5 V Output Load Resistance 0 - 10 m. V 0 - 100 m. V 0 - 10 V 0 - 5 V 1 - 5 V -10 - +10 V -5 - +5 V : : : : Accuracy : 0. 1% Temp. coefficient : 0. 0015%/℃ ( 0. 008%/℉) Ripple : 0. 25% p-p max. (100/120 Hz) Response time : 0. 4(400 ms) sec. plus one pulse cycle (0 - 90%) Line voltage effect : 0. 1% over voltage range Insulation resistance : 100 MΩ with 500 V DC Dielectric strength : 1500 V AC @1 minute (input to output to power to ground) Surge withstand Voltage : 1. 2/50 sec, 5 KV (INPUT to OUTPUT to GROUND) 10 k ( minimum) 100 k 1000 10 k 5000 SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM 2
