HD SIGNAL CONDITIONER SERIES FREQUENCY to SIGNAL TRANSMITTER

HD SIGNAL CONDITIONER SERIES FREQUENCY to SIGNAL TRANSMITTER MODEL HD-2 FDC MODEL & SUFFIX CODE SELECTION MODEL HD-2 FDC ■ Input signal 2 INPUT ■ Output 1 signal INPUT & OUTPUT ■ Output 2 signal ■ INPUT Availability as Output 1 N: None Frequency range : 0 - 50 Hz through 10 k. Hz or 10 – 253 Hz Pulse width (time) requirement : duty ratio 20 - 80% at 100 input · Dry contact : mechanical contact or open collector Sensing : approx. 7. 5 V DC @1 m. A ON/OFF level : 200 for ON, 100 k for OFF ■ Power X: 110 V AC Z: 24 V DC Y: 220 V AC O: Others · Voltage Pulse : square or sine waveforms Input amplitude : 2 - 50 V p-p Input impedance : 100 k minimum ■ OUTPUT • DC Current : 0 - 20 m. A DC Minimum span : 1 m. A Zero suppression/elevation : max. 1. 5 times span Load resistance : output drive 15 V maximum Output Load Resistance ORDERING INFORMATION Specify code number and variables. • Code number : HD-FDC-1 AANY • Frequency range (e. g. 0 - 10 k. Hz) • Special input and output ranges : code: 0 A : -10 ~ 20 m. A V : 0 ~ 15 V 4 2 1 0 0 GENERAL SPECIFICATIONS Construction : plug-in Connection : M 3. 5 screw terminals Housing material : flame-resistant resin (black) Isolation : input to output to power Input pulse sensing : capacitor coupled; detecting pulse rise Overrange output : 0 - +120% at 1 - 5 V Front adjustments : zero and span ; 5% Low-end cutout : 2 - 5% 1 - 20 m. A 10 m. A 5 m. A 20 m. A 16 m. A 10 m. A 1 m. A : : : : 750 ( maximum) 1500 3000 750 900 15 k

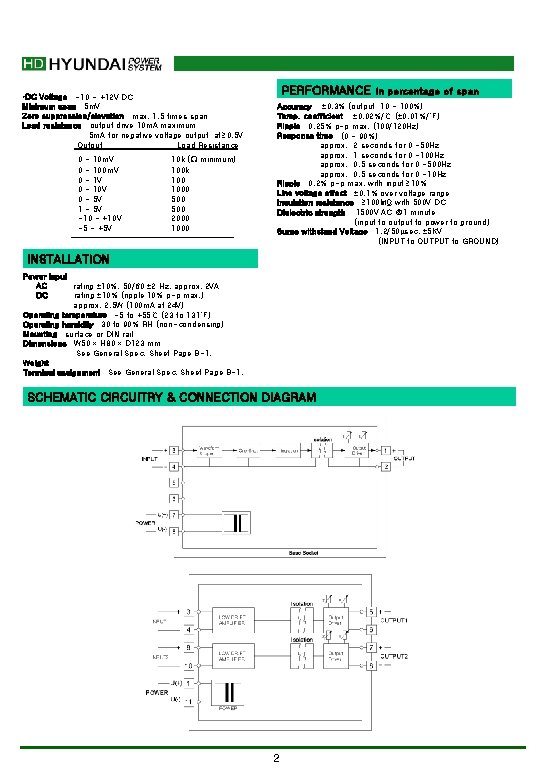

PERFORMANCE in percentage of span • DC Voltage : -10 - +12 V DC Minimum span : 5 m. V Zero suppression/elevation : max. 1. 5 times span Load resistance : output drive 10 m. A maximum; 5 m. A for negative voltage output; at 0. 5 V Output Load Resistance 0 - 10 m. V 0 - 100 m. V 0 - 10 V 0 - 5 V 1 - 5 V -10 - +10 V -5 - +5 V : : : : 10 k ( minimum) 100 k 1000 500 2000 1000 Accuracy : 0. 3% (output 10 - 100%) Temp. coefficient : 0. 02%/℃ ( 0. 01%/℉) Ripple : 0. 25% p-p max. (100/120 Hz) Response time : (0 - 90%) approx. 2 seconds for 0 -50 Hz approx. 1 seconds for 0 -100 Hz approx. 0. 5 seconds for 0 -500 Hz approx. 0. 5 seconds for 0 -10 Hz Ripple : 0. 2% p-p max. with input 10% Line voltage effect : 0. 1% over voltage range Insulation resistance : 100 MΩ with 500 V DC Dielectric strength : 1500 V AC @1 minute (input to output to power to ground) Surge withstand Voltage : 1. 2/50 sec, 5 KV (INPUT to OUTPUT to GROUND) INSTALLATION Power input AC : rating 10%, 50/60 2 Hz, approx. 2 VA DC : rating 10% (ripple 10% p-p max. ) approx. 2. 5 W (100 m. A at 24 V) Operating temperature : -5 to +55℃ (23 to 131℉) Operating humidity : 30 to 90% RH (non-condensing) Mounting : surface or DIN rail Dimensions : W 50 H 80 D 123 mm See General Spec. Sheet Page B-1. Weight : Terminal assignment : See General Spec. Sheet Page B-1. SCHEMATIC CIRCUITRY & CONNECTION DIAGRAM 2
