HD POWER TRANSDUCER SERIES MODEL DC TRANSDUCER HDD

HD POWER TRANSDUCER SERIES MODEL DC TRANSDUCER HDD - MODEL & SUFFIX CODE SELECTION MODEL HDD ■ INPUT ■ OUTPUT The DC Isolated Converter Model HDD is an isolated signal transmitter featuring fast response time 0. 4 seconds * isolated mode : ohotocoupier ORDERING INFORMATION INSTALLATION Specify code number and variables * Code number : HDD-input/output/mode ex : HDD-1 A Output 2 : Availability as output 1 : None * special output range : A = -10~20 m. A V = -10~12 V Operating temperature : -5 to +55 C Operating humidity : 20 -80%RH(non-condensing) Mounting : Wall or DIN rail Power supply : AC 110 V or 220 V (-15/+10%) 50/60 Hz, 2 VA Size : W 75 H 75 D 113 mm Weight : INPUT & OUTPUT GENERAL SPECIFICATIONS • DC Current : shunt resistor attached to input Construction : DIN housings Terminal access on front face Housing materiel : plastic(black) Wiring : 3. 0 M screw terminals Isolation : AC input/DC output/power Adjustments : zero and span 5% Over-range output = 0 -120% terminals (0. 5 W) Input resistance : For resistance values other than listed below, specify when ordering. Input Resistance 4 - 20 m. A : 250 ( ) (100 for orders) 2 - 10 m. A : 500 1 - 5 m. A : 1000 0 - 20 m. A : 50 0 - 16 m. A : 62. 5 0 - 10 m. A : 100 0 - 1 m. A : 1000 10 - 50 m. A : 100 0 - 10 A : 1000 0 - 100 A : 1000 -1 - +1 m. A : 1000 -10 - +10 m. A : 100 PERFORMANCE Accuracy : 0. 1% or 0. 25% Temp. coefficient : 0. 03%/C Insulation resistance : 100 Mohm or more with 500 V DC Response time : 0. 4 sec(400 ms) Line Voltage effect : 0. 1% with 10% change Ripple : 0. 25% p-p max. (100/120 Hz) Dielectric strength : 2000 V AC 1 minute input/output/power Surge withstand Voltage : 1. 2/50 sec, 5 KV (INPUT to OUTPUT to GROUND) 1

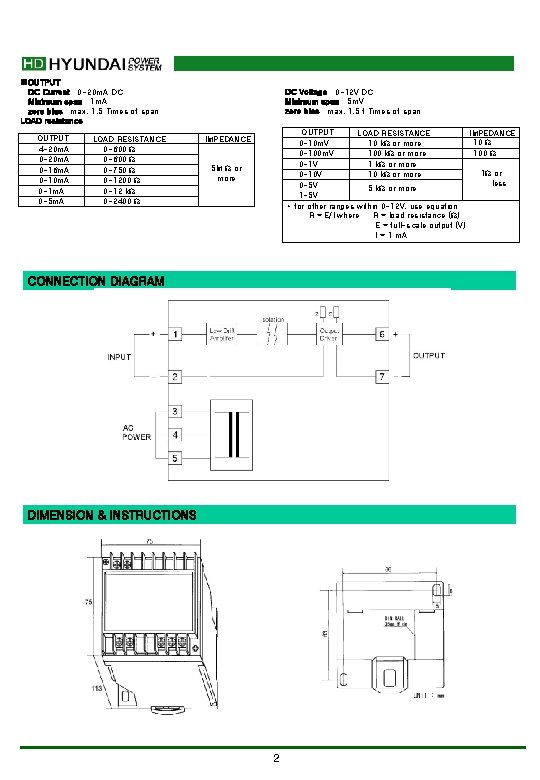

■OUTPUT DC Voltage : 0 -12 V DC Minimum span : 5 m. V zero bias : max. 1. 5 t Times of span DC Current : 0 -20 m. A DC Minimum span : 1 m. A zero bias : max. 1. 5 Times of span LOAD resistance OUTPUT 4 -20 m. A 0 -16 m. A 0 -10 m. A 0 -1 m. A 0 -5 m. A LOAD RESISTANCE 0 -600 Ω 0 -750 Ω 0 -1200 Ω 0 -12 kΩ 0 -2400 Ω OUTPUT LOAD RESISTANCE IMPEDANCE 10 Ω 10 kΩ or more 0 -10 m. V 100 Ω 100 kΩ or more 0 -100 m. V 1 kΩ or more 0 -1 V 1Ω or 10 kΩ or more 0 -10 V less 0 -5 V 5 kΩ or more 1 -5 V * for other ranges within 0 -12 V, use equation R = E/I where : R = load resistance (Ω) E = full-scale output (V) I = 1 m. A IMPEDANCE 5 M Ω or more CONNECTION DIAGRAM DIMENSION & INSTRUCTIONS 2
