HD Media Recorder VGAAV Live Broadcasting and Recording

HD Media Recorder VGA/AV Live Broadcasting and Recording Solution

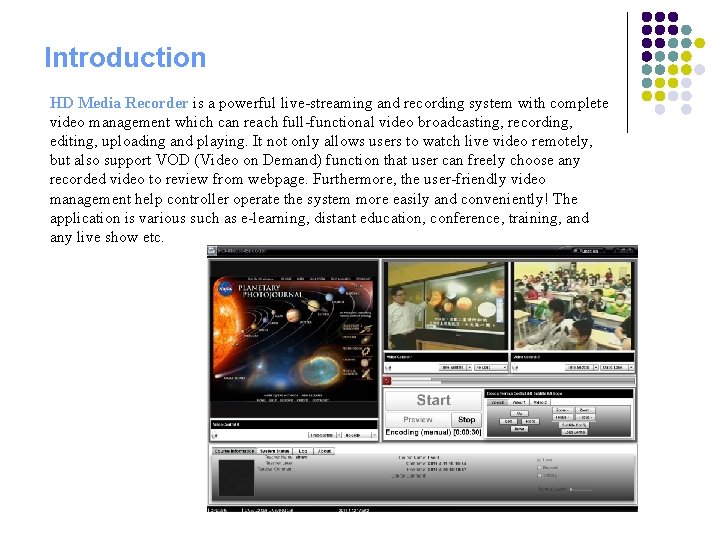

Introduction HD Media Recorder is a powerful live-streaming and recording system with complete video management which can reach full-functional video broadcasting, recording, editing, uploading and playing. It not only allows users to watch live video remotely, but also support VOD (Video on Demand) function that user can freely choose any recorded video to review from webpage. Furthermore, the user-friendly video management help controller operate the system more easily and conveniently! The application is various such as e-learning, distant education, conference, training, and any live show etc.

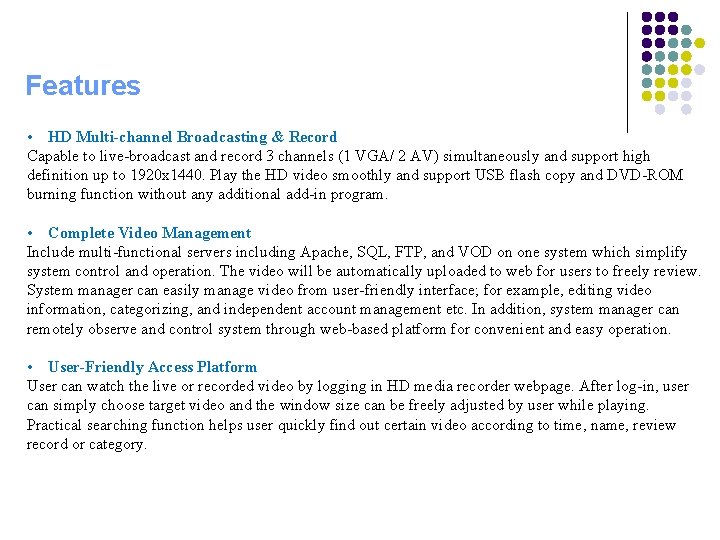

Features • HD Multi-channel Broadcasting & Record Capable to live-broadcast and record 3 channels (1 VGA/ 2 AV) simultaneously and support high definition up to 1920 x 1440. Play the HD video smoothly and support USB flash copy and DVD-ROM burning function without any additional add-in program. • Complete Video Management Include multi-functional servers including Apache, SQL, FTP, and VOD on one system which simplify system control and operation. The video will be automatically uploaded to web for users to freely review. System manager can easily manage video from user-friendly interface; for example, editing video information, categorizing, and independent account management etc. In addition, system manager can remotely observe and control system through web-based platform for convenient and easy operation. • User-Friendly Access Platform User can watch the live or recorded video by logging in HD media recorder webpage. After log-in, user can simply choose target video and the window size can be freely adjusted by user while playing. Practical searching function helps user quickly find out certain video according to time, name, review record or category.

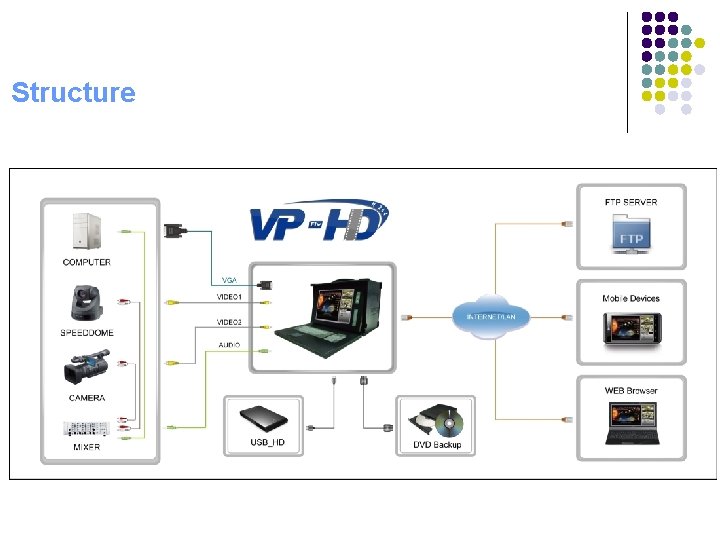

Structure

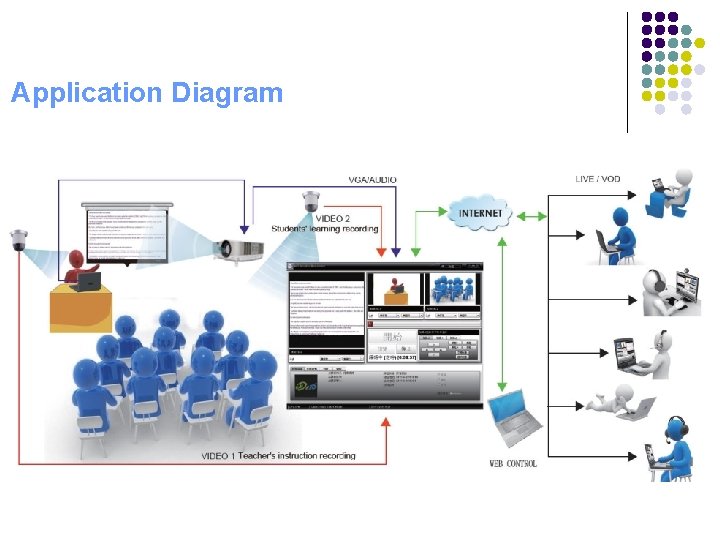

Application Diagram

Application

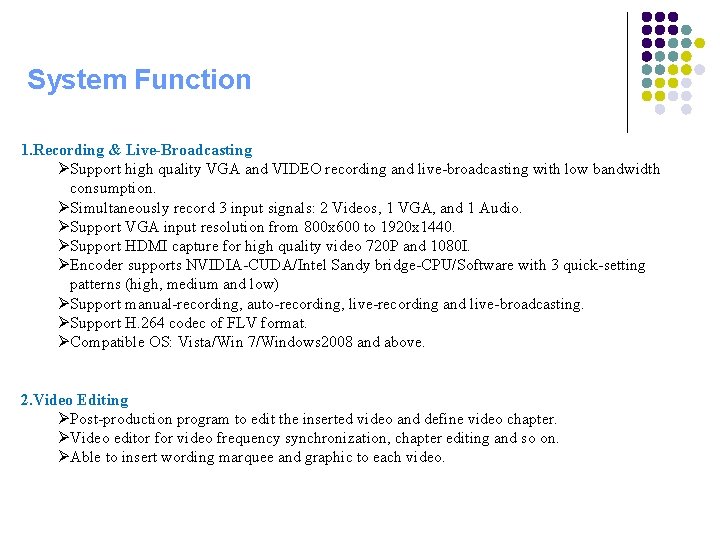

System Function 1. Recording & Live-Broadcasting ØSupport high quality VGA and VIDEO recording and live-broadcasting with low bandwidth consumption. ØSimultaneously record 3 input signals: 2 Videos, 1 VGA, and 1 Audio. ØSupport VGA input resolution from 800 x 600 to 1920 x 1440. ØSupport HDMI capture for high quality video 720 P and 1080 I. ØEncoder supports NVIDIA-CUDA/Intel Sandy bridge-CPU/Software with 3 quick-setting patterns (high, medium and low) ØSupport manual-recording, auto-recording, live-recording and live-broadcasting. ØSupport H. 264 codec of FLV format. ØCompatible OS: Vista/Win 7/Windows 2008 and above. 2. Video Editing ØPost-production program to edit the inserted video and define video chapter. ØVideo editor for video frequency synchronization, chapter editing and so on. ØAble to insert wording marquee and graphic to each video.

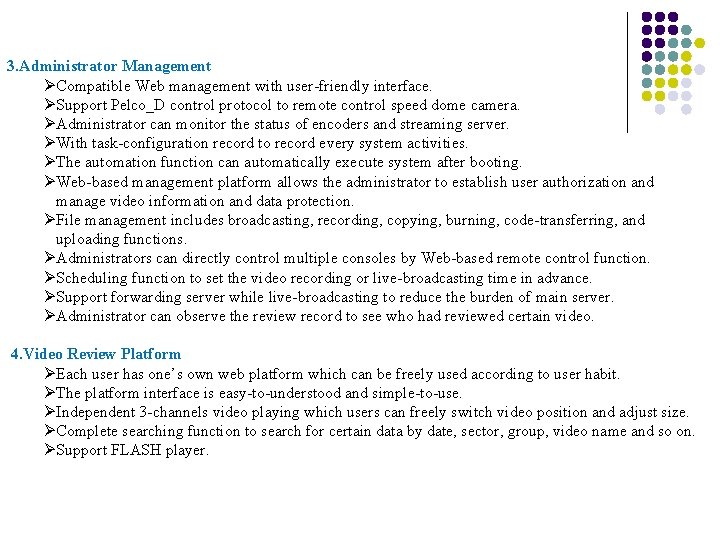

3. Administrator Management ØCompatible Web management with user-friendly interface. ØSupport Pelco_D control protocol to remote control speed dome camera. ØAdministrator can monitor the status of encoders and streaming server. ØWith task-configuration record to record every system activities. ØThe automation function can automatically execute system after booting. ØWeb-based management platform allows the administrator to establish user authorization and manage video information and data protection. ØFile management includes broadcasting, recording, copying, burning, code-transferring, and uploading functions. ØAdministrators can directly control multiple consoles by Web-based remote control function. ØScheduling function to set the video recording or live-broadcasting time in advance. ØSupport forwarding server while live-broadcasting to reduce the burden of main server. ØAdministrator can observe the review record to see who had reviewed certain video. 4. Video Review Platform ØEach user has one’s own web platform which can be freely used according to user habit. ØThe platform interface is easy-to-understood and simple-to-use. ØIndependent 3 -channels video playing which users can freely switch video position and adjust size. ØComplete searching function to search for certain data by date, sector, group, video name and so on. ØSupport FLASH player.

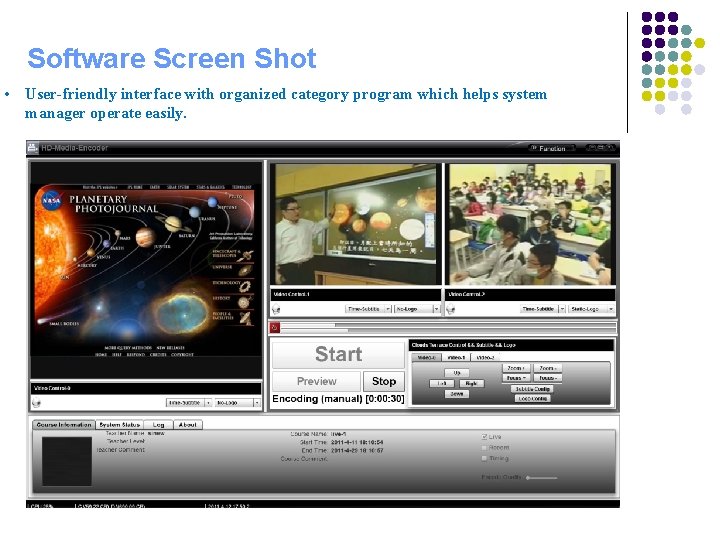

Software Screen Shot • User-friendly interface with organized category program which helps system manager operate easily.

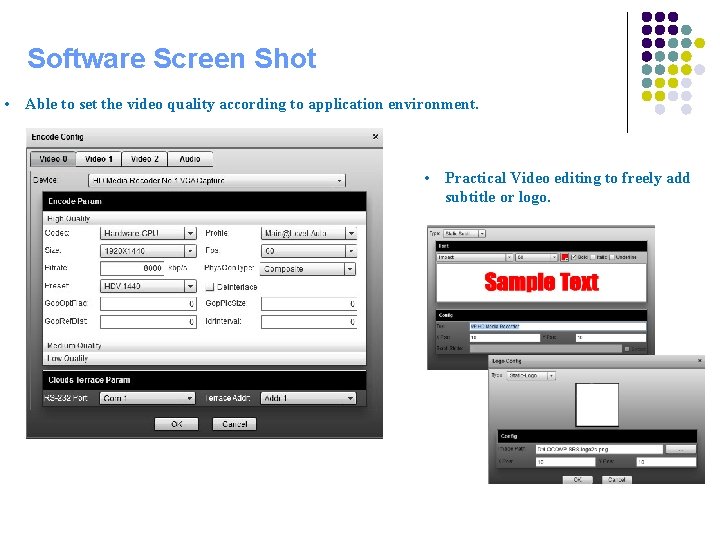

Software Screen Shot • Able to set the video quality according to application environment. • Practical Video editing to freely add subtitle or logo.

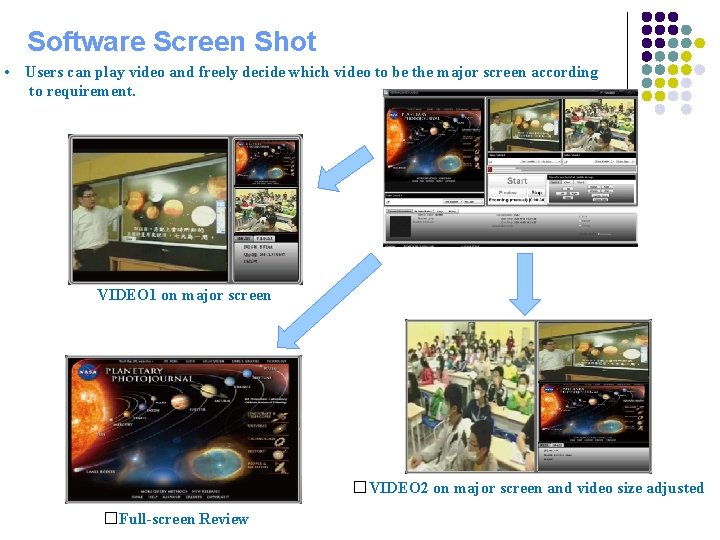

Software Screen Shot • Users can play video and freely decide which video to be the major screen according to requirement. VIDEO 1 on major screen �VIDEO 2 on major screen and video size adjusted �Full-screen Review

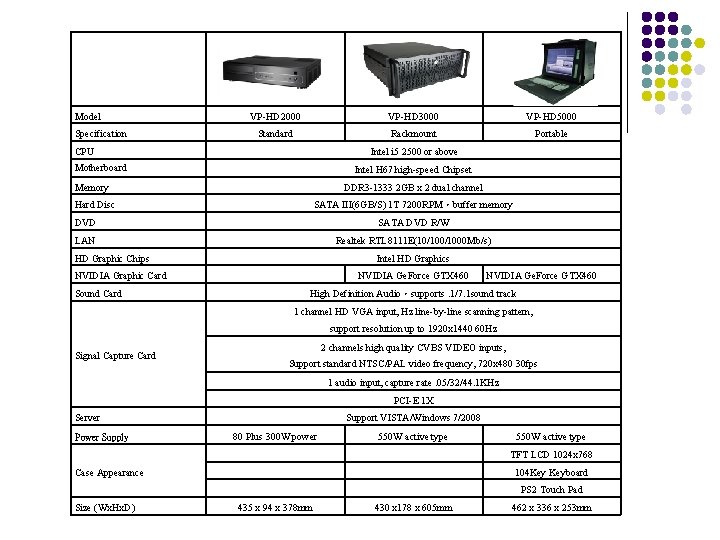

Model Specification VP-HD 2000 VP-HD 3000 VP-HD 5000 Standard Rackmount Portable CPU Intel i 5 2500 or above Motherboard Intel H 67 high-speed Chipset Memory Hard Disc DDR 3 -1333 2 GB x 2 dual channel SATA III(6 GB/S) 1 T 7200 RPM，buffer memory DVD SATA DVD R/W LAN Realtek RTL 8111 E(10/1000 Mb/s) HD Graphic Chips Intel HD Graphics NVIDIA Graphic Card Sound Card NVIDIA Ge. Force GTX 460 High Definition Audio，supports. 1/7. 1 sound track 1 channel HD VGA input, Hz line-by-line scanning pattern, support resolution up to 1920 x 1440 60 Hz Signal Capture Card 2 channels high quality CVBS VIDEO inputs, Support standard NTSC/PAL video frequency, 720 x 480 30 fps 1 audio input, capture rate. 05/32/44. 1 KHz PCI-E 1 X Server Power Supply Support VISTA/Windows 7/2008 80 Plus 300 W power 550 W active type TFT LCD 1024 x 768 Case Appearance 104 Key Keyboard PS 2 Touch Pad Size (Wx. Hx. D) 435 x 94 x 378 mm 430 x 178 x 605 mm 462 x 336 x 253 mm

Please feel free to contact us for more details. SINEW Technology Co. , Ltd. No. 528, Sec. 4, Henana Rd. , Nantun Dictrict, Taichung City, Taiwan 408 TEL： 886 -4 -23818687 FAX： 886 -4 -23810153 E-mail：expo@sinew. com. tw Website：www. sinew. com. tw
