- Slides: 14
![hcc unl edu HPC at HCC Jun Wang Outline of Workshop 1 Overview of hcc. unl. edu HPC at HCC Jun Wang Outline of Workshop 1 Overview of](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-1.jpg)

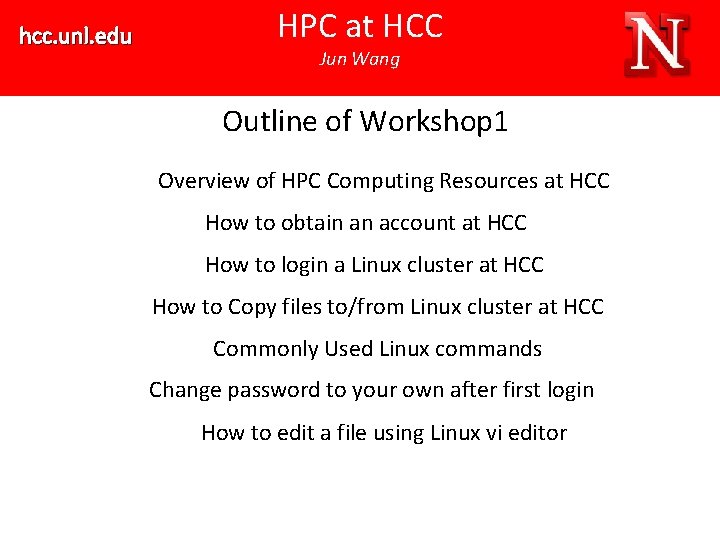

hcc. unl. edu HPC at HCC Jun Wang Outline of Workshop 1 Overview of HPC Computing Resources at HCC How to obtain an account at HCC How to login a Linux cluster at HCC How to Copy files to/from Linux cluster at HCC Commonly Used Linux commands Change password to your own after first login How to edit a file using Linux vi editor
![HPC at HCC hcc unl edu Jun Wang Overview of HPC Computing Resources at HPC at HCC hcc. unl. edu Jun Wang Overview of HPC Computing Resources at](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-2.jpg)

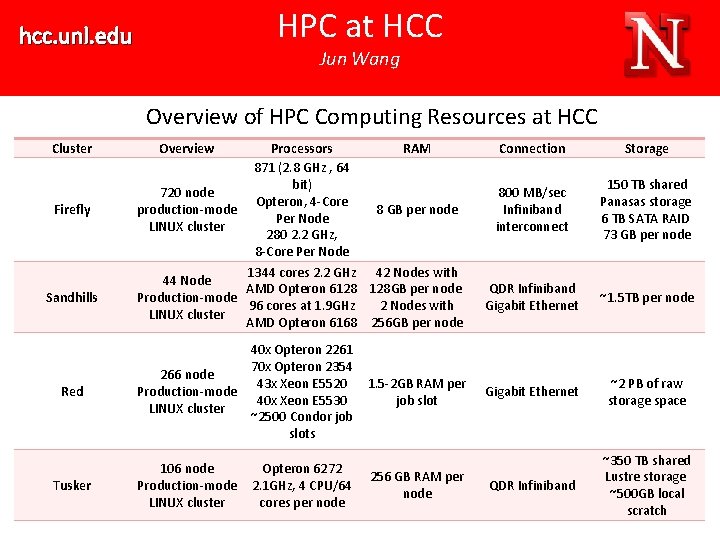

HPC at HCC hcc. unl. edu Jun Wang Overview of HPC Computing Resources at HCC Cluster Firefly Sandhills Red Tusker Overview Processors RAM 871 (2. 8 GHz , 64 bit) 720 node Opteron, 4 -Core 8 GB per node production-mode Per Node LINUX cluster 280 2. 2 GHz, 8 -Core Per Node 1344 cores 2. 2 GHz 42 Nodes with 44 Node AMD Opteron 6128 128 GB per node Production-mode 96 cores at 1. 9 GHz 2 Nodes with LINUX cluster AMD Opteron 6168 256 GB per node 40 x Opteron 2261 70 x Opteron 2354 266 node 43 x Xeon E 5520 Production-mode 40 x Xeon E 5530 LINUX cluster ~2500 Condor job slots 106 node Production-mode LINUX cluster Opteron 6272 2. 1 GHz, 4 CPU/64 cores per node 1. 5 -2 GB RAM per job slot 256 GB RAM per node Connection Storage 800 MB/sec Infiniband interconnect 150 TB shared Panasas storage 6 TB SATA RAID 73 GB per node QDR Infiniband Gigabit Ethernet ~1. 5 TB per node Gigabit Ethernet ~2 PB of raw storage space QDR Infiniband ~350 TB shared Lustre storage ~500 GB local scratch
![HPC at HCC hcc unl edu Jun Wang Firefly Sandhills Red Tusker HPC at HCC hcc. unl. edu Jun Wang Firefly Sandhills Red Tusker](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-3.jpg)

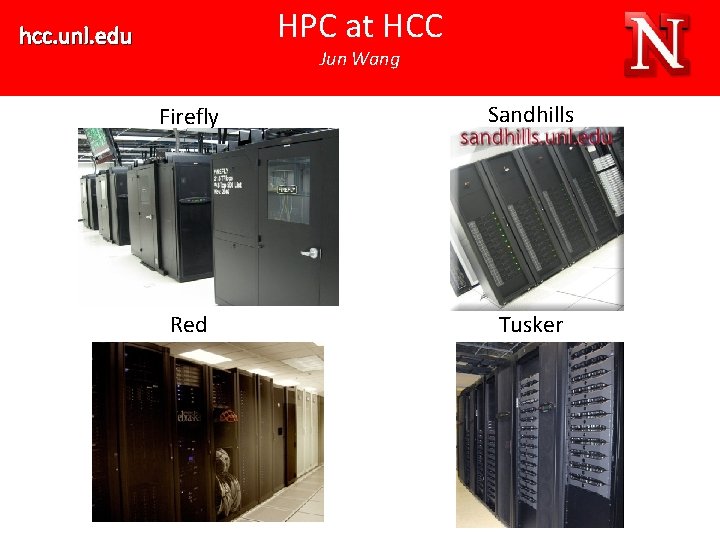

HPC at HCC hcc. unl. edu Jun Wang Firefly Sandhills Red Tusker
![hcc unl edu HPC at HCC Jun Wang How to obtain an account at hcc. unl. edu HPC at HCC Jun Wang How to obtain an account at](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-4.jpg)

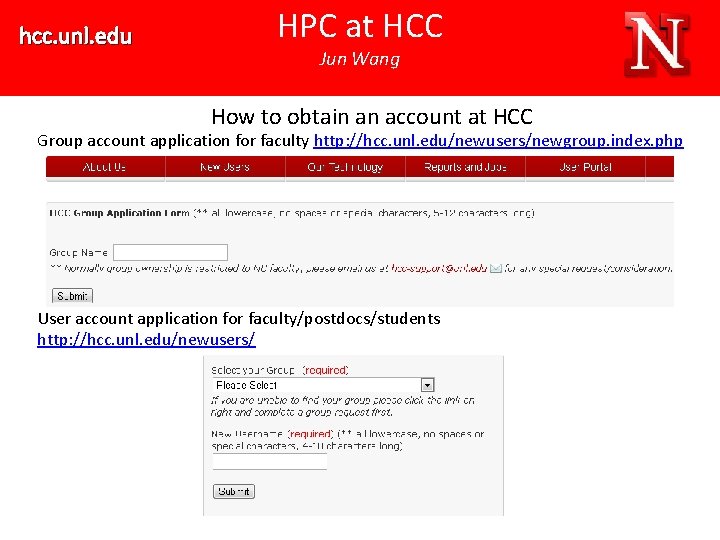

hcc. unl. edu HPC at HCC Jun Wang How to obtain an account at HCC Group account application for faculty http: //hcc. unl. edu/newusers/newgroup. index. php User account application for faculty/postdocs/students http: //hcc. unl. edu/newusers/
![hcc unl edu HPC at HCC Jun Wang How to login a Linux cluster hcc. unl. edu HPC at HCC Jun Wang How to login a Linux cluster](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-5.jpg)

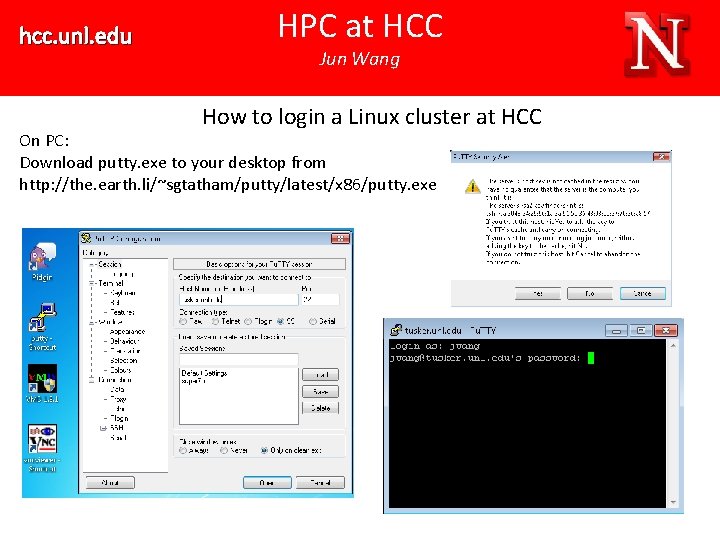

hcc. unl. edu HPC at HCC Jun Wang How to login a Linux cluster at HCC On PC: Download putty. exe to your desktop from http: //the. earth. li/~sgtatham/putty/latest/x 86/putty. exe
![hcc unl edu HPC at HCC Jun Wang How to login a Linux cluster hcc. unl. edu HPC at HCC Jun Wang How to login a Linux cluster](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-6.jpg)

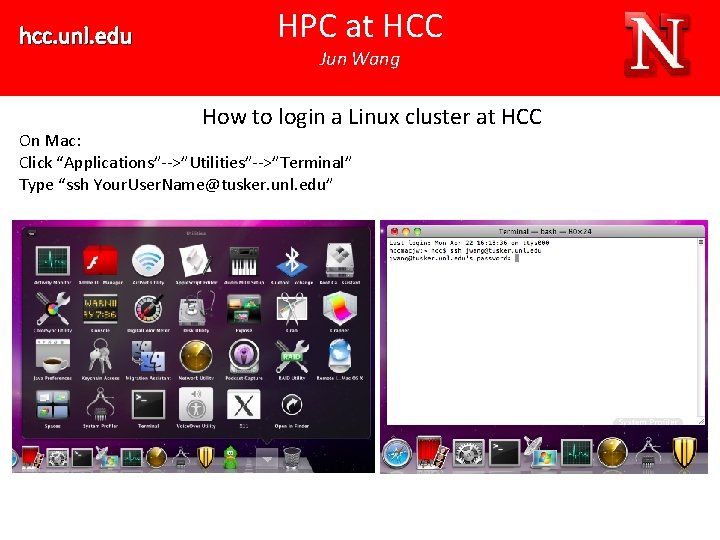

hcc. unl. edu HPC at HCC Jun Wang How to login a Linux cluster at HCC On Mac: Click “Applications”-->”Utilities”-->”Terminal” Type “ssh Your. User. Name@tusker. unl. edu”
![hcc unl edu HPC at HCC Jun Wang How to Copy files tofrom Linux hcc. unl. edu HPC at HCC Jun Wang How to Copy files to/from Linux](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-7.jpg)

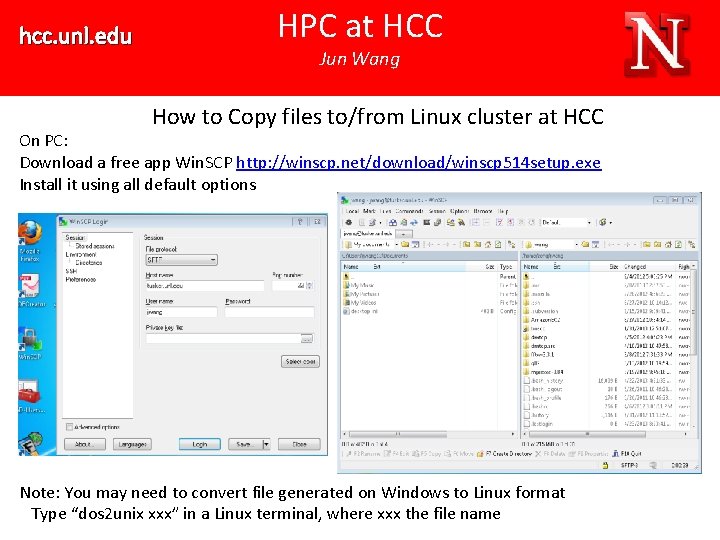

hcc. unl. edu HPC at HCC Jun Wang How to Copy files to/from Linux cluster at HCC On PC: Download a free app Win. SCP http: //winscp. net/download/winscp 514 setup. exe Install it using all default options Note: You may need to convert file generated on Windows to Linux format Type “dos 2 unix xxx” in a Linux terminal, where xxx the file name
![hcc unl edu HPC at HCC Jun Wang How to Copy files tofrom Linux hcc. unl. edu HPC at HCC Jun Wang How to Copy files to/from Linux](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-8.jpg)

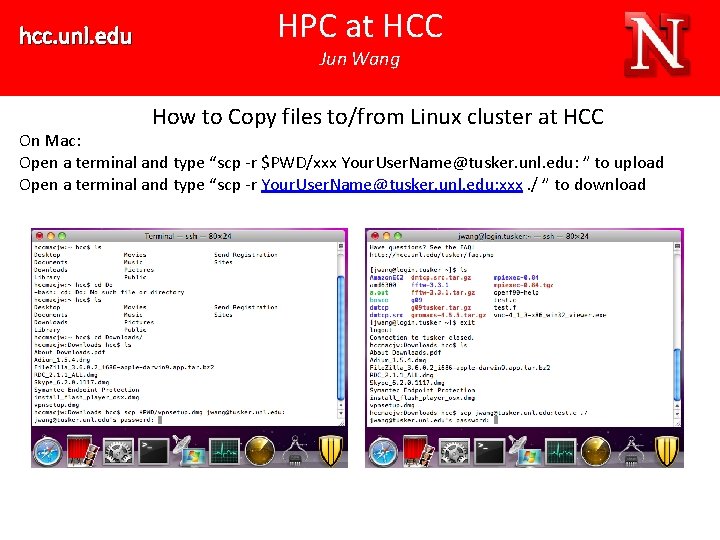

hcc. unl. edu HPC at HCC Jun Wang How to Copy files to/from Linux cluster at HCC On Mac: Open a terminal and type “scp -r $PWD/xxx Your. User. Name@tusker. unl. edu: ” to upload Open a terminal and type “scp -r Your. User. Name@tusker. unl. edu: xxx. / ” to download
![hcc unl edu HPC at HCC Jun Wang Commonly Used Linux commands http www hcc. unl. edu HPC at HCC Jun Wang Commonly Used Linux commands http: //www.](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-9.jpg)

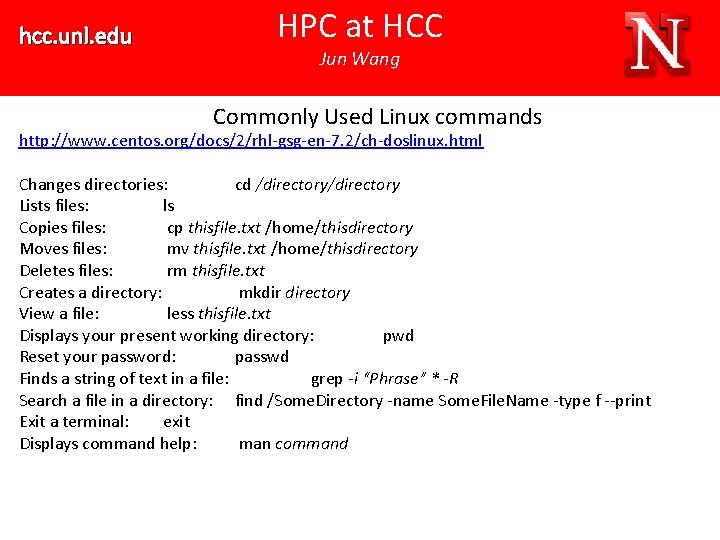

hcc. unl. edu HPC at HCC Jun Wang Commonly Used Linux commands http: //www. centos. org/docs/2/rhl-gsg-en-7. 2/ch-doslinux. html Changes directories: cd /directory Lists files: ls Copies files: cp thisfile. txt /home/thisdirectory Moves files: mv thisfile. txt /home/thisdirectory Deletes files: rm thisfile. txt Creates a directory: mkdir directory View a file: less thisfile. txt Displays your present working directory: pwd Reset your password: passwd Finds a string of text in a file: grep -i “Phrase” * -R Search a file in a directory: find /Some. Directory -name Some. File. Name -type f --print Exit a terminal: exit Displays command help: man command
![hcc unl edu HPC at HCC Jun Wang Change password to your own after hcc. unl. edu HPC at HCC Jun Wang Change password to your own after](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-10.jpg)

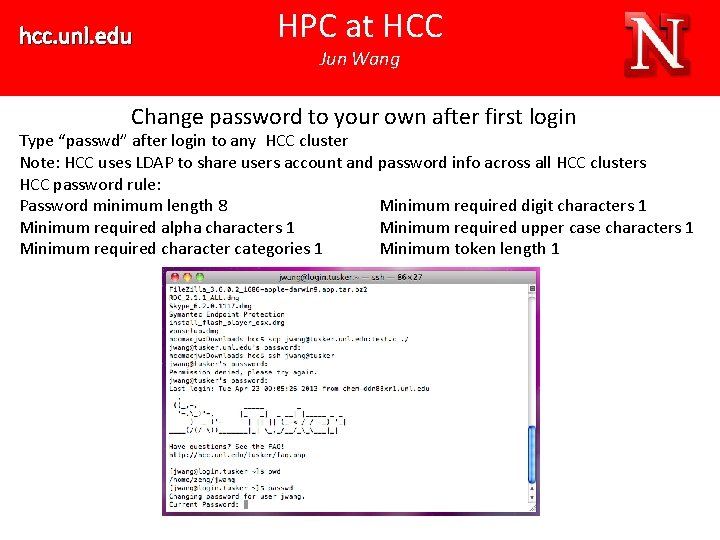

hcc. unl. edu HPC at HCC Jun Wang Change password to your own after first login Type “passwd” after login to any HCC cluster Note: HCC uses LDAP to share users account and password info across all HCC clusters HCC password rule: Password minimum length 8 Minimum required digit characters 1 Minimum required alpha characters 1 Minimum required upper case characters 1 Minimum required character categories 1 Minimum token length 1
![hcc unl edu HPC at HCC Jun Wang How to edit a file using hcc. unl. edu HPC at HCC Jun Wang How to edit a file using](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-11.jpg)

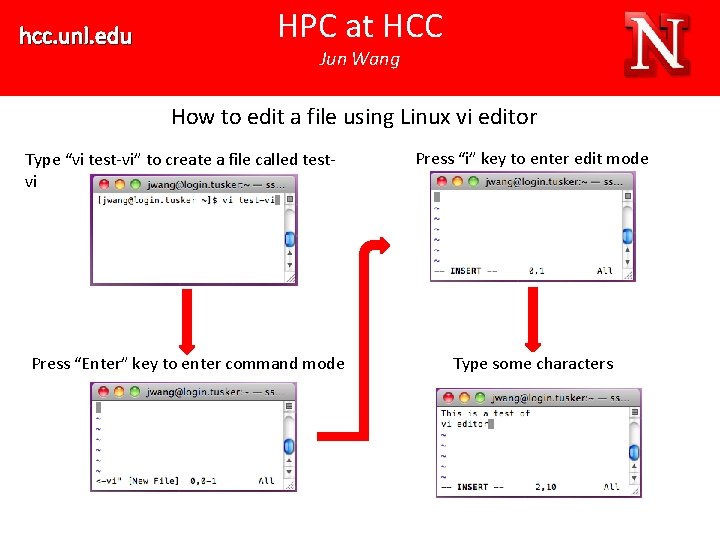

hcc. unl. edu HPC at HCC Jun Wang How to edit a file using Linux vi editor Type “vi test-vi” to create a file called testvi Press “Enter” key to enter command mode Press “i” key to enter edit mode Type some characters
![hcc unl edu HPC at HCC Jun Wang How to edit a file using hcc. unl. edu HPC at HCC Jun Wang How to edit a file using](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-12.jpg)

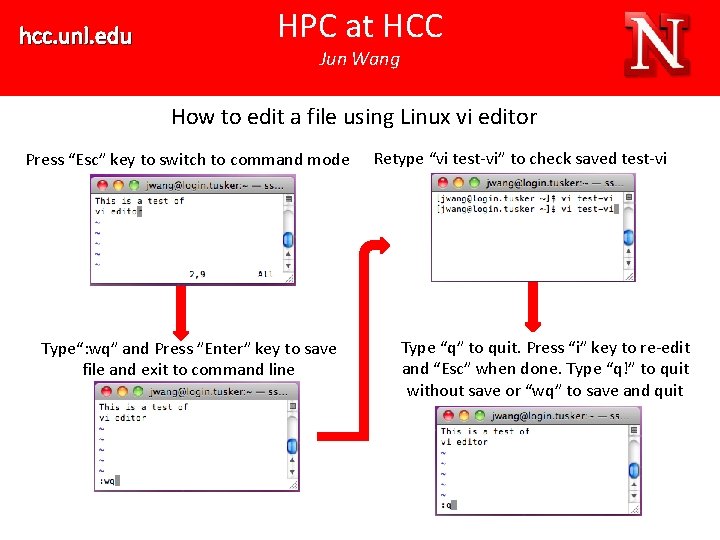

hcc. unl. edu HPC at HCC Jun Wang How to edit a file using Linux vi editor Press “Esc” key to switch to command mode Type“: wq” and Press ”Enter” key to save file and exit to command line Retype “vi test-vi” to check saved test-vi Type “q” to quit. Press “i” key to re-edit and “Esc” when done. Type “q!” to quit without save or “wq” to save and quit
![hcc unl edu HPC at HCC Jun Wang Thank you for your attention Handson hcc. unl. edu HPC at HCC Jun Wang Thank you for your attention! Hands-on](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-13.jpg)

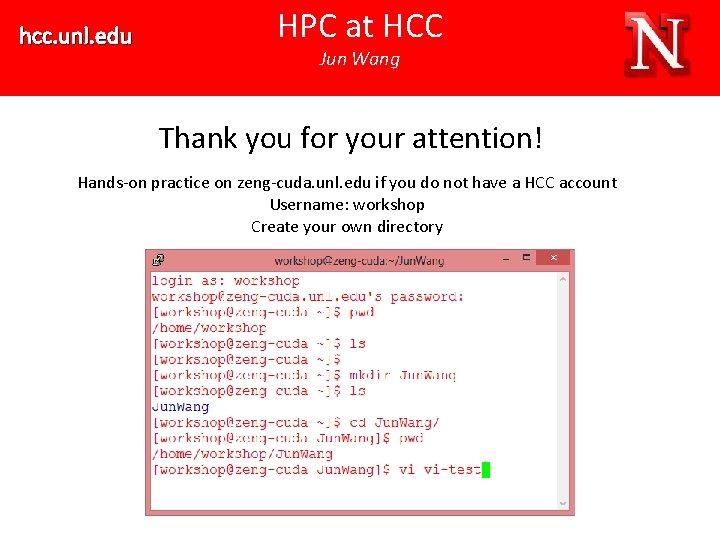

hcc. unl. edu HPC at HCC Jun Wang Thank you for your attention! Hands-on practice on zeng-cuda. unl. edu if you do not have a HCC account Username: workshop Create your own directory
![hcc unl edu HPC at HCC Jun Wang To be continued Familiar with Linux hcc. unl. edu HPC at HCC Jun Wang To be continued: Familiar with Linux](https://slidetodoc.com/presentation_image_h2/e1928948facf328284b739ef43dcc06d/image-14.jpg)
hcc. unl. edu HPC at HCC Jun Wang To be continued: Familiar with Linux file system Familiar with Shell environment Familiar with queuing system How to submit a serial job How to submit a MPI parallel job You may download this ppt file at the newly designed electronics shop website http: //chem. unl. edu/eshop
