Hazards of Electrical Transmission Lines and How to Mitigate Them When They Fall Colonel Robert Castle Director of Safety, Southwest Region

Hazards of Electrical Transmission Lines • Preventing injury to CAP members during ground operations • Talk about the hazards posed by electrical transmission lines • In the U. S. , an average of 400 people die from electrocution annually and an additional 4400 are injured • Identify the Hazards and risks • Develop Risk controls • Discussion

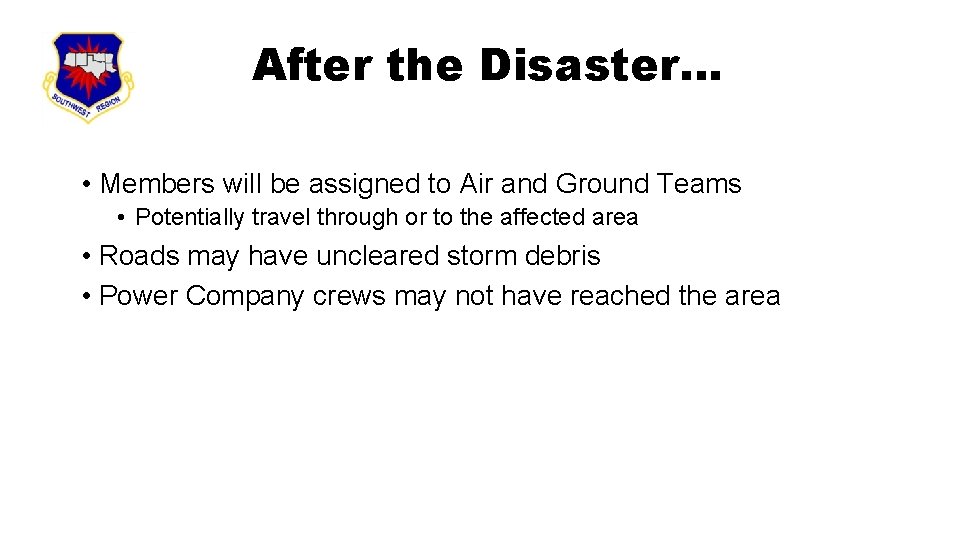

After the Disaster… • Members will be assigned to Air and Ground Teams • Potentially travel through or to the affected area • Roads may have uncleared storm debris • Power Company crews may not have reached the area

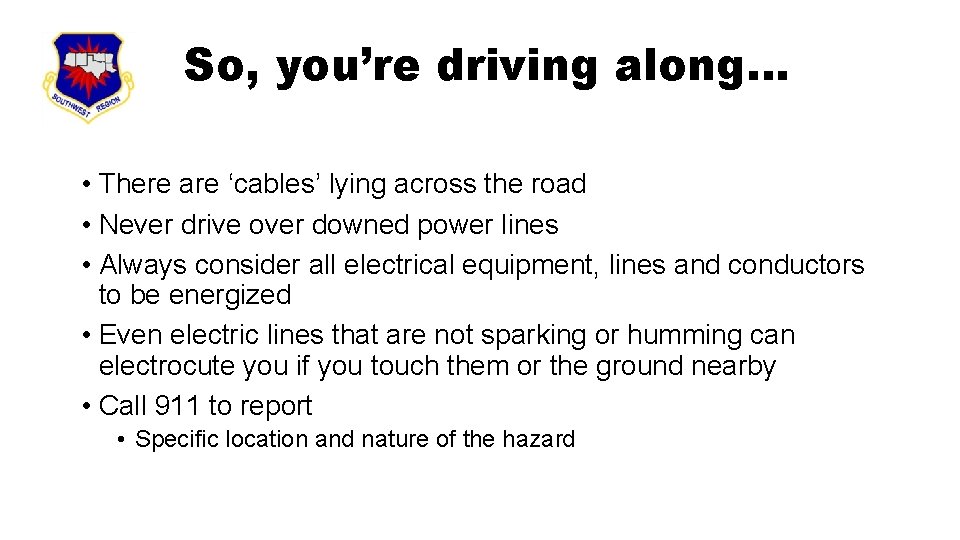

So, you’re driving along… • There are ‘cables’ lying across the road • Never drive over downed power lines • Always consider all electrical equipment, lines and conductors to be energized • Even electric lines that are not sparking or humming can electrocute you if you touch them or the ground nearby • Call 911 to report • Specific location and nature of the hazard

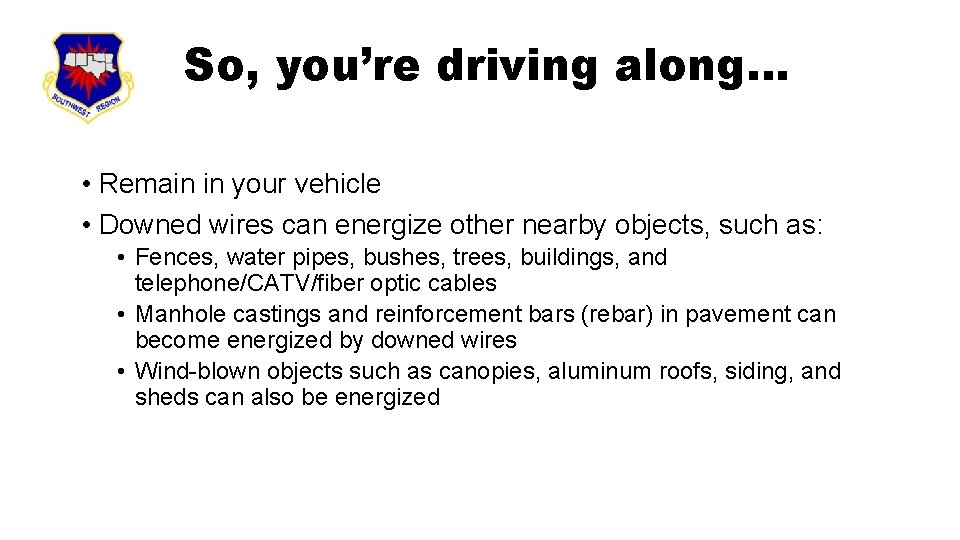

So, you’re driving along… • Remain in your vehicle • Downed wires can energize other nearby objects, such as: • Fences, water pipes, bushes, trees, buildings, and telephone/CATV/fiber optic cables • Manhole castings and reinforcement bars (rebar) in pavement can become energized by downed wires • Wind-blown objects such as canopies, aluminum roofs, siding, and sheds can also be energized

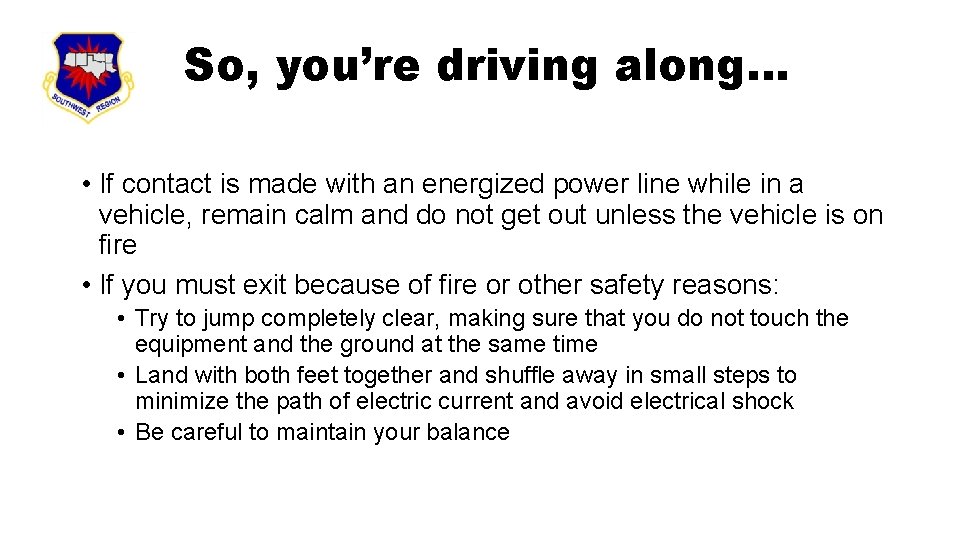

So, you’re driving along… • If contact is made with an energized power line while in a vehicle, remain calm and do not get out unless the vehicle is on fire • If you must exit because of fire or other safety reasons: • Try to jump completely clear, making sure that you do not touch the equipment and the ground at the same time • Land with both feet together and shuffle away in small steps to minimize the path of electric current and avoid electrical shock • Be careful to maintain your balance

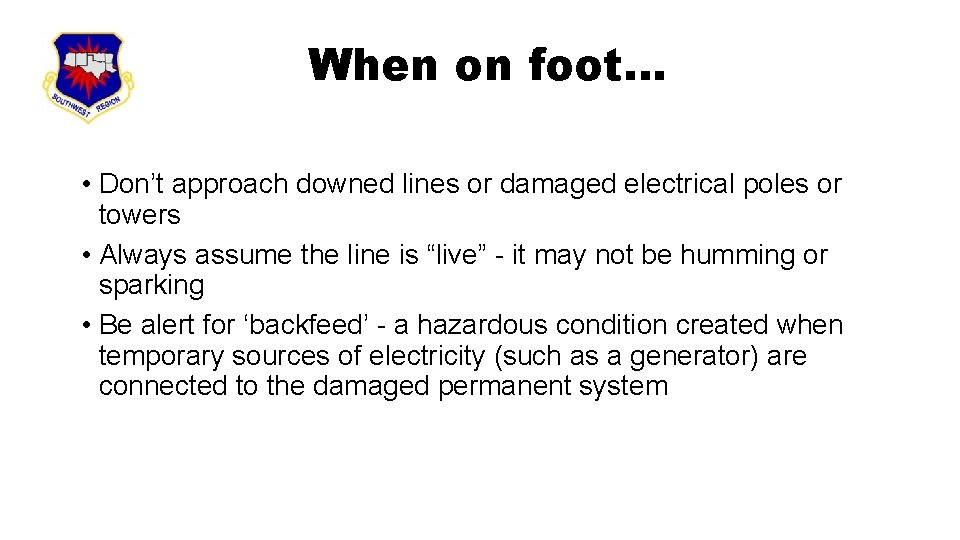

When on foot… • Don’t approach downed lines or damaged electrical poles or towers • Always assume the line is “live” - it may not be humming or sparking • Be alert for ‘backfeed’ - a hazardous condition created when temporary sources of electricity (such as a generator) are connected to the damaged permanent system

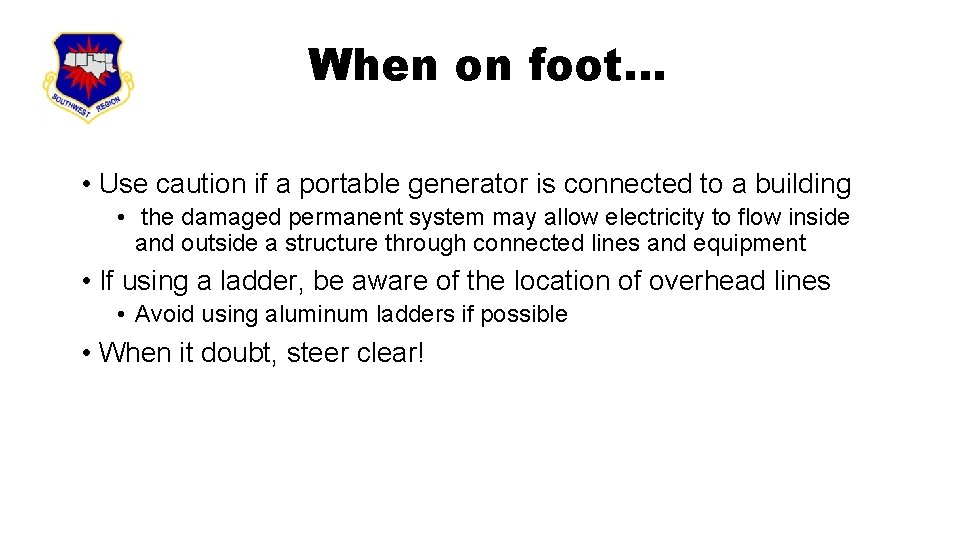

When on foot… • Use caution if a portable generator is connected to a building • the damaged permanent system may allow electricity to flow inside and outside a structure through connected lines and equipment • If using a ladder, be aware of the location of overhead lines • Avoid using aluminum ladders if possible • When it doubt, steer clear!

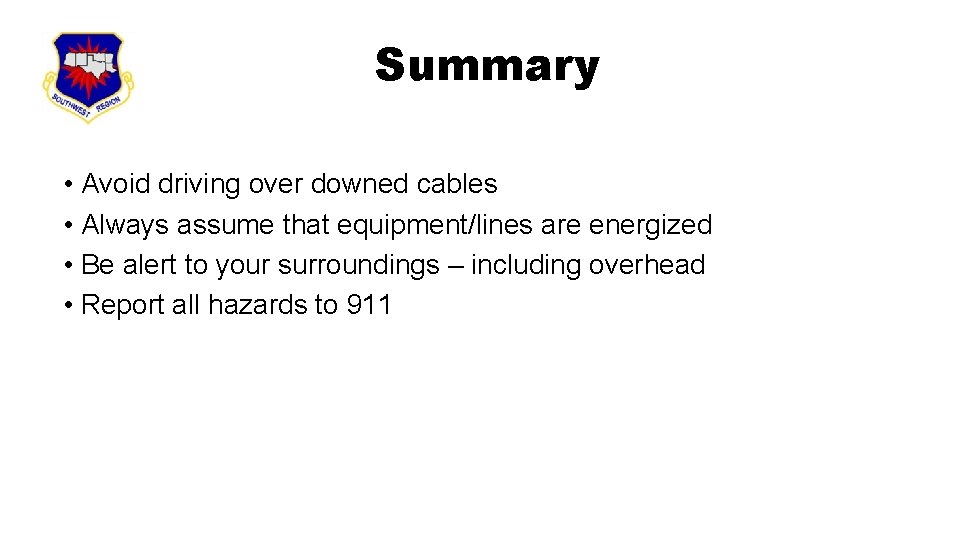

Put your unit patch here Summary • Avoid driving over downed cables • Always assume that equipment/lines are energized • Be alert to your surroundings – including overhead • Report all hazards to 911

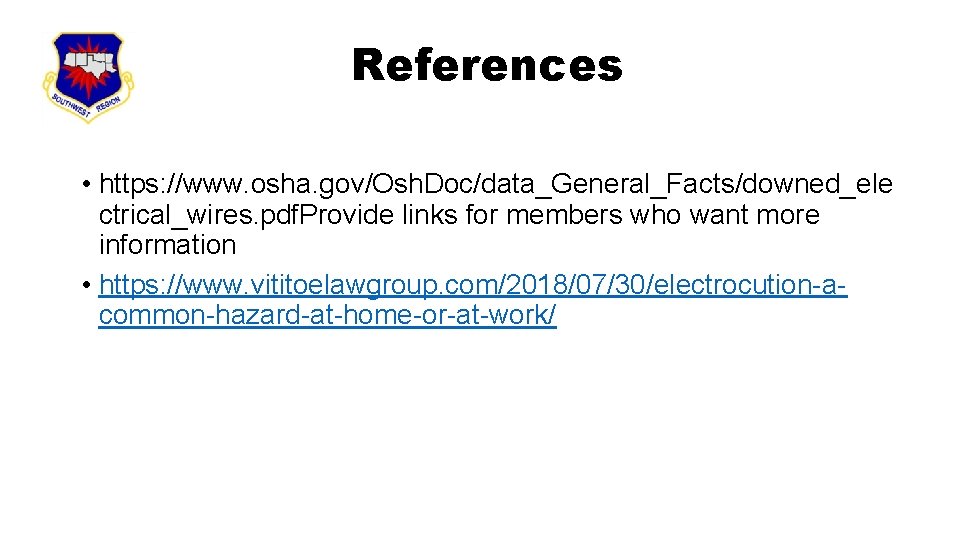

References • https: //www. osha. gov/Osh. Doc/data_General_Facts/downed_ele ctrical_wires. pdf. Provide links for members who want more information • https: //www. vititoelawgroup. com/2018/07/30/electrocution-acommon-hazard-at-home-or-at-work/
