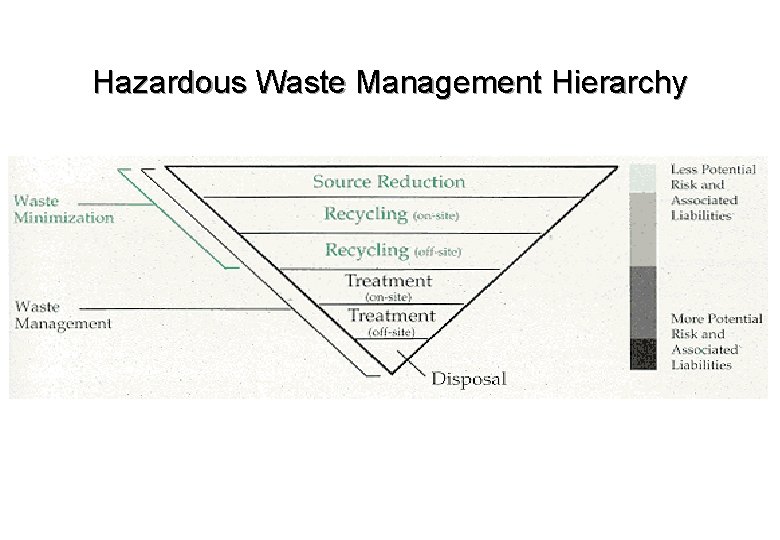

Hazardous Waste Management Hierarchy SECURED LANDFILL A controlled

Hazardous Waste Management Hierarchy

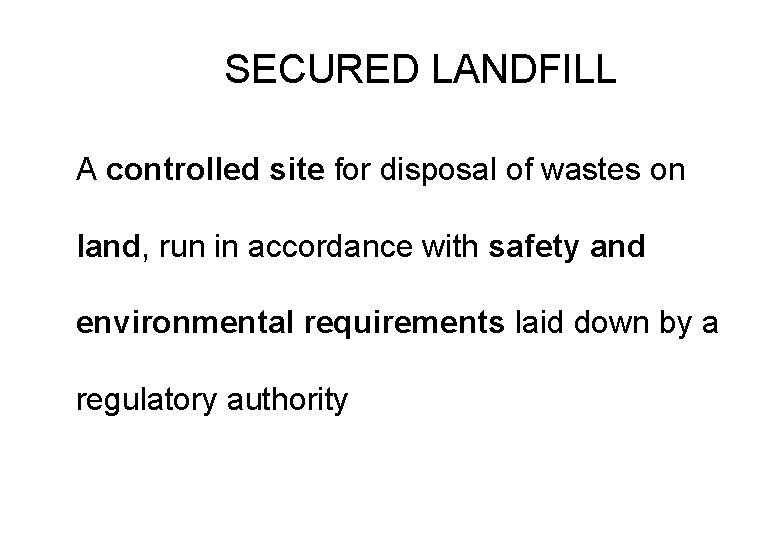

SECURED LANDFILL A controlled site for disposal of wastes on land, run in accordance with safety and environmental requirements laid down by a regulatory authority

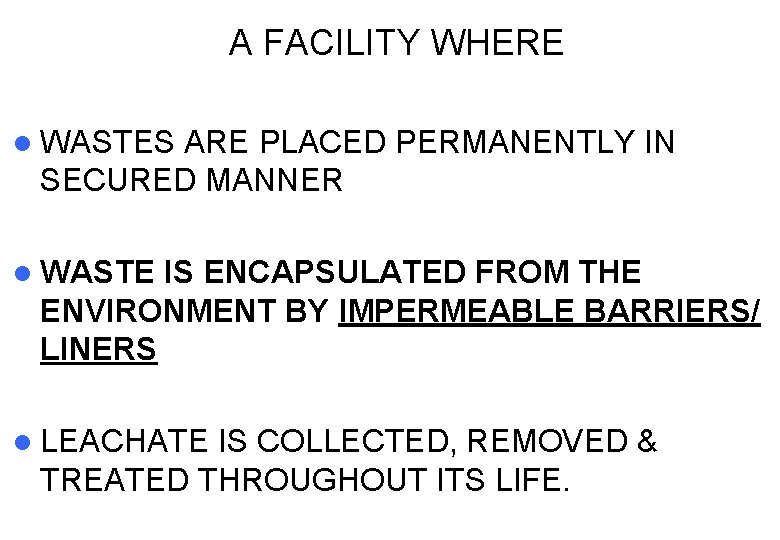

A FACILITY WHERE l WASTES ARE PLACED PERMANENTLY IN SECURED MANNER l WASTE IS ENCAPSULATED FROM THE ENVIRONMENT BY IMPERMEABLE BARRIERS/ LINERS l LEACHATE IS COLLECTED, REMOVED & TREATED THROUGHOUT ITS LIFE.

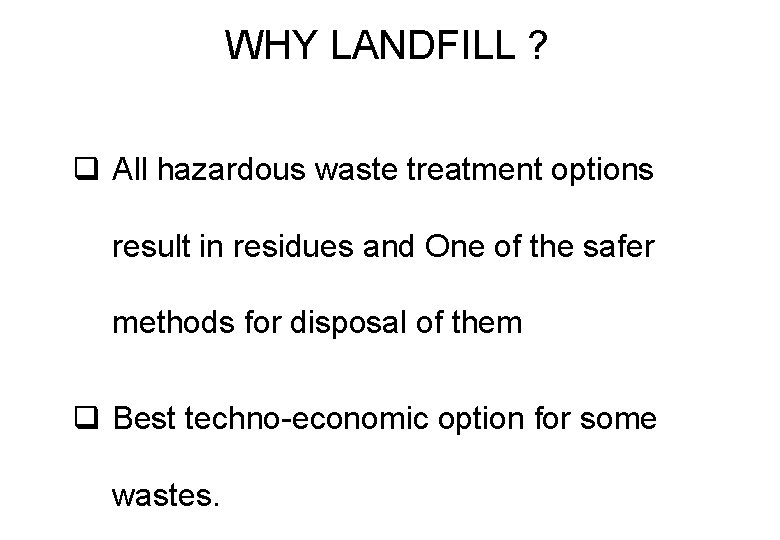

WHY LANDFILL ? q All hazardous waste treatment options result in residues and One of the safer methods for disposal of them q Best techno-economic option for some wastes.

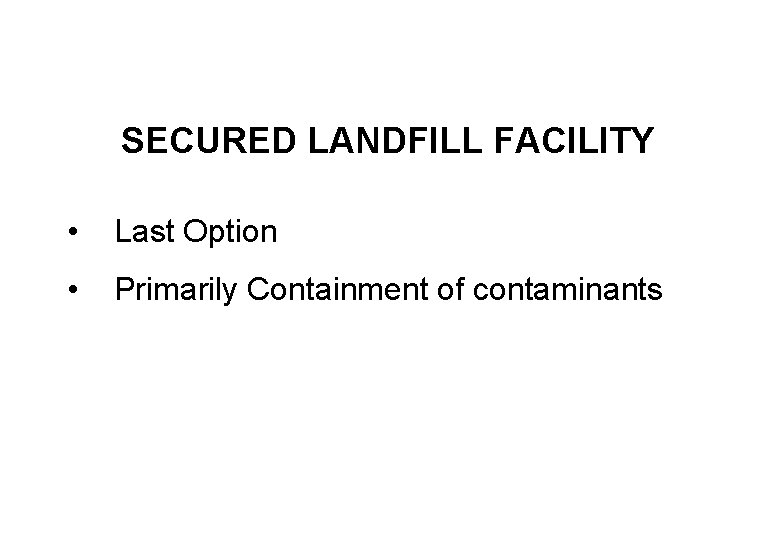

SECURED LANDFILL FACILITY • Last Option • Primarily Containment of contaminants

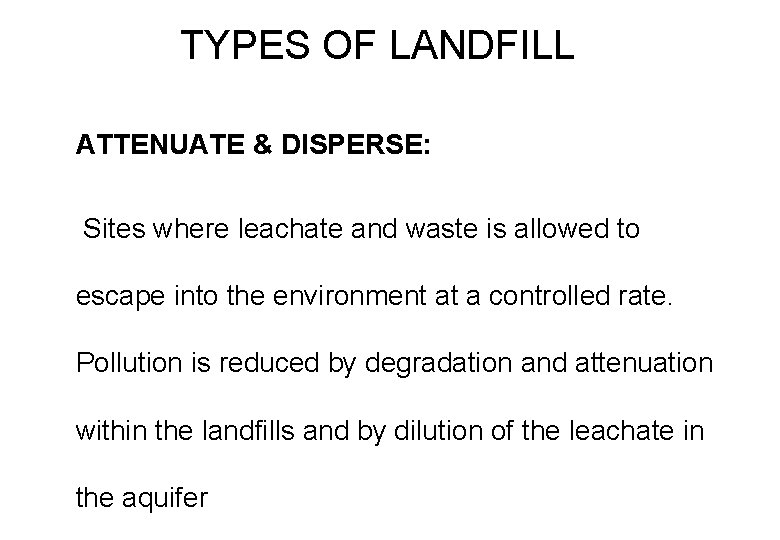

TYPES OF LANDFILL ATTENUATE & DISPERSE: Sites where leachate and waste is allowed to escape into the environment at a controlled rate. Pollution is reduced by degradation and attenuation within the landfills and by dilution of the leachate in the aquifer

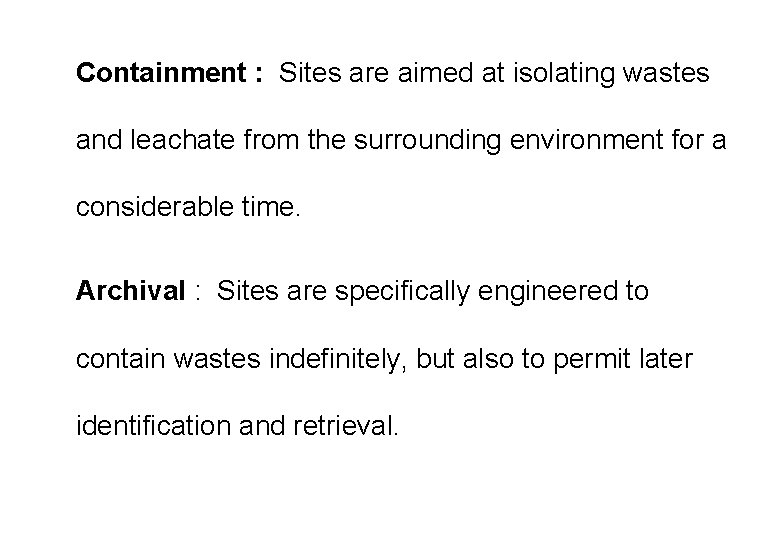

Containment : Sites are aimed at isolating wastes and leachate from the surrounding environment for a considerable time. Archival : Sites are specifically engineered to contain wastes indefinitely, but also to permit later identification and retrieval.

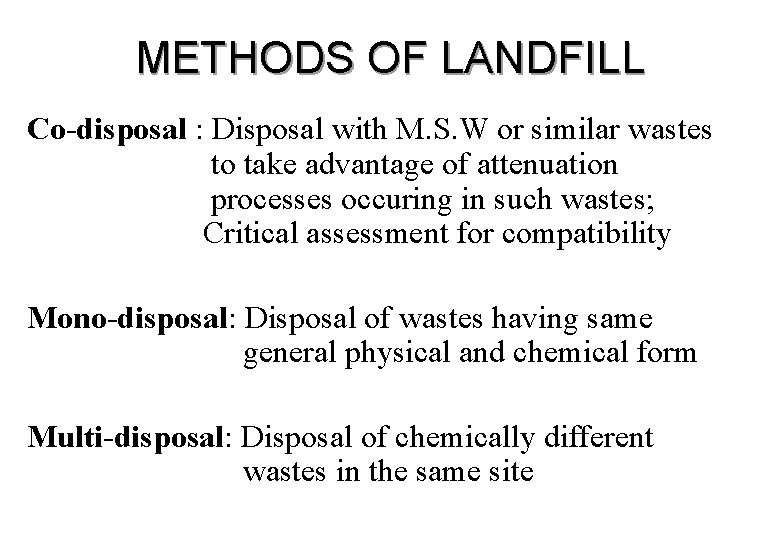

METHODS OF LANDFILL Co-disposal : Disposal with M. S. W or similar wastes to take advantage of attenuation processes occuring in such wastes; Critical assessment for compatibility Mono-disposal: Disposal of wastes having same general physical and chemical form Multi-disposal: Disposal of chemically different wastes in the same site

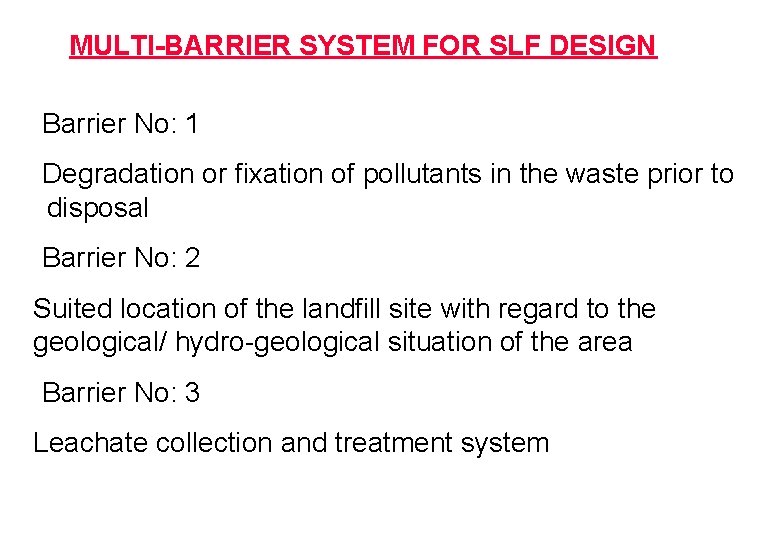

MULTI-BARRIER SYSTEM FOR SLF DESIGN Barrier No: 1 Degradation or fixation of pollutants in the waste prior to disposal Barrier No: 2 Suited location of the landfill site with regard to the geological/ hydro-geological situation of the area Barrier No: 3 Leachate collection and treatment system

Barrier No: 4 : Bottom Liner System Interface between waste body & subsoil hinders leachate percolation. Barrier No: 5 Cover Liner System Avoids penetration of surface and rain water into waste body avoiding formation of leachate

BASIC COMPONENTS OF LANDFILL • Impermeable Liner System on the base and side • Top cover • Leachate collection, removal and treatment scheme • Surface Water Control Systems • Other site infrastructure

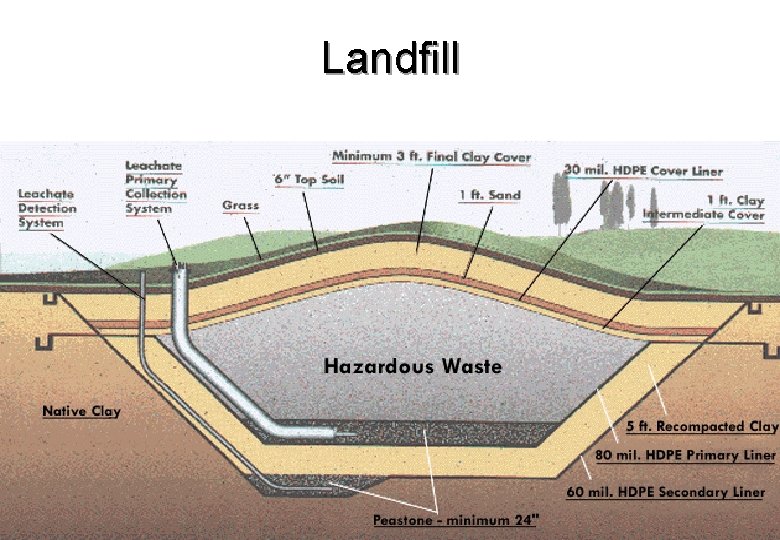

Landfill

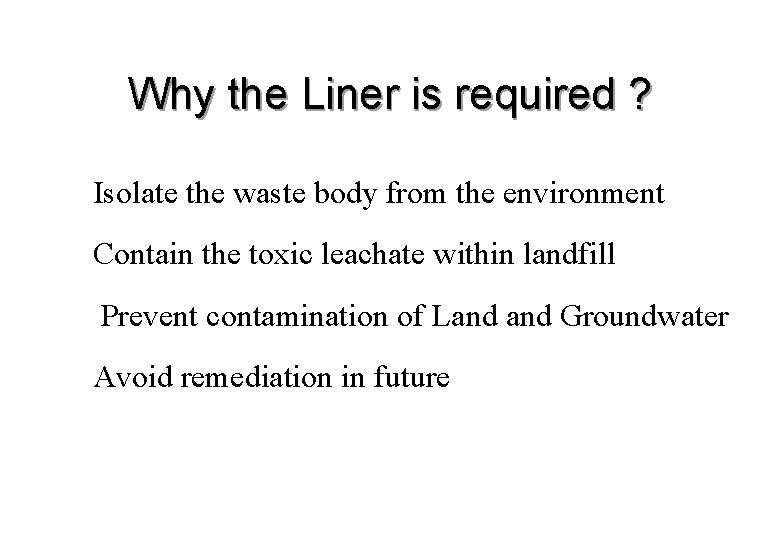

Why the Liner is required ? èIsolate the waste body from the environment èContain the toxic leachate within landfill è Prevent contamination of Land Groundwater èAvoid remediation in future

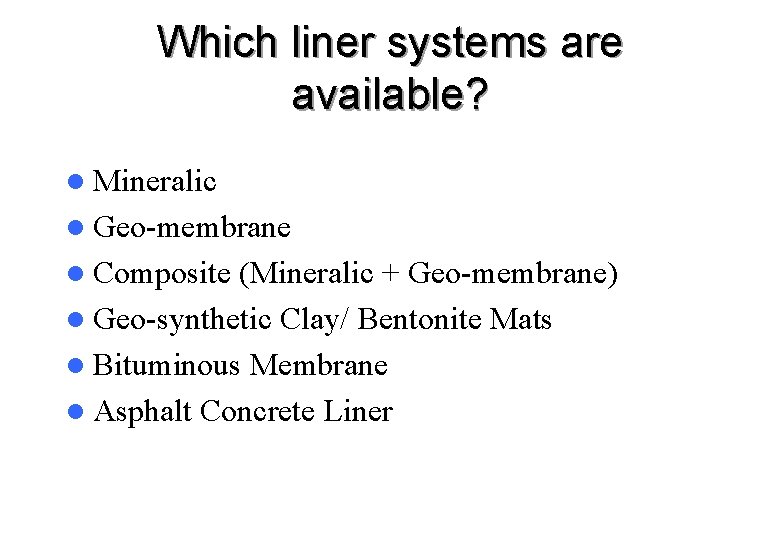

Which liner systems are available? l Mineralic l Geo-membrane l Composite (Mineralic + Geo-membrane) l Geo-synthetic Clay/ Bentonite Mats l Bituminous Membrane l Asphalt Concrete Liner

BOTTOM LINER • landfill into subsoil, ground or surface water • Should have chemical properties, sufficient strength and thickness to prevent failure due to : - Pressure gradients - Physical contact with the waste or leachate - Climatic conditions - Stress of installation and - Stress of daily operation

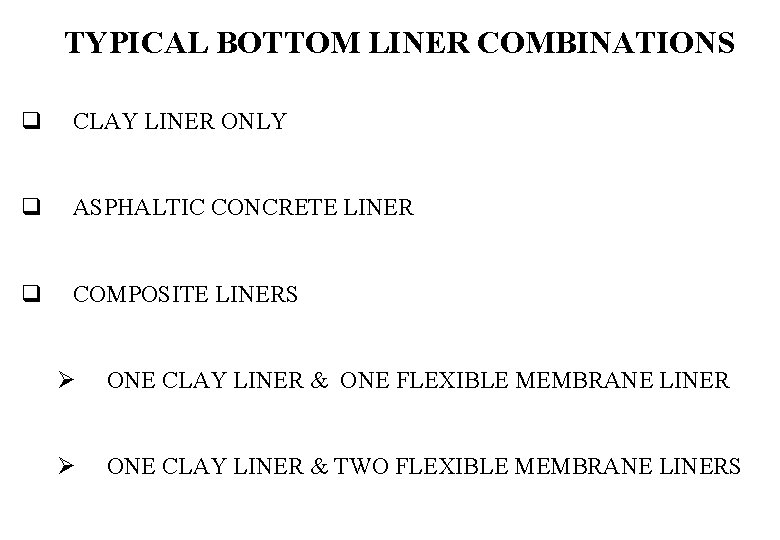

TYPICAL BOTTOM LINER COMBINATIONS q CLAY LINER ONLY q ASPHALTIC CONCRETE LINER q COMPOSITE LINERS Ø ONE CLAY LINER & ONE FLEXIBLE MEMBRANE LINER Ø ONE CLAY LINER & TWO FLEXIBLE MEMBRANE LINERS

Total Thickness # 45 - 60 cm

DOUBLE COMPOSITE LINER (AS PER CPCB GUIDELINE)

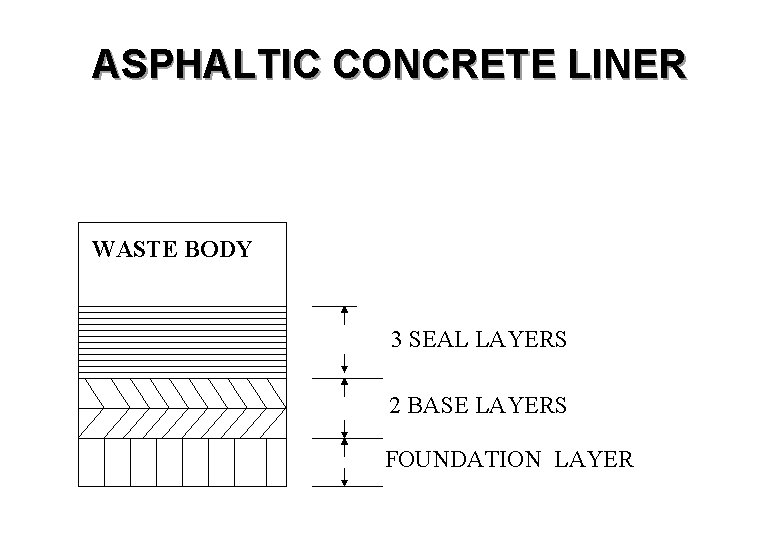

ASPHALTIC CONCRETE LINER WASTE BODY 3 SEAL LAYERS 2 BASE LAYERS FOUNDATION LAYER

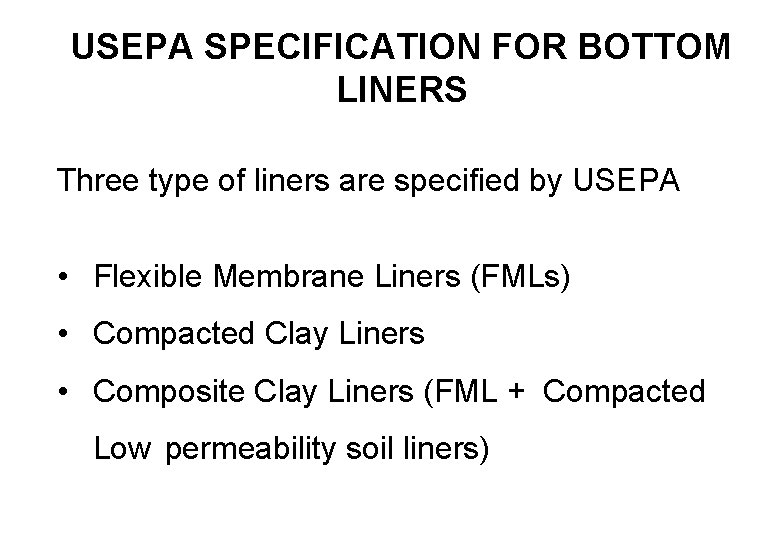

USEPA SPECIFICATION FOR BOTTOM LINERS Three type of liners are specified by USEPA • Flexible Membrane Liners (FMLs) • Compacted Clay Liners • Composite Clay Liners (FML + Compacted Low permeability soil liners)

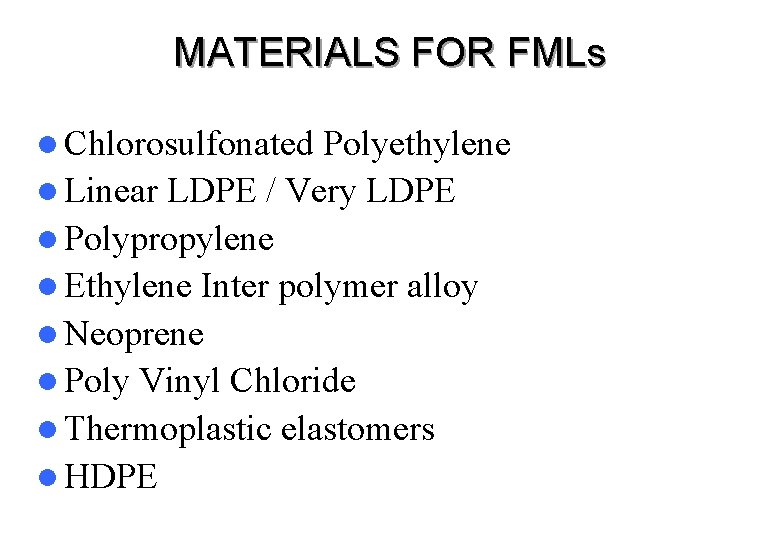

MATERIALS FOR FMLs l Chlorosulfonated Polyethylene l Linear LDPE / Very LDPE l Polypropylene l Ethylene Inter polymer alloy l Neoprene l Poly Vinyl Chloride l Thermoplastic elastomers l HDPE

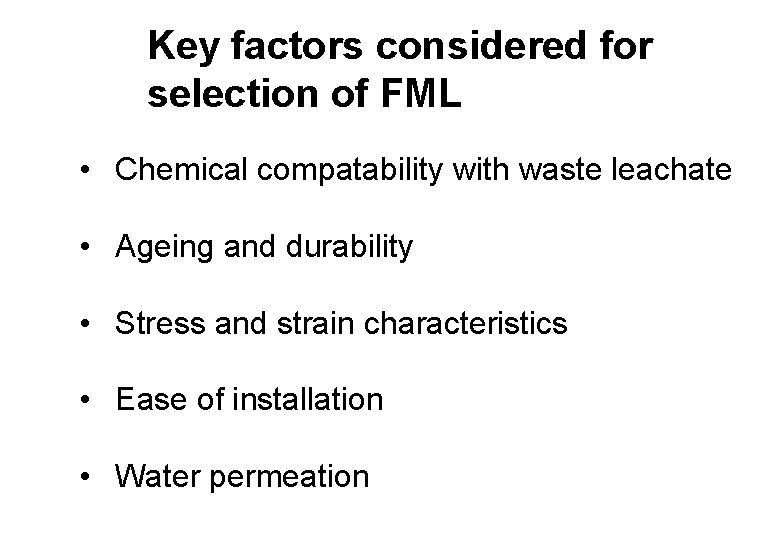

Key factors considered for selection of FML • Chemical compatability with waste leachate • Ageing and durability • Stress and strain characteristics • Ease of installation • Water permeation

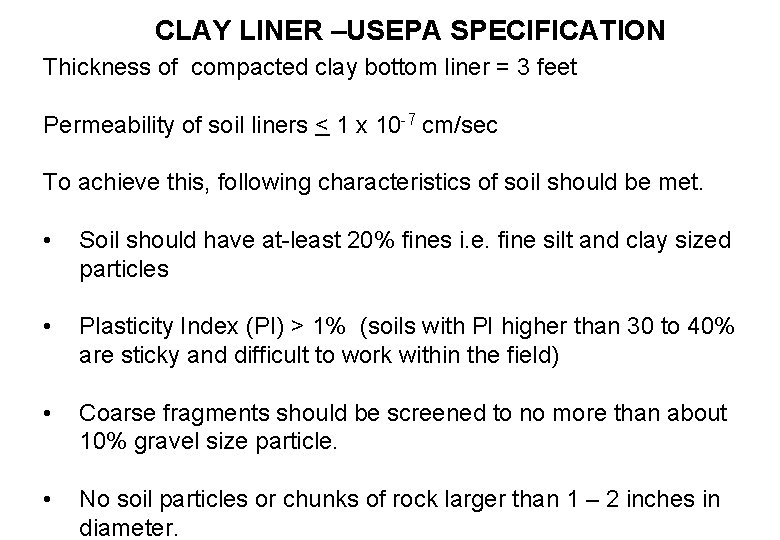

CLAY LINER –USEPA SPECIFICATION Thickness of compacted clay bottom liner = 3 feet Permeability of soil liners < 1 x 10 -7 cm/sec To achieve this, following characteristics of soil should be met. • Soil should have at-least 20% fines i. e. fine silt and clay sized particles • Plasticity Index (PI) > 1% (soils with PI higher than 30 to 40% are sticky and difficult to work within the field) • Coarse fragments should be screened to no more than about 10% gravel size particle. • No soil particles or chunks of rock larger than 1 – 2 inches in diameter.

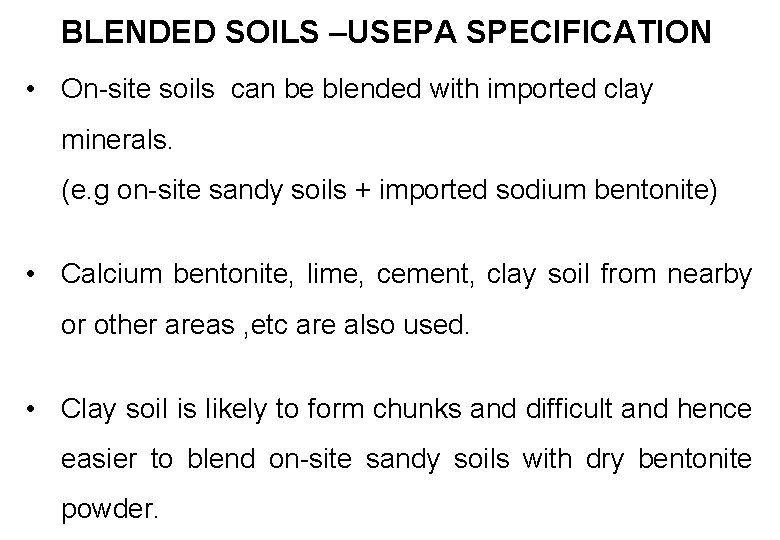

BLENDED SOILS –USEPA SPECIFICATION • On-site soils can be blended with imported clay minerals. (e. g on-site sandy soils + imported sodium bentonite) • Calcium bentonite, lime, cement, clay soil from nearby or other areas , etc are also used. • Clay soil is likely to form chunks and difficult and hence easier to blend on-site sandy soils with dry bentonite powder.

COVER LINER (AS PERCPCB GUIDELINE)

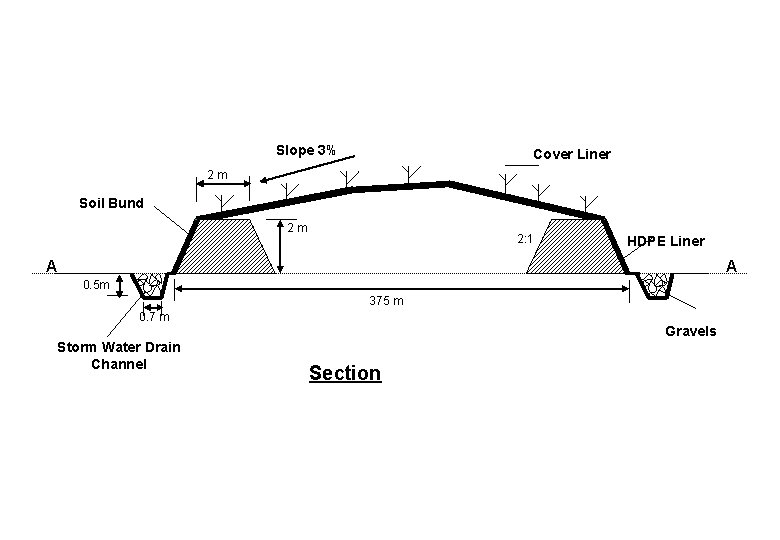

Slope 3% Cover Liner 2 m Soil Bund 2 m 2: 1 HDPE Liner A A 0. 5 m 375 m 0. 7 m Storm Water Drain Channel Gravels Section

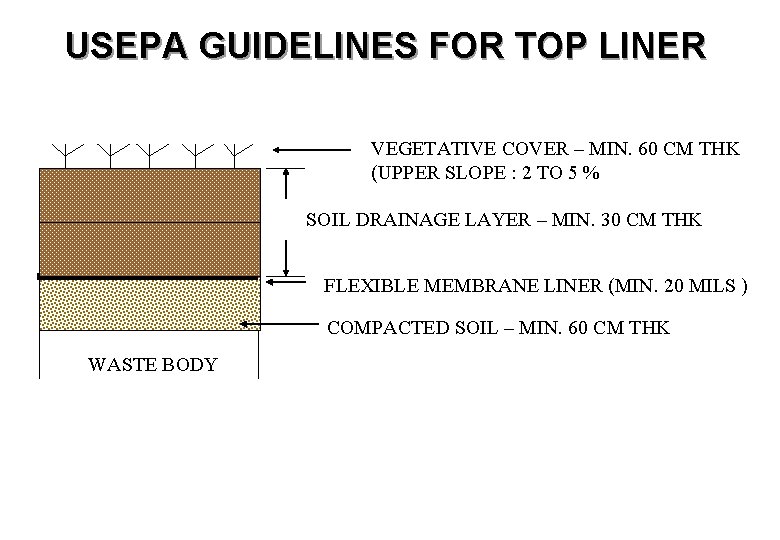

USEPA GUIDELINES FOR TOP LINER VEGETATIVE COVER – MIN. 60 CM THK (UPPER SLOPE : 2 TO 5 % SOIL DRAINAGE LAYER – MIN. 30 CM THK FLEXIBLE MEMBRANE LINER (MIN. 20 MILS ) COMPACTED SOIL – MIN. 60 CM THK WASTE BODY

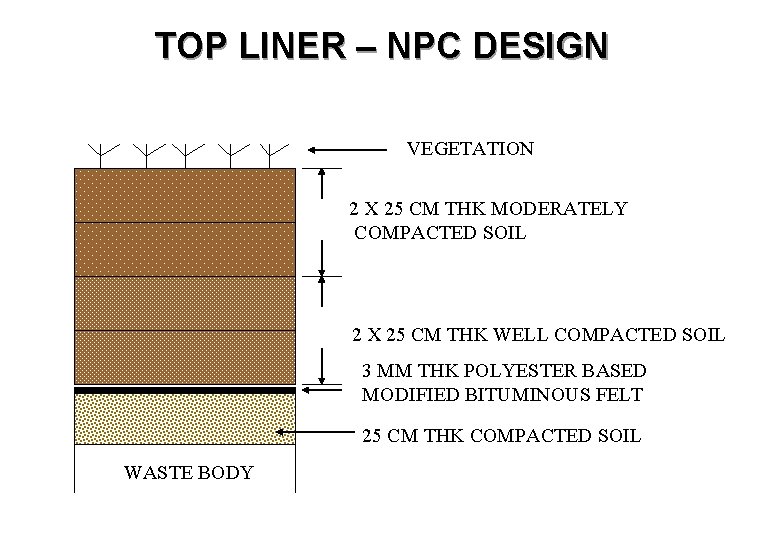

TOP LINER – NPC DESIGN VEGETATION 2 X 25 CM THK MODERATELY COMPACTED SOIL 2 X 25 CM THK WELL COMPACTED SOIL 3 MM THK POLYESTER BASED MODIFIED BITUMINOUS FELT 25 CM THK COMPACTED SOIL WASTE BODY

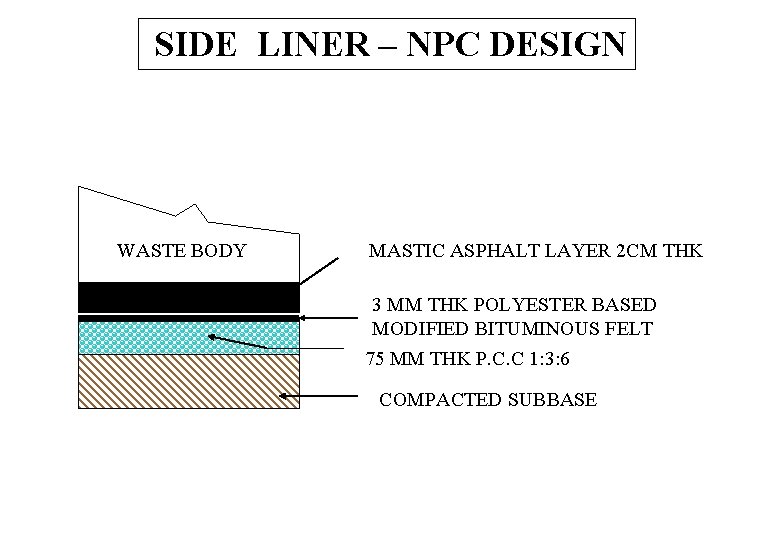

SIDE LINER – NPC DESIGN WASTE BODY MASTIC ASPHALT LAYER 2 CM THK 3 MM THK POLYESTER BASED MODIFIED BITUMINOUS FELT 75 MM THK P. C. C 1: 3: 6 COMPACTED SUBBASE

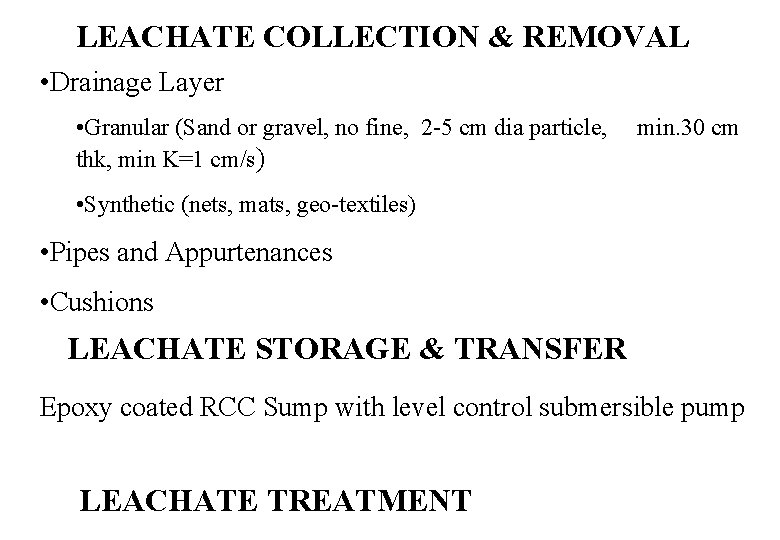

LEACHATE COLLECTION & REMOVAL • Drainage Layer • Granular (Sand or gravel, no fine, 2 -5 cm dia particle, thk, min K=1 cm/s) min. 30 cm • Synthetic (nets, mats, geo-textiles) • Pipes and Appurtenances • Cushions LEACHATE STORAGE & TRANSFER Epoxy coated RCC Sump with level control submersible pump LEACHATE TREATMENT

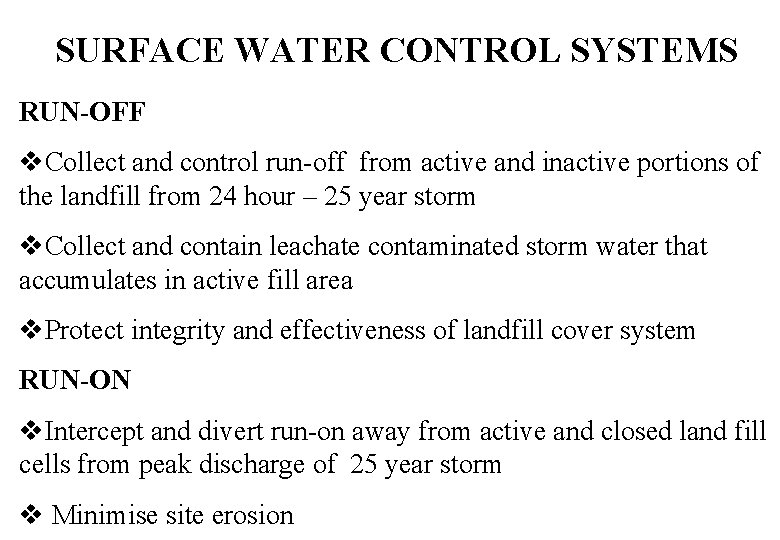

SURFACE WATER CONTROL SYSTEMS RUN-OFF v. Collect and control run-off from active and inactive portions of the landfill from 24 hour – 25 year storm v. Collect and contain leachate contaminated storm water that accumulates in active fill area v. Protect integrity and effectiveness of landfill cover system RUN-ON v. Intercept and divert run-on away from active and closed land fill cells from peak discharge of 25 year storm v Minimise site erosion

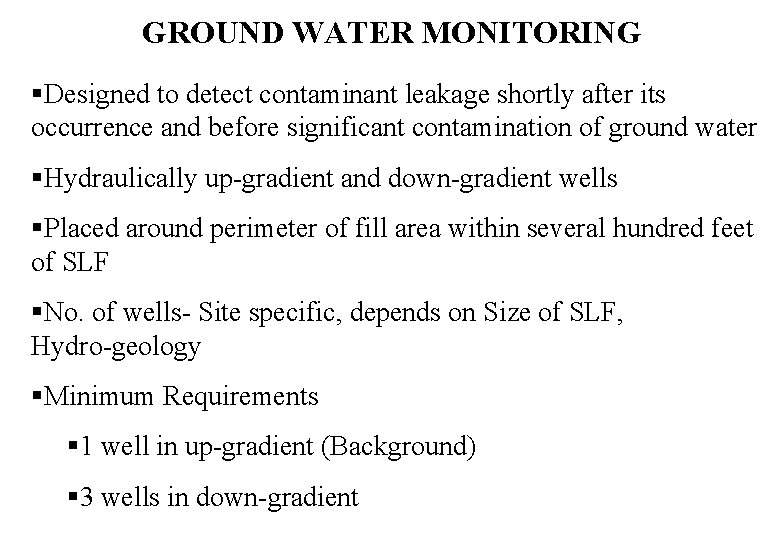

GROUND WATER MONITORING §Designed to detect contaminant leakage shortly after its occurrence and before significant contamination of ground water §Hydraulically up-gradient and down-gradient wells §Placed around perimeter of fill area within several hundred feet of SLF §No. of wells- Site specific, depends on Size of SLF, Hydro-geology §Minimum Requirements § 1 well in up-gradient (Background) § 3 wells in down-gradient

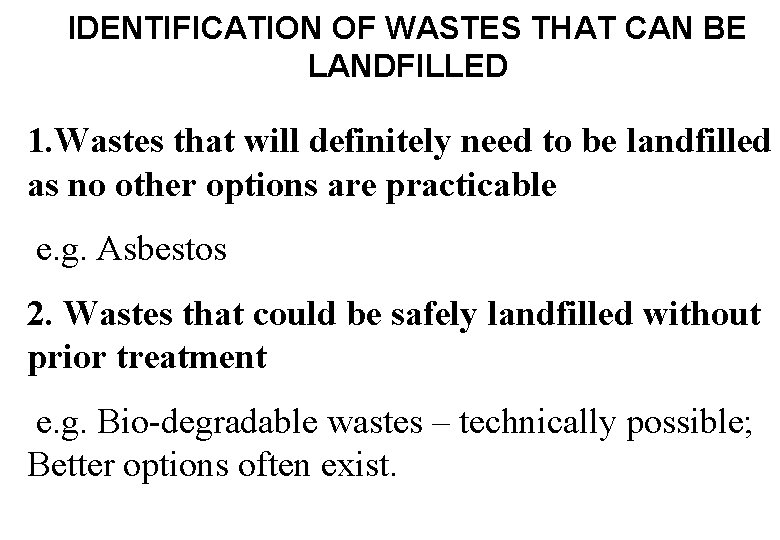

IDENTIFICATION OF WASTES THAT CAN BE LANDFILLED 1. Wastes that will definitely need to be landfilled as no other options are practicable e. g. Asbestos 2. Wastes that could be safely landfilled without prior treatment e. g. Bio-degradable wastes – technically possible; Better options often exist.

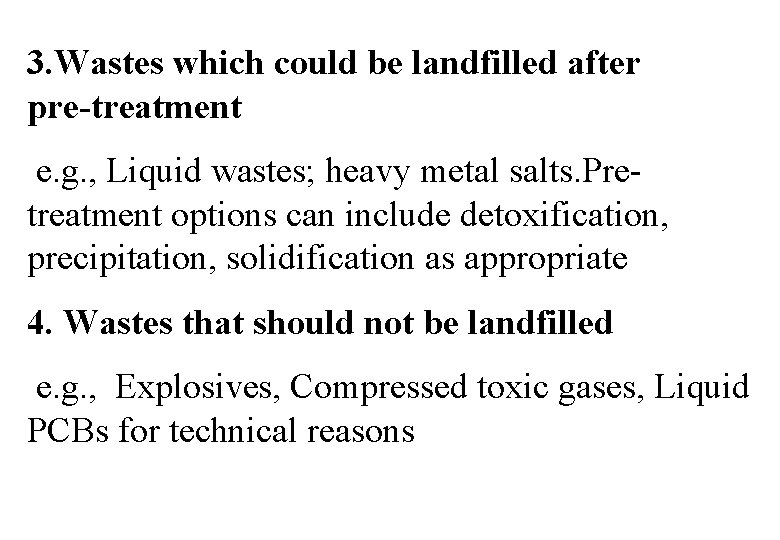

3. Wastes which could be landfilled after pre-treatment e. g. , Liquid wastes; heavy metal salts. Pretreatment options can include detoxification, precipitation, solidification as appropriate 4. Wastes that should not be landfilled e. g. , Explosives, Compressed toxic gases, Liquid PCBs for technical reasons

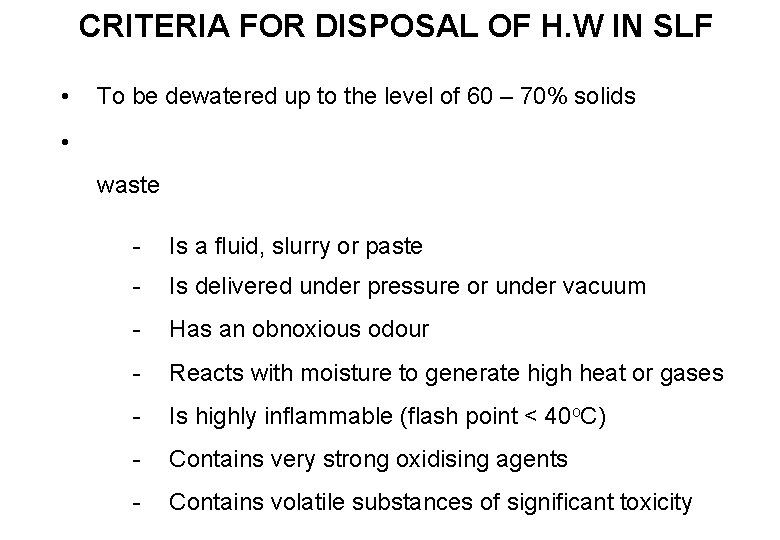

CRITERIA FOR DISPOSAL OF H. W IN SLF • To be dewatered up to the level of 60 – 70% solids • waste - Is a fluid, slurry or paste - Is delivered under pressure or under vacuum - Has an obnoxious odour - Reacts with moisture to generate high heat or gases - Is highly inflammable (flash point < 40 o. C) - Contains very strong oxidising agents - Contains volatile substances of significant toxicity

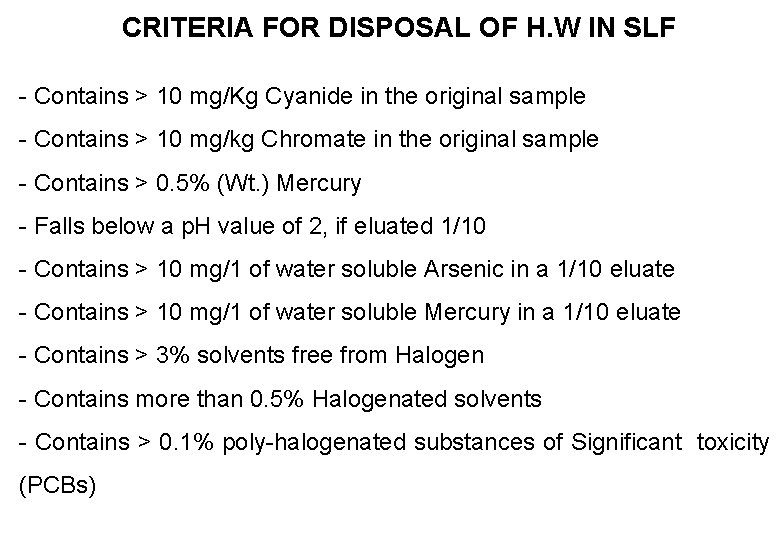

CRITERIA FOR DISPOSAL OF H. W IN SLF - Contains > 10 mg/Kg Cyanide in the original sample - Contains > 10 mg/kg Chromate in the original sample - Contains > 0. 5% (Wt. ) Mercury - Falls below a p. H value of 2, if eluated 1/10 - Contains > 10 mg/1 of water soluble Arsenic in a 1/10 eluate - Contains > 10 mg/1 of water soluble Mercury in a 1/10 eluate - Contains > 3% solvents free from Halogen - Contains more than 0. 5% Halogenated solvents - Contains > 0. 1% poly-halogenated substances of Significant toxicity (PCBs)

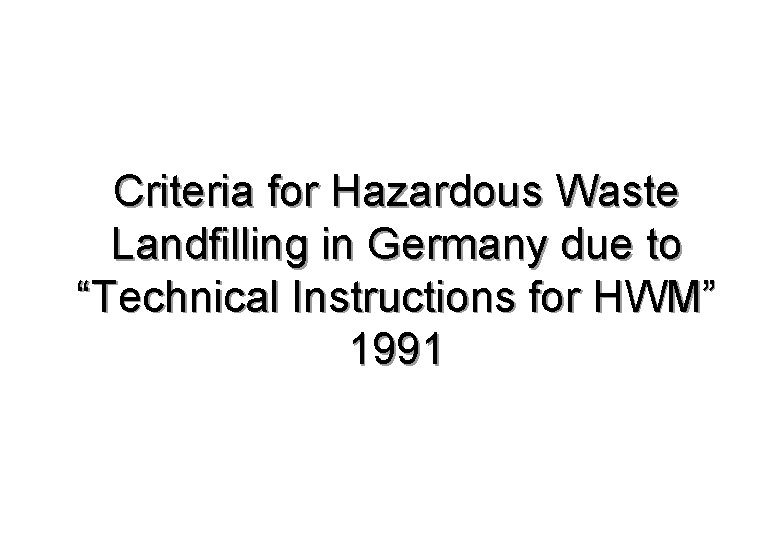

Criteria for Hazardous Waste Landfilling in Germany due to “Technical Instructions for HWM” 1991

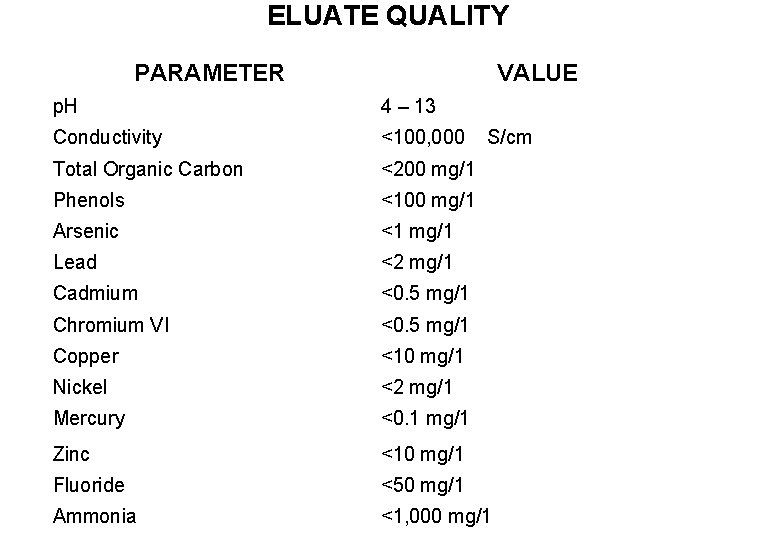

ELUATE QUALITY PARAMETER VALUE p. H 4 – 13 Conductivity <100, 000 Total Organic Carbon <200 mg/1 Phenols <100 mg/1 Arsenic <1 mg/1 Lead <2 mg/1 Cadmium <0. 5 mg/1 Chromium VI <0. 5 mg/1 Copper <10 mg/1 Nickel <2 mg/1 Mercury <0. 1 mg/1 Zinc <10 mg/1 Fluoride <50 mg/1 Ammonia <1, 000 mg/1 S/cm

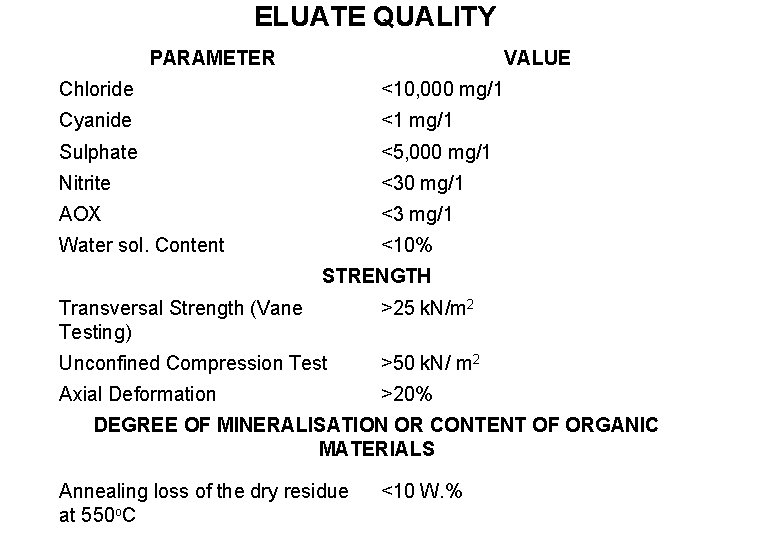

ELUATE QUALITY PARAMETER VALUE Chloride <10, 000 mg/1 Cyanide <1 mg/1 Sulphate <5, 000 mg/1 Nitrite <30 mg/1 AOX <3 mg/1 Water sol. Content <10% STRENGTH Transversal Strength (Vane Testing) >25 k. N/m 2 Unconfined Compression Test >50 k. N/ m 2 Axial Deformation >20% DEGREE OF MINERALISATION OR CONTENT OF ORGANIC MATERIALS Annealing loss of the dry residue at 550 o. C <10 W. %

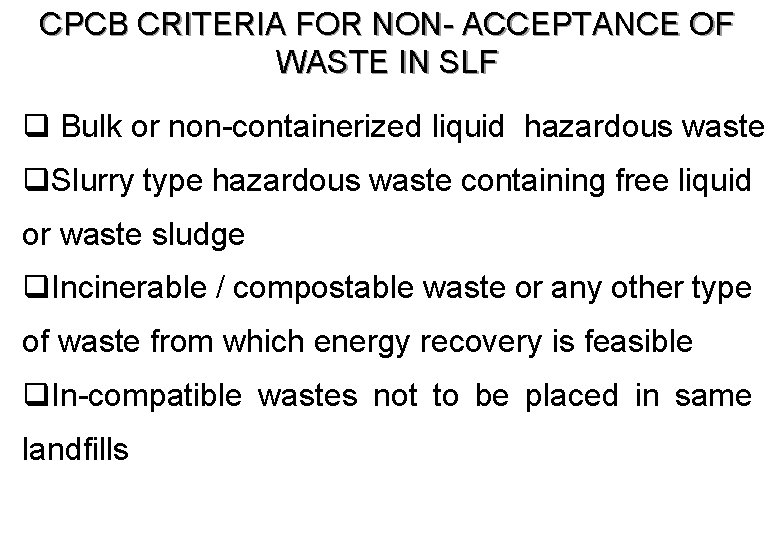

CPCB CRITERIA FOR NON- ACCEPTANCE OF WASTE IN SLF q Bulk or non-containerized liquid hazardous waste q. Slurry type hazardous waste containing free liquid or waste sludge q. Incinerable / compostable waste or any other type of waste from which energy recovery is feasible q. In-compatible wastes not to be placed in same landfills

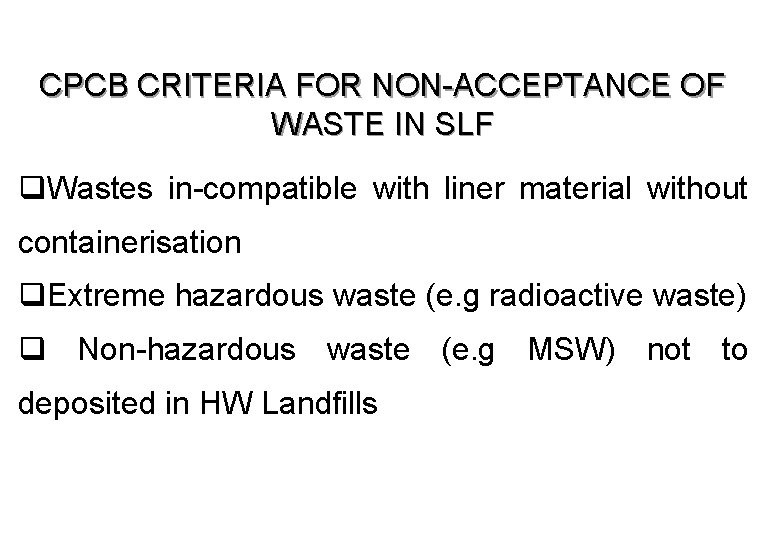

CPCB CRITERIA FOR NON-ACCEPTANCE OF WASTE IN SLF q. Wastes in-compatible with liner material without containerisation q. Extreme hazardous waste (e. g radioactive waste) q Non-hazardous waste (e. g MSW) not to deposited in HW Landfills

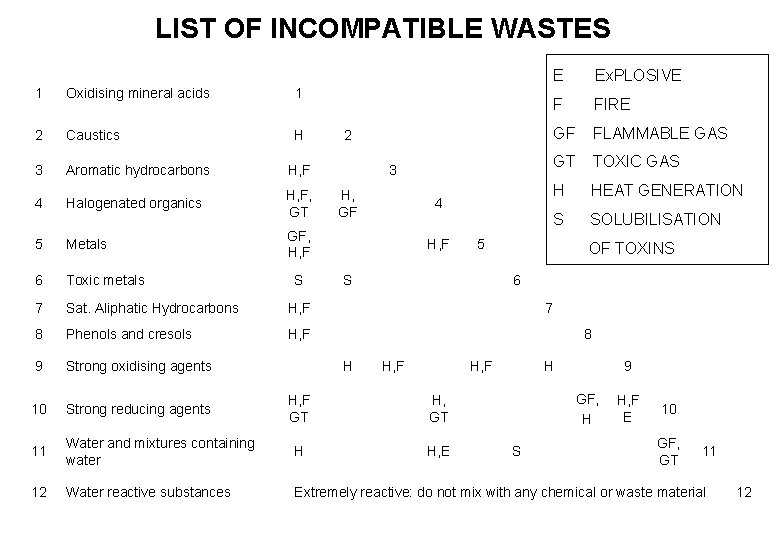

LIST OF INCOMPATIBLE WASTES 1 Oxidising mineral acids 1 2 Caustics H 3 Aromatic hydrocarbons H, F 4 Halogenated organics H, F, GT 5 Metals GF, H, F 6 Toxic metals 7 Sat. Aliphatic Hydrocarbons H, F 8 Phenols and cresols H, F 9 Strong oxidising agents 10 Strong reducing agents 11 12 S 2 3 H, GF 4 H, F E Ex. PLOSIVE F FIRE GF FLAMMABLE GAS GT TOXIC GAS H HEAT GENERATION S SOLUBILISATION 5 S OF TOXINS 6 7 8 H H, F H 9 GF, H H, F GT H, GT Water and mixtures containing water H H, E Water reactive substances Extremely reactive: do not mix with any chemical or waste material S H, F E 10 GF, GT 11 12

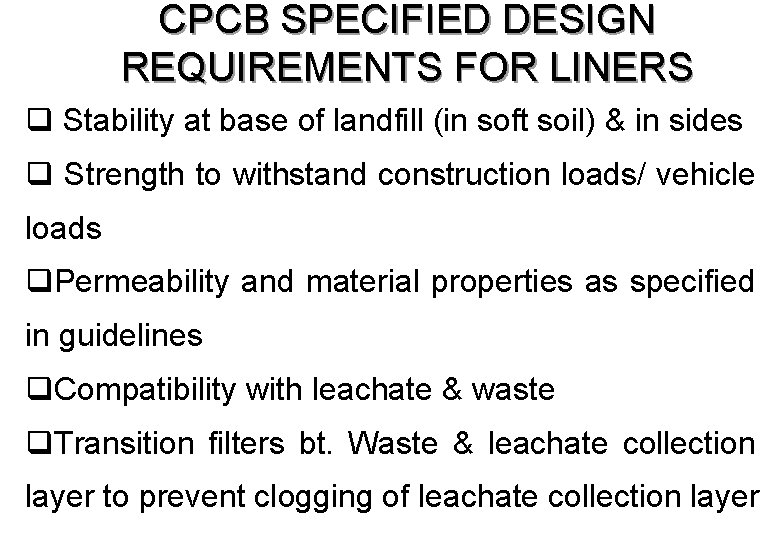

CPCB SPECIFIED DESIGN REQUIREMENTS FOR LINERS q Stability at base of landfill (in soft soil) & in sides q Strength to withstand construction loads/ vehicle loads q. Permeability and material properties as specified in guidelines q. Compatibility with leachate & waste q. Transition filters bt. Waste & leachate collection layer to prevent clogging of leachate collection layer

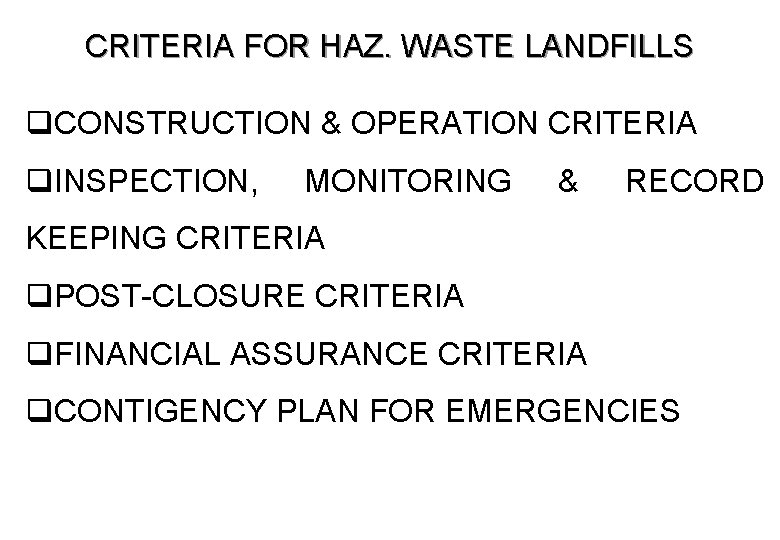

CRITERIA FOR HAZ. WASTE LANDFILLS q. CONSTRUCTION & OPERATION CRITERIA q. INSPECTION, MONITORING & RECORD KEEPING CRITERIA q. POST-CLOSURE CRITERIA q. FINANCIAL ASSURANCE CRITERIA q. CONTIGENCY PLAN FOR EMERGENCIES

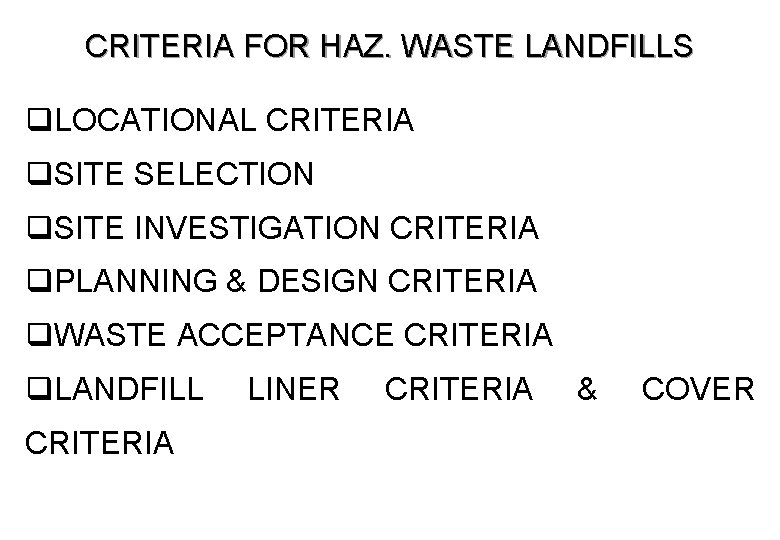

CRITERIA FOR HAZ. WASTE LANDFILLS q. LOCATIONAL CRITERIA q. SITE SELECTION q. SITE INVESTIGATION CRITERIA q. PLANNING & DESIGN CRITERIA q. WASTE ACCEPTANCE CRITERIA q. LANDFILL CRITERIA LINER CRITERIA & COVER

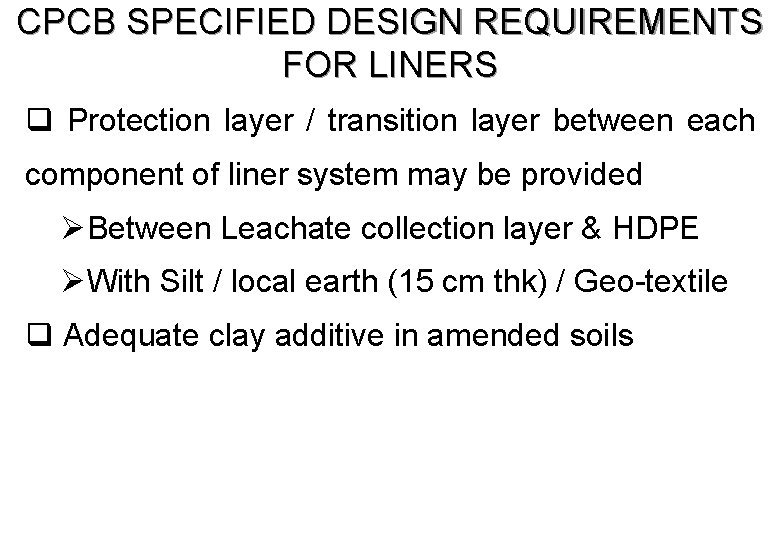

CPCB SPECIFIED DESIGN REQUIREMENTS FOR LINERS q Protection layer / transition layer between each component of liner system may be provided ØBetween Leachate collection layer & HDPE ØWith Silt / local earth (15 cm thk) / Geo-textile q Adequate clay additive in amended soils

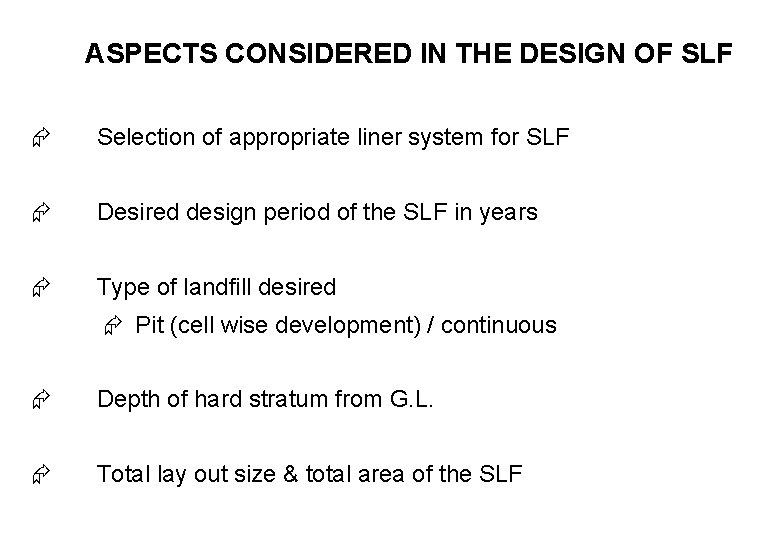

ASPECTS CONSIDERED IN THE DESIGN OF SLF Selection of appropriate liner system for SLF Desired design period of the SLF in years Type of landfill desired Pit (cell wise development) / continuous Depth of hard stratum from G. L. Total lay out size & total area of the SLF

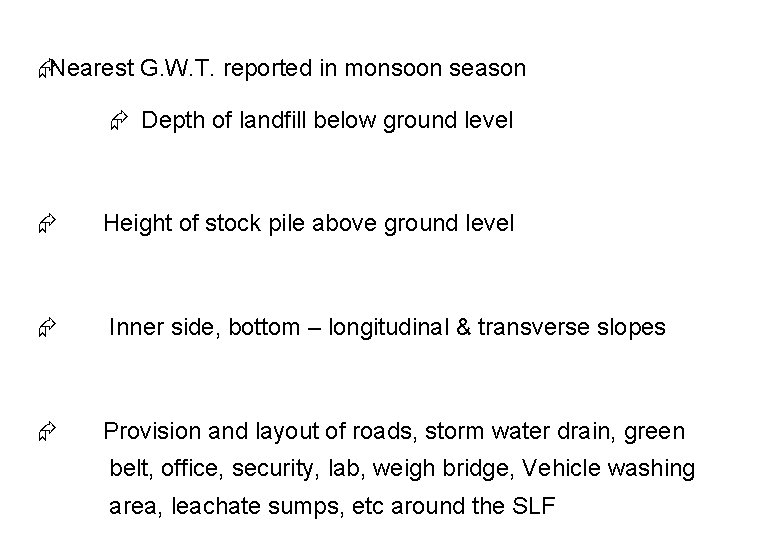

Nearest G. W. T. reported in monsoon season Depth of landfill below ground level Height of stock pile above ground level Inner side, bottom – longitudinal & transverse slopes Provision and layout of roads, storm water drain, green belt, office, security, lab, weigh bridge, Vehicle washing area, leachate sumps, etc around the SLF

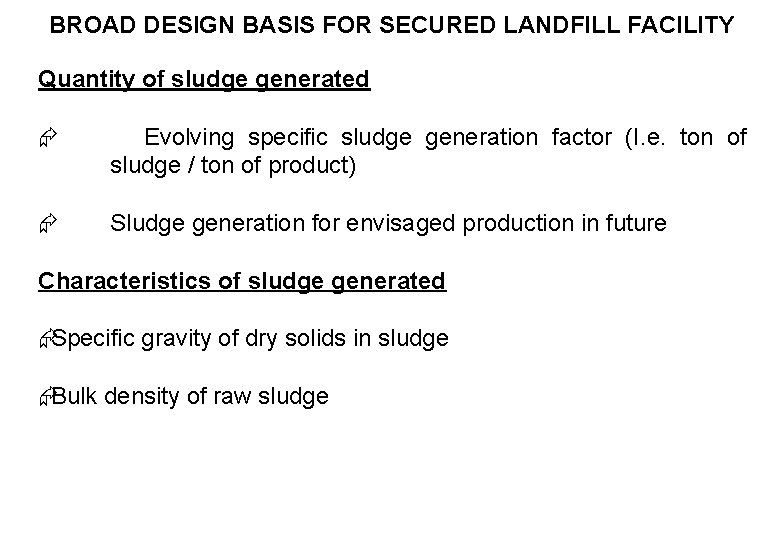

BROAD DESIGN BASIS FOR SECURED LANDFILL FACILITY Quantity of sludge generated Evolving specific sludge generation factor (I. e. ton of sludge / ton of product) Sludge generation for envisaged production in future Characteristics of sludge generated Specific gravity of dry solids in sludge Bulk density of raw sludge

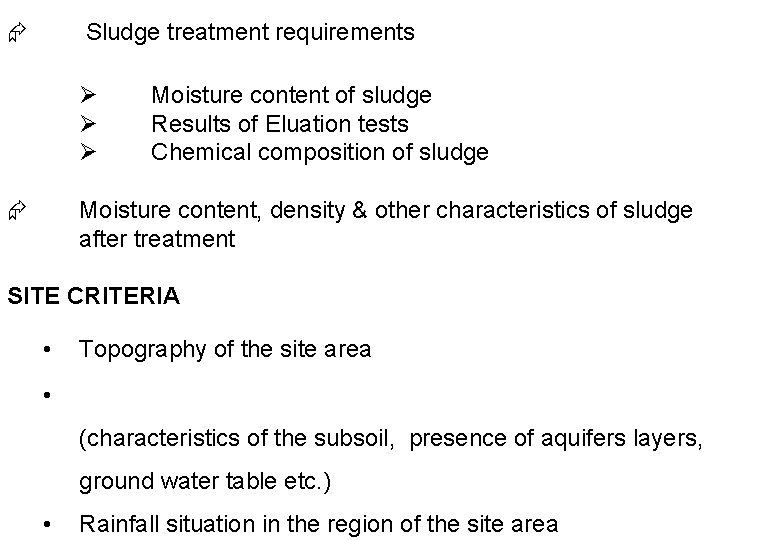

Sludge treatment requirements Ø Ø Ø Moisture content of sludge Results of Eluation tests Chemical composition of sludge Moisture content, density & other characteristics of sludge after treatment SITE CRITERIA • Topography of the site area • (characteristics of the subsoil, presence of aquifers layers, ground water table etc. ) • Rainfall situation in the region of the site area

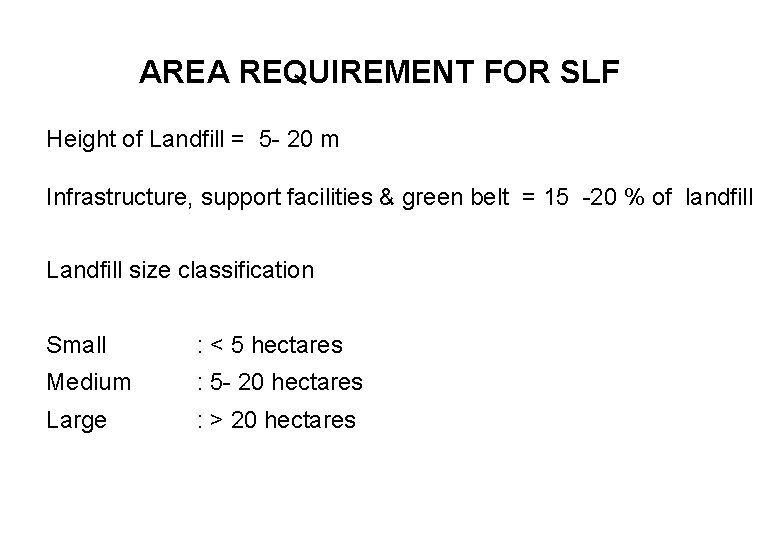

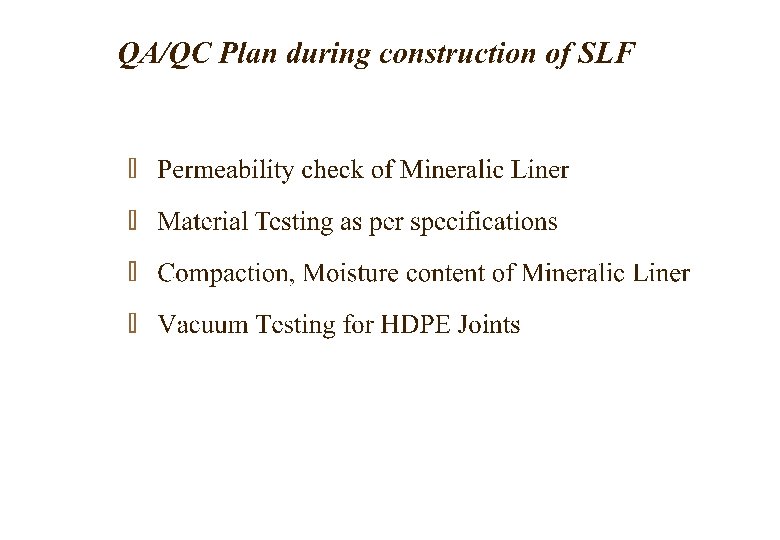

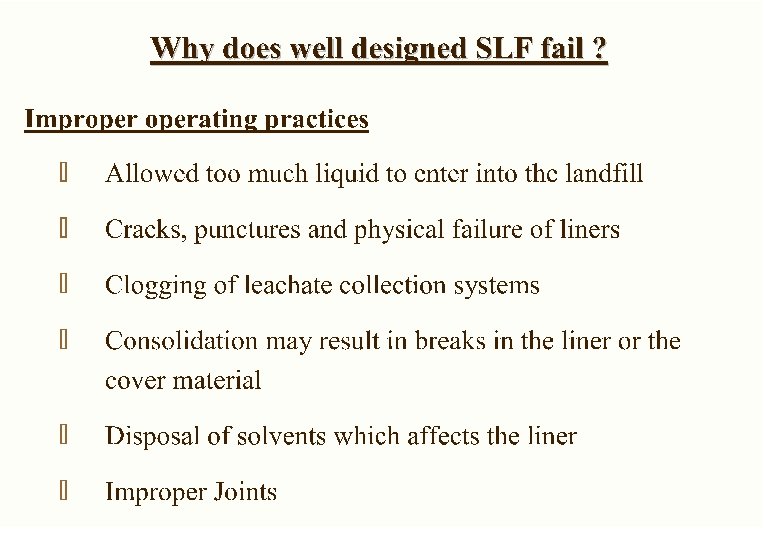

AREA REQUIREMENT FOR SLF Height of Landfill = 5 - 20 m Infrastructure, support facilities & green belt = 15 -20 % of landfill Landfill size classification Small : < 5 hectares Medium : 5 - 20 hectares Large : > 20 hectares
