Hazardous Materials Subpart H Subpart H Standards 1910

Hazardous Materials Subpart H

Subpart H Standards • • • 1910. 101 1910. 102 1910. 103 1910. 104 1910. 105 1910. 106 Compressed Gases Acetylene Hydrogen Oxygen Nitrous Oxide Flammable and Combustible Liquids

Subpart H Standards • 1910. 107 • 1910. 108 • 1910. 109 Spray Finishing using Flammable and Combustible Materials Dip Tanks containing Flammable and Combustible Liquids Explosives and Blasting Agents

Subpart H Standards • 1910. 110 • 1910. 111 • 1910. 119 • 1910. 120 Storage and Handling of Liquefied Petroleum Gases Storage and Handling of Anhydrous Ammonia Process Safety Management of Highly Hazardous Chemicals Hazardous Waste Operations and Emergency Response

Subpart H Standards • 1910. 123 • 1910. 124 Dipping and coating operations: Coverage and Definitions General Requirements for Dipping and Coating Operations

Subpart H Standards • 1910. 125 Additional Requirements for Dipping and Coating Operations that use Flammable or Combustible Liquids • 1910. 126 Additional Requirements for Special Dipping and Coating Operations

Definitions • Hazardous Chemical • Occupational Safety & Health Act (OSHA) term that denotes any chemical that would be a risk to employees if exposed in the work place

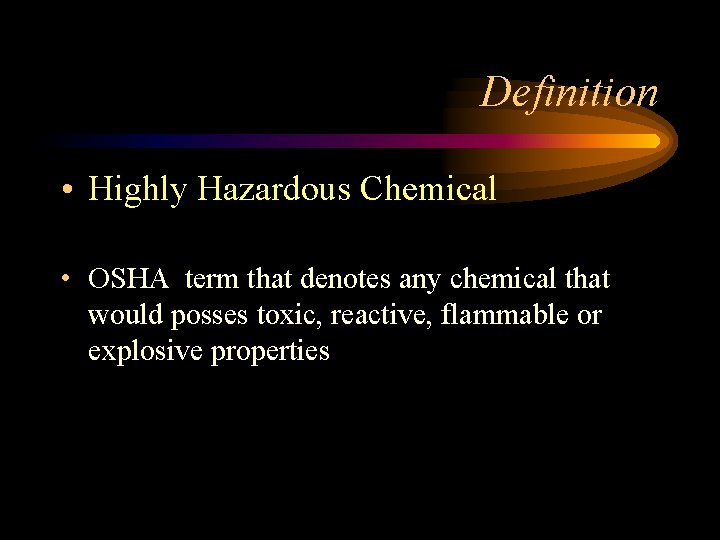

Definition • Highly Hazardous Chemical • OSHA term that denotes any chemical that would posses toxic, reactive, flammable or explosive properties

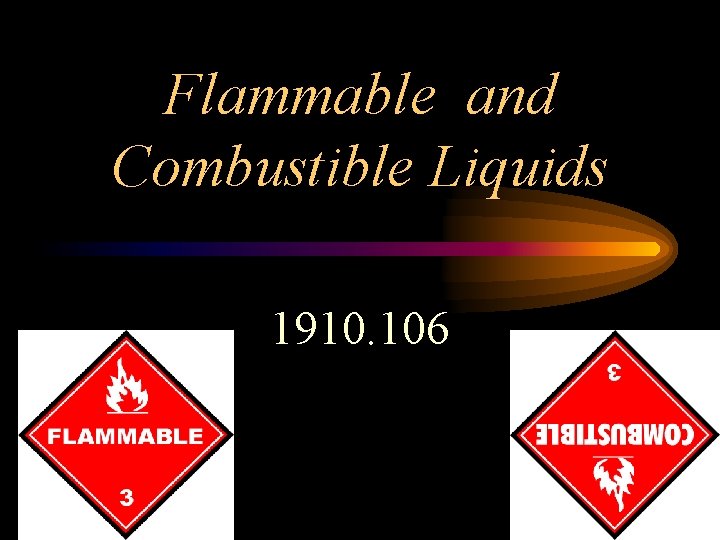

Flammable and Combustible Liquids 1910. 106

Definitions • Aerosol shall mean a material which is dispensed from its container as a mist, spray, or foam by a propellant under pressure

Definitions • Approved shall mean an approved or listed by a national recognized testing laboratory • Such as: – Underwriters Laboratories (UL) or – Factory Mutual (FM)

Definitions • Boiling Point • Boiling point shall mean the boiling point of a liquid at a pressure of 14. 7 pounds per square inch absolute (psia). The pressure is equivalent to 760 millimeters of mercury (760 mm Hg) • Liquid changes into a vapor

Definitions • Boiling Point • At temperatures above the boiling, the pressure of the atmosphere can no longer hold the liquid in the liquid state and bubbles begin to form. • The lower the boiling point, the greater the vapor pressure at normal ambient temperatures and consequently the greater the risk.

Definitions • Container shall mean any can, barrel, or drum

Definitions • Closed Container • Closed container shall mean a container so sealed by means of a lid or other device that neither liquid or vapor will escape from it at ordinary temperatures

Definitions • Fire Area • Fire area shall mean an area of a building separated from the remainder of the building by construction having a fire resistance of at least 1 hour and having all communicating openings properly protected by an assembly having a fire resistance rating of at least one hour.

Definitions • Flash Point • Flash point means the minimum temperature at which a liquid gives off vapor within a test vessel in sufficient concentration to form an ignitable mixture with air near the surface of the liquid. The flash point is normally an indication of susceptibility to ignition.

Definitions • Combustible Liquid • Combustible liquid means any liquid having a flash point at above 100°F (37. 8 °C). • Combustible liquids are divided into two classes: – Class III

Definitions • Class II Liquids • Class II liquids shall include those with a flash point at or above 100°F (37. 8°C) and below 140°F (60°C), except any mixture having components with flash points at 200°F (93. 3°C) or higher, the volume of which make up 99 percent or more of the total volume of the mixture

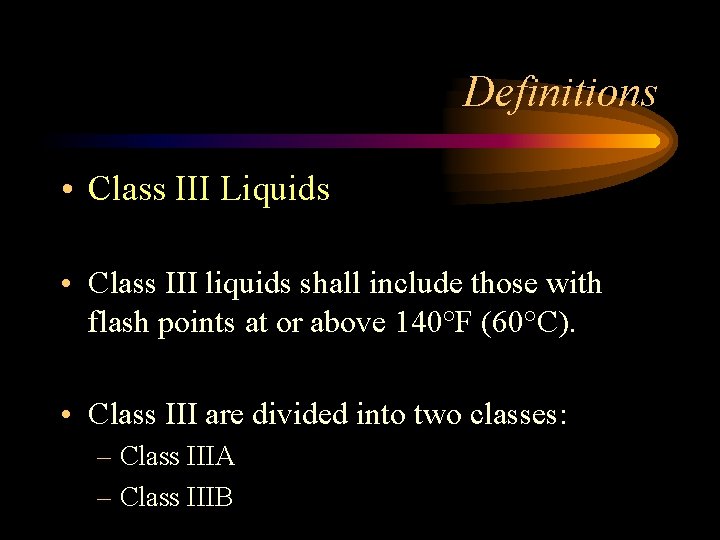

Definitions • Class III Liquids • Class III liquids shall include those with flash points at or above 140°F (60°C). • Class III are divided into two classes: – Class IIIA – Class IIIB

Definitions • Class IIIA Liquids • Class III liquids shall include those with flash points at or above 140°F (60°C) and below 200°F (93. 3°C), except any mixture having components with flash points of 200°F (93. 3°C), or higher, the total volume of which make up 99 percent or more of the total volume of the mixture

Definitions • Class IIIB Liquids • Class IIIB liquids shall include those with a flash point at or above 200°F (93. 3°C). • This section does not regulate Class IIIB liquids.

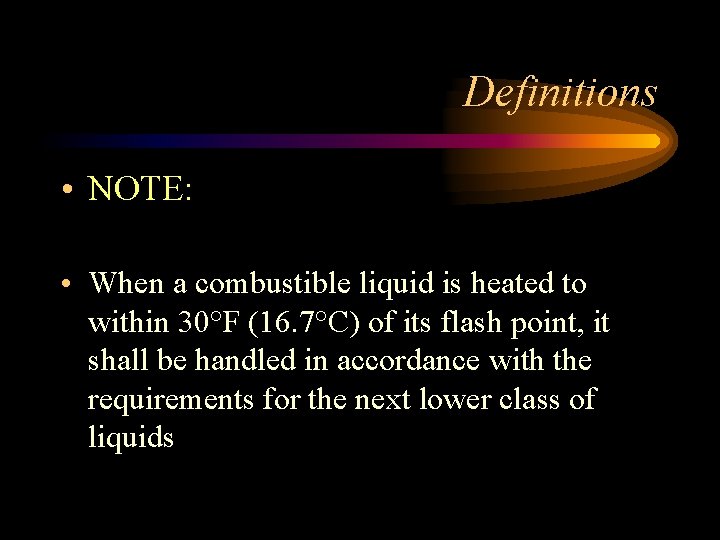

Definitions • NOTE: • When a combustible liquid is heated to within 30°F (16. 7°C) of its flash point, it shall be handled in accordance with the requirements for the next lower class of liquids

Definitions • Flammable Liquid • Flammable liquid means any liquid having a flash point below 100 °F (37. 8 °C) or higher, the total of which make up 99 percent or more of the total volume of the mixture. • Flammable liquids shall be known as Class I liquids

Definitions • Class I liquids are divided into three classes: • Class 1 A • Class 1 B • Class 1 C

Definitions • Class 1 A shall include liquids having flash points below 73 °F (22. 8°C) and having a boiling point below 100 °F (37. 8°C) • Examples: Ethyl Ether, Isopropyl Chloride, Pentane

Definitions • Class 1 B Liquids • Class 1 B shall include liquids having flash points below 73°F (22. 8°C) and having a boiling point at or above 100°F (37. 8°C) • Example: Acetone, Gasoline, Toulene

Definitions • Class 1 C shall include liquids having flash points at at or above 73°F (22. 8°C) and below 100°F (37. 8°C) • Examples: Amyl Alcohol, Naphtha, Xylene

Flash Point 200°F IIIA 140°F 100°F Combustible Flash Point II > 100°F IC Flammable 73°F Flash Point IA IB 100°F Boiling Point < 100°F

Definitions • Portable Tank • Portable tank shall mean a closed container having a liquid capacity over 60 U. S. gallons and not intended for fixed installation

Definitions • Safety Can • Safety can means an approved container, of not more than 5 gallons capacity, having a spring-closing lid and spout cover and so designed that it will safely relieve internal pressure when subject to fire exposure

Definitions • Vapor Pressure shall mean the pressure, measured in pounds per square inch (absolute) exerted by a volatile liquid as determined by the Standard Method of Test for Vapor Pressure of Petroleum Products by ASTM

Definitions • Vapor Pressure is a measure of a liquid’s propensity to evaporate. • The higher the vapor pressure, the more volatile the liquid and, thus, the more readily the liquid gives off vapors

Definitions • Ventilation as specified in this section is for the prevention of fire and explosion – It is considered adequate if it is sufficient to prevent accumulation of significant quantities of vapor-air mixtures in concentrations over one-fourth of the lower flammable limit

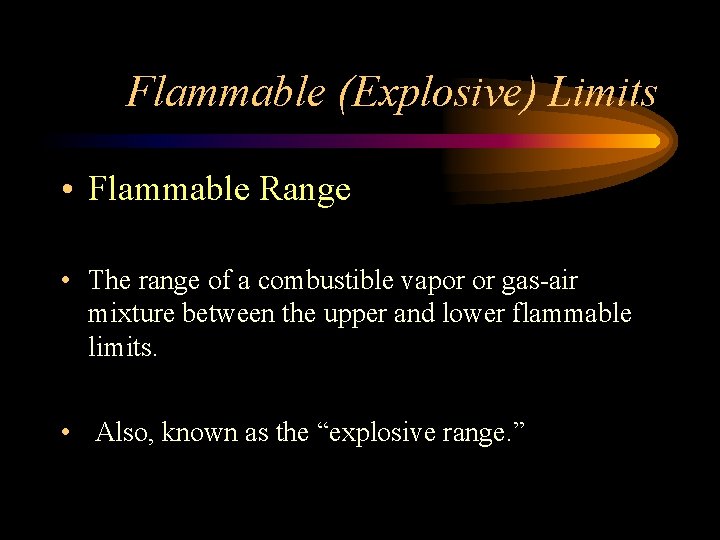

Flammable (Explosive) Limits • Flammable Range • The range of a combustible vapor or gas-air mixture between the upper and lower flammable limits. • Also, known as the “explosive range. ”

Flammable (Explosive) Limits • Lower Flammable Limit • The lowest concentration at which a combustible gas forms a flammable mixture. • Below the LFL there is too little combustible fuel to sustain a flame. • Also, known as “Lower Explosive Limit or LEL. ”

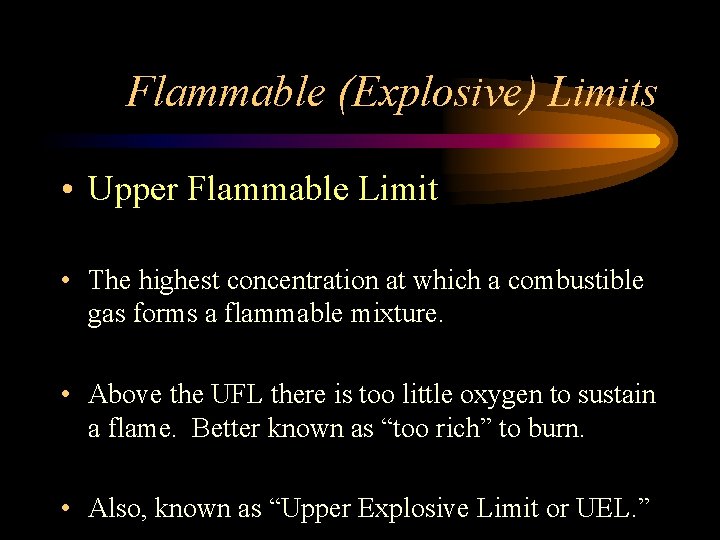

Flammable (Explosive) Limits • Upper Flammable Limit • The highest concentration at which a combustible gas forms a flammable mixture. • Above the UFL there is too little oxygen to sustain a flame. Better known as “too rich” to burn. • Also, known as “Upper Explosive Limit or UEL. ”

Flammable (Explosive) Limits • Hazardous Material LFL • • • 1. 9 3. 0 1. 4 4. 0 2. 1 Butane Ethylene Oxide Gasoline Hydrogen Isopropyl Alcohol Propane UFL 8. 5 100. 0 7. 6 75. 0 12. 7 9. 5

Container and Portable Tank Storage • This section applies only to the storage of flammable and combustible liquids in drums or other containers not exceeding 60 gallons individual capacity and portable tanks of less than 660 gallons individual capacity.

Container and Portable Tank Storage • On approved containers and portable tanks may be used to store flammable and combustible liquids • Metal containers and portable tanks must meet DOT requirements

Design, Construction and Capacity of Storage Cabinets • Not more than 60 gallons of Class I and/ or Class II liquids, or not more than 120 gallons of Class III liquids may be stored in an individual cabinet

Design, Construction and Capacity of Storage Cabinets • The standard permits both metal and wooden storage cabinets • Cabinets shall be designed and constructed to limit internal temperatures to not more than 325°F when subject to a standardized 10 -minute fire test

Design, Construction and Capacity of Storage Cabinets • The bottom, top, door, and sides of metal cabinets shall be at least 18 gauge sheet metal and double walled with a 1 -inch air space • The door shall be provided with a three point lock and the door sill shall be raised at least 2 -inches above the bottom of the cabinet

Design and Construction of Inside Storage Rooms • Construction is to comply with test specifications outlined in NFPA 251 • Openings to other rooms or buildings shall be provided with non-combustible liquidtight raised sills or ramps at least 4 -inches in height, or the floor in the storage area shall be at least 4 -inches below the surrounding floor

Design and Construction of Inside Storage Rooms • Opening shall be provided with approved self-closing fire doors • The room shall be liquid tight where the floor joins the floor • Electrical wiring for Class I liquids will comply with Class I, Division 2 hazardous locations

Design and Construction of Inside Storage Rooms • In each storage room, an aisle of at least feet in width will be maintained • Containers over 30 gallons capacity shall not be stacked • Containers will be at least 3 feet from sprinkler heads 3

Fire Control • At least one portable fire extinguisher having a rating of not less than 12 -B units shall be located outside of, but not more than 10 feet from, the door opening into any room used for storage.

Maximum Quantities • The quantity of liquid that may be located outside of an inside storage room or storage cabinet in a building or in any one fire area of a building shall not exceed: – 25 gallons of Class IA liquids in containers – 120 gallons of Class IB, IC, II, or III liquids in containers – 660 gallons of Class IB, IC, II, or III liquids in a single portable tank.

Spray Finishing 1910. 107

Definitions • Aerated Solid Powders – Aerated powders shall mean any powdered material used as a coating material which shall be fluidized within a container by passing air uniformly from below. It is common practice to fluidize such materials to form a fluidized powder bed and then dip the part to be coated into the bed in a manner similar to that used in liquid dipping. Such beds are also used as sources for powder spray operation

Definitions • Spraying Area • Any area in which dangerous quantities of flammable vapors or mists, or combustible residues, dusts, or deposits are present due to the operation of spraying processes.

Definitions • Spray Booth • A power-ventilated structure provided to enclose or accommodate a spraying operation to confine and limit the escape of spray, vapor, and residue, and to safely conduct or direct them to an exhaust system

Definitions • Waterwash spray booth • A spray booth equipped with a water washing system designed to minimize dusts or residues entering exhaust ducts and to permit the recovery of overspray finishing material

Definitions • Dry spray booth • A spray booth not equipped with a water washing system as described in subparagraph (4) of this paragraph.

Definitions • Dry spray booth • A dry spray booth may be equipped with – distribution or baffle plates to promote an even flow of air through the booth or cause the deposit of overspray before it enters the exhaust duct; or – overspray dry filters to minimize dusts or residues entering exhaust ducts; or – where dry powders are being sprayed, with powder collection systems so arranged in the exhaust to capture oversprayed material.

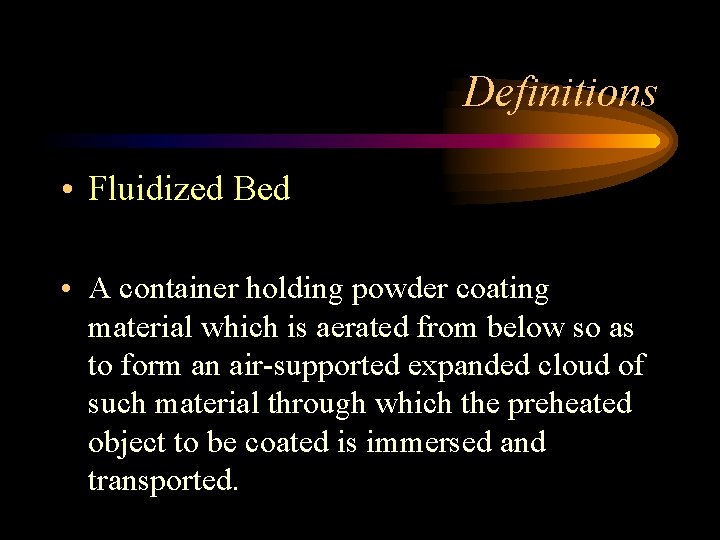

Definitions • Fluidized Bed • A container holding powder coating material which is aerated from below so as to form an air-supported expanded cloud of such material through which the preheated object to be coated is immersed and transported.

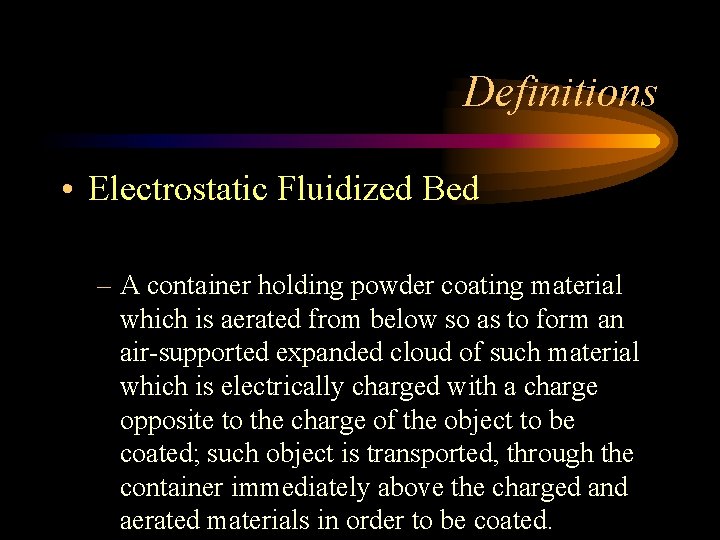

Definitions • Electrostatic Fluidized Bed – A container holding powder coating material which is aerated from below so as to form an air-supported expanded cloud of such material which is electrically charged with a charge opposite to the charge of the object to be coated; such object is transported, through the container immediately above the charged and aerated materials in order to be coated.

Separation of Operations • Each spray booth shall be separated from other operations by: • not less than 3 feet or • by a partition or wall to reduce danger 3 ft 8 feet 3 feet

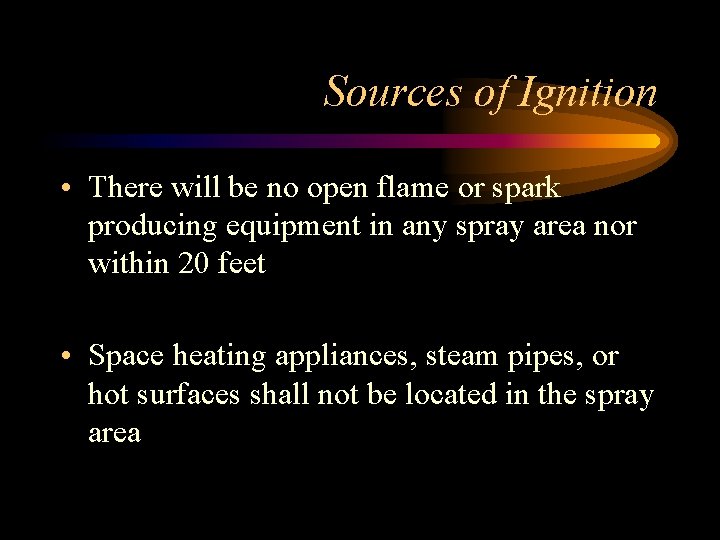

Sources of Ignition • There will be no open flame or spark producing equipment in any spray area nor within 20 feet • Space heating appliances, steam pipes, or hot surfaces shall not be located in the spray area

Electrical • Class I or Class II, Division 1 Locations • The interior of spray booths or rooms • The interior of exhaust ducts • Any area in the direct path of spray operations

Electrical • Class I or Class II, Division 2 Locations • For open spraying, all space outside of but within 20 feet horizontally and 10 feet vertically Spray Area 20’

Review • What is a flammable liquid? • What is a combustible liquid? • A Class 1 A flammable liquid has a flash point of less than?

Review • What is the maximum amount of a 1 A liquid that can be stored outside of a flammable storage cabinet or room? • A 12 B fire extinguisher must be located within _______ feet of flammable liquid storage room.

Review • Spray finishing can be a hazardous activity. – True or False • Each spray booth must be separated by ___ feet or a wall or partition from other operations. • Spray booths require ______ electrical installations.
