Hazard Communication aka RighttoKnow Globally Harmonized System GHS

Hazard Communication aka Right-to-Know Globally Harmonized System (GHS) Safety Data Sheets & Labeling Of Chemical Containers

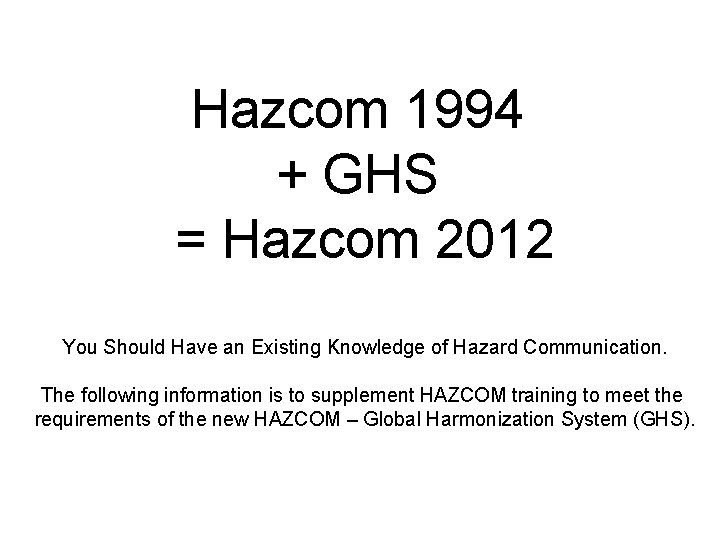

Hazcom 1994 + GHS = Hazcom 2012 You Should Have an Existing Knowledge of Hazard Communication. The following information is to supplement HAZCOM training to meet the requirements of the new HAZCOM – Global Harmonization System (GHS).

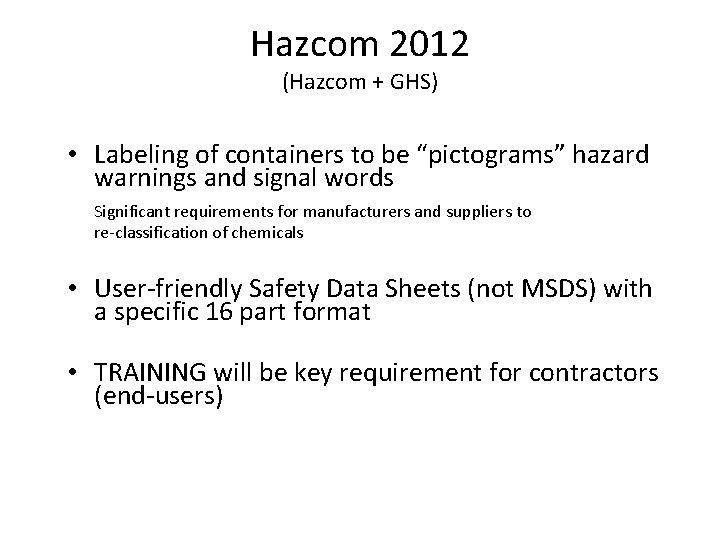

Hazcom 2012 (Hazcom + GHS) • Labeling of containers to be “pictograms” hazard warnings and signal words Significant requirements for manufacturers and suppliers to re-classification of chemicals • User-friendly Safety Data Sheets (not MSDS) with a specific 16 part format • TRAINING will be key requirement for contractors (end-users)

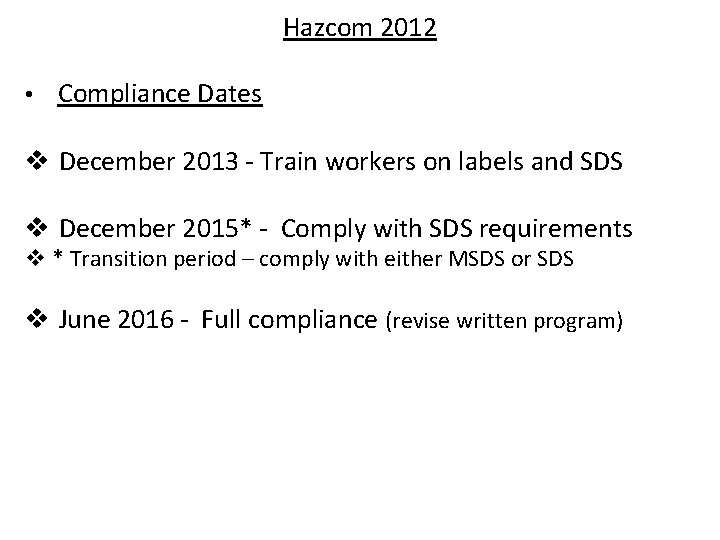

Hazcom 2012 • Compliance Dates v December 2013 - Train workers on labels and SDS v December 2015* - Comply with SDS requirements v * Transition period – comply with either MSDS or SDS v June 2016 - Full compliance (revise written program)

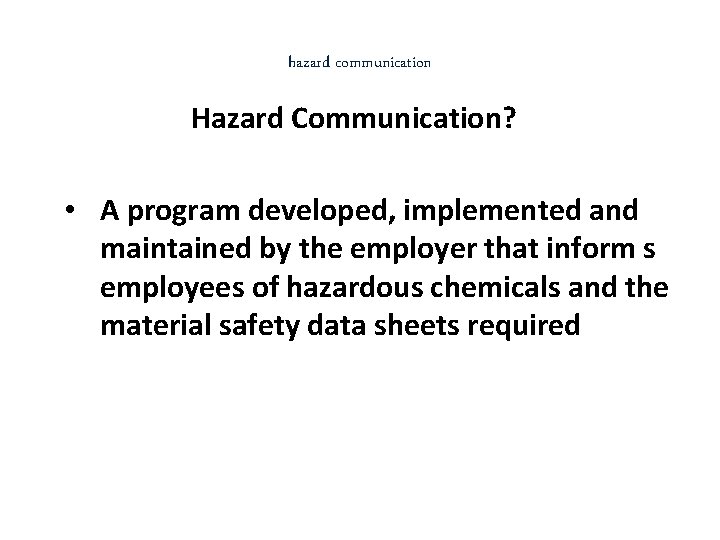

hazard communication Hazard Communication? • A program developed, implemented and maintained by the employer that inform s employees of hazardous chemicals and the material safety data sheets required

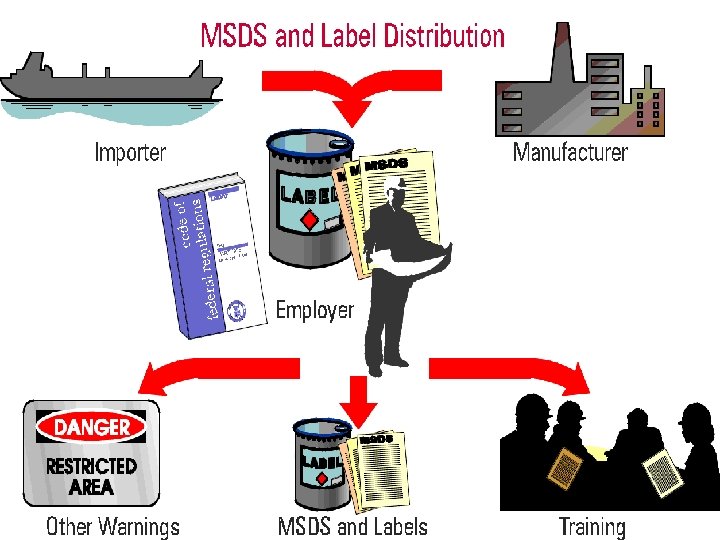

hazard communication What Must Employers Do? Employers must give employees the information we need to handle products safely at our worksites every day. Haz. Com requires employers to follow these four steps: • develop a chemical inventory, • develop a written Haz. Com program, • maintain labels and Safety Data Sheets, and • communicate hazard information to employees. The employer must list all hazardous chemicals used, stored, or released in the workplace. The employer must give the list to workers on request.

Why GHS? �Example: Flammable classification (by flashpoint) OSHA flashpoint = 0 -100 degrees F DOT flashpoint = 0 -140 degrees F EU flashpoint = 0 -131 degrees F GHS flashpoint = 0 -140 degrees F

Why GHS? • Example: acute oral toxicity LD 50 (mg/kg) OSHA highly toxic = < 50 DOT highly toxic Group 1 = < 5 highly toxic Group 2 = > 5 < 50 EU very toxic = < 25 GHS 2 levels of highly toxic ≤ 5 very toxic > 5 ≤ 50

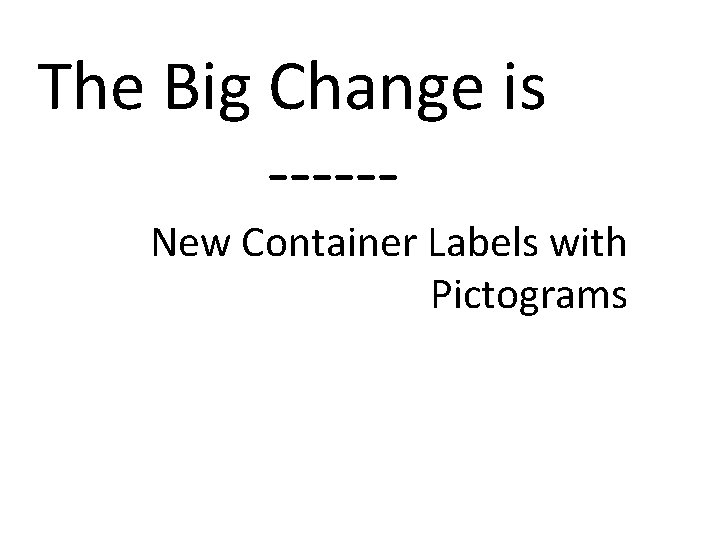

The Big Change is ------ New Container Labels with Pictograms

hazard communication Labels • Employers must maintain labels for every hazardous product on the job. Container labels tell: qwhat is in the product qany caution, warning, or danger qsome minimal control method q. Product identifier – chemical identity q. Supplier identification – name, address etc. q. Precautionary statements – advice * q. Hazard pictograms – visual warning • If you transfer a chemical to another container, the new container must be labeled, unless the quantity is just enough for one shift of work.

A product label or container label is NOT a substitute for a SDS

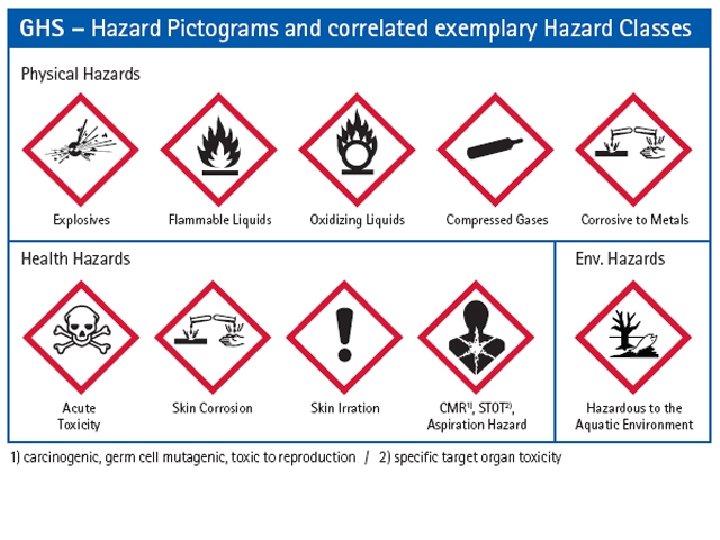

Health Hazard • • • Carcinogen Mutagenicity Reproductive Toxicity Respiratory Sensitizer Target Organ Toxicity Aspiration Toxicity

Corrosion • Skin Corrosion/Burns • Eye Damage • Corrosive to Metals

Flame • • • Flammables Pyrophorics Self-Heating Emits Flammable Gas Self-Reactives Organic Peroxides

Exclamation Mark Irritant (skin and eye) Skin Sensitizer Acute Toxicity Narcotic Effects Respiratory Tract Irritant • Hazardous to Ozone Layer (Non-Mandatory) • • •

Gas Cylinder • Gases Under Pressure

Exploding Bomb • Explosives • Self-Reactives • Organic Peroxides

Skull and Crossbones • Acute Toxicity (fatal or toxic)

Flame Over Circle • Oxidizers A substance that oxidizes another substance, especially one that supports the combustion of fuel; an oxidizing agent

Environment (Non-Mandatory) • Aquatic Toxicity

hazard communication Signal words – Used to emphasize hazard and discriminate between levels of hazard. The signal word indicates the relative degree of severity of a hazard. The signal words used in the GHS are "Danger" for the more severe hazards, and "Warning" for the less severe hazards

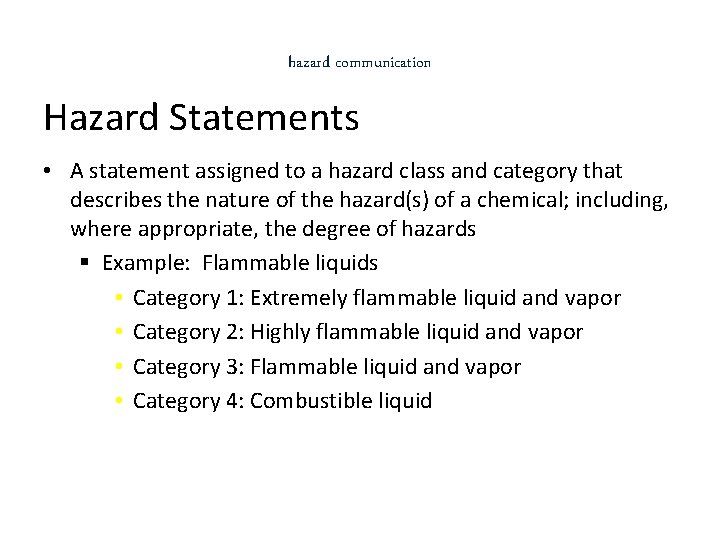

hazard communication Hazard Statements • A statement assigned to a hazard class and category that describes the nature of the hazard(s) of a chemical; including, where appropriate, the degree of hazards § Example: Flammable liquids • Category 1: Extremely flammable liquid and vapor • Category 2: Highly flammable liquid and vapor • Category 3: Flammable liquid and vapor • Category 4: Combustible liquid

hazard communication Example Chemical Hazard Statements • • • Fatal if swallowed Toxic if swallowed Harmful if swallowed May be harmful if swallowed Highly flammable liquid and vapor

hazard communication Labeling Precautionary statement –a phrase that describes recommended measures to be taken to minimize or prevent adverse effects resulting from exposure to a hazardous chemical or improper storage or handling. – i. e. wear protective gloves

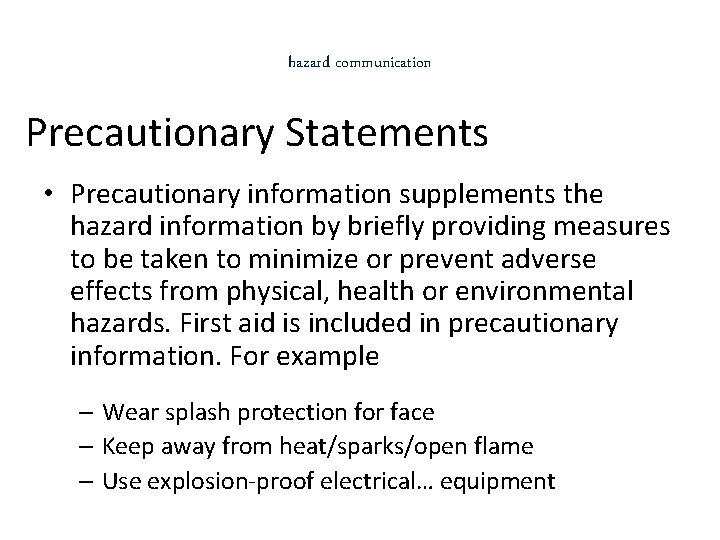

hazard communication Precautionary Statements • Precautionary information supplements the hazard information by briefly providing measures to be taken to minimize or prevent adverse effects from physical, health or environmental hazards. First aid is included in precautionary information. For example – Wear splash protection for face – Keep away from heat/sparks/open flame – Use explosion-proof electrical… equipment

SAMPLE LABEL Danger Gasoline Flammable Liquid Keep Away from Heat and Heat Sources – No Smoking

SAMPLE LABEL Sulfur Dioxide Warning Causes Eye Irritation Keep Container Tightly Closed

Example label: GHS label (i. e. inside shipping box for employees and end users) Toxi. Flam (Contains: XYZ) Danger! Toxic If Swallowed, Flammable Liquid and Vapor Do not eat, drink or use tobacco when using this product. Wash hands thoroughly after handling. Keep container tightly closed. Keep away from heat/sparks/open flame. - No smoking. Wear protective gloves and eye/face protection. Ground container and receiving equipment. Use explosion-proof electrical equipment. Take precautionary measures against static discharge. Use only non-sparking tools. Store in cool/well-ventilated place. IF SWALLOWED: Immediately call a POISON CONTROL CENTER or doctor/physician. Rinse mouth. In case of fire, use water fog, dry chemical, CO 2, or "alcohol" foam. See Material Safety Data Sheet for further details regarding safe use of this product. My. Company, My. Street, My. Town NJ 00000, Tel: 444 9999

NEW LABEL SAMPLE First aid measures are not mandatory on container labels.

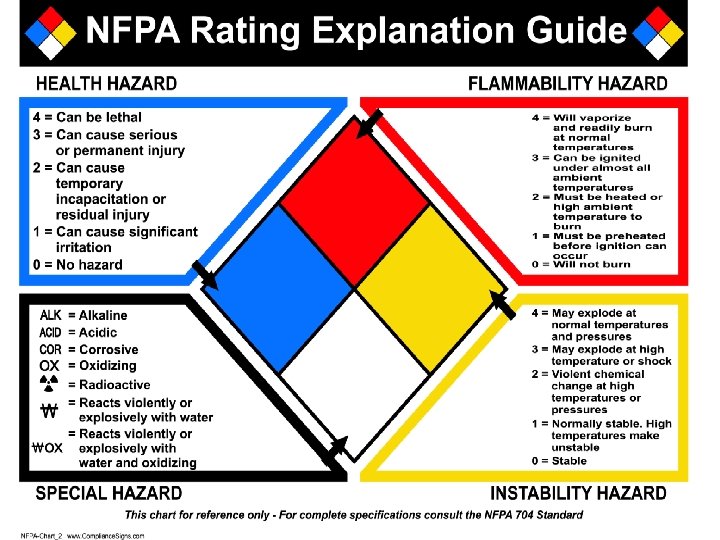

NFPA Warning System National Fire Protection Association A diamond-shaped NFPA hazard warning system was created by the National Fire Protection Association as information for firefighters. . The four diamonds identify different hazards: – Health hazard—blue diamond on left – Fire hazard—red diamond on top – Reactivity—yellow diamond on right – Special hazard—white diamond on bottom This may be included in new SDS, but is a DOT Requirement

HMIS May be included in new SDS

The Other Change is -----Flammable Liquids

1910. 106, Flammable Liquids • • New criteria established for flammable liquids Inconsistent warnings currently seen Four categories of Flammable Liquids (1 -4) Combustible liquids definition removed

Flammable Liquids Categories • • Category 1 – FP < 73. 4 F, BP ≤ 95 F Category 2 – FP < 73. 4 F, BP > 95 F Category 3 – FP ≥ 73. 4 F, BP ≤ 140 F Category 4 – FP > 140 F, BP≤ 199. 4 F

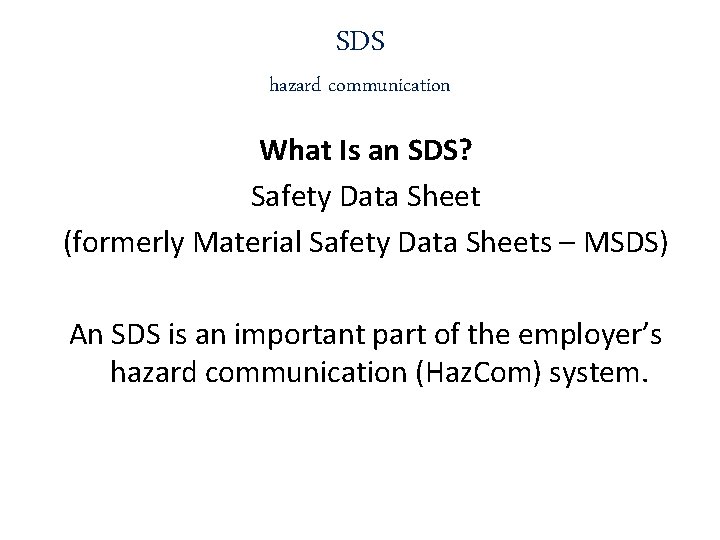

SDS hazard communication What Is an SDS? Safety Data Sheet (formerly Material Safety Data Sheets – MSDS) An SDS is an important part of the employer’s hazard communication (Haz. Com) system.

Safety Data Sheets hazard communication An SDS (safety data sheet): • provides information about a product used on the job and • is required for every hazardous material used on the job. You have a right to request an SDS for any material You work with. To get the right SDS, make sure the product identity or trade name appearing on the container label appears the same way on the MSDS.

SDS hazard communication SDS A safety data sheet is like a technical bulletin on hazardous chemicals. A safety data sheet provides information about a product used on the job and can answer several important questions for you: • what are the hazards? • how can you recognize if you are overexposed? • how can you protect yourself from the product? • how should fires or spills be handled? • what first aid should be given to an over exposed?

SDS hazard communication For example, you are heat welding a PVC membrane. Your eyes are watering. • Wouldn’t it make you think, “Is heat welding this PVC membrane causing my eyes to water? ” Or maybe “If this stuff can cause my eyes to water, what else might it do? ” • With an SDS for the PVC membrane, you can answer these questions.

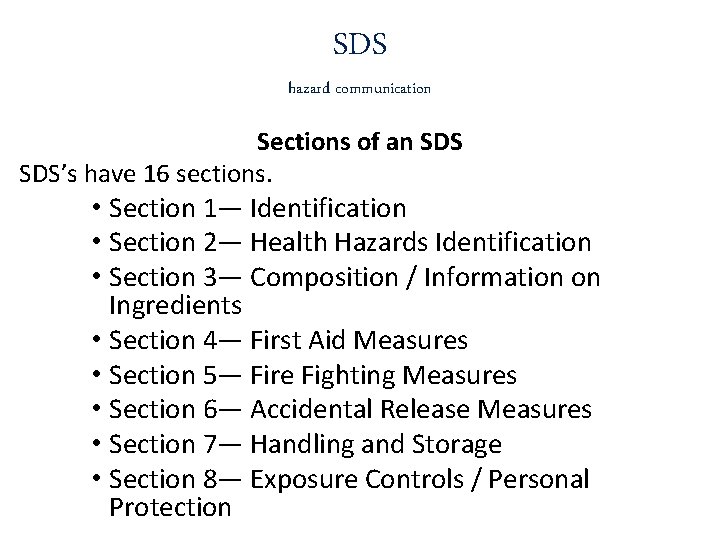

SDS hazard communication Sections of an SDS’s have 16 sections. • Section 1— Identification • Section 2— Health Hazards Identification • Section 3— Composition / Information on Ingredients • Section 4— First Aid Measures • Section 5— Fire Fighting Measures • Section 6— Accidental Release Measures • Section 7— Handling and Storage • Section 8— Exposure Controls / Personal Protection

SDS hazard communication Sections of an SDS • Section 9 — Physical and Chemical Properties • Section 10 — Stability and Reactivity • Section 11 — Toxicological Information non-mandatory • Section 12 — Ecological Information • Section 13 — Disposal Considerations • Section 14 — Transport Information • Section 15 — Regulatory Information • Section 16 — Other Information

Section 1: Identification

Section 2: Hazard(s) Identification

Section 3: Composition/Information on Ingredients

Section 4: First-Aid Measures

Section 5: Fire-Fighting Measures

What Is Flash Point? The temperature at which a chemical releases enough vapors to ignite.

Section 6: Accidental Release Measures

Section 7: Handling and Storage

Section 8: Exposure Controls/Personal Protection • OSHA Permissible Exposure Limits (PELs), American Conference of Governmental Industrial Hygienists (ACGIH) Threshold Limit Values (TLVs), and any other exposure limit used or recommended by the chemical manufacturer, importer, or employer preparing the safety data sheet, where available.

Section 8: Exposure Controls/Personal Protection The PERMISSIBLE EXPOSURE LIMIT (PEL or OSHA PEL) is a legal limit in the United States for exposure of an employee to a chemical substance or physical agent. A CEILING LIMIT is one that may not be exceeded for any period of time, exposure is usually limited a one time exposure of 15 minutes or less.

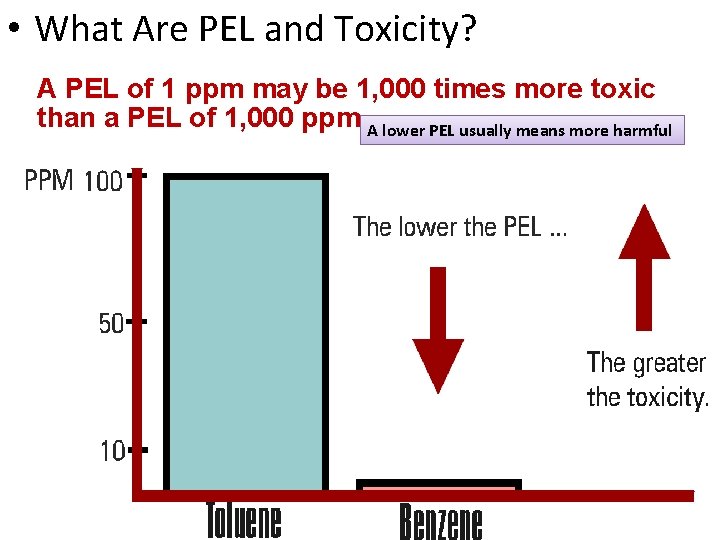

• What Are PEL and Toxicity? A PEL of 1 ppm may be 1, 000 times more toxic than a PEL of 1, 000 ppm. A lower PEL usually means more harmful

Section 8: Exposure Controls/Personal Protection • Appropriate engineering controls (e. g. , use local exhaust ventilation, put an enclosure around a hazard). • Recommendations for personal protective measures to prevent illness or injury from exposure to chemicals, such as personal protective equipment (PPE) (e. g. , appropriate types of eye, face, skin or respiratory protection needed based on hazards and potential exposure). • Any special requirements for PPE, protective clothing or respirators (e. g. , type of glove material, such as PVC or nitrile rubber gloves; and breakthrough time of the glove material). Personal protective equipment (PPE) refers to protective clothing, helmets, goggles, or other garments or equipment designed to protect the wearer's body from injury.

Section 8: Exposure Controls/Personal Protection Continued on next page

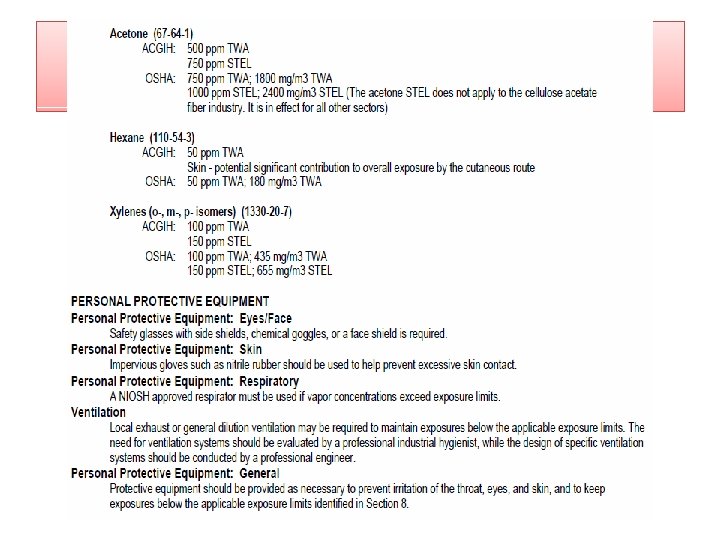

Section 8: Exposure Controls/Personal Protection

Section 9: Physical and Chemical Properties

Section 10: Stability and Reactivity A common example of two products that react with each other is ammonia and bleach and chlorine and alcohol

Section 11: Toxicological Information Formerly known as the Health Hazards Section • Information on the likely routes of exposure (inhalation, ingestion, skin and eye contact). The SDS should indicate if the information is unknown. • Description of the delayed, immediate, or chronic effects from short- and long-term exposure. Acute Effect: Adverse effect, whereby severe symptoms develop rapidly and lead quckly to a health crisis. These symptoms often subside when the exposure stops. Chronic Effect: Adverse effect, symptoms that develop slowly, due to long and continuous exposure to low concentrations of a hazardous substance. Such symptoms do not usually subside when the exposure stops. Opposite of acute effect.

Acute (short term) and chronic (long term). Eyes Respiratory System Skin

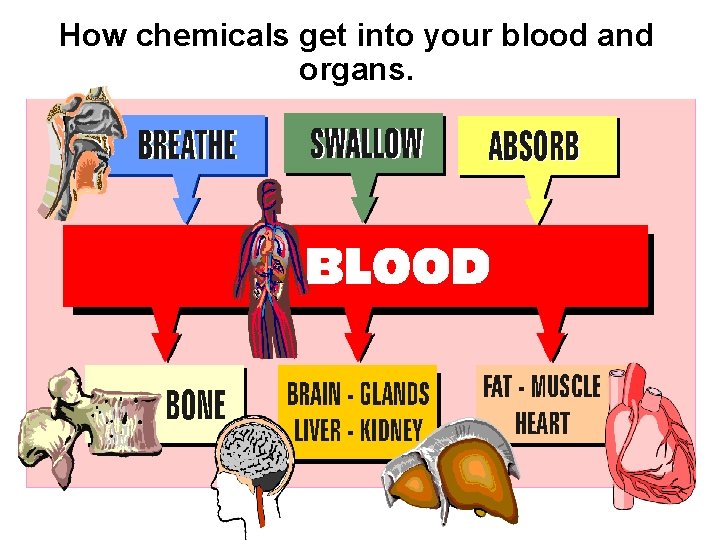

How chemicals get into your blood and organs.

Section 11: Toxicological Information

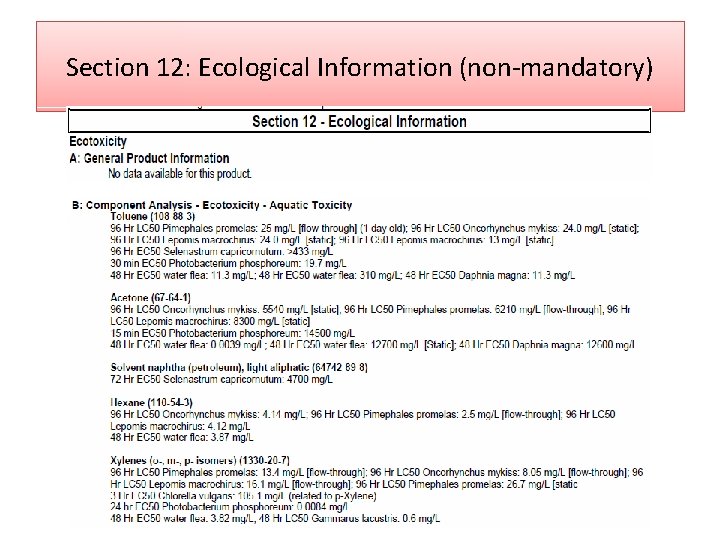

Section 12: Ecological Information (non-mandatory)

Section 13: Disposal Considerations (non-mandatory) This section should also refer the reader to Section 8 (Exposure Controls/Personal Protection) of the SDS

Section 14: Transport Information (non-mandatory) This section provides guidance on classification information for shipping and transporting of hazardous chemical(s) by road, air, rail, or sea. The information may include: • DOT Number • UN number (i. e. , four-figure identification number of the substance). • UN proper shipping name 1. • Transport hazard class(es)1. • Packing group number, if applicable, based on the degree of hazard 2.

Section 15: Regulatory Information (non-mandatory)

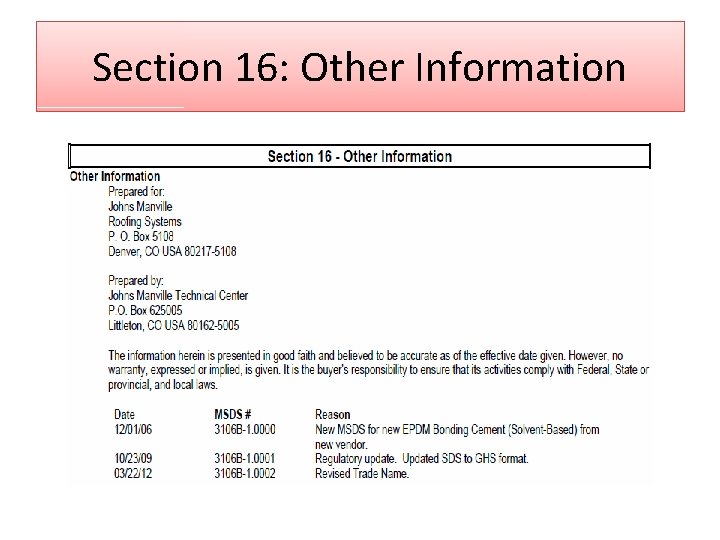

Section 16: Other Information

• QUESTIONS

SDS Quiz:

SDS Quiz: 1. OSHA’s Haz. Com Standard gives you a legal right to: a. sue your employer b. know about hazardous substances you work with c. hazardous duty pay d. an attorney 2. Haz. Com gives specific responsibilities to: a. employers b. distributors c. manufacturers d. all of the above

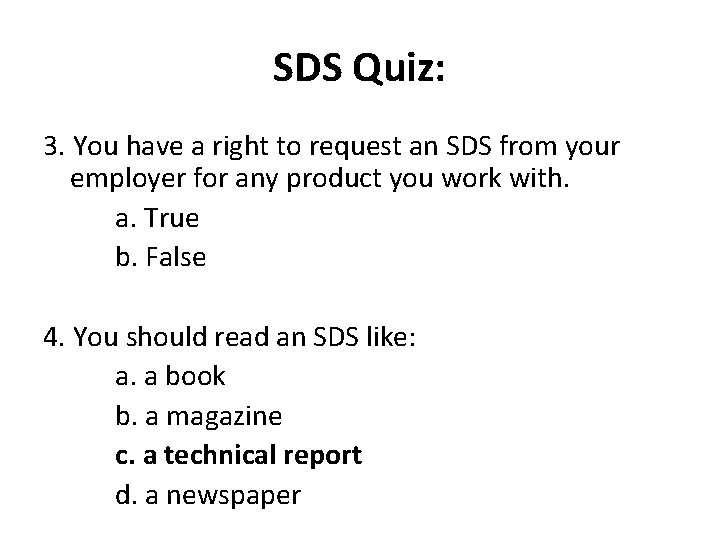

SDS Quiz: 3. You have a right to request an SDS from your employer for any product you work with. a. True b. False 4. You should read an SDS like: a. a book b. a magazine c. a technical report d. a newspaper

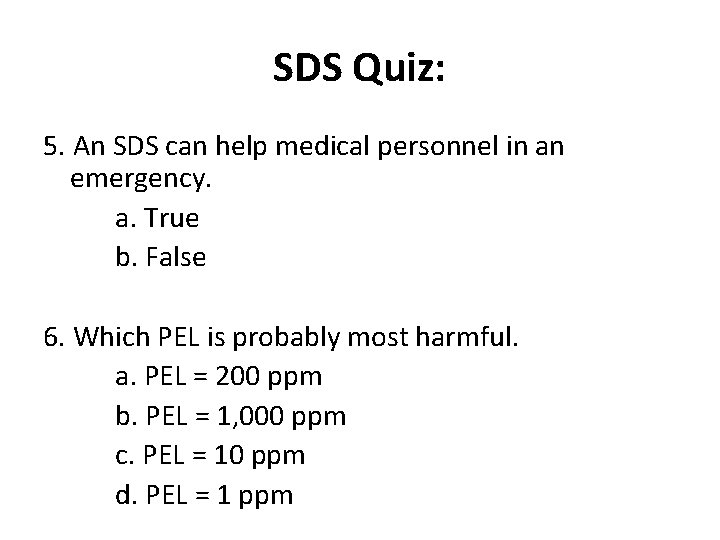

SDS Quiz: 5. An SDS can help medical personnel in an emergency. a. True b. False 6. Which PEL is probably most harmful. a. PEL = 200 ppm b. PEL = 1, 000 ppm c. PEL = 10 ppm d. PEL = 1 ppm

SDS Quiz: 5. An SDS can help medical personnel in an emergency. a. True b. False 6. For a highly toxic chemical, which PEL is probably most harmful. a. PEL = 200 ppm b. PEL = 1, 000 ppm c. PEL = 10 ppm d. PEL = 1 ppm

SDS Quiz: 7. Every chemical compound has its own CAS number. a. True b. False 8. The PEL or permissible exposure limit means the height at which you can safely work with a product for an 8 hour period. a. True b. False

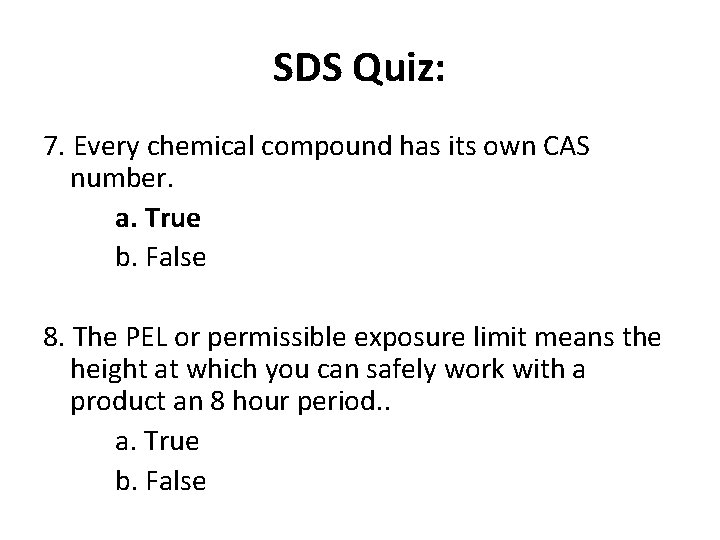

SDS Quiz: 7. Every chemical compound has its own CAS number. a. True b. False 8. The PEL or permissible exposure limit means the height at which you can safely work with a product an 8 hour period. . a. True b. False

SDS Quiz: 7. Every chemical compound has its own CAS number. a. True b. False 8. The PEL or permissible exposure limit means the height at which you can safely work with a product an 8 hour period. a. True b. False

SDS Quiz: 7. Every chemical compound has its own CAS number. a. True b. False 8. The PEL or permissible exposure limit means the height at which you can safely work with a product for an 8 hour period. a. True b. False

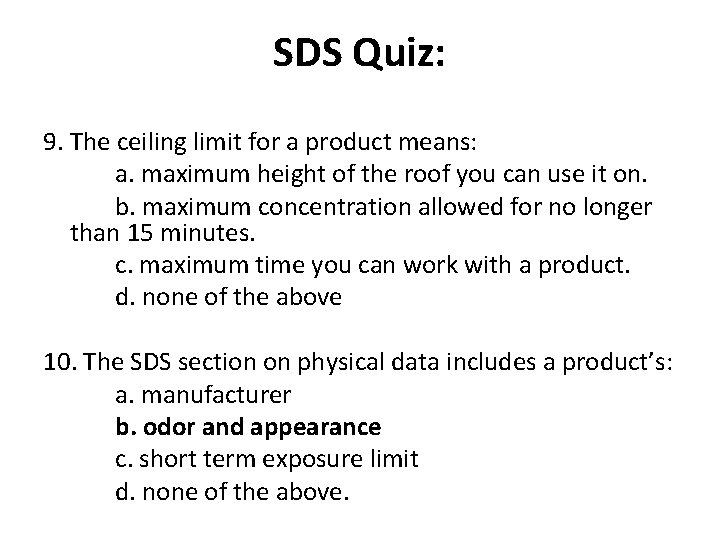

SDS Quiz: 9. The ceiling limit for a product means: a. maximum height of the roof you can use it on. b. maximum concentration allowed for no longer than 15 minutes. c. maximum time you can work with a product. d. none of the above 10. The SDS section on physical data includes a product’s: a. manufacturer b. odor and appearance c. short term exposure limit d. none of the above.

SDS Quiz: 11. A chemical’s vapor density tells whether its vapor is heavier or lighter than: a. Lead b. water c. air d. helium 12. A chemical’s specific gravity tells whether it is heavier or lighter than: a. lead b. water c. air d. helium

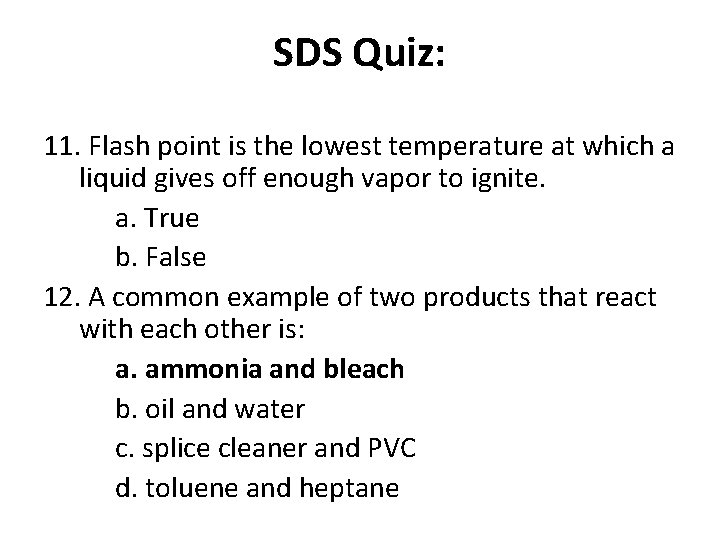

SDS Quiz: 11. Flash point is the lowest temperature at which a liquid gives off enough vapor to ignite. a. True b. False 12. A common example of two products that react with each other is: a. ammonia and bleach b. oil and water c. splice cleaner and PVC d. toluene and heptane

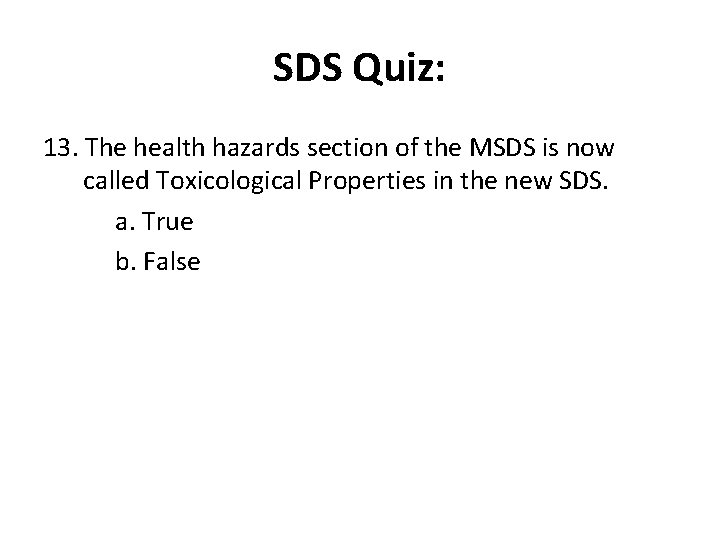

SDS Quiz: 13. The health hazards section of the MSDS is now called Toxicological Properties in the new SDS. a. True b. False
