Hawaii Moon Base Reboot What we need to do • Review our goals & organization • Determine what we need on the Moon Base • Figure out what information we need • Find sources of information & gather data • Put together the pieces • Build it, Model it, Print it, Assemble it

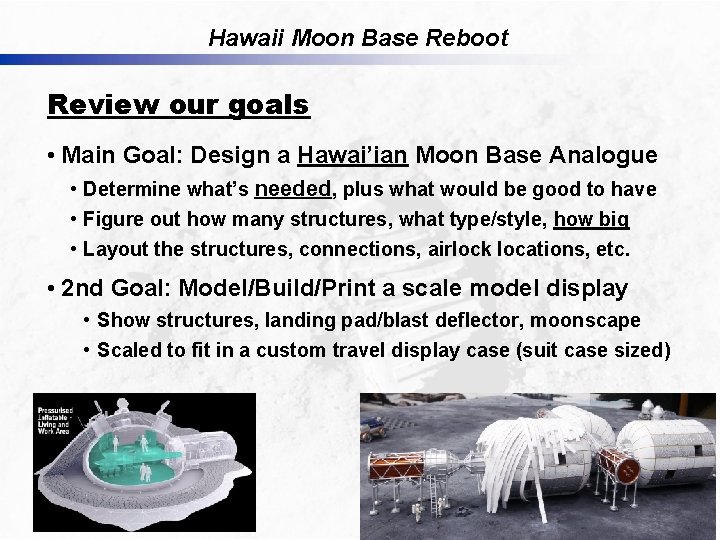

Hawaii Moon Base Reboot Review our goals • Main Goal: Design a Hawai’ian Moon Base Analogue • Determine what’s needed, plus what would be good to have • Figure out how many structures, what type/style, how big • Layout the structures, connections, airlock locations, etc. • 2 nd Goal: Model/Build/Print a scale model display • Show structures, landing pad/blast deflector, moonscape • Scaled to fit in a custom travel display case (suit case sized)
Hawaii Moon Base Reboot Moon Base Basic Requirements • Provide a place for a team of 4 to live & work for 6 months in a Moon-like environment (spacesuits, airlocks, etc. ) • Make it look & operate like a real Moon Base. • Keep it small, keep it light. • Costs $60, 000 to put 1 lb. on the Moon. • Putting an microwave oven on the Moon would cost $1, 920, 000 • Crazy ideas are okay. They just might work, or spark a breakthrough. • Assumptions for the real Moon Base: • Phase 1 is just the basics, minimum to survive & prep for Phase 2 • Building exterior 3 -D printed moon dirt, interior is inflated (ESA model) • Supplies & equipment arrives from Earth • Phase 2 has working farm, light fabrication, etc.
Hawaii Moon Base Reboot Assumptions to use • Initial Moon landings (Pre-Phase 1) • • Cargo, robots & basic habitat inflatable habitat How many buildings? How big? Don’t forget the workspace. How do you connect them together? How does all this work • Hawaii Moon Base: • Fully functional Phase 1 facility • Exploring, preparing for Phase 2 • Testing tech – recycling, repurposing, growing, printing, melting
Hawaii Moon Base Reboot Review our organization • Who’s on the team? How many schools? Do we need more? How do we get them? • We need to find an experienced professional to lead. Be an interface to Henk and to tech experts, preferably in Hawaii • Need a lead from each school. Who’s the leader? Who wants to be? • One school has a team name. Do we want one for the whole team? Maybe something that can grow into a multi-year, interschool collaboration? • Decide when to have meetings. Bi-weekly leader calls?
Hawaii Moon Base Reboot Determine what’s needed on the Moon Base • Think of your house. What things do you use daily? • Think of your daily routine. What do you do before school, when you get home from school? • Walk around your house with a notebook & record what you see. • How big are the rooms in the house? Bathroom, bedroom? Get a tape measure & measure the smallest bathroom, your bed, desk. • Now think about structures & “systems”. • Do you have a garage? what’s in it? • Is your house hot? Why not? Look at that system, inside & outside. Any switches/wires/tubes? • Where does your water come from? Is it hot? How? • Where’s the electricity come from? Find the circuit breaker panel. • Do you have a garden? What does your garden need?
Hawaii Moon Base Reboot Determine what’s needed on the Moon Base • What do you think is needed for the Moon Base? • Review your lists. Group them together when it makes sense. • How many buildings? How big? Don’t forget the workspace. • How do you connect them together? • How does all this work • What particular problems exist on the Moon • Light, dark, hot, cold, no air, moon dust, rocks, meteors, radiation • Power (how much? ) • Where can we find relevant information & ideas?
Hawaii Moon Base Reboot Find sources of information & gather data NASA § http: //www. nasa. gov/pdf/240373 main_06 -06 -08 -LSS%20 BAA%20 Compilation%20 of%20 briefings% § http: //spacearchitect. org/wp-content/uploads/2013/10/3 D-printed-moon-base-Sinter. Hab_membranes. jpg § http: //images. gizmag. com/inline/sinterhab-moon-base-4. jpg § http: //3. bp. blogspot. com/-ro 9 Bl 7 W 1 b. YE/T 6 GIAd. Xb. DHI/AAAADpk/a. Ni. VTj. MKUYs/s 640/NASA_Moon_base. gif D-printed-moon-base-5. jpg § https: //static. dezeen. com/uploads/2013/03/dezeen_3 § http: //spacearchitect. org/wp-content/uploads/2013/10/Lunar-Architecture-Team-studies-Hybrid-Inflatable-Habitatisometric-internal-view-NASA-Scott-Howe-Larry-Toups-Kriss-Kennedy-et-al-2008 -09. jpg § https: //www. newscientist. com/data/galleries/lunar-base-designs/8 inflatablesweb. jpg § https: //www. nasa. gov/sites/default/files/lightweight_materials 3. jpg
Hawaii Moon Base Reboot Find sources of information & gather data NASA 2008 Concept Inflated structures based on Bigelow Aerospace products in orbit

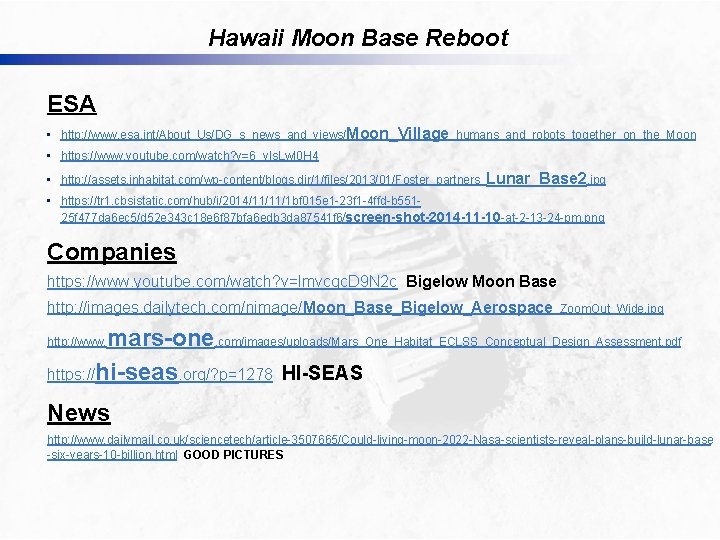

Hawaii Moon Base Reboot ESA • http: //www. esa. int/About_Us/DG_s_news_and_views/Moon_Village_humans_and_robots_together_on_the_Moon • https: //www. youtube. com/watch? v=6_y. Is. Lw. I 0 H 4 • http: //assets. inhabitat. com/wp-content/blogs. dir/1/files/2013/01/Foster_partners_Lunar_Base 2. jpg • https: //tr 1. cbsistatic. com/hub/i/2014/11/11/1 bf 015 e 1 -23 f 1 -4 ffd-b 55125 f 477 da 6 ec 5/d 52 e 343 c 18 e 6 f 87 bfa 6 edb 3 da 87541 f 6/screen-shot-2014 -11 -10 -at-2 -13 -24 -pm. png Companies https: //www. youtube. com/watch? v=lmvcgc. D 9 N 2 c Bigelow Moon Base http: //images. dailytech. com/nimage/Moon_Base_Bigelow_Aerospace_Zoom. Out_Wide. jpg mars-one. com/images/uploads/Mars_One_Habitat_ECLSS_Conceptual_Design_Assessment. pdf https: //hi-seas. org/? p=1278 HI-SEAS http: //www. News http: //www. dailymail. co. uk/sciencetech/article-3507665/Could-living-moon-2022 -Nasa-scientists-reveal-plans-build-lunar-base -six-years-10 -billion. html GOOD PICTURES

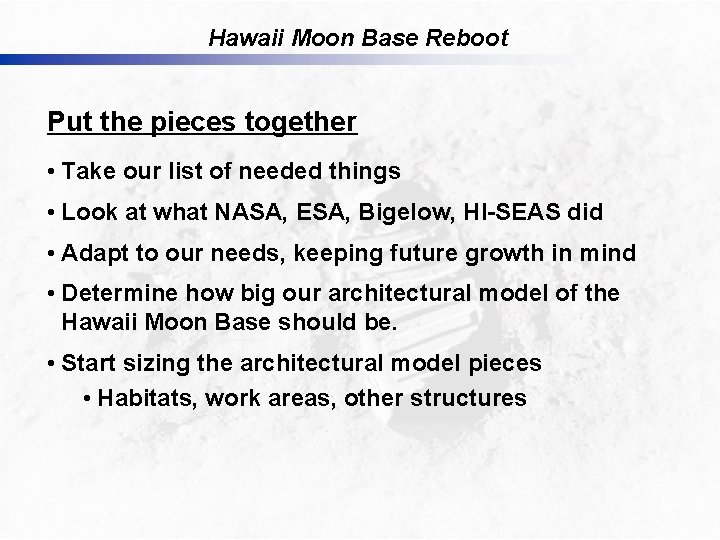

Hawaii Moon Base Reboot Put the pieces together • Take our list of needed things • Look at what NASA, ESA, Bigelow, HI-SEAS did • Adapt to our needs, keeping future growth in mind • Determine how big our architectural model of the Hawaii Moon Base should be. • Start sizing the architectural model pieces • Habitats, work areas, other structures
Hawaii Moon Base Reboot Build it, Model it, Print it, Assemble it • Review our goals & organization • Figure out what information we need • Find sources of information & gather data • Put together the pieces
Hawaii Moon Base Reboot EXAMPLES
Background, Early Concepts Everything must be buried under 2 -3 meters of soil to protect against radiation, temperature changes (-200 F to +250 F), and small meteor impact.

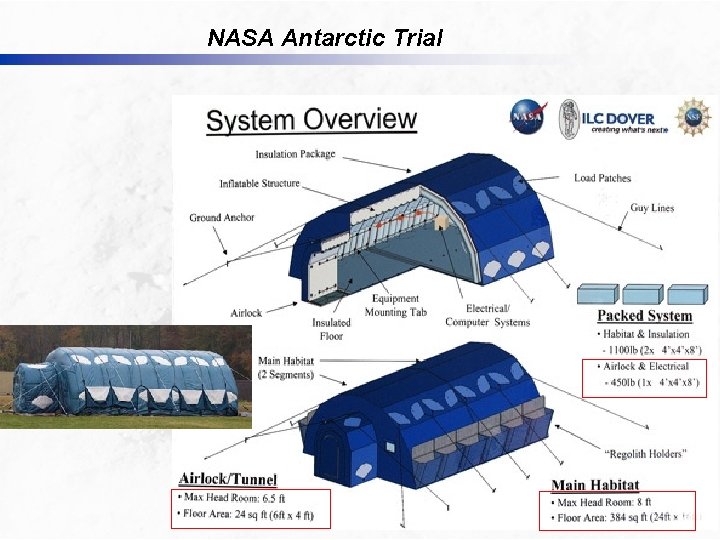

NASA Antarctic Trial
European Space Agency 3 -D printed design ESA Moon Village based in part on shelters sold by Concrete Canvas, UK • Concrete Canvas shelters are shown on the next page. • Use these as a baseline for sizes of your 3 -D Printed. Inflated Structures
Concrete Canvas Shelter Information ESA Moon Village based in part on shelters sold by Concrete Canvas, UK Larger view on next page
HI-SEAS Layout Comments • Limited privacy, thin walls. Open architecture, but noisy • External workshop
Building Connector with Inflated Tubes Metal Main Structure Metal flanged attach ring Soft Inflated connection
Individual Crew Quarters • • • Door Desk under bed Toilet, sink Mini-fridge Microwave (tiny) 2 seat couch Small dresser
Tiny House Nation Inspiration
Concepts
Concepts
