Hauptversammlung 2012 28. 08. 2012, Heek Christian Grotholt Vorstandsvorsitzender 2 G Energy AG -

Hauptversammlung 2012 28. 08. 2012, Heek Christian Grotholt Vorstandsvorsitzender 2 G Energy AG - COGENERATION 2 G Energy AGCompany & Plant Technology Presentation June 10 th, 2013 - Seoul www. 2 -g. com

FUTURE CHALLENGE The energy transition – Heading for sustainable energy technologies …into a safe

FUTURE CHALLENGE The energy transition – Heading for sustainable energy technologies …into a safe power supply by renewable energies… …supported by CHP plants with best efficiencies and lowest emvironmental impact Shutting off old power plants and nuclear power… www. 2 -g. com 2

FUTURE CHALLENGES & CHANCES International • High expected availability of shale gas is likely

FUTURE CHALLENGES & CHANCES International • High expected availability of shale gas is likely to ensure cheap natural gas future • Spark Spread makes cogeneration operation even more economic Spark Spread • Worn-out networks • Obsolete power-plant structures • Waste treatment: In Europe only, every year around 150 million tons of organic residual materials ends up in waste -> equates ca. 36 TWh electricity p. a. -> equates ca. 6% of Germany's energy needs www. 2 -g. com 3

FUTURE CHALLENGES & CHANCES Korean Situation • Power shortage during summer time due to

FUTURE CHALLENGES & CHANCES Korean Situation • Power shortage during summer time due to • old nuclear power plants • overloaded distribution networks • Increasing demand by global warming • Abundant renewable ressources available from • Landfill plants • Sewage treatment plants • Biomass treatment plants • Household waste • Animal manure etc. www. 2 -g. com 4

Entity of corporate figures 1995 – 2004 • Founding stage • Development of technical

Entity of corporate figures 1995 – 2004 • Founding stage • Development of technical basic know-how • Collecting experiences • Networking in German biogas market (regional) www. 2 -g. com 2004 – 2007 – 2011 • Production and installation of first • Begin of optimization of gas-powered • Establishment of company structures natural gas products • Operative action in the process of engines • Networking in German biogas • Establishment of technology leadership implementing energy system transformat market (supraregional) through 2 G high-tech construction solutio • expansion of the international network • First international contracts and foundation of several subsidiaries • Increasing global demand for CHPProducts can be served via 2 G Network • Expension of German network 5

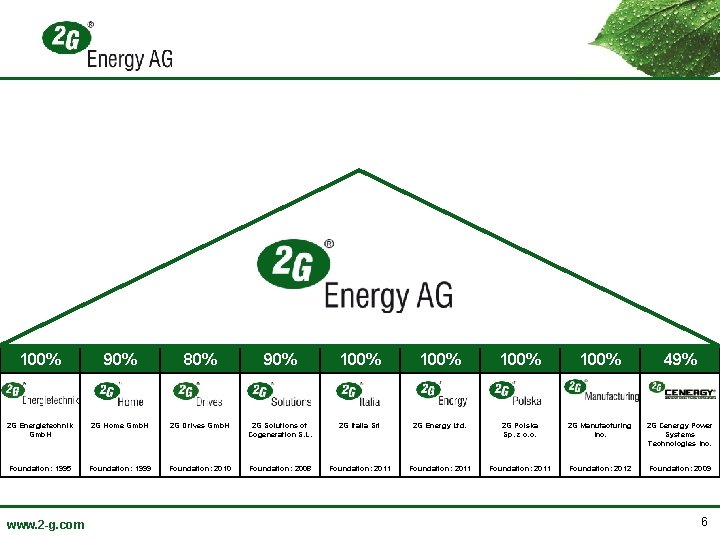

100% 90% 80% 90% 100% 49% 2 G Energietechnik Gmb. H 2 G Home

100% 90% 80% 90% 100% 49% 2 G Energietechnik Gmb. H 2 G Home Gmb. H 2 G Drives Gmb. H 2 G Solutions of Cogeneration S. L. 2 G Italia Srl 2 G Energy Ltd. 2 G Polska Sp. z o. o. 2 G Manufacturing Inc. 2 G Cenergy Power Systems Technologies Inc. Foundation: 1995 Foundation: 1999 Foundation: 2010 Foundation: 2008 Foundation: 2011 Foundation: 2012 Foundation: 2009 www. 2 -g. com 6

Worldwide presence - 2 G Modules in 20 countries www. 2 -g. com 7

Worldwide presence - 2 G Modules in 20 countries www. 2 -g. com 7

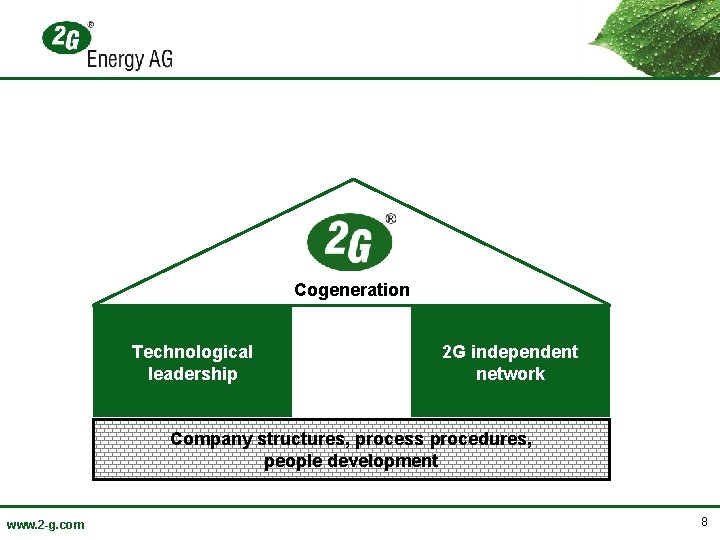

Cogeneration Technological leadership 2 G independent network Company structures, process procedures, people development www.

Cogeneration Technological leadership 2 G independent network Company structures, process procedures, people development www. 2 -g. com 8

ADVANTAGES OF COGENERATION • Combined decentralized production of Heat and Power = CHP •

ADVANTAGES OF COGENERATION • Combined decentralized production of Heat and Power = CHP • Highest efficiency combined with lowest distribution losses • Most efficient and economic use of fossil and renewable fuels • Substantial CO 2 emission reduction 2 G COGENERATION • SAVING ENERGY • RESPECTING ENVIRONMENT www. 2 -g. com 9

2 G COGENERATION PLANT 9% Loss Power 100% Fuel Heat TRADITIONAL POWER GENERATION 72%

2 G COGENERATION PLANT 9% Loss Power 100% Fuel Heat TRADITIONAL POWER GENERATION 72% Loss 78% Total loss Power 166% Fuel 6% Loss Heat Source: Bundesverband Kraft-Wärme-Kopplung e. V. www. 2 -g. com 10

2 G‘s Product Portfolio Product Power Range Type of fuel G-Box 20 to 50

2 G‘s Product Portfolio Product Power Range Type of fuel G-Box 20 to 50 k. W Natural Gas KWK 80 - 400 k. W Natural gas 50 to 150 k. W Biogas 200 to 450 k. W Natural Gas / Biogas 500 to 4. 000 k. W Natural Gas / Biogas www. 2 -g. com 11

Innovation G-Box 50 • Compact CHP plant with 50 k. W electrical power •

Innovation G-Box 50 • Compact CHP plant with 50 k. W electrical power • Efficiency rate 103 % • ~ 55 % CO 2 reduction • ~ 40 % less primary energy • Amortisation period 3 – 5 years • High market potential • Operation time: ~ 20 years www. 2 -g. com 12

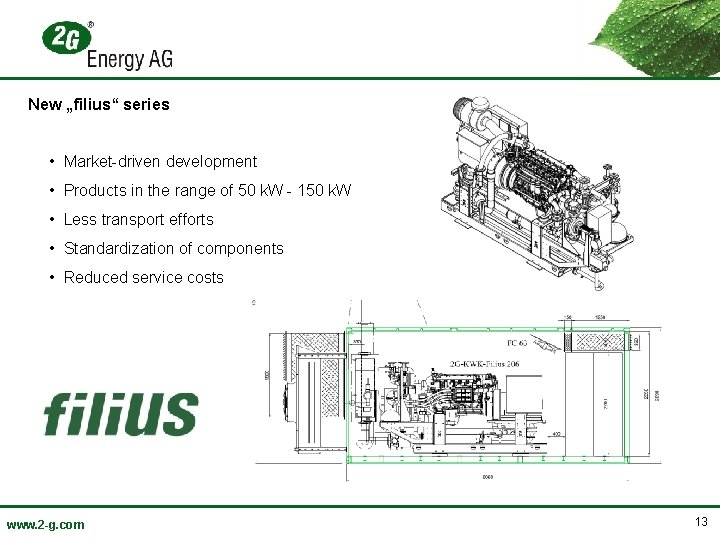

New „filius“ series • Market-driven development • Products in the range of 50 k.

New „filius“ series • Market-driven development • Products in the range of 50 k. W - 150 k. W • Less transport efforts • Standardization of components • Reduced service costs www. 2 -g. com 13

„agenitor“ Series • Higher efficiency • Reduced emissions • Lower service costs • Longer

„agenitor“ Series • Higher efficiency • Reduced emissions • Lower service costs • Longer operating time of the engine components Innovative Eigenentwicklungen schaffen Wettbewerbsvorteile www. 2 -g. com 14

15 www. 2 -g. com 15

15 www. 2 -g. com 15

Figures and data Development of turnover since 2007 Turnover (m Euro) 180 167. 3

Figures and data Development of turnover since 2007 Turnover (m Euro) 180 167. 3 160 140 120 91. 8 100 80 51. 1 60 40 28. 7 21. 2 20 0 2007 www. 2 -g. com 2008 2009 2010 2011 16

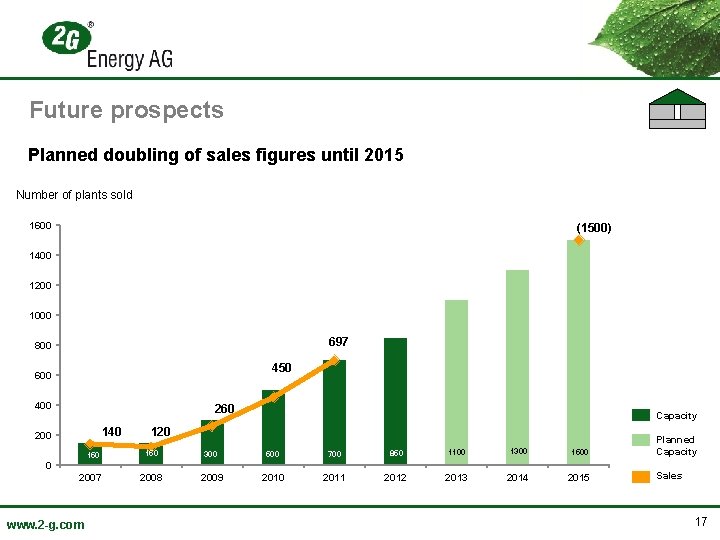

Future prospects Planned doubling of sales figures until 2015 Number of plants sold 1600

Future prospects Planned doubling of sales figures until 2015 Number of plants sold 1600 (1500) 1400 1200 1000 697 800 450 600 400 260 140 200 150 0 2007 www. 2 -g. com Capacity 120 150 300 500 700 850 1100 2008 2009 2010 2011 2012 2013 1300 1500 2014 2015 Planned Capacity Sales 17

2 G Energy AG 2 G CHP PLANT TECHNOLOGY 2013 www. 2 -g. com

2 G Energy AG 2 G CHP PLANT TECHNOLOGY 2013 www. 2 -g. com 18

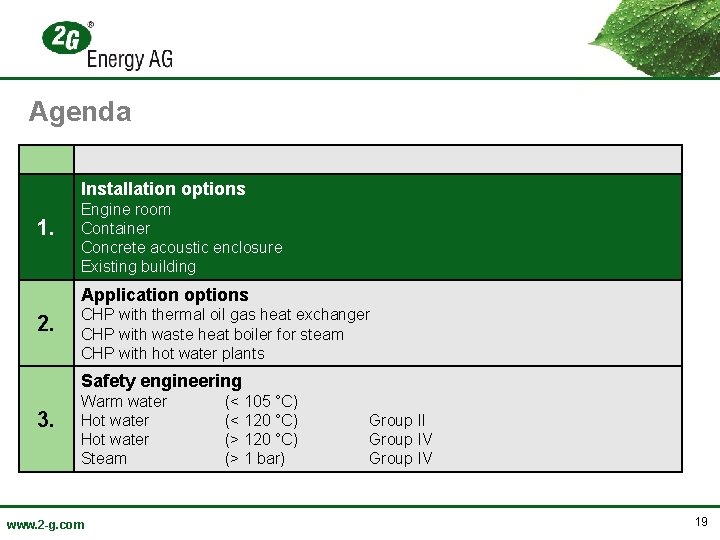

Agenda Installation options 1. Engine room Container Concrete acoustic enclosure Existing building Application options

Agenda Installation options 1. Engine room Container Concrete acoustic enclosure Existing building Application options 2. CHP with thermal oil gas heat exchanger CHP with waste heat boiler for steam CHP with hot water plants Safety engineering 3. Warm water Hot water Steam www. 2 -g. com (< 105 °C) (< 120 °C) (> 1 bar) Group II Group IV 19

Installation options Engine room • The standard installation is covered on a noise level

Installation options Engine room • The standard installation is covered on a noise level of 65 d. B(A) in 10 metres distance Achievable sound isolation values by CHP and plant components: - 35 d. B(A) in 10 metres distance - at increasing acoustic noise requirements an engine sound isolation capsule or a walk-in acoustic enclosure is necessary - at increasing acoustic noise requirements a single foundation for decoupling of structure-borne noise vibrations is necessary www. 2 -g. com 20

Installation options Engine room: Shopping centre Famila Center Oldenburg • 2 x 500 k.

Installation options Engine room: Shopping centre Famila Center Oldenburg • 2 x 500 k. W with 700 k. W absorber as well as parallel grid operation • Supply temperature 100 °C / Return temperature 75 °C www. 2 -g. com 21

Installation options Engine room: Repowering of a CHP plant • 2 x agenitor 306

Installation options Engine room: Repowering of a CHP plant • 2 x agenitor 306 biogas for each with 250 k. W and 1 x 250 k. W natural gas www. 2 -g. com 22

Installation options Engine room: repowering of CHP station of Cuxhaven‘s sewage treatment plant •

Installation options Engine room: repowering of CHP station of Cuxhaven‘s sewage treatment plant • 2 x avus 500 a (526 k. W electric) as well as peak load boiler with 1. 700 k. W and buffer storage www. 2 -g. com 23

Installation options Engine room: Installation thermal units • Two complete thermal units for 2

Installation options Engine room: Installation thermal units • Two complete thermal units for 2 x avus 500 c • Units are completely applicable by customers connection / pipework with the CHP – emergency cooler – mixture cooling system www. 2 -g. com 24

Installation options Engine room: Installation thermal units • Thermal unit for avus 500 c

Installation options Engine room: Installation thermal units • Thermal unit for avus 500 c natural gas (engine circuit, heater circuit and mixture cooling sytsem circuit) • Thermal unit can also ordered as seperate component www. 2 -g. com 25

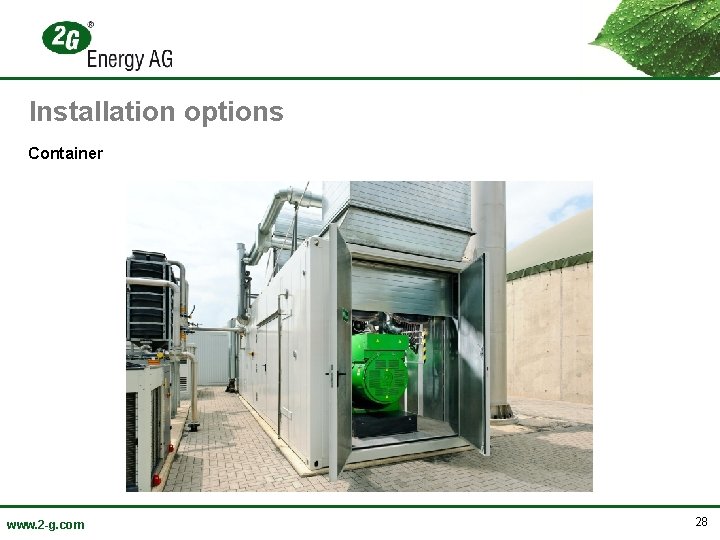

Installation options Container • Clear interfaces • Strip foundation / foundation plate necessary •

Installation options Container • Clear interfaces • Strip foundation / foundation plate necessary • Standard installation on a sound pressure of 65 d. B(A) in 10 m distance Achievable sound isolation values : - for avus modules: 55 d. B(A) in 10 m distance* - for agenitor / filius modules: Super Silent version: 52 d. B(A) in 10 m distance Ambition of the redevelopment: 35 d. B(A) in 10 metres distance* - no impact sound to neighboring buildings, complete assemblied in the 2 G factory, one week after installation the commissioning is possible, mobile unit, reduction is completed within 2 days *mean value www. 2 -g. com 26

Installation options Container www. 2 -g. com 27

Installation options Container www. 2 -g. com 27

Installation options Container www. 2 -g. com 28

Installation options Container www. 2 -g. com 28

Installation options Container www. 2 -g. com 29

Installation options Container www. 2 -g. com 29

Installation options Container: Complete solution with gas flare www. 2 -g. com 30

Installation options Container: Complete solution with gas flare www. 2 -g. com 30

Installation options Concrete acoustic enclosure: „We bring the building along“ • Clear interfaces •

Installation options Concrete acoustic enclosure: „We bring the building along“ • Clear interfaces • No foundation necessary • Observance of underground construction pursuant to establishment plan • Standard installation on a sound pressure of 65 d. B(A) in 10 m distance* Achievable sound isolation values via extra noise protection features: - for avus modules: Super Silent version: 40 d. B(A) in 10 m distance* for agenitor / filius modules: Super Silent version: 35 d. B(A) in 10 m distance Advantage: no impact sound to neighboring buildings, optical adaption on existing building, complete assembling can be planned in advance as standard solution in the 2 G factory, according to size there is more space for maintenance operations *mean value www. 2 -g. com 31

Installation options Concrete acoustic enclosure: factory Danone, integration below pipeline alignment • 1 x

Installation options Concrete acoustic enclosure: factory Danone, integration below pipeline alignment • 1 x avus 1000 a (1063 k. W electric) with steam generator 12 bar • 100 m³ buffer storage and stand-by power supply concept • Super Silent version: 40 d. B(A) in 10 metres distance • Construction period: 4 weeks www. 2 -g. com 32

Installation options Concrete acoustic enclosure: 8, 5 x 8, 5 metres • 45 db(A)

Installation options Concrete acoustic enclosure: 8, 5 x 8, 5 metres • 45 db(A) in 10 metres destination (2 G module with 1. 200 k. W) • 10, 5 k. V medium voltage generator, medium voltage switchgear • Steam generator with 13 bar as well as residual heat gas exchanger www. 2 -g. com 33

Agenda 1. Overview plant construction 2013 Installation options 2. Engine room Container Concrete acoustic

Agenda 1. Overview plant construction 2013 Installation options 2. Engine room Container Concrete acoustic enclosure Existing building Application options 3. CHP with thermal oil gas heat exchanger CHP with waste heat boiler for steam CHP with hot water plants Safety engineering 4. Warm water Hot water Steam www. 2 -g. com (< 105 °C) (< 120 °C) (> 1 bar) Gruppe II Gruppe IV 34

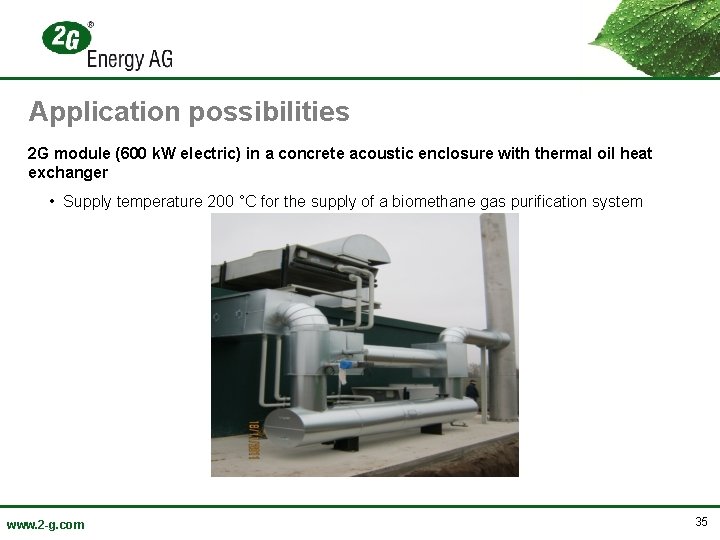

Application possibilities 2 G module (600 k. W electric) in a concrete acoustic enclosure

Application possibilities 2 G module (600 k. W electric) in a concrete acoustic enclosure with thermal oil heat exchanger • Supply temperature 200 °C for the supply of a biomethane gas purification system www. 2 -g. com 35

Application possibilities 2 G module container plant with waste heat boiler for steam •

Application possibilities 2 G module container plant with waste heat boiler for steam • 1 x 700 k. W elektric + 1 x container with waste heat boiler for steam: 450 kg/h, 13 bar www. 2 -g. com 36

Application possibilities Steam generator with 15 bar saturated steam and economiser www. 2 -g.

Application possibilities Steam generator with 15 bar saturated steam and economiser www. 2 -g. com 37

Application possibilities 2 G module container plant with hot water: Kerry Heiligengrabe • 1

Application possibilities 2 G module container plant with hot water: Kerry Heiligengrabe • 1 x 844 k. W elektric + 1 x 370 k. W elektric + equipment cabinet • Supply temperature 160 °C for breadcrumbs drying www. 2 -g. com 38

Thank you for your attention! 2 G Energy AG Benzstrasse 3 · 48619 Heek

Thank you for your attention! 2 G Energy AG Benzstrasse 3 · 48619 Heek Mail: Internet: info@2 -g. de www. 2 -g. de Represented in Korea by: HANA International 814 Geumgang Hightech Valley, 133 -1 Sangedaewon-Dong, Jungwon-Gu, Seongnam-Si, Gyenonggi-Do 462 -160, Republic of Korea Phone E-Mail Web www. 2 -g. com +82 (31) 77750502 hanaint@hanapark. co. kr www. hanapark. co. kr 39
