Haskell in an Industrial Context Andy Moran Haskell

Haskell in an Industrial Context Andy Moran

Haskell, Galois, and the Future • Galois’ use of Haskell: why and where • Challenges in continuing to use Haskell • How do we meet these challenges – Some suggestions

Galois Summary • Mission: Advanced technology development for Information Assurance • Expertise – Crypto development and validation – Multi-level and cross-domain security – Secure middleware • Capabilities – – – High assurance engineering Abstract modeling & analysis Application of relevant theoretical research Rapid prototype development Domain-specific language development

Corporate Background • Founded in 1999; spun off from funded OGI research • Profitable last 8 quarters, >50% CAGR • Funding – Self-funded from revenues – 90% employee owned • 6 Active Projects – Mix of research and product development • Clients – U. S govt, multiple primes • 20 employees total – 15 technical staff – Additional contract employees and subcontractors

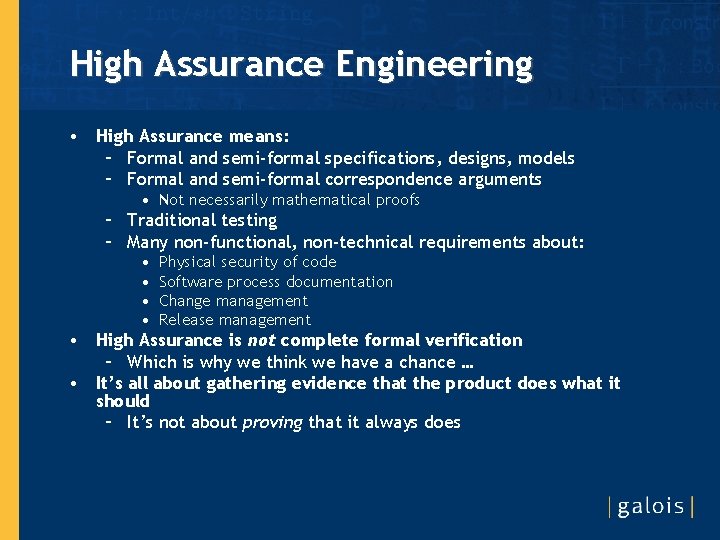

High Assurance Engineering • High Assurance means: – Formal and semi-formal specifications, designs, models – Formal and semi-formal correspondence arguments • Not necessarily mathematical proofs – Traditional testing – Many non-functional, non-technical requirements about: • • Physical security of code Software process documentation Change management Release management • High Assurance is not complete formal verification – Which is why we think we have a chance … • It’s all about gathering evidence that the product does what it should – It’s not about proving that it always does

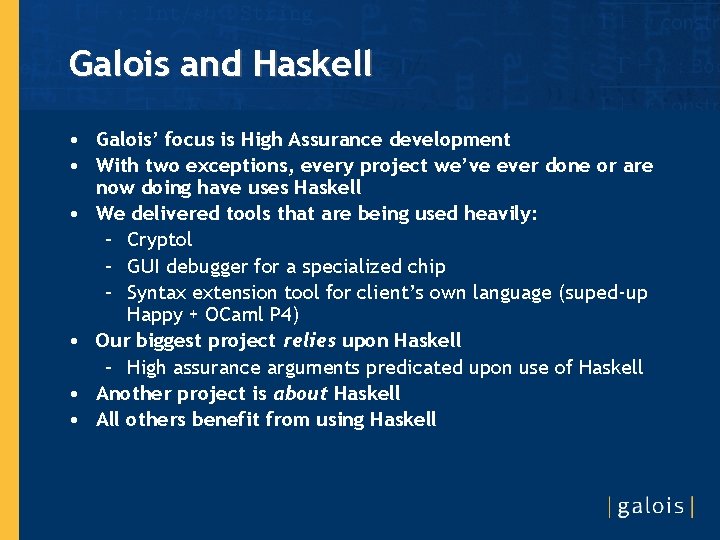

Galois and Haskell • Galois’ focus is High Assurance development • With two exceptions, every project we’ve ever done or are now doing have uses Haskell • We delivered tools that are being used heavily: – Cryptol – GUI debugger for a specialized chip – Syntax extension tool for client’s own language (suped-up Happy + OCaml P 4) • Our biggest project relies upon Haskell – High assurance arguments predicated upon use of Haskell • Another project is about Haskell • All others benefit from using Haskell

Why Haskell: Technical Benefits • Type system very strong, expressive • Type system exposes effects • Laziness encourages combinatorial design – Natural for many problems, particularly compilers • Haskell is very high-level – Promotes design-level programming • Haskell programs look like designs to non-practitioners – Enables us to try out creative solutions that might not be tractable with traditional languages • Able to express more complex algorithms • Design-level debugging – Trivial bugs disallowed by type system – Get straight to the real bugs • We’re very familiar with Haskell But these arguments do not a business case make!

The Big Win: High Assurance • Haskell is close to its semantics – Providing evidence for H. A. properties is possible – Haskell is amenable to formal techniques • Haskell’s type system can express and enforce desirable H. A. properties (such as data separation) • Good handle on H. A. correspondence arguments: – Specification, design, model: all in Haskell

Indirect Business Benefits • High productivity: – We can prototype products/tools very quickly • Competition: – Not many companies out there using Haskell as an enabling technology • Familiarity: – Most of Galois has been using Haskell since day 1 • Possibilities: – Allows greater scope for high assurance development – We can build in more functionality, to higher assurance • Quality of Staff: – Haskell practitioners tend to be extremely bright

It’s Not All Beer and Skittles … • There are problems with relying upon Haskell: – Technical issues – Support – Long-term viability – Customer needs – Customer perception – Staffing – Special government client needs

Development Issues • We’re surrounded by nails – When all you’ve got is a hammer … • Happily, it’s a Swiss Army hammer • Debugging can be a pain – Especially debugging in the IO monad – Existing debuggers tend not to support language extensions • Libraries only scratch library writers itch – Not designed with industrial applications in mind • Haskell encourages “abstraction addiction” – It’s very easy to get tied up in knots – Too much abstraction leads to maintenance headaches

Support Issues • Volunteer-based support for compiler only – Can’t depend on getting that showstopper fixed in time to meet your deadline • We push GHC to its limits, and so expose problems in the RTS • Without Sigbjørn Finne on the payroll, at least three of our projects would have been held up indefinitely – Threaded RTS, Asynchronous I/O for Windows, elusive GC bug – No 24 hour hotline – Only common platforms get any support • No industrial-grade tool support – Profilers limited; debuggers very limited – Libraries not tuned for performance – Libraries, language extensions documented mainly in research papers, if at all • GHC user manual gives reference-level documentation to extensions – IDEs very limited

Long-Term Viability • Reliant upon Simon and Simon – What if they start working on Word 2006? – Others starting to play larger role, but still small handful of key players • Still a research language – Exists to be test bed for experiments: • Language design (Template Haskell, exotic type systems) • Compiler implementation (eval-apply, CMM back-end) – This is A Good Thing • But we need a stable language too …

General Business Issues • Customers see problems: – How are they going to maintain the code we built for them? – Will this weird language even be around next year? • Customer perception: – “What’s Haskell? ” – “What’s Functional Programming? ” – “Functional programs are slow!” – “Why is it better than Java? ” – “If it’s so great, why isn’t everyone using it? ” • Staffing: – Not that many Haskell practitioners out there – Currently, we also need U. S. citizens

Government Issues • Pedigree of compiler source – Corralled repository – Who worked on it before corralling • Security of compiler source – Who has write access – How is repository protected • Physical (key card access to server room) • Network – How patches are vetted before being applied • How many “trusted” eyes have reviewed compiler source? • These questions are asked of any tool being used to develop sensitive applications – If tool source changes often, the burden is increased – Especially if we also need to update formal arguments and models each time there is a change

Are We Alone?

How Might We Solve These Problems Together?

What’s Been Tried Before?

Why Didn’t It Work?

Haskell Consortium • An affiliation of companies that use Haskell, together funding – Providing technical support for compilers and tools • • • Timely bug-fixes Patch release management Version, platform management Keeping up with GHC patches Evaluating GHC enhancements for inclusion – Pursuing industrial-grade development • Developing new tools • Enhancing existing tools • Developing experimental compilers, interpreters, runtime systems • Funding could be augmented: – Members’ clients? Government? Charity?
