Hash-based Signatures Andreas Hülsing Eindhoven University of Technology Executive School on Post-Quantum Cryptography July 2019, TU Eindhoven

Post-Quantum Signatures Lattice, MQ, Coding Signature and/or key sizes Runtimes Secure parameters 02/07/2019 https: //huelsing. net PAGE 2

Hash-based Signature Schemes [Mer 89] Post quantum Only secure hash function Security well understood Fast 02/07/2019 https: //huelsing. net PAGE 3

RSA – DSA – EC-DSA. . . Intractability Assumption Cryptographic hash function RSA, DH, SVP, MQ, … Digital signature scheme 02/07/2019 https: //huelsing. net PAGE 4

Hash function families

(Hash) function families (aka. keyed functions) • 02/07/2019 https: //huelsing. net 6

One-wayness • 02/07/2019 https: //huelsing. net 7

Collision resistance 02/07/2019 https: //huelsing. net 8

Second-preimage resistance • Decisional version: Does a valid response exist? 02/07/2019 https: //huelsing. net NEW ! 9

Undetectability • 02/07/2019 https: //huelsing. net 10

Pseudorandomness • g 02/07/2019 https: //huelsing. net 11

Generic security • „Black Box“ security (best we can do without looking at internals) • For hash functions: Security of random function family • (Often) expressed in #queries (query complexity) • Hash functions not meeting generic security considered insecure 02/07/2019 https: //huelsing. net 12

Generic Security - OWF • 02/07/2019 https: //huelsing. net 13

Generic Security - OWF • 02/07/2019 https: //huelsing. net 14

Generic Security OW SPR CR UD* PRF* Classical Quantum * conjectured, no proof 02/07/2019 https: //huelsing. net 15

Hash-function properties Assumption / Attacks stronger / easier to break Collision-Resistance 2 nd-Preimage. Resistance One-way Pseudorandom weaker / harder to break 02/07/2019 https: //huelsing. net 16

Attacks on Hash Functions MD 5 Collisions (practical!) Collisions (theo. ) SHA 1 02/07/2019 2005 Collisions (practical!) MD 5 & SHA-1 Collisions (theo. ) 2004 SHA 1 No (Second-) Preimage Attacks! 2008 https: //huelsing. net 2017 17

Basic Construction

Lamport-Diffie OTS [Lam 79] * Message M = b 1, …, bm, OWF H = n bit SK sk 1, 0 sk 1, 1 H PK H pk 1, 0 b 1 Sig 02/07/2019 skm, 0 H H H pk 1, 1 Mux skm, 1 H pkm, 0 b 2 Mux sk 1, b 1 bm pkm, 1 Mux skm, bm https: //huelsing. net 19

EU-CMA for OTS SIGN 02/07/2019 https: //huelsing. net 20

Security Theorem: If H is one-way then LD-OTS is one-time eu-cmasecure. 02/07/2019 https: //huelsing. net 21

Merkle’s Hash-based Signatures PK H H SIG = (i=2, , H OTS H , H H H OTS OTS 02/07/2019 SK https: //huelsing. net 22 )

Security Theorem: MSS is eu-cma-secure if OTS is a one-time eu-cma secure signature scheme and H is a random element from a family of collision resistant hash functions. 02/07/2019 https: //huelsing. net 23

Winternitz-OTS 02/07/2019 https: //huelsing. net 24

Recap LD-OTS [Lam 79] * Message M = b 1, …, bm, OWF H = n bit SK sk 1, 0 sk 1, 1 H PK H pk 1, 0 b 1 Sig 02/07/2019 skm, 0 H H H pk 1, 1 Mux skm, 1 H pkm, 0 b 2 Mux sk 1, b 1 bn pkm, 1 Mux skm, bm https: //huelsing. net 25

LD-OTS in MSS SIG = (i=2, , , ) Verification: 1. Verify 2. Verify authenticity of We can do better! 02/07/2019 https: //huelsing. net 26

Trivial Optimization * Message M = b 1, …, bm, OWF H = n bit SK sk 1, 0 H PK b 1 Sig sk 1, 1 H pk 1, 0 pk 1, 1 Mux sig 1, 0 sig 1, 1 02/07/2019 skm, 0 H H bm https: //huelsing. net skm, 1 H H pkm, 0 pkm, 1 Mux sigm, 0 sigm, 1 27

Optimized LD-OTS in MSS X SIG = (i=2, , , ) Verification: 1. Compute from 2. Verify authenticity of Steps 1 + 2 together verify 02/07/2019 https: //huelsing. net 28

Let‘s sort this Checksum with bad performance! 02/07/2019 https: //huelsing. net 29

Optimized LD-OTS 02/07/2019 https: //huelsing. net 30

Function chains • i-times c 0(x) = x 02/07/2019 https: //huelsing. net 31

WOTS • pk 1 = cw-1(sk 1) c 0(sk 1) = sk 1 c 1(sk 1) c 1(skl ) pkl = cw-1(skl ) c 0(skl ) = skl 02/07/2019 https: //huelsing. net 32

WOTS Signature generation M b 1 b 2 b 3 b 4 … … … … c 0(sk 1) = sk 1 bm‘+1 bm‘+2 … C … bl pk 1 = cw-1(sk 1) σ1=cb 1(sk 1) Signature: σ = (σ1, …, σl ) c 0(skl ) = skl 02/07/2019 pkl = cw-1(skl ) σl =cbl (skl ) https: //huelsing. net 33

WOTS Signature Verification Verifier knows: M, w b 1 b 2 b 3 b 4 … … σ1 Signature: σ = (σ1, …, σl ) … … … bm‘+1 bl 1+2 … … bl pk 1 =? pkl =? σl 02/07/2019 https: //huelsing. net 34

WOTS Function Chains • 02/07/2019 https: //huelsing. net 35

WOTS Security • 02/07/2019 https: //huelsing. net 36

XMSS

XMSS Tree: Uses bitmasks Leafs: Use binary tree with bitmasks OTS: WOTS+ bi Message digest: Randomized hashing Collision-resilient -> signature size halved 02/07/2019 https: //huelsing. net 38

Multi-Tree XMSS • 02/07/2019 https: //huelsing. net 39

Multi-target attacks

Multi-target attacks • 02/07/2019 https: //huelsing. net 41

Multi-target attacks: Mitigation • Mitigation: Separate targets [HRS 16] • Common approach: • In addition to hash function description and „input“ take • Hash „Address“ (uniqueness in key pair) • Hash „key“ used for all hashes of one key pair (uniqueness among key pairs) 02/07/2019 https: //huelsing. net 42

Multi-target attacks: Mitigation • Mitigation: Separate targets [HRS 16] • Common approach: • In addition to hash function description and „input“ take • Hash „Address“ (uniqueness in key pair) • Hash „key“ used for all hashes of one key pair (uniqueness among key pairs) 02/07/2019 https: //huelsing. net 43

New intermediate abstraction: Tweakable Hash Function • 25. 09. 2020 https: //huelsing. net 44

XMSS in practice

RFC 8391 -- XMSS: e. Xtended Merkle Signature Scheme • Protecting against multi-target attacks / tight security • n-bit hash => n bit security • Small public key (2 n bit) • At the cost of (Q)ROM for proving PK compression secure • Function families based on SHA 2 & SHAKE (SHA 3) • Equal to XMSS-T [HRS 16] up-to message digest 02/07/2019 https: //huelsing. net 46

XMSS / XMSS-T Implementation C Implementation, using Open. SSL [HRS 16] Sign (ms) Signature (k. B) Public Key (k. B) Secret Key (k. B) Bit Security classical/ quantum Comment XMSS 3. 24 2. 8 1. 3 2. 2 236 / 118 h = 20, d = 1, XMSS-T 9. 48 2. 8 0. 064 2. 2 256 / 128 h = 20, d = 1 XMSS 3. 59 8. 3 14. 6 196 / 98 h = 60, d = 3 XMSS-T 10. 54 8. 3 0. 064 14. 6 256 / 128 h = 60, d = 3 Intel(R) Core(TM) i 7 CPU @ 3. 50 GHz XMSS-T uses message digest from Internet-Draft 02/07/2019 https: //huelsing. net All using SHA 2 -256, w = 16 and k = 2 47

The LMS proposal 02/07/2019 https: //huelsing. net 48

Instantiating the tweakable hash (for SHA 2) XMSS • LMS • MD = SHA 2(PP||TW||MSG) • QROM proof assuming SHA 2 is QRO • ROM proof assuming SHA 2 compression function is RO • Proofs are essentially tight 25. 09. 2020 https: //huelsing. net 49

Instantiating the tweakable hash • LMS is factor 3 faster but leads to slightly larger signatures at same security level • LMS makes somewhat stronger assumptions about the security properties of the used hash function • More research on direct constructions needed 25. 09. 2020 https: //huelsing. net 50

SPHINCS

About the statefulness • Works great for some settings • However. . . . back-up. . . multi-threading. . . load-balancing 02/07/2019 https: //huelsing. net 52

How to Eliminate the State

Stateless hash-based signatures [NY 89, Gol 87, Gol 04] • OTS OTS OTS 02/07/2019 https: //huelsing. net OTS OTS PAGE 54

SPHINCS [BHH 15] + • Select index pseudo-randomly • Use a few-time signature key-pair on leaves to sign messages • Few index collisions allowed • Allows to reduce tree height • Use hypertree: Use d << h. 02/07/2019 https: //huelsing. net 55

Few-Time Signature Schemes

Recap LD-OTS * Message M = b 1, …, bn, OWF H = n bit SK sk 1, 0 sk 1, 1 H PK H pk 1, 0 b 1 Sig 02/07/2019 skn, 0 H H H pk 1, 1 Mux skn, 1 H pkn, 0 b 2 Mux sk 1, b 1 bn pkn, 1 Mux skn, bn https: //huelsing. net 57

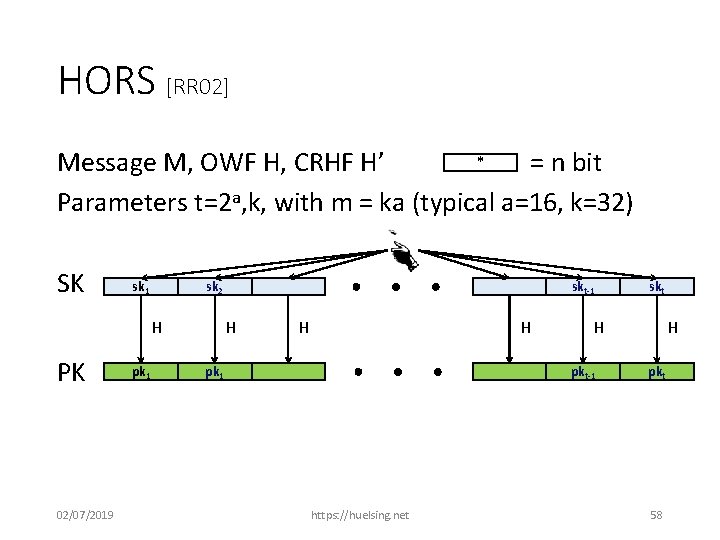

HORS [RR 02] * Message M, OWF H, CRHF H’ = n bit Parameters t=2 a, k, with m = ka (typical a=16, k=32) SK sk 1 sk 2 H PK pk 1 skt-1 H H H pk 1 skt H pkt-1 H pkt 02/07/2019 https: //huelsing. net 58

HORS mapping function * Message M, OWF H, CRHF H’ = n bit Parameters t=2 a, k, with m = ka (typical a=16, k=32) M H’ b 1 b 2 ba bar ik i 1 02/07/2019 https: //huelsing. net 59

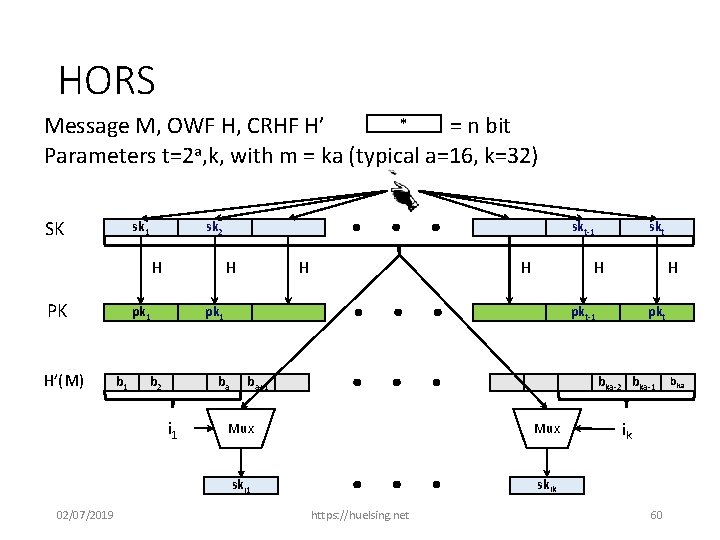

HORS * Message M, OWF H, CRHF H’ = n bit Parameters t=2 a, k, with m = ka (typical a=16, k=32) SK sk 1 sk 2 H PK H’(M) 02/07/2019 H pk 1 b 1 skt-1 H H H pk 1 b 2 H pkt-1 ba i 1 skt ba+1 pkt bka-2 bka-1 Mux ski 1 skik https: //huelsing. net ik 60 bka

HORS Security • 02/07/2019 https: //huelsing. net 61

TREE

HORST Using HORS with MSS requires adding PK (tn) to MSS signature. HORST: Merkle Tree on top of HORS-PK • New PK = Root • Publish Authentication Paths for HORS signature values • PK can be computed from Sig • With optimizations: tn → (k(log t − x + 1) + 2 x)n • E. g. SPHINCS-256: 2 MB → 16 KB • Use randomized message hash 02/07/2019 https: //huelsing. net 63

SPHINCS • Stateless Scheme • XMSSMT + HORST + (pseudo-)random index • Collision-resilient • Deterministic signing • SPHINCS-256: • • 128 -bit post-quantum secure Hundrest of signatures / sec 41 kb signature 1 kb keys 02/07/2019 https: //huelsing. net 64

+ SPHINCS Joint work with Jean-Philippe Aumasson, Daniel J. Bernstein, Christoph Dobraunig, Maria Eichlseder, Scott Fluhrer, Stefan-Lukas Gazdag, Panos Kampanakis, Stefan Kölbl, Tanja Lange, Martin M. Lauridsen, Florian Mendel, Ruben Niederhagen, Christian Rechberger, Joost Rijneveld, Peter Schwabe

SPHINCS+ (our NIST submission) • Strengthened security gives smaller signatures • Collision- and multi-target attack resilient • Fixed length signatures • Small keys, medium size signatures (lv 3: 17 k. B) • Sizes can be much smaller if q_sign gets reduced • The conservative choice 02/07/2019 https: //huelsing. net 66

TREES

FORS (Forest of random subsets) • Parameters t, a = log t, k such that ka = m . . . . https: //huelsing. net 02/07/2019 68

Verifiable index selection (and optionally non-deterministic randomness) • 02/07/2019 https: //huelsing. net 69

Verifiable index selection Improves FORS security • SPHINCS: Attacks can target „weakest“ HORST key pair • SPHINCS+: Every hash query also selects FORS key pair • Leads to notion of interleaved target subset resilience 02/07/2019 https: //huelsing. net 70

Instantiations (after second round tweaks) • SPHINCS+-SHAKE 256 -robust NEW! + • SPHINCS -SHAKE 256 -simple • SPHINCS+-SHA-256 -robust • SPHINCS+-SHA-256 -simple NEW! • SPHINCS+-Haraka-robust • SPHINCS+-Haraka-simple NEW! 02/07/2019 https: //huelsing. net 71

Instantiations (small vs fast) 02/07/2019 https: //huelsing. net 72

Hash-based Signatures in NIST „Competition“ • SPHINCS+ • FORS as few-time signature • XMSS-T tweakable hash • Gravity-SPHINCS (R. I. P. ) • PORS as few-time signature • Requires collision-resistance • Vulnerable to multi-target attacks • (PICNIC) 02/07/2019 https: //huelsing. net 73

02/07/2019 https: //huelsing. net 74

Signatures via Non. Interactive Proofs: The Case of Fish & Picnic Thanks to the Fish/Picnic team for slides 02/07/2019 https: //huelsing. net 75

Interactive Proofs 02/07/2019 https: //huelsing. net 76

ZKBoo 02/07/2019 https: //huelsing. net 77

High-Level Approach • Use Low. MC v 2 to build dedicated hash function with low #AND-gates • Use ZKBoo to proof knowledge of a preimage • Use Fiat-Shamir to turn ZKP into Signature in ROM (Fish), or • Use Unruh‘s transform to turn ZKP into Signature in QROM (Picnic) 02/07/2019 https: //huelsing. net 78

Conclusion • If you can live with a state, you have PQ signatures available with XMSS & LMS • For stateless we are waiting for NIST to finish: SPHINCS+ & Picnic in second round 02/07/2019 https: //huelsing. net 79
