Hardware-accelerated Point-based Rendering of Surfaces and Volumes Eduardo Tejada, Tobias Schafhitzel, Thomas Ertl Universität Stuttgart, Germany

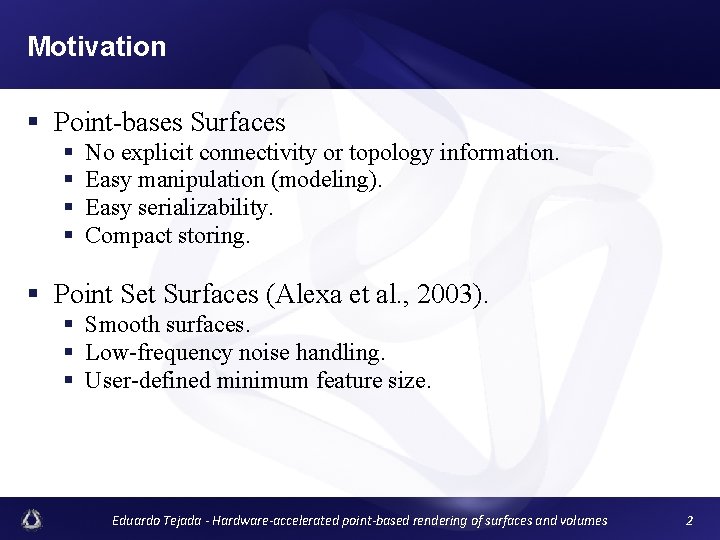

Motivation § Point-bases Surfaces § § No explicit connectivity or topology information. Easy manipulation (modeling). Easy serializability. Compact storing. § Point Set Surfaces (Alexa et al. , 2003). § Smooth surfaces. § Low-frequency noise handling. § User-defined minimum feature size. Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 2

Motivation § Graphics hardware new capabilities. § Shader Model 3: Dynamic flow control. § Floating-point textures (also as RT). § Numerical algorithms on the GPU. § Ray-tracing PSS slow on the CPU: on the GPU? Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 3

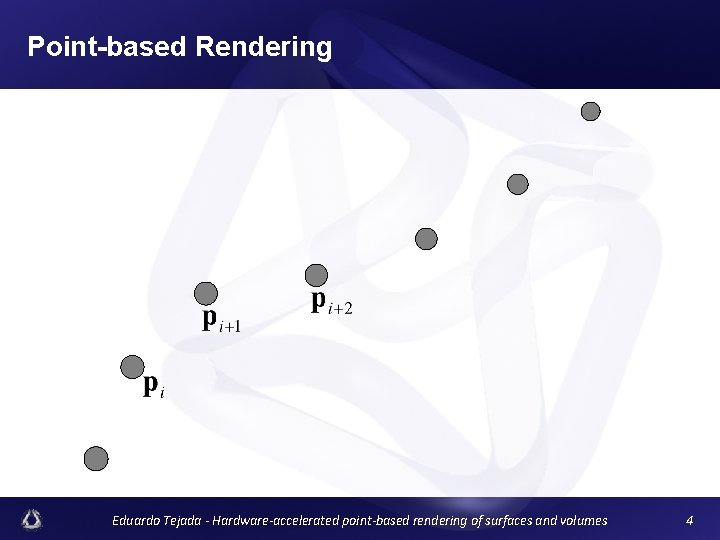

Point-based Rendering Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 4

Point-based Rendering Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 5

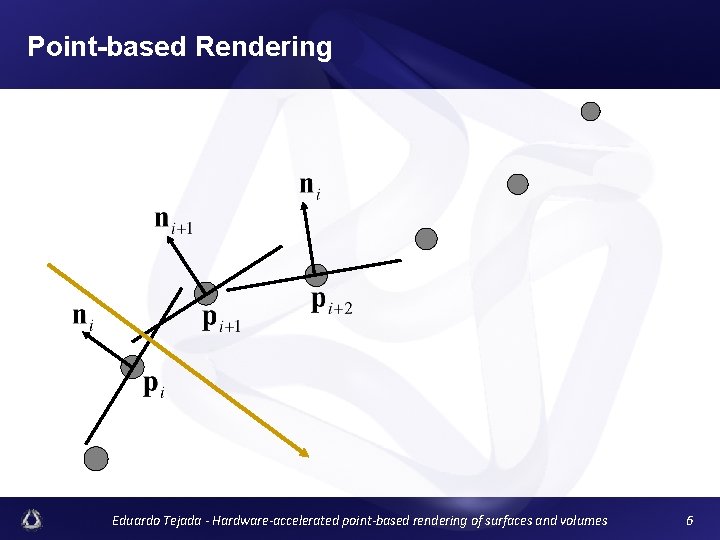

Point-based Rendering Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 6

Our Method - Idea § Normal vectors: covariance analysis Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 7

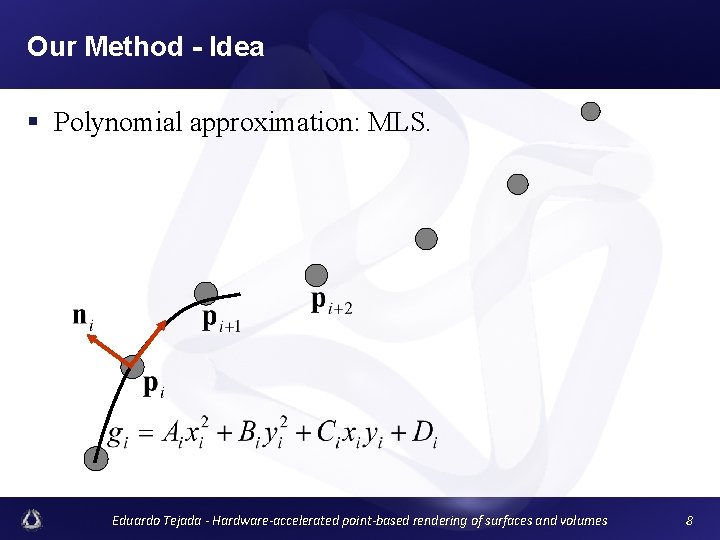

Our Method - Idea § Polynomial approximation: MLS. Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 8

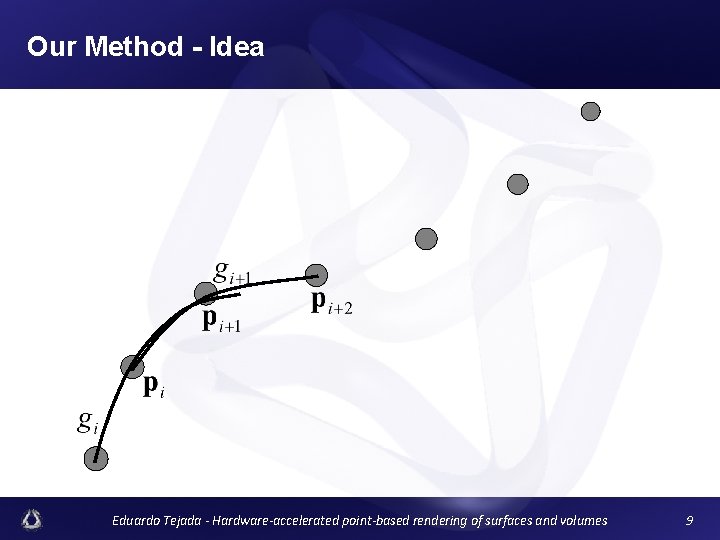

Our Method - Idea Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 9

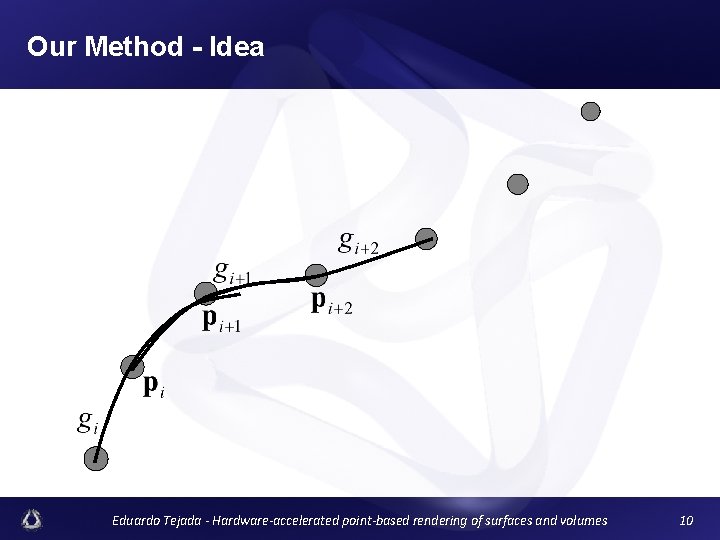

Our Method - Idea Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 10

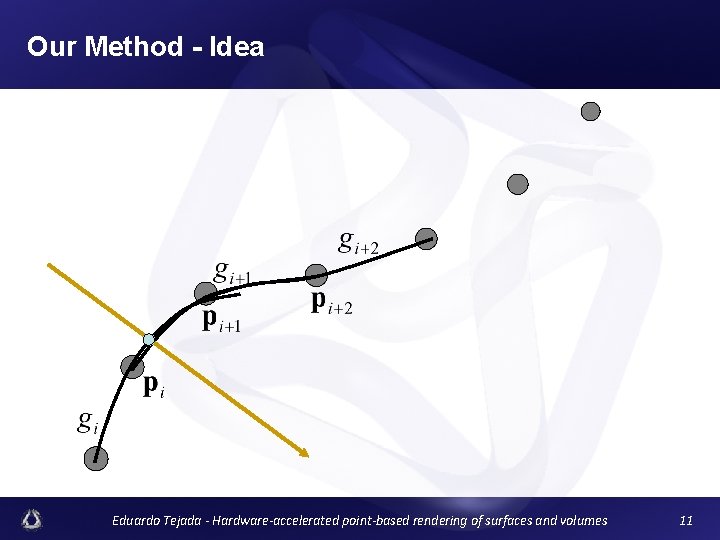

Our Method - Idea Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 11

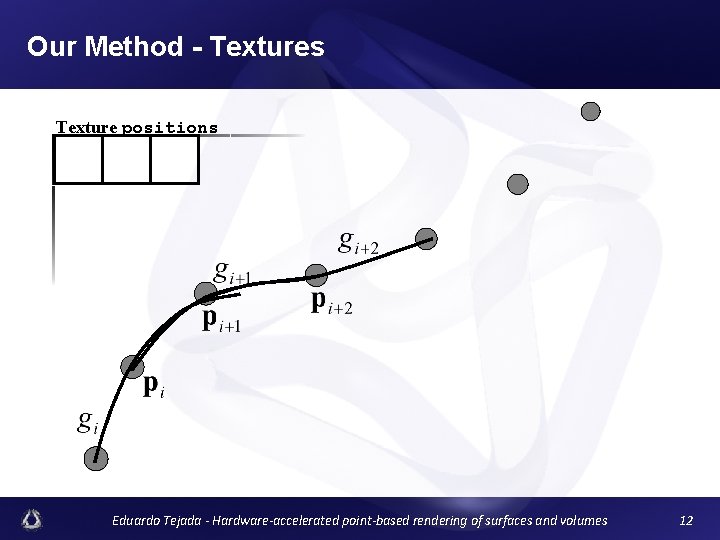

Our Method - Textures Texture positions Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 12

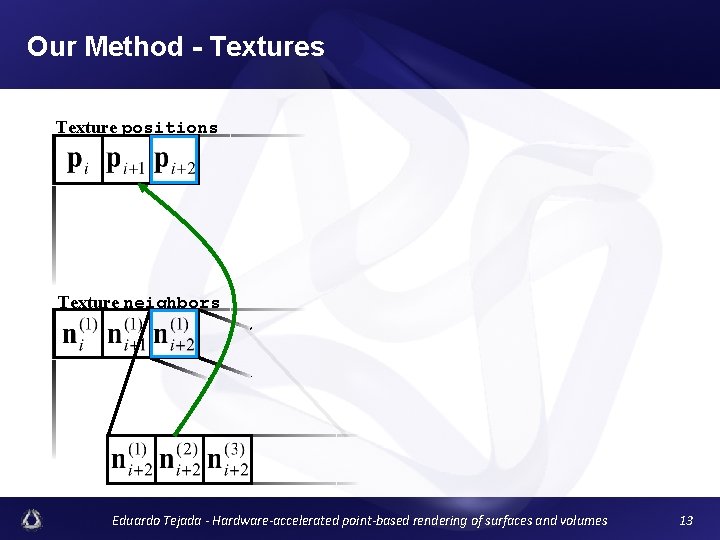

Our Method - Textures Texture positions Texture neighbors Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 13

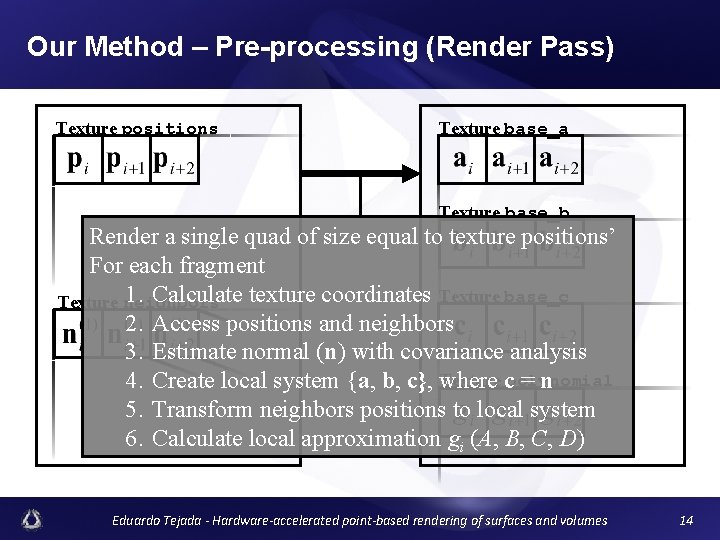

Our Method – Pre-processing (Render Pass) Texture positions Texture base_a Texture base_b Render a single quad of size equal to texture positions’ For each fragment 1. Calculate texture coordinates Texture base_c Texture neighbors 2. Access positions and neighbors 3. Estimate normal (n) with covariance analysis Texture cpolynomial 4. Create local system {a, b, c}, where =n 5. Transform neighbors positions to local system 6. Calculate local approximation gi (A, B, C, D) Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 14

Our Method – Rendering (First Render Pass) Texture base_a Texture base_b Texture base_c Texture polynomial Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 15

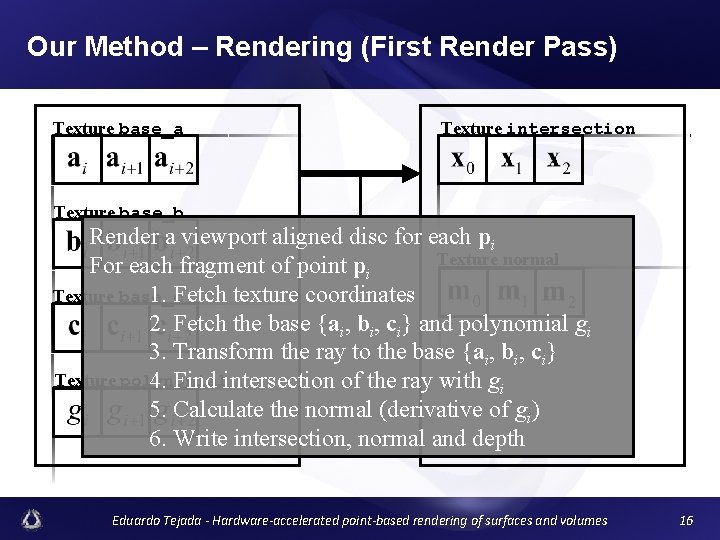

Our Method – Rendering (First Render Pass) Texture base_a Texture intersection Texture base_b Render a viewport aligned disc for each pi Texture normal For each fragment of point pi Texture base_c 1. Fetch texture coordinates 2. Fetch the base {ai, bi, ci} and polynomial gi 3. Transform the ray to the base {ai, bi, ci} Texture polynomial 4. Find intersection of the ray with gi 5. Calculate the normal (derivative of gi) 6. Write intersection, normal and depth Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 16

Results – First Intersection 28 fps 20 fps Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 17

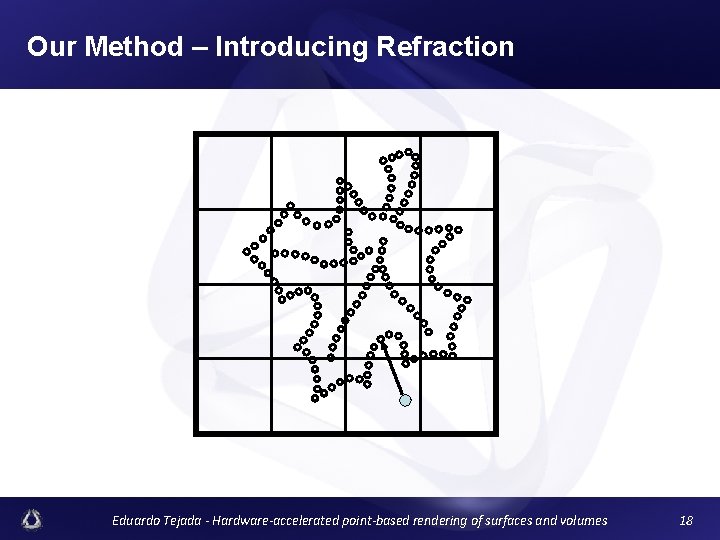

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 18

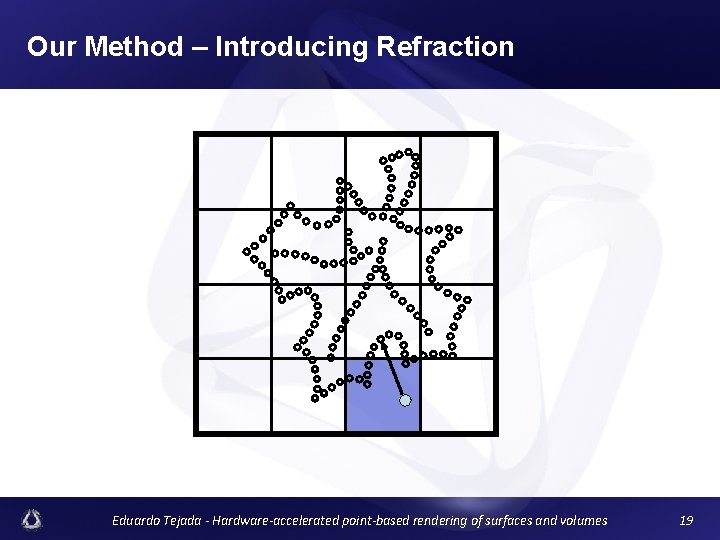

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 19

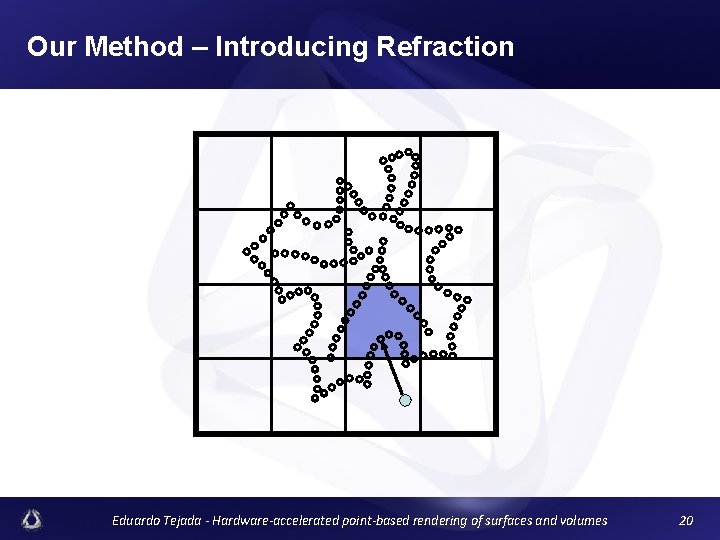

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 20

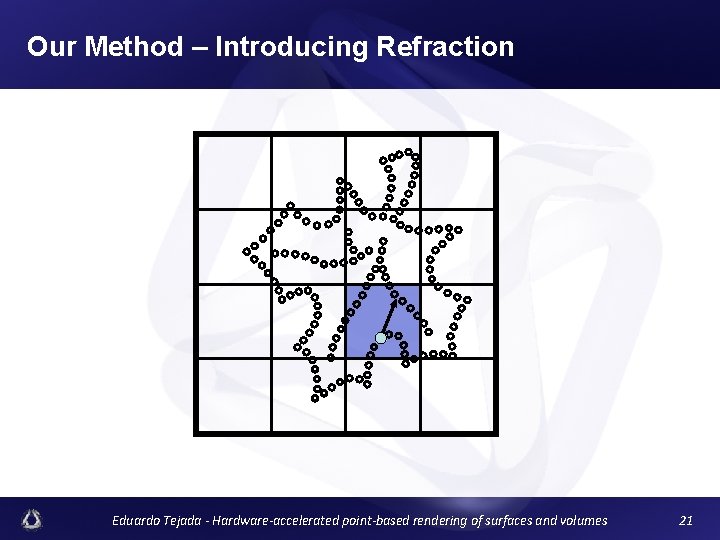

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 21

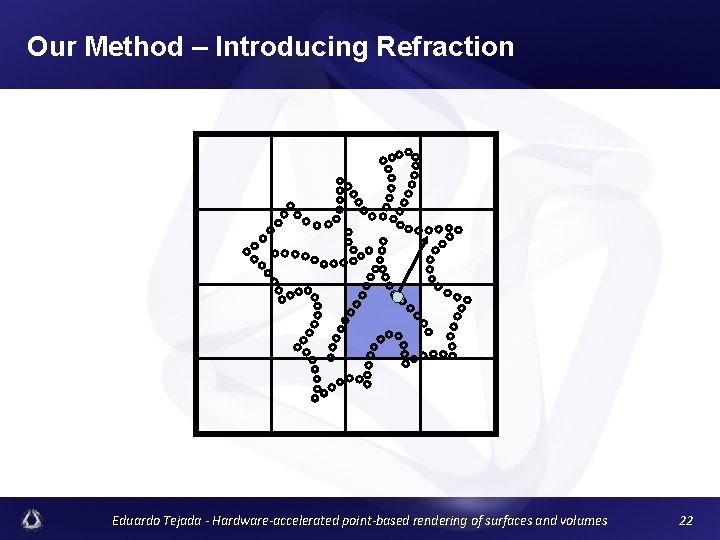

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 22

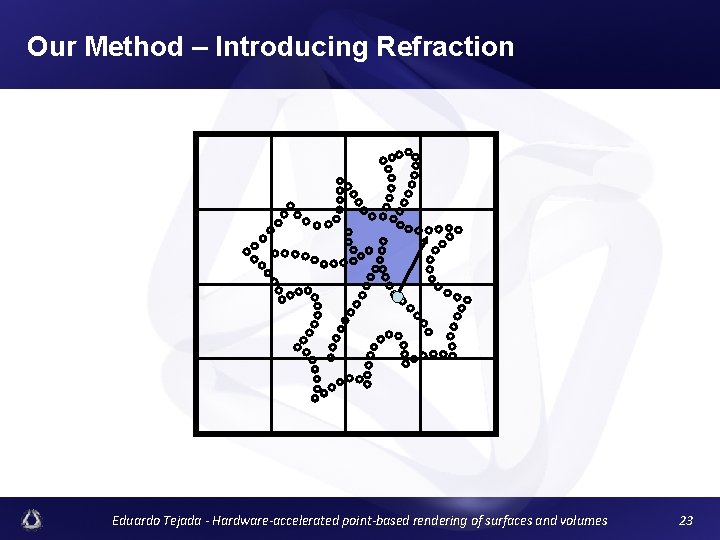

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 23

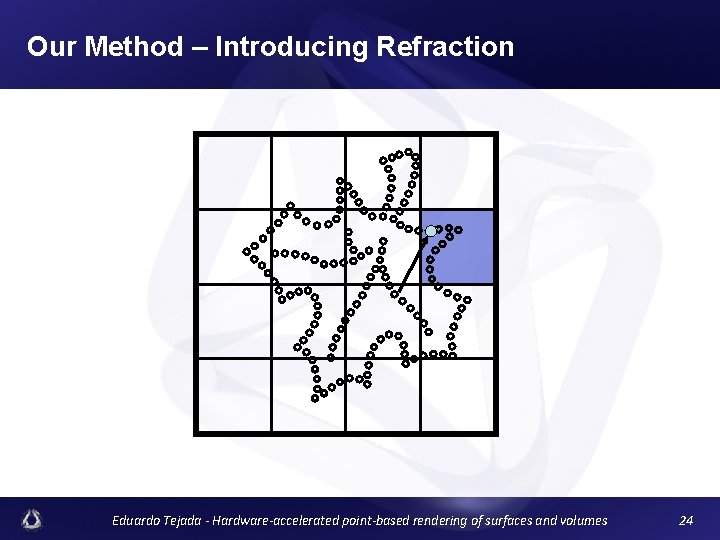

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 24

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 25

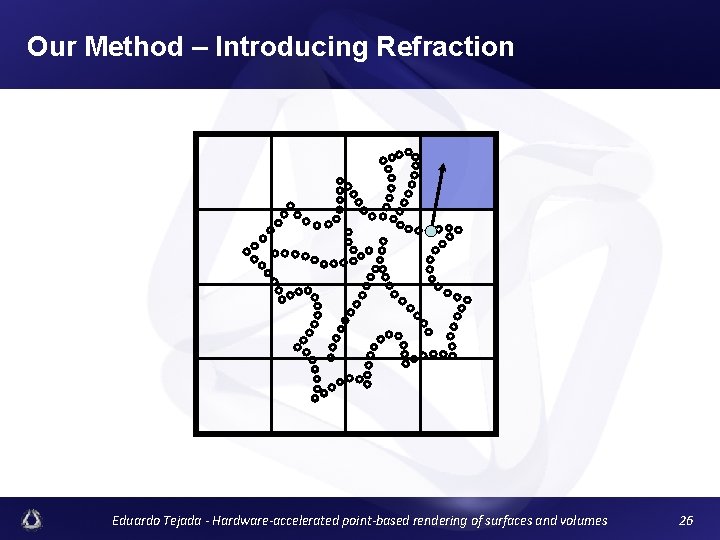

Our Method – Introducing Refraction Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 26

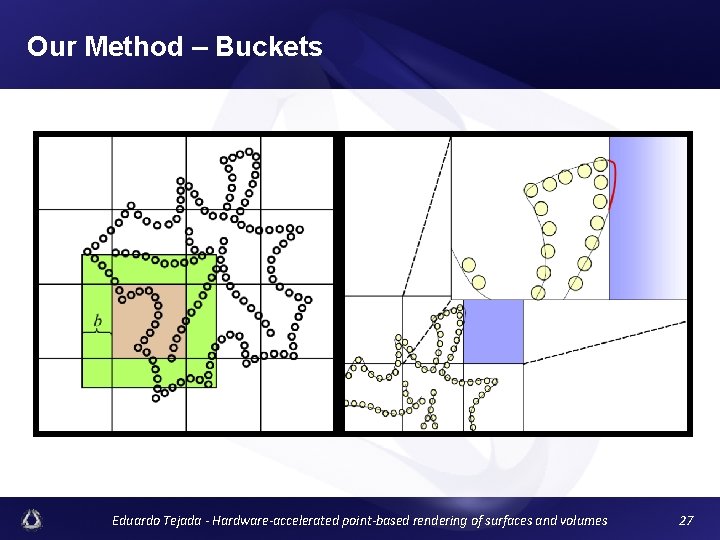

Our Method – Buckets Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 27

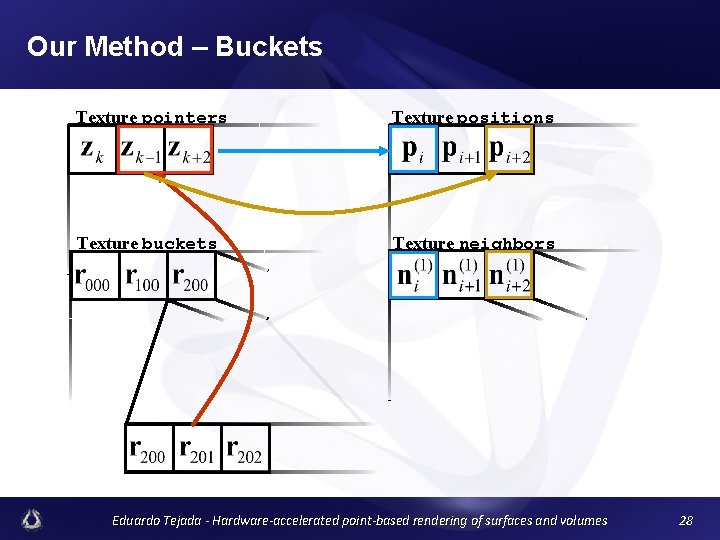

Our Method – Buckets Texture pointers Texture positions Texture buckets Texture neighbors Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 28

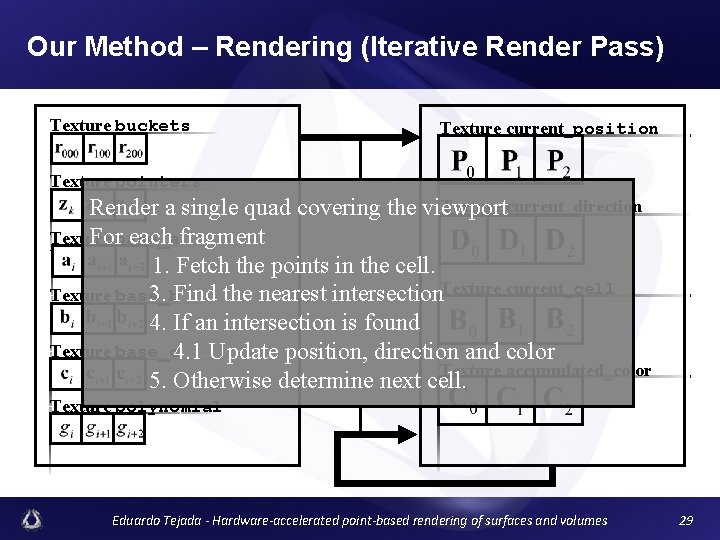

Our Method – Rendering (Iterative Render Pass) Texture buckets Texture current_position Texture pointers Texture current_direction Render a single quad covering the viewport Forbase_a each fragment Texture 1. Fetch the points in the cell. Texture base_b 3. Find the nearest intersection. Texture current_cell 4. If an intersection is found Texture base_c 4. 1 Update position, direction and color Texture accumulated_color 5. Otherwise determine next cell. Texture polynomial Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 29

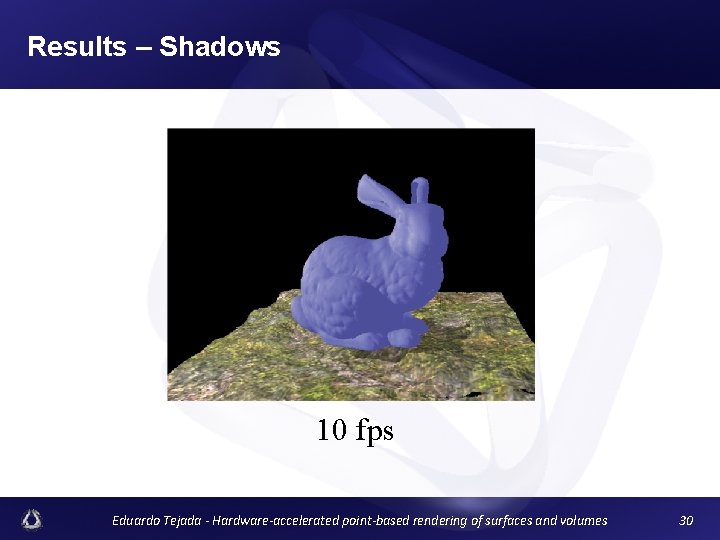

Results – Shadows 10 fps Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 30

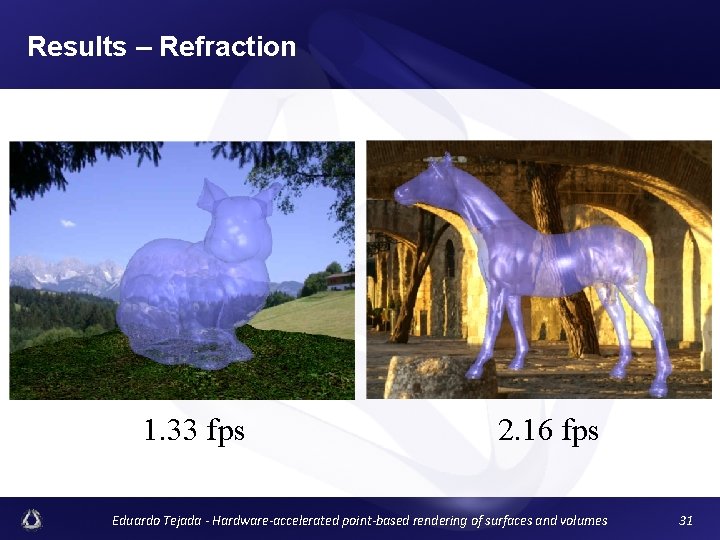

Results – Refraction 1. 33 fps 2. 16 fps Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 31

Results – Multiple Indices of Refraction 0. 25 fps 0. 22 fps Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 32

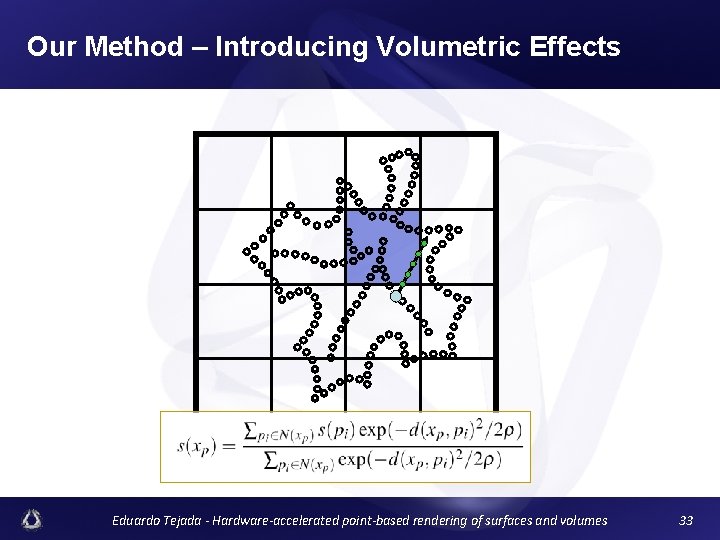

Our Method – Introducing Volumetric Effects Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 33

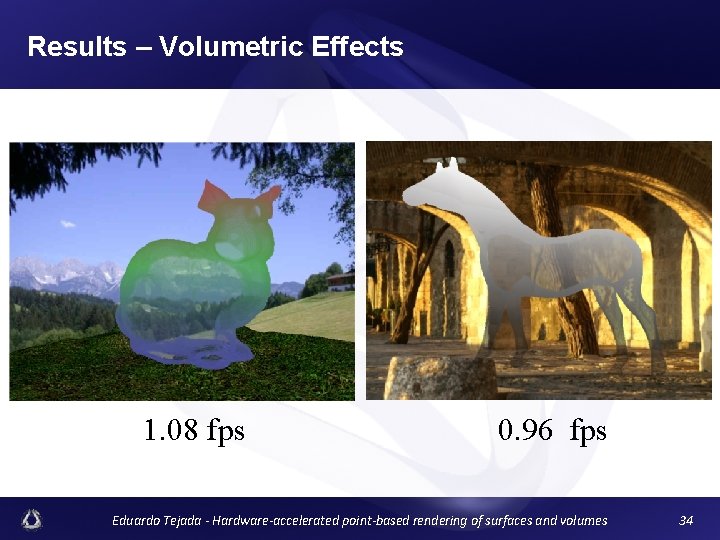

Results – Volumetric Effects 1. 08 fps 0. 96 fps Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 34

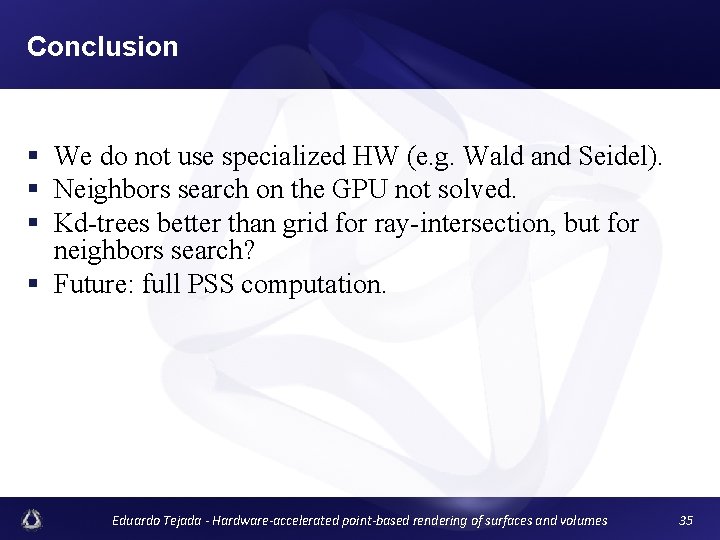

Conclusion § We do not use specialized HW (e. g. Wald and Seidel). § Neighbors search on the GPU not solved. § Kd-trees better than grid for ray-intersection, but for neighbors search? § Future: full PSS computation. Eduardo Tejada - Hardware-accelerated point-based rendering of surfaces and volumes 35
