Hardware Description Languages Languages used to describe hardware

Hardware Description Languages • Languages used to describe hardware designs • Can be used for synthesis or simulation • Synthesis is manufacturing an Application Specific Integrated Circuit (ASIC) or mapping to a Field Programmable Gate Array (FPGA) § Performance/Area/Power are a priority • Simulation is for the purpose of checking functionality § Simulation must match the real world • In this class we are doing simulation, not synthesis

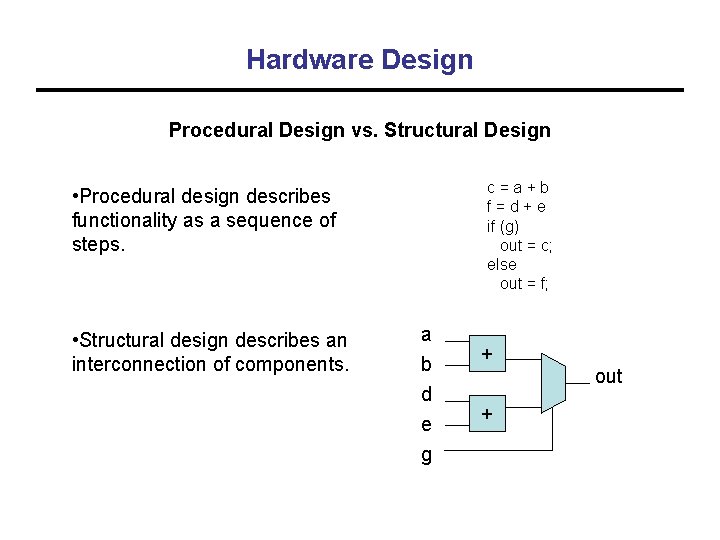

Hardware Design Procedural Design vs. Structural Design c=a+b f=d+e if (g) out = c; else out = f; • Procedural design describes functionality as a sequence of steps. • Structural design describes an interconnection of components. a b d e g + out +

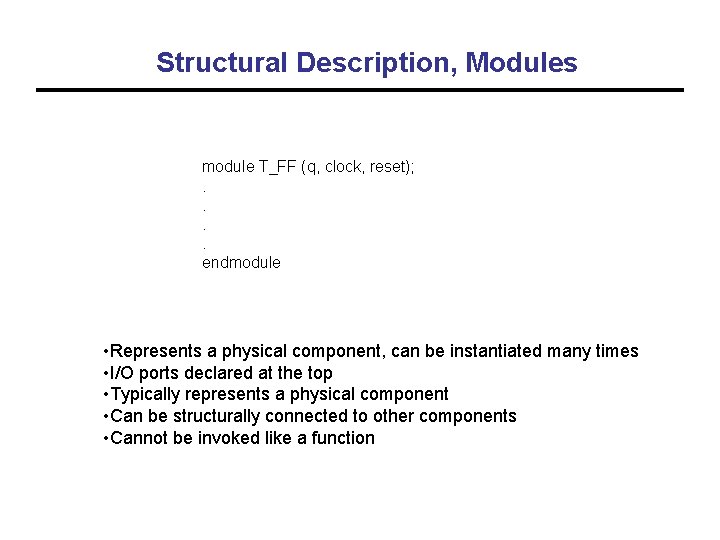

Structural Description, Modules module T_FF (q, clock, reset); . . endmodule • Represents a physical component, can be instantiated many times • I/O ports declared at the top • Typically represents a physical component • Can be structurally connected to other components • Cannot be invoked like a function

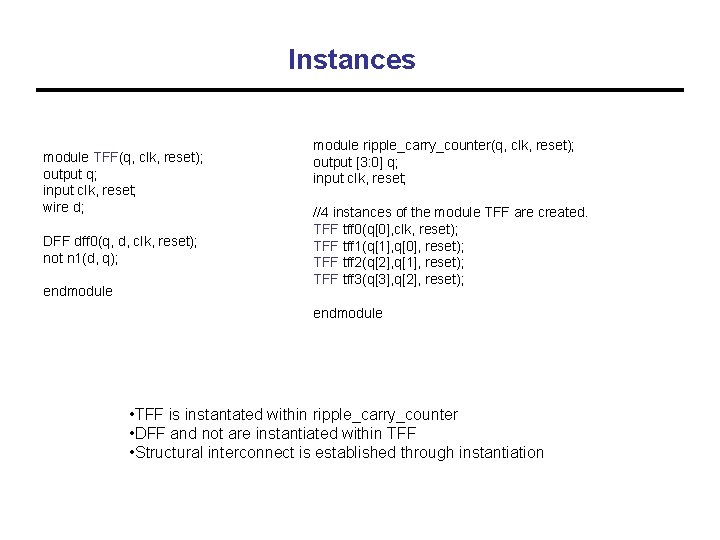

Instances module TFF(q, clk, reset); output q; input clk, reset; wire d; DFF dff 0(q, d, clk, reset); not n 1(d, q); endmodule ripple_carry_counter(q, clk, reset); output [3: 0] q; input clk, reset; //4 instances of the module TFF are created. TFF tff 0(q[0], clk, reset); TFF tff 1(q[1], q[0], reset); TFF tff 2(q[2], q[1], reset); TFF tff 3(q[3], q[2], reset); endmodule • TFF is instantated within ripple_carry_counter • DFF and not are instantiated within TFF • Structural interconnect is established through instantiation

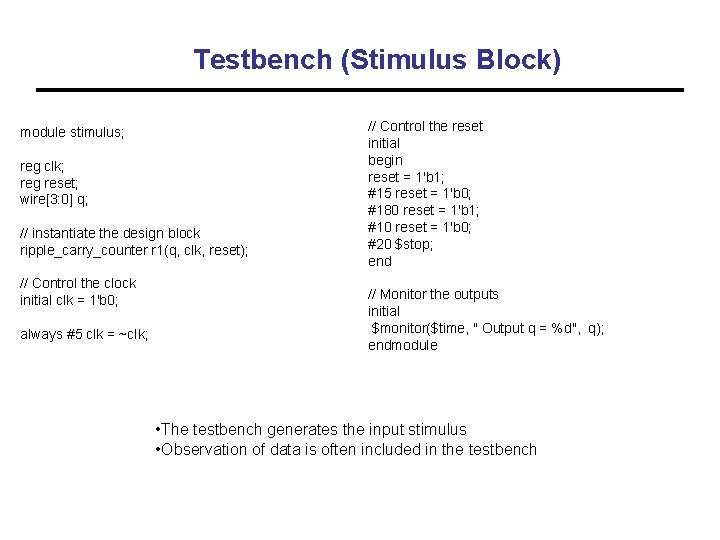

Testbench (Stimulus Block) module stimulus; reg clk; reg reset; wire[3: 0] q; // instantiate the design block ripple_carry_counter r 1(q, clk, reset); // Control the clock initial clk = 1'b 0; always #5 clk = ~clk; // Control the reset initial begin reset = 1'b 1; #15 reset = 1'b 0; #180 reset = 1'b 1; #10 reset = 1'b 0; #20 $stop; end // Monitor the outputs initial $monitor($time, " Output q = %d", q); endmodule • The testbench generates the input stimulus • Observation of data is often included in the testbench
