Hankook Horizontal Lathe Dynaturn vs R series Technical

Hankook Horizontal Lathe Dynaturn vs R series Technical Sales Team 2013. 2. 7

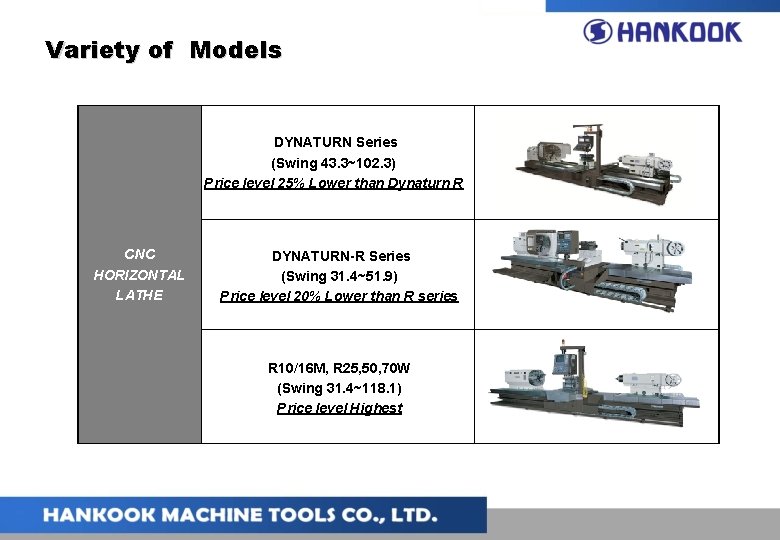

Variety of Models DYNATURN Series (Swing 43. 3~102. 3) Price level 25% Lower than Dynaturn R CNC HORIZONTAL LATHE DYNATURN-R Series (Swing 31. 4~51. 9) Price level 20% Lower than R series R 10/16 M, R 25, 50, 70 W (Swing 31. 4~118. 1) Price level Highest

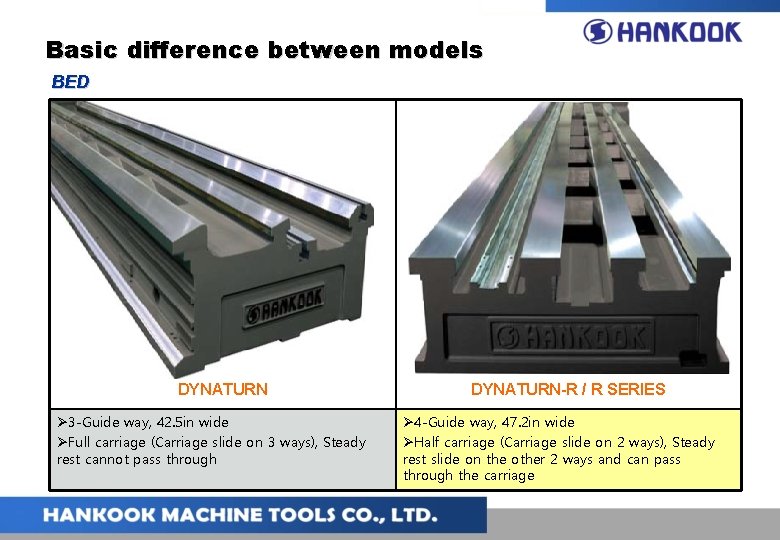

Basic difference between models BED DYNATURN Ø 3 -Guide way, 42. 5 in wide ØFull carriage (Carriage slide on 3 ways), Steady rest cannot pass through DYNATURN-R / R SERIES Ø 4 -Guide way, 47. 2 in wide ØHalf carriage (Carriage slide on 2 ways), Steady rest slide on the other 2 ways and can pass through the carriage

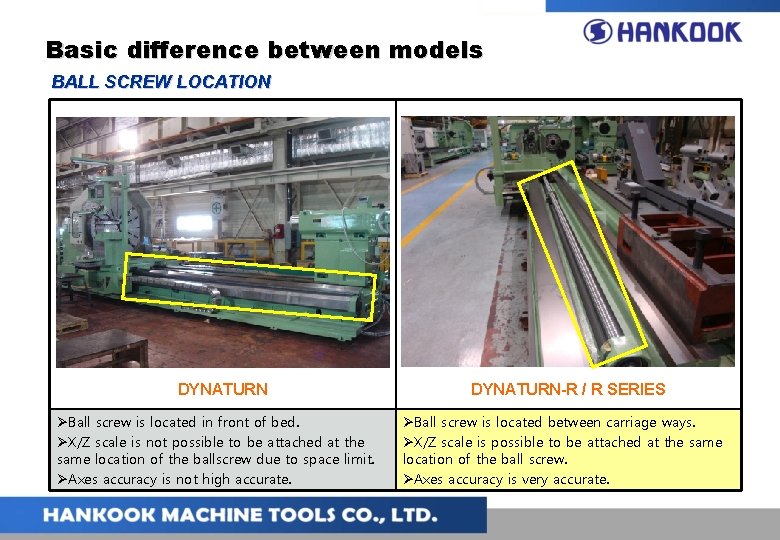

Basic difference between models BALL SCREW LOCATION DYNATURN ØBall screw is located in front of bed. ØX/Z scale is not possible to be attached at the same location of the ballscrew due to space limit. ØAxes accuracy is not high accurate. DYNATURN-R / R SERIES ØBall screw is located between carriage ways. ØX/Z scale is possible to be attached at the same location of the ball screw. ØAxes accuracy is very accurate.

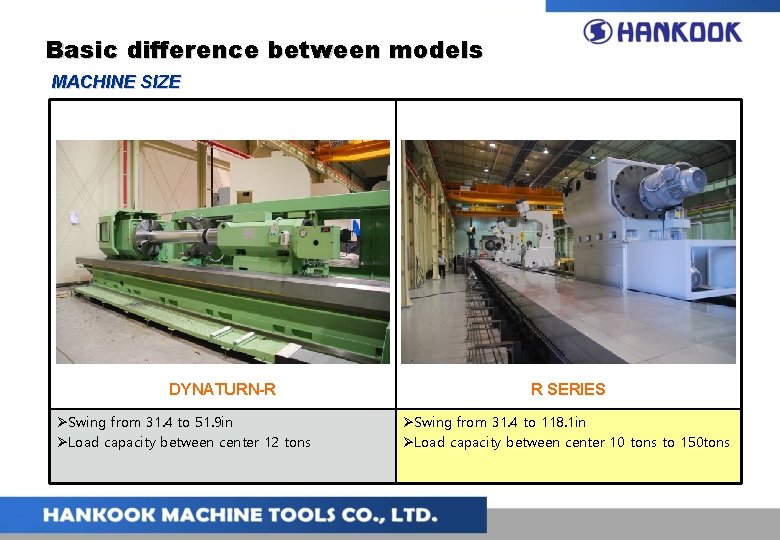

Basic difference between models MACHINE SIZE DYNATURN-R ØSwing from 31. 4 to 51. 9 in ØLoad capacity between center 12 tons R SERIES ØSwing from 31. 4 to 118. 1 in ØLoad capacity between center 10 tons to 150 tons

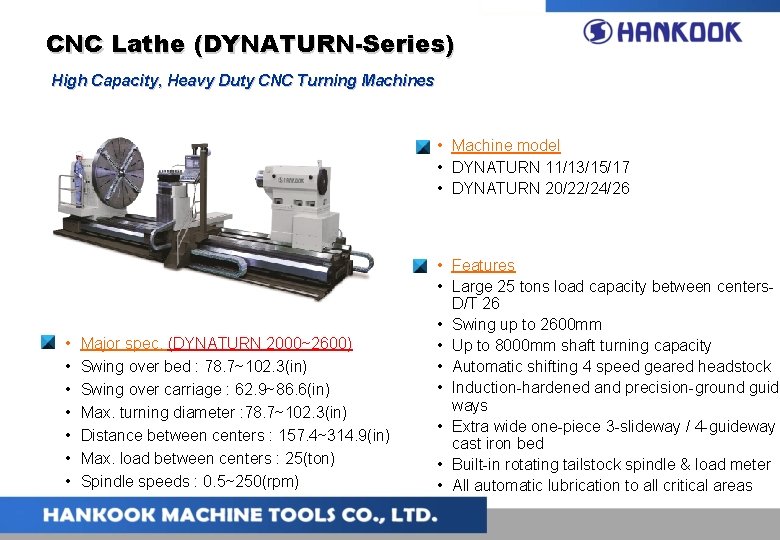

CNC Lathe (DYNATURN-Series) High Capacity, Heavy Duty CNC Turning Machines • Machine model • DYNATURN 11/13/15/17 • DYNATURN 20/22/24/26 • • Major spec. (DYNATURN 2000~2600) Swing over bed : 78. 7~102. 3(in) Swing over carriage : 62. 9~86. 6(in) Max. turning diameter : 78. 7~102. 3(in) Distance between centers : 157. 4~314. 9(in) Max. load between centers : 25(ton) Spindle speeds : 0. 5~250(rpm) • Features • Large 25 tons load capacity between centers. D/T 26 • Swing up to 2600 mm • Up to 8000 mm shaft turning capacity • Automatic shifting 4 speed geared headstock • Induction-hardened and precision-ground guide ways • Extra wide one-piece 3 -slideway / 4 -guideway cast iron bed • Built-in rotating tailstock spindle & load meter • All automatic lubrication to all critical areas

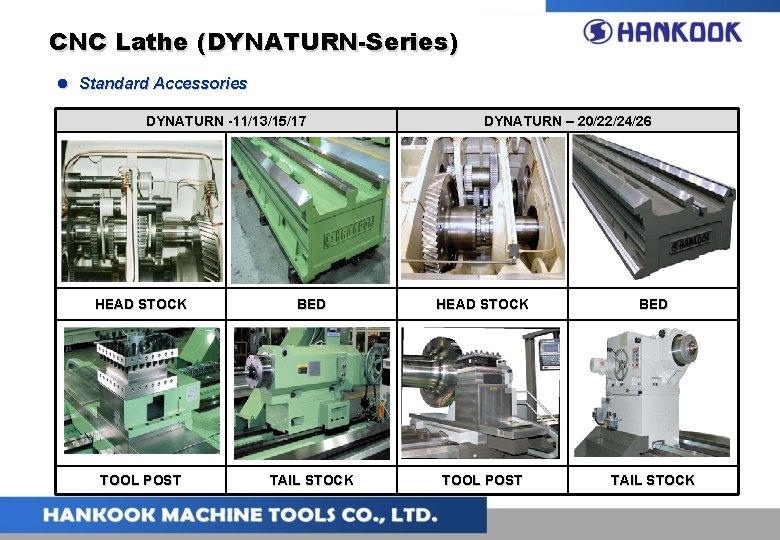

CNC Lathe (DYNATURN-Series) l Standard Accessories DYNATURN -11/13/15/17 DYNATURN – 20/22/24/26 HEAD STOCK BED TOOL POST TAIL STOCK

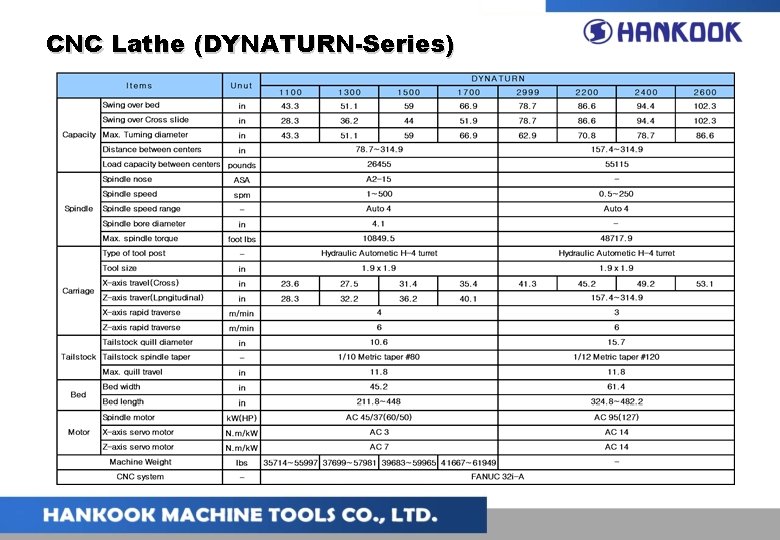

CNC Lathe (DYNATURN-Series)

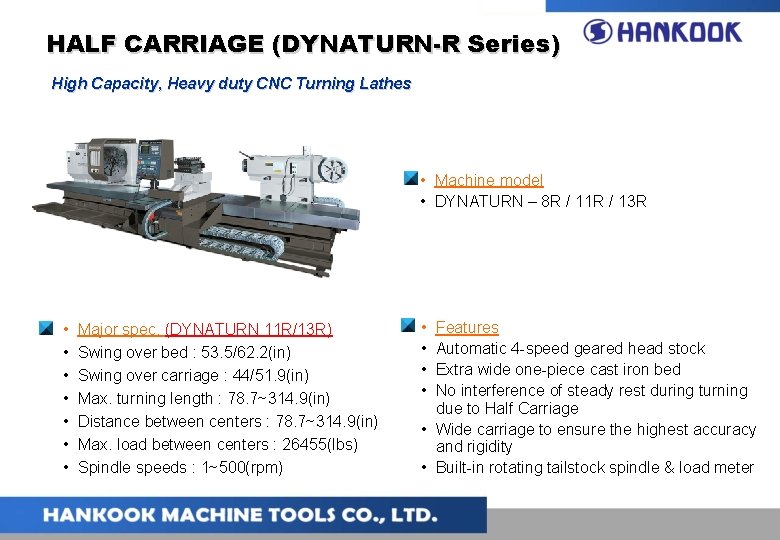

HALF CARRIAGE (DYNATURN-R Series) High Capacity, Heavy duty CNC Turning Lathes • Machine model • DYNATURN – 8 R / 11 R / 13 R • • Major spec. (DYNATURN 11 R/13 R) Swing over bed : 53. 5/62. 2(in) Swing over carriage : 44/51. 9(in) Max. turning length : 78. 7~314. 9(in) Distance between centers : 78. 7~314. 9(in) Max. load between centers : 26455(lbs) Spindle speeds : 1~500(rpm) • • Features Automatic 4 -speed geared head stock Extra wide one-piece cast iron bed No interference of steady rest during turning due to Half Carriage • Wide carriage to ensure the highest accuracy and rigidity • Built-in rotating tailstock spindle & load meter

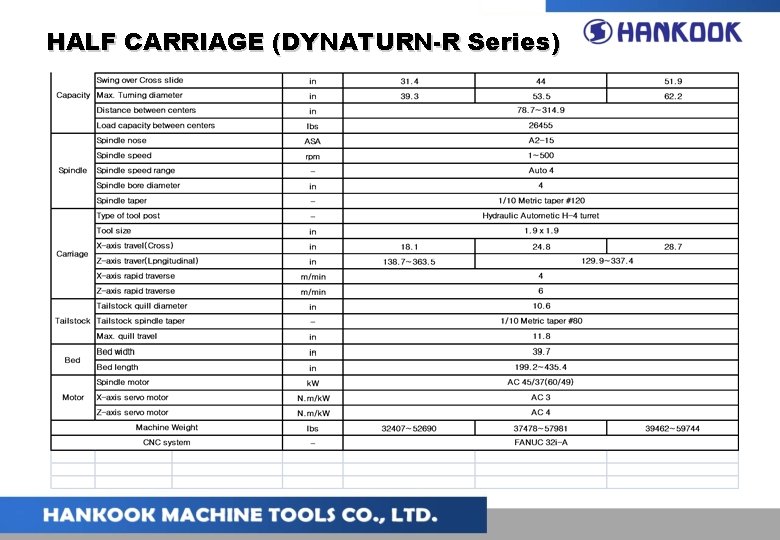

HALF CARRIAGE (DYNATURN-R Series)

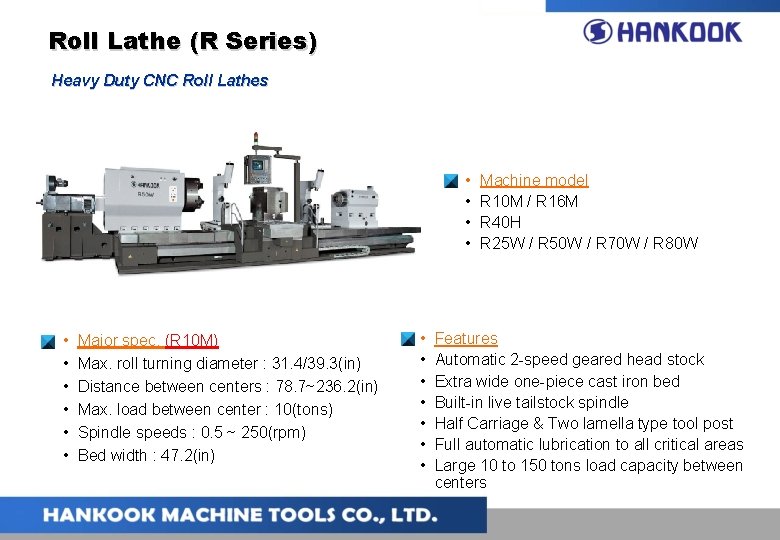

Roll Lathe (R Series) Heavy Duty CNC Roll Lathes • • • Major spec. (R 10 M) Max. roll turning diameter : 31. 4/39. 3(in) Distance between centers : 78. 7~236. 2(in) Max. load between center : 10(tons) Spindle speeds : 0. 5 ~ 250(rpm) Bed width : 47. 2(in) • • Machine model R 10 M / R 16 M R 40 H R 25 W / R 50 W / R 70 W / R 80 W Features Automatic 2 -speed geared head stock Extra wide one-piece cast iron bed Built-in live tailstock spindle Half Carriage & Two lamella type tool post Full automatic lubrication to all critical areas Large 10 to 150 tons load capacity between centers

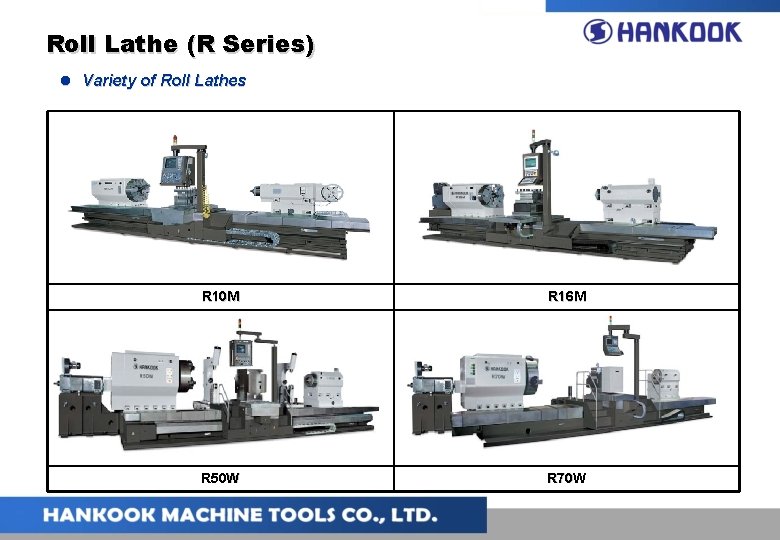

Roll Lathe (R Series) l Variety of Roll Lathes R 10 M R 16 M R 50 W R 70 W

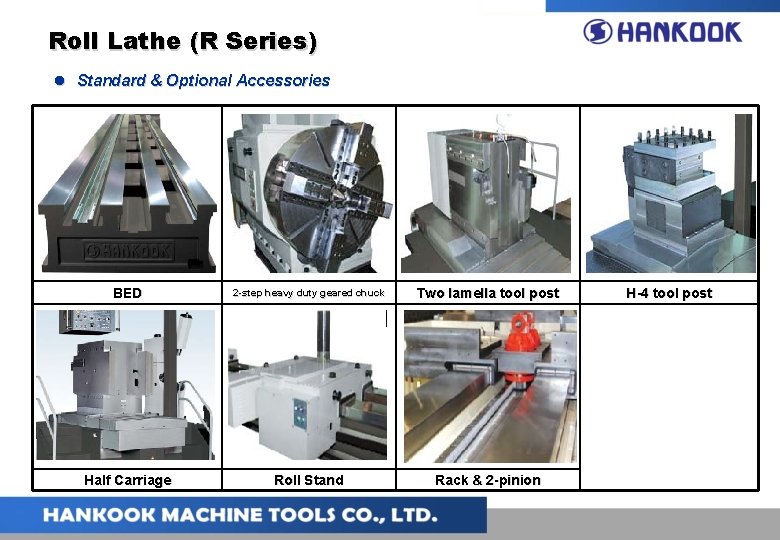

Roll Lathe (R Series) l Standard & Optional Accessories BED 2 -step heavy duty geared chuck Two lamella tool post Half Carriage Roll Stand Rack & 2 -pinion H-4 tool post

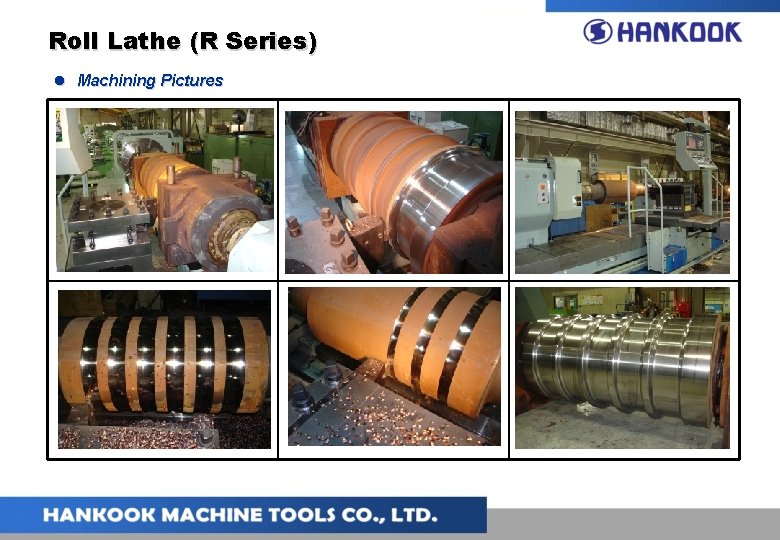

Roll Lathe (R Series) l Machining Pictures

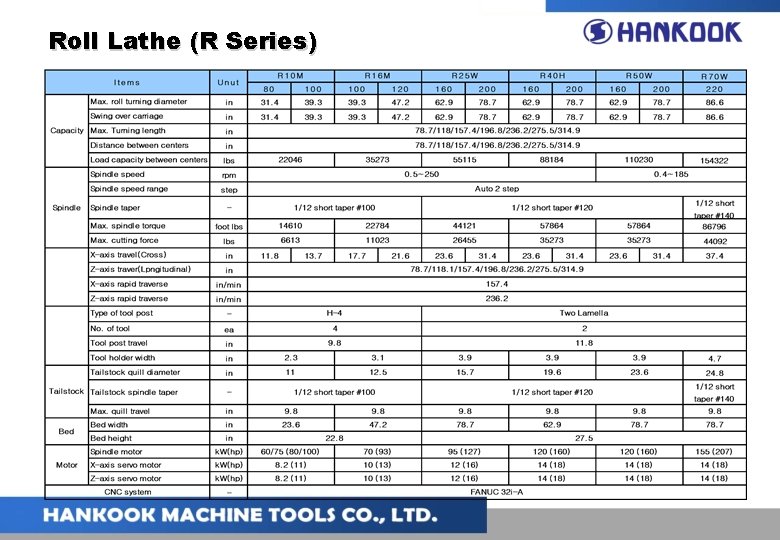

Roll Lathe (R Series)

Your Best Partner Hankook
