Hands Off ! 26/10/2021 www. nikoninstruments. eu
Hands Off ! Contamination-free Macro Imaging 26/10/2021 www. nikoninstruments. eu
Fred Giles MGS-1 Macro Grossing Station Fred Giles 26/10/2021 www. nikoninstruments. eu
The Philosophy of the MGS-1 Ø Intuitively Simple Ø Contamination Free Operation Ø Quality Imaging Ø Full Functionality 26/10/2021 www. nikoninstruments. eu
Application of the MGS-1 Ø Pathology Cut-Up • Fixed Tissue Ø Mortuary Use • Unfixed Tissue 26/10/2021 www. nikoninstruments. eu
Overview of the MGS-1 Ø Motorised Lens Ø Quality Camera Ø Network PC Ø Pathology Based Software Ø Minimal Handling 26/10/2021 www. nikoninstruments. eu
Camera Hardware of the MGS-1 Ø Nikon DS-Fi • Twin Mode Camera – 1. 3 and 5 Mp Ø Motorised Lens • Focus, Zoom, Aperture Ø Contamination Protection • Cowling, Base-Board Ø Lighting • Cool Operating, Direction Control 26/10/2021 www. nikoninstruments. eu

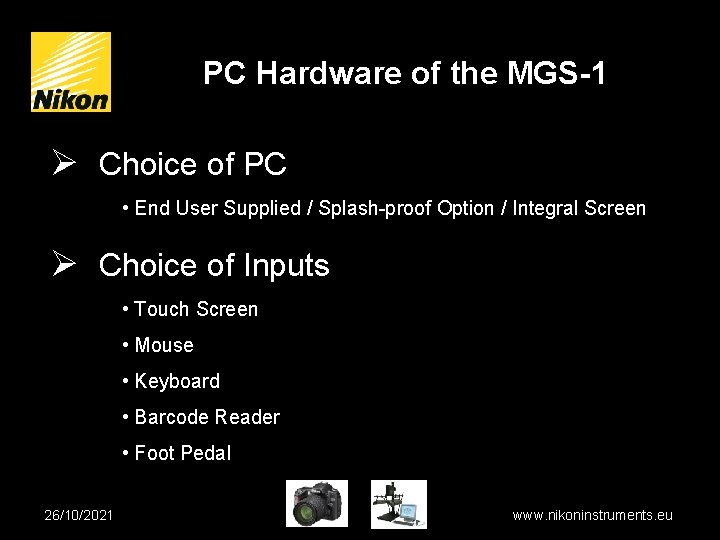

PC Hardware of the MGS-1 Ø Choice of PC • End User Supplied / Splash-proof Option / Integral Screen Ø Choice of Inputs • Touch Screen • Mouse • Keyboard • Barcode Reader • Foot Pedal 26/10/2021 www. nikoninstruments. eu
Software of the MGS-1 ØIntuitive Interface • Jargon Free Terminology • Large Image Area • Essential User Tools ØAdvanced Functionality • Access to More Functions • Database • Advanced Measurement Tools ØSystem Integration • Front page of Core Software 26/10/2021 www. nikoninstruments. eu
Software Interface Specimen Overview 26/10/2021 www. nikoninstruments. eu
Software Interface 26/10/2021 www. nikoninstruments. eu

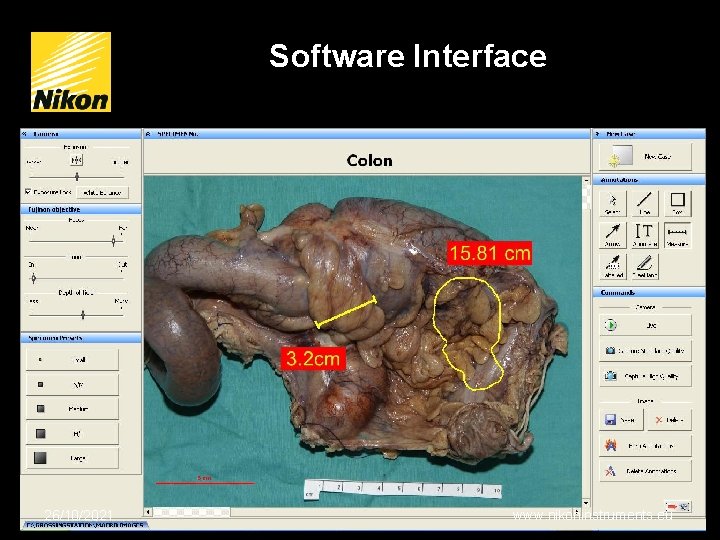

Software Interface Annotations 26/10/2021 www. nikoninstruments. eu
Software Interface Thumbnail Images 26/10/2021 www. nikoninstruments. eu
Summary ØMacro Imaging System • Pathology Cut-Up • Mortuary Areas ØIntuitively Simple • • Jargon Free Choice of Interface Methods Fully Functional High Quality Imaging ØSystem Integration • NIS-Elements D Software • Aperio Spectrum Software 26/10/2021 www. nikoninstruments. eu
Macro Imaging System for use in Pathology Cut-Up and Mortuary Questions ? 26/10/2021 www. nikoninstruments. eu
