Handheld Devices portable but still explicit usage Laptops
Handheld Devices (portable but still explicit usage) • Laptops • Personal Digital Assistants (Palm, Pocket. PC) • Tablet. PC • Smart Phones
Palm VIIx • • • Size: 5. 25" x 3. 25" x 0. 75" Weight: 6. 7 oz. Batteries: 2 AAA Processor: 16 MHz Motorola Dragonball EZ Memory: 8 MB Palm. OS Version: 3. 5 Flash ROM: Yes Expandability: None Price: $449 Additional Features: Wireless Internet Access
Da. Vinci

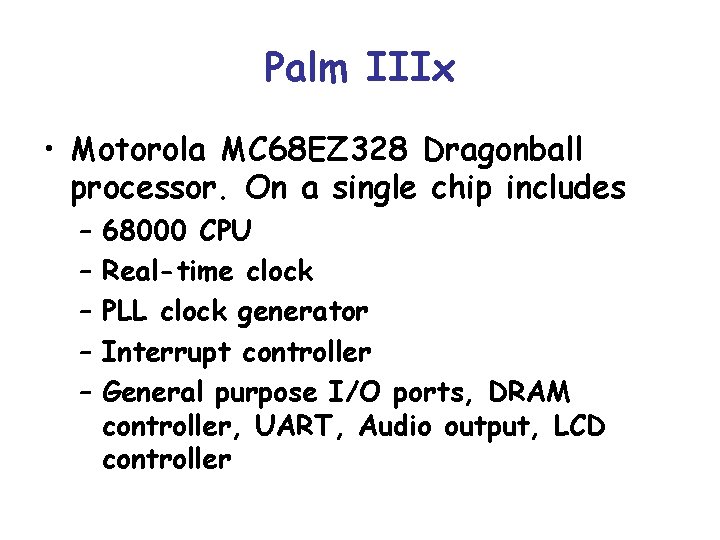

Palm IIIx • Motorola MC 68 EZ 328 Dragonball processor. On a single chip includes – – – 68000 CPU Real-time clock PLL clock generator Interrupt controller General purpose I/O ports, DRAM controller, UART, Audio output, LCD controller
Palm IIIx (contd. ) • 68000 CPU – CISC core (1978 design) – 4 cycles per instruction typical – No MMU (no protection!) • DRAM Memory – 4 MB, implemented as two 2 MB chips – 60 ns access latency

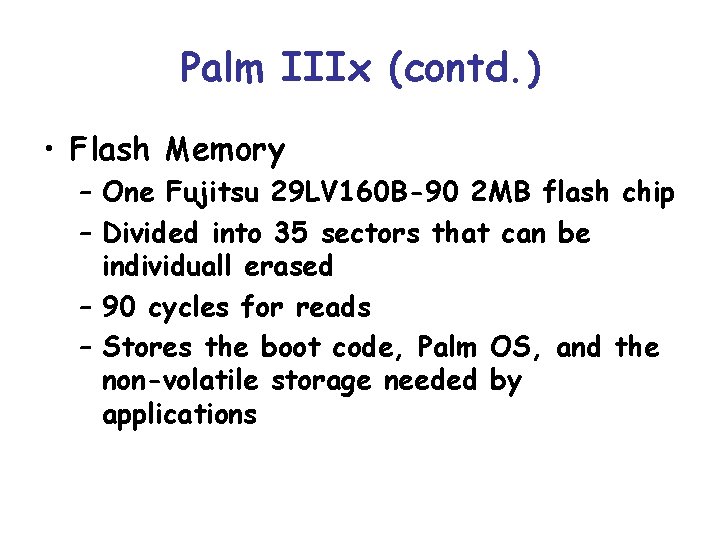

Palm IIIx (contd. ) • Flash Memory – One Fujitsu 29 LV 160 B-90 2 MB flash chip – Divided into 35 sectors that can be individuall erased – 90 cycles for reads – Stores the boot code, Palm OS, and the non-volatile storage needed by applications

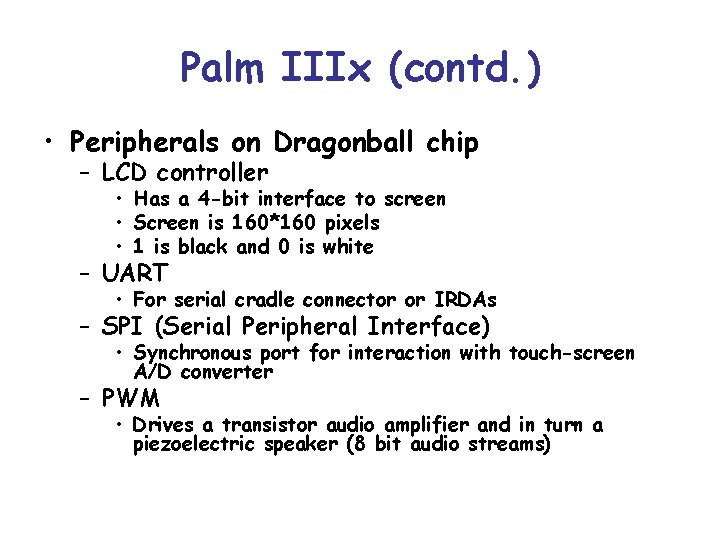

Palm IIIx (contd. ) • Peripherals on Dragonball chip – LCD controller • Has a 4 -bit interface to screen • Screen is 160*160 pixels • 1 is black and 0 is white – UART • For serial cradle connector or IRDAs – SPI (Serial Peripheral Interface) • Synchronous port for interaction with touch-screen A/D converter – PWM • Drives a transistor audio amplifier and in turn a piezoelectric speaker (8 bit audio streams)

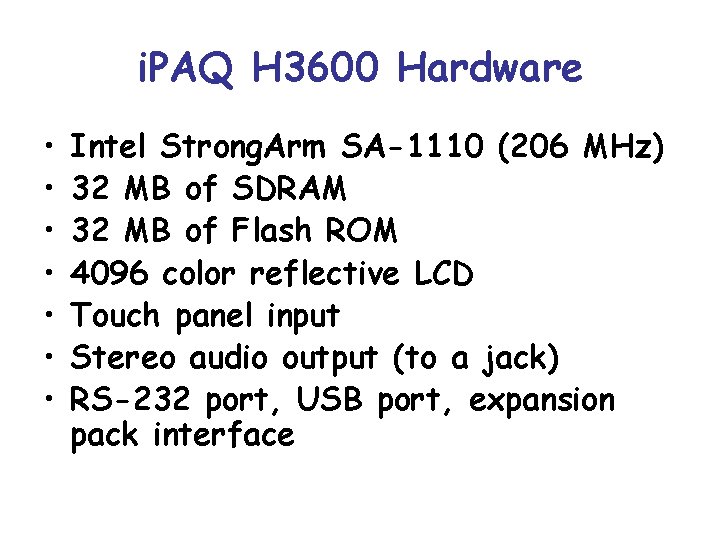

i. PAQ H 3600 Hardware • • Intel Strong. Arm SA-1110 (206 MHz) 32 MB of SDRAM 32 MB of Flash ROM 4096 color reflective LCD Touch panel input Stereo audio output (to a jack) RS-232 port, USB port, expansion pack interface
Strong. ARM SA-1110
Strong. ARM system integration
Strong. ARM SA-1110 • 2. 1 MIPS, 206 Mhz • Normal Mode 240 m. W @ 1. 55 V/133 Mhz, 400 m. W @ 1. 75 V/206 MHz • 32 way set associatve caches • 16 KB I-cache, 8 KB write-back Dcache • 32 entry I and D MMUs • Read/Write buffer
Additional features in chipset • Memory controller for ROM, flash, DRAM (SDRAM), SRAM • LCD controller (1/2/4 bit gray scale or 8/12/16 bit color) • UART, Ir. DA • Touch-screen, audio port • 6 channel DMA controller • 2 -slot PCMCIA controller, 12 Mbps USB controller • 28 general purpose I/O ports, Interrupt controller • Real-time clock with interrupt capability • Power modes: Normal, Idle, Sleep
Memory Map • Four main partitions of 1 GB each – 0 x 0 to 0 x 3 FFFFFFF • 4*238 MB blocks for static memory devices (ROM, SRAM, Flash) • 2*256 MB blocks for PCMCIA Interface (socket 0 and socket 1) – 0 x 40000000 to 0 x 7 fffffff • 2*128 MB blocks for variable latency I/O devices • 768 MB of reserved space
Memory Map (contd. ) • 0 x 80000000 to 0 xbfffffff – Contains all on-chip registers (peripherals regs, sys control regs, memory regs, LCD and DMA regs) • 0 xc 0000000 to 0 xffff – 4*128 MB of DRAM – 1*128 MB mapped within memory controller. – 384 MB of reserved space
• Two crystals 32. 768 Khz and 3. 6864 Mhz • Several frequencies can be generated from these by setting CCF (clock config. field) of power manager phase locked loop config. register (PPCR) • Clock frequencies: 59, 73. 7, 88. 5, 103. 2, 118. 0, 132. 7, 147. 5, 162. 2, 176. 2, 191. 7, 206. 4, 221. 2 MHz • Remember Power = C*V^2*F • 150 us transition period when no response to external events and OS timer is stopped • Clock rates of external devices should also be adjusted.

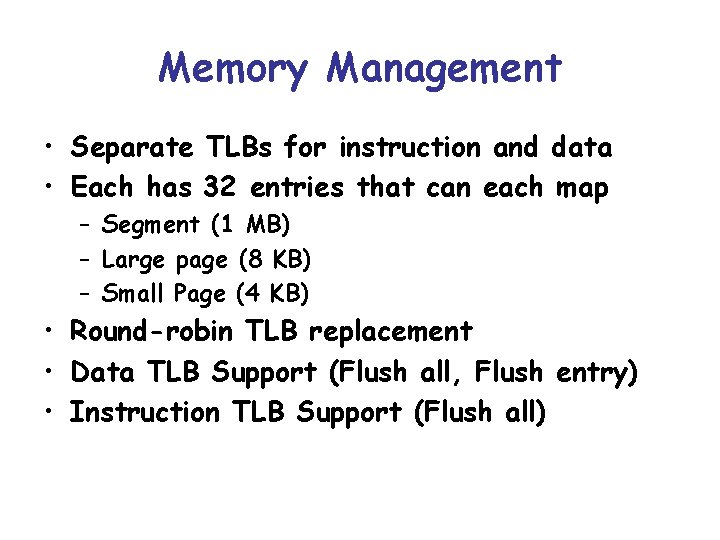

Memory Management • Separate TLBs for instruction and data • Each has 32 entries that can each map – Segment (1 MB) – Large page (8 KB) – Small Page (4 KB) • Round-robin TLB replacement • Data TLB Support (Flush all, Flush entry) • Instruction TLB Support (Flush all)
Instruction Cache • 16 KB, 32 -way associative with 32 byte blocks • Replacement is round robin within set • I-cache operates with virtual addresses (both index and tag) • Supports flush-all function
Data Cache • 8 KB, 32 -way associative with 32 byte blocks. Round robin replacement in set • Allocate only on loads • Flush all, flush entry and copyback entry functions • Works with virtual addresses • 2 dirty bits per block for write-backs • In addition, a mini-data cache, which can be used to hold data that can thrash in main data cache • Mini data cache: 512 byte, 2 -way
Data Cache vs Mini Data Cache • Data can reside only in one of them and are searched in parallel • Operation of load/store depends on B (bufferable) and C (cacheable) bits in MMU • If C=1, data can be placed in either Normal or mini based on B bit for a load • If B=0 (and C=1), load miss places block in mini cache • If B=1 (and C=1), load miss places block in normal cache.
Write Buffer • Can avoid stalling on writes • Upto 8 blocks of data of 1 to 16 bytes at different addresses • In the common case, writes are not merged in the write buffer
Read Buffer • Four entry read buffer capable of loading 1, 4 or 8 words per entry • Allows software to preload data into them for use at a later time without blocking the processor • Software can also specify which entry to use. Portion of a block can be in one entry while rest can be in another entry – but a word can be in only one entry. • Data can be simultaneously present in D-cache and Read buffer. Data is returned from Read buffer and software has to handle coherence issues.
