HALAL LABORATORY PROTOCOLS LABORATORY TESTING Presented by SANDY
“HALAL LABORATORY PROTOCOLS & LABORATORY TESTING” Presented by SANDY E. BUCAO 1 st NATIONAL HALAL CONVENTION June 26, 2008 copyright INTERTEK 2007, all rights reserved
According to Shari’ah Law, HALAL is …. • Lawful • Permissible • Wholesome • Just • All things pure and good (“Tayyab”) copyright INTERTEK 2007, all rights reserved
RULE OF THUMB • In Islam, every thing (food) is permitted (Halal) to be consumed, except “A B C D I S” which is prohibited (Haram): A: Alcohol and Drugs B: Blood (flowing or congealed) C: Carnivorous animals and birds or prey D: Dead animals/Birds (that died of itself before slaughter) I : Immolated Foods S: Swine and its by-products copyright INTERTEK 2007, all rights reserved
“HALAL” & “TAYYAB” • For the food to be lawful (Halal) for consumption, it must meet the following two criteria: (a) The food must be earned /acquired lawfully (b) The food must conform to the Islamic dietary laws • For the food to be good (Tayyab) for consumption, it must meet the following two criteria: (a) The food must be wholesome and nutritious (b) The food must be safe for consumption. copyright INTERTEK 2007, all rights reserved
HALAL + TAYYAB = HALAL QUALITY • • Determination of Halal & Tayyab is based on Shar’iah Requirements Halal products should meet Food Safety & Quality Requirements to fulfill consumer needs Halal Quality is a system based on a standard which respects both the Shar’iah requirements, the Government Regulations and relevant Food Safety & Quality standards All ingredients used in production must meet Halal requirements Certification Bodies must conform to the appropriate product standards, locally and/or internationally Food safety, hygiene, sanitation, product labeling and handling should be covered by mandatory government regulations Halal Quality implementation should encompass standards on PRODUCT, PROCESS & SYSTEM copyright INTERTEK 2007, all rights reserved
HALAL & TAYYAB are technically determined through stringent laboratory analyses by a highly competent laboratory. copyright INTERTEK 2007, all rights reserved
PROBING THE COMPETENCE OF A HALAL LABORATORY … copyright INTERTEK 2007, all rights reserved
The Halal Lab must comply with the Elements of GLP • • • QA Programs Laboratory Conditions Test Samples Test Measurements Records Management Health & Safety Management copyright INTERTEK 2007, all rights reserved
Element Objective • To ensure consistent quality of test data • QA Programs • Laboratory Conditions • To ensure conditions are optimized • Test Samples • To preserve the identity and integrity of the samples for testing • Test Measurements • To ensure that test methods used are acceptable and will produce expected performance • Record Management • To enable efficient retrieval of undistorted information copyright INTERTEK 2007, all rights reserved
I. Laboratory Conditions (Resources) A. Organization and Personnel – Structure of the organization – Qualified Personnel to head the laboratory – Well-defines roles and responsibilities of personnel – Qualifications and training required & undertaken must be defined and documented copyright INTERTEK 2007, all rights reserved

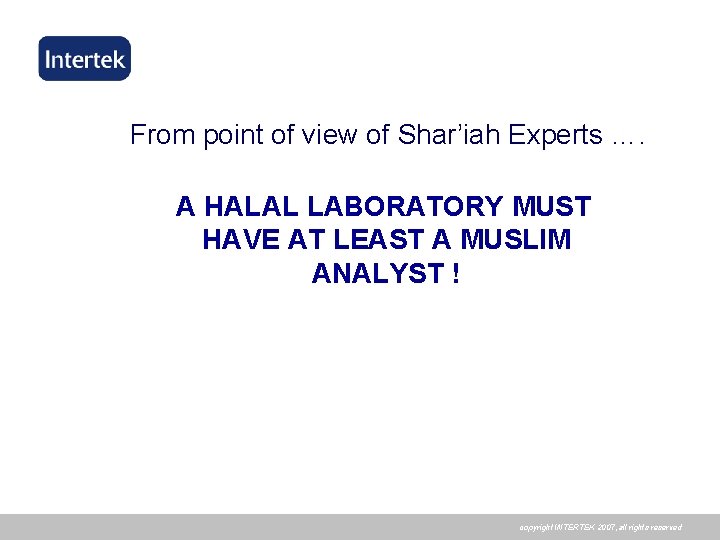

From point of view of Shar’iah Experts …. A HALAL LABORATORY MUST HAVE AT LEAST A MUSLIM ANALYST ! copyright INTERTEK 2007, all rights reserved
I. Laboratory Conditions (Resources) B. Facilities – Sufficient area or space for testing – Proper lighting and ventilation – Having the right and applicable equipment – Facility for data encoding and management – Sufficient space for storage (for consumables, sample retention and documents) – Sufficient supplies (reagents and standards) – Facilities to address personnel’s proper hygiene copyright INTERTEK 2007, all rights reserved
IS IT REALY NECESSARY TO HAVE A SEPARATE TESTING AREA FOR SAMPLES INTENDED FOR HALAL TESTING? ? ? copyright INTERTEK 2007, all rights reserved
copyright INTERTEK 2007, all rights reserved
copyright INTERTEK 2007, all rights reserved
I. Laboratory Conditions (Resources) C. Equipment – Availability of Equipment Manuals –All equipment must be in good working condition – Equipment specifications are well-defined – Equipment Verification and Calibration Program – Troubleshooting and maintenance program copyright INTERTEK 2007, all rights reserved
LABORATORY CONDITIONS THAT AFFECTS THE ANALYSIS | Equipment | Consumables/Chemicals & reagents | Glassware | Environmental Conditions OBJECTIVE: to control the laboratory conditions to achieve the target performance of the test method copyright INTERTEK 2007, all rights reserved
II. Test Samples (Characterization) It is very important to know as much as possible the details of the material to be tested as well as the materials/reagents to be used for testing. This will ensure preservation and integrity of samples. • • Test item/sample – ex. to which sample matrix • Test system – suitable location, appropriate design and adequate capacity Reagents/testing materials – must be freshly prepared & properly labeled; expiration must be checked. copyright INTERTEK 2007, all rights reserved

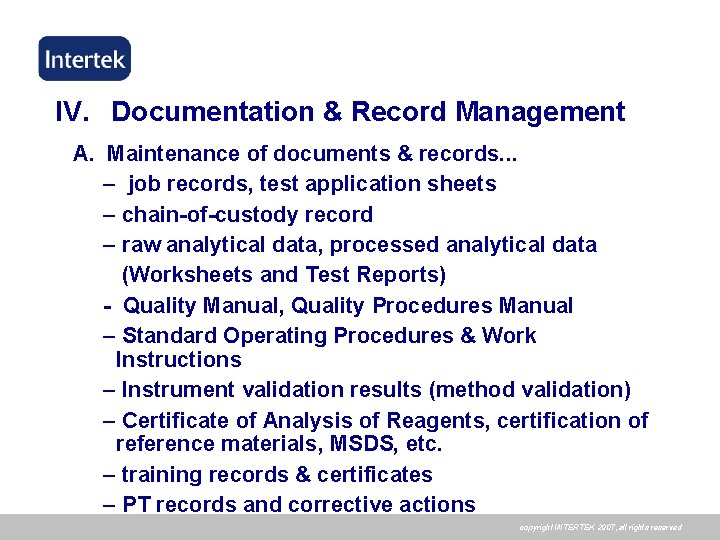

IV. Documentation & Record Management A. Maintenance of documents & records. . . – job records, test application sheets – chain-of-custody record – raw analytical data, processed analytical data (Worksheets and Test Reports) - Quality Manual, Quality Procedures Manual – Standard Operating Procedures & Work Instructions – Instrument validation results (method validation) – Certificate of Analysis of Reagents, certification of reference materials, MSDS, etc. – training records & certificates – PT records and corrective actions copyright INTERTEK 2007, all rights reserved

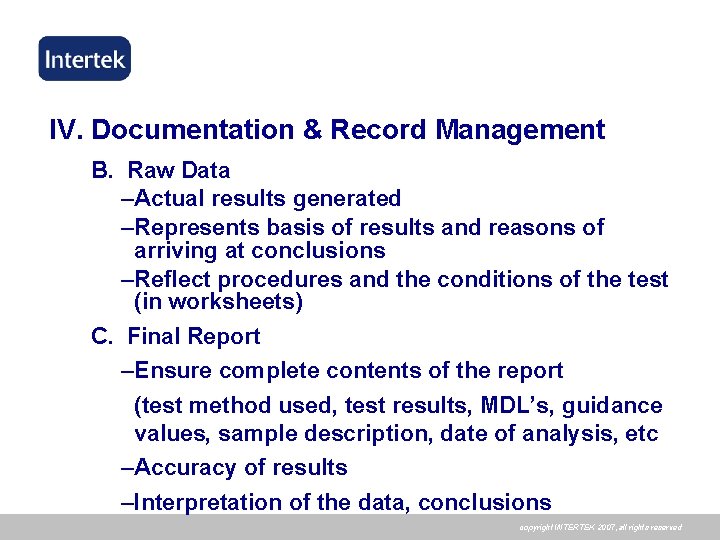

IV. Documentation & Record Management B. Raw Data –Actual results generated –Represents basis of results and reasons of arriving at conclusions –Reflect procedures and the conditions of the test (in worksheets) C. Final Report –Ensure complete contents of the report (test method used, test results, MDL’s, guidance values, sample description, date of analysis, etc –Accuracy of results –Interpretation of the data, conclusions copyright INTERTEK 2007, all rights reserved
IV. Documentation & Record Management D. Archiving –Storage of records must ensure safekeeping for certain number of years as defined in the lab’s system or as required by their clients – Retrieval must be easy, logical and prompt – Storage for retained records must be secured and free from any potential damage or deterioration – Maintain Confidentiality of records copyright INTERTEK 2007, all rights reserved
QA/QC Programs • Standard Operating Procedures (SOP’s) – procedures which have been tested and approved for conducting a particular test – developed to acceptable standards, so that any analytical data collected and reported can be tied to a documented procedure • Statistical Procedures Method/Instrumentation Validation - establish the continuing acceptable operation of laboratory instruments within prescribed specifications Time-related graphical records of the results of these instrument validation procedures are called "control charts". copyright INTERTEK 2007, all rights reserved
QA/QC Programs • Computation of Standard Deviation and Uncertainty of Measurements • Use of Certified Reference Materials (CRM’s) • Replicate Testing • Correlation Tests among Analysts • Regular Participation in Proficiency Testing Programs • Equipment Calibration & Verification • Internal Quality Audits copyright INTERTEK 2007, all rights reserved

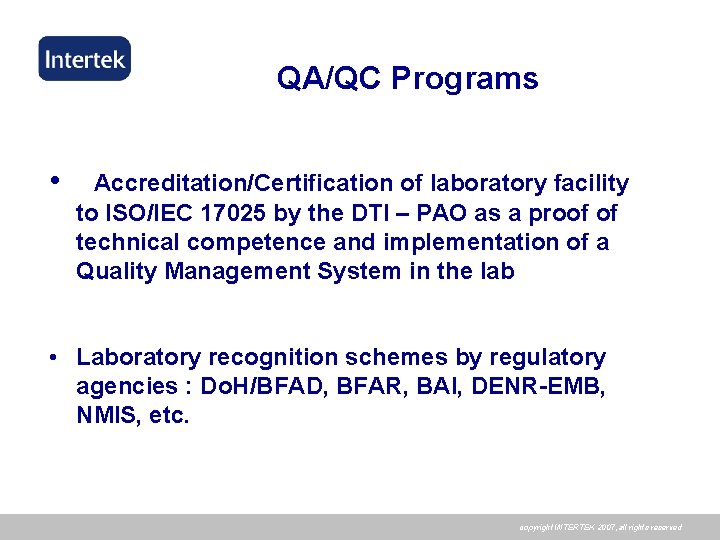

QA/QC Programs • Accreditation/Certification of laboratory facility to ISO/IEC 17025 by the DTI – PAO as a proof of technical competence and implementation of a Quality Management System in the lab • Laboratory recognition schemes by regulatory agencies : Do. H/BFAD, BFAR, BAI, DENR-EMB, NMIS, etc. copyright INTERTEK 2007, all rights reserved
SAFETY IN THE LABORATORY copyright INTERTEK 2007, all rights reserved
SAFETY IN THE LABORATORY | Install emergency eyewash and showers In strategic locations in the lab | There should at least be two emergency exits from the laboratory area in case of an emergency copyright INTERTEK 2007, all rights reserved
Housekeeping/5 S • The area must be kept as clean as the work allows. • Each employee should be responsible for maintaining the cleanliness of his/her area. • Reagents, test equipment or instrument and samples should be returned to their proper places after use. • All containers must be labeled with at least the identity of the contents and the hazards those chemicals present to users. “CLEAN AS YOU GO …. SAFE AS YOU GO. ” copyright INTERTEK 2007, all rights reserved
Electrical Safety • • All electrical equipment should be properly grounded. • The equipment, appliances and extension cords shall be in good condition. • Extension cords shall not be used as a substitute for permanent wiring. • Conduct regular electrical safety checks Sufficient space for work must be present in the area of circuit breaker boxes. copyright INTERTEK 2007, all rights reserved
CHEMICAL SAFETY CHEMICAL WASTE BY PRODUCT / WASTE STORAGE / DISPOSAL copyright INTERTEK 2007, all rights reserved
CHEMICAL SAFETY CHEMICAL WASTE REGISTER WITH THE DENR AS A WASTE GENERATOR AND ENGAGE IN A REGULAR WASTE TREATMENT & DISPOSAL PROGRAM! copyright INTERTEK 2007, all rights reserved
THE ROLE OF A HALAL LABORATORY • Extend strong technical support to Certification Bodies thru issuance COA • No product can be certified to be truly Halal without the aid of testing • Information dissemination and implementation of product standards • Technical training copyright INTERTEK 2007, all rights reserved
ISSUES & CHALLENGES OF A HALAL LABORATORY • • • NONE OF THE HALAL STANDARDS SPECIFY TEST PROTOCOLS REQUIRED FOR HALAL VERIFICATION THERE ARE NO ENDORSED OR APPROVED TEST METHODS OR STANDARDS FOR CRITICAL TESTS DEVELOPMENT OF TEST METHODS EQUIPMENT NEEDED FOR CRITICAL OR SPECIALIZED TESTS ARE VERY EXPENSIVE (GC-MS, LC-MS, PCR, FTIR, etc. ) THE EMPLOYMENT OF A MUSLIM ANALYST OR TECHNICAL STAFF NEEDS TO BE CONSIDERED copyright INTERTEK 2007, all rights reserved
Products Not Considered as “Halal” Under The Shar’iah Law 1. 2. 3. Pigs and boars 4. Birds of prey with claw such as eagles, vultures and other similar birds 5. Pests such as rats, centipedes, scorpions and other similar animals 6. Animals forbidden to be killed in Islam, such as ants, bees and woodpeckers 7. Animals that are generally considered repulsive such as lice, flies, maggots and other similar animals 8. Animals that live both on land in water such as frogs, crocodiles and other similar animals 9. Mules and donkeys Dogs, snakes and monkeys Carnivorous animals with claws and fangs such as lions, tigers, bears and other similar animals copyright INTERTEK 2007, all rights reserved
Products Not Considered as “Halal” Under The Shar’iah Law 10. 11. 12. All poisonous and hazardous aquatic animals Any other Halal animals not slaughtered according to Shar’iah law Blood 13. All drinks that are poisonous, intoxicated and harmful to human health 14. All plants that are poisonous, intoxicated, and harmful to human health 15. All foods, food or product additives, or ingredients derived from items or their derivatives described above 16. Alcoholic drinks NOTE: Products from hazardous aquatic animals or plants become Halal (permissible) when the toxin or hazard has been eliminated during the production process. copyright INTERTEK 2007, all rights reserved

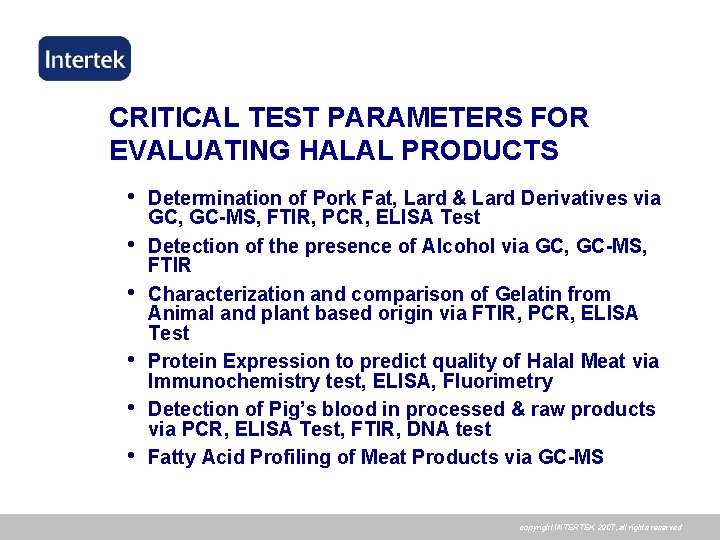

CRITICAL TEST PARAMETERS FOR EVALUATING HALAL PRODUCTS • • • Determination of Pork Fat, Lard & Lard Derivatives via GC, GC-MS, FTIR, PCR, ELISA Test Detection of the presence of Alcohol via GC, GC-MS, FTIR Characterization and comparison of Gelatin from Animal and plant based origin via FTIR, PCR, ELISA Test Protein Expression to predict quality of Halal Meat via Immunochemistry test, ELISA, Fluorimetry Detection of Pig’s blood in processed & raw products via PCR, ELISA Test, FTIR, DNA test Fatty Acid Profiling of Meat Products via GC-MS copyright INTERTEK 2007, all rights reserved
- End of Presentation - SHUKRAN! THANK YOU! copyright INTERTEK 2007, all rights reserved
