Haiwell HMI SCADA Introduce Selfinnovation and Highquality Haiwell

Haiwell HMI & SCADA Introduce Self-innovation and High-quality Haiwell HMI & SCADA

SCADA CLOUD HMI Self-innovation and High-quality Haiwell HMI & SCADA

Ethernet Cloud HMI 〃 7 HMI • Hardware configuration • Startup • Interface operation • System settings 〃 10. 1 Self-innovation and High-quality Haiwell HMI & SCADA

〃 7 -w: Wifi C 7 -W D 7 -W Win at the starting line born with high standards Top configuration Colorful screen Original functions Program download Intelligent management Multi-screen Networking Haiwell Cloud Rich ports Database Multi-Screen Function 7"TFT 800 x 480, LED backlight, screen is real and exquisite Cortex A 8 800 MHZ CPU, 4 GB FLASH+ 512 M DDR 3 A/B Key security mechanism、Multi-language automatic translation、Project overview interface Serial port/ U disk / SD card / Ethernet port/ Haiwell cloud Support cloud / mobile terminal access control, strong operability Innovatie network mode, easy, convenient and pratical Integrate Haiwell cloud service, built-in Haiwell cloud engine Standard RJ 45 port, 2 serial ports (232/422/485), 2 USB ports, SD card, WIFI modules are optional Support database accessing, easy connection wiht MSE/ERP systems. ( D Series only ) Support multiple customized terminal display, and mutual management. ( D Series only ) Self-innovation and High-quality Haiwell HMI & SCADA

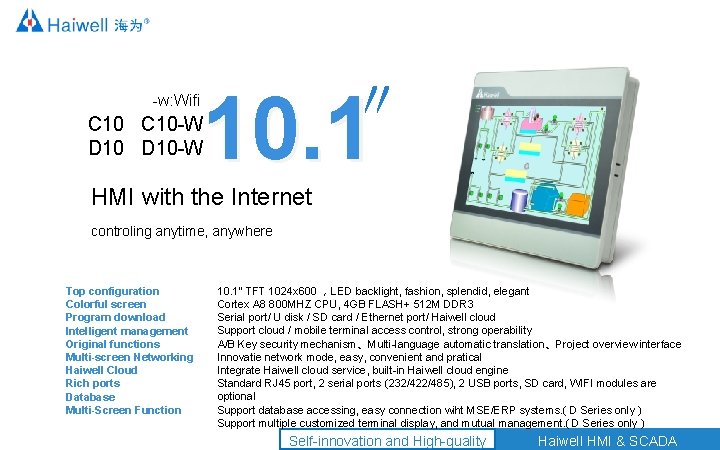

-w: Wifi 〃 10. 1 C 10 -W D 10 -W 10. 1 HMI with the Internet controling anytime, anywhere Top configuration Colorful screen Program download Intelligent management Original functions Multi-screen Networking Haiwell Cloud Rich ports Database Multi-Screen Function 10. 1" TFT 1024 x 600 ，LED backlight, fashion, splendid, elegant Cortex A 8 800 MHZ CPU, 4 GB FLASH+ 512 M DDR 3 Serial port/ U disk / SD card / Ethernet port/ Haiwell cloud Support cloud / mobile terminal access control, strong operability A/B Key security mechanism、Multi-language automatic translation、Project overview interface Innovatie network mode, easy, convenient and pratical Integrate Haiwell cloud service, built-in Haiwell cloud engine Standard RJ 45 port, 2 serial ports (232/422/485), 2 USB ports, SD card, WIFI modules are optional Support database accessing, easy connection wiht MSE/ERP systems. ( D Series only ) Support multiple customized terminal display, and mutual management. ( D Series only ) Self-innovation and High-quality Haiwell HMI & SCADA

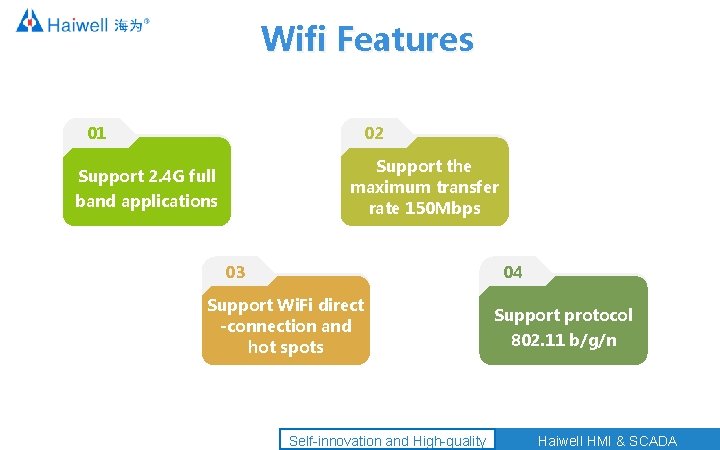

Wifi Features 01 02 Support the maximum transfer rate 150 Mbps Support 2. 4 G full band applications 03 04 Support Wi. Fi direct -connection and hot spots Self-innovation and High-quality Support protocol 802. 11 b/g/n Haiwell HMI & SCADA

HMI Manager Search Now HMI operation PC->HMI manager HMI->PC Online update Online HMI Offline update Enable calibration HMI operation Update HMI time Get the PN code Detect the HMI version Self-innovation and High-quality Haiwell HMI & SCADA

HMI Manager It is used to implement SCADA and HMI interaction, including SCADA project upload/download function in the HMI device, HMI device application online updates, offline updates and other functions. Self-innovation and High-quality Haiwell HMI & SCADA

Features Introduction 1 Use SCADA to manage HMI directly 9 Database Support 2 Haiwell Cloud Integration 10 User Group Authority Management 3 Innovative A/B Key security mechanism 11 Javascript 12 Multi-Screen Communication 6 14 7 Multiple HMI Networking Easily 8 Multi-Language Auto Translation 16 Haiwell Cloud Management Self-innovation and High-quality Haiwell HMI & SCADA

Use SCADA to manage HMI directly With the full function of SCADA, design and manage HMI project. Integration of SCADA system address variable mechanism enhances the efficiency of project development and maintenance. Self-innovation and High-quality Haiwell HMI & SCADA

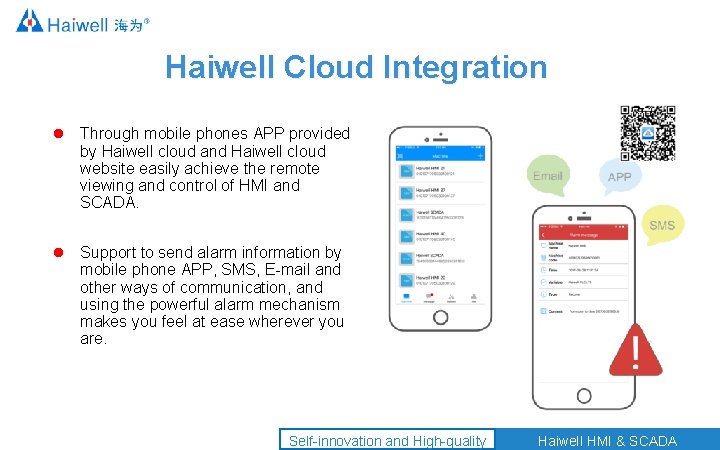

Haiwell Cloud Integration Through mobile phones APP provided by Haiwell cloud and Haiwell cloud website easily achieve the remote viewing and control of HMI and SCADA. Support to send alarm information by mobile phone APP, SMS, E-mail and other ways of communication, and using the powerful alarm mechanism makes you feel at ease wherever you are. Self-innovation and High-quality Haiwell HMI & SCADA

Innovative A/B Key security mechanism It needs to set the A Key account of HMI or SCADA in order to open cloud access, which can improve operational safety. It can set a number of B Key accounts to assist A Key account in managing device, which can achieve multiple protection. If any visitor wants to bind the device, it need to get authorization from A key and B Key, and A key and B Key can set the access time for visitors, the double key auditing mechanism has a higher security level. Self-innovation and High-quality Haiwell HMI & SCADA

Haiwell Cloud Engine There is no need to set any virtual serial port or router, because HMI/SCADA has built-in Haiwell cloud engine which can achieve PLC online, Internet remote online and monitoring. When PLC is online through cloud engine, it is controlled by the A/B Key security, protecting the safety of device. Self-innovation and High-quality Haiwell HMI & SCADA

Single-file Project Using a project file to store pictures, scripts, recipes and other resource content, and then to achieve its complex encryption, the design of project single file is convenient of project transmission, sharing, backup and storage, achieving easy storage, easy sharing, easy security. Self-innovation and High-quality Haiwell HMI & SCADA

"Large display +HMI" cross-screen linkage through haiwell large display controller haiwell-TV-BOX , you can realize large screen display of HMI in the LAN network One TV-BOX, one TV, multiple HMI can easily realize the function of the large electronic display board Self-innovation and High-quality Haiwell HMI & SCADA

Multiple HMI Networking Easily It only needs to run project on a host HMI, any slave can be directly connected to the networking of host HMI without any project running, and it does not limit the number of slave devices connected, achieving simple and flexible networking. Self-innovation and High-quality Haiwell HMI & SCADA

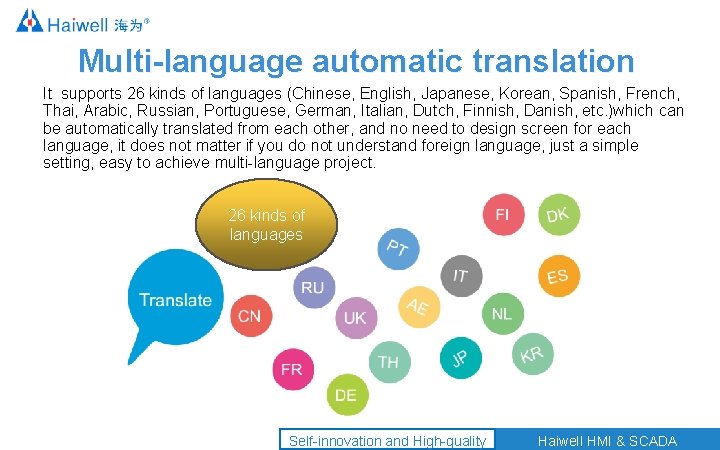

Multi-language automatic translation It supports 26 kinds of languages (Chinese, English, Japanese, Korean, Spanish, French, Thai, Arabic, Russian, Portuguese, German, Italian, Dutch, Finnish, Danish, etc. )which can be automatically translated from each other, and no need to design screen for each language, it does not matter if you do not understand foreign language, just a simple setting, easy to achieve multi-language project. 26 kinds of languages Self-innovation and High-quality Haiwell HMI & SCADA

Database Support to save real-time&history data to database as My. SQL/SQL Server etc. HMI can easily communicate with MES/ERP system through database. Self-innovation and High-quality Haiwell HMI & SCADA

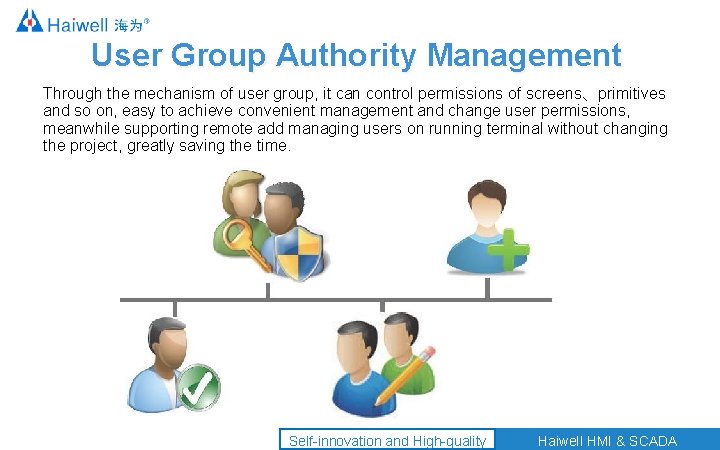

User Group Authority Management Through the mechanism of user group, it can control permissions of screens、primitives and so on, easy to achieve convenient management and change user permissions, meanwhile supporting remote add managing users on running terminal without changing the project, greatly saving the time. Self-innovation and High-quality Haiwell HMI & SCADA

Javascript In the case of the administrator can not be present, it can generate a 5 -minute temporary password through Haiwell cloud APP for field staffs to deal with emergencies, it is flexible and safe. In the case of inconvenience to input password, users can login by scanning code from Haiwell cloud mobile APP, to further protect the security. Self-innovation and High-quality Haiwell HMI & SCADA

Multi-Screen Communication Support multiple terminal display as TV/PC/Mobile etc. User can cutomize the picture for defferent display size. Support mutual control between the devices. For example you can control the TV display by mobile. Self-innovation and High-quality Haiwell HMI & SCADA

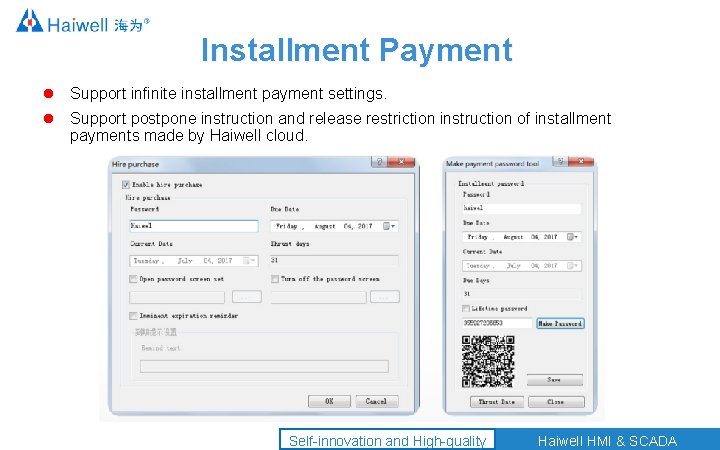

Installment Payment Support infinite installment payment settings. Support postpone instruction and release restriction instruction of installment payments made by Haiwell cloud. Self-innovation and High-quality Haiwell HMI & SCADA

Camera Remote Monitoring Support network camera and USB camera. Support HMI, Mobile APP and web client remote control camera pan-tilt and monitor camera contents. Self-innovation and High-quality Haiwell HMI & SCADA

Simulation Running Support offline simulation function, it can simulate running with the preset variable value, you can easily modify the variable values to check the project. Self-innovation and High-quality Haiwell HMI & SCADA

Haiwell Cloud Management Through the Cloud management function, HMI can be managed remotely via Internet, including remote project download, remote firmware update, remote basic configuration, remote historical data download and so on. The whole process is under the protection of AB-KEY security mechanism, so the remote debugging is convenient and safe. Remote upload and download for historical data Haiwell Cloud Management Remote manage HMI Remote upload and remote download for projects. HMI background settings Display the HMI screen Self-innovation and High-quality Haiwell HMI & SCADA

Haiwell Cloud SCADA The first permanent free configuration software Self-innovation and High-quality Haiwell HMI & SCADA

Haiwell better future with you Self-innovation and High-quality Haiwell HMI & SCADA
