Hacking Hardware Some materials adapted from Sam Bowne

Physical access z. Lock bumping: see next slides. Don't rely solely on locks: use two-factor authentication – PIN keypad – Fingerprint – Security guard z. Cloning access cards: not so easy. y. Magstripe vs RFID cards y. Open RFID reader, and ya RFID hack reader and writer.

Normal Key

Bump Key z. Every key pin falls to its lowest point z. The key is hit with a screwdriver to create mechanical shocks z. The key pins move up and briefly pass through the shear line z. The lock can be opened at the instant the key pins align on the shear line

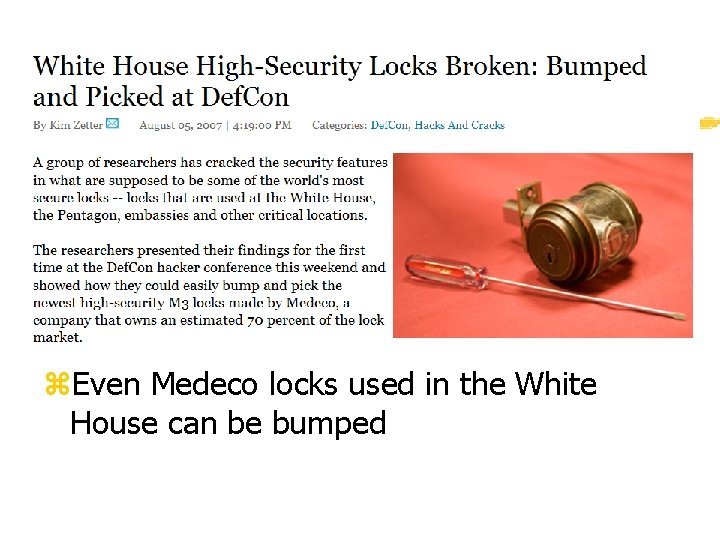

z. Even Medeco locks used in the White House can be bumped

Magstripe Cards z. ISO Standards specify three tracks of data z. There are various standards, but usually no encryption is used

Magstripe Card Reader/Writer z. USB connector z. About $350

Magnetic-Stripe Card Explorer

Hacking RFID Cards z. RFID cards use radio signals instead of magnetism z. Now required in passports z. Data can be read at a distance, and is usually unencrypted z. Mifare is most widely deployed brand of secure RFID chips (vulnerabilities).

Cloning Passports z$250 in equipment z. Can steal passport data from a moving car

Boston Subway Hack z. The Massachusetts Bay Transportation Authority claims that they added proprietary encryption to make their Mi. Fare Classic cards secure z. But Ron Rivest's students from MIT hacked into it anyway

ATA Hardrives z Bypassing ATA password security

ATA Security z Requires a password to access the hard disk z Virtually every hard drive made since 2000 has this feature z It is part of the ATA specification, and thus not specific to any brand or device. z Does not encrypt the disk, but prevents access z Countermeasures • Don't trust ATA Security • Encrypt the drive with Bitlocker, True. Crypt, PGP, etc.

ATA Password Virus z ATA Security is used on Microsoft Xbox hard drives and laptops z BUT desktop machines' BIOS is often unaware of ATA security z An attacker could turn on ATA security, and effectively destroy a hard drive, or hold it for ransom y. The machine won't boot, and no BIOS command can help y. This is only a theoretical attack at the moment

Bypassing ATA Passwords z. Hot Swap y. With an unlocked drive plugged in, enter the BIOS and navigate to the menu that allows you to set a HDD Password y. Plug in the locked drive and reset the password z. Use factory default master password y. Not easy to find y. Some examples given in 2600 magazine volume 26 number 1

Bypassing ATA Passwords z. Vogon Password Cracker POD y. Changes the password from a simple GUI y. Allows law enforcement to image the drive, then restore the original password, so the owner never knows anything has happened y. Works by accessing the drive service area x. A special area on a disk used for firmware, geometry information, etc. x. Inaccessible to the user

USB drives U 3: Software on a Flash Drive z. Carry your data and your applications in your pocket! z. It’s like a tiny laptop!

U 3 Launchpad z. Just plug it in, and the Launchpad appears z. Run your applications on anyone’s machine z. Take all data away with you 18

How U 3 Works z The U 3 drive appears as two devices in My Computer y. A “Removable Disk” y. A hidden CD drive named “U 3” z The CD contains software that automatically runs on computers that have Autorun enabled y. For more details, see http: //www. everythingusb. com/u 3. html 19

Hacking Software On The Disk Partition z. Pocket. Knife is a suite of powerful hacking tools that lives on the disk partition of the U 3 drive z. Just like any other application z. You can create a custom file to be executed when a U 3 drive is plugged in z. Or replace the original CD part by a hack. 20

U 3 Pocket. Knife z. Steal passwords z. Product keys z. Steal files z. Kill antivirus software z. Turn off the Firewall z. And more…

Military Bans USB Thumb Drives 22

USB drives Risk Reduction z. Traditional y. Block all USB devices in Group Policy y. Disable Auto. Run y. Glue USB ports shut (? !? !) z. Better Solution: IEEE 1667 y. Standard Protocol for Authentication in Host Attachments of Transient Storage Devices y. USB devices can be signed and authenticated, so only authorized devices are allowed yin Windows 7, Linux. 23

Default Configuration Example: ASUS Eee PC Rooted Out of the Box z. The Eee PC 701 shipped with Xandros Linux z. The Samba file-sharing service was on by default z. It was a vulnerable version, easily rooted by Metasploit Easy to learn, Easy to work, Easy to root

Default Passwords z. Many devices ship with default passwords that are often left unchanged y. Especially routers (seen before)

ATM Passwords z. In 2008, these men used default passwords to reprogram ATM machines to hand out $20 bills like they were $1 bills

Bluetooth Attacks z Bluetooth supports encryption, but it's off by default, and the password is 0000 by default

Reverse Engineering Hardware z. Mostly an engineering endeavor y. Mapping the device y. Sniffing the bus data yfirmware reversing y. JTAG -- testing interface device for printed circuit boards. Read the book for more details.
