Habitat Equivalency Analysis: Overview and Case Example

Habitat Equivalency Analysis: Overview and Case Example

Origination of HEA 8 HEA developed in the Natural Resource Damage Assessment arena 8

Origination of HEA 8 HEA developed in the Natural Resource Damage Assessment arena 8 Purpose on NRDA: Make the public whole for injuries to natural resources that result from the release of hazardous substances or oil 8 The public is made whole through “restoration” (damages recovered must be used for restoration) 8 NRDA restoration complements, but is distinct from, “cleanup” actions

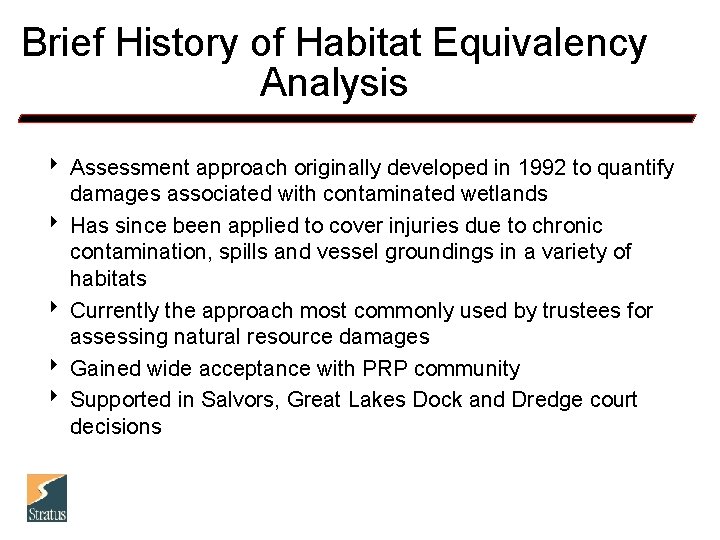

Brief History of Habitat Equivalency Analysis 8 Assessment approach originally developed in 1992 to

Brief History of Habitat Equivalency Analysis 8 Assessment approach originally developed in 1992 to quantify damages associated with contaminated wetlands 8 Has since been applied to cover injuries due to chronic contamination, spills and vessel groundings in a variety of habitats 8 Currently the approach most commonly used by trustees for assessing natural resource damages 8 Gained wide acceptance with PRP community 8 Supported in Salvors, Great Lakes Dock and Dredge court decisions

When to Consider Use of HEA 8 When values per unit of replacement services

When to Consider Use of HEA 8 When values per unit of replacement services and lost services are comparable (same type, quality, comparable value) or value differences are known 8 When definition of injury and benefits using a common metric is possible ú The metric defines the injury more specifically and becomes the basis for restoration evaluation 8 When replacement of habitat/resource services is feasible 8 When replacement methodology is sufficiently understood to determine model parameters

Habitat Equivalency Analysis: General Principles 8 Calculates compensation for interim lost services, with habitat/resource

Habitat Equivalency Analysis: General Principles 8 Calculates compensation for interim lost services, with habitat/resource replacement as the form of compensation 8 Calculates the amount of habitat/resource to be created or enhanced to provide the same level of services over time as were lost due to the injury 8 Requires implicit assumption that the values per unit of lost services and replacement services are comparable 8 HEA simultaneously determines injury quantification and restoration scaling in one method

Habitat Equivalency Analysis 8 Framework: ú Addresses interim lost services ú Resources/Service losses due

Habitat Equivalency Analysis 8 Framework: ú Addresses interim lost services ú Resources/Service losses due to injury = Resource/service gains from compensatory restoration project ú Obtain equivalency between the resources/services lost and those gained through restoration 8 Conditions for use: ú Injured and restored resources and services are the same type, quality, and comparable value 8 Comparable value is a strong assumption

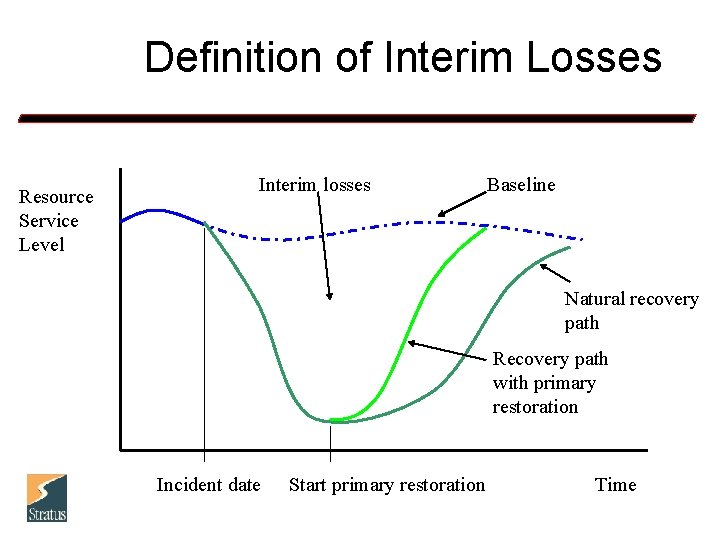

Definition of Interim Losses Resource Service Level Interim losses Baseline Natural recovery path Recovery

Definition of Interim Losses Resource Service Level Interim losses Baseline Natural recovery path Recovery path with primary restoration Incident date Start primary restoration Time

HEA - Equation “Debit: PDV Loss” “Credit: PDV Gain” where: Lt = Rs =

HEA - Equation “Debit: PDV Loss” “Credit: PDV Gain” where: Lt = Rs = t 0 = tl = s 0 = sl = P= i= lost services at time t replacement services at time s time when lost services are first suffered time when lost services are last suffered time when replacement services are first provided time when replacement services are last provided present time when the natural resource damage claim is presented periodic discount rate.

Graphical Representation of HEA

Graphical Representation of HEA

Issues in Evaluating "Same Type/Quality" Criteria 8 Capacity ú Does the project have the

Issues in Evaluating "Same Type/Quality" Criteria 8 Capacity ú Does the project have the biophysical conditions necessary to provide desired service(s)? 8 Opportunity ú Is the project located within an ecological landscape necessary to take advantage of capacity? 8 Payoff ú How will providing service(s) at this location benefit people? 8 Equity ú Who gains/loses by providing service(s) at this location? Drawn from "Comparing Ecosystem Services and Values", King, 1997

C. O. P. E. : A Graphical Example Site A Near the coast, downstream

C. O. P. E. : A Graphical Example Site A Near the coast, downstream is a beach area l. Adjacent to large, healthy shellfish grounds that are accessible to the community l. Upslope is agricultural land (nutrient runoff) l. Wildlife corridor is open from the North l. Located near residential areas (aesthetics, scenic) l. Good access, adjacent to public lands l Site B Slightly off the coast, downstream is industrial site l. Adjacent to fishing port and small shellfish beds that are contaminated and remote l. Upslope is forest (no nutrient runoff) l. Wildlife corridor is blocked by Highway 66 l. Nearby industrial sites l. Poor access, surrounded by private lands l Wetland Site A and Wetland Site B are identical in size, shape and biophysical characteristics and are located in the same sub-watershed on either side of Highway 66. Example drawn from King, "Comparing Ecosystem Services and Values", Jan. 12, 1997.

Habitat Equivalency Analysis: Four Basic Steps 8 8 Document and quantify the injury Identify

Habitat Equivalency Analysis: Four Basic Steps 8 8 Document and quantify the injury Identify and evaluate replacement project options Scale the replacement project to compensate for the injury Determine the appropriate means of compensation ú Cost selected restoration options ú Set performance standards for compensatory restoration projects

Document and Quantify the Injury 8 Identify the types of habitat, biological resources, and

Document and Quantify the Injury 8 Identify the types of habitat, biological resources, and resource services that have been injured; identify a metric 8 Metric defines the extent of the injuries ú Area of injured habitat/resource ú Severity of the injuries (e. g. , 50% loss in services, 100%, etc. ) 8 Determine the duration of the injury, given trustee choice of primary restoration ú Will services ever return to baseline? ú Recovery path

Identify and Evaluate Habitat Replacement Options 8 What types of habitats/resources provide services similar

Identify and Evaluate Habitat Replacement Options 8 What types of habitats/resources provide services similar to those that were lost? 8 Are the values of replacement services and lost services comparable? 8 Trustees must determine the productivity of these alternatives relative to the baseline services of the injured resources? 8 How much time is required to implement the restoration/replacement projects? 8 Following implementation, how long will project take to reach maximum function?

Scale the Replacement Project to Compensate for the Injury Over Time 8 Determine an

Scale the Replacement Project to Compensate for the Injury Over Time 8 Determine an appropriate discount rate 8 Compute a total discounted measure of lost service flows (e. g. , lost acre years) 8 Compute a total discounted measure of the replacement service flows 8 Scale the replacement project so that total discounted service flows are equal

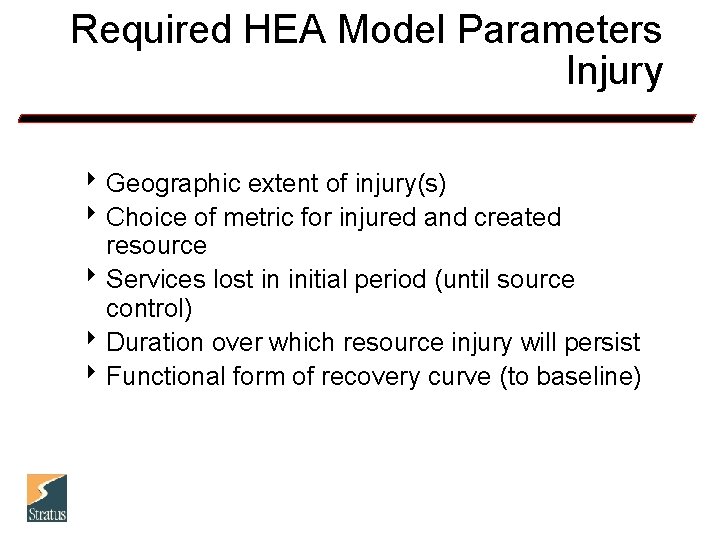

Required HEA Model Parameters Injury 8 Geographic extent of injury(s) 8 Choice of metric

Required HEA Model Parameters Injury 8 Geographic extent of injury(s) 8 Choice of metric for injured and created resource 8 Services lost in initial period (until source control) 8 Duration over which resource injury will persist 8 Functional form of recovery curve (to baseline)

Required HEA Model Parameters Restoration 8 Time required for created resource to achieve maximum

Required HEA Model Parameters Restoration 8 Time required for created resource to achieve maximum productivity 8 Functional form of created resource productivity curve 8 Productivity ratio of created to injured resource 8 Time horizon/lifespan of created resource 8 Discount rate

Basic Example

Basic Example

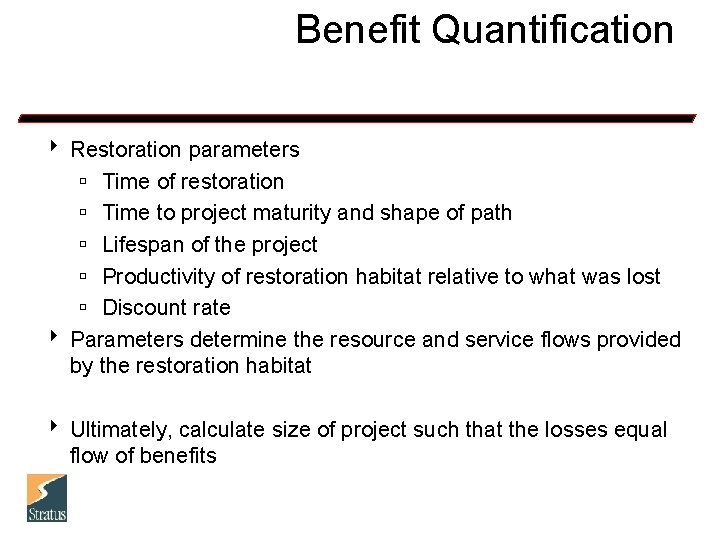

Benefit Quantification 8 Restoration parameters ú Time of restoration ú Time to project maturity

Benefit Quantification 8 Restoration parameters ú Time of restoration ú Time to project maturity and shape of path ú Lifespan of the project ú Productivity of restoration habitat relative to what was lost ú Discount rate 8 Parameters determine the resource and service flows provided by the restoration habitat 8 Ultimately, calculate size of project such that the losses equal flow of benefits

Case Example 8 Blackbird Mine -HEA

Case Example 8 Blackbird Mine -HEA

Blackbird Mine Case Study Background Injury Assessment Settlement Restoration Actions

Blackbird Mine Case Study Background Injury Assessment Settlement Restoration Actions

Background Panther Creek Drainage - major tributary to Salmon River, Idaho 830 acres of

Background Panther Creek Drainage - major tributary to Salmon River, Idaho 830 acres of private land 10, 000 acres of unpatented mining claims Cobalt Mining started in 1853, with the most extensive period of production between 1949 to 1967 Releases contaminated 25 miles of anadromous fish habitat Placed on NPL in 1994

Mining and processing of cobalt and copper from the area resulted in: • 12

Mining and processing of cobalt and copper from the area resulted in: • 12 -acre unreclaimed surface pit, • 10 miles of underground mine workings (tunnels), • 4. 8 million tons of waste rock, • 2 million tons of mine tailings, • Numerous mine adits and portals • Ground/surface water contamination

Copper AWQS Exceedance P p m High levels of heavy metals such as copper,

Copper AWQS Exceedance P p m High levels of heavy metals such as copper, cobalt and arsenic are present in surface waters and/or sediments up to 25 miles downstream of the mine Copper concentrations at some sites are over 100 times chronic AWQS

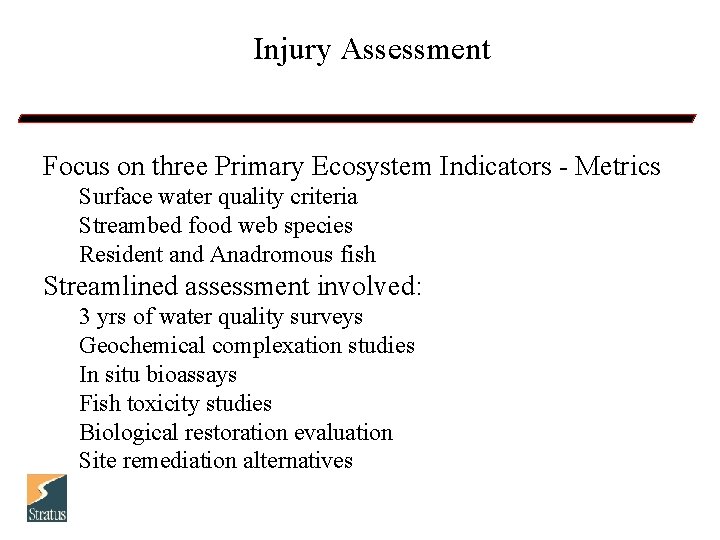

Injury Assessment Focus on three Primary Ecosystem Indicators - Metrics Surface water quality criteria

Injury Assessment Focus on three Primary Ecosystem Indicators - Metrics Surface water quality criteria Streambed food web species Resident and Anadromous fish Streamlined assessment involved: 3 yrs of water quality surveys Geochemical complexation studies In situ bioassays Fish toxicity studies Biological restoration evaluation Site remediation alternatives

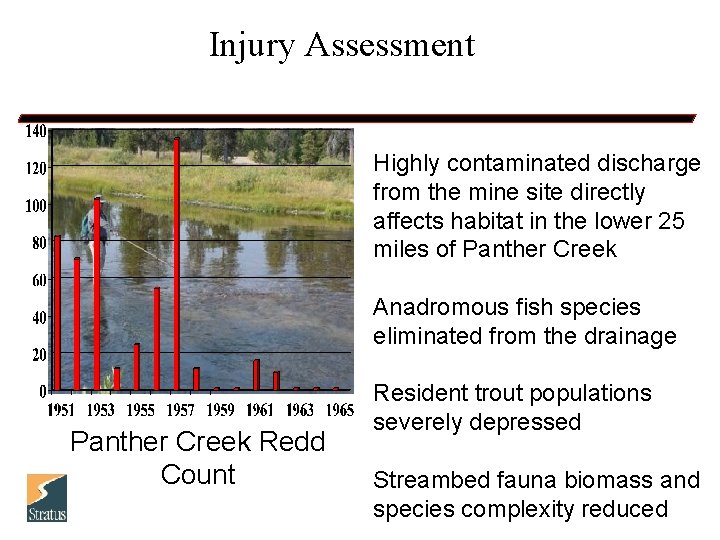

Injury Assessment Highly contaminated discharge from the mine site directly affects habitat in the

Injury Assessment Highly contaminated discharge from the mine site directly affects habitat in the lower 25 miles of Panther Creek Anadromous fish species eliminated from the drainage Panther Creek Redd Count Resident trout populations severely depressed Streambed fauna biomass and species complexity reduced

Restoration Goals Focus is on returning spawning salmon to the river Primary restoration -

Restoration Goals Focus is on returning spawning salmon to the river Primary restoration - on site Restore water quality Restore injured resources to baseline 200 spawning adults in Panther Creek Compensatory restoration - on site and off-site Compensate for interim lost anadromous fish production through increasing habitat production

Blackbird Mine Primary and Compensatory Restoration 300 250 Baseline Compensatory Restoration Interim 150 Primary

Blackbird Mine Primary and Compensatory Restoration 300 250 Baseline Compensatory Restoration Interim 150 Primary Restoration Natural Level of Services 100 50 Year 2152 2143 2134 2125 2116 2107 2098 2089 2080 2071 2062 2053 2044 2035 2026 2017 2008 1999 1990 0 1981 Adults 200

Primary Restoration 8 Chinook Salmon Reintroduction 8 $2. 5 million to construct and operate

Primary Restoration 8 Chinook Salmon Reintroduction 8 $2. 5 million to construct and operate ú Adult fish trap on Panther Creek - $0. 9 M ú Juvenile acclimation ponds - $0. 5 M ú Hatchery modification $1. 0 M

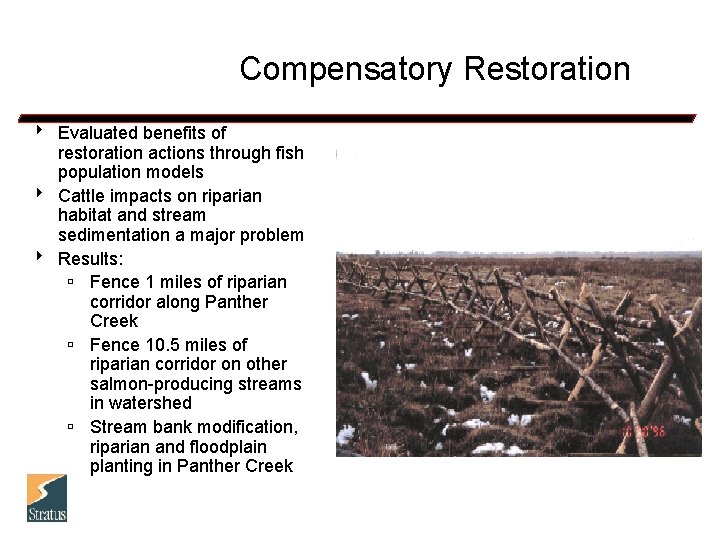

Compensatory Restoration 8 Evaluated benefits of restoration actions through fish population models 8 Cattle

Compensatory Restoration 8 Evaluated benefits of restoration actions through fish population models 8 Cattle impacts on riparian habitat and stream sedimentation a major problem 8 Results: ú Fence 1 miles of riparian corridor along Panther Creek ú Fence 10. 5 miles of riparian corridor on other salmon-producing streams in watershed ú Stream bank modification, riparian and floodplain planting in Panther Creek

Blackbird Summary 8 Blackbird HEA was a timely and cost effective approach to scaling

Blackbird Summary 8 Blackbird HEA was a timely and cost effective approach to scaling compensatory restoration 8 Restoration projects provided the same type and quality of resources as those lost due to contamination 8 The per unit comparable value of the restoration actions is not know ú Assumed that the restored resources were of greater value due to relative abundance of salmon stocks

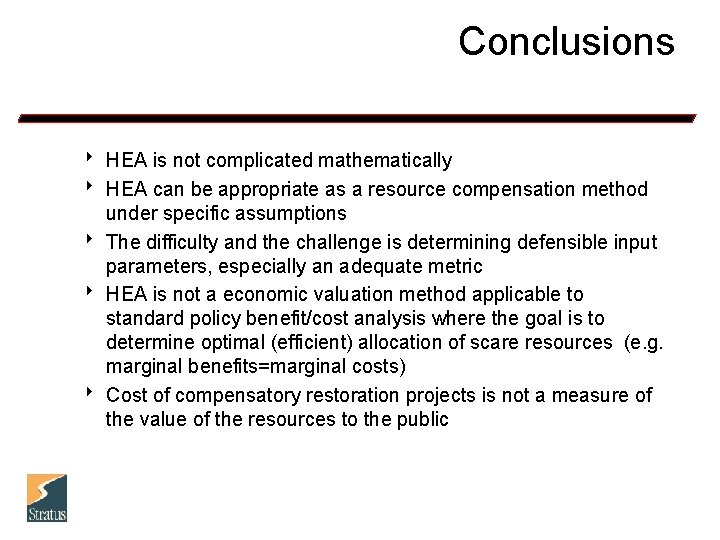

Conclusions 8 HEA is not complicated mathematically 8 HEA can be appropriate as a

Conclusions 8 HEA is not complicated mathematically 8 HEA can be appropriate as a resource compensation method under specific assumptions 8 The difficulty and the challenge is determining defensible input parameters, especially an adequate metric 8 HEA is not a economic valuation method applicable to standard policy benefit/cost analysis where the goal is to determine optimal (efficient) allocation of scare resources (e. g. marginal benefits=marginal costs) 8 Cost of compensatory restoration projects is not a measure of the value of the resources to the public

Conclusions (cont’d) 8 Relaxation of the assumed equivalency of value can be done through

Conclusions (cont’d) 8 Relaxation of the assumed equivalency of value can be done through developing a relative value of injured and restored resources j V ---p V 8 This may be an easier number to estimate than the absolute value of both the injured resources and restored resources

Goals for the Future 8 Improve our understanding of how to define metrics to

Goals for the Future 8 Improve our understanding of how to define metrics to most fully characterize injured and replacement resources and services 8 Better incorporate concepts of capacity, opportunity and payoff into our evaluation and design of restoration projects 8 Develop our ability to estimate relative value of injured and restored resources for scaling compensatory restoration
