H. 323/ SIP Internet Telephony Gateway VIP-2/4/8/16/24 port Series SIP Registration Configuration www. planet. com. tw Copyright © PLANET Technology Corporation. All rights reserved.
Vo. IP Gateway Quick Configuration This picture illustrates basic installation topology of Gateway and IP phone for SIP Proxy mode. www. planet. com. tw 2
IPX-1900 Configuration 1 Select the [IP PBX Setup - > Extension Management >SIP Extension ] of IPX-1900 to add extensions for the Gateway and IP Phone. 2 www. planet. com. tw 3

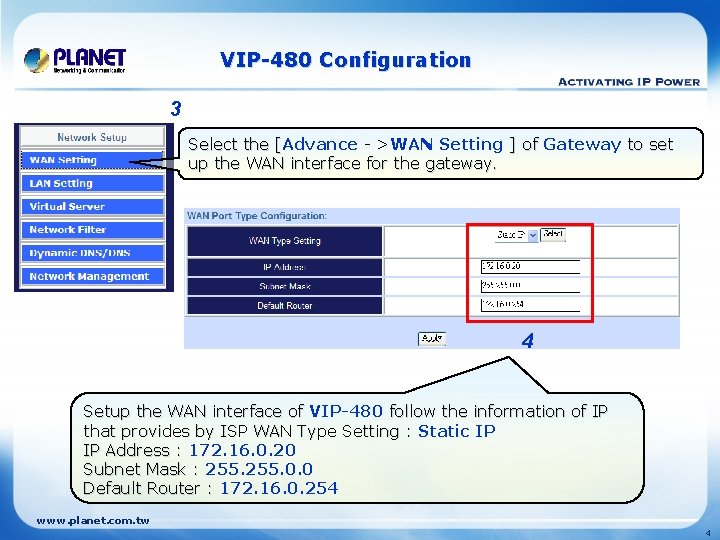

VIP-480 Configuration 3 Select the [Advance - >WAN Setting ] of Gateway to set [ up the WAN interface for the gateway. 4 Setup the WAN interface of VIP-480 follow the information of IP that provides by ISP WAN Type Setting : Static IP IP Address : 172. 16. 0. 20 Subnet Mask : 255. 0. 0 Default Router : 172. 16. 0. 254 www. planet. com. tw 4

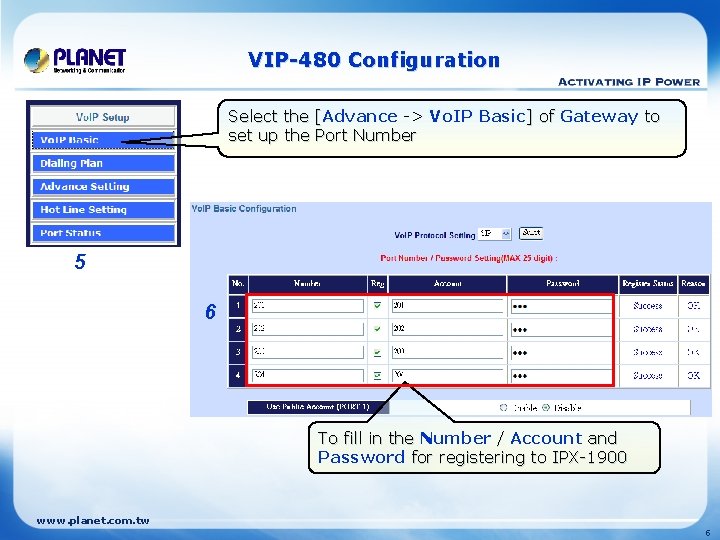

VIP-480 Configuration Select the [Advance -> Vo. IP Basic] of Gateway to [ set up the Port Number 5 6 To fill in the Number / Account and Password for registering to IPX-1900 www. planet. com. tw 5
VIP-480 Configuration 7 To fill in the IPX-1900’s IP address 8 Click the [Save Configuration] button to [ save configuration, then click the [Reboot] button to reboot machine. www. planet. com. tw 6
VIP-254 PT Configuration Select the [Network ] of LAN Settings to set up LAN [ interface of the IP Phone. 9 10 Setup the LAN interface of VIP-254 PT follow the information of IP that provides by ISP Fixed IP IP Address : 172. 16. 0. 10 Subnet Mask : 255. 0. 0 Default Router : 172. 16. 0. 254 www. planet. com. tw 7
VIP-254 PT Configuration Select the [SIP Settings - > Service Domain] to set up [ phone number of the IP Phone. 11 12 www. planet. com. tw Setup the phone number of VIP-254 PT Display Name: 100 User Name: 100 Register Name: 100 Login Password : 123 Proxy Server : 172. 16. 0. 1 8
VIP-254 PT Configuration 13 Select the [Save & Reboot] [ 14 Click the [Save ] button to save [ configuration and reboot machine. www. planet. com. tw 9
Test the Scenario Outgoing Call A (VIP-480) 1. Phone 1 can dial “ 100” to call VIP-254 PT. 2. If Phone 1 wish to make a call via PSTN line, Phone 1 can dial “ 202” to grab PSTN line (FXO-Port 2) at first, after hear dial tone Phone 1 can dial “ 86671234” to call out Phone 2 via PSTN line. B (VIP-254 PT) 1. VIP-254 PT can dial “ 201” to call Phone 1. 2. If VIP-254 PT wish to make a call via PSTN line, VIP-254 PT can dial 3. “ 202” to grab PSTN line (FXO-Port 2) at first, after hear dial tone 4. VIP-254 PT can dial “ 86671234” to call out Phone 2 via PSTN line. Incoming Call Phone 2 can dial “ 22191234” to call VIP-480 via PSTN line, then dial “ 100” to call VIP-254 PT, or dial “ 201” to call Phone 1. www. planet. com. tw 10
