H 3 D API Training Daniel Evestedt Sense

H 3 D API Training Daniel Evestedt Sense. Graphics AB

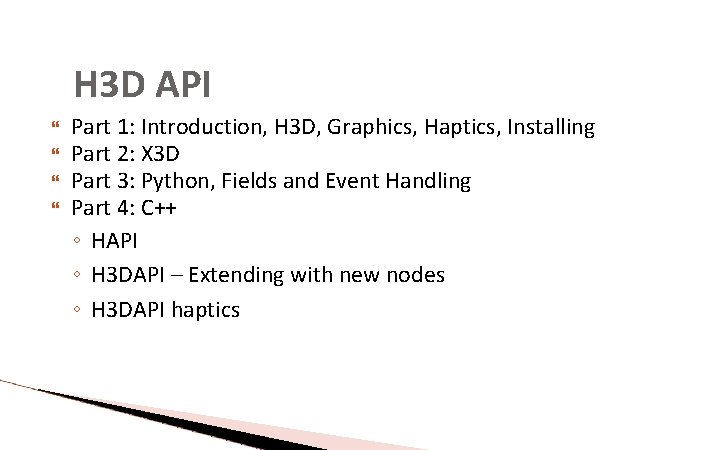

H 3 D API Part 1: Introduction, H 3 D, Graphics, Haptics, Installing Part 2: X 3 D Part 3: Python, Fields and Event Handling Part 4: C++ ◦ HAPI ◦ H 3 DAPI – Extending with new nodes ◦ H 3 DAPI haptics

H 3 D API Training Part 1: Introduction; H 3 D, Graphics, Haptics

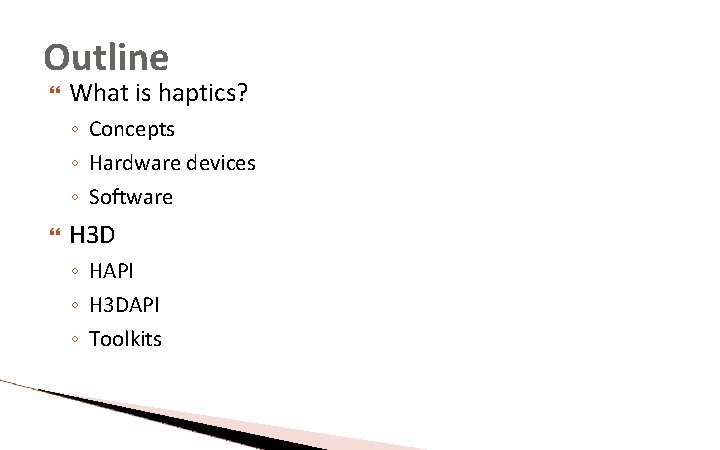

Outline What is haptics? ◦ Concepts ◦ Hardware devices ◦ Software H 3 D ◦ HAPI ◦ H 3 DAPI ◦ Toolkits

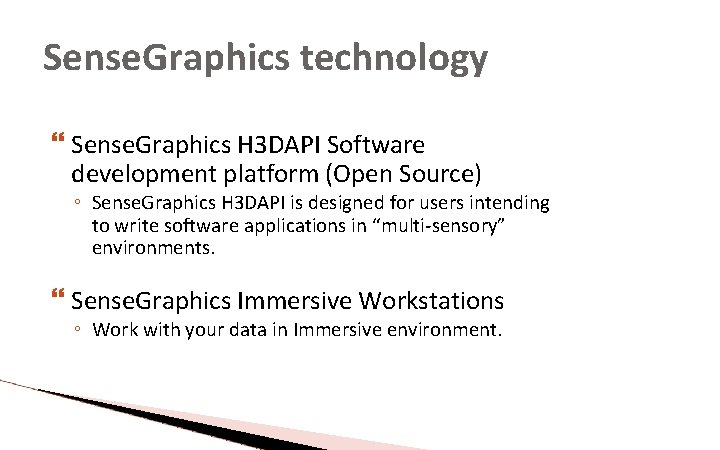

Sense. Graphics technology Sense. Graphics H 3 DAPI Software development platform (Open Source) ◦ Sense. Graphics H 3 DAPI is designed for users intending to write software applications in “multi-sensory” environments. Sense. Graphics Immersive Workstations ◦ Work with your data in Immersive environment.

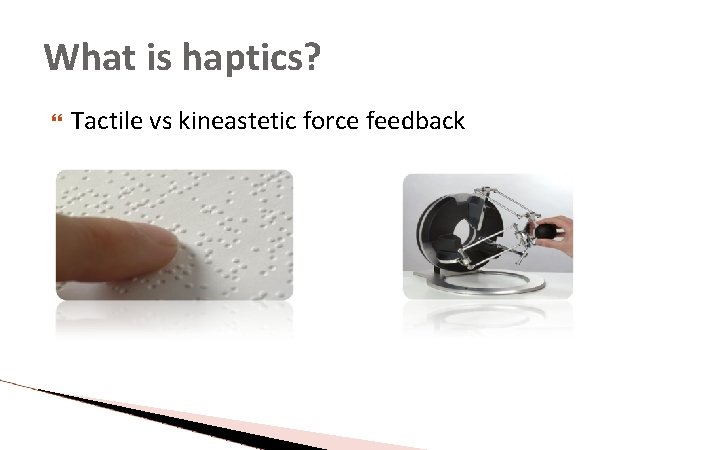

What is haptics? Tactile vs kineastetic force feedback

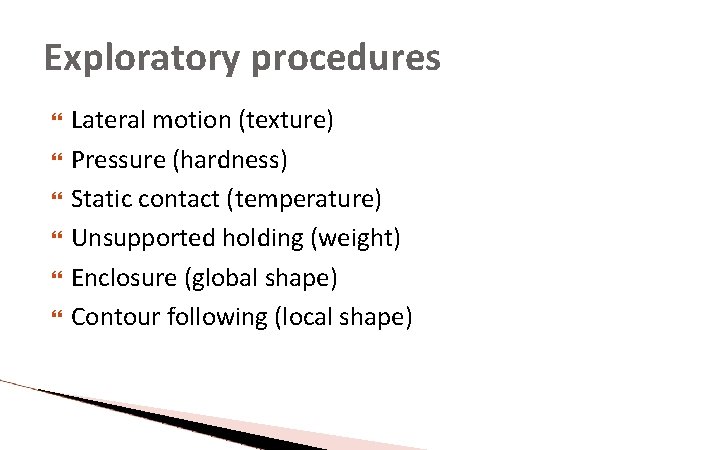

Exploratory procedures Lateral motion (texture) Pressure (hardness) Static contact (temperature) Unsupported holding (weight) Enclosure (global shape) Contour following (local shape)

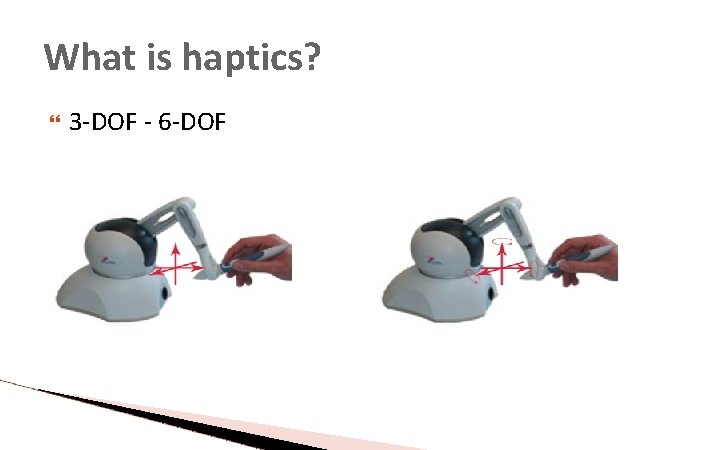

What is haptics? 3 -DOF - 6 -DOF

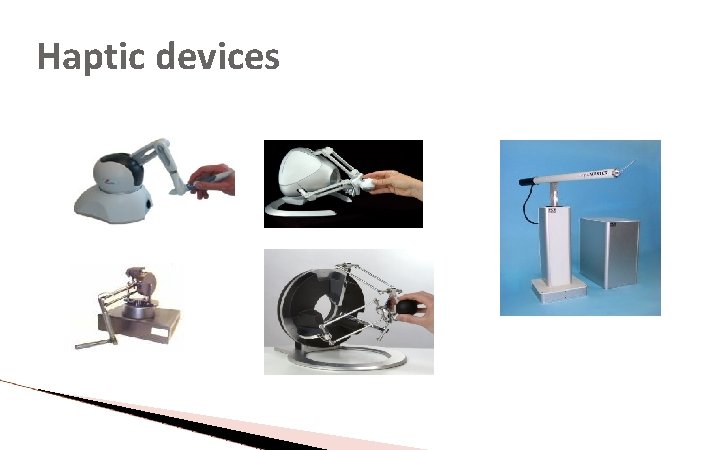

Haptic devices

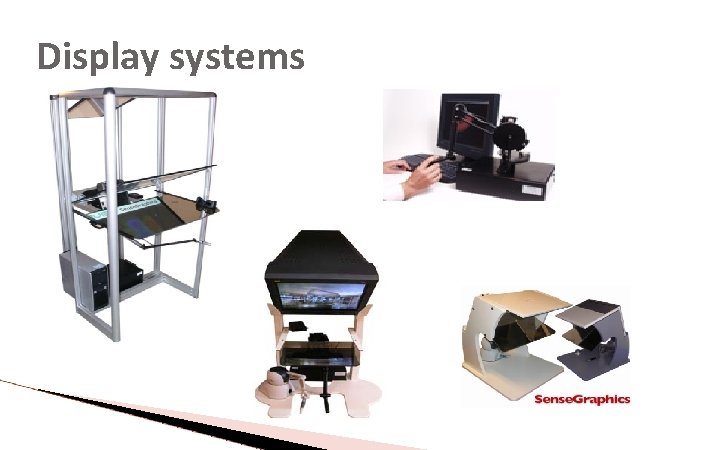

Display systems

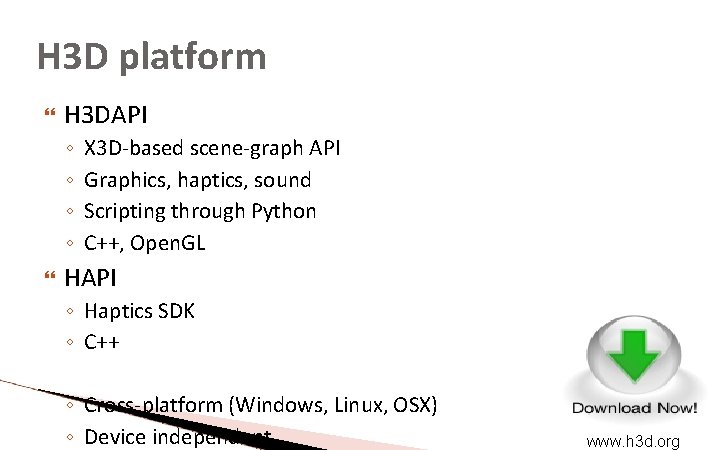

H 3 D platform H 3 DAPI ◦ ◦ X 3 D-based scene-graph API Graphics, haptics, sound Scripting through Python C++, Open. GL HAPI ◦ Haptics SDK ◦ C++ ◦ Cross-platform (Windows, Linux, OSX) ◦ Device independent www. h 3 d. orgw. h 3

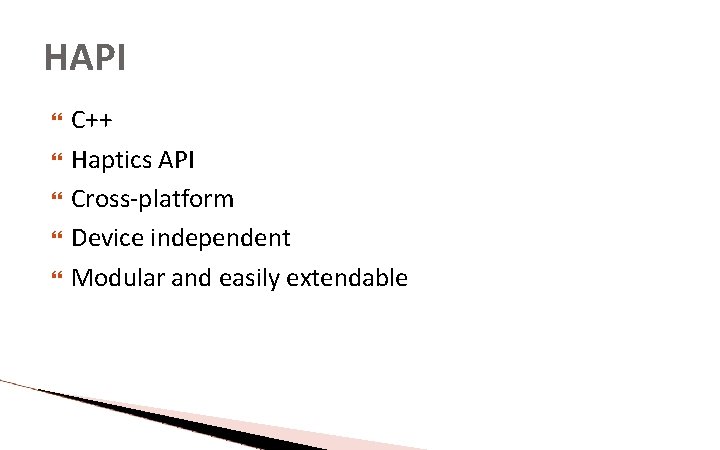

HAPI C++ Haptics API Cross-platform Device independent Modular and easily extendable

HAPI - components 13

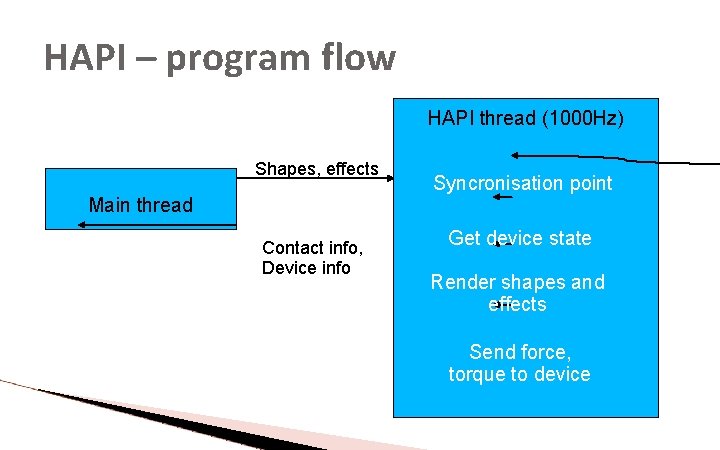

HAPI – program flow HAPI thread (1000 Hz) Shapes, effects Main thread Contact info, Device info Syncronisation point Get device state Render shapes and effects Send force, torque to device

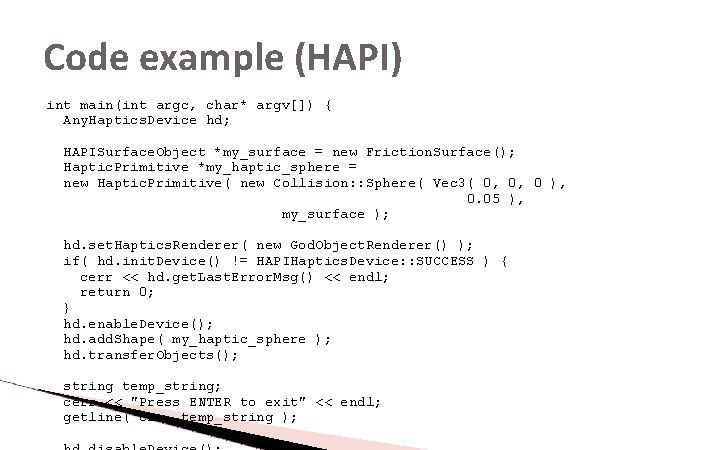

Code example (HAPI) int main(int argc, char* argv[]) { Any. Haptics. Device hd; HAPISurface. Object *my_surface = new Friction. Surface(); Haptic. Primitive *my_haptic_sphere = new Haptic. Primitive( new Collision: : Sphere( Vec 3( 0, 0, 0 ), 0. 05 ), my_surface ); hd. set. Haptics. Renderer( new God. Object. Renderer() ); if( hd. init. Device() != HAPIHaptics. Device: : SUCCESS ) { cerr << hd. get. Last. Error. Msg() << endl; return 0; } hd. enable. Device(); hd. add. Shape( my_haptic_sphere ); hd. transfer. Objects(); string temp_string; cerr << "Press ENTER to exit" << endl; getline( cin, temp_string );

H 3 D API

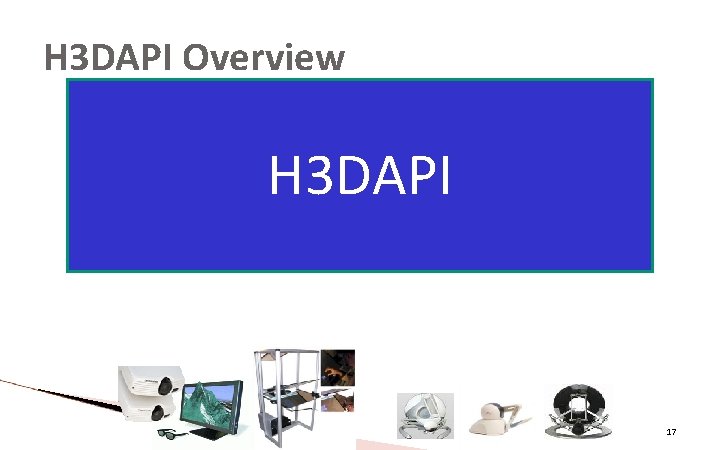

H 3 DAPI Overview H 3 DAPI 17

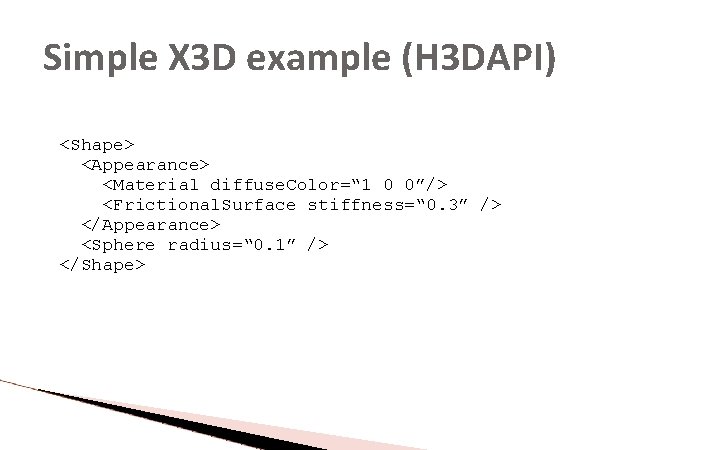

Simple X 3 D example (H 3 DAPI) <Shape> <Appearance> <Material diffuse. Color=“ 1 0 0”/> <Frictional. Surface stiffness=“ 0. 3” /> </Appearance> <Sphere radius=“ 0. 1” /> </Shape>

H 3 D API Components

More info

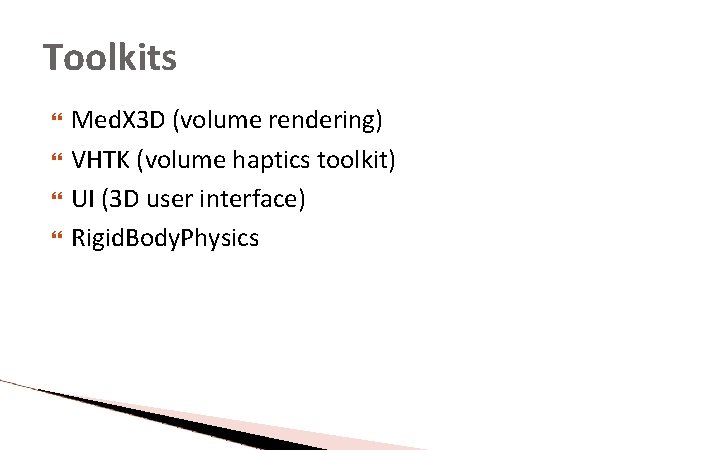

Toolkits Med. X 3 D (volume rendering) VHTK (volume haptics toolkit) UI (3 D user interface) Rigid. Body. Physics

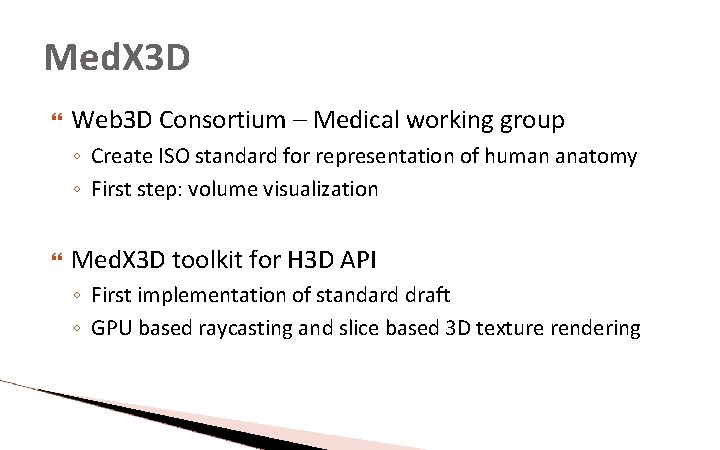

Med. X 3 D Web 3 D Consortium – Medical working group ◦ Create ISO standard for representation of human anatomy ◦ First step: volume visualization Med. X 3 D toolkit for H 3 D API ◦ First implementation of standard draft ◦ GPU based raycasting and slice based 3 D texture rendering

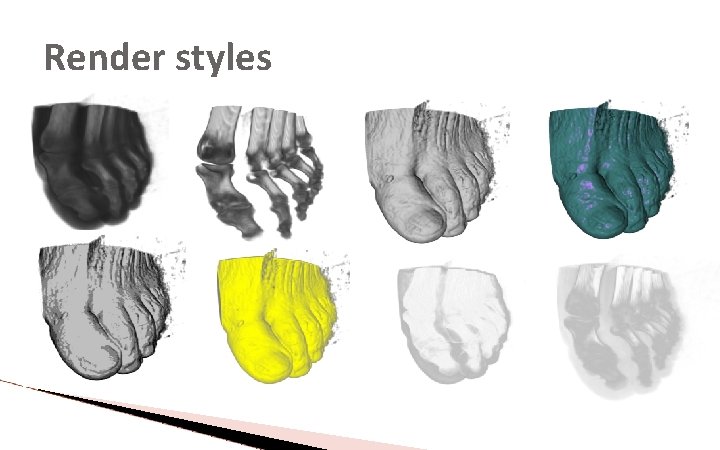

Render styles

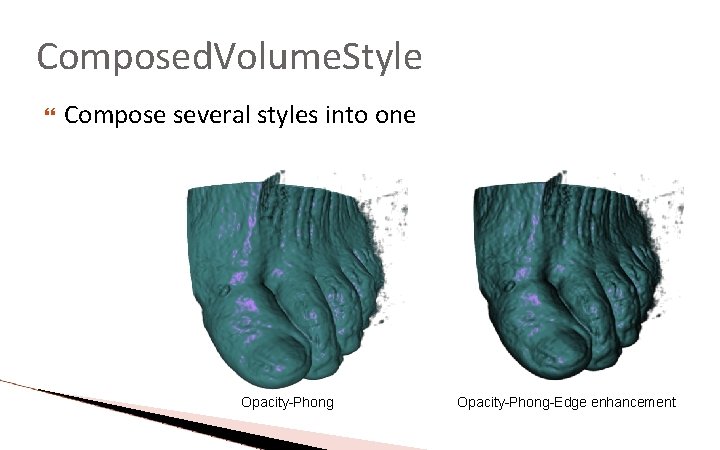

Composed. Volume. Style Compose several styles into one Opacity-Phong-Edge enhancement

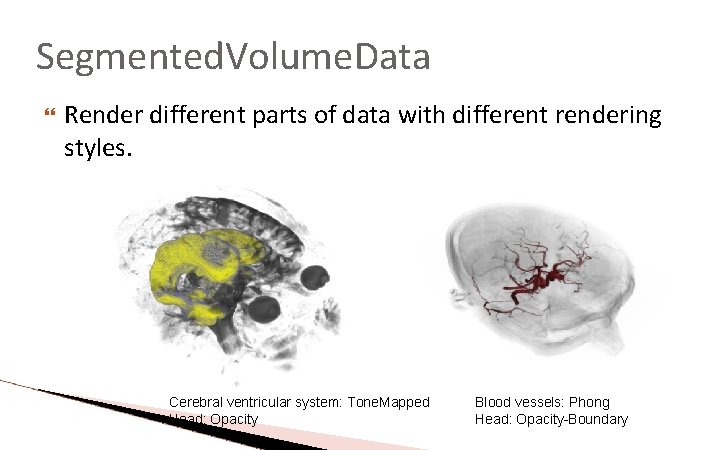

Segmented. Volume. Data Render different parts of data with different rendering styles. Cerebral ventricular system: Tone. Mapped Head: Opacity Blood vessels: Phong Head: Opacity-Boundary

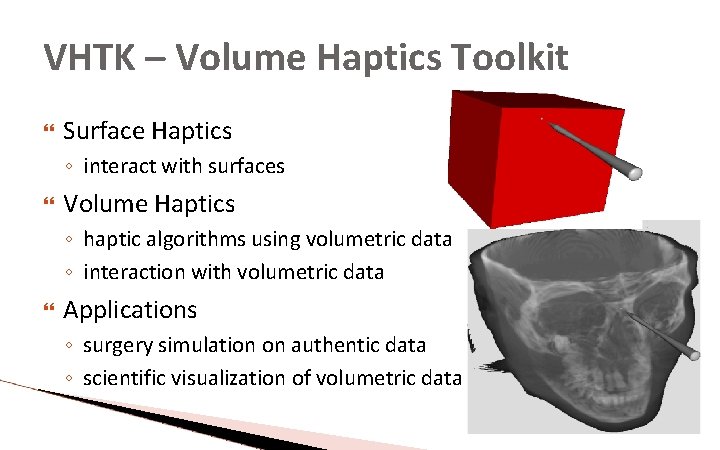

VHTK – Volume Haptics Toolkit Surface Haptics ◦ interact with surfaces Volume Haptics ◦ haptic algorithms using volumetric data ◦ interaction with volumetric data Applications ◦ surgery simulation on authentic data ◦ scientific visualization of volumetric data

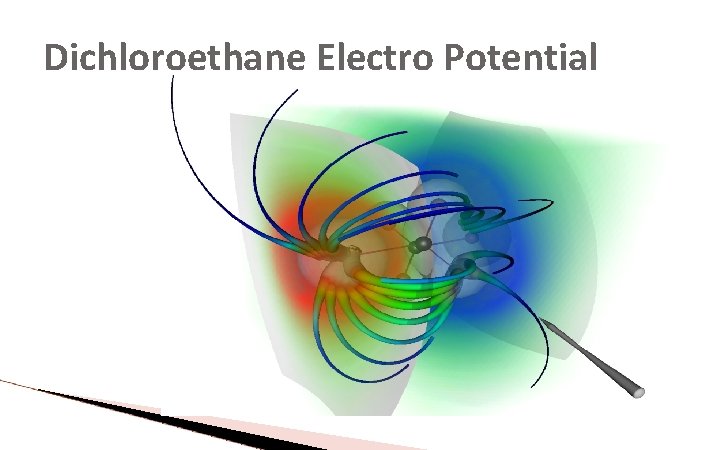

Dichloroethane Electro Potential

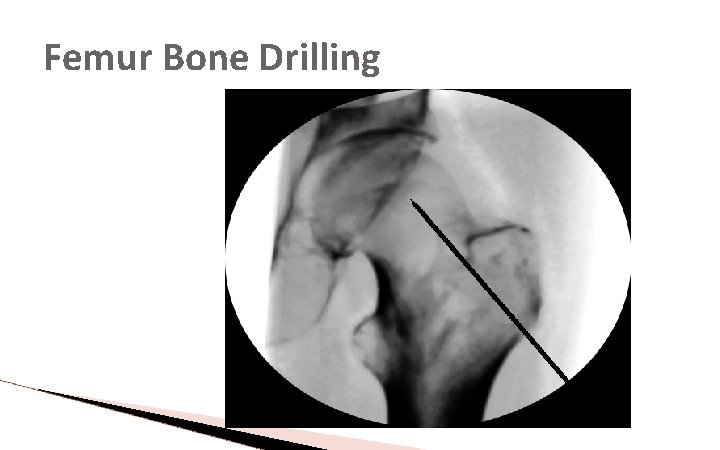

Femur Bone Drilling

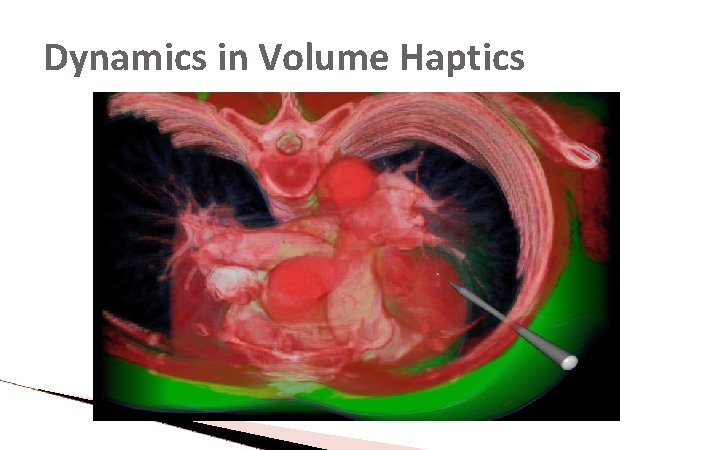

Dynamics in Volume Haptics

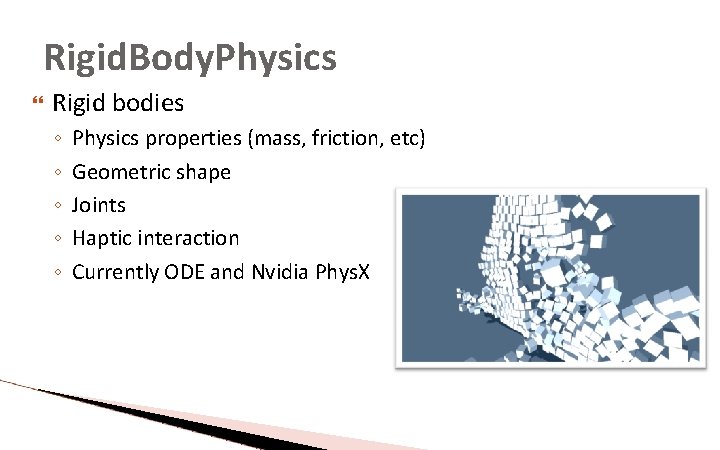

Rigid. Body. Physics Rigid bodies ◦ ◦ ◦ Physics properties (mass, friction, etc) Geometric shape Joints Haptic interaction Currently ODE and Nvidia Phys. X

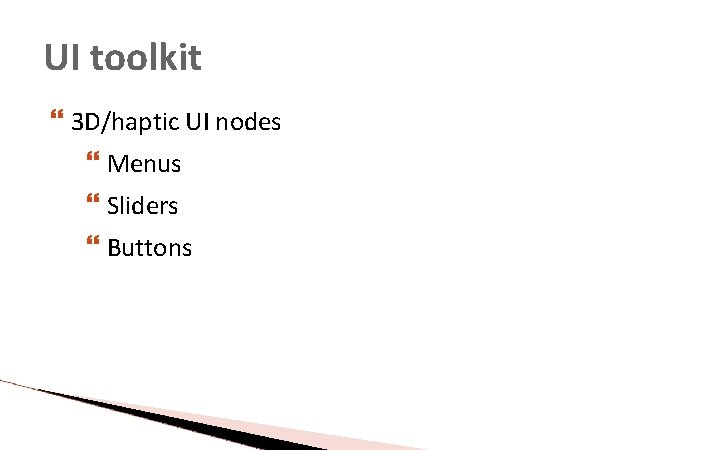

UI toolkit 3 D/haptic UI nodes Menus Sliders Buttons

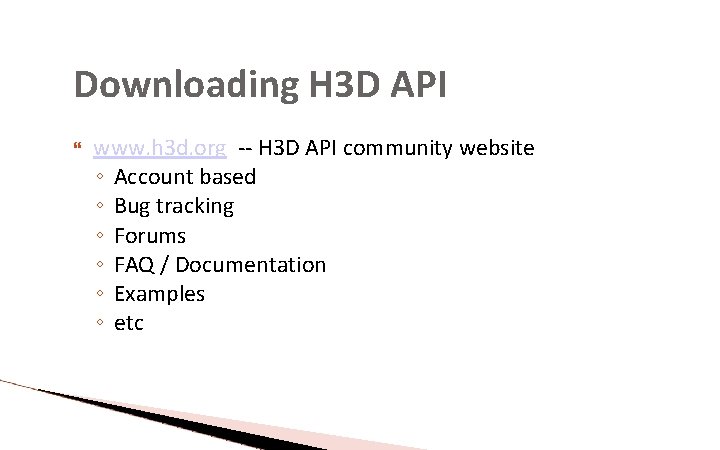

Downloading H 3 D API www. h 3 d. org -- H 3 D API community website ◦ Account based ◦ Bug tracking ◦ Forums ◦ FAQ / Documentation ◦ Examples ◦ etc
