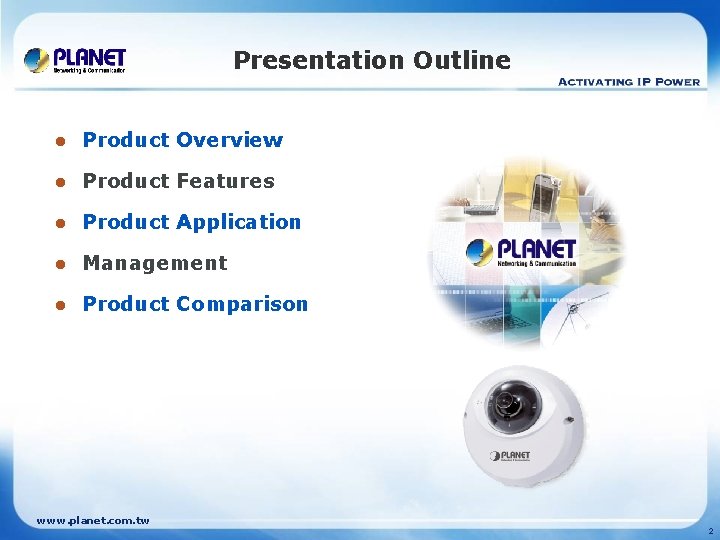

Presentation Outline l Product Overview l Product Features l Product Application l Management l Product Comparison www. planet. com. tw 2

Product Overview l Up View of ICA-HM 131 / ICA-HM 131 R Tilt Fixed Screw Lens Reset Button Microphone Focus Fixed Screw www. planet. com. tw 3

Product Overview l Side View of ICA-HM 131 / ICA-HM 131 R RJ-45 LAN Socket Micro-SD Card slot www. planet. com. tw 4

Product Features H. 264 Full-HD Fixed Dome IP Camera § 1/2. 7” progressive CMOS § H. 264 / M-JPEG video compression § 1080 p Full-HD resolution (1920 x 1080 pixels) § 30 fps at 1080 p Video Resolution (ICA-HM 131 R) § 3 GPP for 3 G mobile remote applications § Compliant with IEEE 802. 3 af standard Po. E interface § Built-in Microphone for One-Way Audio § Supports Micro-SD card storage § Cam Viewer 3 - Central management software supported www. planet. com. tw 5

Management l View Video & Administration Advanced Management View Screen Video Format Snapshot Video Information View Size www. planet. com. tw 6

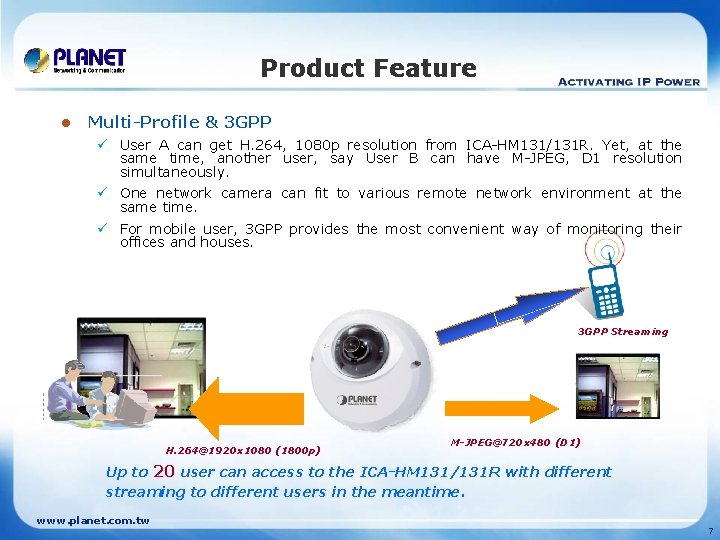

Product Feature l Multi-Profile & 3 GPP ü User A can get H. 264, 1080 p resolution from ICA-HM 131/131 R. Yet, at the same time, another user, say User B can have M-JPEG, D 1 resolution simultaneously. ü One network camera can fit to various remote network environment at the same time. ü For mobile user, 3 GPP provides the most convenient way of monitoring their offices and houses. 3 GPP Streaming H. 264@1920 x 1080 (1800 p) M-JPEG@720 x 480 (D 1) Up to 20 user can access to the ICA-HM 131/131 R with different streaming to different users in the meantime. www. planet. com. tw 7

Product Feature l Power over Ethernet ü IEEEE 802. 3 af support makes the camera can be installed anywhere without the need for additional power socket for the IP camera. Po. E Switch Compliant with IEEE 802. 3 af standard Po. E interface. It can assist in locating cameras in places where there are no power outlets. www. planet. com. tw 8

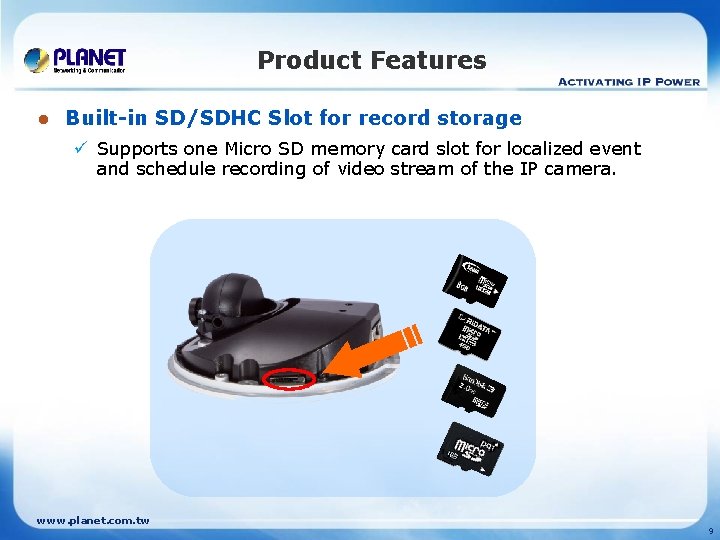

Product Features l Built-in SD/SDHC Slot for record storage ü Supports one Micro SD memory card slot for localized event and schedule recording of video stream of the IP camera. www. planet. com. tw 9

Product Features l 10 motion detection areas / Trigger § With the support for motion detection, once there is any moving activity in the specified area, the camera can soon send a message to the manager by Email or upload recording/picture onto FTP or NAS server. 1. ) E-mail 2. ) FTP 3. ) NAS 4. ) SD card www. planet. com. tw 10

Product Application l Provide various surveillance applications 1080 p Full-HD Less dead Spot IEEE 802. 3 af Power Over Ethernet Cam Viewer 3 Central Management 3 GPP Service Mobile Surveillance Makes installation easier byon allowing the use of a single cable to Camera can be accessed a 3 G mobile network using. Ethernet a compatible power thephone camera mobile or PDA with a 3 G video player www. planet. com. tw 11

Product Comparison PLANET ICA-HM 131 / HM 131 R PLANET ICA-HM 130 1/2. 7" CMOS 1/4" CMOS Full-HD (2. 07 mega) 1. 3 Mega 4. 0 mm, F 1. 5 4. 3 mm, F 1. 8 H: 47 Degree / V: 36 Degree H: 48 Degree / V: 37 Degree Sensibility (Lux) 0. 2 lux (color) 0. 02 lux (B/W) 1. 0 Lux Image Compression H. 264 / M-JPEG H. 264 / MPEG-4 / M-JPEG 1920 x 1080 1280 x 1024 15 / 30 15 Po. E V V Save-to-NAS (SAMBA) V V 3 GPP V V Audio In / Out - V RS-485 / DIDO - V Built-in Microphone V - Micro SD/SDHC - Model Features Sensor size in mega pixel Lens View Angle Max resolution Max frame Storage www. planet. com. tw 12

Product Comparison PLANET ICA-HM 131/131 R AXIS 209 MFD-S ACTi ACM-3701 Sensor 1/2. 7" CMOS 1/3" CMOS Sensor size in mega pixel Full-HD (2. 07 Mega) 1. 3 Mpeg 1. 3 Mega Lens 4. 0 mm, F 1. 5 3. 6 mm, F 1. 8 Sensibility (Lux) 0. 2 lux (color) 0. 02 lux (B/W) 3. 0 lux 0. 5 lux Image Compression H. 264 / M-JPEG MPEG-4 / M-JPEG 1920 x 1080 1280 x 1024 15 / 30 8 8 Save-to-NAS (SAMBA) V - - Po. E V V V 3 GPP V - V Built-in Microphone V - - Micro SD/SDHC - - Model Features Max resolution Max frame Storage www. planet. com. tw 13

www. planet. com. tw

Appendix Sales Target l Target Markets § System Integrator § Reseller l Target Customers § Who buy our Fixed Dome IP Camera ü ICA-HM 130 www. planet. com. tw 15

Appendix • Related Products: n PLANET Po. E Switch SGSW-2840 P ü SGSD-1022 P ü SGSW-2840 P SGSD-1022 P ü FGSW-2620 PVM ü FSD-804 P ü GSD-802 PS FGSW-2620 PVM ü POE-E 101 ü POE-1200 G GSD-802 PS FSD-804 P www. planet. com. tw 16
