GY 111 L Physical Geology Lab Faulted Strata

GY 111 L Physical Geology Lab Faulted Strata Lab

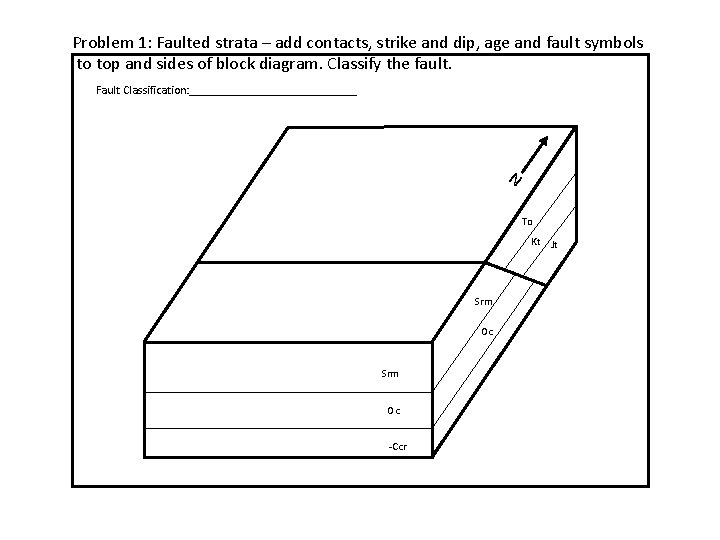

Problem 1: Faulted strata – add contacts, strike and dip, age and fault symbols to top and sides of block diagram. Classify the fault. Fault Classification: ______________ N To Kt Jt Srm Oc -Ccr

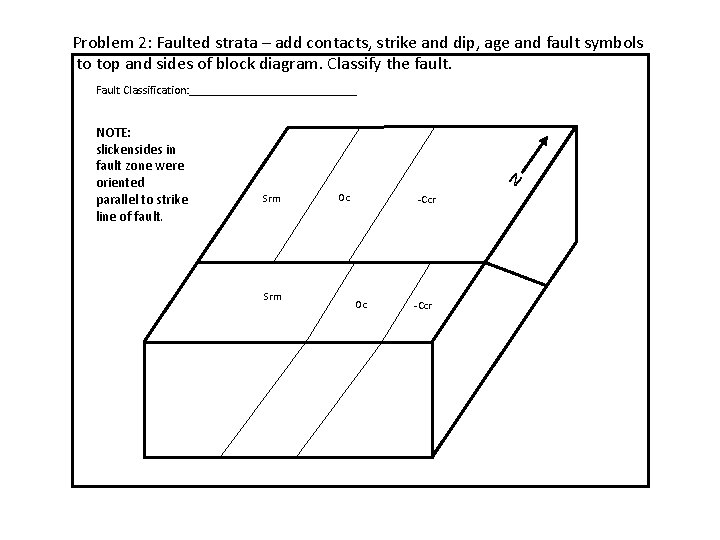

Problem 2: Faulted strata – add contacts, strike and dip, age and fault symbols to top and sides of block diagram. Classify the fault. Fault Classification: ______________ NOTE: slickensides in fault zone were oriented parallel to strike line of fault. N Srm Oc -Ccr

Problem 3: Faulted strata – add contacts, strike and dip, age and fault symbols to top and sides of block diagram. Classify the fault. Fault Classification: ______________ NOTE: slickensides in fault zone were oriented parallel to dip line of fault. N Srm Oc -Ccr

Problem 4: Faulted strata – add contacts, strike and dip, age and fault symbols to top and sides of block diagram. Classify the fault. Fault Classification: ______________ N Tra Ka To Jp Tra |Pa Pp Pp Jp Ka Qi

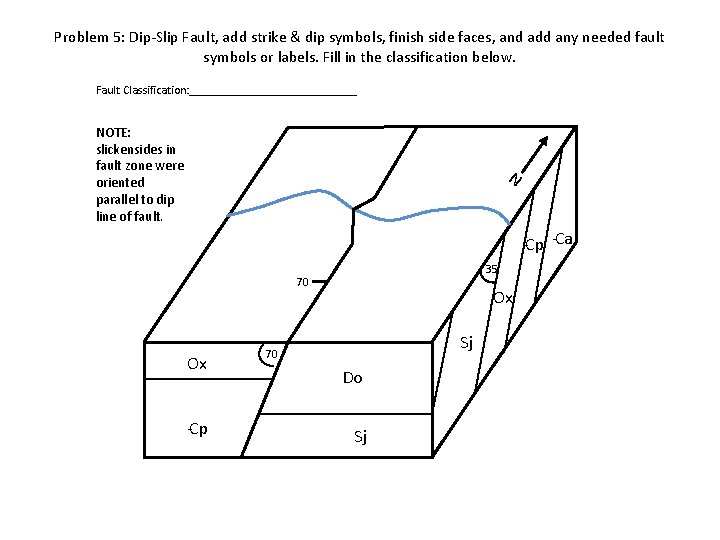

Problem 5: Dip-Slip Fault, add strike & dip symbols, finish side faces, and add any needed fault symbols or labels. Fill in the classification below. Fault Classification: ______________ NOTE: slickensides in fault zone were oriented parallel to dip line of fault. N -Cp -Ca 35 70 Ox -Cp Ox Sj 70 Do Sj
