Guidelines for Waterway Signs and Marking Resolution No

Guidelines for Waterway Signs and Marking (Resolution No. 59) – Amendments' proposal • • SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011

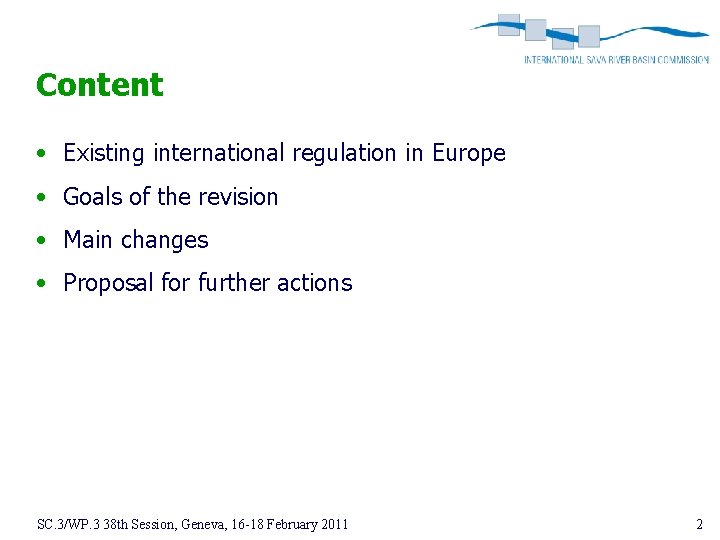

Content • Existing international regulation in Europe • Goals of the revision • Main changes • Proposal for further actions SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 2

Existing international regulations in Europe • UNECE Resolution 59 – Guidelines for waterway Signs and Marking, 2006 • Instruction on posting of the waterway signs on the Danube, 2006 • Rules for waterway marking on the Sava River Basin, 2007 • Any other? ? ? ? ? SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 3

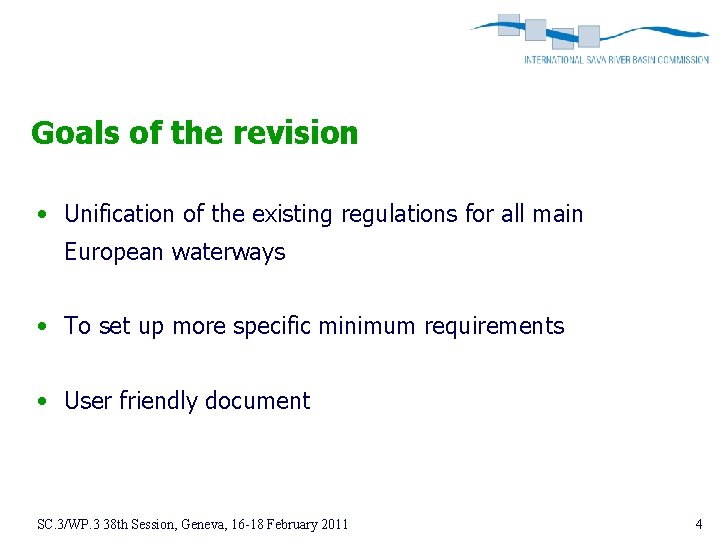

Goals of the revision • Unification of the existing regulations for all main European waterways • To set up more specific minimum requirements • User friendly document SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 4

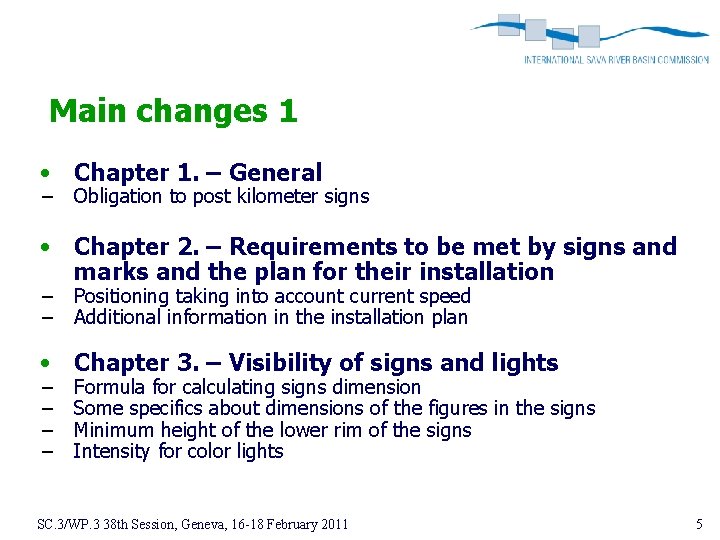

Main changes 1 • Chapter 1. – General − Obligation to post kilometer signs • Chapter 2. – Requirements to be met by signs and marks and the plan for their installation − Positioning taking into account current speed − Additional information in the installation plan • Chapter 3. – Visibility of signs and lights − − Formula for calculating signs dimension Some specifics about dimensions of the figures in the signs Minimum height of the lower rim of the signs Intensity for color lights SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 5

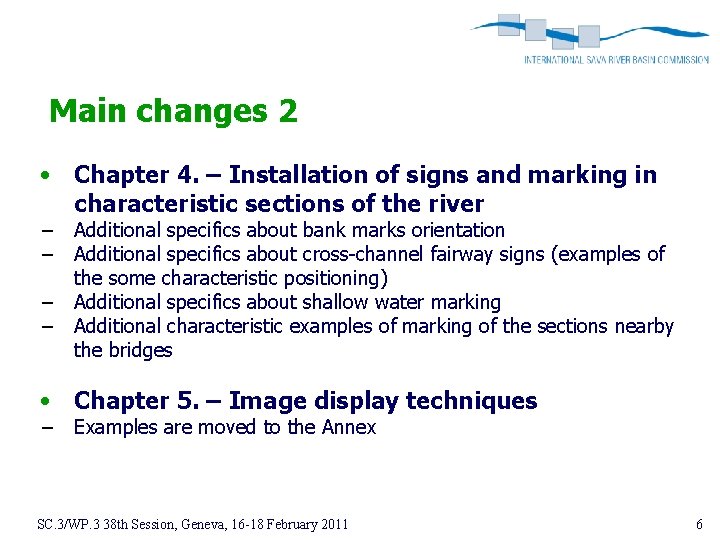

Main changes 2 • Chapter 4. – Installation of signs and marking in characteristic sections of the river − Additional specifics about bank marks orientation − Additional specifics about cross-channel fairway signs (examples of the some characteristic positioning) − Additional specifics about shallow water marking − Additional characteristic examples of marking of the sections nearby the bridges • Chapter 5. – Image display techniques − Examples are moved to the Annex SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 6

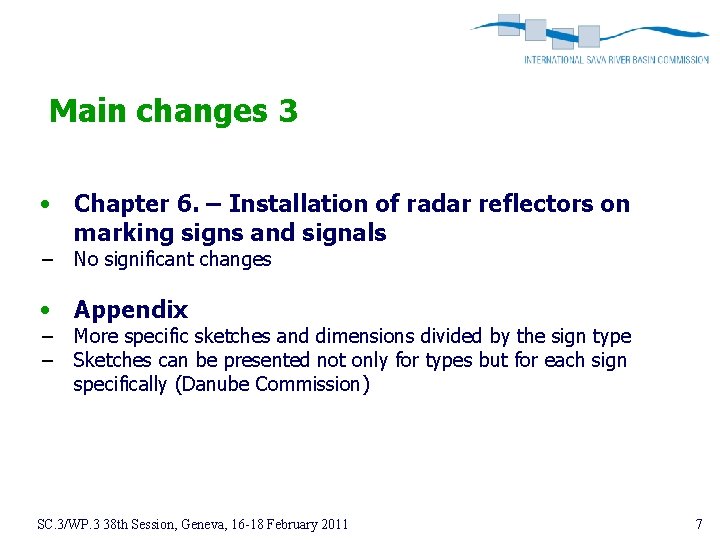

Main changes 3 • Chapter 6. – Installation of radar reflectors on marking signs and signals − No significant changes • Appendix − More specific sketches and dimensions divided by the sign type − Sketches can be presented not only for types but for each sign specifically (Danube Commission) SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 7

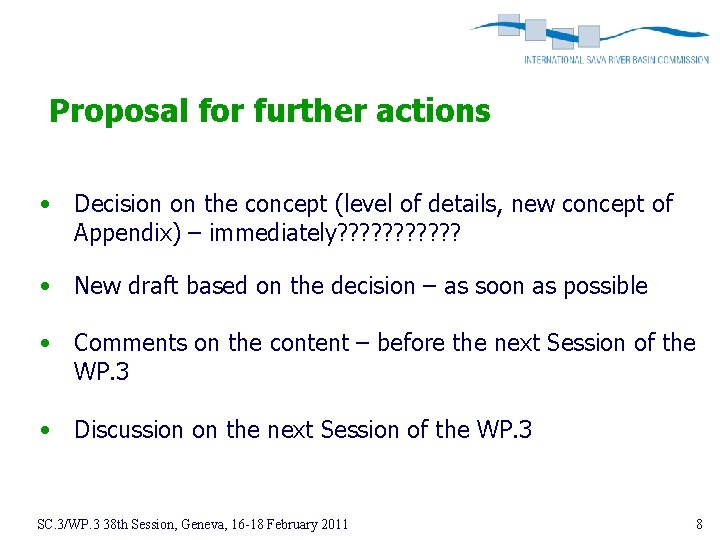

Proposal for further actions • Decision on the concept (level of details, new concept of Appendix) – immediately? ? ? • New draft based on the decision – as soon as possible • Comments on the content – before the next Session of the WP. 3 • Discussion on the next Session of the WP. 3 SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 8

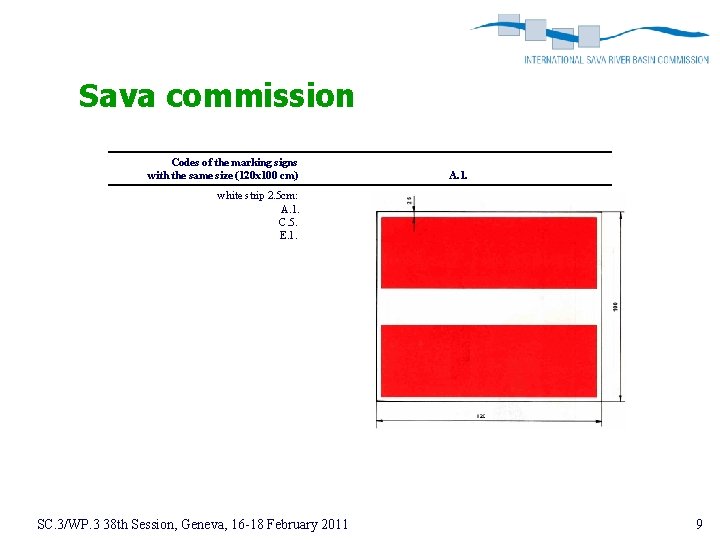

Sava commission Codes of the marking signs with the same size (120 x 100 cm) A. 1. white strip 2. 5 cm: A. 1. C. 5. E. 1. SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 9

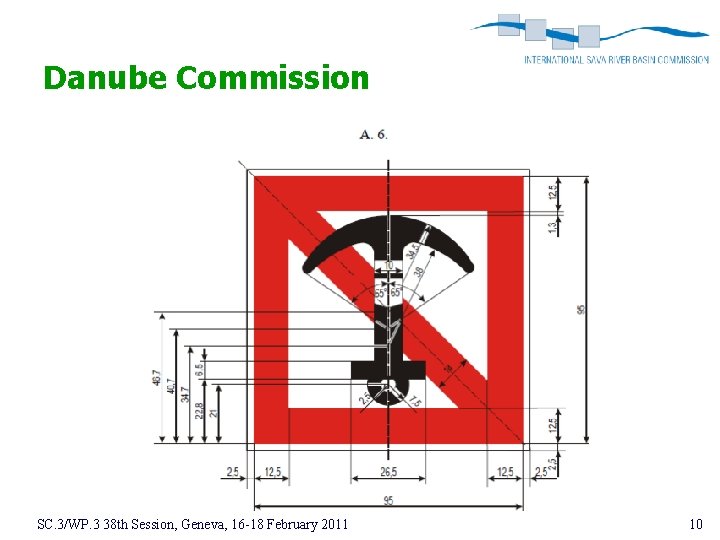

Danube Commission SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 10

Thank you for your attention!!! Željko Milković SC. 3/WP. 3 38 th Session, Geneva, 16 -18 February 2011 11
