Guide to using Strucad’s drawing viewer Provided By Network Drafting Service Pty Ltd

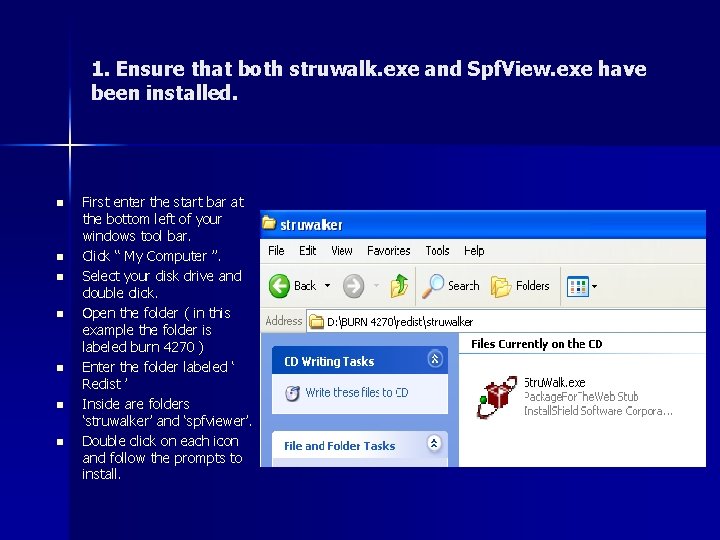

1. Ensure that both struwalk. exe and Spf. View. exe have been installed. n n n n First enter the start bar at the bottom left of your windows tool bar. Click “ My Computer ”. Select your disk drive and double click. Open the folder ( in this example the folder is labeled burn 4270 ) Enter the folder labeled ‘ Redist ’ Inside are folders ‘struwalker’ and ‘spfviewer’. Double click on each icon and follow the prompts to install.

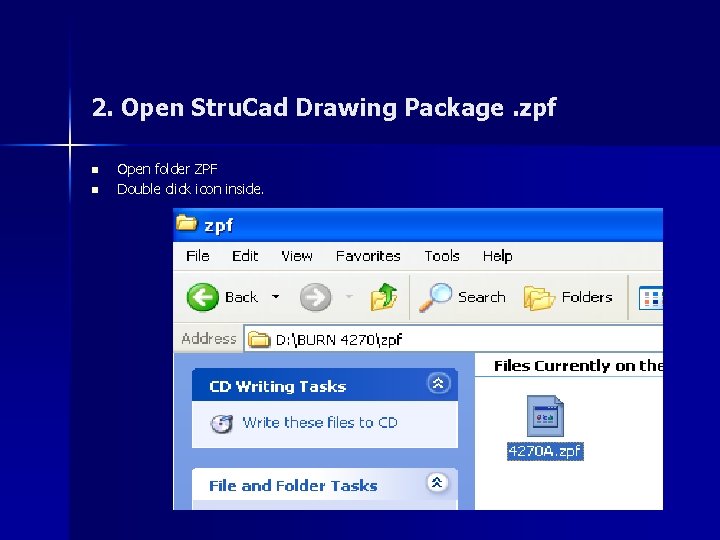

2. Open Stru. Cad Drawing Package. zpf n n Open folder ZPF Double click icon inside.

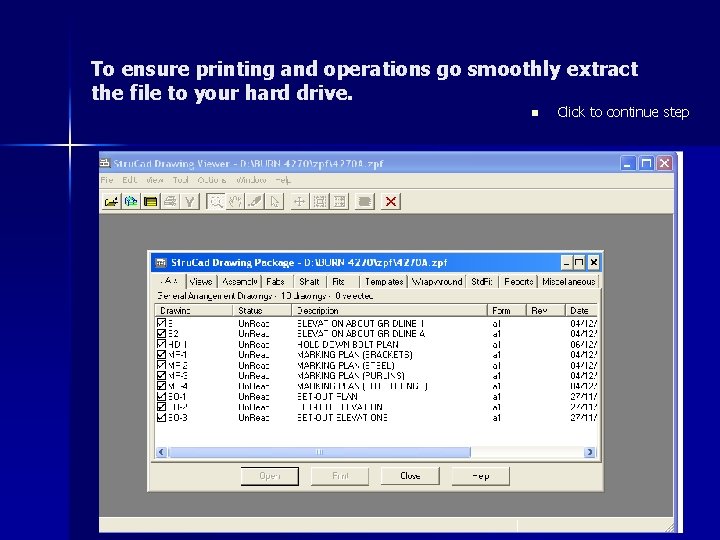

To ensure printing and operations go smoothly extract the file to your hard drive. n Click to continue step

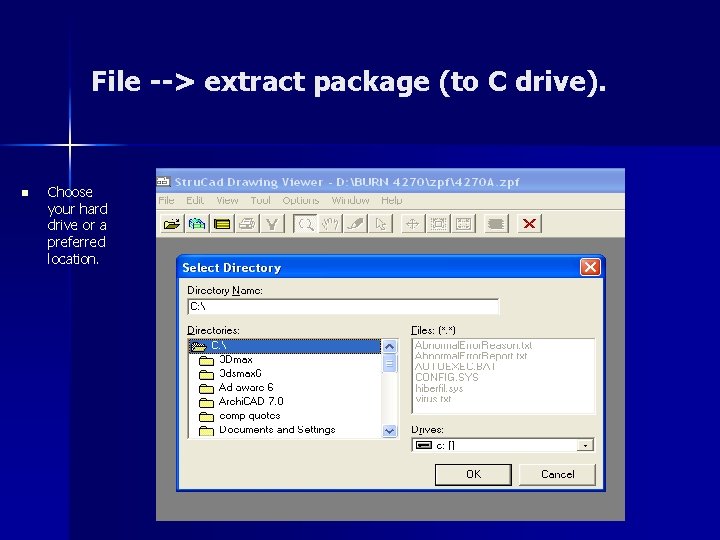

File --> extract package (to C drive). n Choose your hard drive or a preferred location.

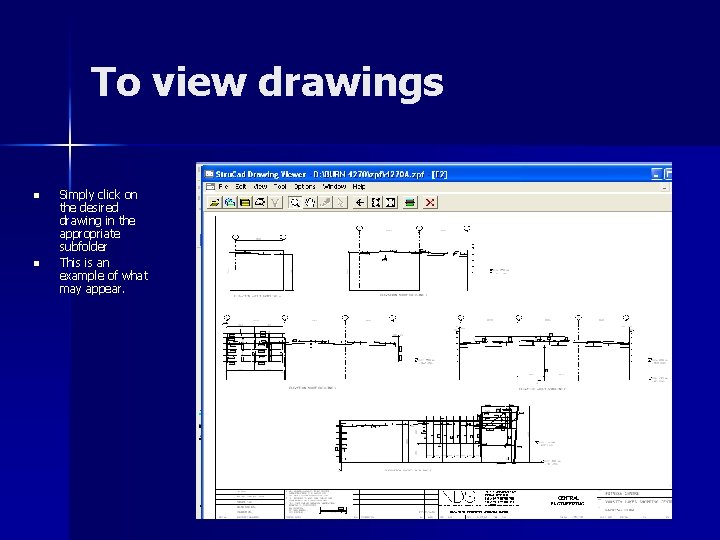

To view drawings n n Simply click on the desired drawing in the appropriate subfolder This is an example of what may appear.

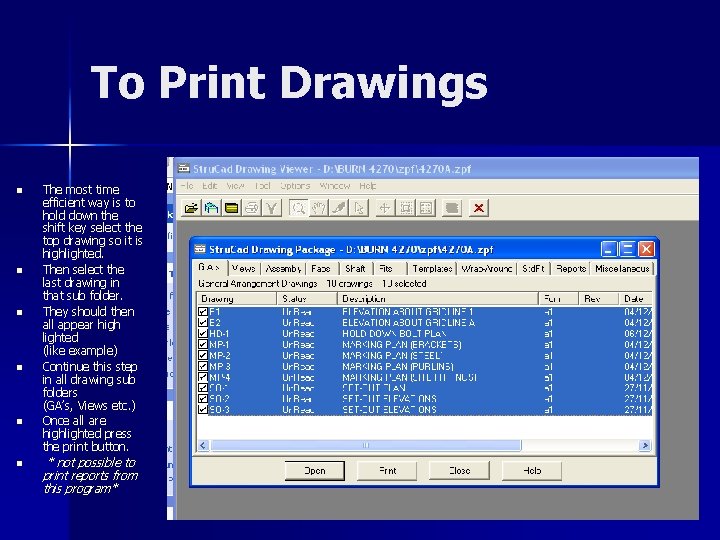

To Print Drawings n n n The most time efficient way is to hold down the shift key select the top drawing so it is highlighted. Then select the last drawing in that sub folder. They should then all appear high lighted (like example) Continue this step in all drawing sub folders (GA’s, Views etc. ) Once all are highlighted press the print button. * not possible to print reports from this program*
