Guide to Using Minitab 14 For Basic Statistical Applications To Accompany Business Statistics: A Decision Making Approach, 8 th Ed. Chapter 2: Graphs, Charts and Tables - Describing Your Data By Groebner, Shannon, Fry, & Smith Prentice-Hall Publishing Company Copyright, 2011

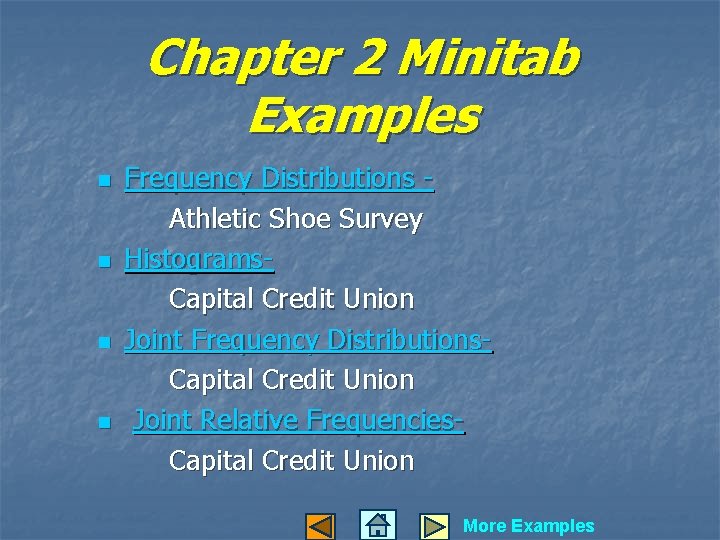

Chapter 2 Minitab Examples n n Frequency Distributions Athletic Shoe Survey Histograms. Capital Credit Union Joint Frequency Distributions. Capital Credit Union Joint Relative Frequencies. Capital Credit Union More Examples
Chapter 2 Minitab Examples (continued) ® Bar Charts. Bach, Lombard & Wilson ® Line Charts. Mc. Gregor Vineyards ® Scatter Diagrams. Personal Computers
Frequency Distributions Athletic Shoe Survey Issue: Analyze the data from a survey of 100 college students regarding the number of Nike shoes they own. Objective: Use Minitab to develop a frequency distribution for the number of Nike shoes owned by college students. Data File is Sport. Shoes. MTW
Frequency Distributions-Athletic Shoe Survey Open the Minitab file called Sportshoes. MTW The file contains 100 observations. Column C 5 contains the Number of Nike Shoes owned
Frequency Distributions-Athletic Shoe Survey Select Stat then select Tables then Tally Individual Variables

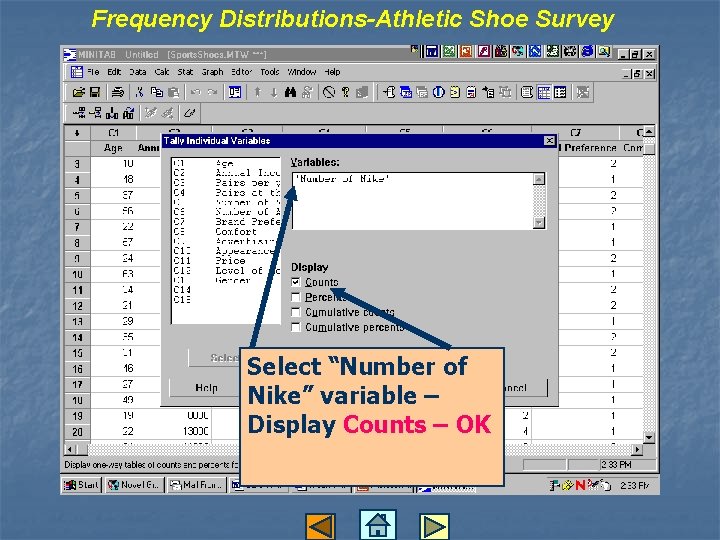

Frequency Distributions-Athletic Shoe Survey Select “Number of Nike” variable – Display Counts – OK

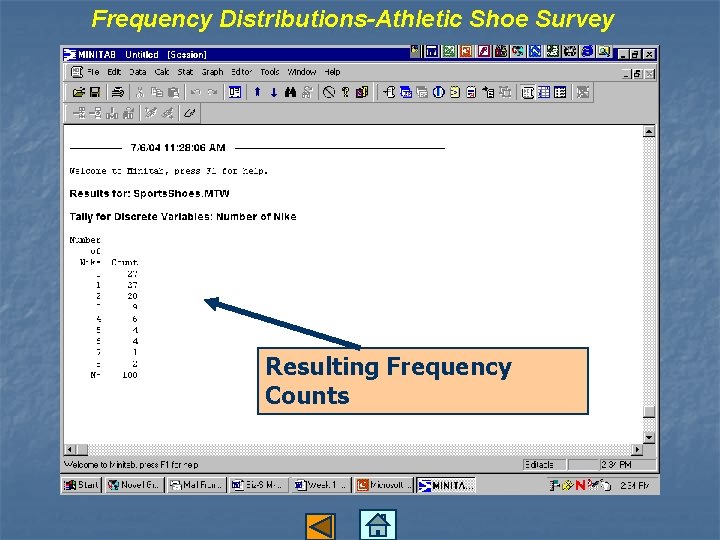

Frequency Distributions-Athletic Shoe Survey Resulting Frequency Counts

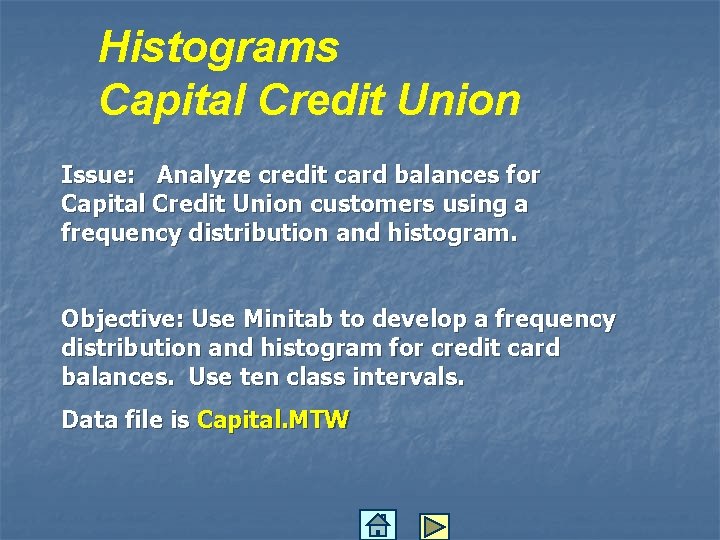

Histograms Capital Credit Union Issue: Analyze credit card balances for Capital Credit Union customers using a frequency distribution and histogram. Objective: Use Minitab to develop a frequency distribution and histogram for credit card balances. Use ten class intervals. Data file is Capital. MTW

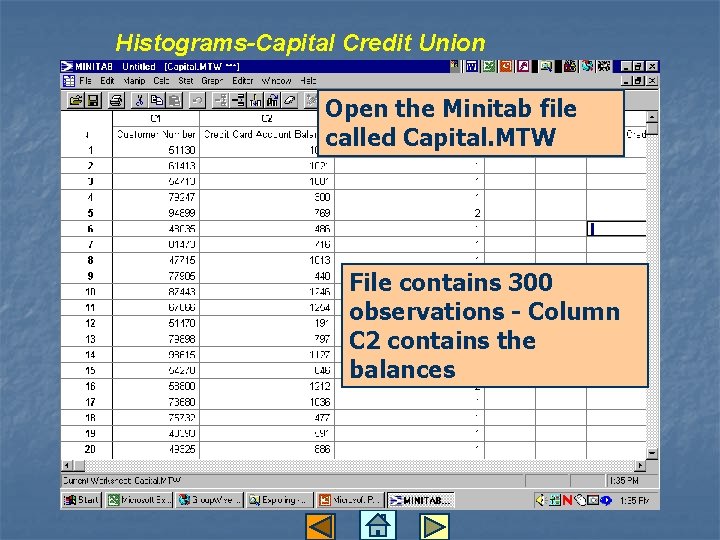

Histograms-Capital Credit Union Open the Minitab file called Capital. MTW File contains 300 observations - Column C 2 contains the balances

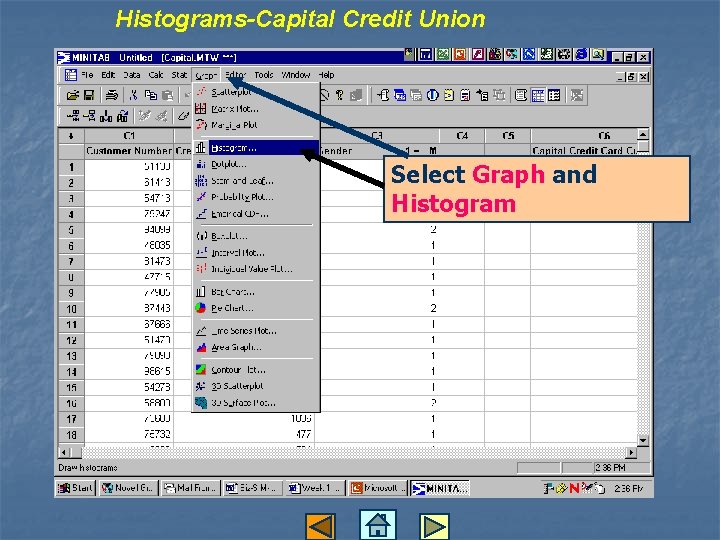

Histograms-Capital Credit Union Select Graph and Histogram
Histograms-Capital Credit Union Click Simple - OK
Histograms-Capital Credit Union Select variable to be graphed - OK
Histograms-Capital Credit Union Completed Histogram

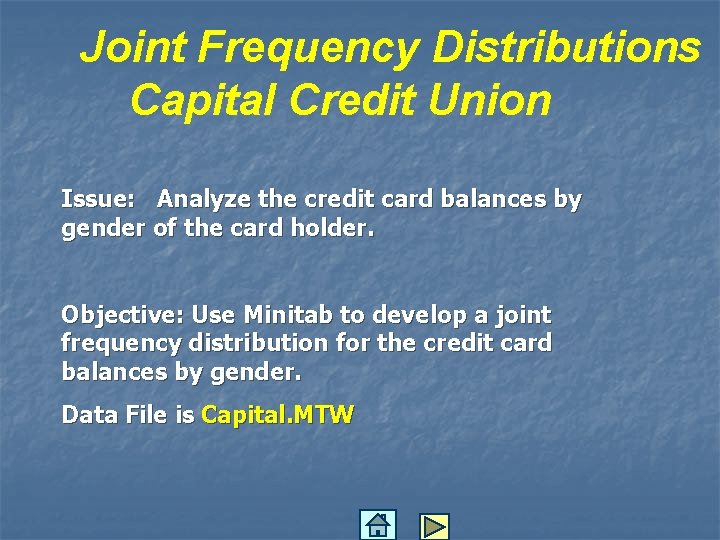

Joint Frequency Distributions Capital Credit Union Issue: Analyze the credit card balances by gender of the card holder. Objective: Use Minitab to develop a joint frequency distribution for the credit card balances by gender. Data File is Capital. MTW
Joint Frequency Distributions-Capital Credit Union Open the Minitab file called Capital. MTW File contains 300 observations - Column C 2 contains the balances, Column C 3 contains the gender code
Joint Frequency Distributions-Capital Credit Union First, organize the Credit balances into groups (see Example 2 -5) Select Data – Code – Numeric to Text
Joint Frequency Distributions-Capital Credit Union Identify variable to be Recoded – indicate where to store new variable Minitab only codes 8 classes at a time. Code the first 8 classes; then code the remaining classes Click OK

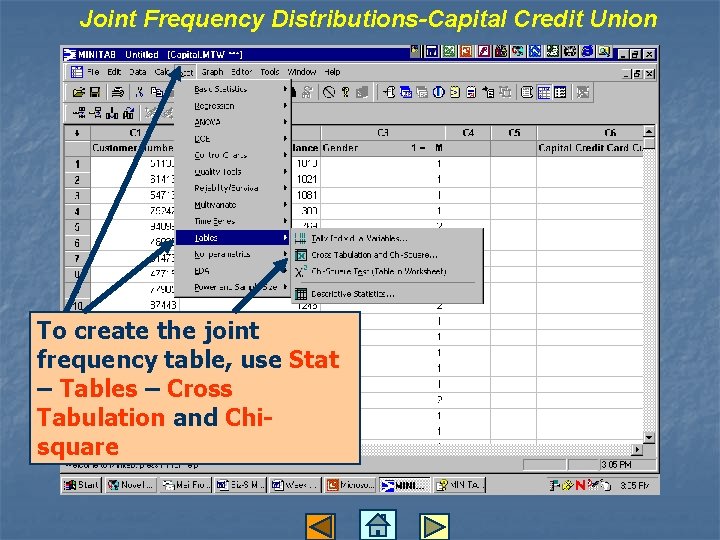

Joint Frequency Distributions-Capital Credit Union To create the joint frequency table, use Stat – Tables – Cross Tabulation and Chisquare

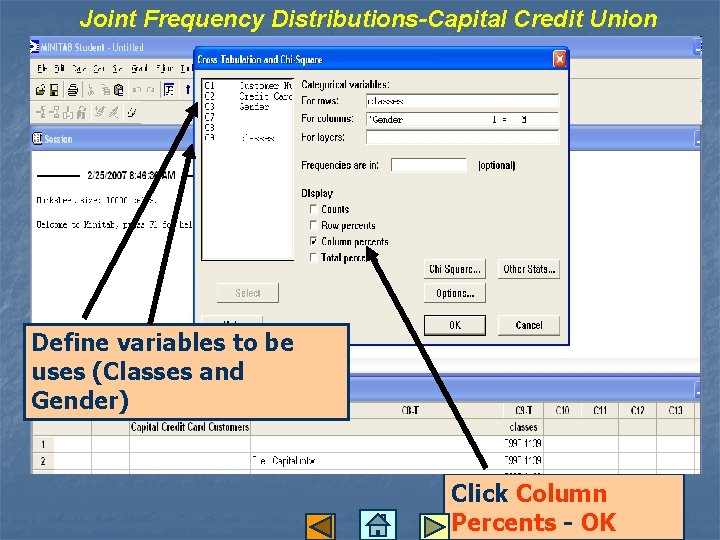

Joint Frequency Distributions-Capital Credit Union Define variables to be uses (Classes and Gender) Click Column Percents - OK

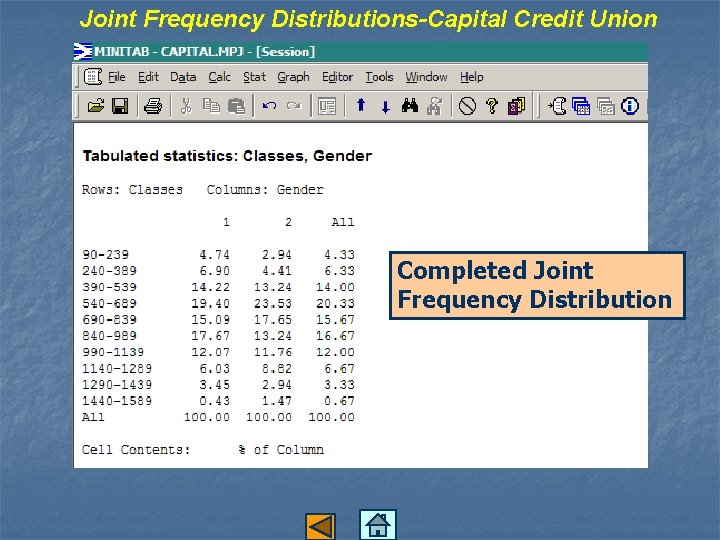

Joint Frequency Distributions-Capital Credit Union Completed Joint Frequency Distribution
Bar Charts Bach, Lombard, & Wilson Issue: An electronics company is being sued on the grounds that female new hires are paid less than male new hires. The law firm needs to analyze salary data to prepare the case. Objective: Use Minitab to develop bar charts for the starting salary data for males and females. Data File is Bach. MTW
Bar Charts-Bach, Lombard & Wilson Open the Minitab file called Bach. MTW
Bar Charts-Bach, Lombard & Wilson Must Rearrange the data. Select Data - Stack Columns
Bar Charts-Bach, Lombard & Wilson Select Variables – Identify New Column Name – and Column for category labels OK

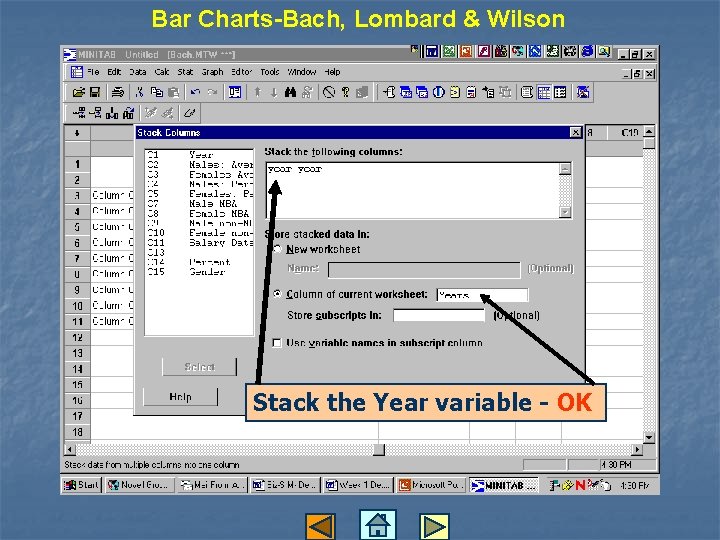

Bar Charts-Bach, Lombard & Wilson Stack the Year variable - OK

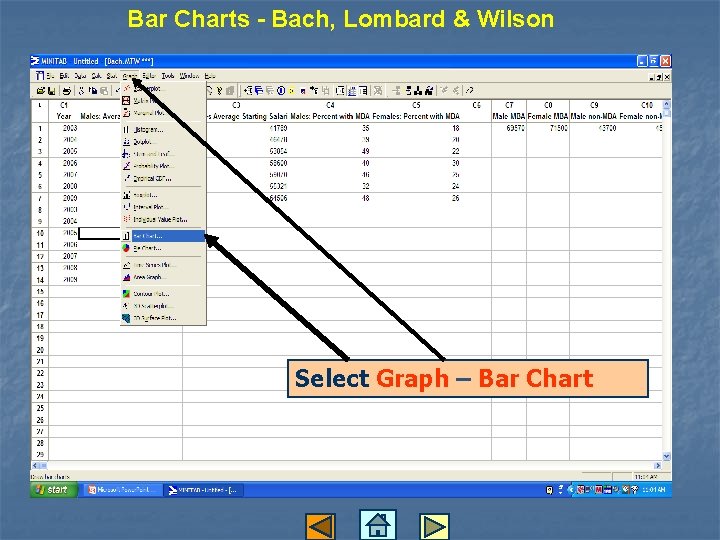

Bar Charts - Bach, Lombard & Wilson Select Graph – Bar Chart

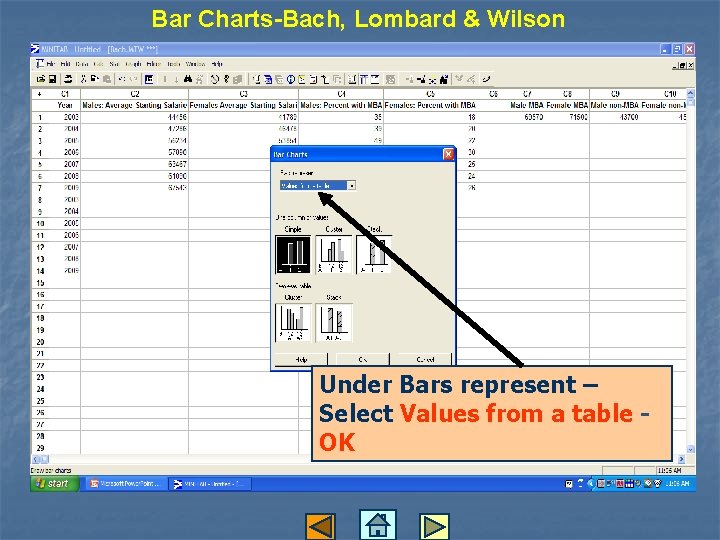

Bar Charts-Bach, Lombard & Wilson Under Bars represent – Select Values from a table OK

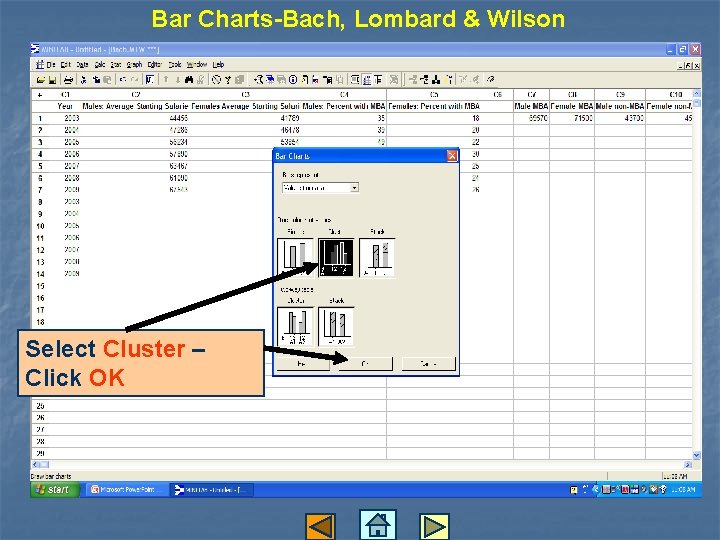

Bar Charts-Bach, Lombard & Wilson Select Cluster – Click OK

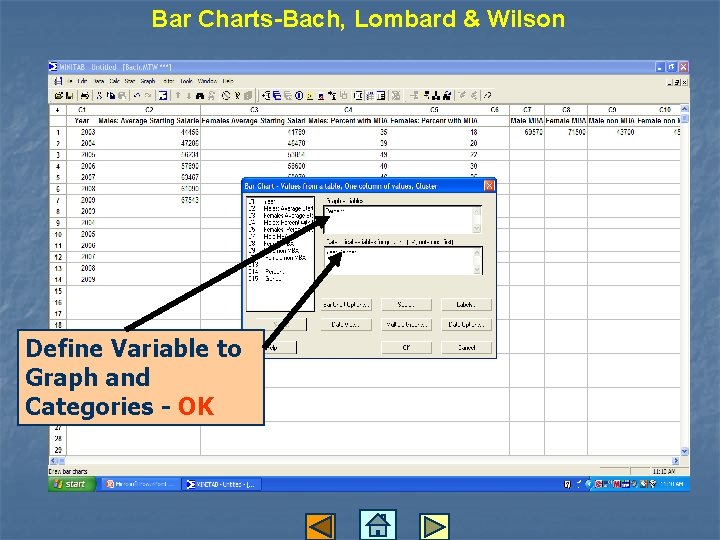

Bar Charts-Bach, Lombard & Wilson Define Variable to Graph and Categories - OK

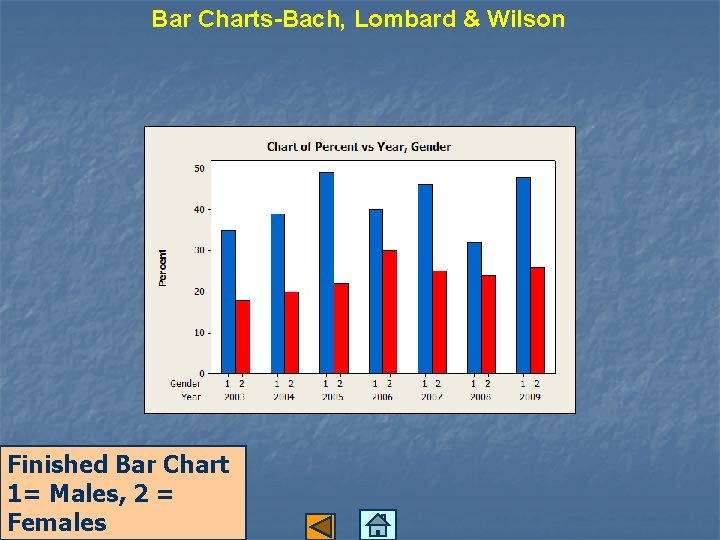

Bar Charts-Bach, Lombard & Wilson Finished Bar Chart 1= Males, 2 = Females

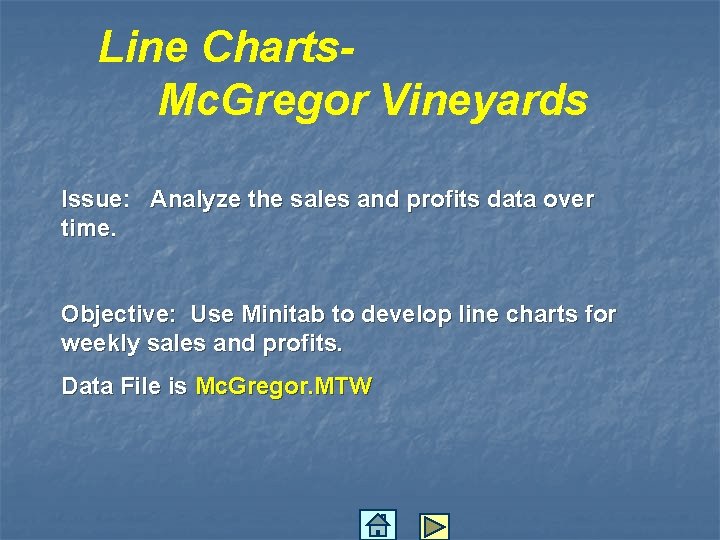

Line Charts. Mc. Gregor Vineyards Issue: Analyze the sales and profits data over time. Objective: Use Minitab to develop line charts for weekly sales and profits. Data File is Mc. Gregor. MTW
Line Charts-Mc. Gregor Vineyards Open the Minitab file called Mc. Gregor. MTW File contains 20 weeks of historic data

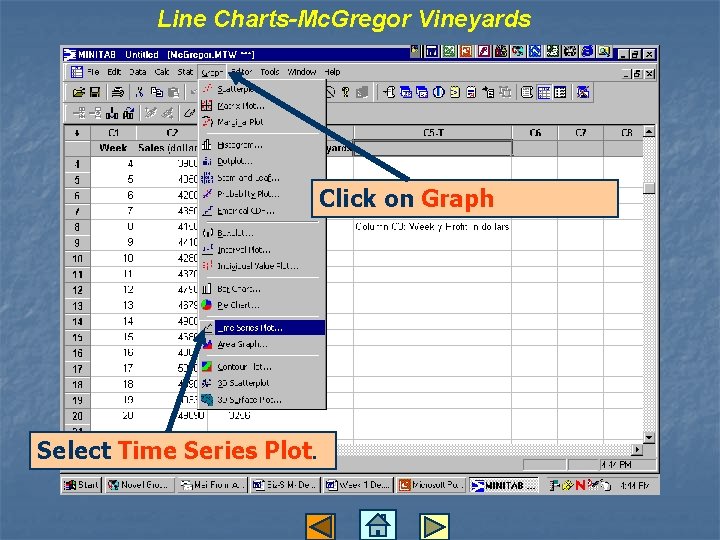

Line Charts-Mc. Gregor Vineyards Click on Graph Select Time Series Plot.
Line Charts-Mc. Gregor Vineyards Select Simple OK
Line Charts-Mc. Gregor Vineyards Define Variables to be Graphed – Select Multiple Graphs
Line Charts-Mc. Gregor Vineyards Define Output Option – Click OK - OK

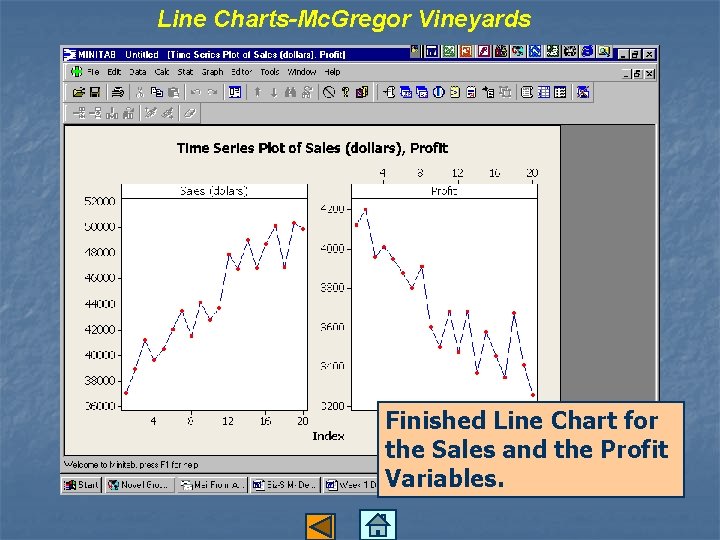

Line Charts-Mc. Gregor Vineyards Finished Line Chart for the Sales and the Profit Variables.

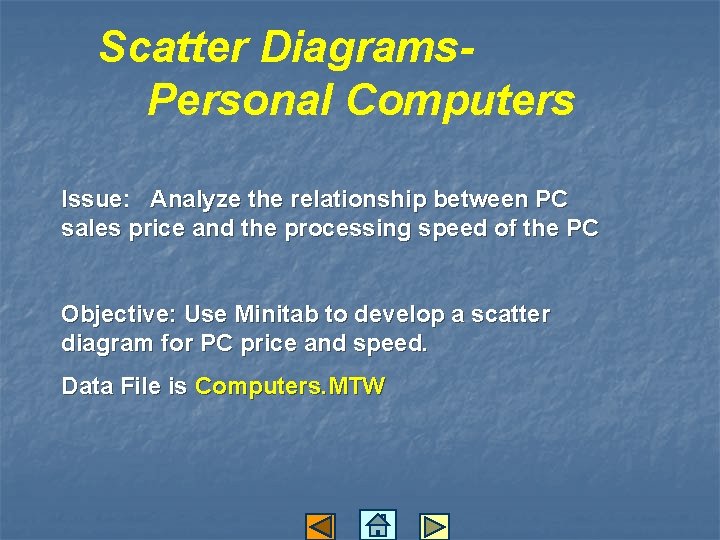

Scatter Diagrams. Personal Computers Issue: Analyze the relationship between PC sales price and the processing speed of the PC Objective: Use Minitab to develop a scatter diagram for PC price and speed. Data File is Computers. MTW
Scatter Diagrams- Personal Computers Open the Minitab file called Computers. MTW File contains data for 36 PC’s

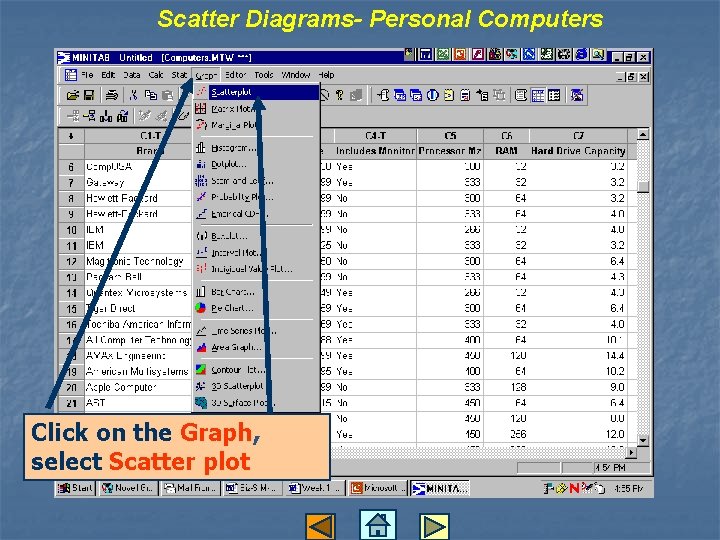

Scatter Diagrams- Personal Computers Click on the Graph, select Scatter plot

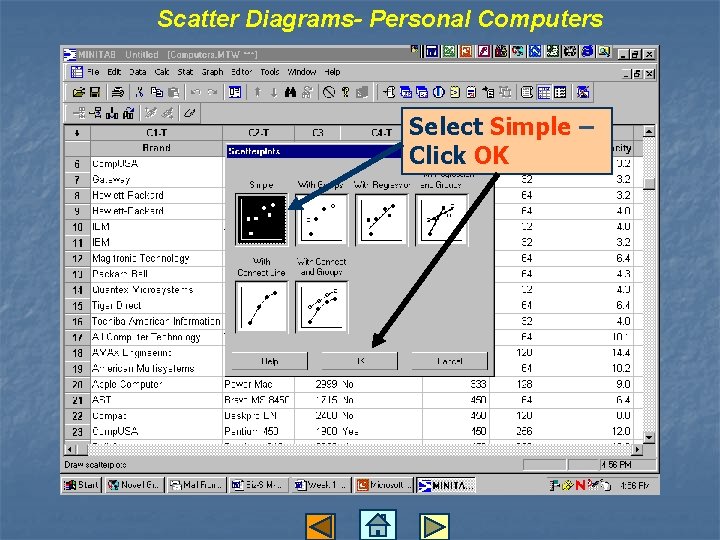

Scatter Diagrams- Personal Computers Select Simple – Click OK
Scatter Diagrams- Personal Computers Define the Y and X variables Click OK
Scatter Diagrams- Personal Computers Completed Scatter Diagram
